Microsoft Biz. Talk: Application Lifecycle Management and Productivity Enhancements Stephen Kaufman Delivery Architect Microsoft Consulting Services SOA 312
How Life Used to Be How did we do things with 2006 and R 2 Remember how we used to: Test the mapper Submit a test, modify and test again Validate, save xsl, add to solution, debug Challenges
Agenda ALM Experience (phases and then capabilities) Plan Requirements Management Project Management Develop Visual Studio Environment for Biz. Talk Improvements in the BTS Project System TFS Integration Team Test Functionality Enhanced Debugging Support MSBuild Operate/Monitor
Session Objectives and Takeaways Describe the new developer and team productivity features Describe the ALM experience Demonstrate real world examples for debugging, MSBuild integration and unit testing. Questions as they occur…
Biz. Talk Server 2009 Themes Updated Platform Support for. NET Framework 3. 5 SP 1 and Visual Studio 2008 SP 1 Take advantages of the latest developer tools Support for Windows Server 2008 and SQL Server 2008 Hyper-V support Increased performance & scale Business to Business Integration New Mobile RFID Platform New RFID device management and industry standards support Enhanced Support for EDI and AS 2 Protocols and Drummond certification Updated SWIFT Support and SWIFTReady Financial EAI Gold certification SOA and Web Services New UDDI v 3 Web Services Registry New and enhanced LOB adapters (Oracle EBS, SQL) Enhanced host systems integration (MQ, CICS, IMS) Enhanced BAM support ESB Guidance 2. 0 delivers updated prescriptive guidance Developer & Team Productivity New Application Lifecycle Management (ALM) support Support for TFS - integrated source control, bug tracking, MSBuild automation Enhanced Developer Productivity Visual Studio project system updates
ALM Experience
ALM Experience What is ALM? Benefits Increases Business Value by enabling cross functional collaboration (Dev, Test, Project management) Features Integrated Source Control Bug Tracking Task Management Unit Testing integration Build and Deployment
ALM Supported Collaboration Focuses on Team Results and Delivering Value Developer Business Analyst Tester Architect Project Manager DB Pro Designer “We’re done” “We’re done”
demo ALM Experience
1. Team Explorer
2. Team Queries
3. Work. Items Add Work Item
4. Add New Task
5. Work. Item View
6. TFS Web Access
7. View Task in TFS Web Access
8. Update Task in TFS Web
9. Review Task in Team Explorer
10. Opening Project Share. Point Portal
11. Project Share. Point Portal
12. Portal - All Site Content
13. TFS – Another Project View
14. TFS Report Sample – Bug Rates

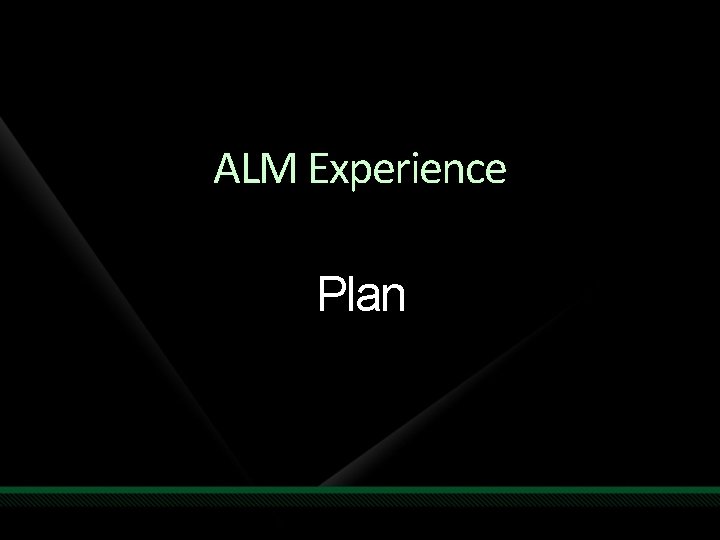

ALM Experience Plan
ALM Experience - Plan Requirements Management Standard TFS integration functionality Work Item Management Share. Point portal for project, TFS Web Access Partner integrations Project Management Project Server Integration Capture Project Schedule and Tasks from Project Server as Work Items in TFS Project Server – TFS Connector (Code. Plex)
ALM Experience Develop
Visual Studio Enhancements Compiler Changes Designer Changes Upgrade Wizard MSBuild and Deployment Project System
Biz. Talk Project System BTS Project - Flavored version of baseline C# Project from Visual Studio 2008 Core Features from Baseline project Project and Item Templates Integrated designer and debugging experience Command, Context, and toolbar options Build and Validate Error Navigation Source Control and TFS Integration Project Assembly properties Flavoring adds custom features to the baseline project
Biz. Talk Project System Enhancements Property Window Integration Project Properties displayed in VS Project Designer Schema and Map Properties are displayed in a separate window Add Web Reference available through Add Service Reference dialog Release and Debug Build Types Replace Development and Deployment build types from earlier versions
Biz. Talk Project System Enhancements Embedding Tracking and debugging information “Embed Tracking Information” and “Generate Debugging Information” output configuration properties replaced by Define TRACE constant and Define DEBUG constant build options BPEL Compliance configuration property replaced by BPEL Compliance project property
Biz. Talk Project System Enhancements Unit testing Support Migration from previous versions Use Conversion Wizard
Project Files Represents the Biz. Talk Project Factory Represents the C# Project System
Project Files Biz. Talk MSBuild tasks are implemented in the Microsoft. Visual. Studio. Biz. Talk. Project. Build. Tasks assembly, which you'll find in the 'Microsoft Biz. Talk Server 2009Developer Tools' folder.
Project Properties These items specific properties are visible when you select a file in Solution Explorer and open the Properties window <File Path="E: ProjectsBiz. TalkPipeline. TestingSample. SchemasMap 1. btm"> <Validate. Test. Map. Input>True</Validate. Test. Map. Input> <Validate. Test. Map. Output>True</Validate. Test. Map. Output> <Test. Map. Input. Instance. Filename></Test. Map. Input. Instance. Filename> <Test. Map. Output. Instance. Filename></Test. Map. Output. Instance. Filename> <Test. Map. Source. Type>0</Test. Map. Source. Type> <Test. Map. Target. Type>0</Test. Map. Target. Type> <Editor. Output. Instance. Filename></Editor. Output. Instance. Filename> <Editor. Input. Instance. Filename></Editor. Input. Instance. Filename> <Generate. Instance. Output. Type>0</Generate. Instance. Output. Type> <Validate. Instance. Input. Type>0</Validate. Instance. Input. Type> <Property. Schema. File. Name>Property. Schema. xsd</Property. Schema. File. Name> <Auto. Refresh. Schema>0</Auto. Refresh. Schema> </File> <File Path="E: ProjectsBiz. TalkPipeline. TestingSample. SchemasSample. xsd"> <Validate. Test. Map. Input>True</Validate. Test. Map. Input> <Validate. Test. Map. Output>True</Validate. Test. Map. Output> <Test. Map. Input. Instance. Filename></Test. Map. Input. Instance. Filename> <Test. Map. Output. Instance. Filename></Test. Map. Output. Instance. Filename> <Test. Map. Source. Type>0</Test. Map. Source. Type> <Test. Map. Target. Type>0</Test. Map. Target. Type> <Editor. Output. Instance. Filename></Editor. Output. Instance. Filename> <Editor. Input. Instance. Filename></Editor. Input. Instance. Filename> <Generate. Instance. Output. Type>0</Generate. Instance. Output. Type> <Validate. Instance. Input. Type>0</Validate. Instance. Input. Type> <Property. Schema. File. Name>Property. Schema. xsd</Property. Schema. File. Name> <Auto. Refresh. Schema>0</Auto. Refresh. Schema> </File>
demo Visual Studio Environment
Biz. Talk Team Test Functionality Create unit tests for Maps, Schemas, Pipelines Enable Unit testing by setting property on Deployment tab for a Biz. Talk project
Biz. Talk Unit Testing Fundamentals Framework provides base classes for testability Add reference to assembly Microsoft. Biz. Talk. Test. Tools to your project Artifacts are automatically derived from Testable. Schema. Base Testable. Map. Base Testable. Pipeline. Base
Team Test Scenario Enablement Use attributes as in a normal Test Project Work. Item attribute Apply custom attributes for enhanced logging, diagnostics Test results can be published to TFS Data Warehouse and Work Item Store
Debugging Support Debug Map Feature – XSLT Inline XSLT Debugger Debugging Orchestrations and Pipelines Biz. Talk Trace Functionality – private variables are now visible in the trace We can now capture trace for off-line debugging – you can tell between engine code and custom code We can now enable tracing at every level
Debugging Support Health and Activity Tracking tool (HAT) HAT is removed Features integrated within MMC New queries, tracked message, tracked services
demo Team Test Functionality and Debugging Support
Build Automation Automate your Biz. Talk builds… including scheduled or on demand Refined control over your process Moving assemblies Building Applications Generating. msi files Options MSBuild Power. Shell Scripts (. vbs, . bat) and other options (Nant)
MSBuild and Deployment Custom tasks defined in Biz. Talk. C. Targets and Biz. Talk. Common. Targets Every Biz. Talk project imports Microsoft. Csharp. Targets and Biz. Talk. C. Targets Support for incremental builds 2 Pass Build process Built in two passes, first pass builds: schemas, maps, pipelines; second pass builds orchestrations VSDEPLOY output shown in Deploy window Deployment properties stored in btproj. user file No custom task for Deployment Standalone MSBuild Feature during Setup

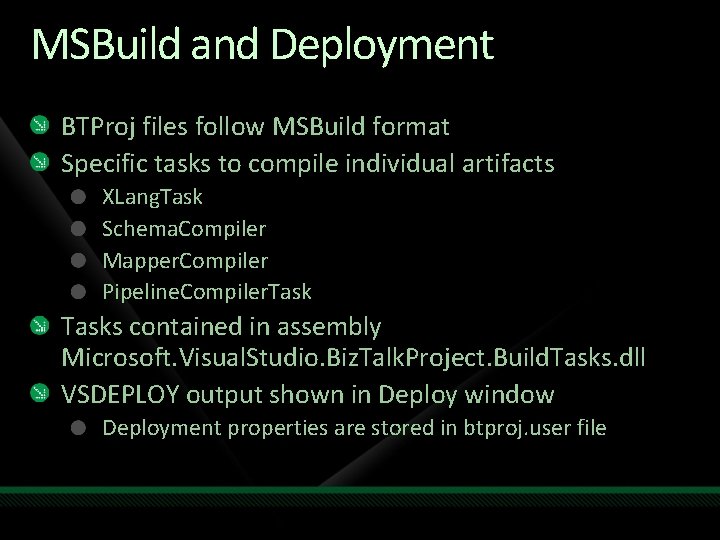

MSBuild and Deployment BTProj files follow MSBuild format Specific tasks to compile individual artifacts XLang. Task Schema. Compiler Mapper. Compiler Pipeline. Compiler. Tasks contained in assembly Microsoft. Visual. Studio. Biz. Talk. Project. Build. Tasks. dll VSDEPLOY output shown in Deploy window Deployment properties are stored in btproj. user file
New MSBuild Tasks Pipelines: Maps: <Item. Group> <Pipeline Include="CSV_FF_Recv. Pipeline. btp"> <Namespace>Samples</Namespace> <Type. Name>CSV_FF_Recv. Pipeline</Type. Name> </Pipeline> </Item. Group> <Map Include="Map 1. btm"> <Type. Name>Map 1</Type. Name> <Namespace>Samples</Namespace> <Sub. Type>Task</Sub. Type> </Map> </Item. Group> Schemas: <Item. Group> <Schema Include="Schema 1. xsd"> <Namespace>Sampls</Namespace> <Type. Name>Schema 1</Type. Name> </Schema> </Item. Group> Orchestrations: <Item. Group> <XLang Include="Biz. Talk Orchestration. odx"> <Type. Name>Biz. Talk_Orchestration</Type. Name> <Namespace>Samples</Namespace> <Sub. Type>Task</Sub. Type> </XLang> </Item. Group>
MSBuild Does what we have seen so far cover everything required? SDC Tasks http: //www. codeplex. com/sdctasks MS Build Extensions http: //www. codeplex. com/MSBuild. Extension. Pack MSBuild. Tasks http: //msbuildtasks. tigris. org/ MSBuild Rules Tasks http: //www. codeplex. com/Bts. Rules. Engine Visualizers http: //www. codeplex. com/msbuildstudio http: //www. codeplex. com/Biz. Talk. Ms. Build. Tool
Team Build Integration
Team Build – Build Definition
Build Definition - Workspace
Build Definition - Project File
Build Definition – Project File Creation
Build Definition – Project File Creation Wizard
Wizard - Build Options
Build Definition – Project File
Build Definition – Retention Policy
Build Definition – Agent - Location
Build Agent Properties
Build - Triggers
demo MSBuild and Deployment
Biz. Unit Usable with MSTest and Nunit Flexible and extensible declarative test framework for distributed systems Generic reusable test steps Test cases defined in XML Auto generation of test cases possible Target multiple test environments
ALM Experience Operate/Monitor
Operate/Monitor BAM Support for SQL Server 2008 and Excel BAM Whitepaper ILL Sessions Hands On Labs System Center Operations Manager Biz. Talk Management Pack Reporting under the Group Hub in the Admin Console Administrators can log Items back into TFS to provide full circle lifecycle
Announcing the Biz. Talk ESB Toolkit Name change From “ESB Guidance” to “Biz. Talk ESB Toolkit” General Availability Mid June 09 Packaging & Distribution Signed binaries and samples code (MSDN -> Download Center) Documentation (MSDN) Private Fixes (Microsoft Connect site) License free for Biz. Talk Customers Support & Bug Reporting Managed MSDN forums with Microsoft Customer Support Services* in the loop to fix issues as required Online Community Managed MSDN forums * Ramping up through the summer
Summary Biz. Talk Server 2009 provides an integrated development platform within Visual Studio Deep integration is enabled by flavoring existing C# project system and additional customizations New ALM experience includes Source Control, TFS integration, Unit Testing, MSBuild and Deployment More Productive and Efficient Biz. Talk developer experience
Call To Action Here is what you should do when you get back to the office
question & answer
Resources www. microsoft. com/teched www. microsoft. com/learning Sessions On-Demand & Community Microsoft Certification & Training Resources http: //microsoft. com/technet http: //microsoft. com/msdn Resources for IT Professionals Resources for Developers www. microsoft. com/learning Microsoft Certification and Training Resources
Track Resources SOA www. microsoft. com/soa msdn. microsoft. com/wcf msdn. microsoft. com/wf www. microsoft. com/net msdn. microsoft. com/biztalk www. microsoft. com/biztalk “Dublin” www. microsoft. com/net/dublin “Oslo” msdn. microsoft. com/oslo www. microsoft. com/net/oslo. aspx msdn. microsoft. com/azure/netservices www. microsoft. com/azure/netservices twitter. com/dotnetservices
appendix
TFS Integration Source Code Control Code Organization Strategies Use a Consistent Folder Structure for Solutions and Projects Keep Source Control and File System Structures Identical Define and Use a Common Root Folder Create a Master Solution That Will Hold All Projects Store All Biz. Talk Projects Under the Master Solution Separate Pipeline Projects into Distinct Projects Keep Deployment and Test Scripts with Their Projects Use Unique Strong Name Keys When Appropriate Biz. Talk File Types and merging
TFS Integration Version Control When to check-in Biz. Talk Server Projects Checking in intermediate versions Assembly version Vs File Version Implications of changing version numbers Map Function Version Numbering Versioning non-Biz. Talk Server Project files
VSTS & TFS Integration Application lifecycle for BTS projects Support for team development MS Project Server integration Consistent automated build Integrated source control Bug tracking system Business Analyst Bugs Non Functional Requirements Tasks Use Case Change Requests Test Project Manager Dev Team Production Errors Operations
