MICROSENS Fiber Optic Solutions overview and introduction of the applications MICROSENS_Get Connected Tomasz Niewolik Managing Director Eastern Europe MICROSENS Gmb. H & Co. KG

MICROSENS – Highlights Foundation 1993. Competence in fiber solutions and long haul transmission. HQ in Hamm, Westphalia – Germany. Production in Hamm, “Made in Germany”. Technology partner of well known global manufacturers such as SIEMENS (Hipath ready), Alcatel-Lucent, Draeger Medical, Becker-Mining… Project Since 2 and use oriented. 2006 a company of the euromicron group.

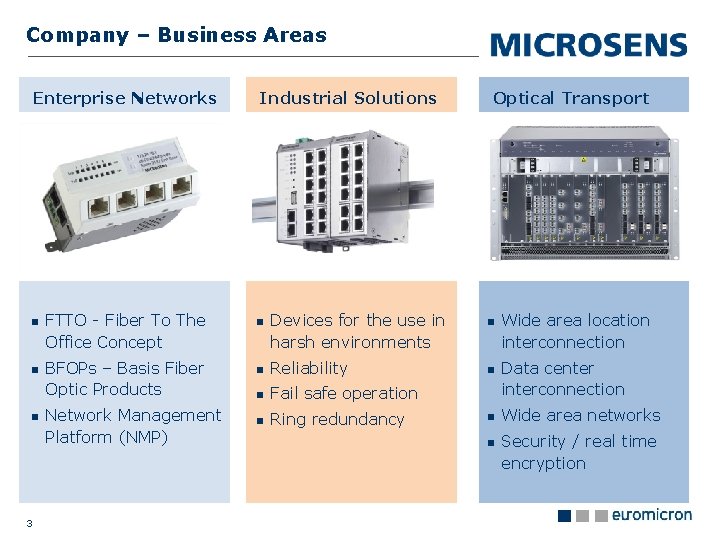

Company – Business Areas Enterprise Networks 3 FTTO - Fiber To The Office Concept BFOPs – Basis Fiber Optic Products Network Management Platform (NMP) Industrial Solutions Devices for the use in harsh environments Reliability Fail safe operation Ring redundancy Optical Transport Wide area location interconnection Data center interconnection Wide area networks Security / real time encryption

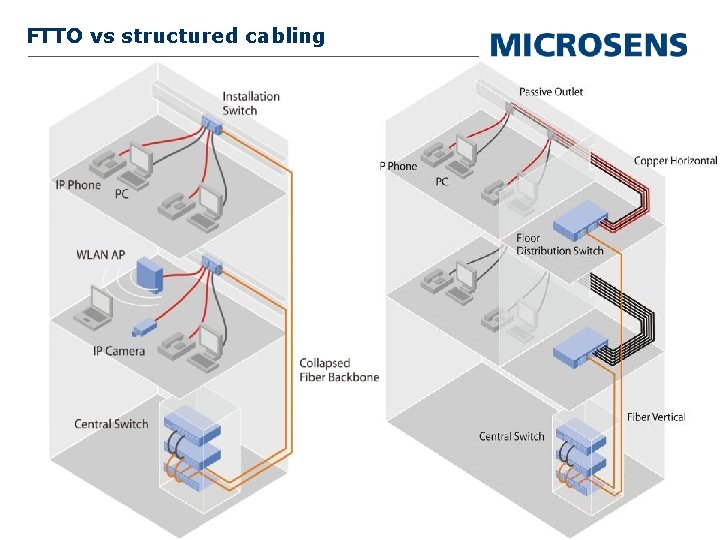

FTTO vs structured cabling

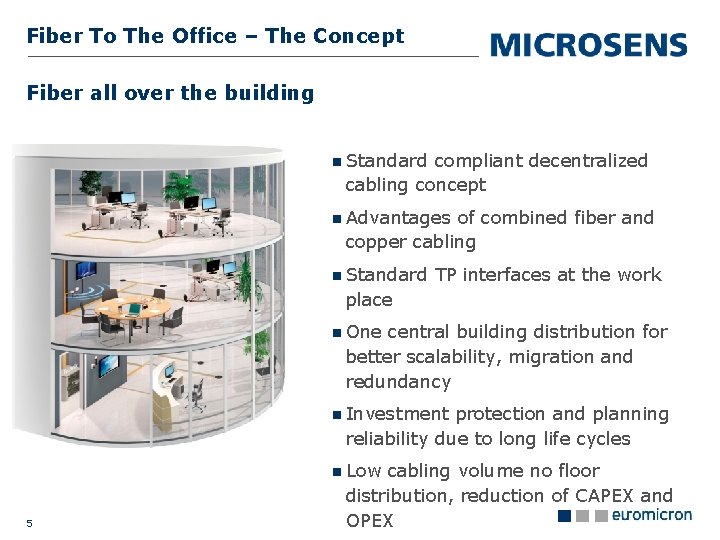

Fiber To The Office – The Concept Fiber all over the building Standard compliant decentralized cabling concept Advantages of combined fiber and copper cabling Standard TP interfaces at the work place One central building distribution for better scalability, migration and redundancy Investment protection and planning reliability due to long life cycles Low 5 cabling volume no floor distribution, reduction of CAPEX and OPEX

FTTO – Micro Switch The key to an efficient network Intelligent combination of fiber uplink and copper user ports High performance (Gigabit Ethernet) Compact Low and robust construction power consumption Innovative firmware concept based on Linux Long investment protection and high security during operation Maintenance Attractive Effective 6 friendly design IT-Management (NMPSoftware)

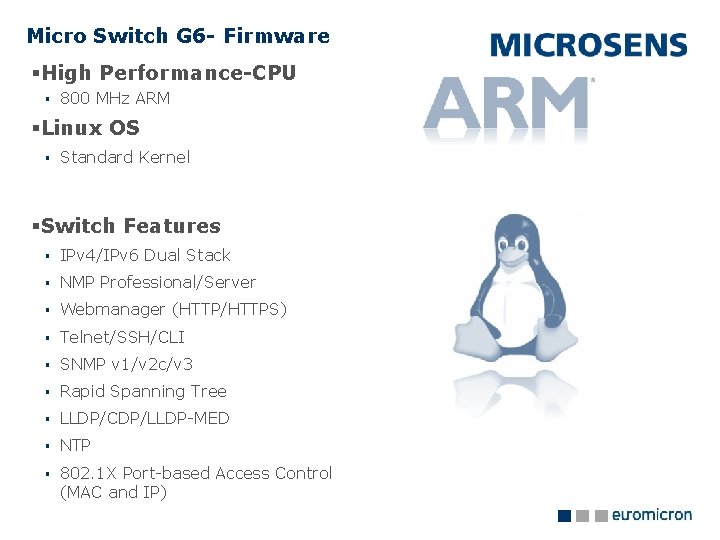

Micro Switch G 6 - Firmware §High Performance-CPU § 800 MHz ARM §Linux OS § Standard Kernel §Switch Features § IPv 4/IPv 6 Dual Stack § NMP Professional/Server § Webmanager (HTTP/HTTPS) § Telnet/SSH/CLI § SNMP v 1/v 2 c/v 3 § Rapid Spanning Tree § LLDP/CDP/LLDP-MED § NTP § 802. 1 X Port-based Access Control (MAC and IP)

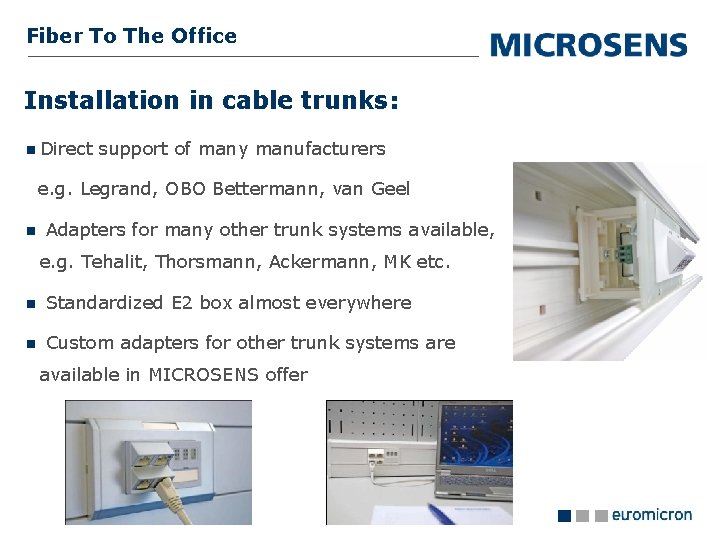

Fiber To The Office Installation in cable trunks: Direct support of many manufacturers e. g. Legrand, OBO Bettermann, van Geel Adapters for many other trunk systems available, e. g. Tehalit, Thorsmann, Ackermann, MK etc. Standardized E 2 box almost everywhere Custom adapters for other trunk systems are available in MICROSENS offer

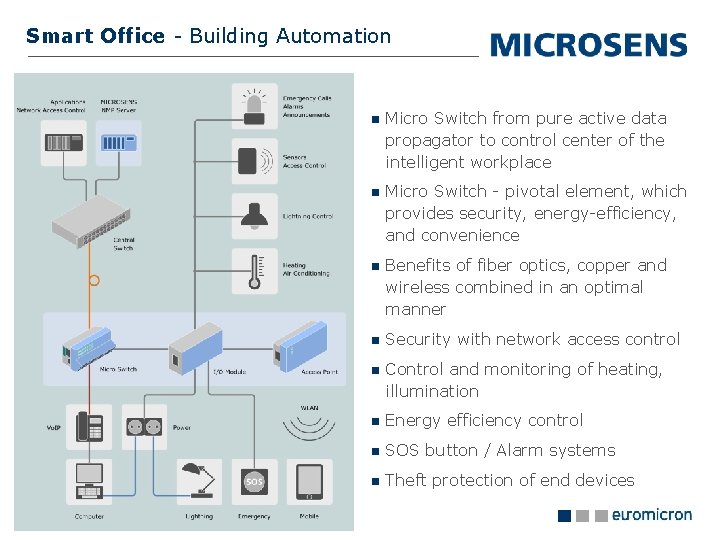

Smart Office - Building Automation 9 Micro Switch from pure active data propagator to control center of the intelligent workplace Micro Switch - pivotal element, which provides security, energy-efficiency, and convenience Benefits of fiber optics, copper and wireless combined in an optimal manner Security with network access control Control and monitoring of heating, illumination Energy efficiency control SOS button / Alarm systems Theft protection of end devices

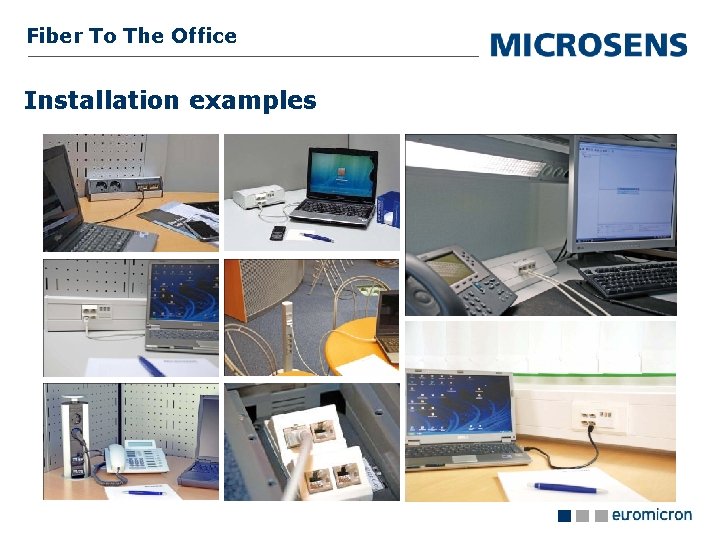

Fiber To The Office Installation examples

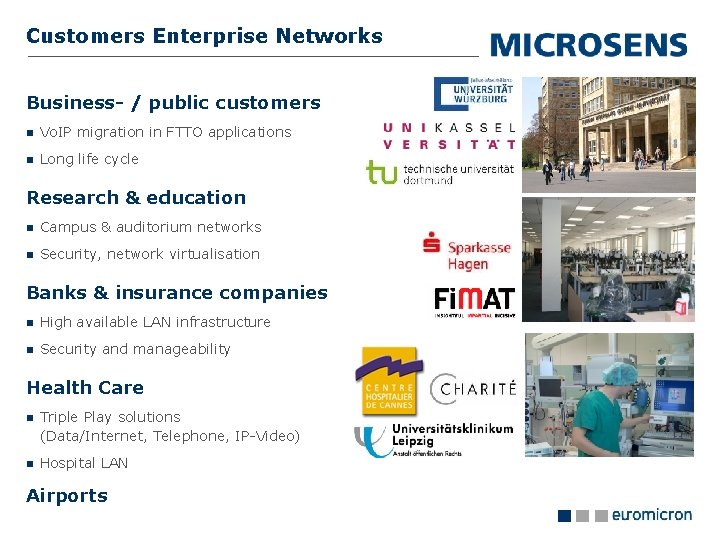

Customers Enterprise Networks Business- / public customers Vo. IP migration in FTTO applications Long life cycle Research & education Campus & auditorium networks Security, network virtualisation Banks & insurance companies High available LAN infrastructure Security and manageability Health Care Triple Play solutions (Data/Internet, Telephone, IP-Video) Hospital LAN Airports

References Polish Presidency of the UE Council Mobile LAN solution: Conferences in 6 cities accross Poland 300 pcs. of modules for conference desks Conferences for all the key politics from UE Highest security Complex and modern design Easy installation and migration http: //prezydencjaue. gov. pl/en/ Partner: 12

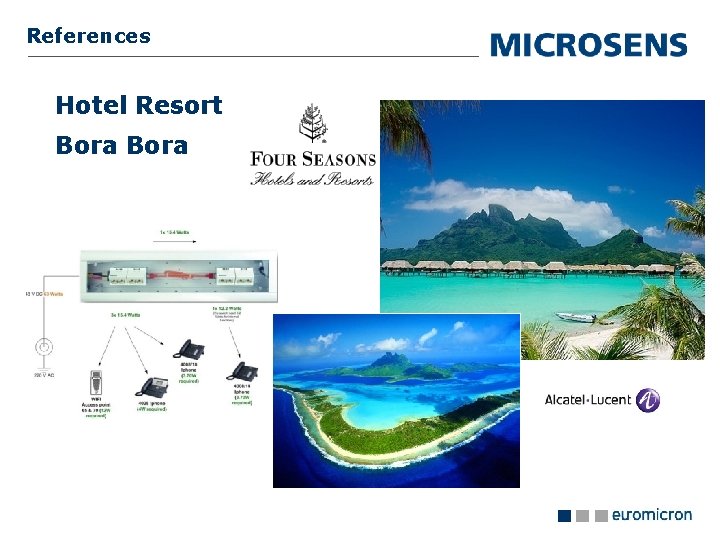

References Hotel Resort Bora

Industrial-Switch Profi Line Modular MICROSENS Gmb. H & Co. KG

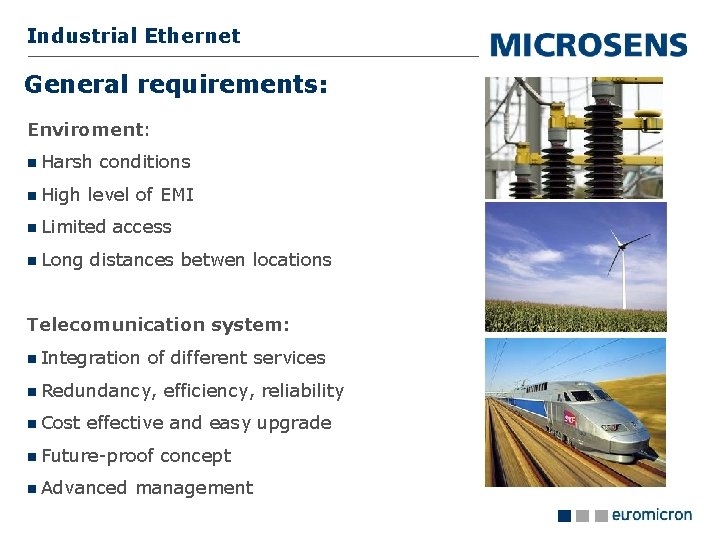

Industrial Ethernet General requirements: Enviroment: Harsh High conditions level of EMI Limited Long access distances betwen locations Telecomunication system: Integration of different services Redundancy, Cost efficiency, reliability effective and easy upgrade Future-proof Advanced concept management

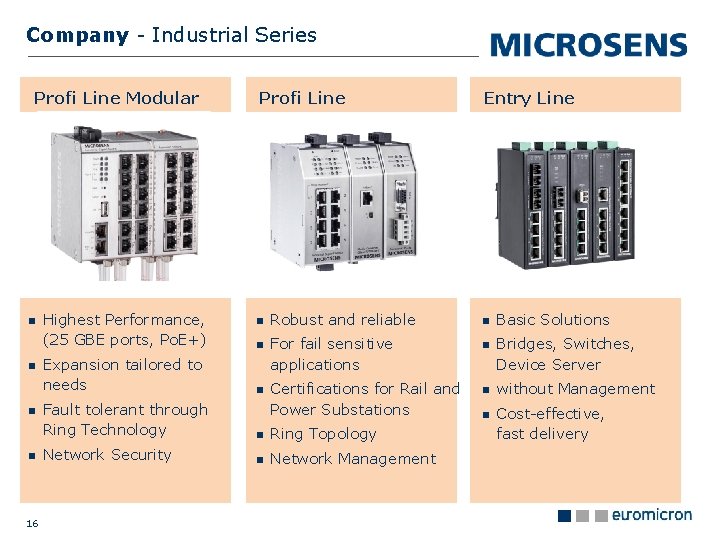

Company - Industrial Series Profi Line Modular 16 Highest Performance, (25 GBE ports, Po. E+) Expansion tailored to needs Profi Line Robust and reliable For fail sensitive applications Certifications for Rail and Power Substations Fault tolerant through Ring Technology Ring Topology Network Security Network Management Entry Line Basic Solutions Bridges, Switches, Device Server without Management Cost-effective, fast delivery

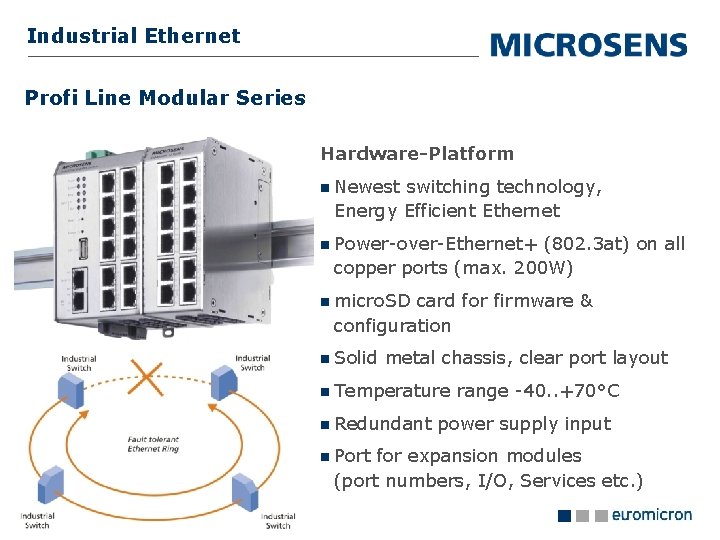

Industrial Ethernet Profi Line Modular Series Hardware-Platform Newest switching technology, Energy Efficient Ethernet Power-over-Ethernet+ (802. 3 at) on all copper ports (max. 200 W) micro. SD card for firmware & configuration Solid metal chassis, clear port layout Temperature Redundant Port range -40. . +70°C power supply input for expansion modules (port numbers, I/O, Services etc. ) 17

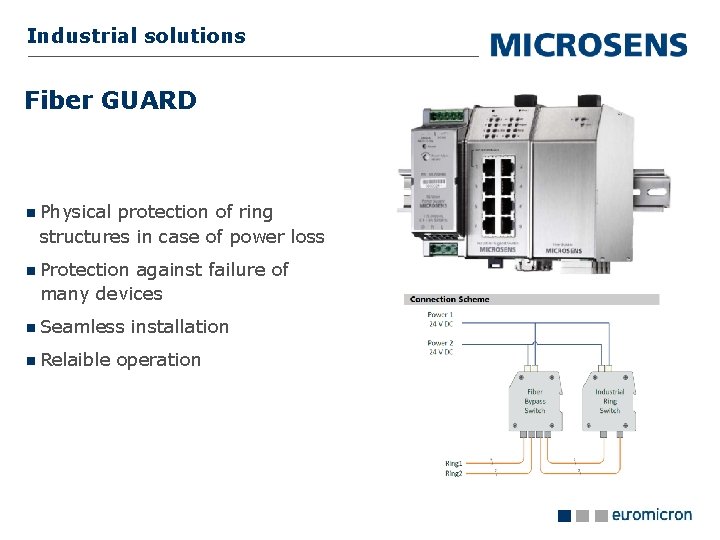

Industrial solutions Fiber GUARD Physical protection of ring structures in case of power loss Protection against failure of many devices Seamless Relaible installation operation

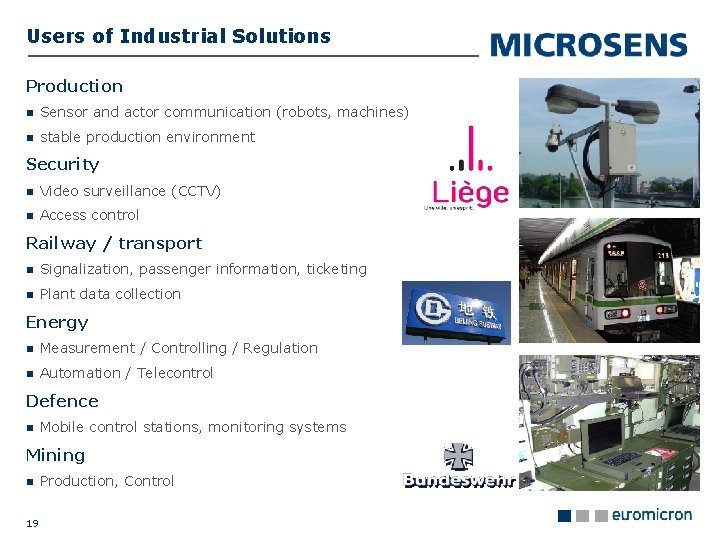

Users of Industrial Solutions Production Sensor and actor communication (robots, machines) stable production environment Security Video surveillance (CCTV) Access control Railway / transport Signalization, passenger information, ticketing Plant data collection Energy Measurement / Controlling / Regulation Automation / Telecontrol Defence Mobile control stations, monitoring systems Mining 19 Production, Control

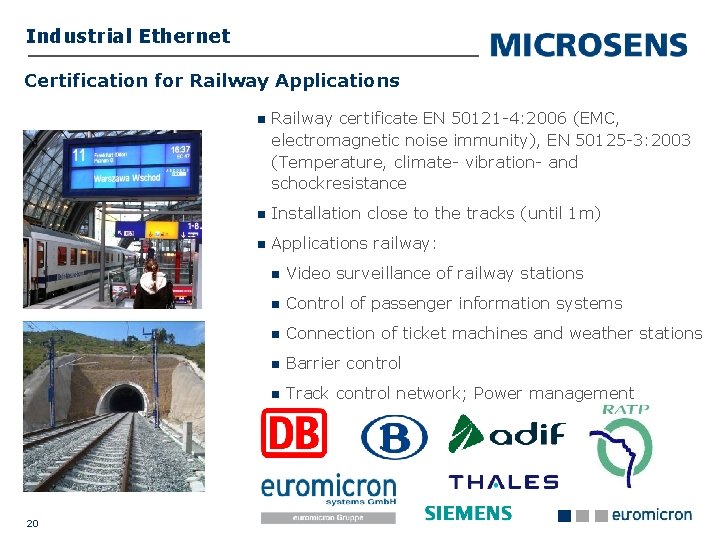

Industrial Ethernet Certification for Railway Applications 20 Railway certificate EN 50121 -4: 2006 (EMC, electromagnetic noise immunity), EN 50125 -3: 2003 (Temperature, climate- vibration- and schockresistance Installation close to the tracks (until 1 m) Applications railway: Video surveillance of railway stations Control of passenger information systems Connection of ticket machines and weather stations Barrier control Track control network; Power management

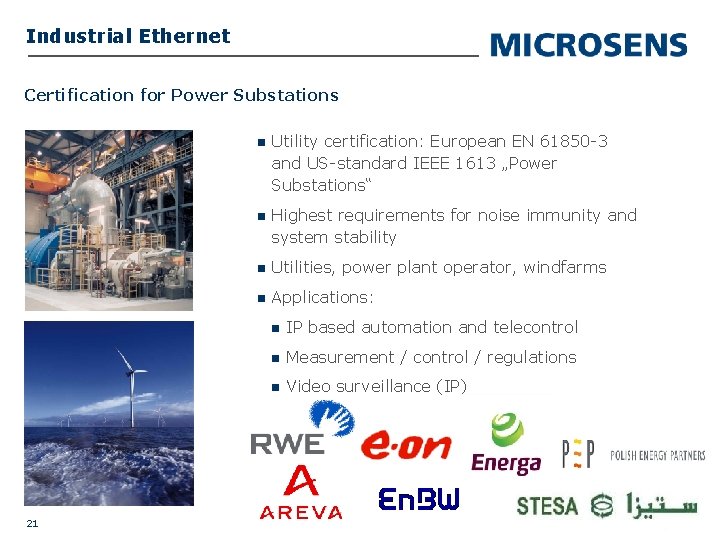

Industrial Ethernet Certification for Power Substations 21 Utility certification: European EN 61850 -3 and US-standard IEEE 1613 „Power Substations“ Highest requirements for noise immunity and system stability Utilities, power plant operator, windfarms Applications: IP based automation and telecontrol Measurement / control / regulations Video surveillance (IP)

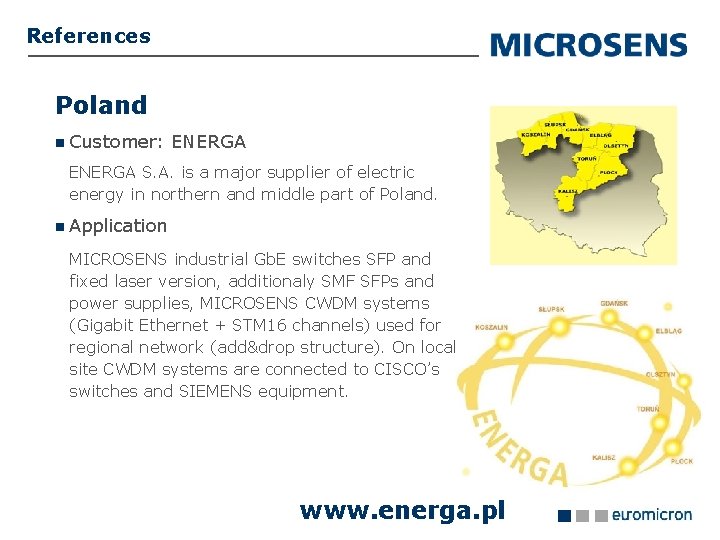

References Poland Customer: ENERGA S. A. is a major supplier of electric energy in northern and middle part of Poland. Application MICROSENS industrial Gb. E switches SFP and fixed laser version, additionaly SMF SFPs and power supplies, MICROSENS CWDM systems (Gigabit Ethernet + STM 16 channels) used for regional network (add&drop structure). On local site CWDM systems are connected to CISCO’s switches and SIEMENS equipment. www. energa. pl

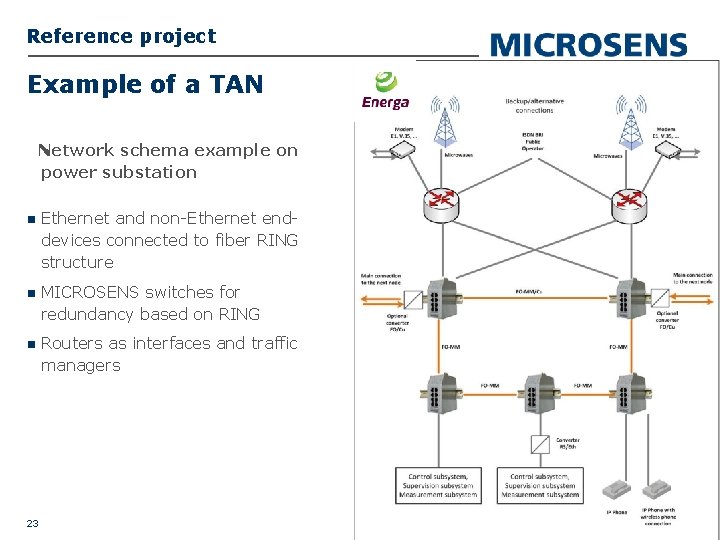

Reference project Example of a TAN Network schema example on power substation Ethernet and non-Ethernet enddevices connected to fiber RING structure MICROSENS switches for redundancy based on RING Routers as interfaces and traffic managers 23

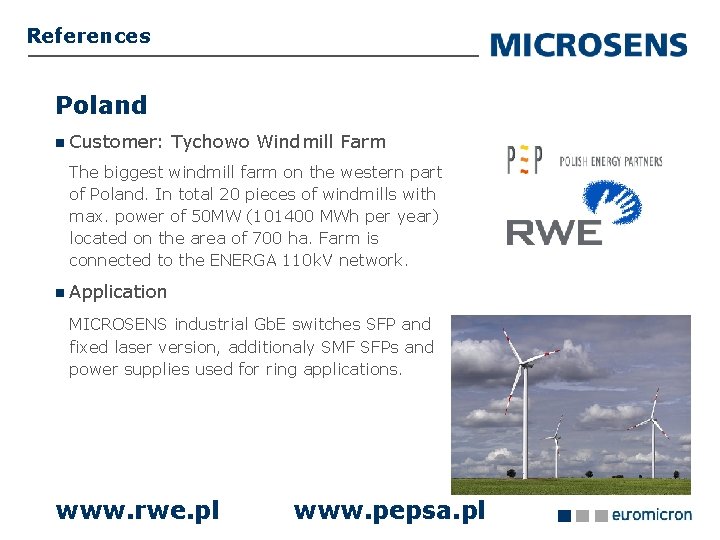

References Poland Customer: Tychowo Windmill Farm The biggest windmill farm on the western part of Poland. In total 20 pieces of windmills with max. power of 50 MW (101400 MWh per year) located on the area of 700 ha. Farm is connected to the ENERGA 110 k. V network. Application MICROSENS industrial Gb. E switches SFP and fixed laser version, additionaly SMF SFPs and power supplies used for ring applications. www. rwe. pl www. pepsa. pl

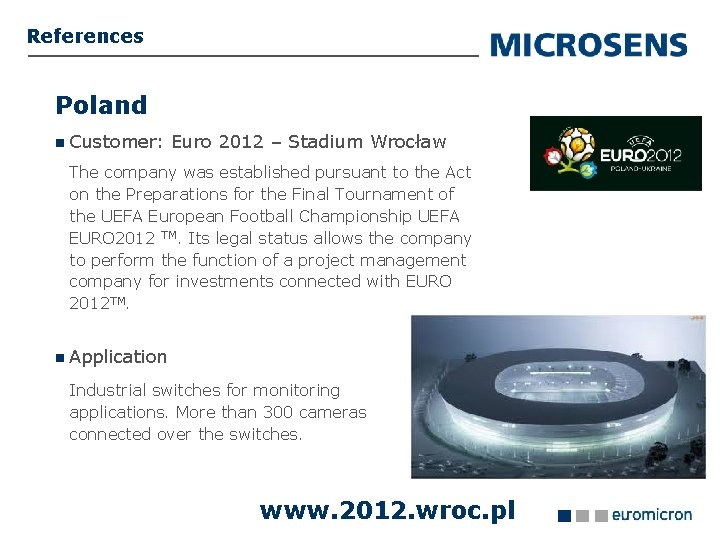

References Poland Customer: Euro 2012 – Stadium Wrocław The company was established pursuant to the Act on the Preparations for the Final Tournament of the UEFA European Football Championship UEFA EURO 2012 TM. Its legal status allows the company to perform the function of a project management company for investments connected with EURO 2012 TM. Application Industrial switches for monitoring applications. More than 300 cameras connected over the switches. www. 2012. wroc. pl

Optical Transport introduction to DWDM systems MICROSENS_Get Connected MICROSENS Gmb. H & Co. KG

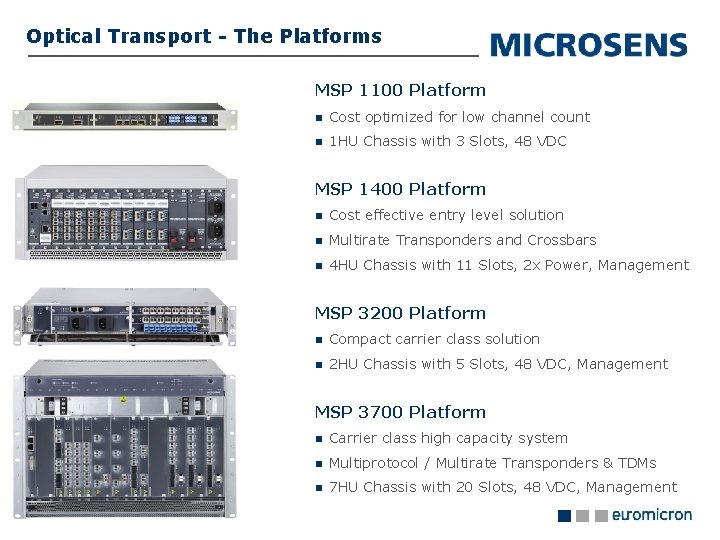

Optical Transport - The Platforms MSP 1100 Platform Cost optimized for low channel count 1 HU Chassis with 3 Slots, 48 VDC MSP 1400 Platform Cost effective entry level solution Multirate Transponders and Crossbars 4 HU Chassis with 11 Slots, 2 x Power, Management MSP 3200 Platform Compact carrier class solution 2 HU Chassis with 5 Slots, 48 VDC, Management MSP 3700 Platform 27 Carrier class high capacity system Multiprotocol / Multirate Transponders & TDMs 7 HU Chassis with 20 Slots, 48 VDC, Management

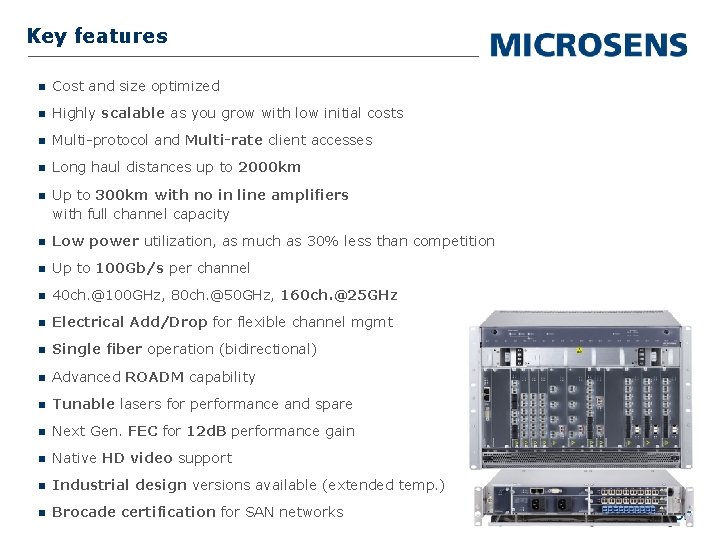

Key features Cost and size optimized Highly scalable as you grow with low initial costs Multi-protocol and Multi-rate client accesses Long haul distances up to 2000 km Up to 300 km with no in line amplifiers with full channel capacity Low power utilization, as much as 30% less than competition Up to 100 Gb/s per channel 40 ch. @100 GHz, 80 ch. @50 GHz, 160 ch. @25 GHz Electrical Add/Drop for flexible channel mgmt Single fiber operation (bidirectional) Advanced ROADM capability Tunable lasers for performance and spare Next Gen. FEC for 12 d. B performance gain Native HD video support Industrial design versions available (extended temp. ) Brocade certification for SAN networks optimisation

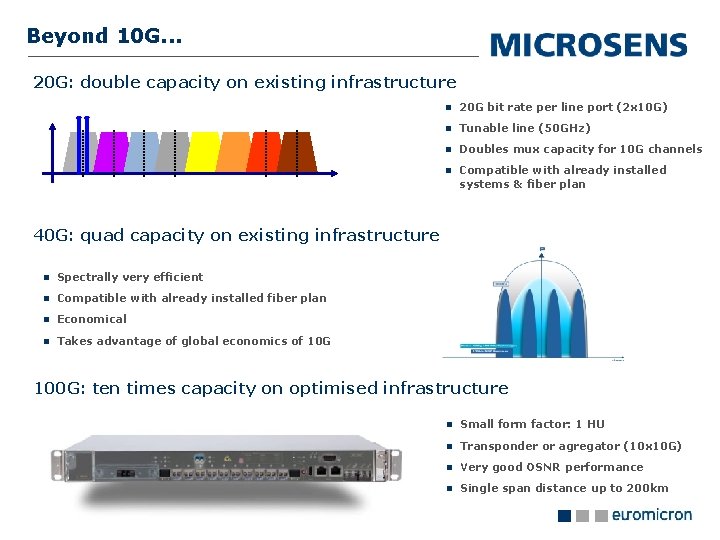

Beyond 10 G. . . 20 G: double capacity on existing infrastructure 20 G bit rate per line port (2 x 10 G) Tunable line (50 GHz) Doubles mux capacity for 10 G channels Compatible with already installed systems & fiber plan 40 G: quad capacity on existing infrastructure Spectrally very efficient Compatible with already installed fiber plan Economical Takes advantage of global economics of 10 G 100 G: ten times capacity on optimised infrastructure Small form factor: 1 HU Transponder or agregator (10 x 10 G) Very good OSNR performance Single span distance up to 200 km

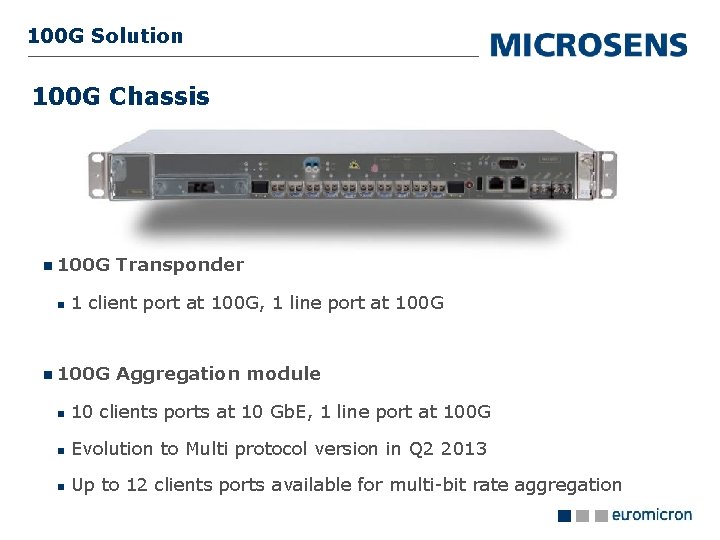

100 G Solution 100 G Chassis 100 G Transponder 1 client port at 100 G, 1 line port at 100 G Aggregation module 10 clients ports at 10 Gb. E, 1 line port at 100 G Evolution to Multi protocol version in Q 2 2013 Up to 12 clients ports available for multi-bit rate aggregation

References Poland Customer: KBC is an integrated bancassurance group catering mainly for retail customers, private banking clientele and small and medium sized enterprises with a leading position on its own markets in Belgium and Central & Eastern Europe and a selective presence in the rest of the world. Application MICROSENS DWDM systems are used for transmission of 24 x. Gb. E and 8 x 4 GFC on 4 fibers (2+2) with system protection. On local site DWDM systems are connected to the CISCO Catalyst switches and Brocade storage equipment. www. kbc. com

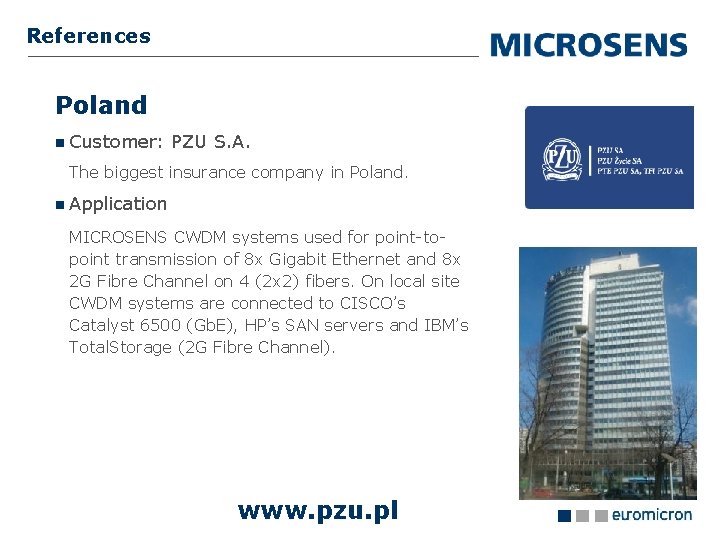

References Poland Customer: PZU S. A. The biggest insurance company in Poland. Application MICROSENS CWDM systems used for point-topoint transmission of 8 x Gigabit Ethernet and 8 x 2 G Fibre Channel on 4 (2 x 2) fibers. On local site CWDM systems are connected to CISCO’s Catalyst 6500 (Gb. E), HP’s SAN servers and IBM’s Total. Storage (2 G Fibre Channel). www. pzu. pl

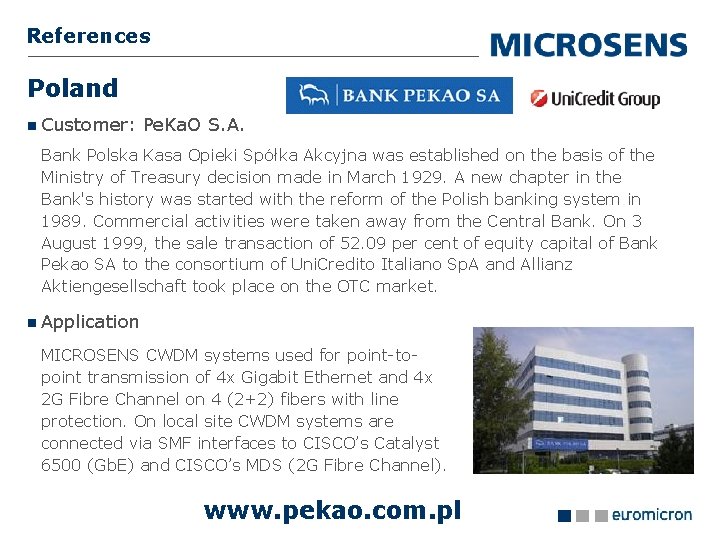

References Poland Customer: Pe. Ka. O S. A. Bank Polska Kasa Opieki Spółka Akcyjna was established on the basis of the Ministry of Treasury decision made in March 1929. A new chapter in the Bank's history was started with the reform of the Polish banking system in 1989. Commercial activities were taken away from the Central Bank. On 3 August 1999, the sale transaction of 52. 09 per cent of equity capital of Bank Pekao SA to the consortium of Uni. Credito Italiano Sp. A and Allianz Aktiengesellschaft took place on the OTC market. Application MICROSENS CWDM systems used for point-topoint transmission of 4 x Gigabit Ethernet and 4 x 2 G Fibre Channel on 4 (2+2) fibers with line protection. On local site CWDM systems are connected via SMF interfaces to CISCO’s Catalyst 6500 (Gb. E) and CISCO’s MDS (2 G Fibre Channel). www. pekao. com. pl

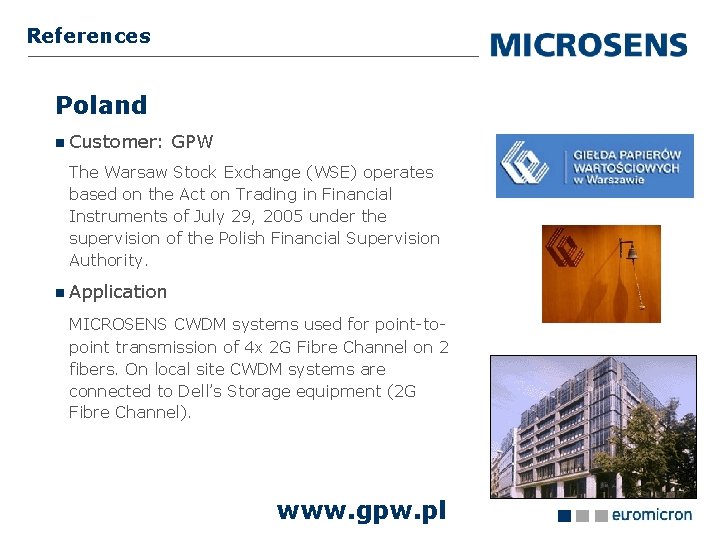

References Poland Customer: GPW The Warsaw Stock Exchange (WSE) operates based on the Act on Trading in Financial Instruments of July 29, 2005 under the supervision of the Polish Financial Supervision Authority. Application MICROSENS CWDM systems used for point-topoint transmission of 4 x 2 G Fibre Channel on 2 fibers. On local site CWDM systems are connected to Dell’s Storage equipment (2 G Fibre Channel). www. gpw. pl

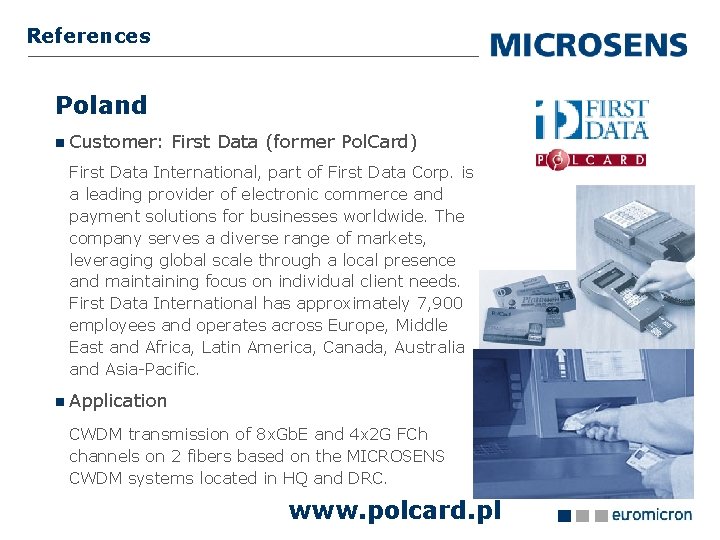

References Poland Customer: First Data (former Pol. Card) First Data International, part of First Data Corp. is a leading provider of electronic commerce and payment solutions for businesses worldwide. The company serves a diverse range of markets, leveraging global scale through a local presence and maintaining focus on individual client needs. First Data International has approximately 7, 900 employees and operates across Europe, Middle East and Africa, Latin America, Canada, Australia and Asia-Pacific. Application CWDM transmission of 8 x. Gb. E and 4 x 2 G FCh channels on 2 fibers based on the MICROSENS CWDM systems located in HQ and DRC. www. polcard. pl

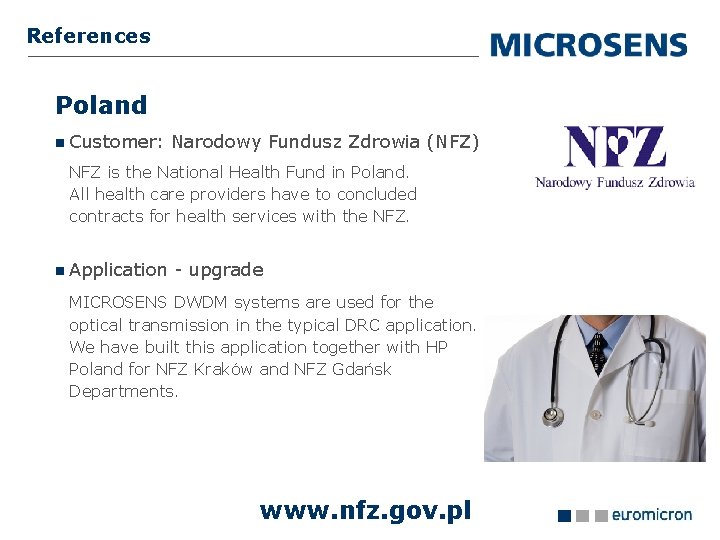

References Poland Customer: Narodowy Fundusz Zdrowia (NFZ) NFZ is the National Health Fund in Poland. All health care providers have to concluded contracts for health services with the NFZ. Application - upgrade MICROSENS DWDM systems are used for the optical transmission in the typical DRC application. We have built this application together with HP Poland for NFZ Kraków and NFZ Gdańsk Departments. www. nfz. gov. pl

References Poland Customer: PZU S. A. The biggest insurance company in Poland. Application MICROSENS CWDM systems used for point-topoint transmission of 8 x Gigabit Ethernet and 8 x 2 G Fibre Channel on 4 (2 x 2) fibers. On local site CWDM systems are connected to CISCO’s Catalyst 6500 (Gb. E), HP’s SAN servers and IBM’s Total. Storage (2 G Fibre Channel). www. pzu. pl

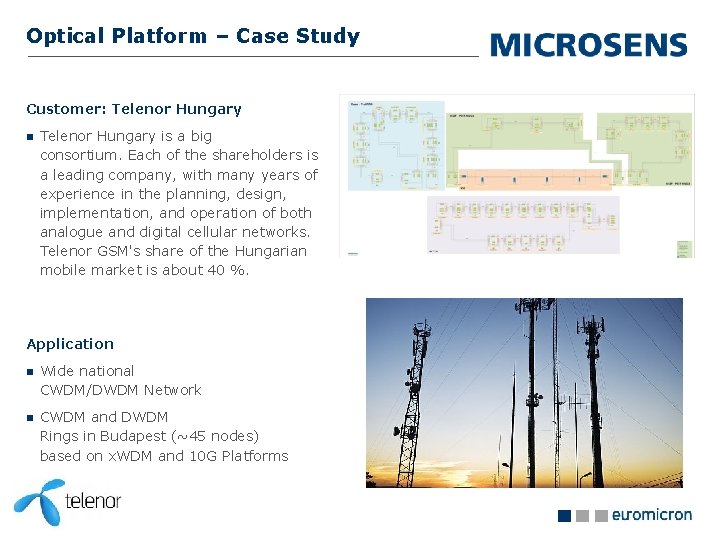

Optical Platform – Case Study Customer: Telenor Hungary is a big consortium. Each of the shareholders is a leading company, with many years of experience in the planning, design, implementation, and operation of both analogue and digital cellular networks. Telenor GSM's share of the Hungarian mobile market is about 40 %. Application Wide national CWDM/DWDM Network CWDM and DWDM Rings in Budapest (~45 nodes) based on x. WDM and 10 G Platforms
