Microprocessor Signals Reset Hold NMI Microprocessor INTR Hardware

Microprocessor Signals

Reset Hold NMI Microprocessor INTR

Hardware Interrupt and Arbitration

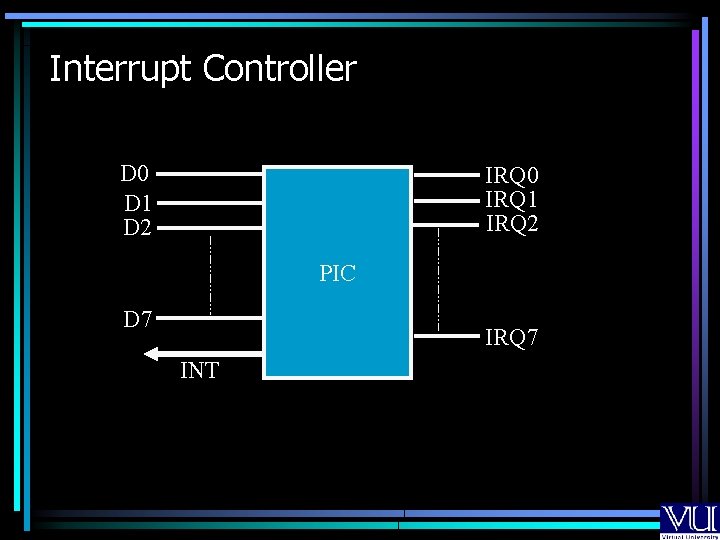

Interrupt Controller D 0 D 1 D 2 IRQ 0 IRQ 1 IRQ 2 PIC D 7 IRQ 7 INT

Interfacing of PIC with Microprocessor

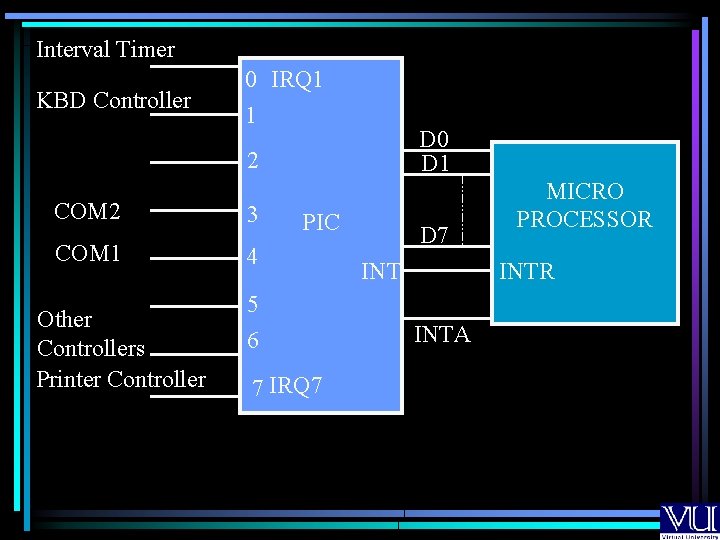

Interval Timer KBD Controller 0 IRQ 1 1 D 0 D 1 2 COM 2 3 COM 1 4 Other Controllers Printer Controller PIC 5 6 7 IRQ 7 D 7 INT MICRO PROCESSOR INTA

Cascading Programmable Interrupt Controller

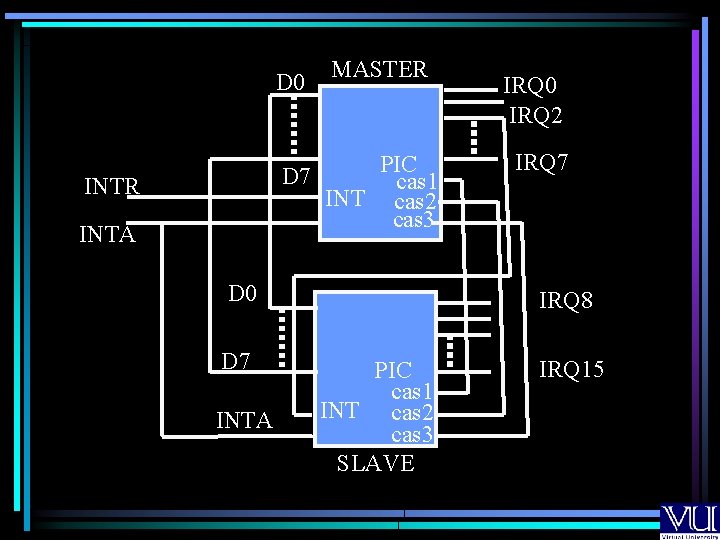

D 0 D 7 INTR INTA MASTER PIC cas 1 INT cas 2 cas 3 D 0 D 7 INTA IRQ 0 IRQ 2 IRQ 7 IRQ 8 PIC cas 1 INT cas 2 cas 3 SLAVE IRQ 15

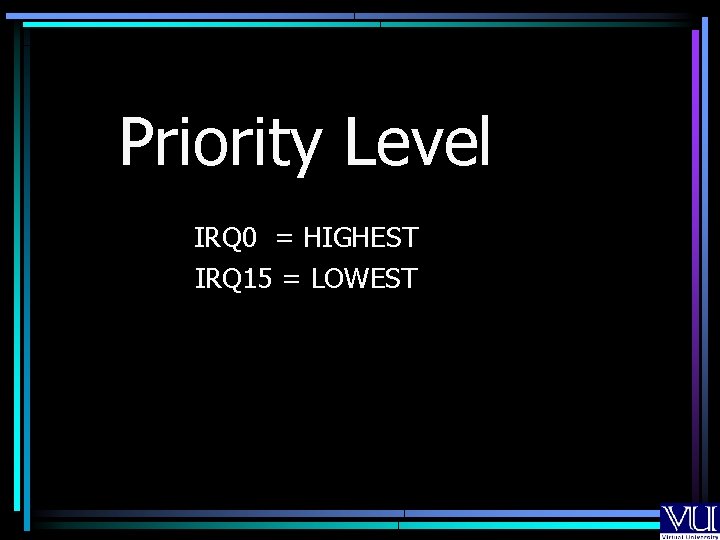

Priority Level IRQ 0 = HIGHEST IRQ 15 = LOWEST

Hardware Interrupt are Non-Preemptive

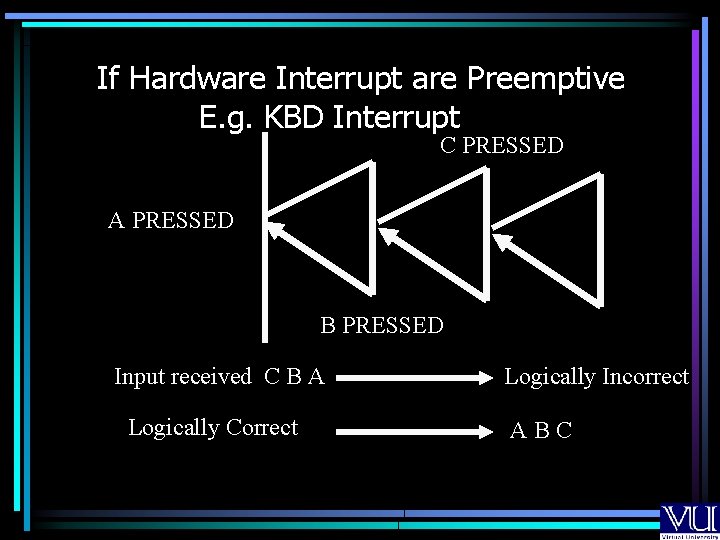

If Hardware Interrupt are Preemptive E. g. KBD Interrupt C PRESSED A PRESSED B PRESSED Input received C B A Logically Correct Logically Incorrect ABC

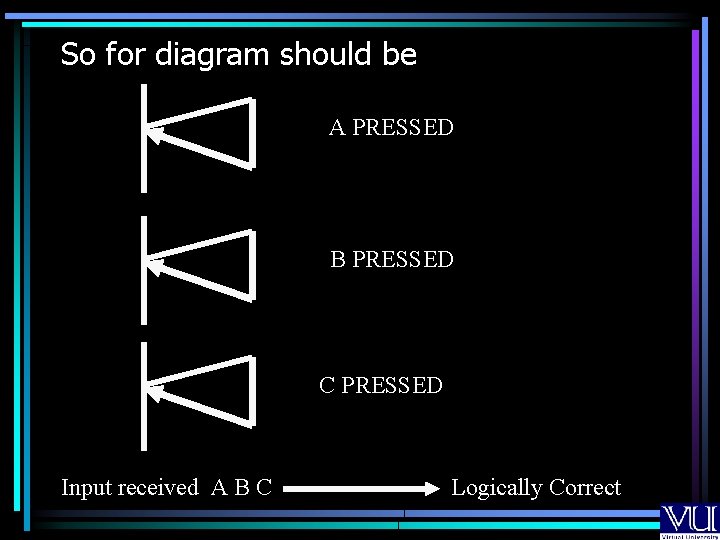

So for diagram should be A PRESSED B PRESSED C PRESSED Input received A B C Logically Correct

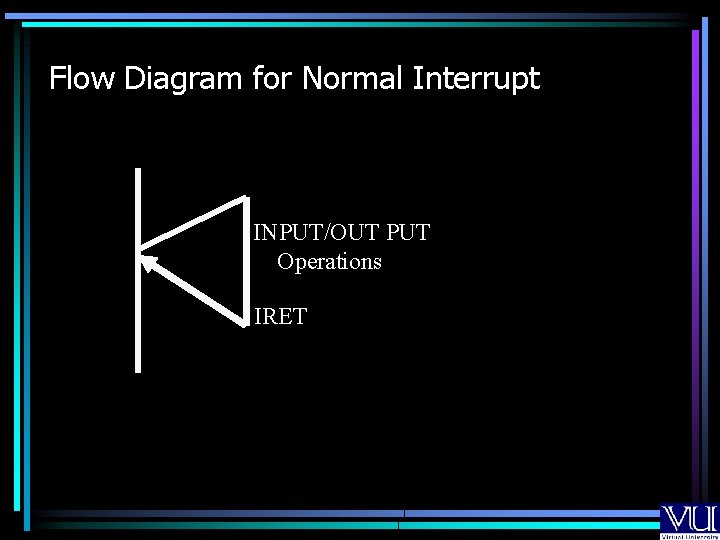

Flow Diagram for Normal Interrupt INPUT/OUT PUT Operations IRET

Who Notifies EOI?

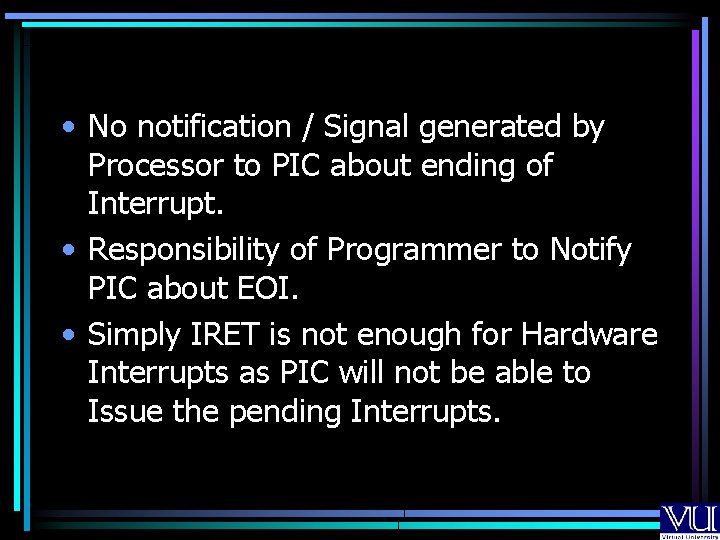

• No notification / Signal generated by Processor to PIC about ending of Interrupt. • Responsibility of Programmer to Notify PIC about EOI. • Simply IRET is not enough for Hardware Interrupts as PIC will not be able to Issue the pending Interrupts.

Pending Interrupts

Programming the PIC

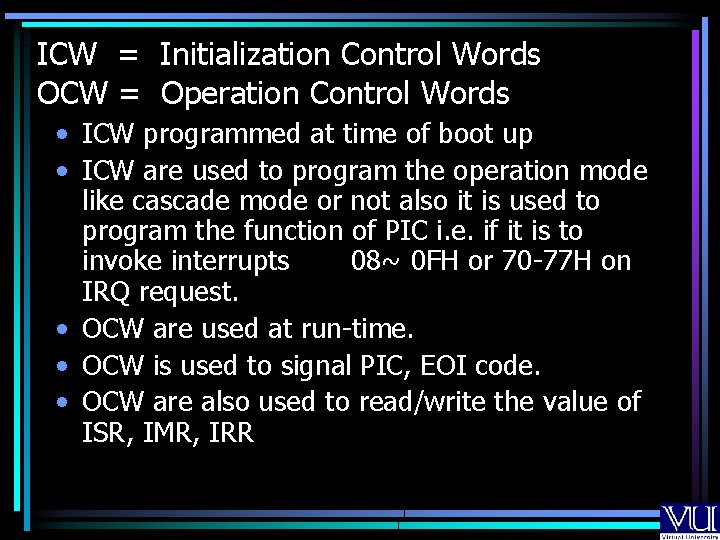

ICW = Initialization Control Words OCW = Operation Control Words • ICW programmed at time of boot up • ICW are used to program the operation mode like cascade mode or not also it is used to program the function of PIC i. e. if it is to invoke interrupts 08~ 0 FH or 70 -77 H on IRQ request. • OCW are used at run-time. • OCW is used to signal PIC, EOI code. • OCW are also used to read/write the value of ISR, IMR, IRR

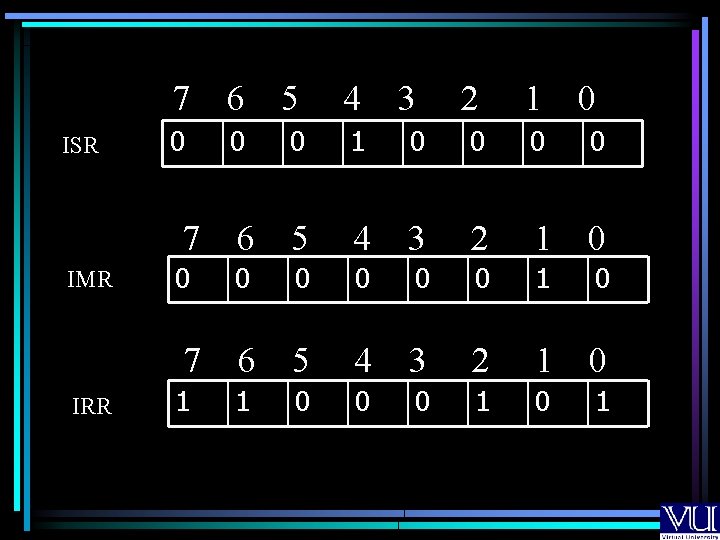

ISR IMR 7 6 5 4 0 0 0 1 7 6 5 0 0 7 IRR 1 3 2 1 0 0 0 4 3 2 1 0 0 0 1 0 6 5 4 3 2 1 0 0 0 1

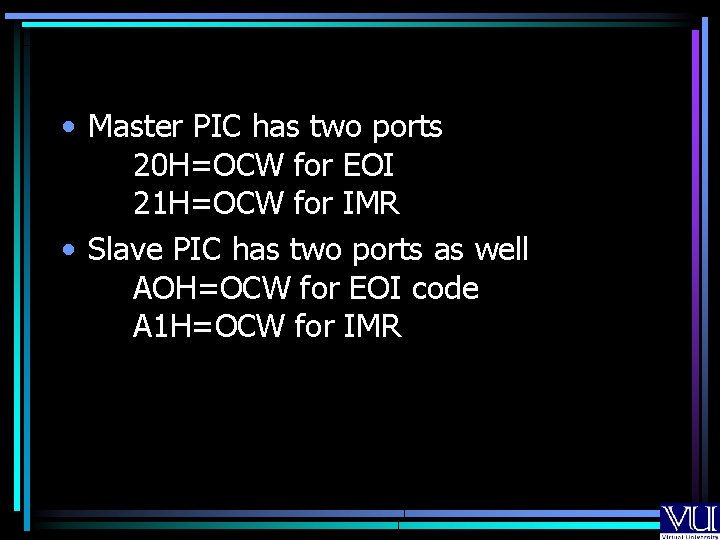

• Master PIC has two ports 20 H=OCW for EOI 21 H=OCW for IMR • Slave PIC has two ports as well AOH=OCW for EOI code A 1 H=OCW for IMR

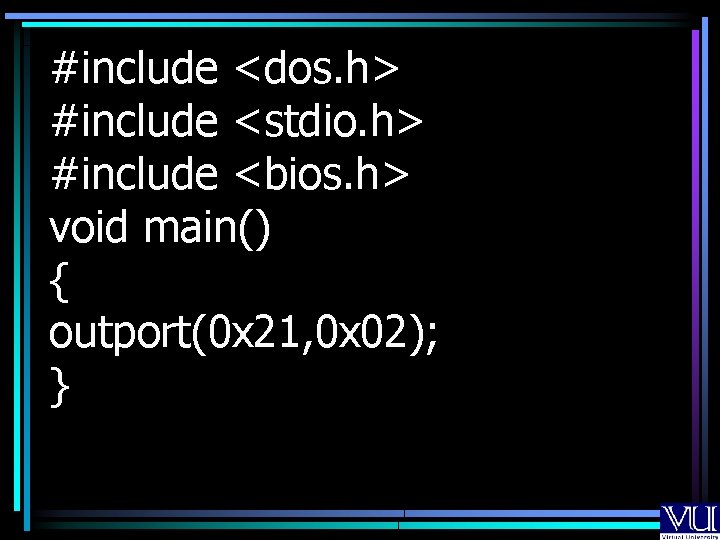

#include <dos. h> #include <stdio. h> #include <bios. h> void main() { outport(0 x 21, 0 x 02); }

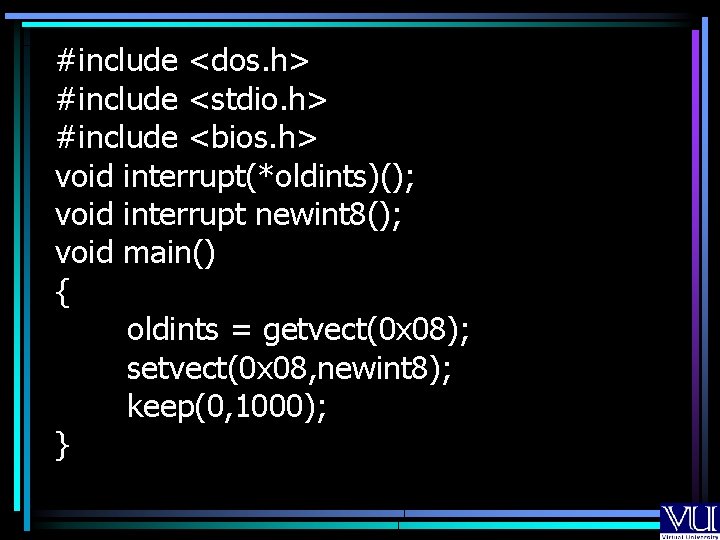

#include <dos. h> #include <stdio. h> #include <bios. h> void interrupt(*oldints)(); void interrupt newint 8(); void main() { oldints = getvect(0 x 08); setvect(0 x 08, newint 8); keep(0, 1000); }

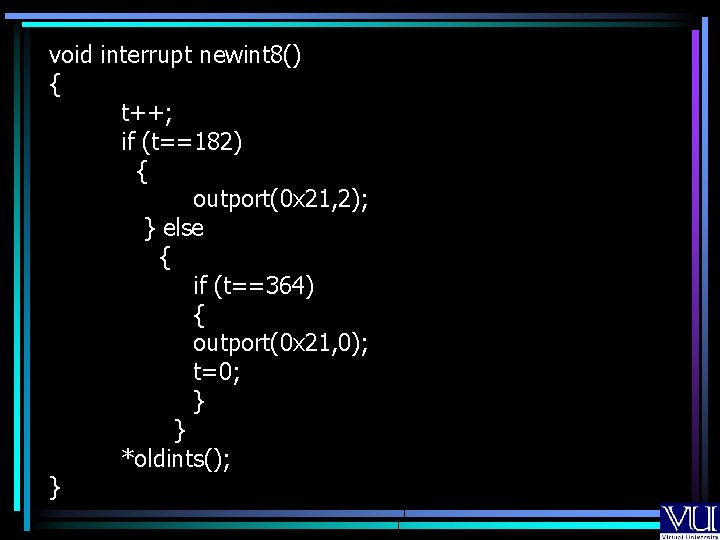

void interrupt newint 8() { t++; if (t==182) { outport(0 x 21, 2); } else { if (t==364) { outport(0 x 21, 0); t=0; } } *oldints(); }

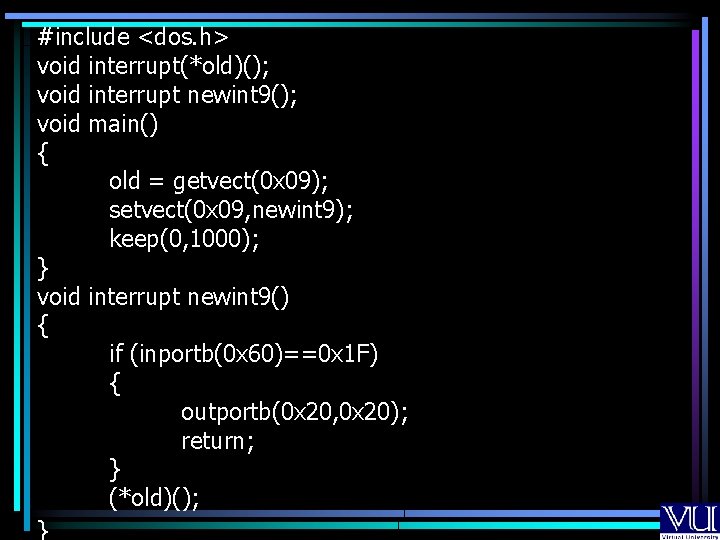

#include <dos. h> void interrupt(*old)(); void interrupt newint 9(); void main() { old = getvect(0 x 09); setvect(0 x 09, newint 9); keep(0, 1000); } void interrupt newint 9() { if (inportb(0 x 60)==0 x 1 F) { outportb(0 x 20, 0 x 20); return; } (*old)(); }

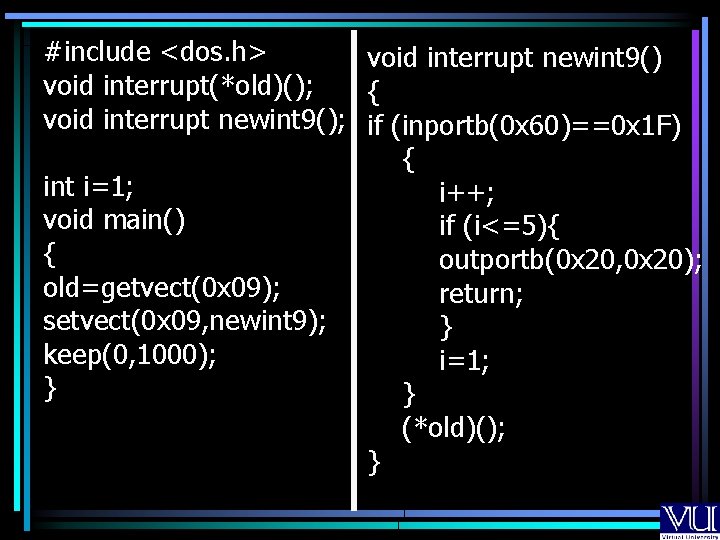

#include <dos. h> void interrupt newint 9() void interrupt(*old)(); { void interrupt newint 9(); if (inportb(0 x 60)==0 x 1 F) { int i=1; i++; void main() if (i<=5){ { outportb(0 x 20, 0 x 20); old=getvect(0 x 09); return; setvect(0 x 09, newint 9); } keep(0, 1000); i=1; } } (*old)(); }

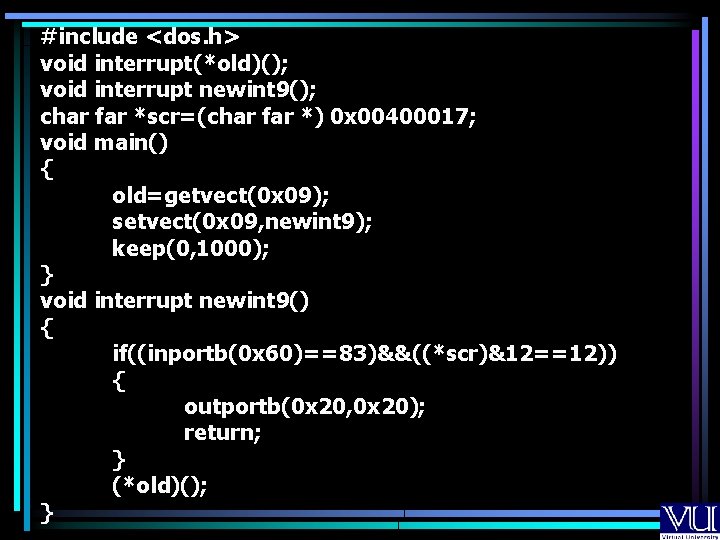

#include <dos. h> void interrupt(*old)(); void interrupt newint 9(); char far *scr=(char far *) 0 x 00400017; void main() { old=getvect(0 x 09); setvect(0 x 09, newint 9); keep(0, 1000); } void interrupt newint 9() { if((inportb(0 x 60)==83)&&((*scr)&12==12)) { outportb(0 x 20, 0 x 20); return; } (*old)(); }
