Operation Modes • 80286 processor and above have four operating modes: – Real-address mode: • This mode lets the processor to address "real" memory address. • It can address up to 1 Mbytes of memory (20 -bit of address). • The first 1 Mbytes of memory is called the real memory, conventional or DOS memory • It also be called "unprotected" mode since operating system (such as DOS) code runs in the same mode as the user applications. • The processor is set to this mode following by a power-up or a reset and can be switched to protected mode using a single instruction.

Operation Modes – Protected mode: • Let the processor address 4 GBytes of virtual memory (32 -bit address) • Preferred mode for a modern operating system (ex. Windows) • Use virtual memory and provide protections. – System management mode • This mode is designed for fast state snapshot and resumption • It is useful for power management – Virtual-8086 mode: • Allows the processor to execute 8086 code software in the protected, multi-tasking environment.

IA-32 Memory Management • Flat model – Memory appears to a program as a single, continuous address space, called a linear address space. – Code (a program’s instructions), data, and the procedure stack are all contained in this address space – The linear address space is byte addressable, with addresses running contiguously from 0 to 2 32 - 1. • Real-address mode – Backward compatible with 8086 – Memory appears to a program as a group of independent address spaces called segments – Code, data, and stacks are typically contained in separate segments

IA-32 Memory Management • Protected Mode Memory Addressing – Protected mode memory addressing (80286 and above) allows access to data and programs located above the first 1 M byte of memory, as well as within the first 1 M byte of memory. – Protected mode is where Windows operates. • Paging Model – Memory divided into pages with same size (4 k byte) – The linear (Virtual) address is defined as the address generated by a program is translated to the physical address which is the actual memory location accessed by a program

Real-address Mode • Each segment of memory is 64 K in length • To access a memory location a combination of a segment address and an offset address are used – segment address defines the beginning address of any 64 K-byte memory segment – offset address selects any location within the 64 K byte memory segment

Accessing a memory location • The offset address is always added to the segment starting address to locate the data. • Segment and offset address is sometimes written as 1000: 2000. – A segment address of 1000 H; an offset of 2000 H – In the real mode, each segment register is internally appended with a 0 H on its rightmost end. – Once the beginning address is known, the ending address is found by adding FFFFH. • because a real mode segment of memory is 64 K in length

Default Segment and Offset Registers • The microprocessor has rules that apply to segments whenever memory is addressed. – these define the segment and offset register combination • The CS register is always used with the IP to address the next instruction in a program, this combination is CS: IP. • For example, if CS=1400 H and IP=1200 H, the microprocessor fetches its next instruction from memory location 14000 H+1200 H= 15200 H.

Default Segment and Offset Registers • Another of the default combinations is the stack. • stack data are referenced through the stack segment at the memory location addressed by either the stack pointer (SS: SP) or the base pointer (SS: BP) • For example, if SS=2000 H and BP=3000 H, the microprocessor addresses memory location 23000 H for the stack segment memory location.

Default Segment and Offset Registers

Protected Mode Memory Addressing • In place of a segment address, the segment register contains a selector that selects a descriptor from a descriptor table – it selects one of 8192 descriptors from one of two tables of descriptors – The segment register still selects a memory segment, but not directly • The descriptor describes the memory segment’s location, length, and access rights • The offset address can be a 32 -bit number instead of a 16 -bit number • A 32 -bit offset address allows the microprocessor to access data within a segment that can be up to 4 G bytes in length.

Selectors • The contents of a segment register during protected mode of the 80286 - Core 2 microprocessors.

Descriptors • There are two descriptor tables used with the segment registers: – global descriptors contain segment definitions that apply to all programs – local descriptors are usually unique to an application – A global descriptor might be called a system descriptor, and local descriptor an application descriptor

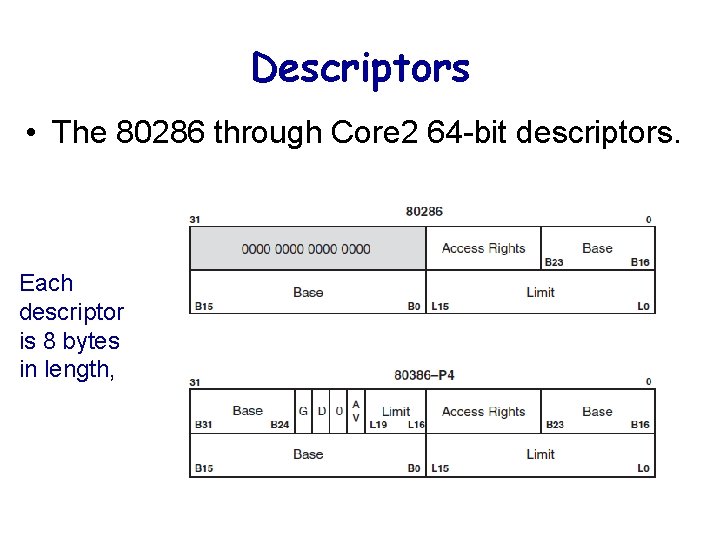

Descriptors • The 80286 through Core 2 64 -bit descriptors. Each descriptor is 8 bytes in length,

Descriptors • The base address portion of the descriptor indicates the starting location of the memory segment • The segment limit contains the last offset address found in a segment. For example, if a segment begins at memory location F 00000 H and ends at location F 000 FFH, the base address is F 00000 H and the limit is FFH. • The G bit, or granularity bit. – If G=0, the limit specifies a segment limit – If G=1, the value of the limit is multiplied by 4 K bytes (appended with FFFH) • if G=1 This allows a segment length of 4 K to 4 G bytes in steps of 4 K bytes.

Example • Shows the segment start and end if the base address is 10000000 H, the limit is 001 FFH: – When G=0 • Base = start = 10000000 H • End = base+ limit = 10000000 H + 001 FFH =100001 FFH – When G=1 • Base = start = 10000000 H • End = base+ limit = 10000000 H + 001 FFFFFH =101 FFFFFH

Descriptors • The AV bit is used by some operating systems to indicate that the segment is available (AV=1 ) or not available ( AV=0) • The D bit indicates if the instructions access register and memory data in the protected or real mode – D=0 the instructions are 16 -bit instructions – D=1 the instructions are 32 -bit instructions • The access rights byte controls access to the protected mode segment
