Micromacro analysis of a composite Casa Day 221106

Micro/macro analysis of a composite Casa Day 22/11/06

Motivation Aloha Airlines Flight 243 Honolulu International Airport, Hawaii No visual exterior inspection (nor required) At 24000 feet… loud clap Flight attendant swept out of the cabin 1 dead, 65 injured $5 million damage

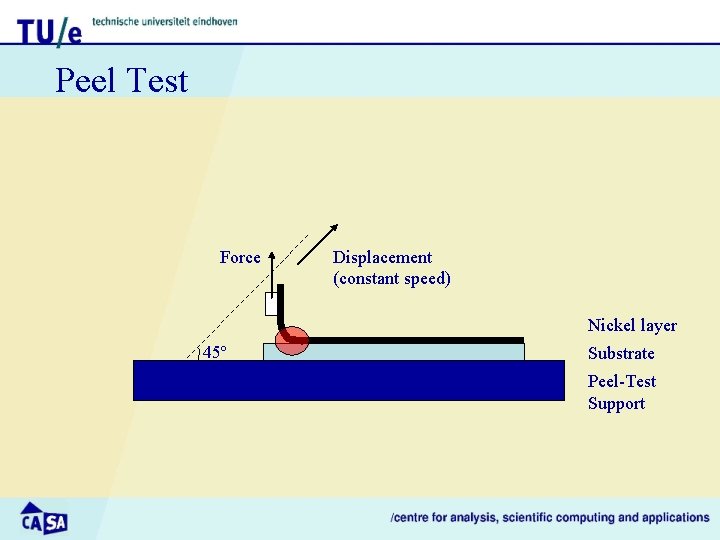

Peel Test Force Displacement (constant speed) Nickel layer 45º Substrate Peel-Test Support

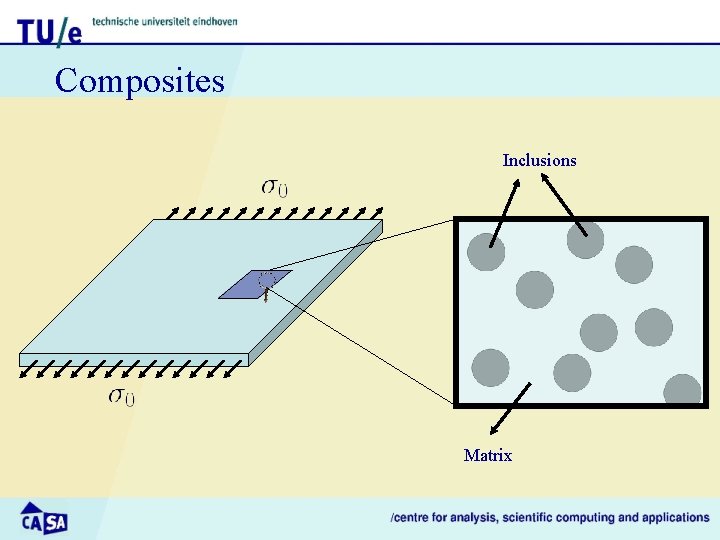

Composites Inclusions Matrix

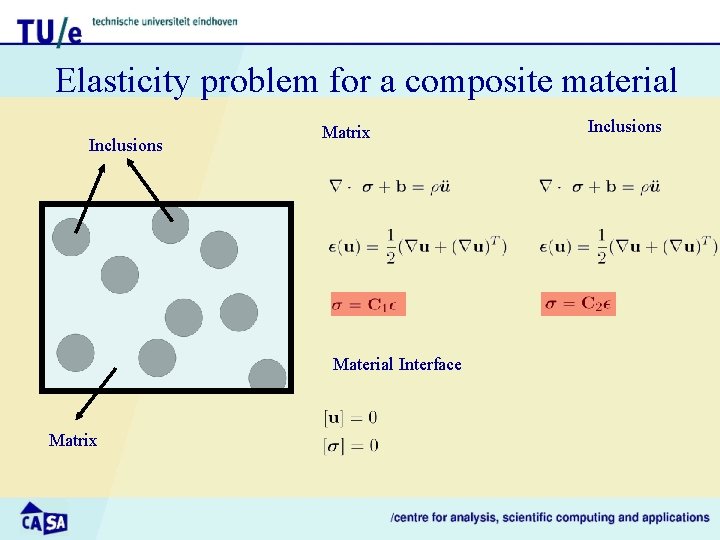

Elasticity problem for a composite material Inclusions Matrix Material Interface Matrix Inclusions

Modelling Inclusions Matrix Material Interface Matrix Inclusions

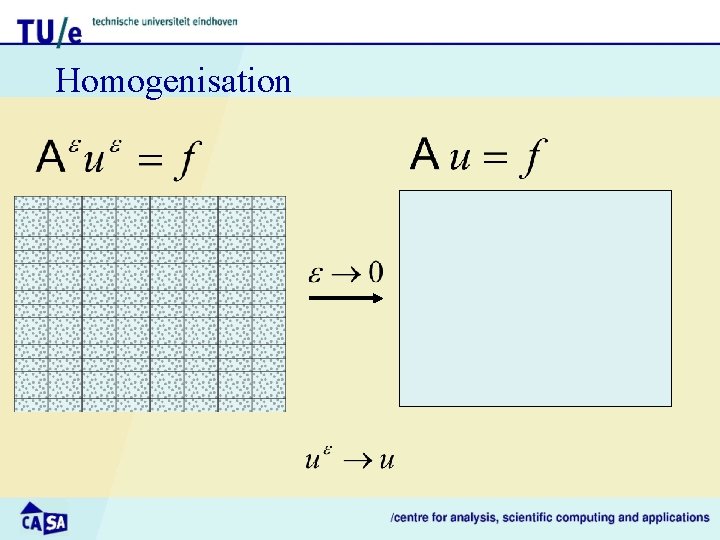

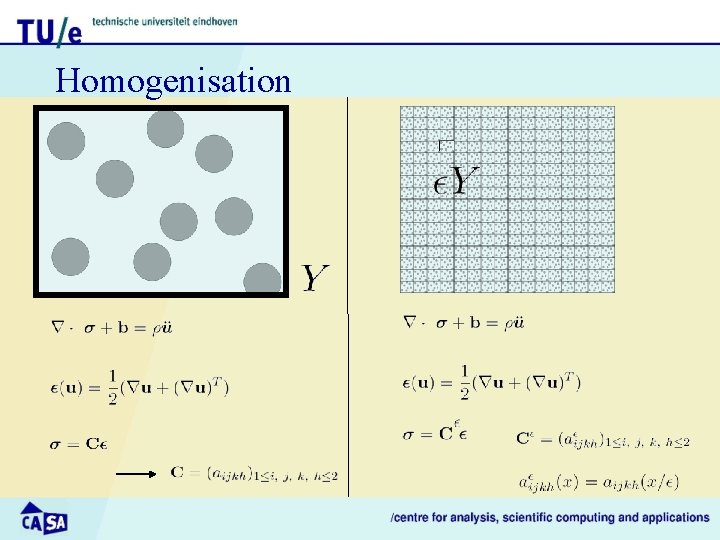

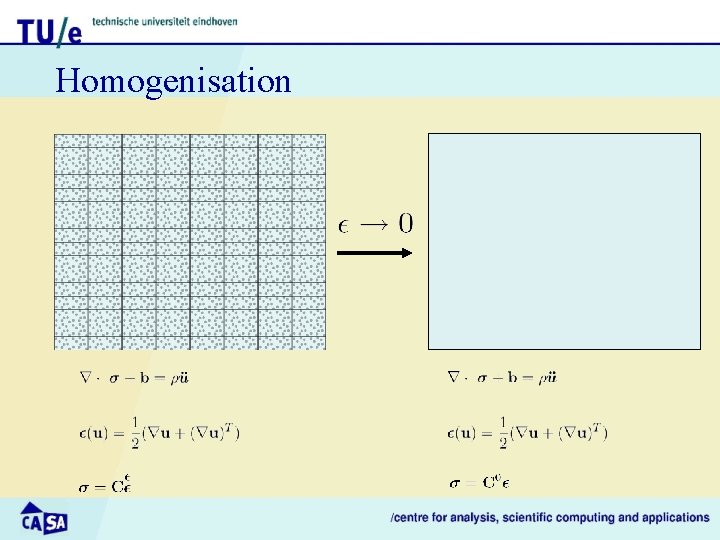

Homogenisation

Homogenisation

Homogenisation

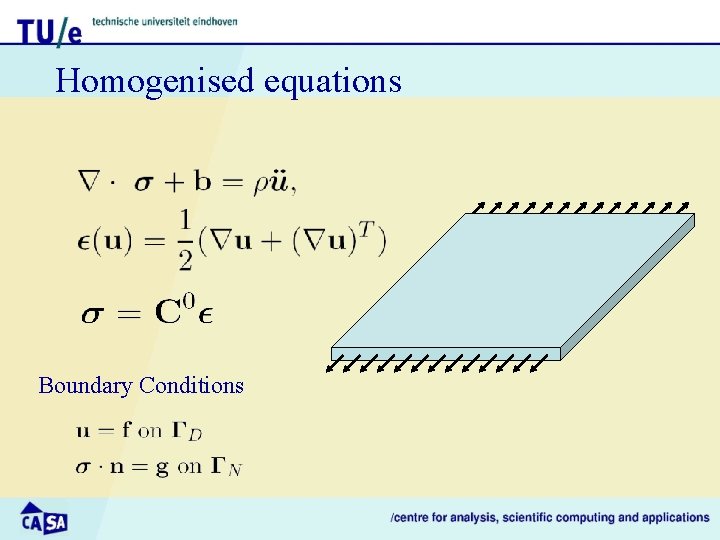

Homogenised equations Boundary Conditions

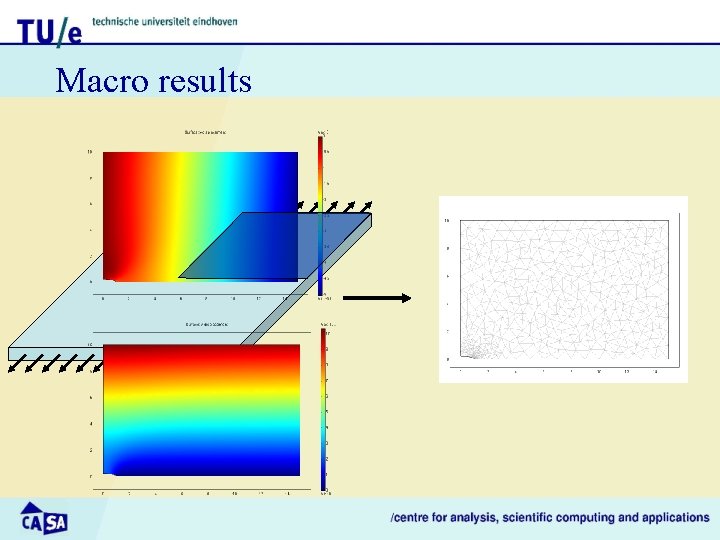

Macro results

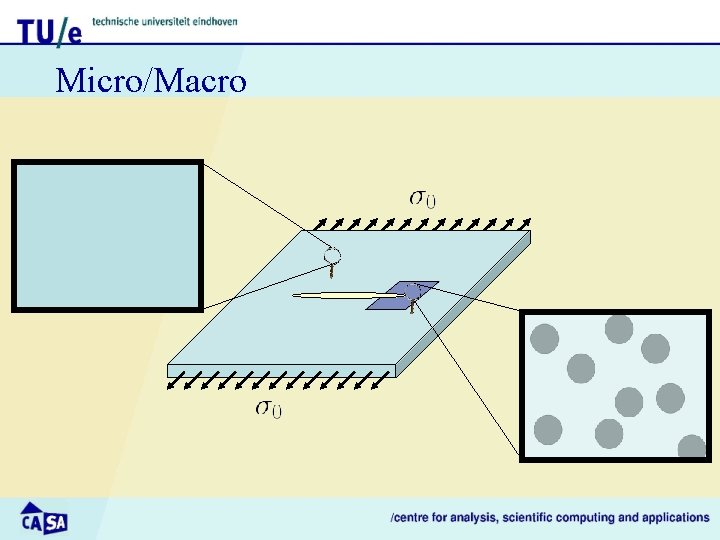

Micro/Macro

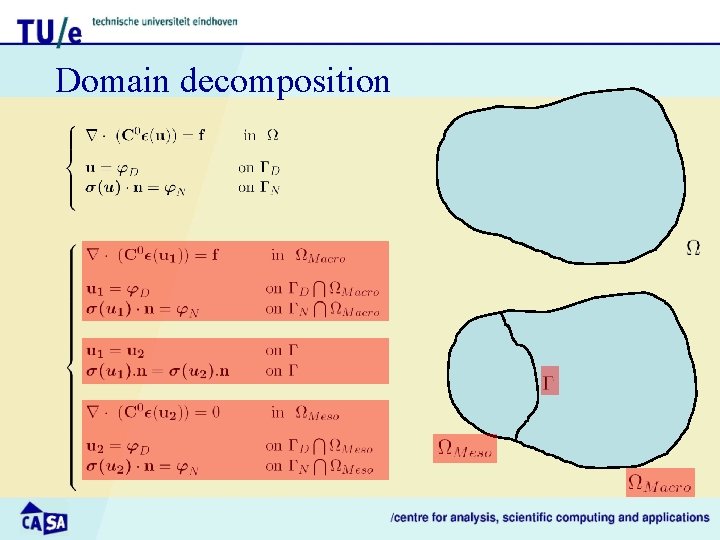

Domain decomposition

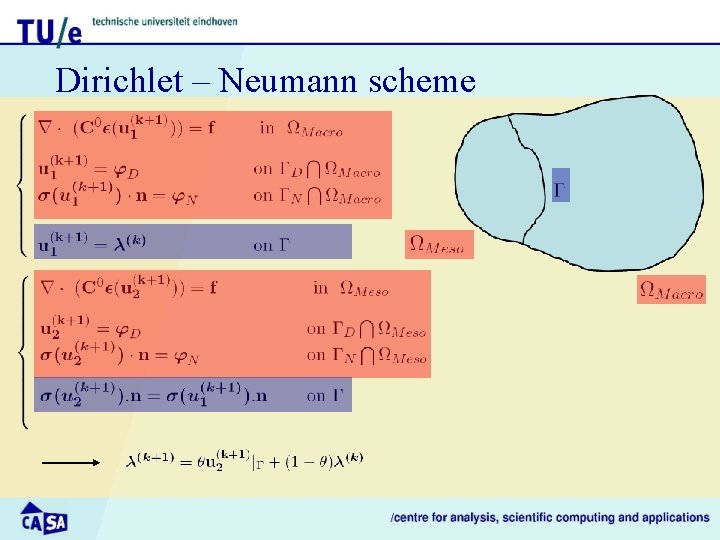

Dirichlet – Neumann scheme

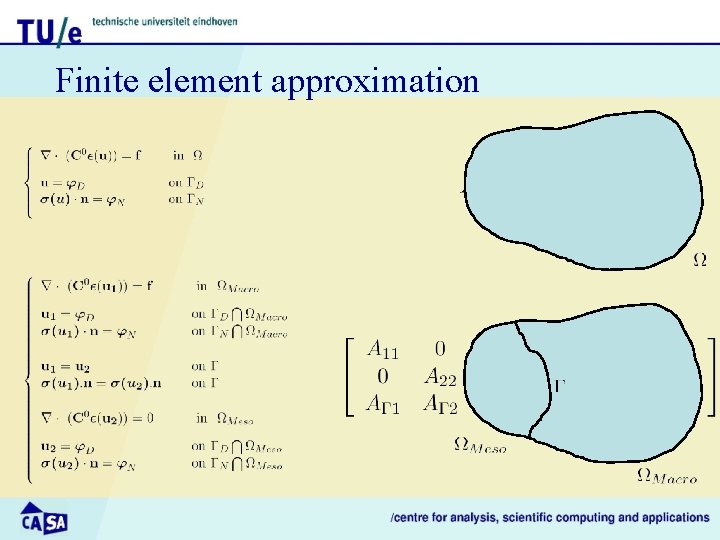

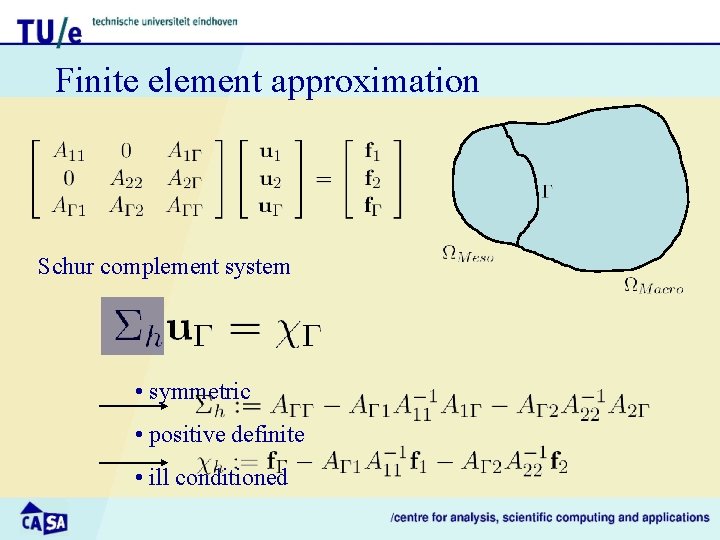

Finite element approximation

Finite element approximation Schur complement system • symmetric • positive definite • ill conditioned

Algorithm Dirichlet problem Neumann Problem Relaxation step

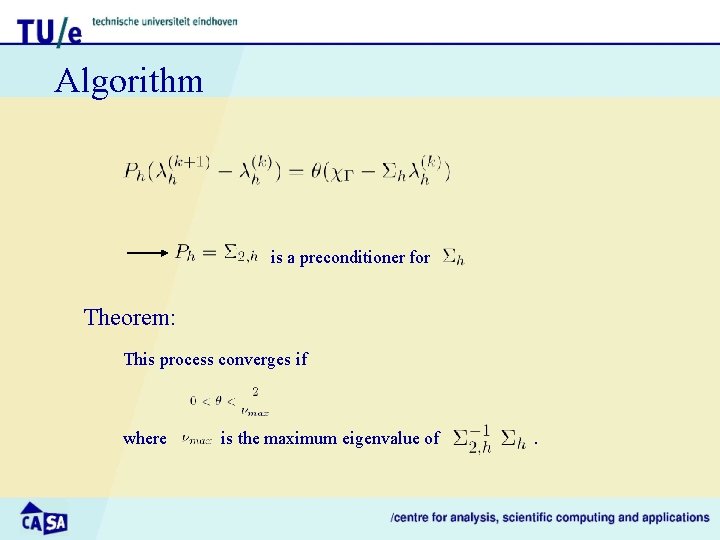

Algorithm is a preconditioner for Theorem: This process converges if where is the maximum eigenvalue of .

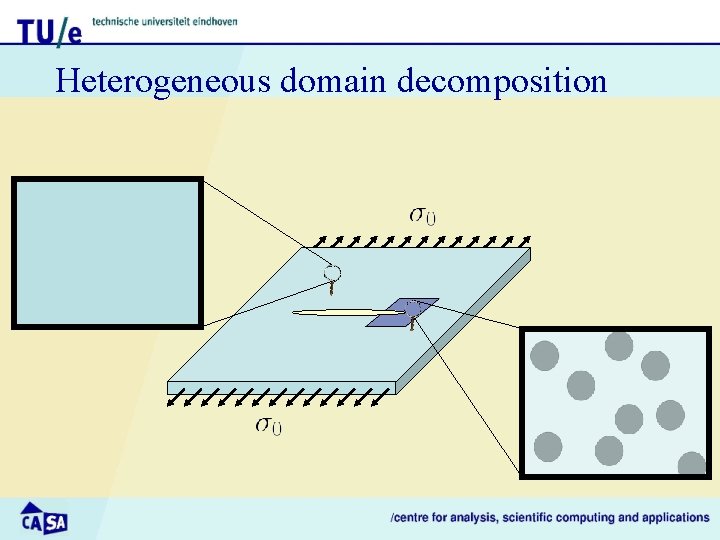

Heterogeneous domain decomposition

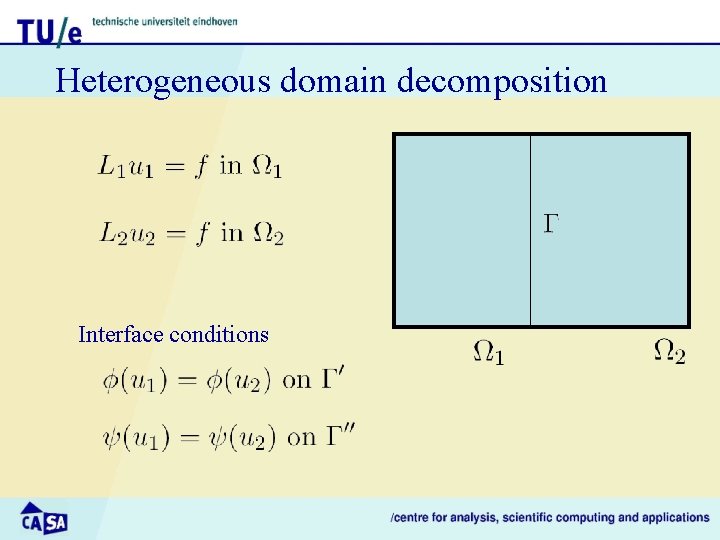

Heterogeneous domain decomposition Interface conditions

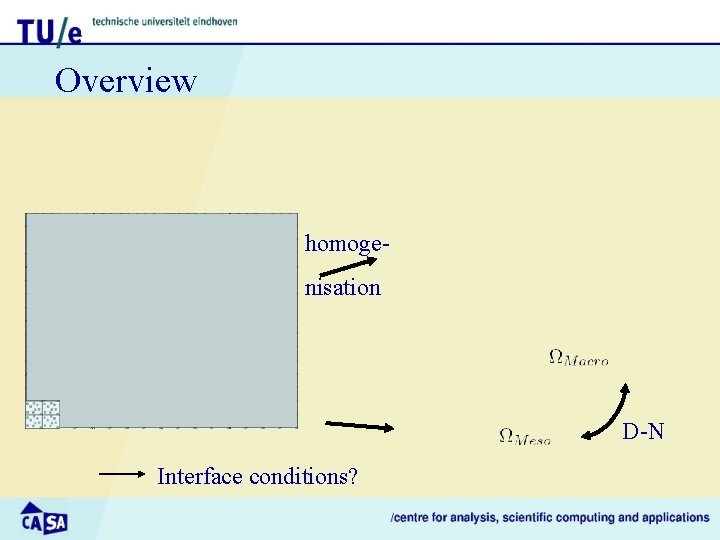

Overview homogenisation D-N Interface conditions?

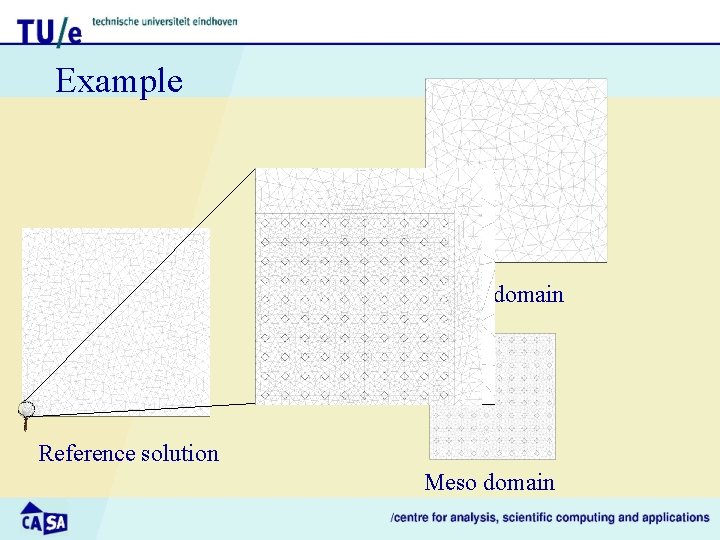

Example Macro domain Reference solution Meso domain

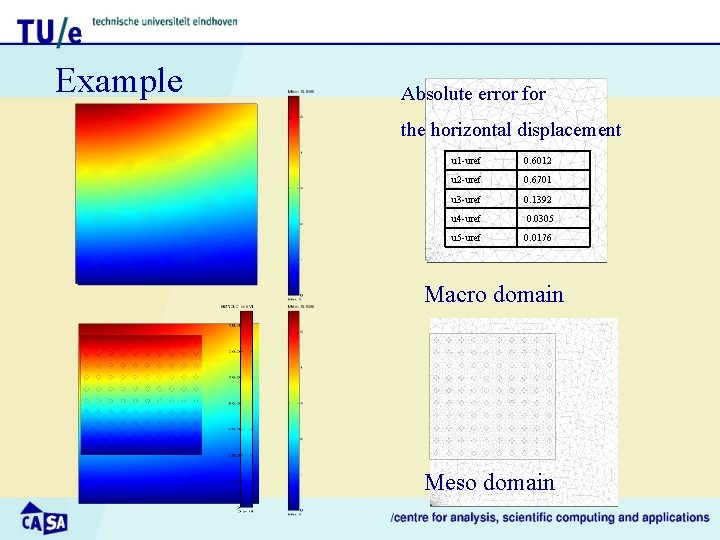

Example Absolute error for the horizontal displacement u 1 -uref 0. 6012 u 2 -uref 0. 6701 u 3 -uref 0. 1392 u 4 -uref 0. 0305 u 5 -uref 0. 0176 Macro domain Meso domain

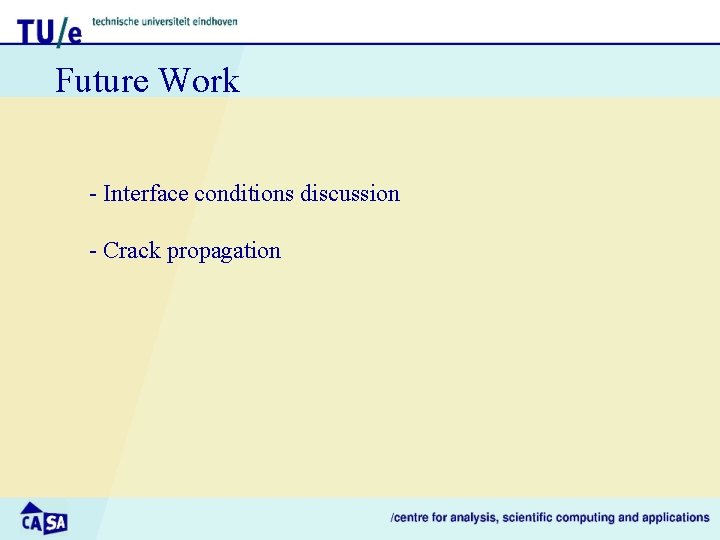

Future Work - Interface conditions discussion - Crack propagation
