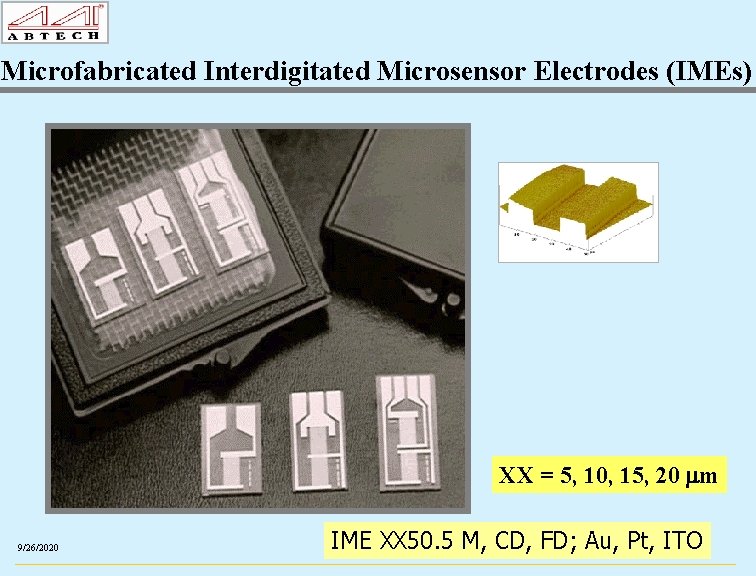

Microfabricated Interdigitated Microsensor Electrodes (IMEs) XX = 5, 10, 15, 20 mm 9/26/2020 IME XX 50. 5 M, CD, FD; Au, Pt, ITO

Microelectrodes Oxygen Microelectrodes 9/26/2020 p. H and REF Microelectrodes

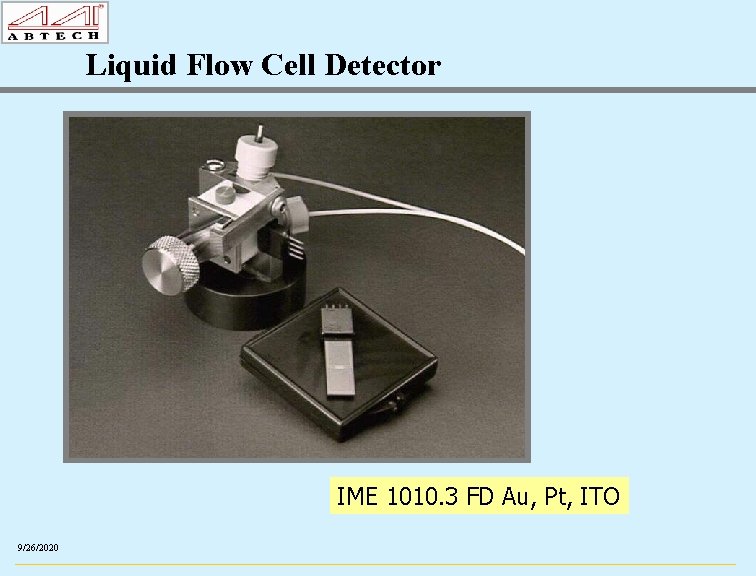

Liquid Flow Cell Detector IME 1010. 3 FD Au, Pt, ITO 9/26/2020

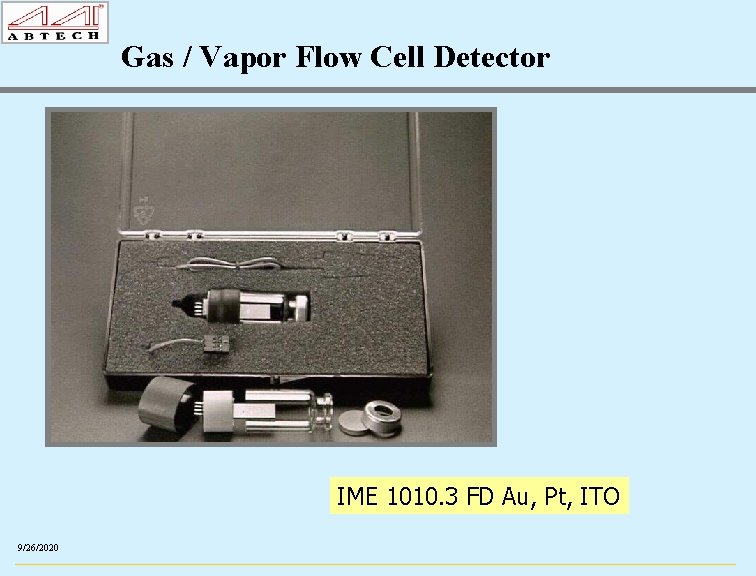

Gas / Vapor Flow Cell Detector IME 1010. 3 FD Au, Pt, ITO 9/26/2020

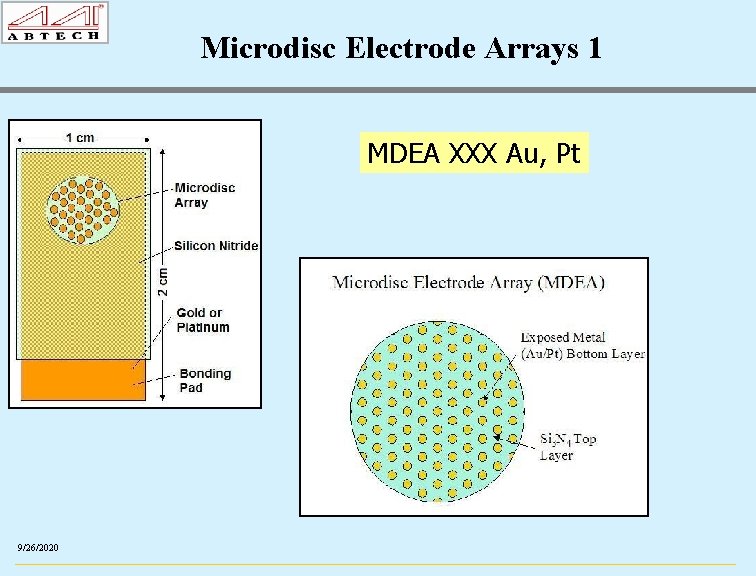

Microdisc Electrode Arrays 1 MDEA XXX Au, Pt 9/26/2020

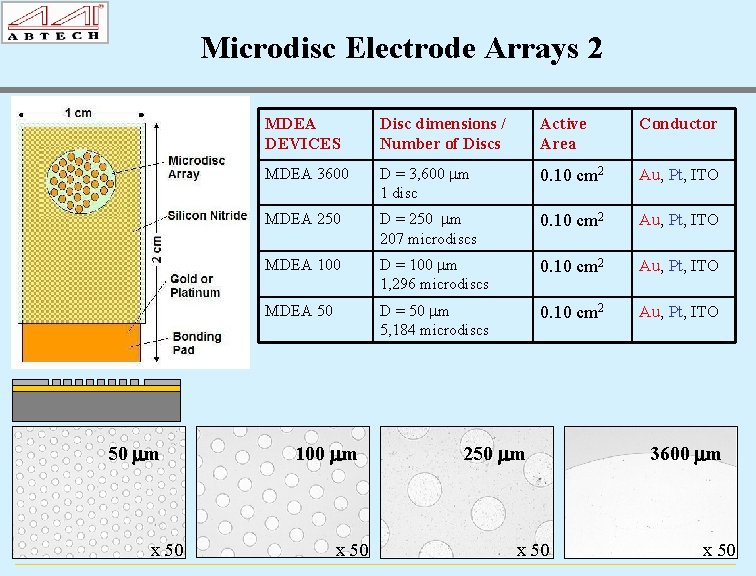

Microdisc Electrode Arrays 2 50 mm 9/26/2020 x 50 MDEA DEVICES Disc dimensions / Number of Discs Active Area Conductor MDEA 3600 D = 3, 600 mm 1 disc 0. 10 cm 2 Au, Pt, ITO MDEA 250 D = 250 mm 207 microdiscs 0. 10 cm 2 Au, Pt, ITO MDEA 100 D = 100 mm 1, 296 microdiscs 0. 10 cm 2 Au, Pt, ITO MDEA 50 D = 50 mm 5, 184 microdiscs 0. 10 cm 2 Au, Pt, ITO 100 mm x 50 250 mm x 50 3600 mm x 50

Microdisc Electrode Arrays 3 50 mm 100 mm 250 mm 3600 mm 9/26/2020

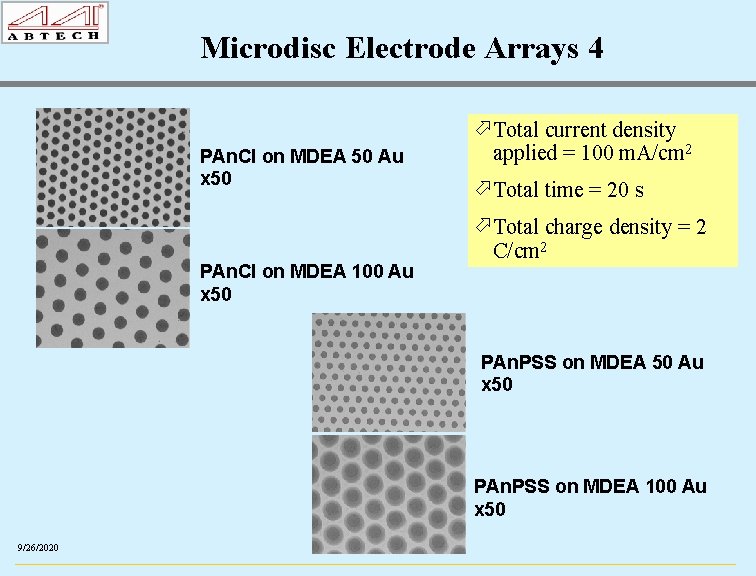

Microdisc Electrode Arrays 4 PAn. Cl on MDEA 50 Au x 50 PAn. Cl on MDEA 100 Au x 50 öTotal current density applied = 100 m. A/cm 2 öTotal time = 20 s öTotal charge density = 2 C/cm 2 PAn. PSS on MDEA 50 Au x 50 PAn. PSS on MDEA 100 Au x 50 9/26/2020

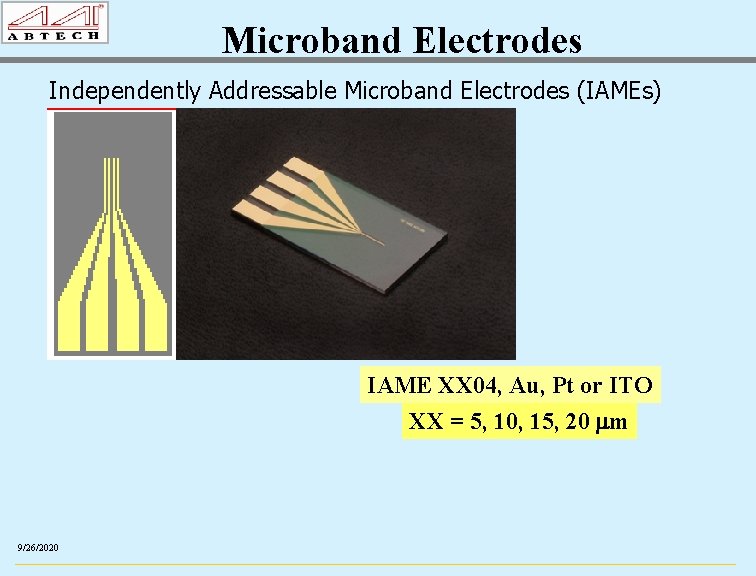

Microband Electrodes Independently Addressable Microband Electrodes (IAMEs) IAME XX 04, Au, Pt or ITO XX = 5, 10, 15, 20 mm 9/26/2020

Microband Electrodes Independently Addressable Interdigitated Microsensor Electrodes (IAIMEs) IAIME XX 10, Au, Pt or ITO XX = 5, 10, 15, 20 mm 9/26/2020

Electrochemical Cell-on-a-Chip (ECC) A B C D E F G 9/26/2020

Electrochemical Cell-on-a-Chip (ECC) ECC IME XX 04, Au, Pt or ITO 1 cm XX = 05, 10, 15, 20 mm C 1 C 2 2 cm 9/26/2020 A B C D E F G

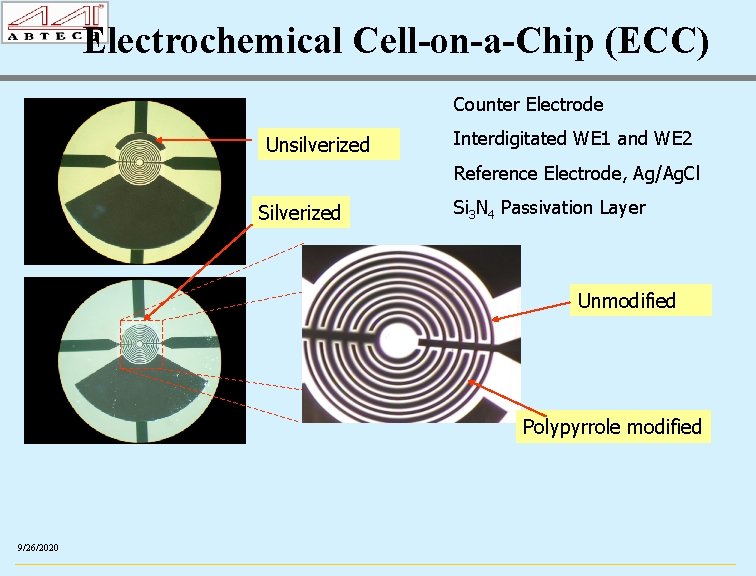

Electrochemical Cell-on-a-Chip (ECC) Counter Electrode Unsilverized Interdigitated WE 1 and WE 2 Reference Electrode, Ag/Ag. Cl Silverized Si 3 N 4 Passivation Layer Unmodified Polypyrrole modified 9/26/2020

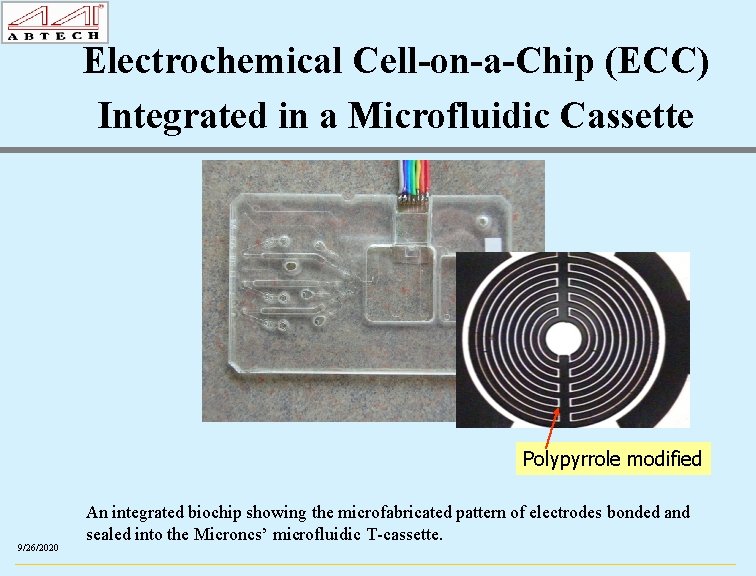

Electrochemical Cell-on-a-Chip (ECC) Integrated in a Microfluidic Cassette Polypyrrole modified 9/26/2020 An integrated biochip showing the microfabricated pattern of electrodes bonded and sealed into the Microncs’ microfluidic T-cassette.

IAME-co-IME 2 -1 Au, Pt Independently Addressable Microband Electrodes and Microfrabricated Interdigitated Microsensor Electrodes) 9/26/2020

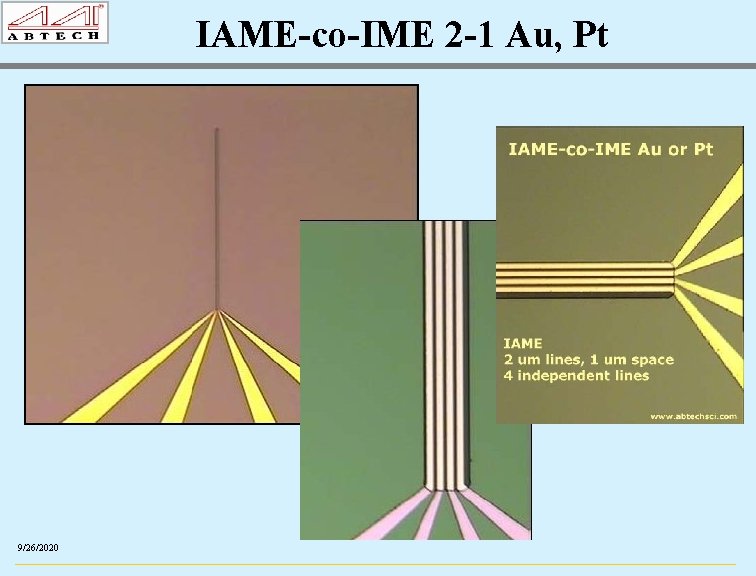

IAME-co-IME 2 -1 Au, Pt Independently Addressable Microband Electrodes and Microfrabricated Interdigitated Microsensor Electrodes) 4 bands 3 mm long 2 mm lines, 1 mm space 9/26/2020 5 + 5 fingers 3 mm long 2 mm lines, 1 mm space

IAME-co-IME 2 -1 Au, Pt 9/26/2020

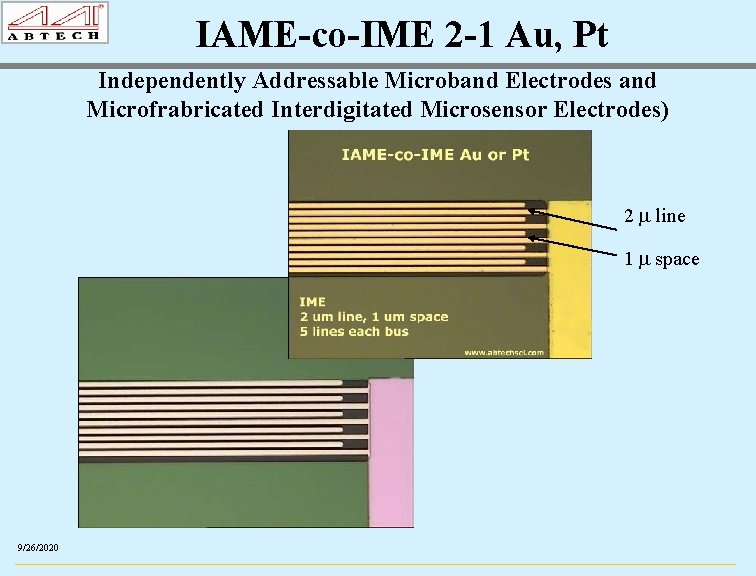

IAME-co-IME 2 -1 Au, Pt Independently Addressable Microband Electrodes and Microfrabricated Interdigitated Microsensor Electrodes) 2 m line 1 m space 9/26/2020

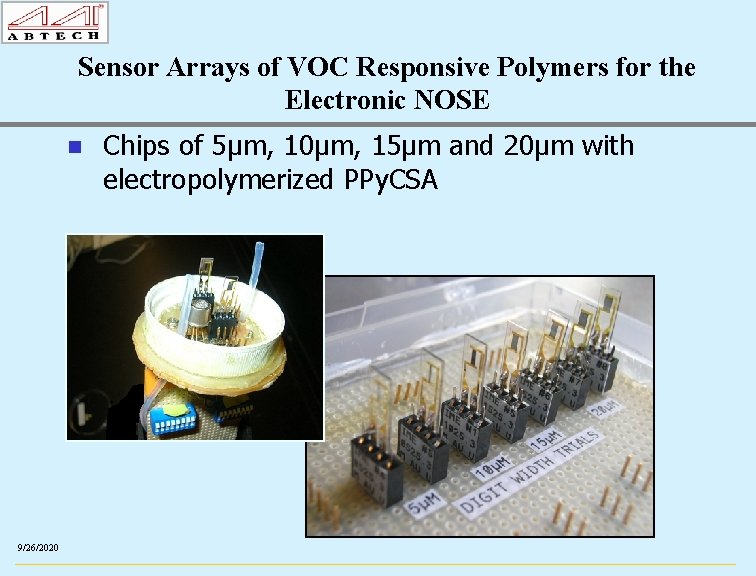

Sensor Arrays of VOC Responsive Polymers for the Electronic NOSE n 9/26/2020 Chips of 5μm, 10μm, 15μm and 20μm with electropolymerized PPy. CSA
