Microfluidic components 2018 sami. franssila@aalto. fi
Contents • • • Pumping Valving Dosing Mixing Surface microfluidics • • Fuel cells Microreactors Droplet reactors Cellomic devices flow control applications
Pumps • • bubble pumps membrane pumps diffuser pumps rotary pumps electrohydrodynamic electro-osmotic/electrophoretic ultrasonic pumps vacuum pumps

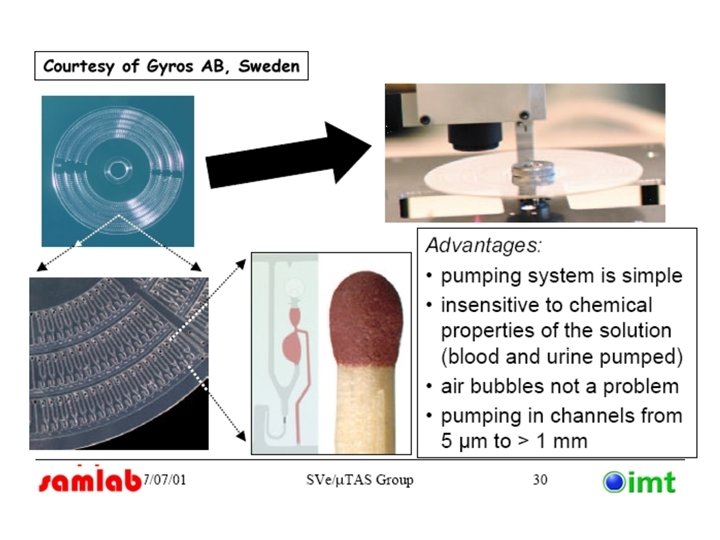

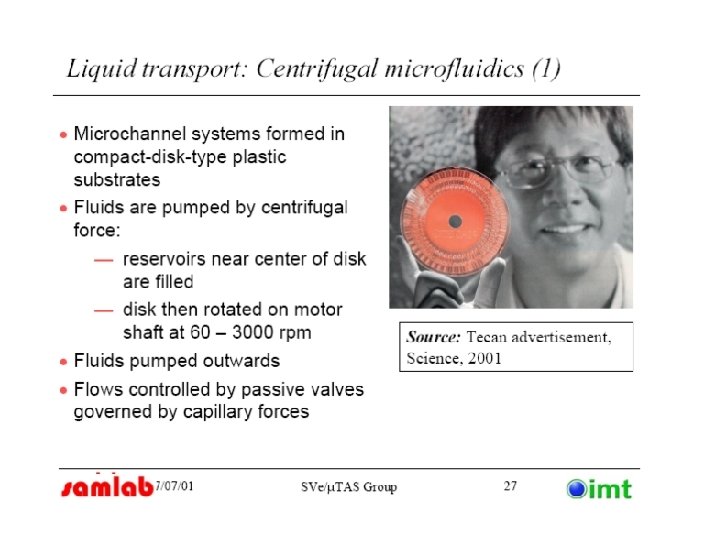

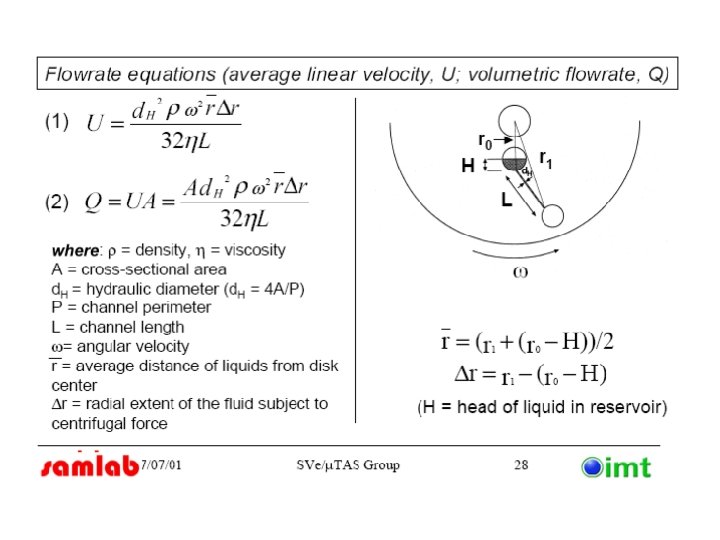

Pumps: actuation mechanisms
Peristaltic pump = 3 valves in series
Pumps without moving parts Surface tension driven pump Electro-osmotic pump Nozzle-diffuser pump, Olsson, Stemme 1997
Osmotic pump for drug delivery
Thermal ink jet MEMS Handbook
Passive • mechanical • geometric • hydrophobic Active valves pneumatic thermopneumatic phase-change electrostatic piezoelectri thermal expansion
Quake valve
Why semicircular channel ? How to make semicircular channel ? Resist flow > Tg
PDMS membrane valve Lab Chip, 2010, 2814 -2817
Bossed valve
Flap valve by PDMS molding
Flap-valve (2)

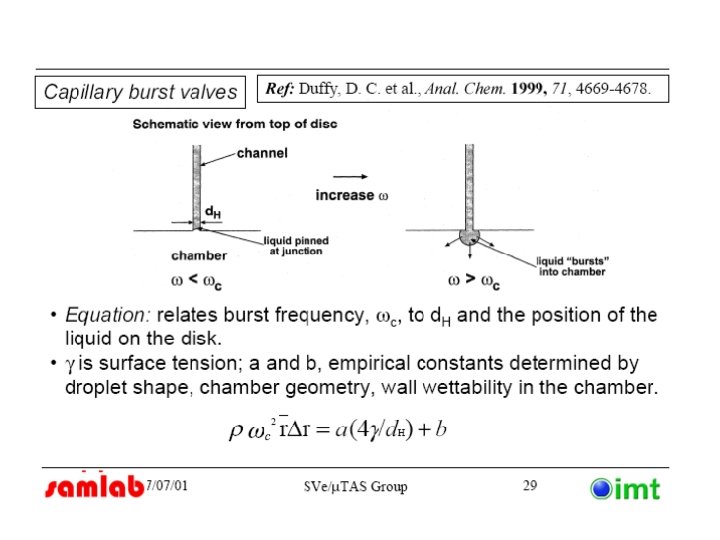

Geometric valves Pillar “forest” controls the rate of capillary flow. Rapid constriction of the flow channel will stop the flow. Side channel offers timing of flow. Transducers 2005, p. 1565
Microreactors Small volume good if expensive and/or dangerous chemicals Fast reactions because small diffusion distances Large surface area (either positive or negative effect) Good temperature control and fast ramp rates Besser: J. Vac. Sci. Technol. B 21. 2. , Mar/Apr 2003 Good flow control because of laminar flow
Microreactor in silicon

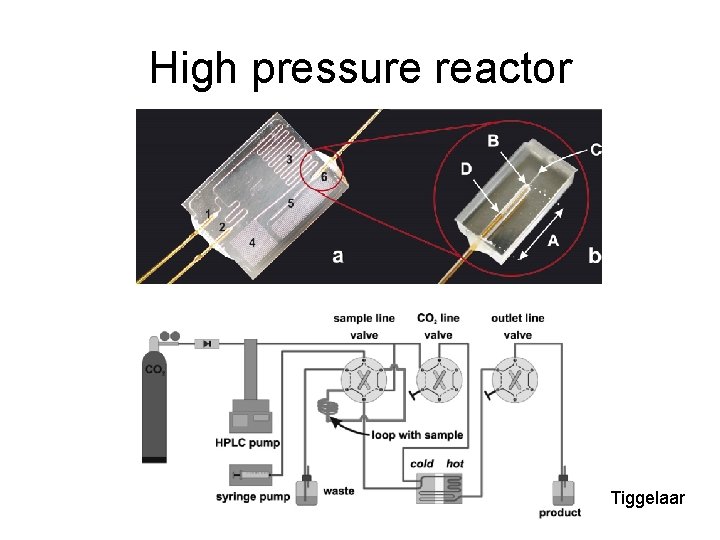

High pressure reactor Tiggelaar
Electrowetting (EWOD) Electrowetting: electrostatically induced reduction in the contact angle of an electrically conductive liquid droplet on a surface.
Electrowetting (2) Young-Lippmann equation: d is the thickness of the dielectric layer and εr is its relative dielectric constant. Here, γlv is the liquid–vapor surface tension, V is the applied voltage, h is the contact angle, and ε 0 is the permittivity of free space.
EWOD device
EWOD materials
EWOD = DMF = Digital microfluidics
Droplet movement
Digital microreactor
PCR DNA copy machine
µPCR = rapid thermal ramping
Continuos flow PCR
Basic geometries: straight channel -separation channel -mixer -microreactor -. . .
Basic geometries: X, T, Y, H Applications: • CE injectors • mixers • filters • reactors
Particle filtering: H-filter
Combine basic shapes to devices Injector + separation channel precolumn reaction + separation post-column reaction
Dispensers Nguyen p.
Optoelectrofluidic chip
Electrophoresis chip with electrochemical detection
CE chip fabrication: channels in silicon (2)
CE chip fabrication: electrodes on polycarbonate (3) Lift-off
CE chip fabrication: electrodes on polycarbonate (4) Liftoff
Bond Si and PC to complete fabrication Polycarbonate Si
Adhesive bonding ”glueing” -any two materials can be joined -glue remains in the structure, and may react with chemicals -temperature is ca. 100 -200 o. C only -no pressure needed
Number of materials Substrate, cap and adhesive 3 materials Embossing without bottom clearing + direct bonding single material Adhesive and cap identical 2 materials
Materials considerations, fabrication point of view • Stresses (e. g. during curing) • Thermal stability • Outgassing/bubble formation • Thermal expansion differences • Chemicals compatibility (cleaning, etching) • Single/double side processing (e. g. smoothness)
Materials considerations, applications point of view Surface uniformity (adsorption, surface charge) Electrical/thermal insulation Transparency Autofluorescence Solvent compatibility Acid/base compatibility Permeability to gases Water intake PDMS on glass: 3 phobic walls, 1 philic wall
