Microelectronics Clean Room Electrical and Computer Engineering Orbital

Microelectronics Clean Room Electrical and Computer Engineering Orbital Tube Welder by Clayton Gatewood

Overview General Information Safety Set-up Tube Preparation: facing, cleaning Operation Weld Schedules Weld Evaluation by Clayton Gatewood

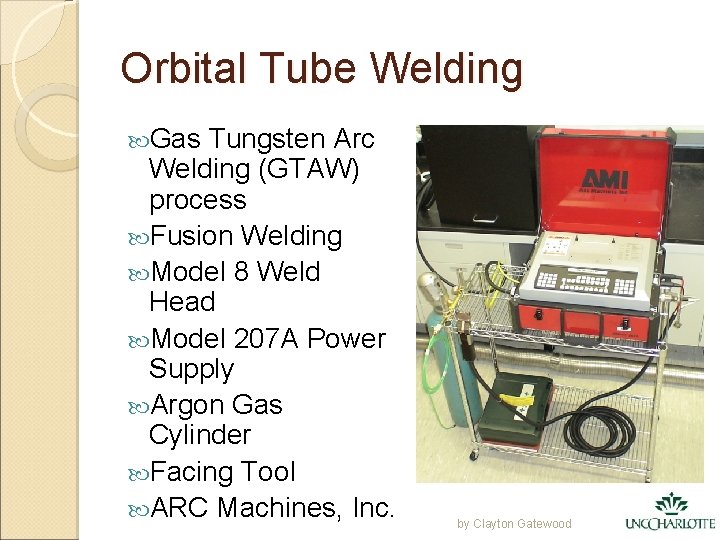

Orbital Tube Welding Gas Tungsten Arc Welding (GTAW) process Fusion Welding Model 8 Weld Head Model 207 A Power Supply Argon Gas Cylinder Facing Tool ARC Machines, Inc. by Clayton Gatewood

Gas Tungsten Arc Welding (GTAW) Process Used to weld tubing that remains inplace while the tungsten electrode rotates around the target joint. Material edges are heated by an arc and are fused together without a filler. by Clayton Gatewood

Safety Electricity Hazard: Shock, RF Starting, Pacemaker, Electric Storage Devices Fire Hazard: Clothing, Sealed Containers, Welded Material Hot to Touch Harmful UV Radiation (eyes and skin) Toxic Fumes from Welding Stainless Steel, Hexavalent Chromium (lung cancer) Air Displacement by Argon Gas Factory Training Essential Keep Hands and Fingers Clear Compressed Gas Cylinders Cleaning Chemicals by Clayton Gatewood

Set-Up Ensure Power is Off Connections: Weld Head, Argon Gas, main power cord Apply Argon (¼ turn) @ 20 psi by Clayton Gatewood

Tube Preparation Facing by Clayton Gatewood

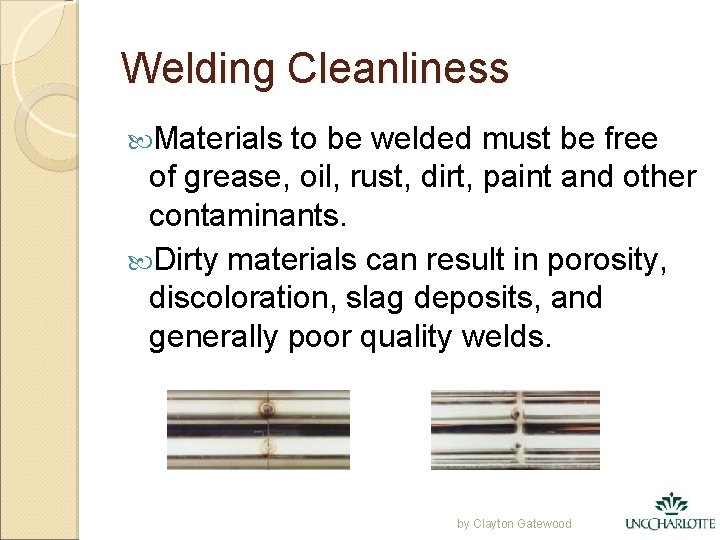

Welding Cleanliness Materials to be welded must be free of grease, oil, rust, dirt, paint and other contaminants. Dirty materials can result in porosity, discoloration, slag deposits, and generally poor quality welds. by Clayton Gatewood

Operation Align target joint with tungsten electrode Connect Argon Purge Line and set for 5 psi (for ¼” OD tubing) Select Weld Schedule Ensure Power Supply is “Ready to Weld” Press “Seq Start” Prepurge, Weld, Downslope, Postpurge by Clayton Gatewood

Weld Schedule Development An orbital tube weld may be done in 4 or more levels. It must include enough time for tiein before the downslope. by Clayton Gatewood

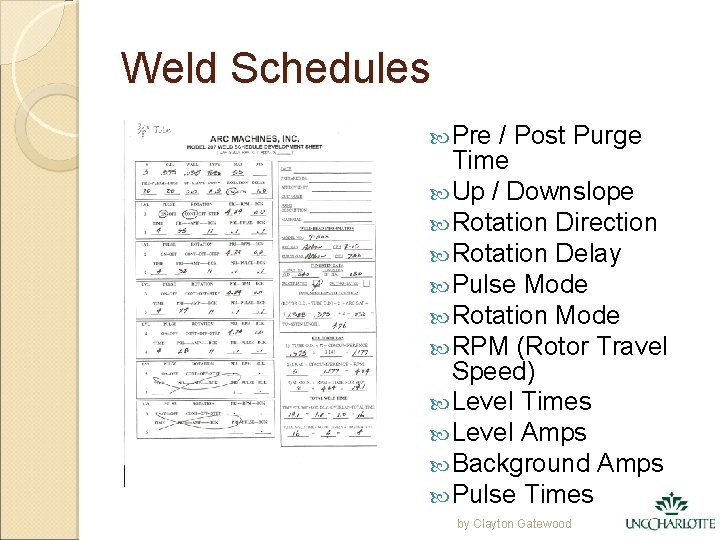

Weld Schedules Pre / Post Purge Time Up / Downslope Rotation Direction Rotation Delay Pulse Mode Rotation Mode RPM (Rotor Travel Speed) Level Times Level Amps Background Amps Pulse Times by Clayton Gatewood

Power Supply Sequence by Clayton Gatewood

Sample Weld Schedules by Clayton Gatewood

Weld Evaluation 60 to 80% overlap on outer diameter Poor rotation delay Borescope to inspect inner diameter Full penetration No cracks, undercut, crevices, pits, or embedded or protruding material by Clayton Gatewood

Weld Profiles by Clayton Gatewood

Weld Defects Weld Problem Probable cause(s) Lack of penetration to I. D. 1) Insufficient amperage 2) Tungsten offset 3) Change of heat number 4) Sulfur mismatch 5) Variable wall thickness 1) Too much amperage 2) Gravity (heavy wall) 3) Very low sulfur 1) Excessive ID purge pressure OD Concavity ID Concavity Discoloration of ID (oxidation) Misalignment Porosity Excessive slagging 1) Excessive oxygen and/or moisture in ID purge gas 2) Moisture and/or oxygen in or on tubing 3) Chemical residue from EP 4) Leak in purging set up 5) Pinched gas hose 1) Dimensional tolerances - out of round 2) Wall thickness mismatch 3) Worn out TCIs 4) Poor workmanship 1) Moisture in purge gas 2) Moisture or dirt on weld components 1) impurities in base material especially oxides of aluminum, calcium, silicon by Clayton Gatewood

Argon Purge and Oxygen Left to Right = effect of increasing levels of oxygen in the argon purge by Clayton Gatewood

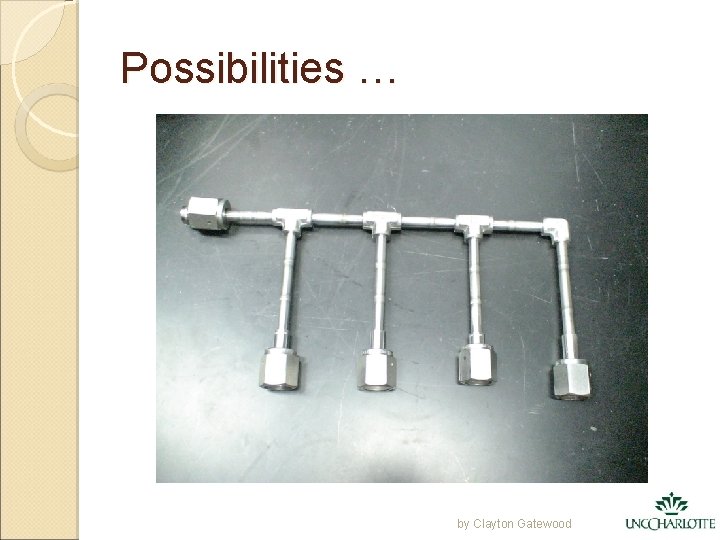

Possibilities … by Clayton Gatewood

Works Cited "MODEL 207 Operator Training Guidelines. " Arc Machines, Inc. CD-ROM. Pacoima, CA: Arc Machines, Inc. , 2007. Model 207 Microprocessor-Controlled Power Supply. 1 Nov. 1996. Arc Machines, Inc. . 16 Oct. 2007. <http: //www. arcmachines. com/prod. Med/ m 207 ps/m 207 ps. html>. by Clayton Gatewood
