Micro Turbines Which is Right for You Harris

Micro Turbines Which is Right for You?

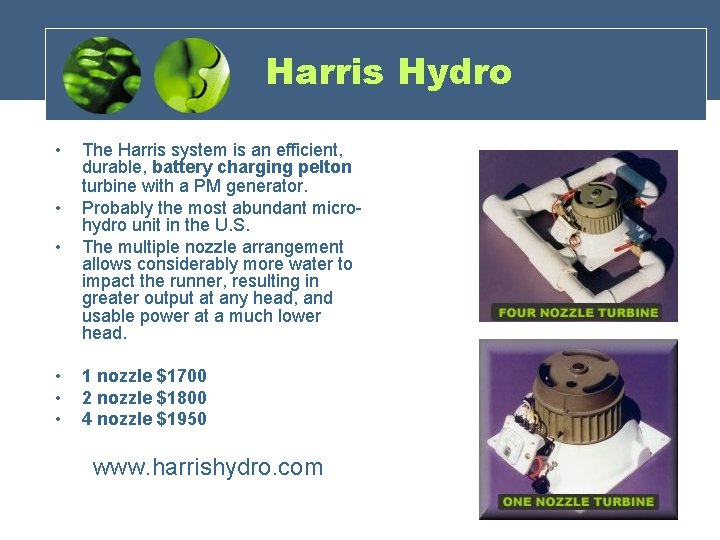

Harris Hydro • • The Harris system is an efficient, durable, battery charging pelton turbine with a PM generator. Probably the most abundant microhydro unit in the U. S. The multiple nozzle arrangement allows considerably more water to impact the runner, resulting in greater output at any head, and usable power at a much lower head. • • • 1 nozzle $1700 2 nozzle $1800 4 nozzle $1950 • www. harrishydro. com

Energy Systems & Design • Stream Engine • Brushless, permanent magnet alternator which is adjustable Capable of outputs over 1 kilowatt Heads from 6 to 300 feet. Equipped with a rugged bronze turgo wheel, universal nozzles (adaptable to sizing from 1/8 to 1 inch), and a digital multimeter which is used to measure output current. • • • www. microhydropower. com 2 Nozzle Bronze $2395 4 Nozzle Bronze $2545 High Voltage Option $200 High Current Option $100

Energy Systems & Design • Low Head Propeller Turbine • Water Baby • • Uses the same generator as the Stream Engine, however the water turbine component uses a low head propeller design. heads of 2 feet up to 10 feet. At the maximum head, the output is 1 k. W. • • Operates much the same as the Stream Engine but requires very little water (pelton wheel) Will operate on as little as 3 gpm but requires at least 100 feet of head. At a head of 100 feet and a flow of 3 gpm the output is 25 watts; at 24 gpm the output is 250 watts. LH 1000 with Draft Tube $1995 Baby Generator, 1 Nozzle (12/24 volt) High Voltage Option $200 extra Extra Nozzles (installed) $120 ea High Current Option $100 extra High Voltage (48/120 volt) $100 www. microhydropower. com $1395

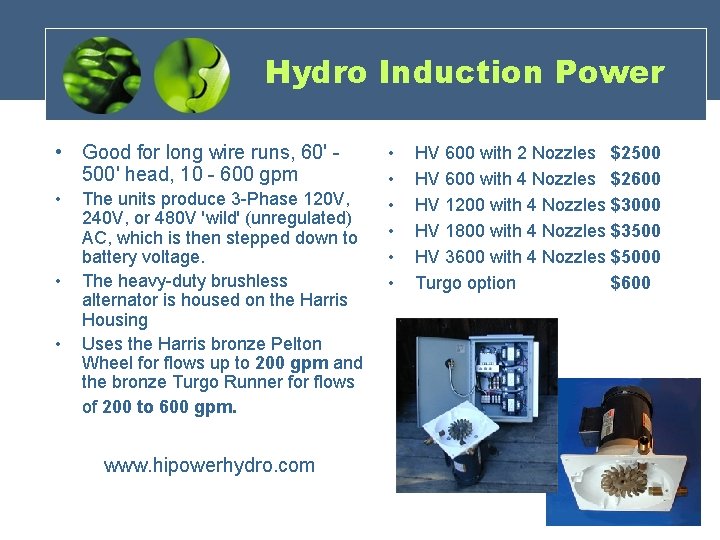

Hydro Induction Power • Good for long wire runs, 60' - 500' head, 10 - 600 gpm • • • The units produce 3 -Phase 120 V, 240 V, or 480 V 'wild' (unregulated) AC, which is then stepped down to battery voltage. The heavy-duty brushless alternator is housed on the Harris Housing Uses the Harris bronze Pelton Wheel for flows up to 200 gpm and the bronze Turgo Runner for flows of 200 to 600 gpm. www. hipowerhydro. com • • • HV 600 with 2 Nozzles $2500 HV 600 with 4 Nozzles $2600 HV 1200 with 4 Nozzles $3000 HV 1800 with 4 Nozzles $3500 HV 3600 with 4 Nozzles $5000 Turgo option $600

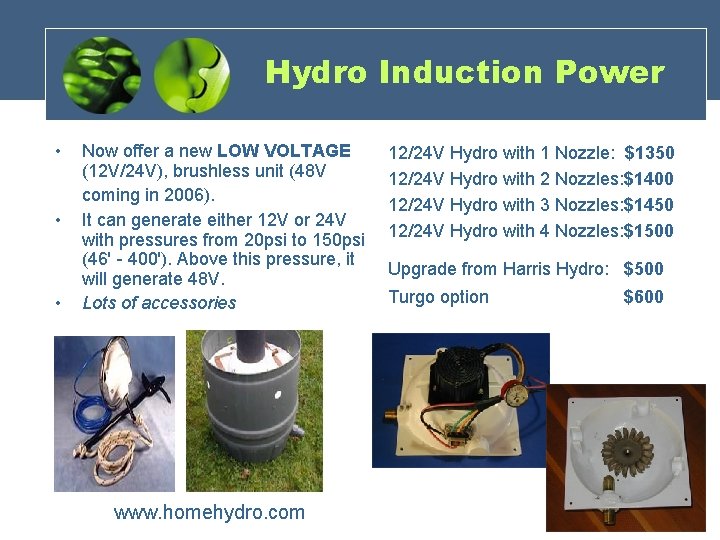

Hydro Induction Power • • • Now offer a new LOW VOLTAGE (12 V/24 V), brushless unit (48 V coming in 2006). It can generate either 12 V or 24 V with pressures from 20 psi to 150 psi (46' - 400'). Above this pressure, it will generate 48 V. Lots of accessories www. homehydro. com 12/24 V Hydro with 1 Nozzle: $1350 12/24 V Hydro with 2 Nozzles: $1400 12/24 V Hydro with 3 Nozzles: $1450 12/24 V Hydro with 4 Nozzles: $1500 Upgrade from Harris Hydro: $500 Turgo option $600

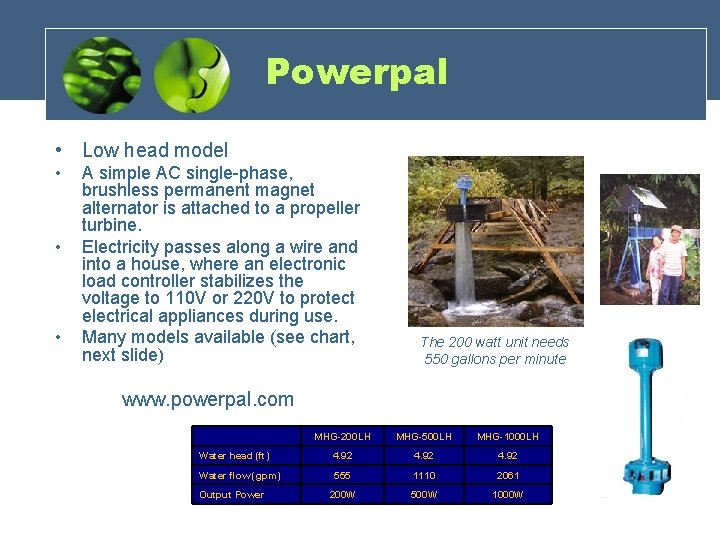

Powerpal • Low head model • • • A simple AC single-phase, brushless permanent magnet alternator is attached to a propeller turbine. Electricity passes along a wire and into a house, where an electronic load controller stabilizes the voltage to 110 V or 220 V to protect electrical appliances during use. Many models available (see chart, next slide) The 200 watt unit needs 550 gallons per minute www. powerpal. com MHG-200 LH MHG-500 LH MHG-1000 LH Water head (ft) 4. 92 Water flow (gpm) 555 1110 2061 200 W 500 W 1000 W Output Power

Powerpal Many other models available High Head Low Head www. powerpal. com

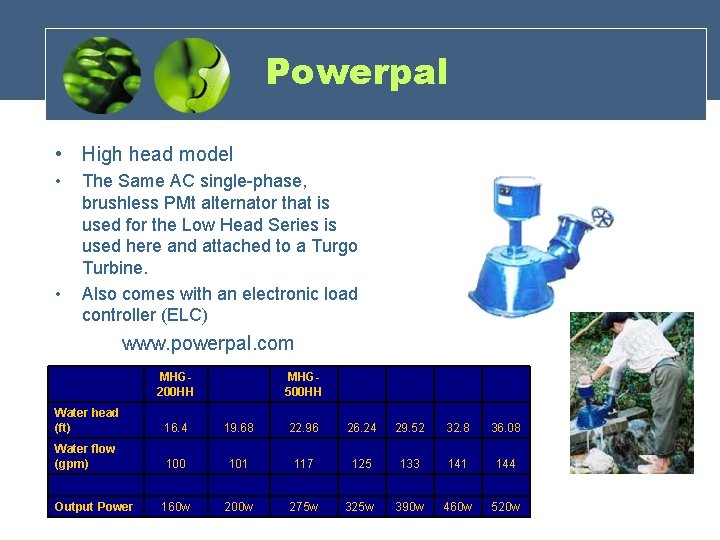

Powerpal • High head model • • The Same AC single-phase, brushless PMt alternator that is used for the Low Head Series is used here and attached to a Turgo Turbine. Also comes with an electronic load controller (ELC) www. powerpal. com MHG 200 HH MHG 500 HH Water head (ft) 16. 4 19. 68 22. 96 Water flow (gpm) 100 101 117 160 w 200 w 275 w Output Power 26. 24 29. 52 32. 8 36. 08 125 133 141 144 390 w 460 w 520 w 325 w

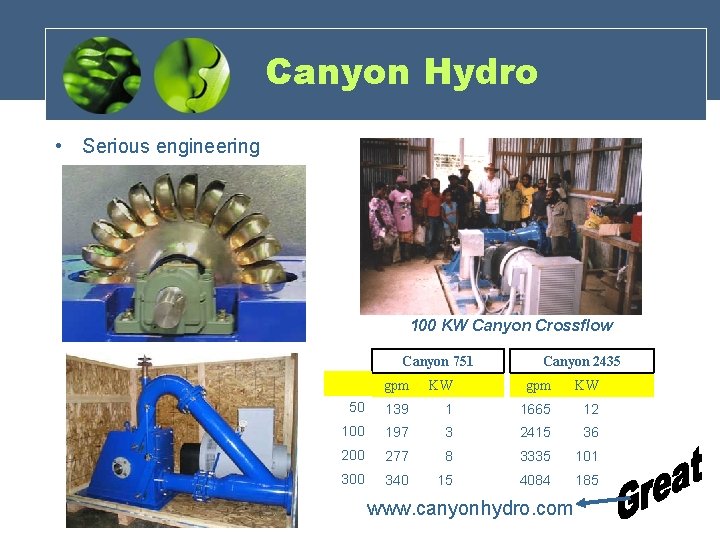

Canyon Hydro • Serious engineering 100 KW Canyon Crossflow Canyon 751 gpm KW 50 139 100 Canyon 2435 gpm KW 1 1665 12 197 3 2415 36 200 277 8 3335 101 300 340 15 4084 185 www. canyonhydro. com

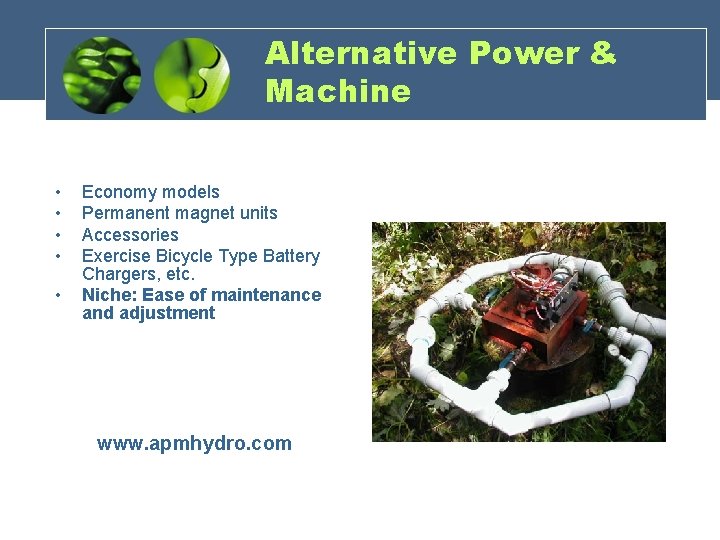

Alternative Power & Machine • • • Economy models Permanent magnet units Accessories Exercise Bicycle Type Battery Chargers, etc. Niche: Ease of maintenance and adjustment www. apmhydro. com

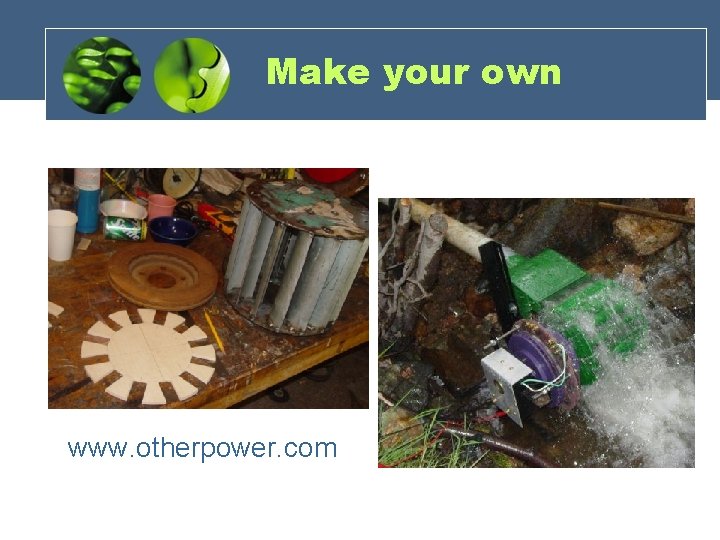

Make your own www. otherpower. com

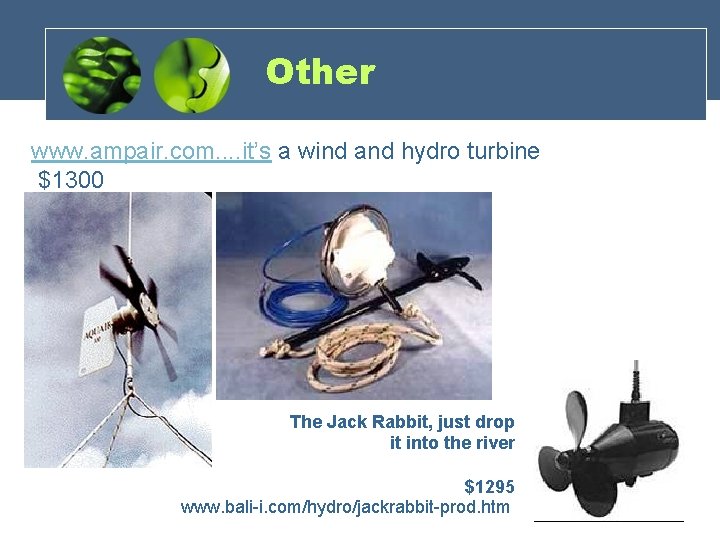

Other www. ampair. com. . it’s a wind and hydro turbine $1300 The Jack Rabbit, just drop it into the river $1295 www. bali-i. com/hydro/jackrabbit-prod. htm
