Micro Met adc Doppler Weather Radar An Exciting
- Slides: 27
Micro. Met - adc Doppler Weather Radar An Exciting Partnership for Weather Radars
Micro. Met-ADC Doppler Radars § We specialize in the designing & building of S & C-Band Doppler Weather Radars including the FULLY SOLID STATE C - Band Doppler Weather Radars. § Micro. Met-ADC radars are designed to detect precipitation, make velocity measurements, and measure the variations of the refractive index in the atmosphere that may be generated by local variations of temperature or humidity. § They have the capability of determining the phase difference between the transmitted and received pulse. The difference is a measure of the mean Doppler velocity of the particles. § They can be used for: (a) Severe weather detection, tracking and warning; (b) Surveillance of synoptic and mesoscale weather systems; (c) Estimation of precipitation amounts. Micro. Met-adc
Micro. Met-adc FIRSTS § § § § § First fully coherent Doppler radar First & only FULLY solid state Doppler radar First PC based Doppler radar display First GUI interface for a Doppler weather radar First & only 32 -bit High Resolution Doppler radar display First real-time integration of Lightning and Doppler radar data First fully integrated real-time storm tracking First LINUX based Doppler radar display Widest Range from Portable to 12 ft Dish Antenna Radars Micro. Met-adc
Micro. Met-adc • ADC has been in Radar business since 1982. • Micro. Met has been in Met business since 1980. • Worldwide clients in diverse industries. • >380 Radars in the field worldwide • • NASA (Highest Possible Supplier Rating) U. S. Air Force AN/FMQ-18(v) Offshore drill ships Power companies Micro. Met-adc • • NATO/AFSOC U. S. Navy MET Departments Raytheon • Lockheed • Fed. Ex • Broadcast / Television
Market Prevalence § The majority of Doppler Weather Radars today are ADC systems. § More customers use ADC systems than all of our competitors COMBINED! § 98% of our radars are still in operation. – INCLUDING the very first one! § We sold more C band weather radar systems worldwide from 2000 to 2004 than all other weather radar vendors combined. Micro. Met-adc
Micro. Met – ADC Types of Doppler Radars 1. S - Band Upgraded “NEXRAD” - The Ultimate In Doppler Weather Radars – Uses US Govt. Developed Radar Product Algorithms 2. C - Band Fully Solid State Radars – In Different Sizes – From Portable to 12 ft. Size Antenna Radars Micro. Met-adc
Micro. Met S- Band Doppler Radar § § § § Up-Graded NEXRAD - Klystron Based System (No Magnetron Tubes) Low Power – Full Range Radars – 650 KW Peak Power The Largest Antenna Dish for Doppler Weather Radars – 8. 56 m Only Doppler Radar with US Government Developed Algorithms Only Doppler Weather Radar for Tropospheric Wind Profiling Cloud Inversions Only Doppler Radar that will Detect Smoke, Fire, & Explosions Only Doppler Radar that Detects Gust Front/Sea Breeze/Fronts, & Wind Shifts Rainfall Accumulation 1 Hr, 3 Hr, Storm Vortex - Highly accurate severe storm warnings with long lead time User Selectable, Storm Totals Using Unique Algorithms Flash Flood Forecasting Precipitation Intensity Precipitation (Onset, Duration, Ending) Stage II and III Precipitation Processing Automatic On-line Calibration Function: to make automatic online calibration in noise, noise/ temperature, velocity/pulse width, transmission power, antenna power, reflectivity, clutter suppression (each scan). Only Doppler Weather Radar that will Detect Birds, & Insects § 1 deg Beam Width Micro. Met-adc
S-Band Radar Products § Most Extensive Range of Radar Products § More Than 115 Different Products – Pls. See List Attached
S-Band System Configuration
Fully Solid State C-Band Radars § Micro. Met ADC – The Only FULLY Solid State Low Power / Full Range C-Band Doppler Weather Radar
Solid State vs. Tubes ± Micro. Met-adc Radar System – – – digital, 100% solid-state clean, reliable data like a cd Micro. Met-adc § Magnetron Tube Radar – 1940’s tube technology – Intermittent data – like an old scratchy record
Maintenance Costs Solid State vs. Tubes § The Micro. Met-ADC Dop. Rad® radar system is solid state – We don’t use tubes at all. § MTBF: > 25, 000 Hrs. § The competition? 1940’s TUBE “technology” – Many others use 3 tube systems – Long term ownership costs - including repair and hardware maintenance - could exceed $500, 000 over ten years. – $18, 333 for a ‘Rebuilt’ magnetron – $30, 000 for a new Transmitter / Receiver tube – $30, 000 to have a new spare on hand Micro. Met-adc
Solid State Doppler Weather Radar WHY? § How do we do it? Larger penetrating pulse widths and incredibly sensitive receiver offsets power differences. § Better Technology: Fully coherent (transmitter and receiver) § Lower cost § More reliable § Reduced microwave dangers § Reduced interference issues § MOST OF ALL – MUCH LOWER POWER CONSUMPTION & RUNNING COST § If YOU had a tube based radar (3 different tubes), YOU would be spending $ 30 K/year (to stay in spec) for tubes alone. Not to mention the huge difference in power consumption and cost. § No Back-Up Power Generator Required. Micro. Met-adc
Repair Enhancements Faster, Better, Cheaper - Faster repair time - Less expensive § Lower repair costs § Shorter rental time – Extending life of equipment – Enhancing performance with Micro. Met-ADC mods (Such as RF mod and 16 level) Micro. Met-adc
State of the Art Graphics Micro. Met–ADC Image Micro. Met-adc

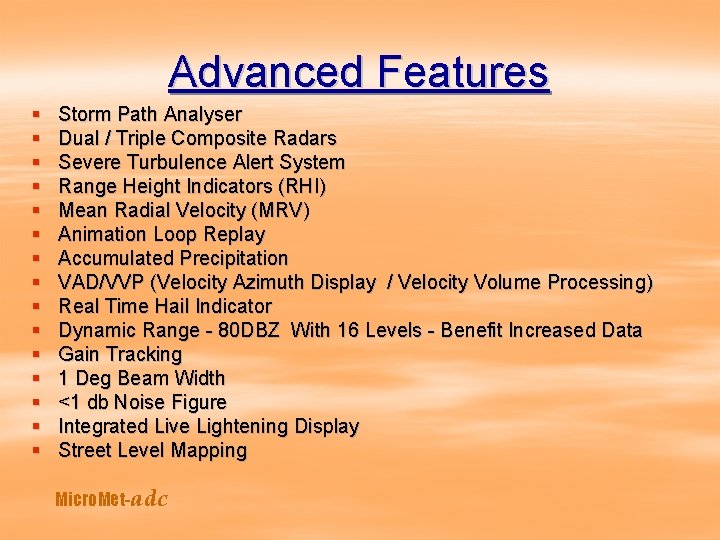

Advanced Features § § § § Storm Path Analyser Dual / Triple Composite Radars Severe Turbulence Alert System Range Height Indicators (RHI) Mean Radial Velocity (MRV) Animation Loop Replay Accumulated Precipitation VAD/VVP (Velocity Azimuth Display / Velocity Volume Processing) Real Time Hail Indicator Dynamic Range - 80 DBZ With 16 Levels - Benefit Increased Data Gain Tracking 1 Deg Beam Width <1 db Noise Figure Integrated Live Lightening Display Street Level Mapping Micro. Met-adc
Advanced & Unique Features Street Level Mapping Storm Tracking Micro. Met-adc Storm Tracking At Sea
Advanced & Unique Features LIGHTENING INGEST & DISPLAY SEVERE WEATHER ALERT Micro. Met-adc RHI DISPLAY DUAL / TRIPLE DOPPLER COMPOSITE
Advanced & Unique Features MESOCYCLONE DISPLAY TACTICAL RADAR Micro. Met-adc MICROBURST DISPLAY MARINE RADAR 3 D IMAGES RADAR FOR OIL RIGS
Micro. Met-adc

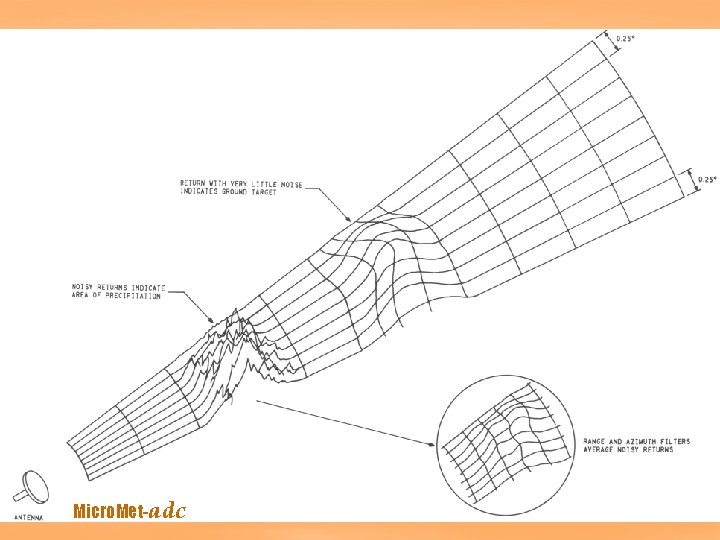

This is a diagnostic tool Micro. Met-adc
Beam Filling Radar Range Equation transmit power (NOTE LINEAR TERM!) for monostatic “pencil beam” single antenna = 3 d. B beam width pulse width losses (transmission, atmospheric attenuation, etc. ) Reflectivity factor MDS = -135 d. Bm @ 20 micro seconds (goes as K/ ) For false alarm rate <1 X 106 Due to integration of beam shape NOTE 1/r 2 beam filling constraint (because the target cross section had a r r term in beam filling changing the relationship to 1/r 2) (Due to integration in range and Azimuth) Micro. Met-adc
Power and Attenuation Power is only one term in the radar range equation and has no more weight than pulse width or receiver sensitivity. Therefore, a radar with 1000 times more power will produce the same range as a radar that has 100 times more sensitive receiver and 10 times bigger pulse width (all else being equal). A Micro. Met-adc radar is low power 200 W (intentionally and at great design costs), but has up to 100 times more sensitive receiver (approximately 20 d. B) and up to 10 times larger penetrating pulse width (than some magnetron based systems) - approximately 10 d. B, thus, 10 X 100=1000=30 d. B. Micro. Met-adc

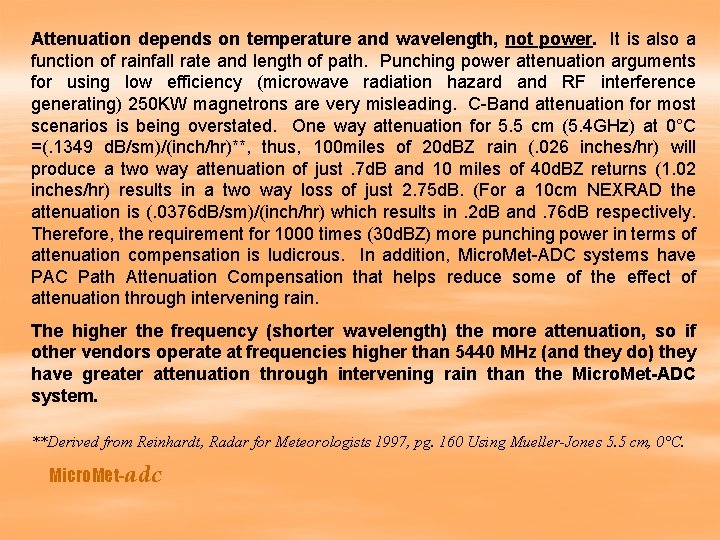

Attenuation depends on temperature and wavelength, not power. It is also a function of rainfall rate and length of path. Punching power attenuation arguments for using low efficiency (microwave radiation hazard and RF interference generating) 250 KW magnetrons are very misleading. C-Band attenuation for most scenarios is being overstated. One way attenuation for 5. 5 cm (5. 4 GHz) at 0°C =(. 1349 d. B/sm)/(inch/hr)**, thus, 100 miles of 20 d. BZ rain (. 026 inches/hr) will produce a two way attenuation of just. 7 d. B and 10 miles of 40 d. BZ returns (1. 02 inches/hr) results in a two way loss of just 2. 75 d. B. (For a 10 cm NEXRAD the attenuation is (. 0376 d. B/sm)/(inch/hr) which results in. 2 d. B and. 76 d. B respectively. Therefore, the requirement for 1000 times (30 d. BZ) more punching power in terms of attenuation compensation is ludicrous. In addition, Micro. Met-ADC systems have PAC Path Attenuation Compensation that helps reduce some of the effect of attenuation through intervening rain. The higher the frequency (shorter wavelength) the more attenuation, so if other vendors operate at frequencies higher than 5440 MHz (and they do) they have greater attenuation through intervening rain than the Micro. Met-ADC system. **Derived from Reinhardt, Radar for Meteorologists 1997, pg. 160 Using Mueller-Jones 5. 5 cm, 0°C. Micro. Met-adc
Salient Features of Our Signal Processing - Special Matched filters where large pulse width produce MDS of -135 d. B - DVIP Digital Video Integration Processing (“integration in azimuth”) (for 50% fill fa = 20 X 10 -6) Reduces variance of reflectivity returns Improves signal to noise N to σ= 5. 7 d. B N N (depends on correlation) - Pulse compression and/or “integration in range” : N improvement or better - Pulse pair processing for turbulence and mean radial velocity - Clutter filtering (two stage filters) - Qualifiers: “random isolated sample” improves “system MDS” 1 - R 2 Range normalization and PAC (Path Attenuation Compensation) Up to 16 reflectivity levels 16 Mean Velocity levels Micro. Met-adc
Micro. Met-adc
Micro. Met-adc Doppler Weather Radar An Exciting Partnership for Weather Radars
