Micro COSII Embedded Systems Design and Implementation Micro

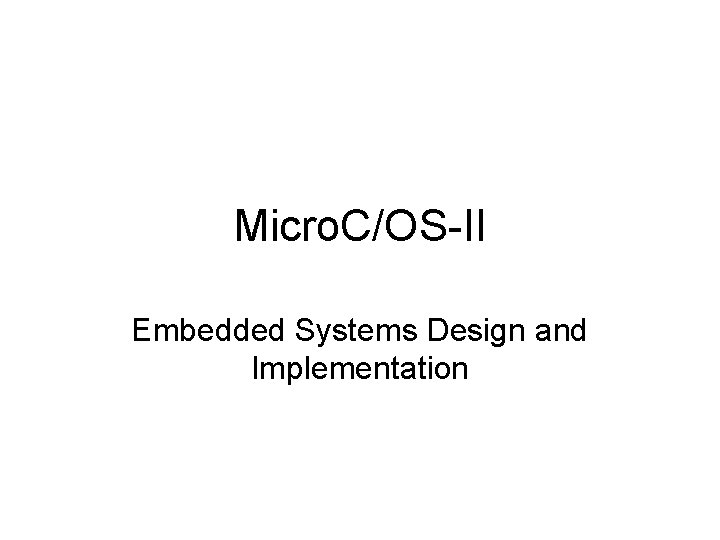

Micro. C/OS-II Embedded Systems Design and Implementation

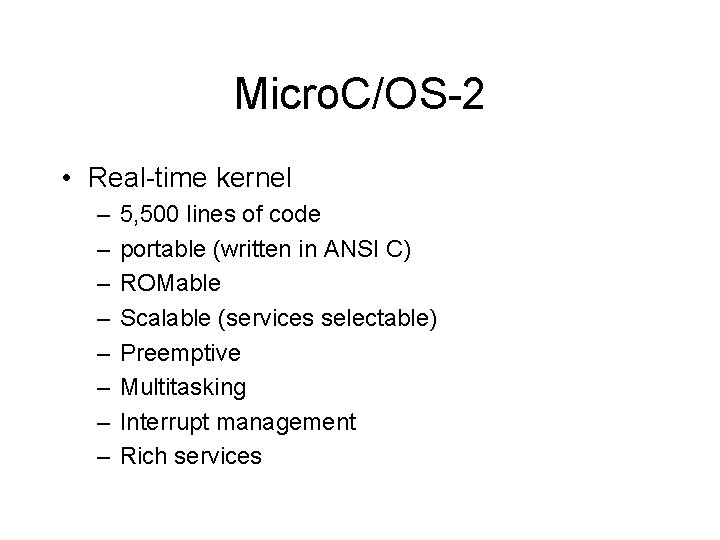

Micro. C/OS-2 • Real-time kernel – – – – 5, 500 lines of code portable (written in ANSI C) ROMable Scalable (services selectable) Preemptive Multitasking Interrupt management Rich services

Accessing critical section • OS_ENTER_CRITICAL -- disabling interrupt • OS_EXIT_CRITICAL -- enabling interrupt

Issues with disabling interrupt • If you call the processor supported instruction directly – you may get inconsistency • Use PSW (processor status word) – can be done on the stack or local variable

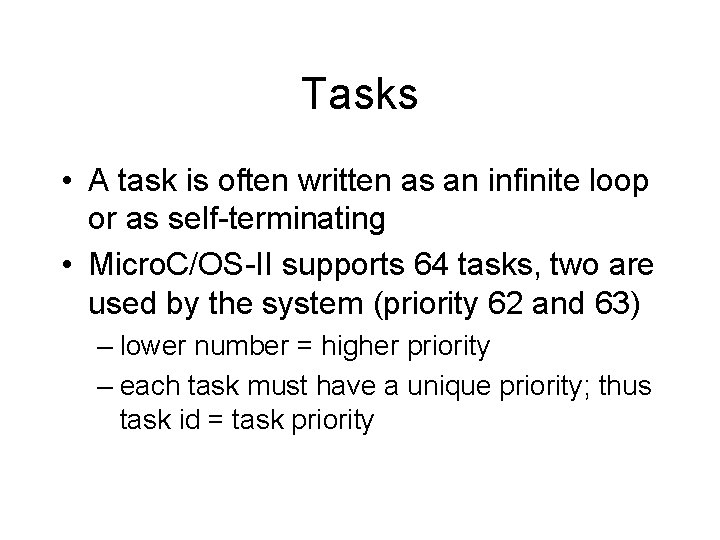

Tasks • A task is often written as an infinite loop or as self-terminating • Micro. C/OS-II supports 64 tasks, two are used by the system (priority 62 and 63) – lower number = higher priority – each task must have a unique priority; thus task id = task priority

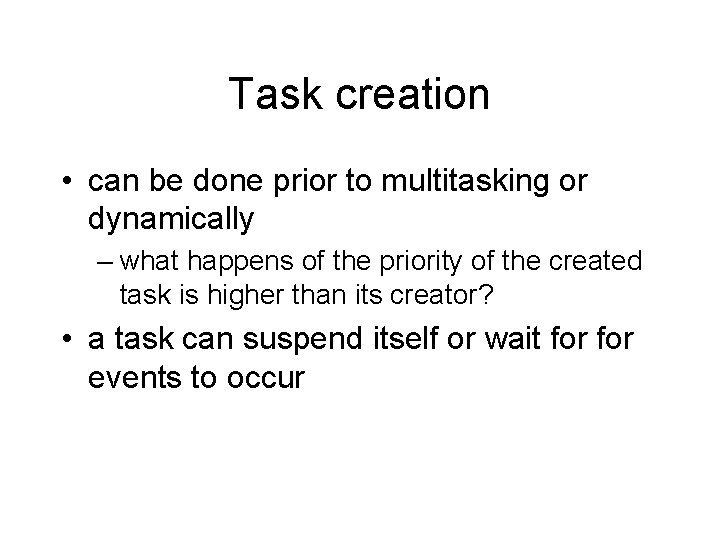

Task creation • can be done prior to multitasking or dynamically – what happens of the priority of the created task is higher than its creator? • a task can suspend itself or wait for events to occur

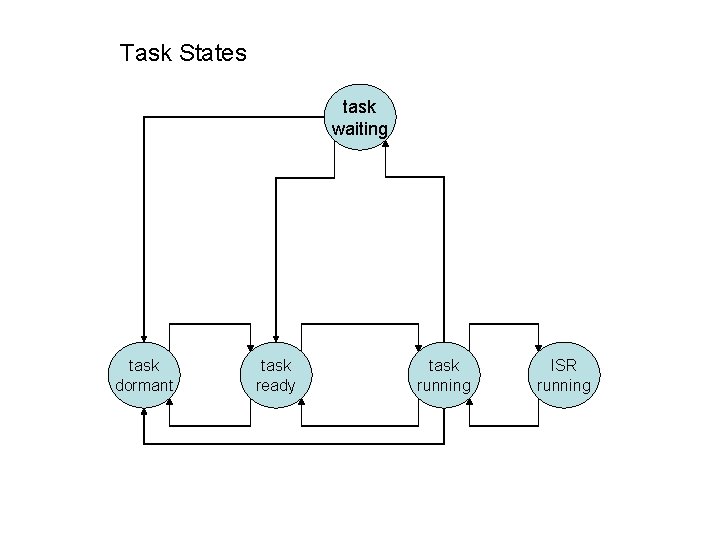

Task States task waiting task dormant task ready task running ISR running

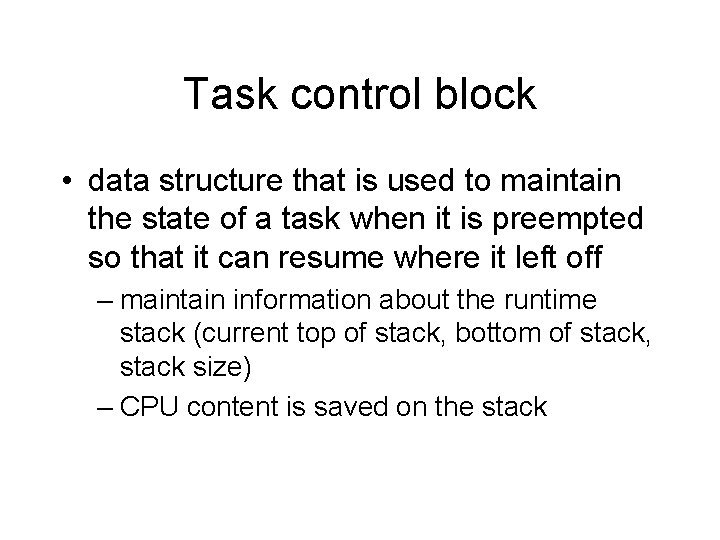

Task control block • data structure that is used to maintain the state of a task when it is preempted so that it can resume where it left off – maintain information about the runtime stack (current top of stack, bottom of stack, stack size) – CPU content is saved on the stack

Task scheduling • execute the highest priority task ready to run – task scheduling is done in constant time – context switch is done through software trap • save CPU content of preempted task • restore CPU content of the next running task

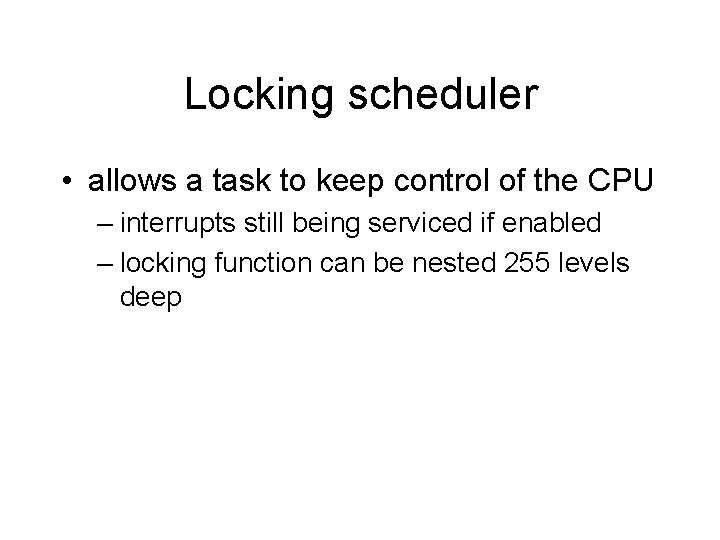

Locking scheduler • allows a task to keep control of the CPU – interrupts still being serviced if enabled – locking function can be nested 255 levels deep

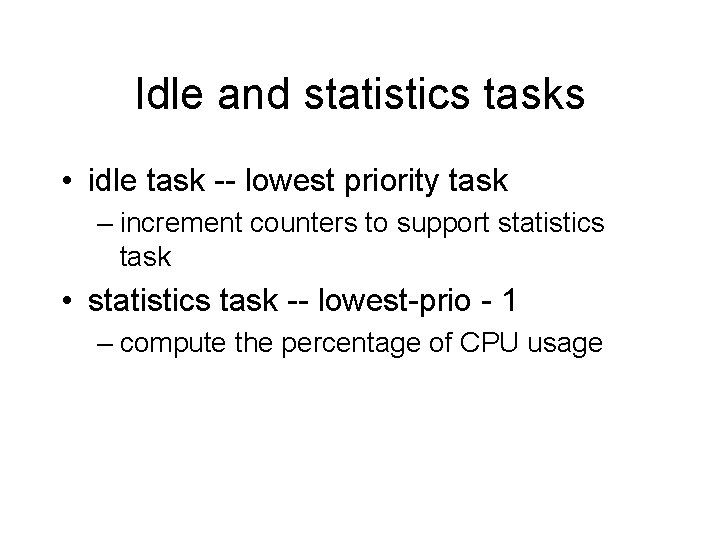

Idle and statistics tasks • idle task -- lowest priority task – increment counters to support statistics task • statistics task -- lowest-prio - 1 – compute the percentage of CPU usage
