MHC Polymorphism MHC Class I pathway Figure by

MHC Polymorphism

MHC Class I pathway Figure by Eric A. J. Reits

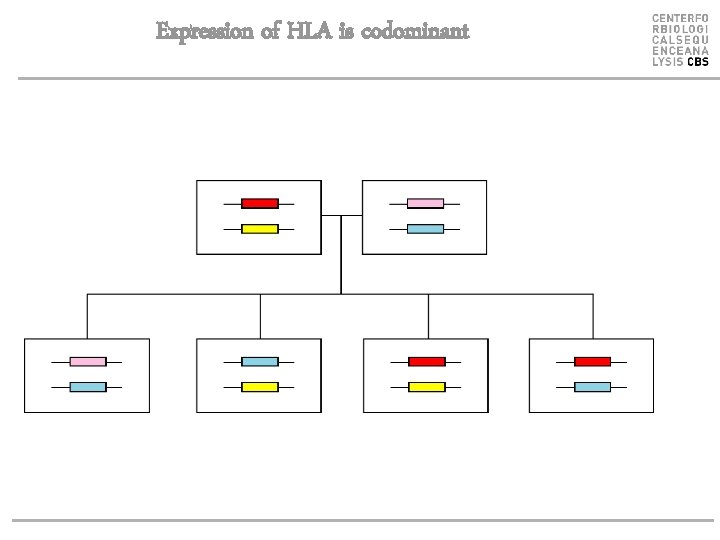

Expression of HLA is codominant

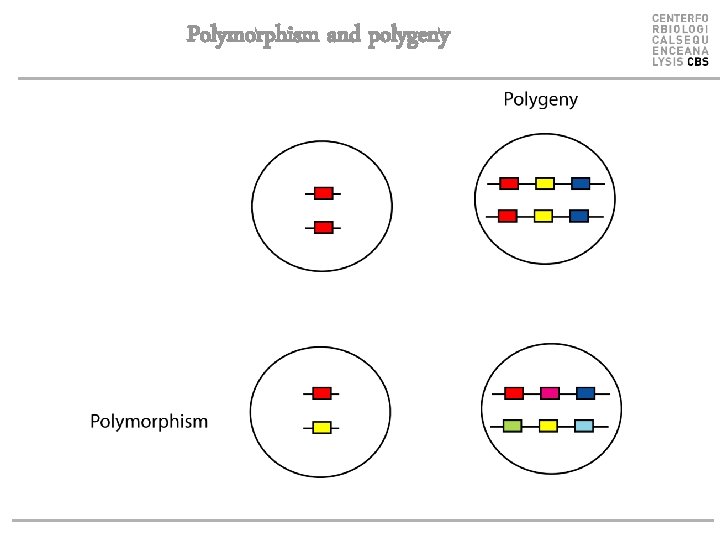

Polymorphism and polygeny

The MHC gene region http: //www. ncbi. nlm. nih. gov/mhc/MHC. fcgi? cmd=init&user_id=0&probe_id=0&source_id=0&locus_group=0&proto_id=0&banner=1&kit_id=0&graphview=0

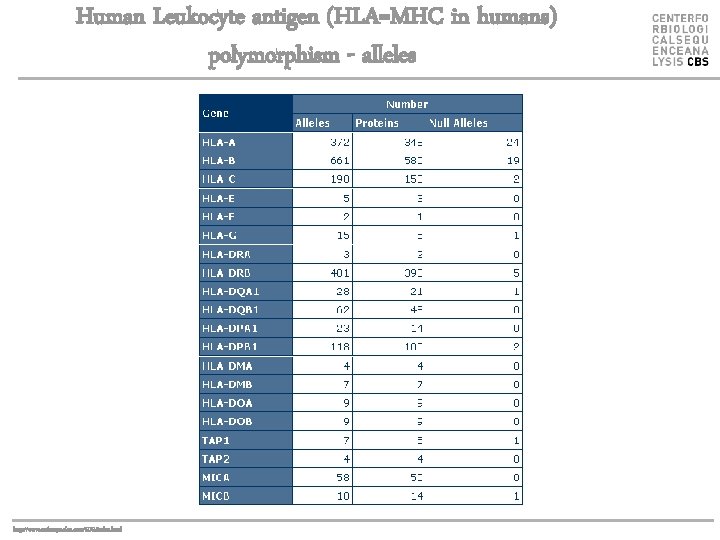

Human Leukocyte antigen (HLA=MHC in humans) polymorphism - alleles http: //www. anthonynolan. com/HIG/index. html

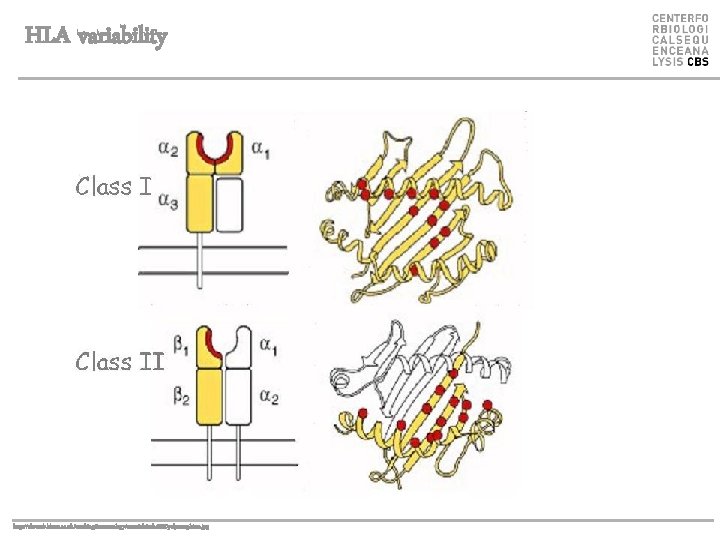

HLA variability http: //rheumb. bham. ac. uk/teaching/immunology/tutorials/mhc%20 polymorphism. jpg

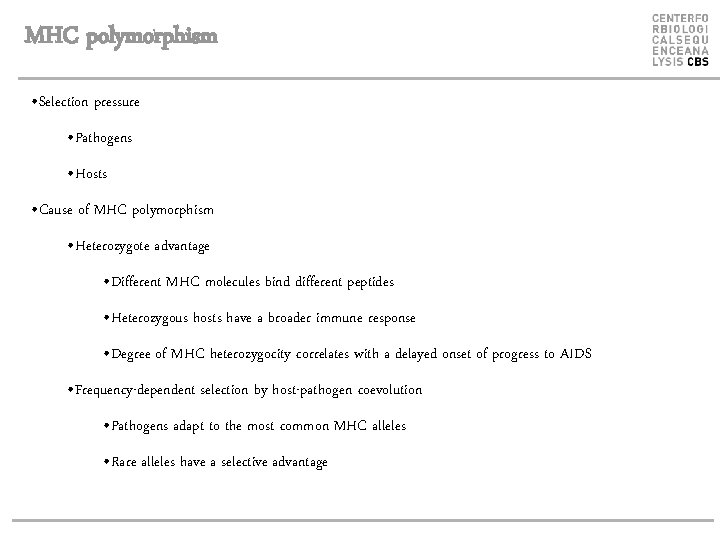

MHC polymorphism • Selection pressure • Pathogens • Hosts • Cause of MHC polymorphism • Heterozygote advantage • Different MHC molecules bind different peptides • Heterozygous hosts have a broader immune response • Degree of MHC heterozygocity correlates with a delayed onset of progress to AIDS • Frequency-dependent selection by host-pathogen coevolution • Pathogens adapt to the most common MHC alleles • Rare alleles have a selective advantage

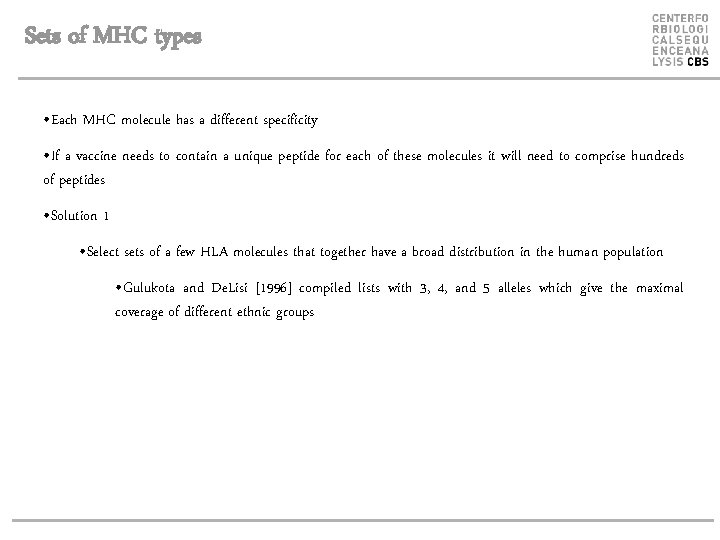

Sets of MHC types • Each MHC molecule has a different specificity • If a vaccine needs to contain a unique peptide for each of these molecules it will need to comprise hundreds of peptides • Solution 1 • Select sets of a few HLA molecules that together have a broad distribution in the human population • Gulukota and De. Lisi [1996] compiled lists with 3, 4, and 5 alleles which give the maximal coverage of different ethnic groups

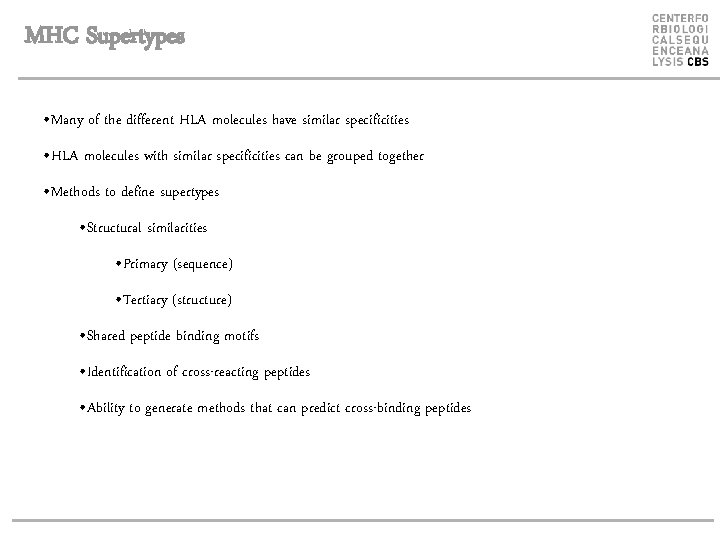

MHC Supertypes • Many of the different HLA molecules have similar specificities • HLA molecules with similar specificities can be grouped together • Methods to define supertypes • Structural similarities • Primary (sequence) • Tertiary (structure) • Shared peptide binding motifs • Identification of cross-reacting peptides • Ability to generate methods that can predict cross-binding peptides

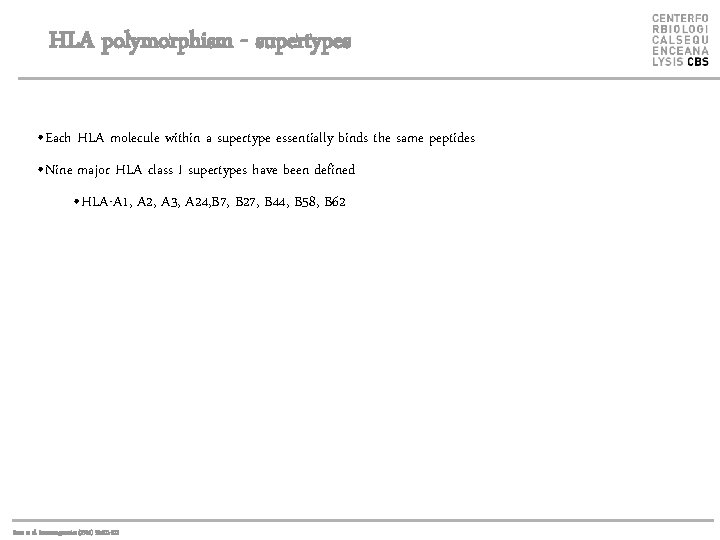

HLA polymorphism - supertypes • Each HLA molecule within a supertype essentially binds the same peptides • Nine major HLA class I supertypes have been defined • HLA-A 1, A 2, A 3, A 24, B 7, B 27, B 44, B 58, B 62 Sette et al, Immunogenetics (1999) 50: 201 -212

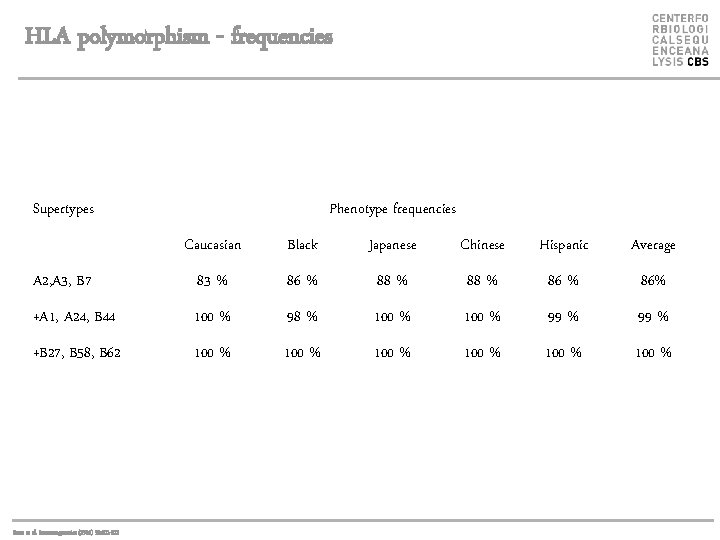

HLA polymorphism - frequencies Supertypes Phenotype frequencies Caucasian Black Japanese Chinese Hispanic Average A 2, A 3, B 7 83 % 86 % 88 % 86% +A 1, A 24, B 44 100 % 98 % 100 % 99 % +B 27, B 58, B 62 100 % 100 % Sette et al, Immunogenetics (1999) 50: 201 -212

HLA clustering method 1. Extract data from SYFPEITHI and MHCpep databases 2. Construct amino acid frequency vectors for each HLA molecule 3. Calculate distance between HLA molecules • The distance dij between two HLA molecules (i, j) is calculated as the sum over each position in the two motifs of one minus the normalized vector products of the amino acid’s frequency vectors (= cosine to the angle between the vectors) [Lyngsø et al. , 1999]: 4. The distance matrices were used as input to the program neighbor from the PHYLIP package (http: //evolution. genetics. washington. edu/phylip. html) O Lund et al. , Immunogenetics. 2004 55: 797 -810

Logos of HLA-A alleles O Lund et al. , Immunogenetics. 2004 55: 797 -810

Clustering of HLA alleles O Lund et al. , Immunogenetics. 2004 55: 797 -810

Logos of HLA-B alleles O Lund et al. , Immunogenetics. 2004 55: 797 -810

O Lund et al. , Immunogenetics. 2004 55: 797 -810

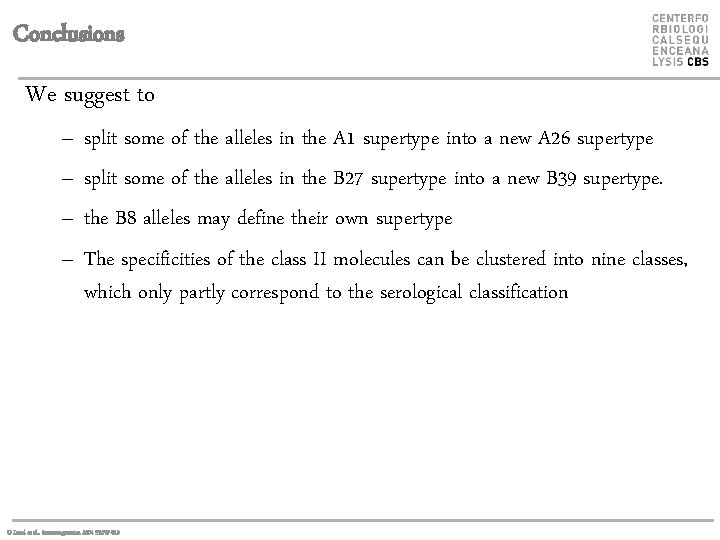

Conclusions We suggest to – – split some of the alleles in the A 1 supertype into a new A 26 supertype split some of the alleles in the B 27 supertype into a new B 39 supertype. the B 8 alleles may define their own supertype The specificities of the class II molecules can be clustered into nine classes, which only partly correspond to the serological classification O Lund et al. , Immunogenetics. 2004 55: 797 -810

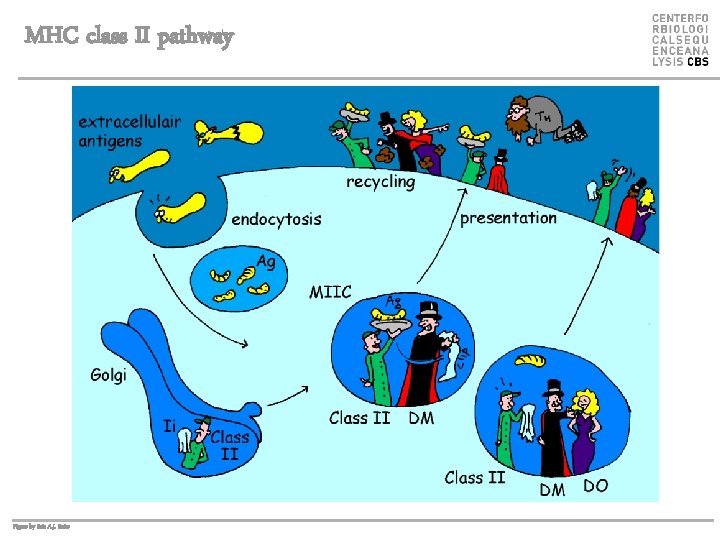

MHC class II pathway Figure by Eric A. J. Reits

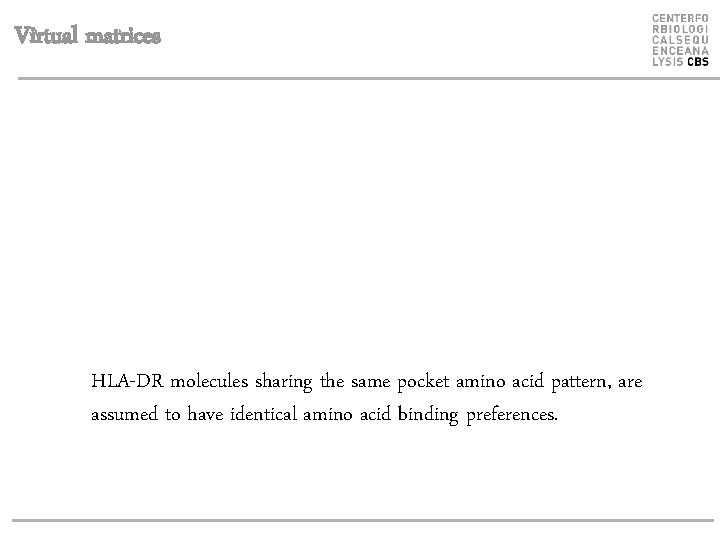

Virtual matrices HLA-DR molecules sharing the same pocket amino acid pattern, are assumed to have identical amino acid binding preferences.

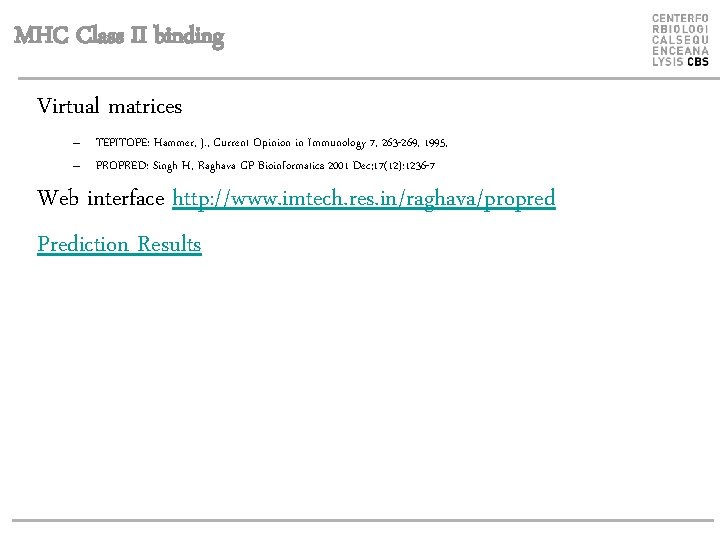

MHC Class II binding Virtual matrices – TEPITOPE: Hammer, J. , Current Opinion in Immunology 7, 263 -269, 1995, – PROPRED: Singh H, Raghava GP Bioinformatics 2001 Dec; 17(12): 1236 -7 Web interface http: //www. imtech. res. in/raghava/propred Prediction Results

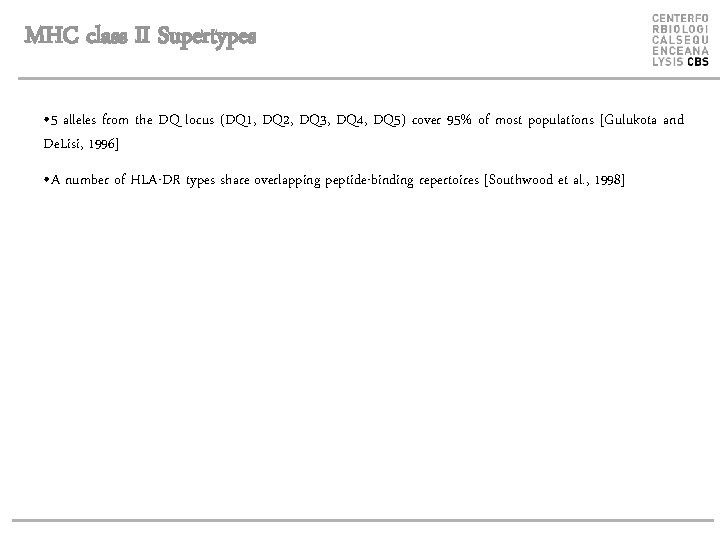

MHC class II Supertypes • 5 alleles from the DQ locus (DQ 1, DQ 2, DQ 3, DQ 4, DQ 5) cover 95% of most populations [Gulukota and De. Lisi, 1996] • A number of HLA-DR types share overlapping peptide-binding repertoires [Southwood et al. , 1998]

Logos of HLA-DR alleles O Lund et al. , Immunogenetics. 2004 55: 797 -810

O Lund et al. , Immunogenetics. 2004 55: 797 -810
