MGT 320 MOM 2005 MOM V 4 l

MGT 320 MOM 2005 企业应用 MOM V 4 展望

课程内容概述 l MOM 2005 基础知识回顾 l MOM 2005 企业应用 使用MOM 2005优化Exchange 2003的管理 l MOM 2005辅佐您的商业应用 l System Center 路线图

使用MOM 2005 优化Exchange 2003的 管理

Exchange 2003 Management Pack将帮助您 提供最关键问题的预警 监控Exchange的所有性能参数 关于如何解决Exchange问题的专家数据库 监控所有可能的Exchange环境 群集, Exchange前端, 后端 报表支持 系统状态, Exchange性能趋势分析 前端的支持: Outlook Web Access Exchange Active Sync Outlook Mobile Access

Exchange 2003的监控对象 Availability monitoring AD Connector monitoring Active. Sync monitoring DSAccess monitoring Ex. CDO monitoring Exchange cluster monitoring Ex. SMTP monitoring Extensible Storage Engine monitoring Free/Busy publishing monitoring Full text indexing IMAP 4 Information Store Message Transfer Agent Metabase Update Agent MSExchange Address List Outlook Mobile Access Outlook Web Access POP 3 SMTP and Routing System Attendant Time Service Errors Health monitoring Exchange utilization Exchange performance Server resource utilization

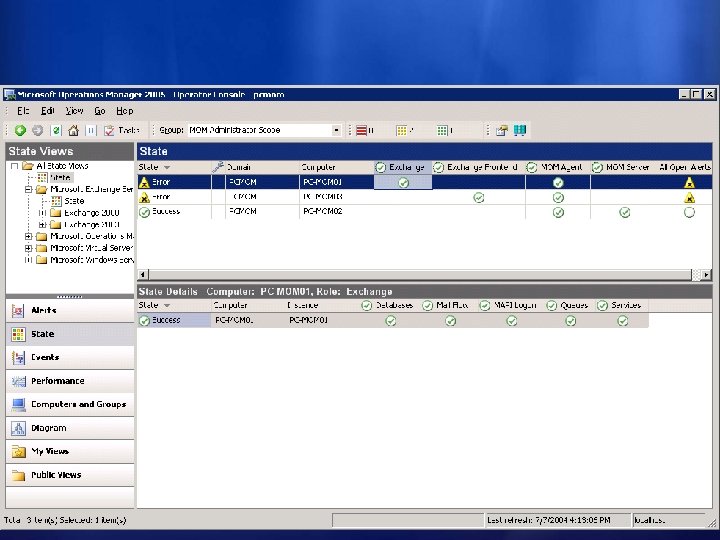

MOM 2005归纳的Exchange 2003 健康指标 MAPI logon Mail flow Exchange Queues Exchange services Databases Front-end servers logon Outlook Web Access Outlook Mobile Access Exchange Active. Sync

MOM 2005中关于MAPI Logon的监控 使用定期执行的脚本: MAPI Logon Verification 指定一个唯一的 Mailbox Access account 可以基于Exchange后端服务器中的每个Mail Store来实现监控 可以收集每次MAPI Logon的延迟时间

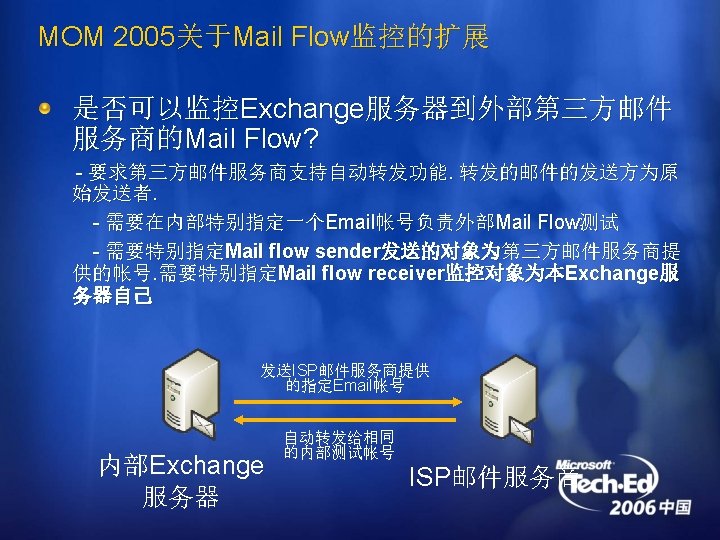

MOM 2005中关于Mail Flow的监控 检查指定的Exchange服务器之间的Mail Flow 使用 2个定期执行的脚本: Mail flow sender and Mail flow receiver 可以灵活指定Email发送和接收的服务器 针对Email发送失败或者发送延迟过高提供不同级别的报警 允许记录每一次Email发送的延迟时间 (Exchange MOM/MAPI Mail Flow - Latency) Exchange Server 2 Exchange Server 1 Exchange Server 3

MOM 2005关于Exchange Database的监控 使用定期执行的脚本来检查每个Mail Store的状态 使用COM Object CDOEXM来检查每个Mail Store的状态 MOM 2005允许为每个Mail Store的状态建立 Performance Count. 通过检查长期的Mail Store Performance Count的情况, 我们可以了解每个Mail Store的健康趋势.

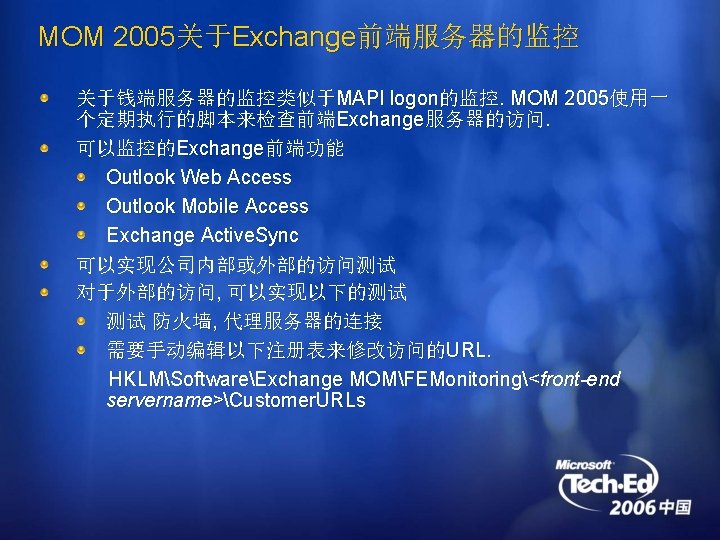

Exchange前端服务器监控示意图 https: //localhost/exchange Front ends local monitoring only Firewall www. company. com ISA servers Front ends monitoring Public URLs https: //www. company. com/exchange Proxy servers

MOM 2005 提供的管理软件包 Windows Operating Systems Active Directory DNS service IIS versions 4. 0 / 5. 0 / 6. 0 Windows System Resource Manager Server clusters Component Services (formerly MTS 2. 0) Message Queuing (MSMQ) Distributed Transaction Coordinator (MS DTC). NET Framework Windows Internet Name Service (WINS) Windows Share. Point Services Network Load Balancing Routing and Remote Access service Terminal Services Integration Aprisma Dell: Open. Manage HP Insight Manager Maranti Storage Networks Skywire Software SMARTS Tivoli Actional Amberpoint CA Unicenter Web Services Verita: s Backup Exec Microsoft Applications Application Center 2000 Biz. Talk Server 2002 Enterprise Edition Commerce Server 2000 Exchange Server 2003 / 2000 / 5. 5 Host Integration Server 2000 Identity Integration Server 2003 Internet Security and Acceleration Server 2000 Live Communications Server 2003 (LCS) Microsoft Operations Manager 2000 Project Server 2003 Proxy Server 2. 0 Share. Point Portal Server 2003 Site Server 3. 0 SNA Server 4. 0 SQL Server 2000 Systems Management Server 2003 / 2. 0 3 rd Party Management Packs Applications Citrix: Meta. Frame XP Net. IQ XMPs: Oracle, Domino, Antivirus, Security Platforms e. Xc Software: IBM AS 400, IBM z/OS, Unix, Linux Metilinx: Linux / Unix Devices Jala. SOFT: Cisco Routers and Switches Dell, HP : Server Hardware

第三方提供的管理软件包 Applications Bind. View Black. Berry Enterprise Server Citrix Meta. Frame XP Horizon for SAP Intercept Studio Quest Spotlight Active Directory Exchange SQL Server Windows Server. View Integration 2. 0 VERITAS Backup Exec Hardware Dell Open. Manage HP Integrity Servers HP Pro. Liant Servers e. Xc Software APC Brocade Bay. Networks (Nortel) Cisco EMC Equal. Logic SAN F 5 Foundry IBM Fast. T storage Jala. SOFT APC UPS Cisco PIX Firewalls Cisco Routers Cisco Switches Cisco VPN Concentrators F 5 Network Big. IP F 5 Non-Windows OS e. Xc Software AS 400 MVS Debian Linux Free. BSD HP Tru 64 HP-UX IBM AIX Mac OS X Mandrake Linux Net. BSD Open. BSD Red. Hat Linux SCO Unix Sun Solaris Su. Se Linux Windows. CE App. Mind Open. VMS

MCF 介绍 通过web services将MOM和第三方监控系统双向集 成 把MOM警报信号传递到其他管理系统 收集来自其他监视 具的警报 警报状态同步更新 通过防火墙交换信息 产品组成 MCF网络服务API 产品连接器 Hitachi & NEC Tivoli Enterprise Console CA Unicenter HP Openview NNM HP Openview Operations Micromuse NETCOOL Peregrine

MOM Integration - MCF Other Mgmt Framework e. g. , Tivoli, CA, HP ALERT! RESOLVED!

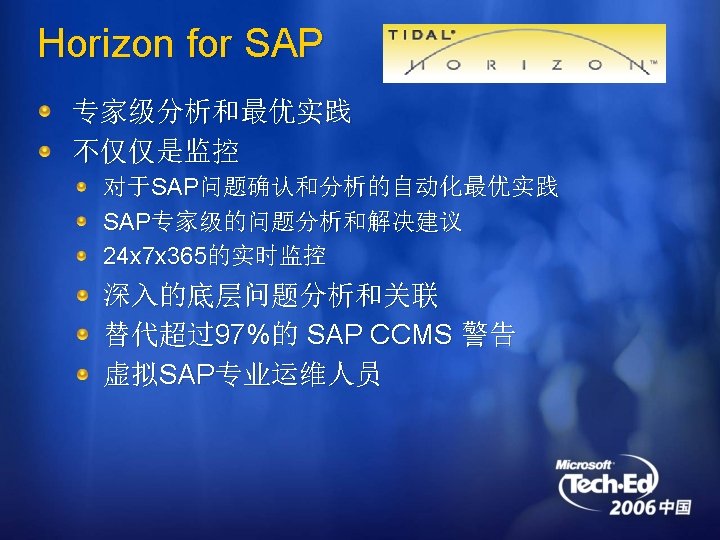

SAP Role Added by Horizon SAP Subsystems Monitored SAP Instances

Link to Diagnostic Report

Explains the diagnostic report: • Steps taken • Conclusions • Recommendations Captured real-time transient data showing the problematic program

SAP Metrics stored and displayed as Native MOM Performance data

Decision Trees Analysis Concludes CCMS Alert is not Actually a Problem Possible Problem Detection

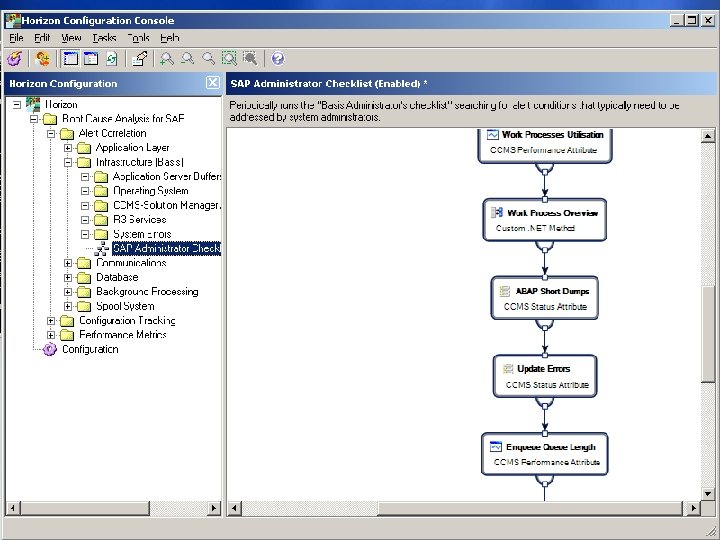

Decision Trees

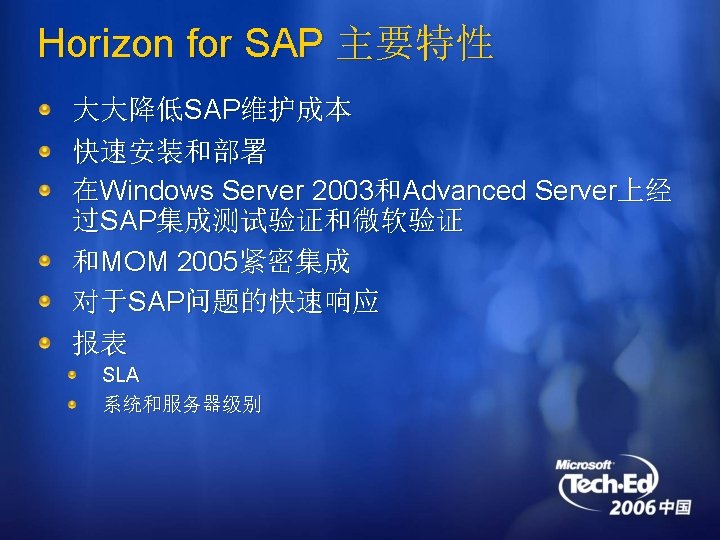

Horizon for SAP 系统架构

系统需求 Microsoft® Operations Manager (MOM) 2005 SAP Basis 4. 6 c with support package 26 or higher SAP Basis 4. 6 d with support package 15 or higher SAP Basis 6. 10 with support package 6 or higher SAP Basis 6. 20 SAP Basis 6. 30 SAP Basis 6. 40 SAP APO 3. x SAP BW 3. x

More Than Microsoft

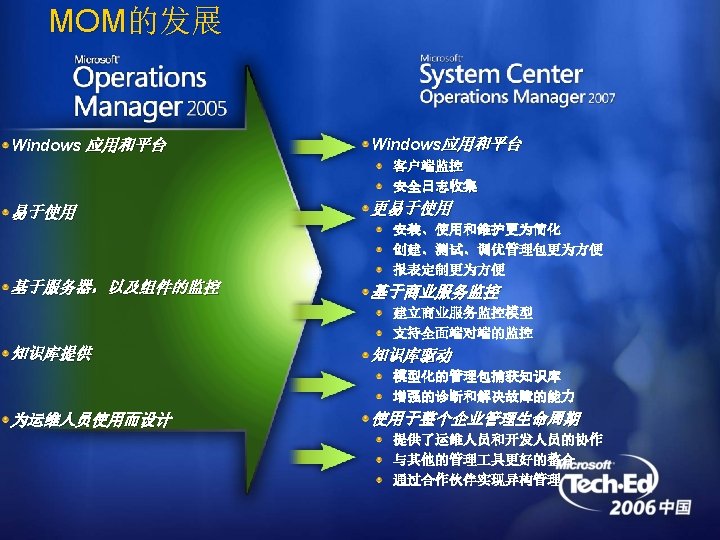

MOM V 3 展望

SP 1 V 4 V 2 V 3 V 2
