MGT 317 Overview of Microsoft System Center 2012

MGT 317 Overview of Microsoft System Center 2012 SP 1 – Virtual Machine Manager Services Stephen Baron Sr. Program Manager Lead Microsoft Corporation

Deployment Fabric Cloud Services Infrastructure Enhancements Fabric Management Cloud Management Service Management HA VMM Server Hyper-V Bare Metal Provisioning Hyper-V, Upgrade VMware, Citrix Xen. Server Update Management Dynamic Optimization Custom properties Network Management Powershell Storage Management Monitoring Integration Application Owner Usage Capacity and Capability Delegation and Quota Service Templates Application Deployment Custom Command Execution Image Based Servicing

Template Starting point for services and source of truth Specifies machine and connectivity requirements Deployed services are always linked to their templates Enables servicing of the instances Instance Groups of machines that work together Includes machine definitions as well as applications Native application types: Web Applications (Web. Deploy) (2. 0 and 3. 0) Virtual Applications (Server App-V) (RTM and SP 1) Database Applications (SQL DAC) (v 1. 1 and v 3)

Create Template Update Template and Apply to Service Customize Deployment Deploy Service

Create Template Update Service Customize Deployment Deploy Service

Create Template Update Service Customize Deployment Deploy Service

Create Template Update Service Customize Deployment Deploy Service (SP 1)

Create Template Update Service Customize Deployment Deploy Service (SP 1)

Create Template Update Service Customize Deployment Deploy Service (SP 1)

Create Template Update Service Customize Deployment Deploy Service

Single tier service Service Template Service Instance VMTemplate VM Machine 01 Application Hardware OS Roles/Features Configuration Hardware Configuration OS OS Deploy Server App-V Package WS 08 R 2. NET 3. 51 WS 08 R 2 Machine 02 Server App-V Package. NET 3. 51 WS 08 R 2

Pre/Post Install GCEs Existing objects New Objects Extensibility points

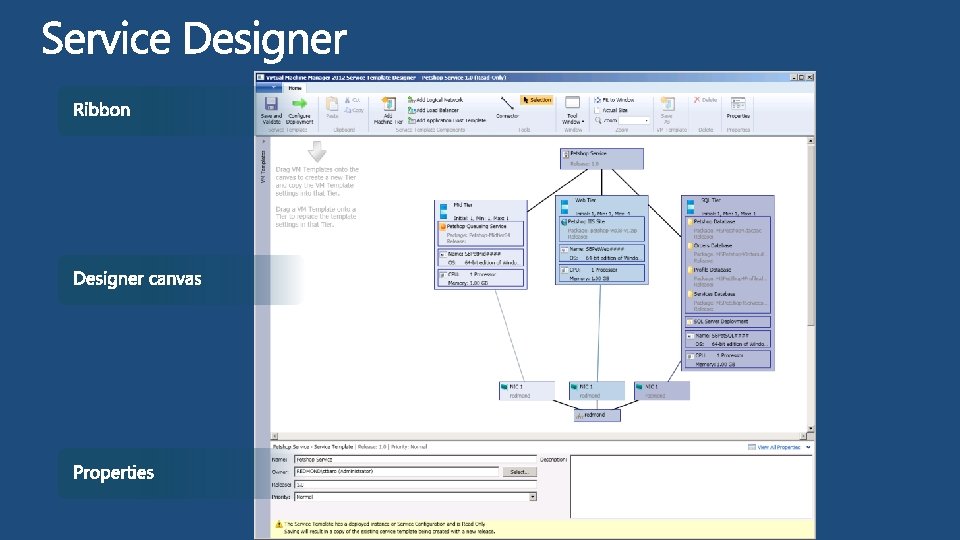

DEMO Create Service Template

Create Template Update Service Customize Deployment Deploy Service

Create Template Update Service Customize Deployment Deploy Service

Per Service Select Tier Based on Deployment Order Per Machine Per Guest OS Per Application Create Template Update Service Create New VM from Template Customize Deployment Deploy Service Power On and Wait for VM Install VMM guest agent Install Application Done Add to Load Balancer Built-In Step

DEMO Deploy Service Template

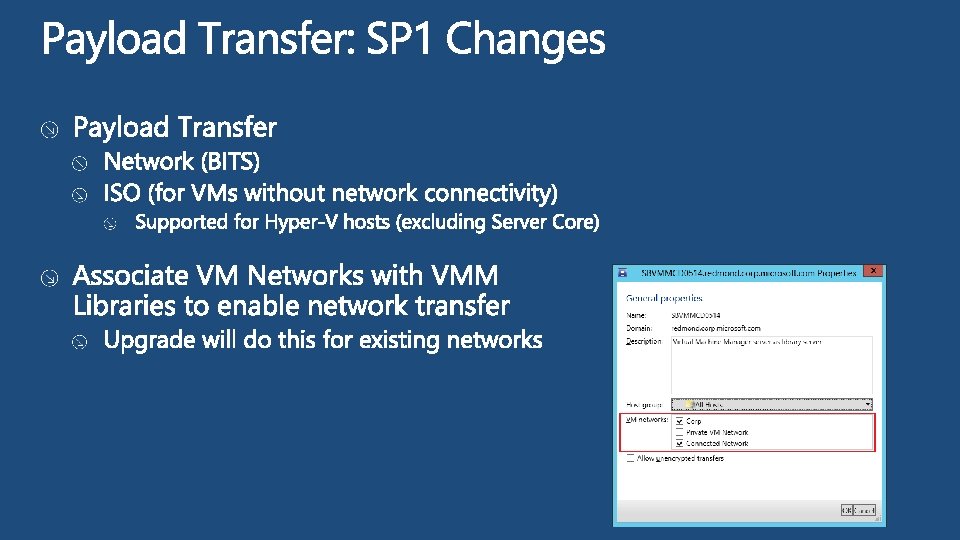

DEMO Payload Transfer

Apps or OS updated outside of VMM Instance ready for update

Create Template Update Service Customize Deployment Deploy Service

Per Service Per Machine Per Guest OS In-Place Updating Per Application Select Tier Based on Servicing Order Select Machine Based on Upgrade Domain Remove from Load Balancer Apply Application Level Changes Done Uninstall Application Install Application Add to Load Balancer Built-In Step

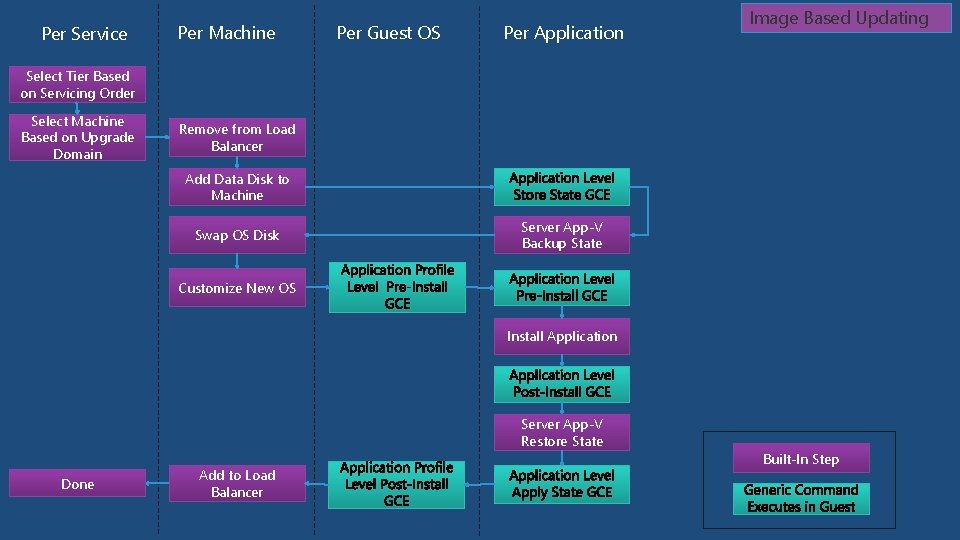

Per Service Per Machine Per Guest OS Per Application Image Based Updating Select Tier Based on Servicing Order Select Machine Based on Upgrade Domain Remove from Load Balancer Add Data Disk to Machine Swap OS Disk Server App-V Backup State Customize New OS Install Application Server App-V Restore State Done Add to Load Balancer Built-In Step

DEMO Update Service

At least one VM has a problem of some type VM refresher state indicates the actual problem

DEMO Scale Out Service
