MG 5000 MG 5050 Magellan 32 Zone Wireless

MG 5000 / MG 5050 Magellan 32 -Zone Wireless Transceiver Control Panels Product Information

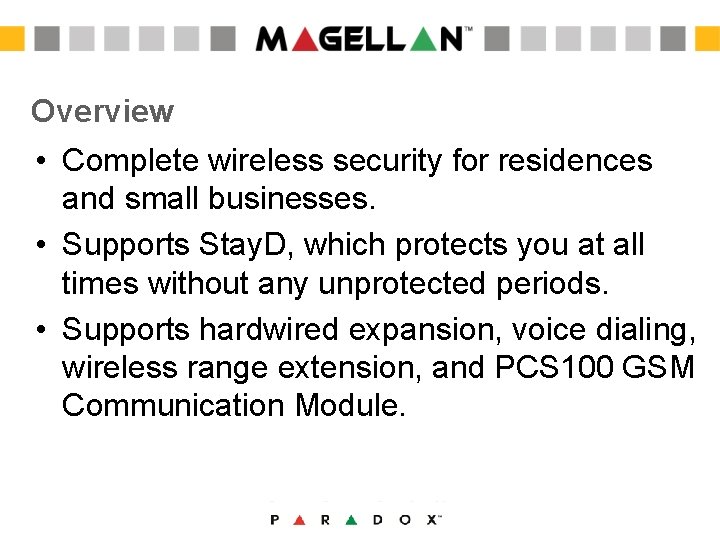

Overview • Complete wireless security for residences and small businesses. • Supports Stay. D, which protects you at all times without any unprotected periods. • Supports hardwired expansion, voice dialing, wireless range extension, and PCS 100 GSM Communication Module.

Overview • Complete line of wireless keypads and accessories. • Wireless keypads feature Live Mode: View zone and system status live as they occur. • In-field upgrade capability for simple on-site updates. • Easy-to-follow menu-driven programming for the installer and user.

Standard Features • 32 zones – – • • Any of which can be wireless Up to 15 keypad zones MG 5000: 2 on-board hardwired zone inputs (4 with ATZ) MG 5050: 5 on-board hardwired zone inputs (10 with ATZ) 32 users 2 partitions In-field firmware upgradeable (Win. Load/307 USB) Menu-driven programming (Master/Installer)

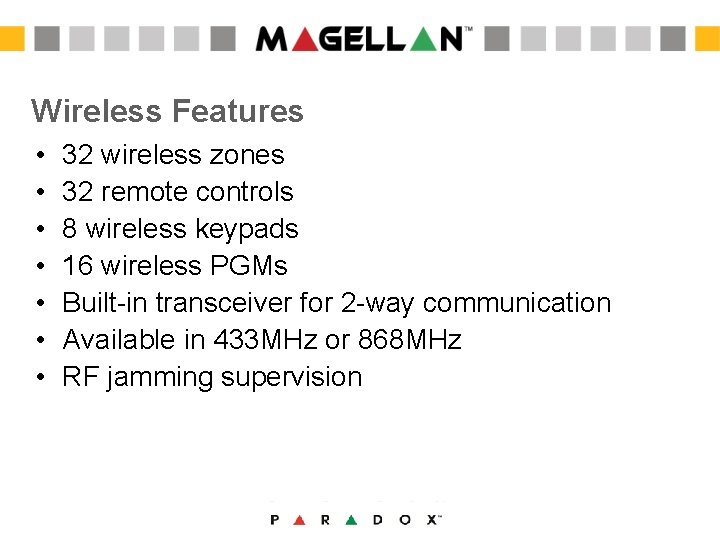

Wireless Features • • 32 wireless zones 32 remote controls 8 wireless keypads 16 wireless PGMs Built-in transceiver for 2 -way communication Available in 433 MHz or 868 MHz RF jamming supervision

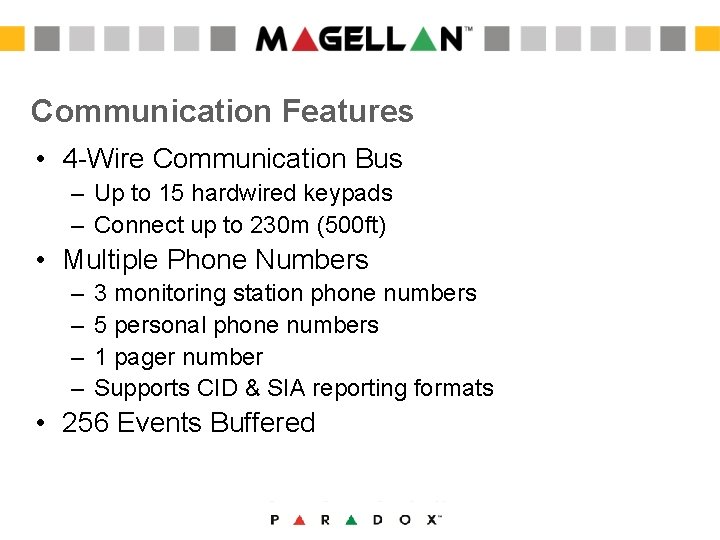

Communication Features • 4 -Wire Communication Bus – Up to 15 hardwired keypads – Connect up to 230 m (500 ft) • Multiple Phone Numbers – – 3 monitoring station phone numbers 5 personal phone numbers 1 pager number Supports CID & SIA reporting formats • 256 Events Buffered

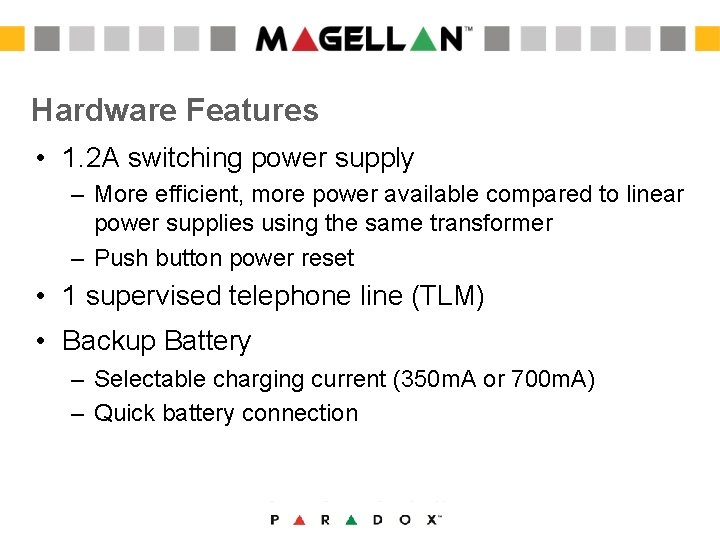

Hardware Features • 1. 2 A switching power supply – More efficient, more power available compared to linear power supplies using the same transformer – Push button power reset • 1 supervised telephone line (TLM) • Backup Battery – Selectable charging current (350 m. A or 700 m. A) – Quick battery connection

Hardware Features • Bell supervised output – 1 A, fuseless shutdown @ 3 A • Auxiliary output – 700 m. A, fuseless shutdown @1. 1 A • • • MG 5000: 2 on-board PGM outputs MG 5050: 4 on-board PGM outputs 2 - or 4 -wire smoke detector input (Z 1) Keypad service connector Serial port connector (9. 6 k baud) Memory key connector (PMC 5)

Stay. D Overview • Stay. D represents a new concept for living with a security system • Integrates security in your everyday life to give you safe, simple living with peace of mind • Only safe security system that’s always secured • 24/7 protection without downtime

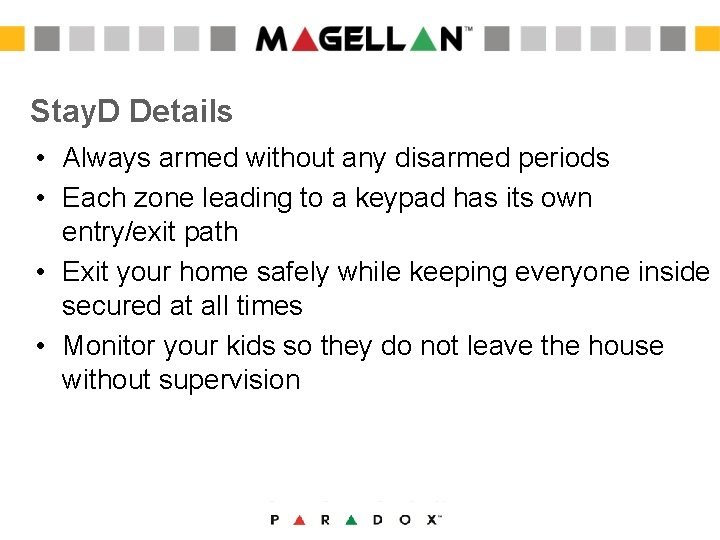

Stay. D Details • Always armed without any disarmed periods • Each zone leading to a keypad has its own entry/exit path • Exit your home safely while keeping everyone inside secured at all times • Monitor your kids so they do not leave the house without supervision

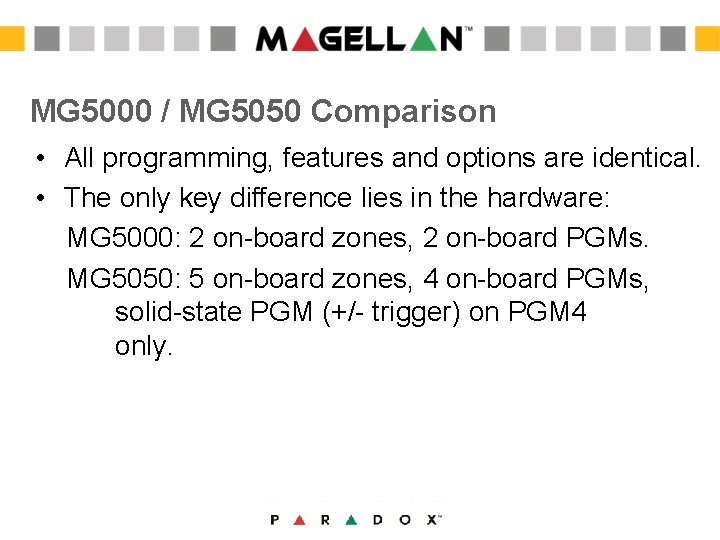

MG 5000 / MG 5050 Comparison • All programming, features and options are identical. • The only key difference lies in the hardware: MG 5000: 2 on-board zones, 2 on-board PGMs. MG 5050: 5 on-board zones, 4 on-board PGMs, solid-state PGM (+/- trigger) on PGM 4 only.

Easy Programming

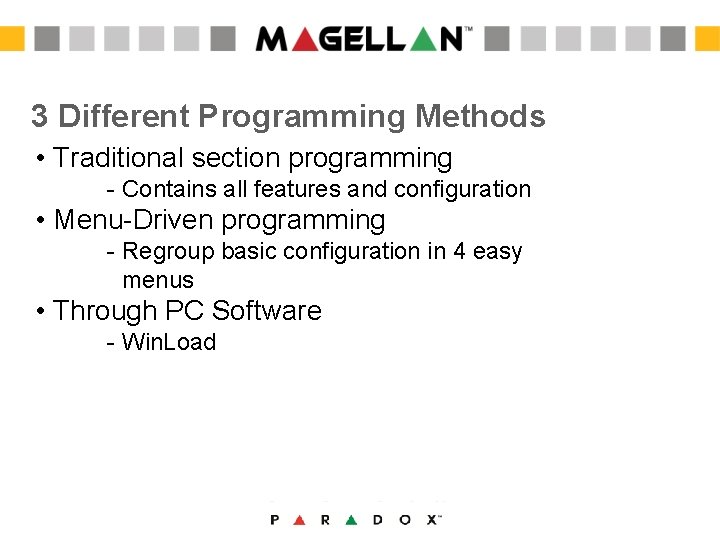

3 Different Programming Methods • Traditional section programming - Contains all features and configuration • Menu-Driven programming - Regroup basic configuration in 4 easy menus • Through PC Software - Win. Load

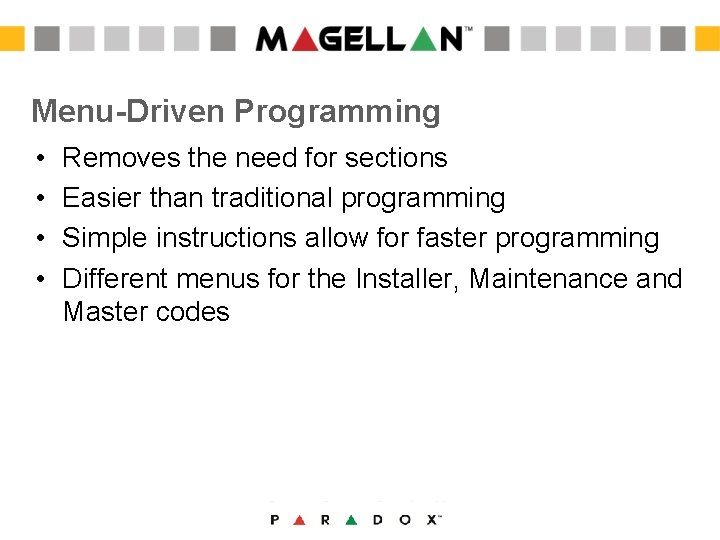

Menu-Driven Programming • • Removes the need for sections Easier than traditional programming Simple instructions allow for faster programming Different menus for the Installer, Maintenance and Master codes

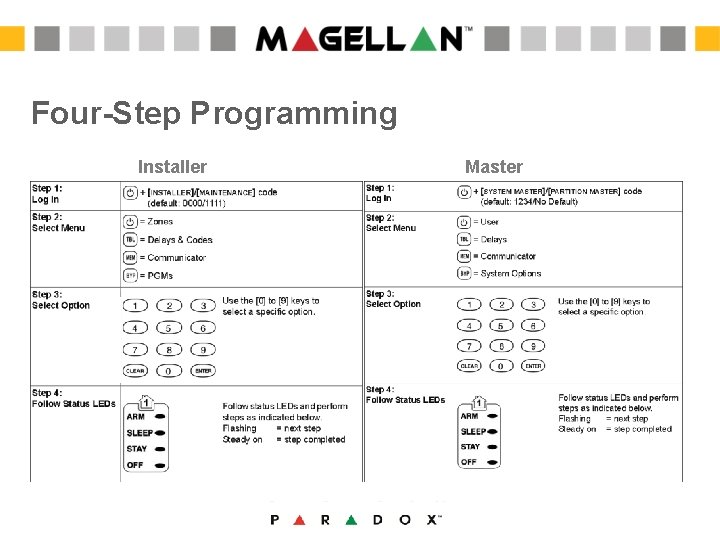

Four-Step Programming Installer Master

What Can Be Programmed In Menus • Installer – – – Zones (assignment, zone type and partition) Delays (entry/exit, bell cut-off and time & date) Installer and Maintenance Codes Communicator phone numbers PGMs (assignment, PGM type and PGM delays) • Master – – Users (access code, remote control assignment and partition) Delays (entry/exit, bell cut-off, time & date) Communicator phone numbers (except monitoring station) Other (Auto-Arming time, find remote, squawk options and exit delay on remote control)

The Modules

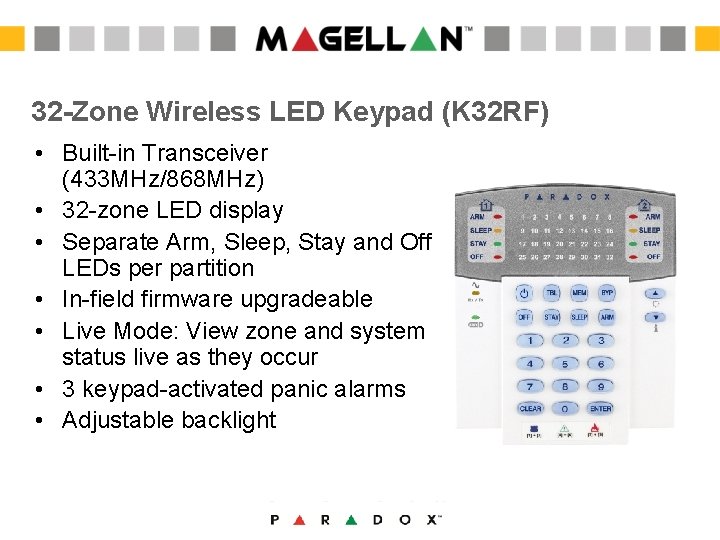

32 -Zone Wireless LED Keypad (K 32 RF) • Built-in Transceiver (433 MHz/868 MHz) • 32 -zone LED display • Separate Arm, Sleep, Stay and Off LEDs per partition • In-field firmware upgradeable • Live Mode: View zone and system status live as they occur • 3 keypad-activated panic alarms • Adjustable backlight

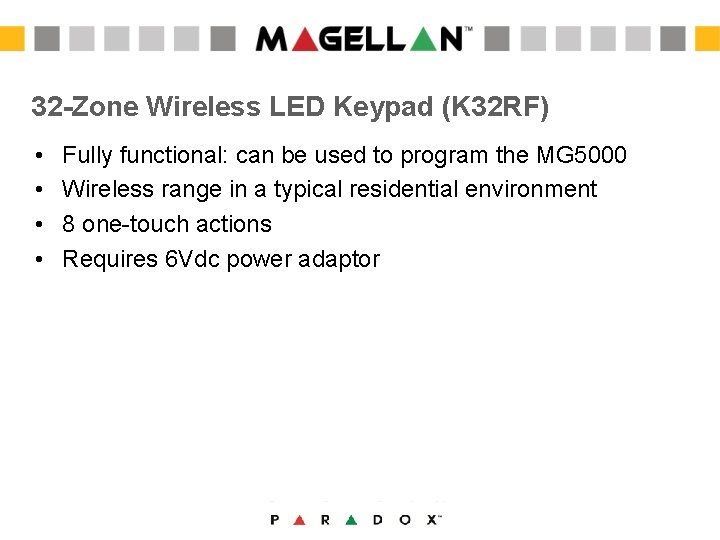

32 -Zone Wireless LED Keypad (K 32 RF) • • Fully functional: can be used to program the MG 5000 Wireless range in a typical residential environment 8 one-touch actions Requires 6 Vdc power adaptor

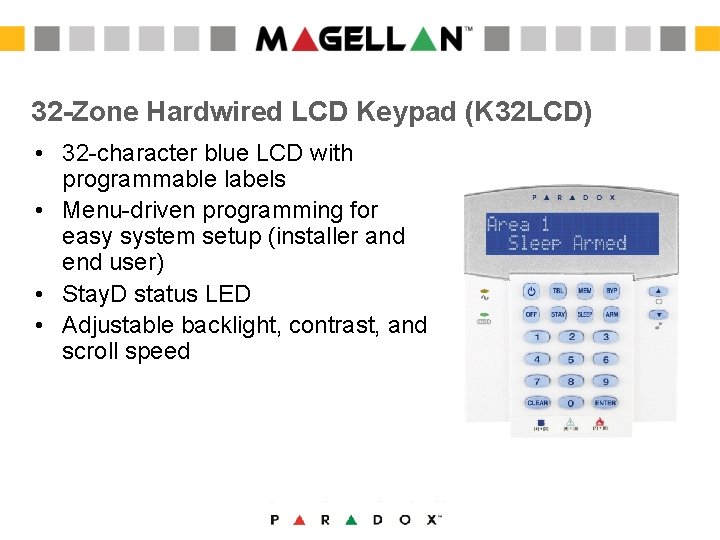

32 -Zone Hardwired LCD Keypad (K 32 LCD) • 32 -character blue LCD with programmable labels • Menu-driven programming for easy system setup (installer and end user) • Stay. D status LED • Adjustable backlight, contrast, and scroll speed

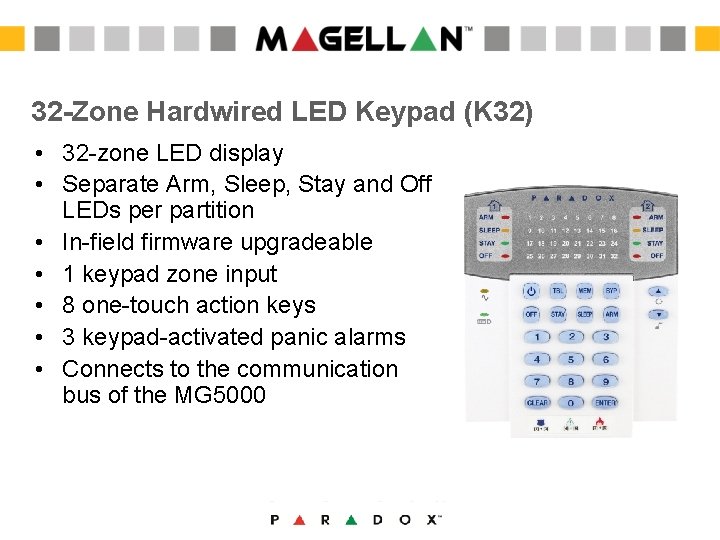

32 -Zone Hardwired LED Keypad (K 32) • 32 -zone LED display • Separate Arm, Sleep, Stay and Off LEDs per partition • In-field firmware upgradeable • 1 keypad zone input • 8 one-touch action keys • 3 keypad-activated panic alarms • Connects to the communication bus of the MG 5000

32 -Zone Hardwired Fixed LCD Keypad (K 32 I) • Fixed message display that guides you in the operation of the system • Displays the status of 32 zones in 2 partitions • Stay. D status icon • Displays Arm, Sleep, Stay and Disarmed status for each partition • Displays troubles, bypassed zones, and alarm memory • Adjustable backlight

32 -Zone Wireless Fixed LCD Keypad (K 32 IRF) • Provides real-time zone and system status, and can be used to program the panel using only battery power • Fixed message display that guides you in the operation of the system • Displays the status of 32 zones in 2 partitions • Stay. D status icon • Displays Arm, Sleep, Stay and Disarmed status for each partition • Displays troubles, bypassed zones, and alarm memory • Adjustable backlight

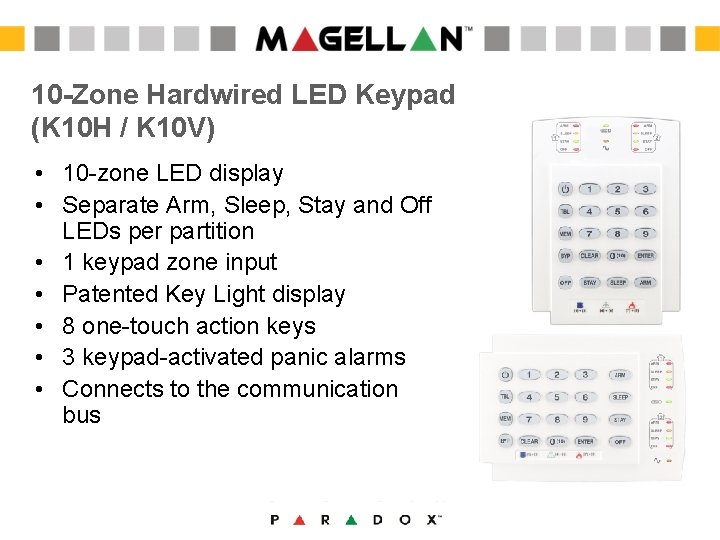

10 -Zone Hardwired LED Keypad (K 10 H / K 10 V) • 10 -zone LED display • Separate Arm, Sleep, Stay and Off LEDs per partition • 1 keypad zone input • Patented Key Light display • 8 one-touch action keys • 3 keypad-activated panic alarms • Connects to the communication bus

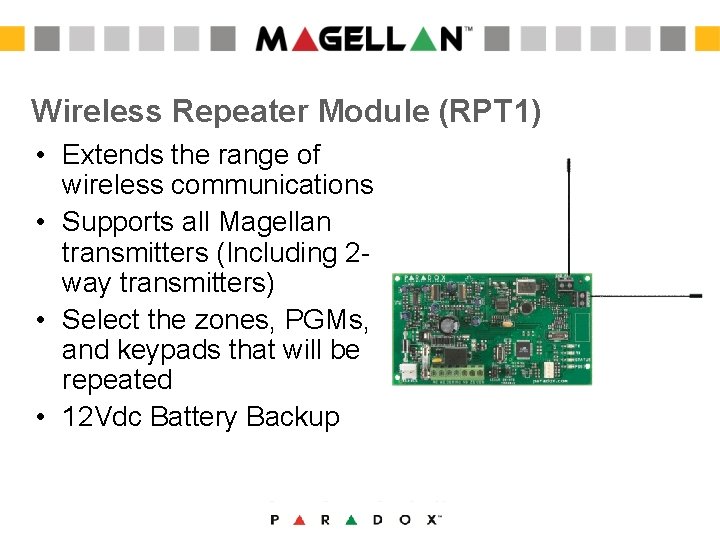

Wireless Repeater Module (RPT 1) • Extends the range of wireless communications • Supports all Magellan transmitters (Including 2 way transmitters) • Select the zones, PGMs, and keypads that will be repeated • 12 Vdc Battery Backup

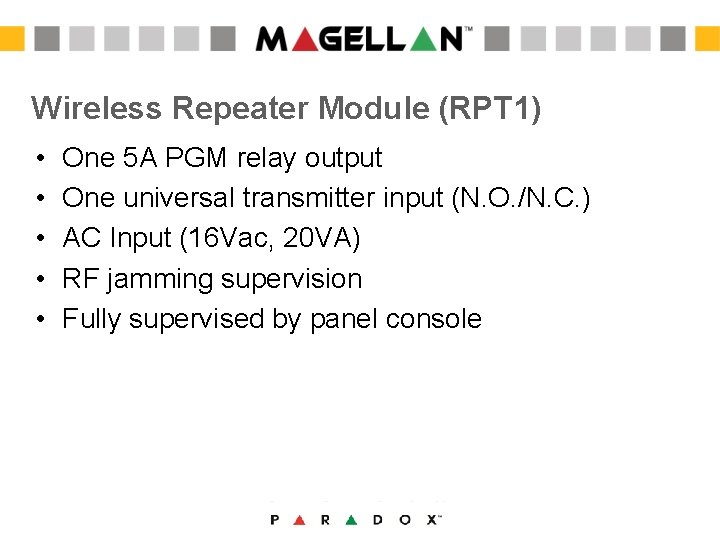

Wireless Repeater Module (RPT 1) • • • One 5 A PGM relay output One universal transmitter input (N. O. /N. C. ) AC Input (16 Vac, 20 VA) RF jamming supervision Fully supervised by panel console

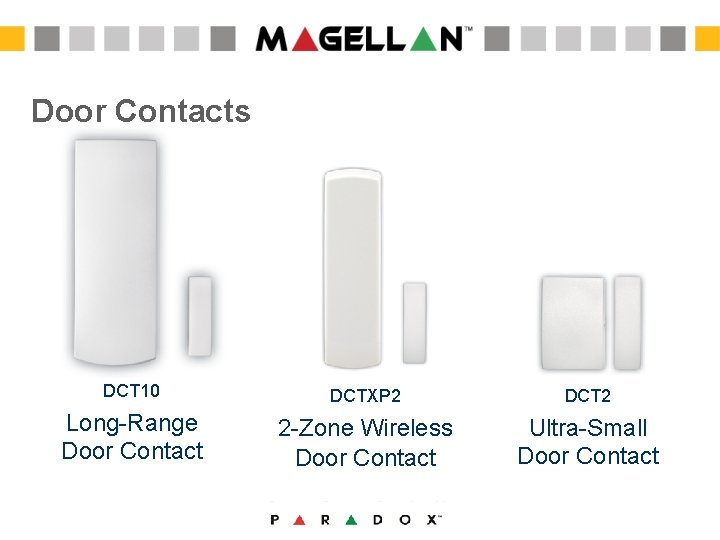

Door Contacts DCT 10 DCTXP 2 DCT 2 Long-Range Door Contact 2 -Zone Wireless Door Contact Ultra-Small Door Contact

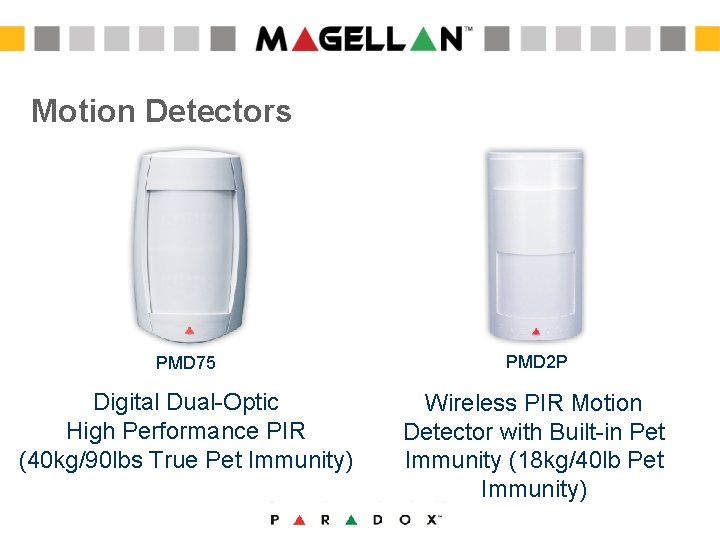

Motion Detectors PMD 75 PMD 2 P Digital Dual-Optic High Performance PIR (40 kg/90 lbs True Pet Immunity) Wireless PIR Motion Detector with Built-in Pet Immunity (18 kg/40 lb Pet Immunity)

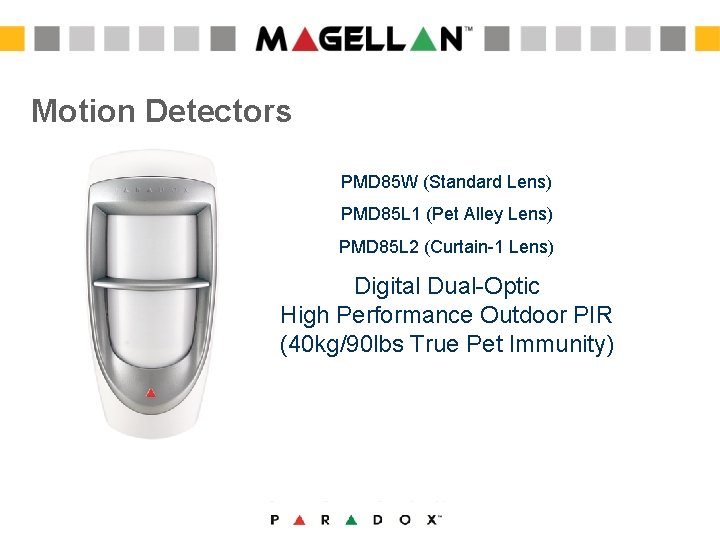

Motion Detectors PMD 85 W (Standard Lens) PMD 85 L 1 (Pet Alley Lens) PMD 85 L 2 (Curtain-1 Lens) Digital Dual-Optic High Performance Outdoor PIR (40 kg/90 lbs True Pet Immunity)

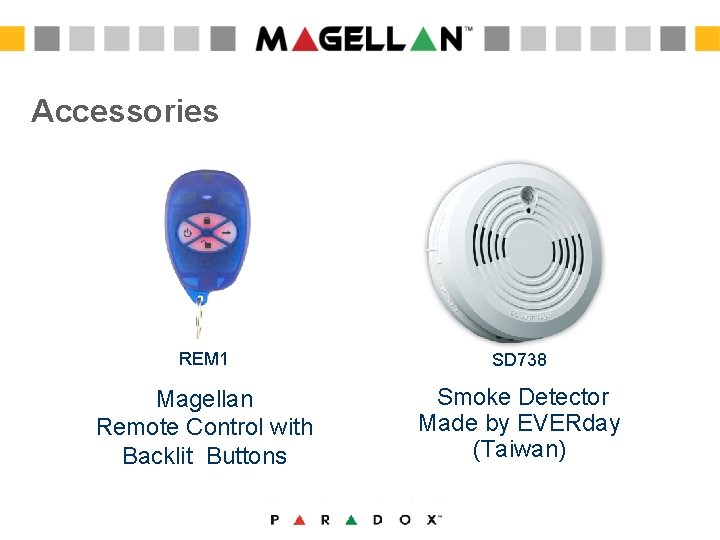

Accessories REM 1 SD 738 Magellan Remote Control with Backlit Buttons Smoke Detector Made by EVERday (Taiwan)

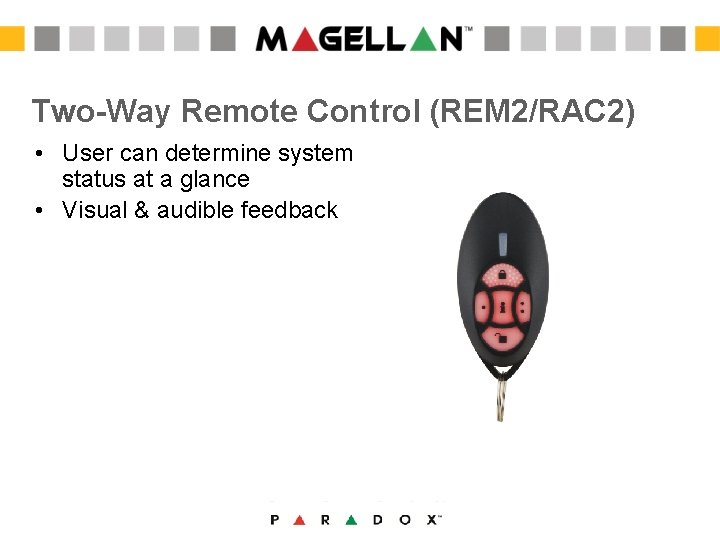

Two-Way Remote Control (REM 2/RAC 2) • User can determine system status at a glance • Visual & audible feedback

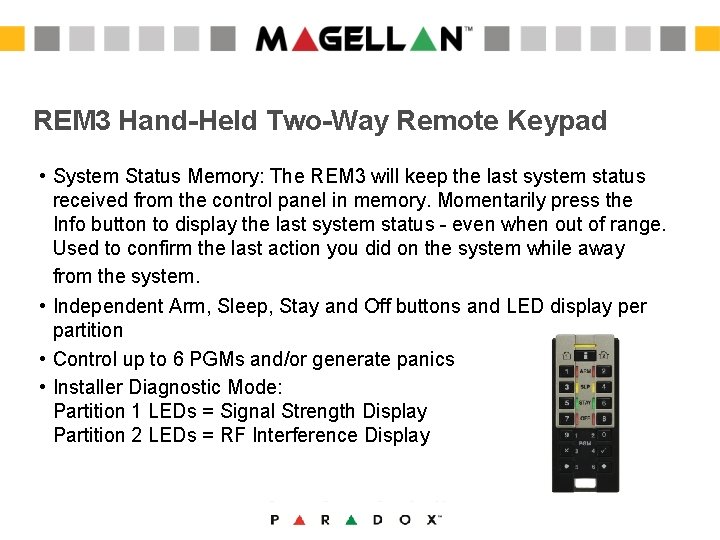

REM 3 Hand-Held Two-Way Remote Keypad • System Status Memory: The REM 3 will keep the last system status received from the control panel in memory. Momentarily press the Info button to display the last system status - even when out of range. Used to confirm the last action you did on the system while away from the system. • Independent Arm, Sleep, Stay and Off buttons and LED display per partition • Control up to 6 PGMs and/or generate panics • Installer Diagnostic Mode: Partition 1 LEDs = Signal Strength Display Partition 2 LEDs = RF Interference Display

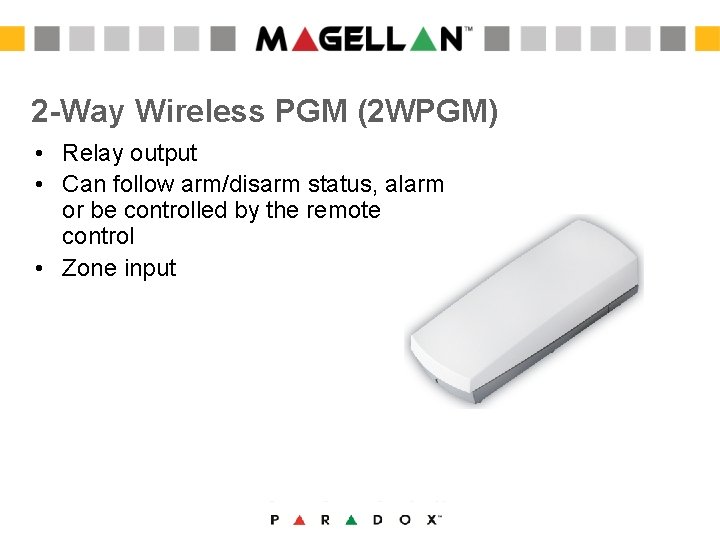

2 -Way Wireless PGM (2 WPGM) • Relay output • Can follow arm/disarm status, alarm or be controlled by the remote control • Zone input

PCS 100 (GSM Edition) • Report via GSM: Report control panel events to the monitoring station via a GSM (cell phone) network using any control panel reporting format • Upload/Download via GPRS • Voice reporting using the VDMP 3 • Report via text messages (SMS) • Arm /disarm via text messages (SMS) • Control panel communication supervision • GSM RF jamming detection

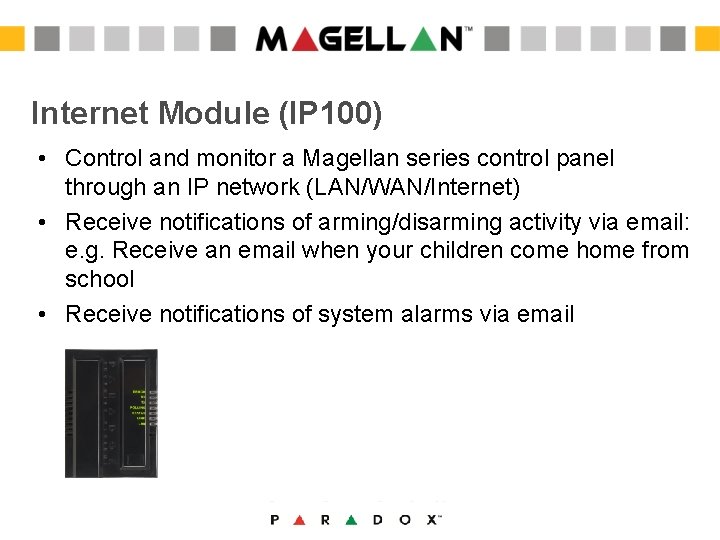

Internet Module (IP 100) • Control and monitor a Magellan series control panel through an IP network (LAN/WAN/Internet) • Receive notifications of arming/disarming activity via email: e. g. Receive an email when your children come home from school • Receive notifications of system alarms via email

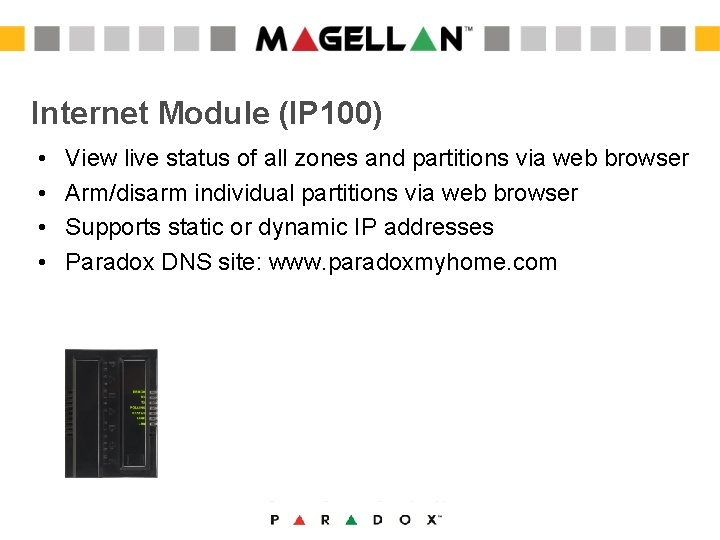

Internet Module (IP 100) • • View live status of all zones and partitions via web browser Arm/disarm individual partitions via web browser Supports static or dynamic IP addresses Paradox DNS site: www. paradoxmyhome. com

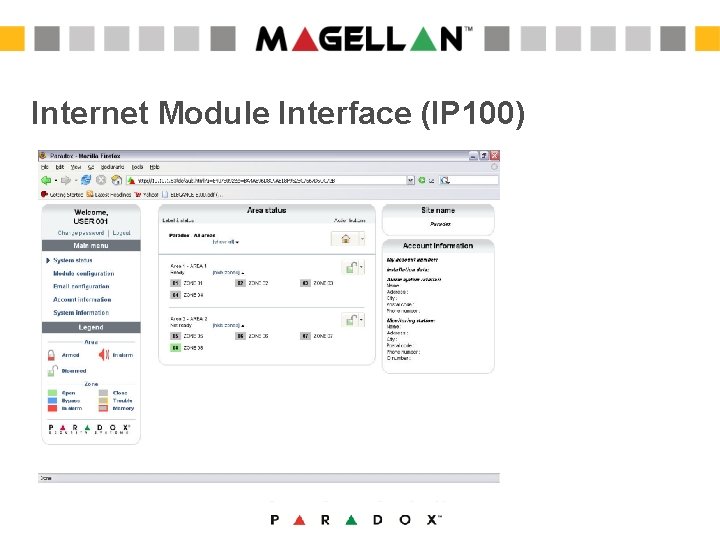

Internet Module Interface (IP 100)

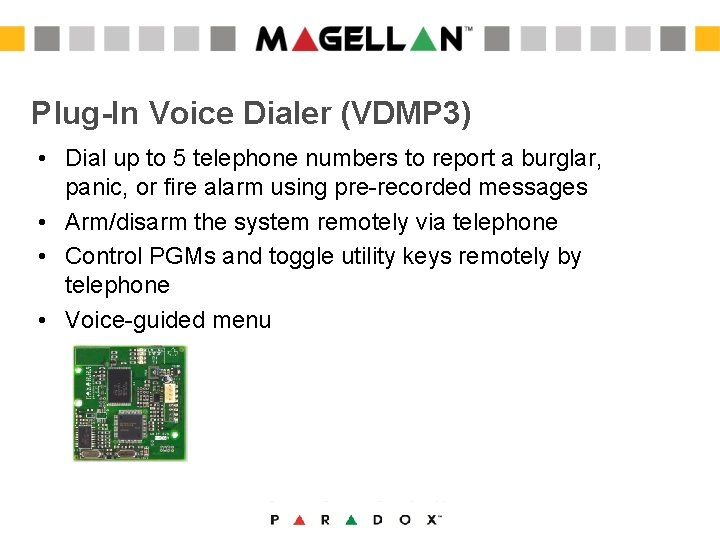

Plug-In Voice Dialer (VDMP 3) • Dial up to 5 telephone numbers to report a burglar, panic, or fire alarm using pre-recorded messages • Arm/disarm the system remotely via telephone • Control PGMs and toggle utility keys remotely by telephone • Voice-guided menu

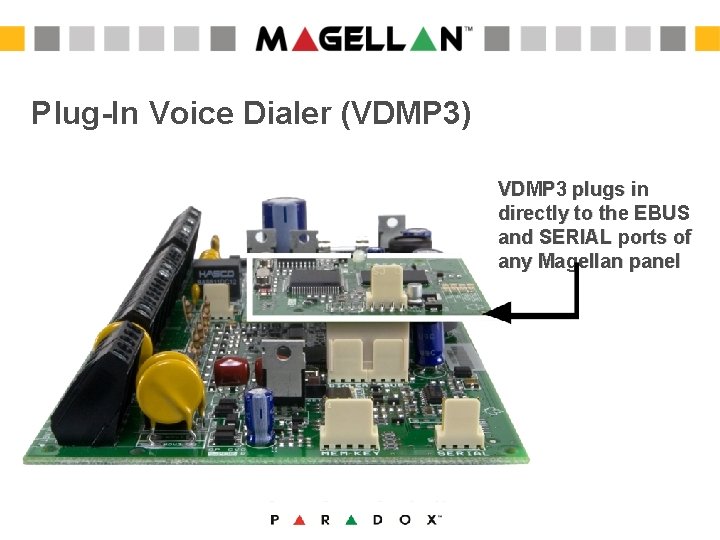

Plug-In Voice Dialer (VDMP 3) VDMP 3 plugs in directly to the EBUS and SERIAL ports of any Magellan panel

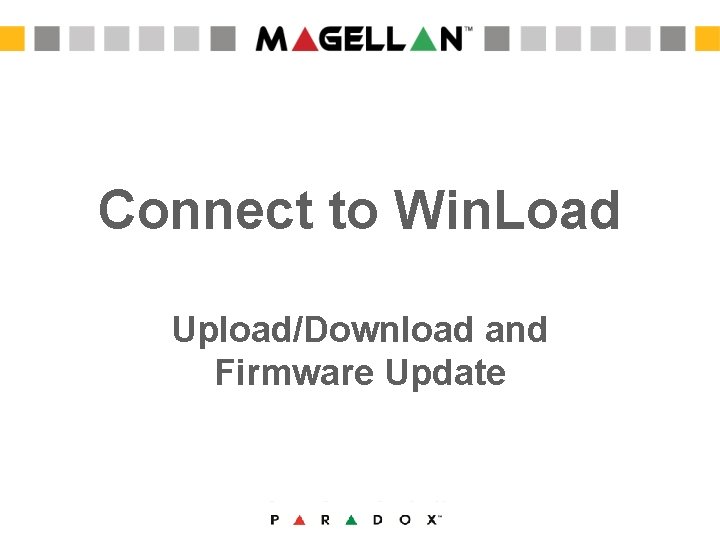

Connect to Win. Load Upload/Download and Firmware Update

Connect to Win. Load • Upload or download programming quickly • Communicate on-site or through a phone line • Monitor and Control System – – – View system status View all events and generate reports Arm/disarm Bypass zones Activate/deactivate PGMs • Remote diagnostic tools – View troubles – View alarm memory – View and sort events in buffer

Connect to Win. Load • Update Product Firmware – Eliminate the need to replace the control panel for firmware upgrades – Simple process done directly in Win. Load – Simply download the file, connect to the system, and use the “Update Firmware” function

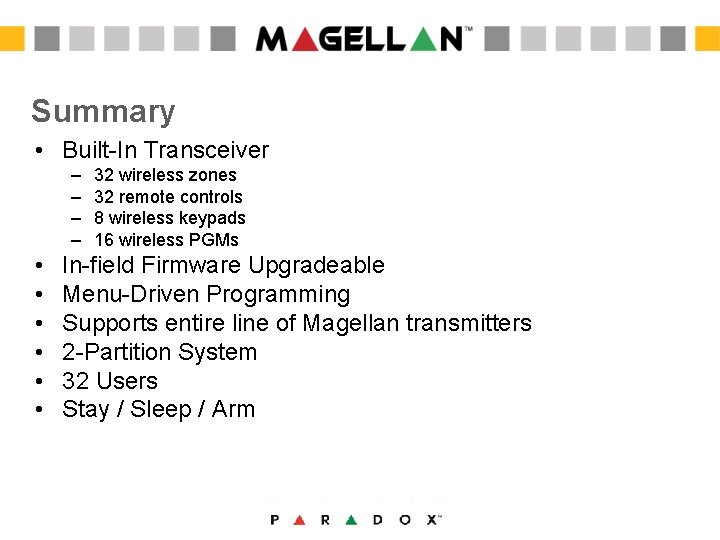

Summary • Built-In Transceiver – – • • • 32 wireless zones 32 remote controls 8 wireless keypads 16 wireless PGMs In-field Firmware Upgradeable Menu-Driven Programming Supports entire line of Magellan transmitters 2 -Partition System 32 Users Stay / Sleep / Arm

Thank You
