MFP Charging 2011 Product Family Print Quota Print
- Slides: 71
給地球一個美麗環境 MFP Charging 2011
Product Family Print Quota Print Security Print Watermark Paper Charging MFP Charging Print Solution Family

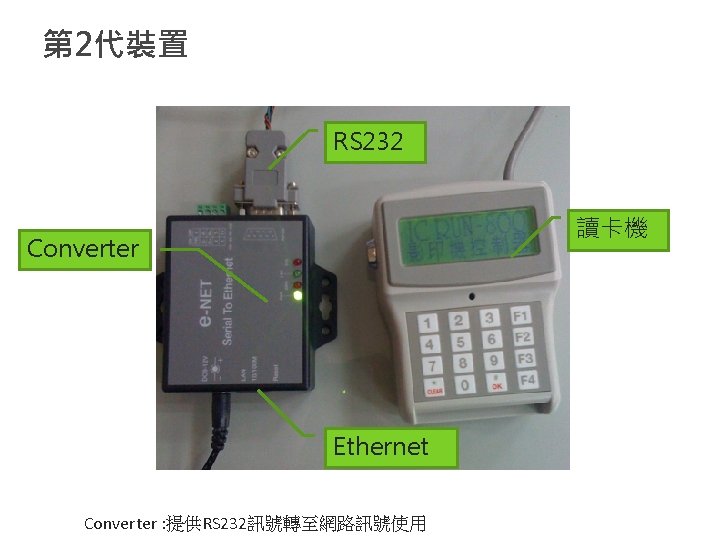

第 2代裝置 RS 232 讀卡機 Converter Ethernet Converter : 提供RS 232訊號轉至網路訊號使用
1. Broadcast 3. Define device network TCP/IP Network Ethernet 10/1000 2. Respond device (MAC) MFP Charging 對讀卡機裝置自動化設置

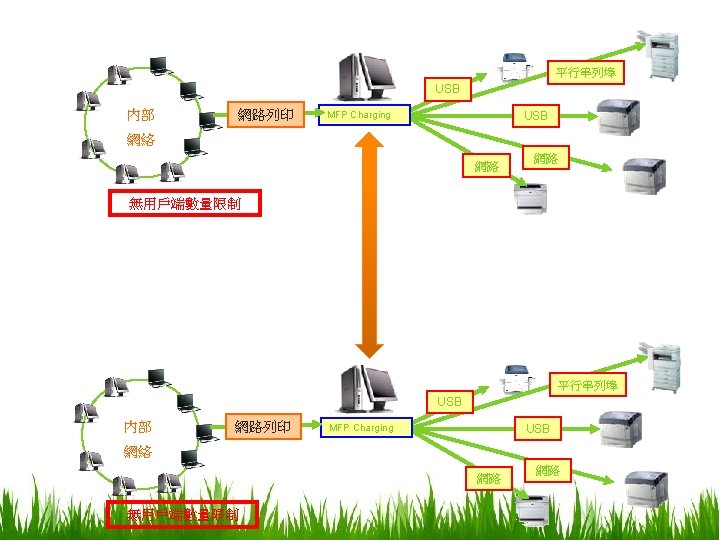

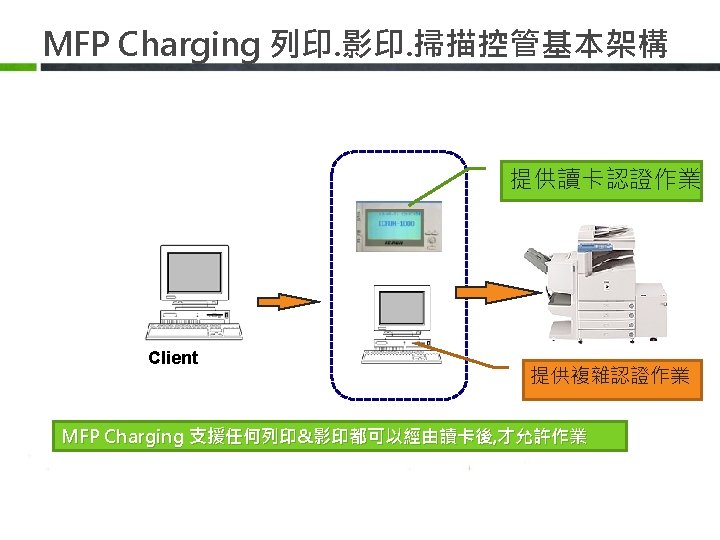

MFP Charging 系統環境架構
多點整合架構 每一個印表機伺服主機,自動將列印資料透過Internet或Intranet將 資料匯回企業總部SQL主機 Print Server 1 MFP Charging 台中 Internet Print Server 2 MFP Charging 台北 Data Server Intranet 記錄稽核分析
MFP Charging-列印作業流程(Windows AD) 輸出 LDAP /Windows AD 認證來源 MFP Charging In Here! Print Server
MFP Charging-列印作業流程(非Windows AD) 輸出 LDAP Database 認證來源 e. Mail MFP Charging In Here! Print! nf o C Print Server irm

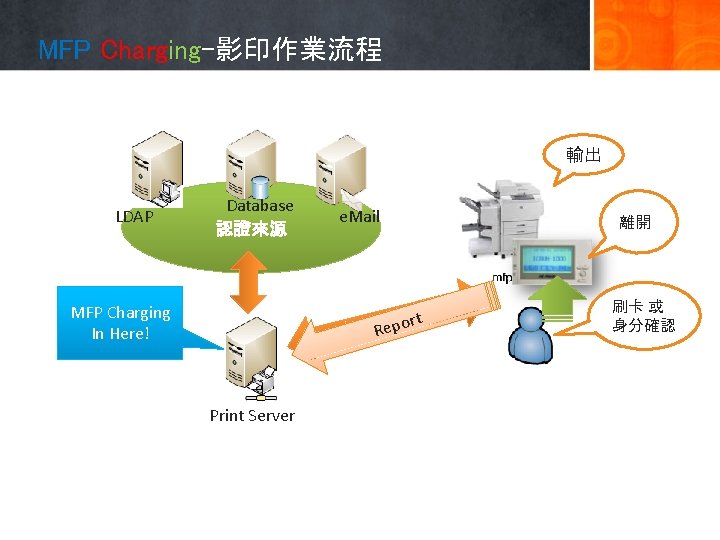

MFP Charging-影印作業流程 輸出 LDAP Database 認證來源 e. Mail uest q e t R r & o nfirm. Rep MFP Charging In Here! Co Print Server 離開 刷卡 或 身分確認

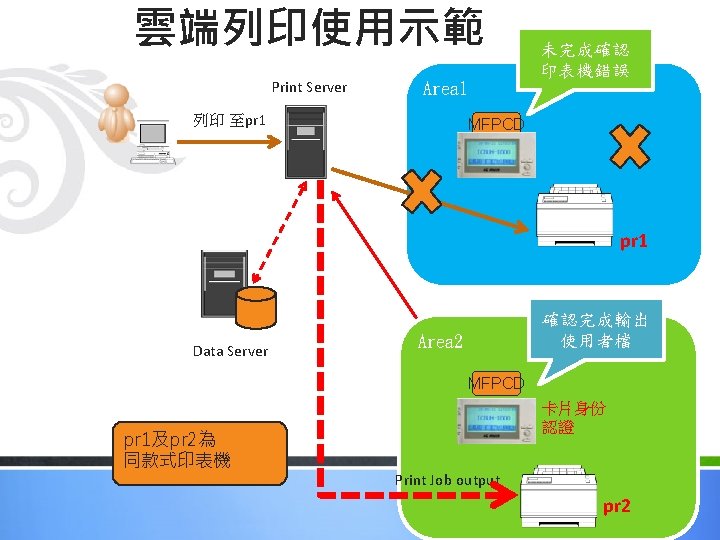

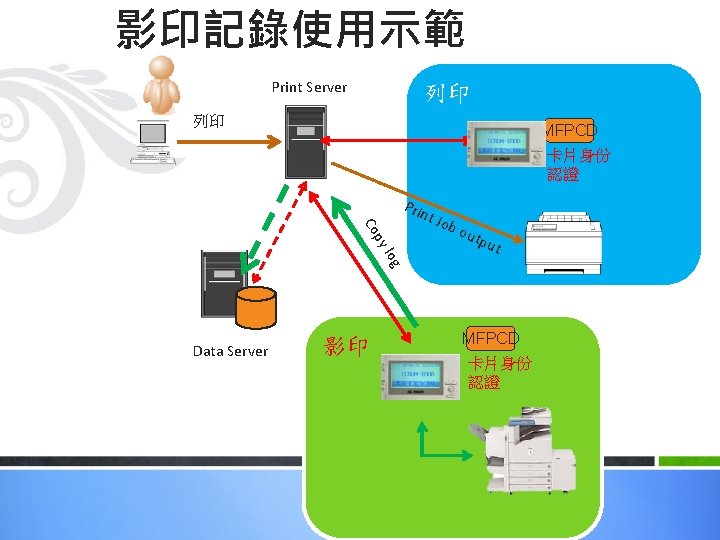

影印記錄使用示範 Print Server 列印 列印 MFPCD 卡片身份 認證 t Jo b o u tpu t g y lo p Co Prin Data Server 影印 MFPCD 卡片身份 認證

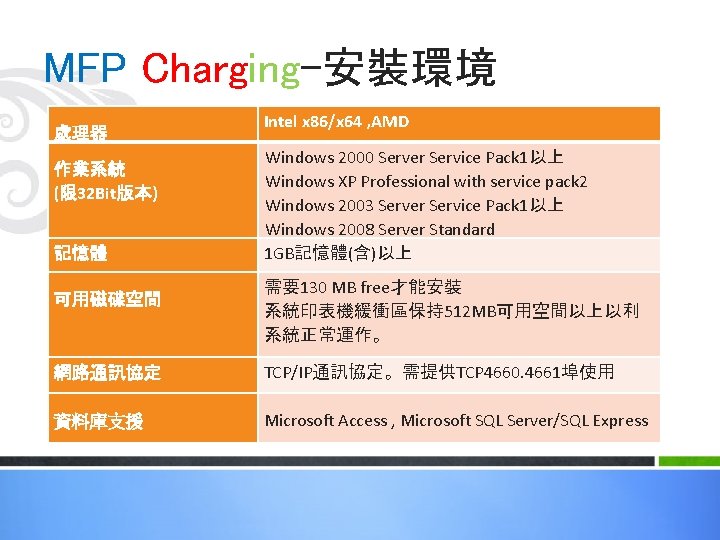

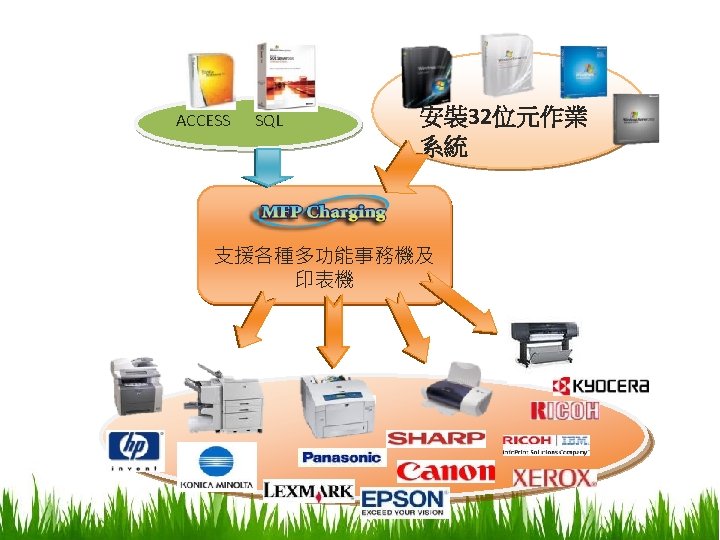

MFP Charging-安裝環境 處理器 作業系統 (限 32 Bit版本) 記憶體 可用磁碟空間 Intel x 86/x 64 , AMD Windows 2000 Server Service Pack 1以上 Windows XP Professional with service pack 2 Windows 2003 Server Service Pack 1以上 Windows 2008 Server Standard 1 GB記憶體(含)以上 需要130 MB free才能安裝 系統印表機緩衝區保持512 MB可用空間以上以利 系統正常運作。 網路通訊協定 TCP/IP通訊協定。需提供TCP 4660. 4661埠使用 資料庫支援 Microsoft Access , Microsoft SQL Server/SQL Express
3 D-Report(option )
MFP Charging MFP Charging MFP Charging MFP Charging MFP Charging MFP Charging MFP Charging MFP Charging MFP Charging MFP Charging MFP Charging MFP Charging 讓我們一起珍惜資源! 愛護地球~
