MFC Dialog Application Steps to Build MFC Dialog

MFC Dialog Application Steps to Build MFC Dialog in VS. Net 2003 Instructor : Dr. James Fawcett Prepared by : Priyaa Nachimuthu Summer 2004 priyaa. n@gmail. com

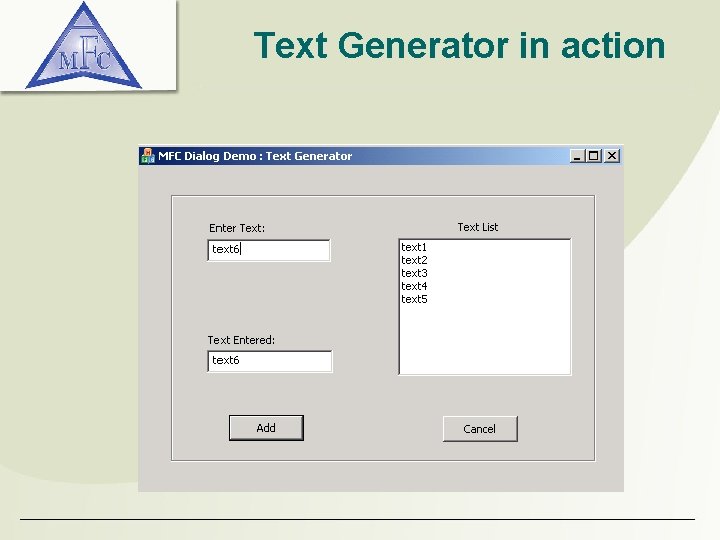

Text Generator in action

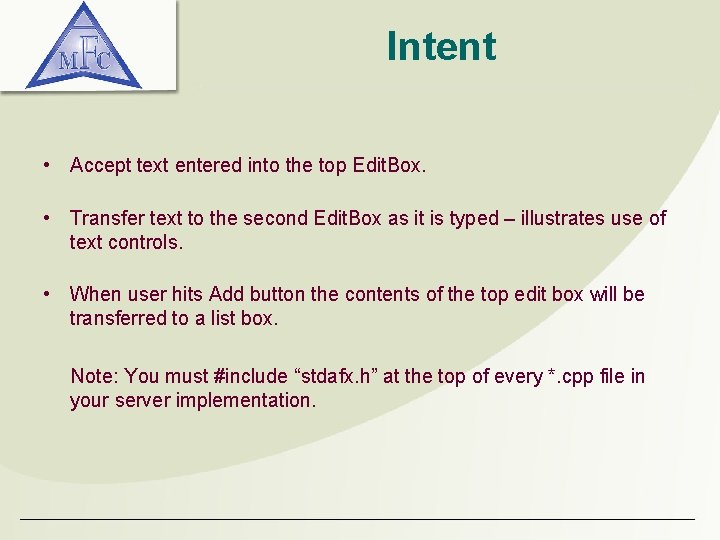

Intent • Accept text entered into the top Edit. Box. • Transfer text to the second Edit. Box as it is typed – illustrates use of text controls. • When user hits Add button the contents of the top edit box will be transferred to a list box. Note: You must #include “stdafx. h” at the top of every *. cpp file in your server implementation.

Construction Steps - Summary • • Run Application Wizard Select MFC Application project Select Dialog-based Pull controls from control palette onto dialog in Resource View. Add message handlers for every event you want to handle. – You can either right-click on dialog class in Class View to add handler – Or you double click on the control you want to handle, e. g. , Edit. Box or Button. – When you double click, you get a handler for the most common message for that control. That may or may not be what you want. – You get more control by using the first method. The second method is faster. Add code in message handlers, perhaps by calling a server module providing the computational engine for your interface. Compile, Edit, and Run repeatedly until you get the behavior and appearance you want.

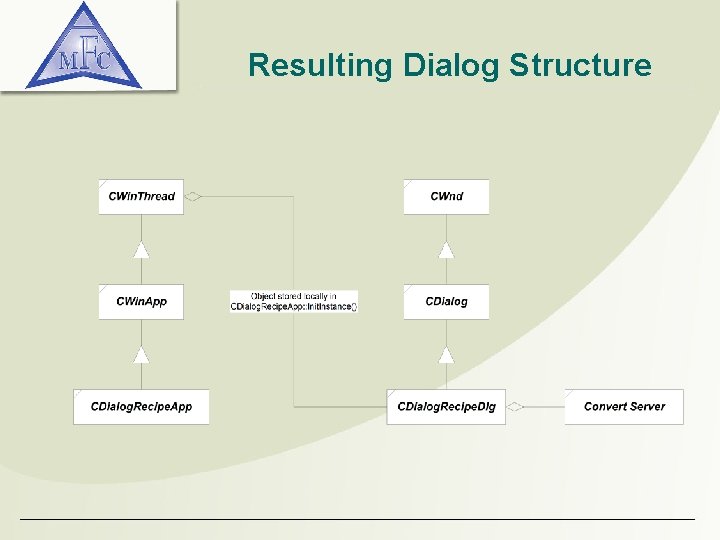

Resulting Dialog Structure

Construction Steps – Creating a MFC Project • • Create a blank solution and add a new project Select Visual C++ Projects - MFC Application

Construction Steps – Application wizard • You will be directed to MFC Application wizard

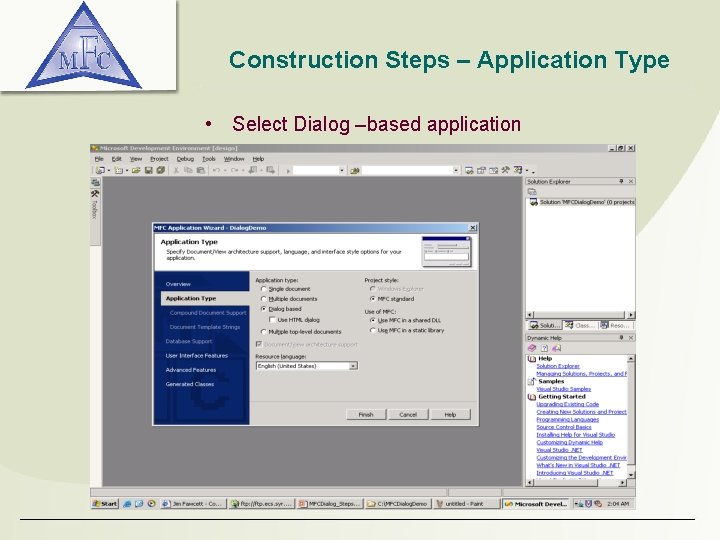

Construction Steps – Application Type • Select Dialog –based application

Construction Steps – UI Features • Choose the desired user interface features

Construction Steps – Advanced Features • Uncheck Active. X controls if none is used in the application

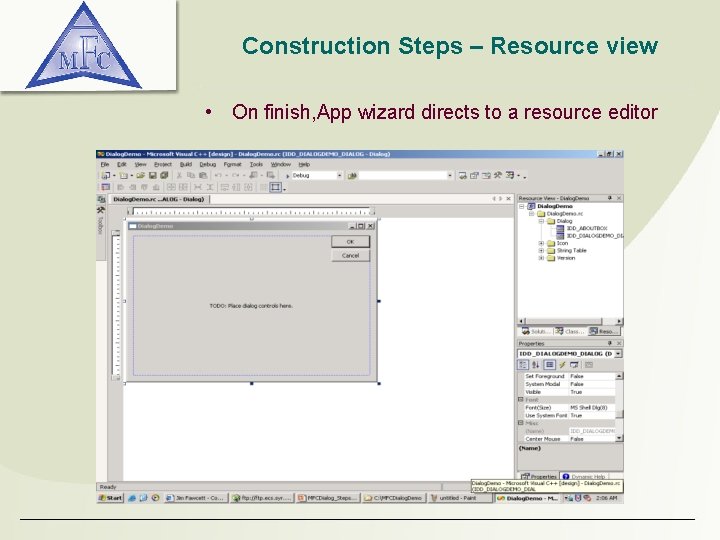

Construction Steps – Resource view • On finish, App wizard directs to a resource editor

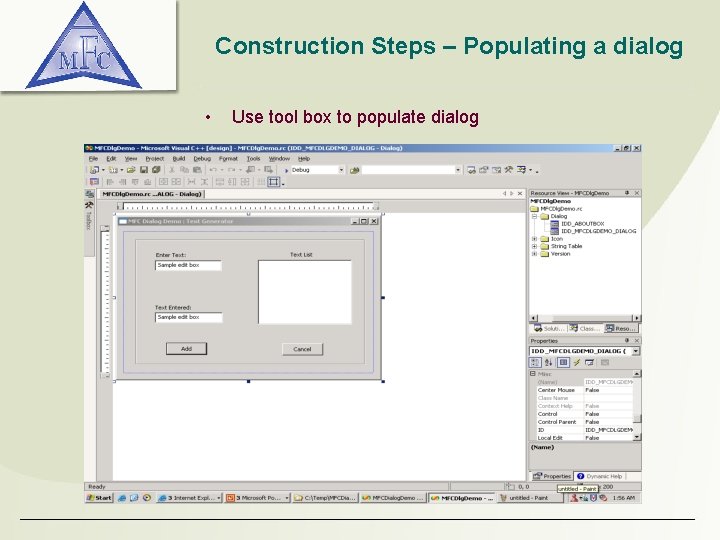

Construction Steps – Populating a dialog • Use tool box to populate dialog

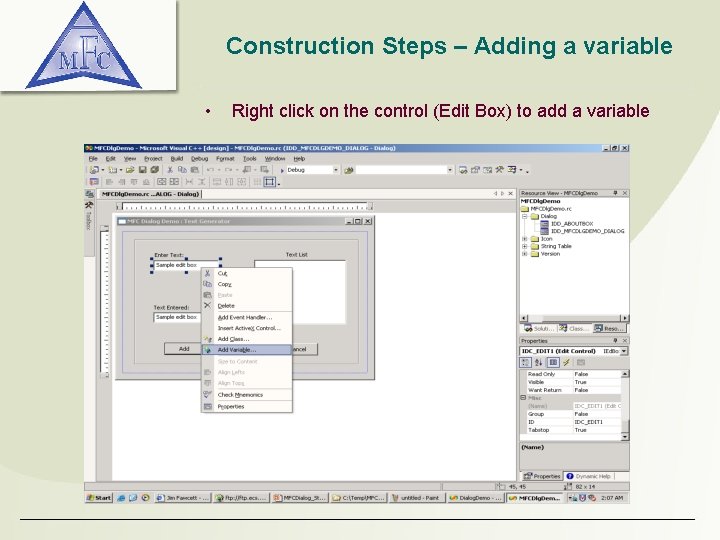

Construction Steps – Adding a variable • Right click on the control (Edit Box) to add a variable

Construction Steps – Add variable wizard • Select the variable type, type in the variable name, and choose category as value for Edit Box control

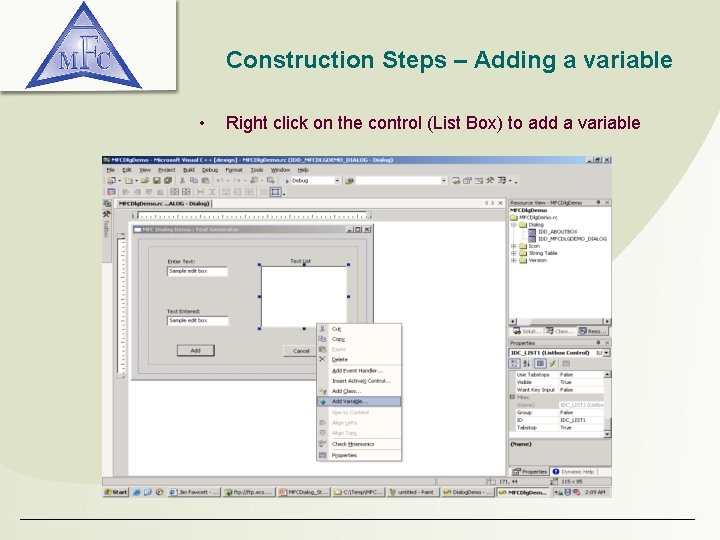

Construction Steps – Adding a variable • Right click on the control (List Box) to add a variable

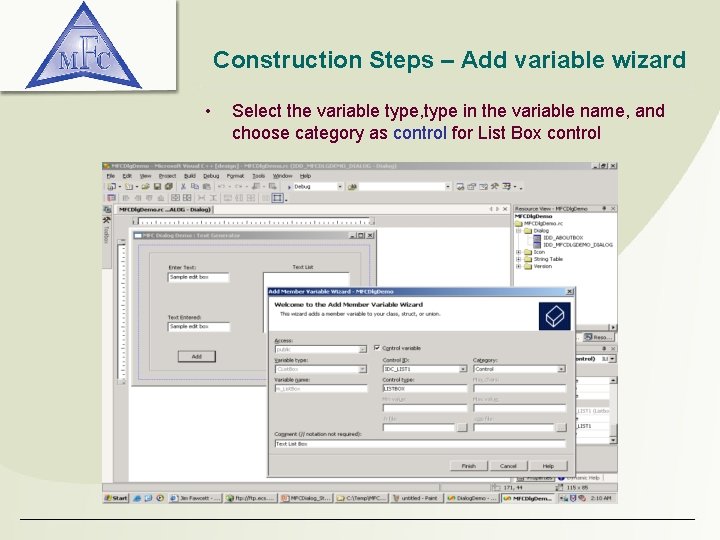

Construction Steps – Add variable wizard • Select the variable type, type in the variable name, and choose category as control for List Box control

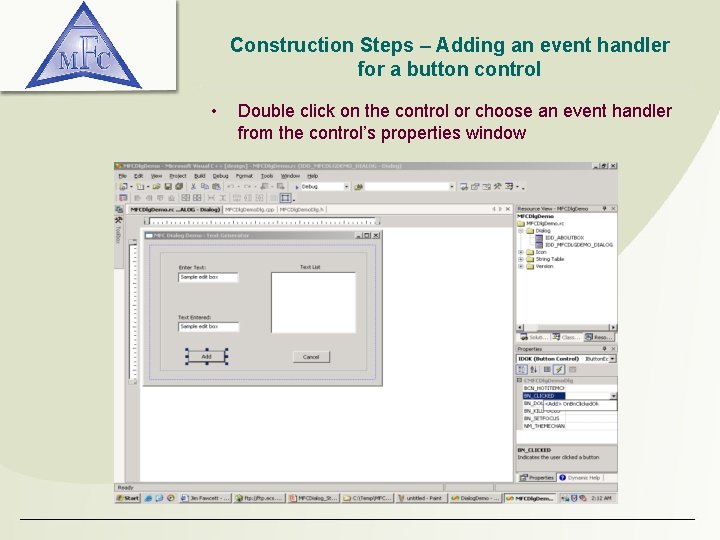

Construction Steps – Adding an event handler for a button control • Double click on the control or choose an event handler from the control’s properties window

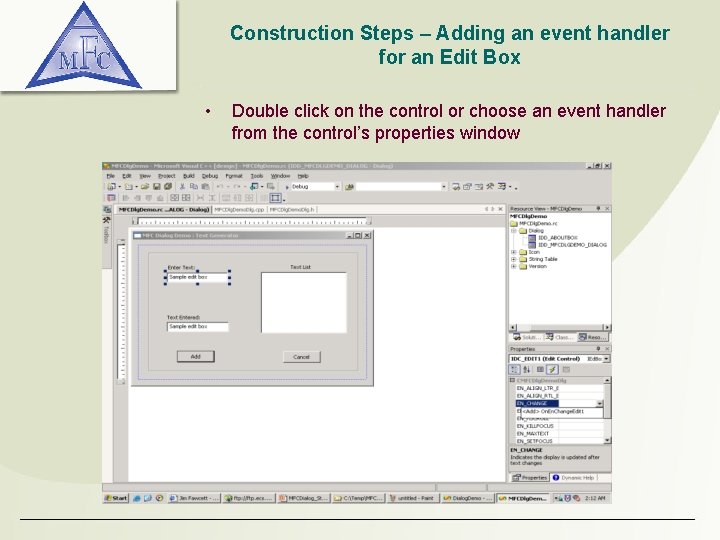

Construction Steps – Adding an event handler for an Edit Box • Double click on the control or choose an event handler from the control’s properties window

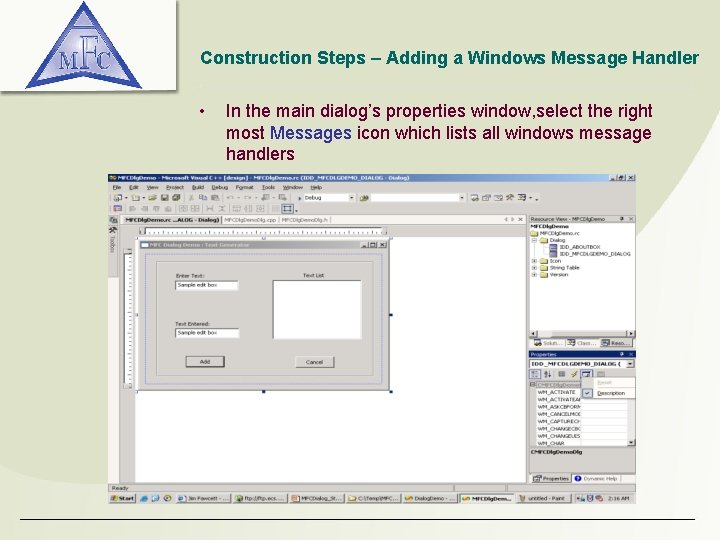

Construction Steps – Adding a Windows Message Handler • In the main dialog’s properties window, select the right most Messages icon which lists all windows message handlers

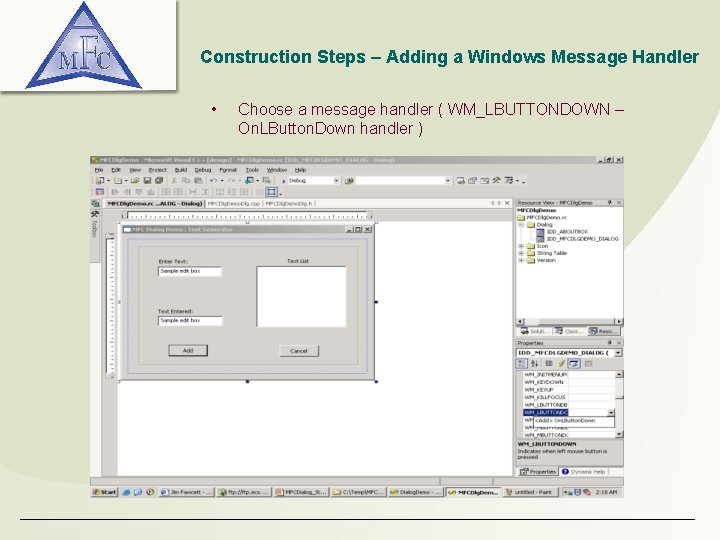

Construction Steps – Adding a Windows Message Handler • Choose a message handler ( WM_LBUTTONDOWN – On. LButton. Down handler )

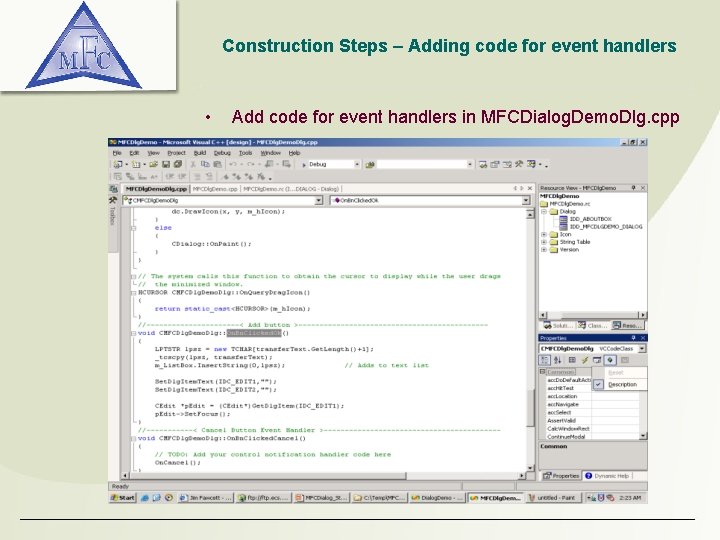

Construction Steps – Adding code for event handlers • Add code for event handlers in MFCDialog. Demo. Dlg. cpp

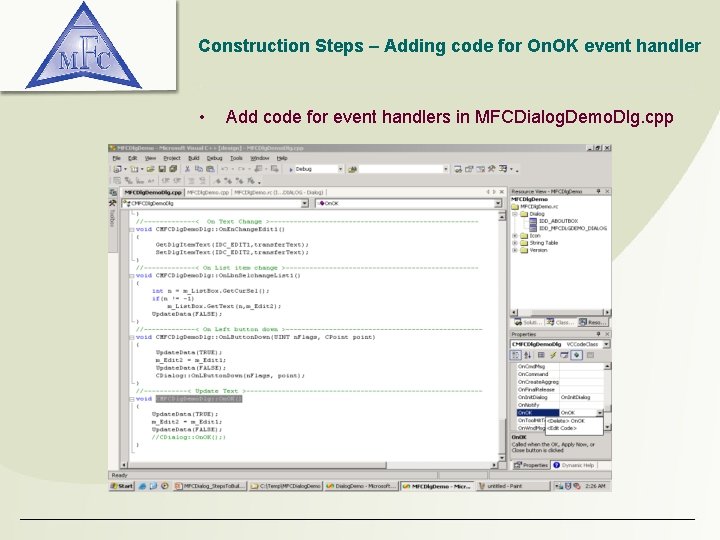

Construction Steps – Adding code for On. OK event handler • Add code for event handlers in MFCDialog. Demo. Dlg. cpp

Add Code, Compile, and Run
