METHODS FOR MEASURING THE BEAM PROFILE IN HIGH INTENSITY BEAMS Charlotte Roose www. europeanspallationsource. se May 8, 2014

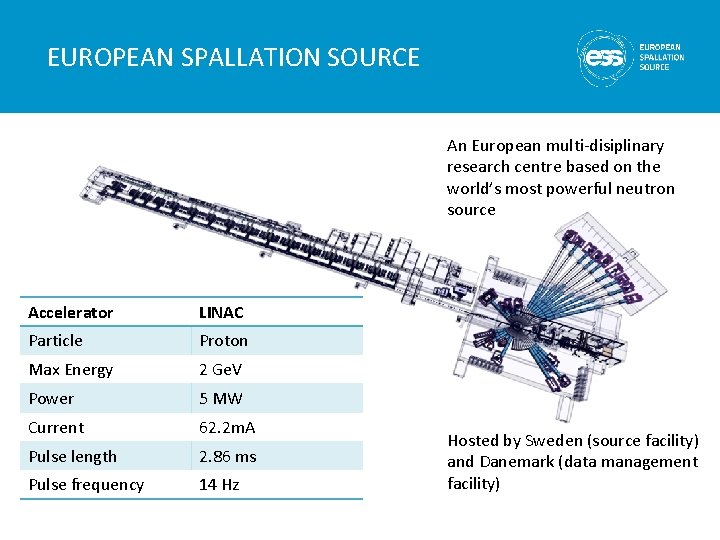

EUROPEAN SPALLATION SOURCE An European multi-disiplinary research centre based on the world’s most powerful neutron source Accelerator LINAC Particle Proton Max Energy 2 Ge. V Power 5 MW Current 62. 2 m. A Pulse length 2. 86 ms Pulse frequency 14 Hz Hosted by Sweden (source facility) and Danemark (data management facility)

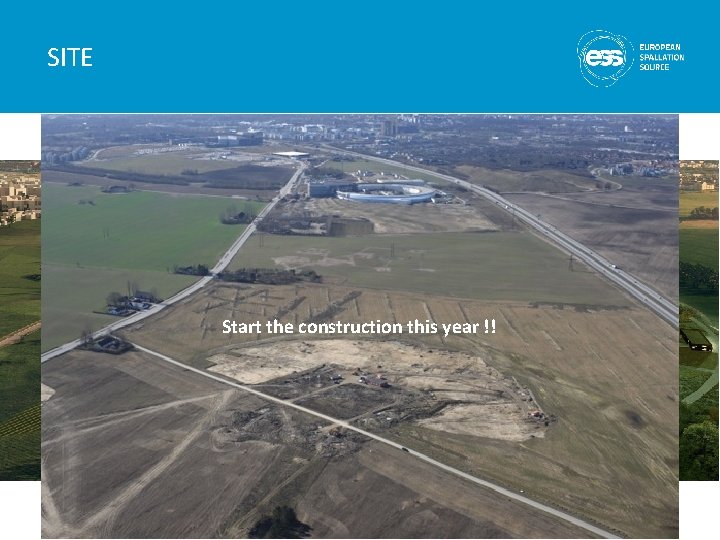

SITE Start the construction this year !!

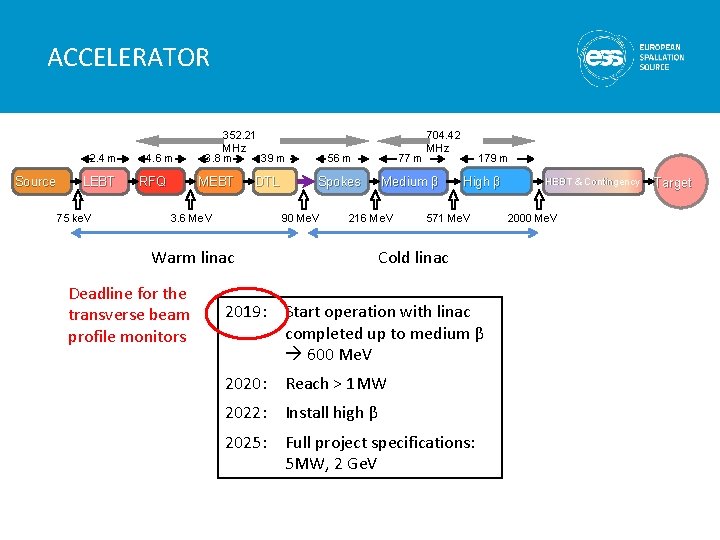

ACCELERATOR 2. 4 m Source LEBT 75 ke. V 4. 6 m RFQ 352. 21 MHz 3. 8 m 39 m MEBT DTL 3. 6 Me. V 56 m 77 m Spokes Medium β 90 Me. V 216 Me. V 179 m High β 571 Me. V Cold linac Warm linac Deadline for the transverse beam profile monitors 704. 42 MHz 2019: Start operation with linac completed up to medium β 600 Me. V 2020: Reach > 1 MW 2022: Install high β 2025: Full project specifications: 5 MW, 2 Ge. V HEBT & Contingency 2000 Me. V Target

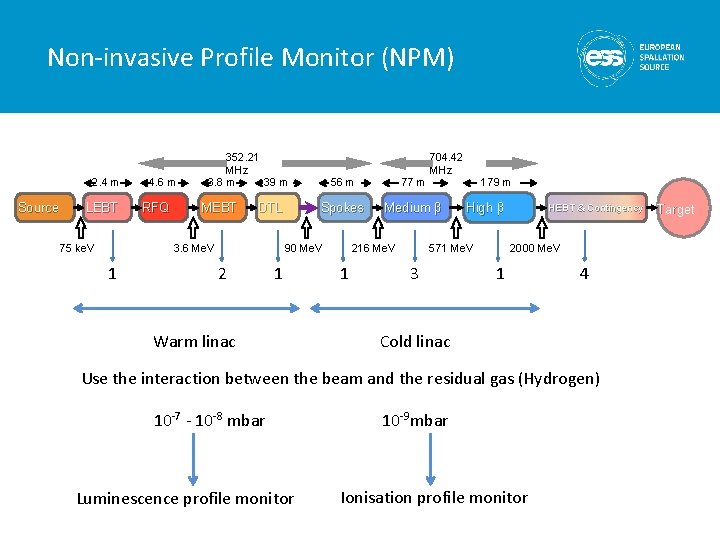

Non-invasive Profile Monitor (NPM) 2. 4 m Source LEBT 75 ke. V 4. 6 m RFQ 352. 21 MHz 3. 8 m 39 m MEBT DTL 3. 6 Me. V 1 56 m 77 m Spokes Medium β 90 Me. V 2 1 Warm linac 704. 42 MHz 216 Me. V 1 179 m High β 571 Me. V 3 HEBT & Contingency 2000 Me. V 1 4 Cold linac Use the interaction between the beam and the residual gas (Hydrogen) 10 -7 - 10 -8 mbar Luminescence profile monitor 10 -9 mbar Ionisation profile monitor Target

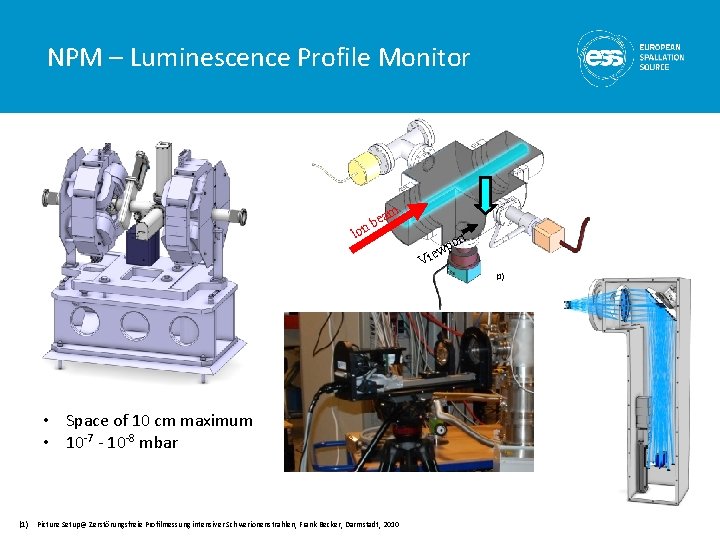

NPM – Luminescence Profile Monitor m ea nb Io rt po w e Vi (1) • Space of 10 cm maximum • 10 -7 - 10 -8 mbar (1) Picture Setup@ Zerstörungsfreie Profilmessung intensiver Schwerionenstrahlen, Frank Becker, Darmstadt, 2010

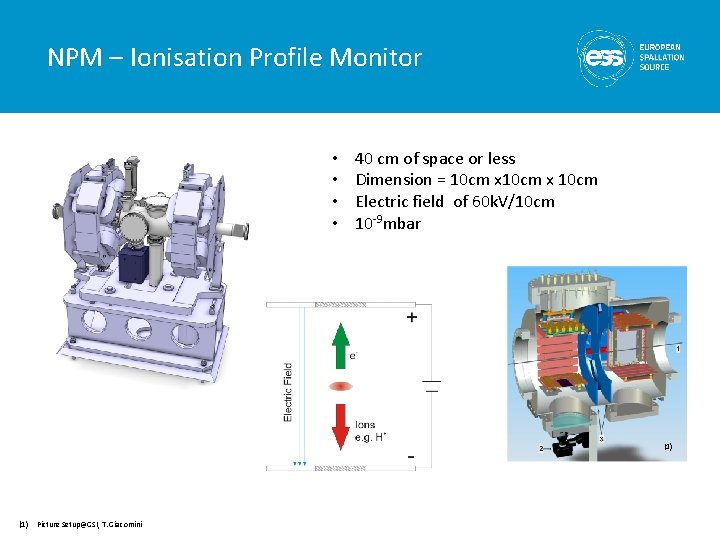

NPM – Ionisation Profile Monitor • • 40 cm of space or less Dimension = 10 cm x 10 cm Electric field of 60 k. V/10 cm 10 -9 mbar (1) Picture Setup@GSI, T. Giacomini

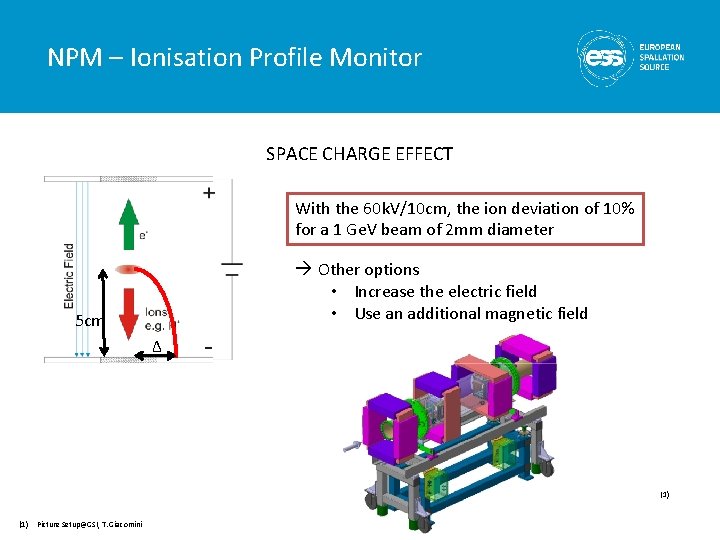

NPM – Ionisation Profile Monitor SPACE CHARGE EFFECT With the 60 k. V/10 cm, the ion deviation of 10% for a 1 Ge. V beam of 2 mm diameter Other options • Increase the electric field • Use an additional magnetic field 5 cm ∆ (1) Picture Setup@GSI, T. Giacomini

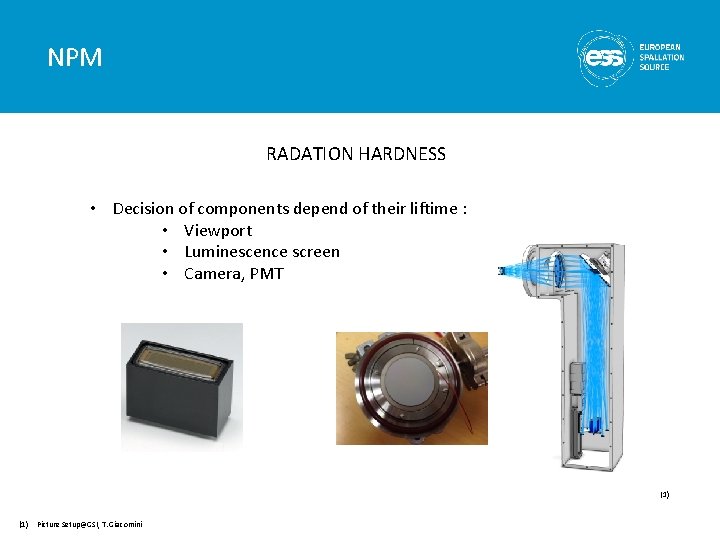

NPM RADATION HARDNESS • Decision of components depend of their liftime : • Viewport • Luminescence screen • Camera, PMT (1) Picture Setup@GSI, T. Giacomini
