Methodology of preparation 3 D objects for printing Computer Systems Stanislav Firsov Scientific supervisor: Dr. sc. ing. assistant professor Aleksejs Jurenoks 24. 04. 2017 1

3 D printing nowadays and its extensive capabilities 2

Sphere of usage § § § Architecture (buildings, floor and etc. ) Medicine (Prostheses, bones, body parts and even organs. ) Automotive industry Computer systems And much more! 3 D printing nowadays and its extensive capabilities 3

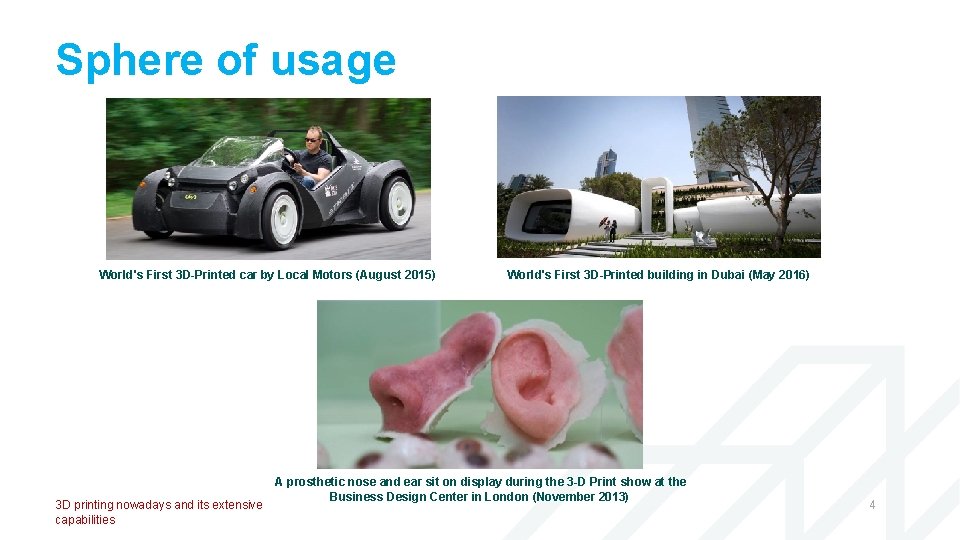

Sphere of usage World's First 3 D-Printed car by Local Motors (August 2015) 3 D printing nowadays and its extensive capabilities World's First 3 D-Printed building in Dubai (May 2016) A prosthetic nose and ear sit on display during the 3 -D Print show at the Business Design Center in London (November 2013) 4

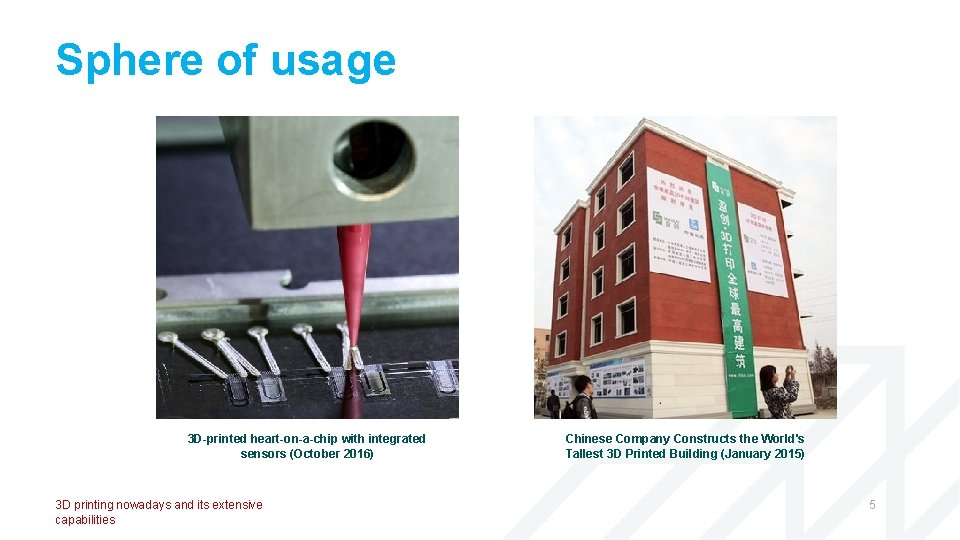

Sphere of usage 3 D-printed heart-on-a-chip with integrated sensors (October 2016) 3 D printing nowadays and its extensive capabilities Chinese Company Constructs the World's Tallest 3 D Printed Building (January 2015) 5

3 D printing industry forecast and future of 3 D printing 6

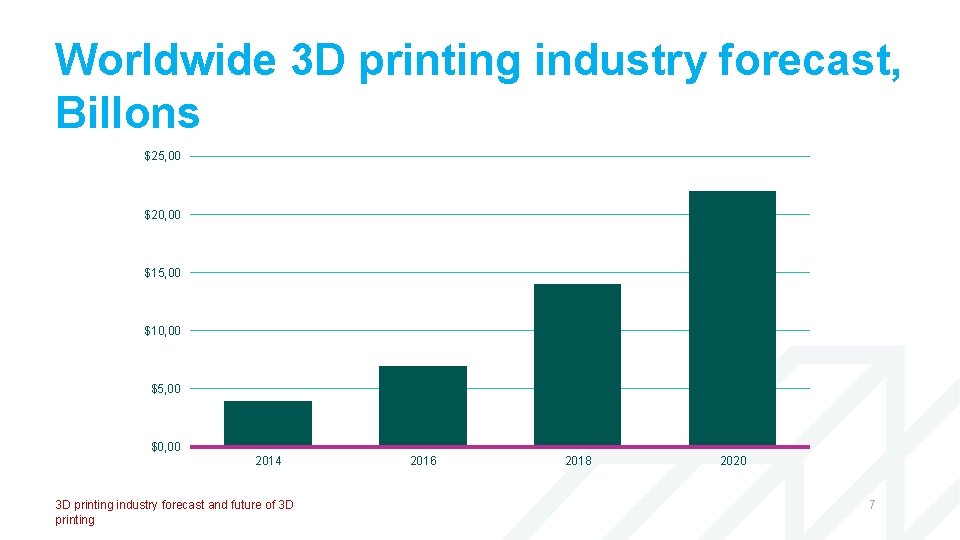

Worldwide 3 D printing industry forecast, Billons $25, 00 $20, 00 $15, 00 $10, 00 $5, 00 $0, 00 2014 3 D printing industry forecast and future of 3 D printing 2016 2018 2020 7

Incredible things of 3 D Printed Future 1. 2. 3. 4. 5. Localized Production For Consumer And Industrial Goods Custom Production Materials Nano-Printing Goal-Directed Design 4 D Printing 3 D printing industry forecast and future of 3 D printing 8

3 D printing methodology 9

Difficulties of printing 3 D printing methodology 10

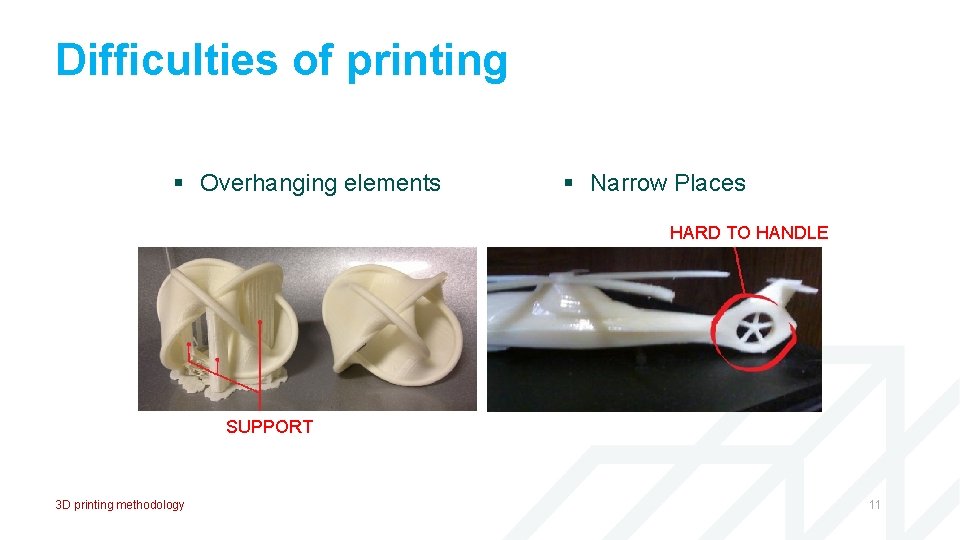

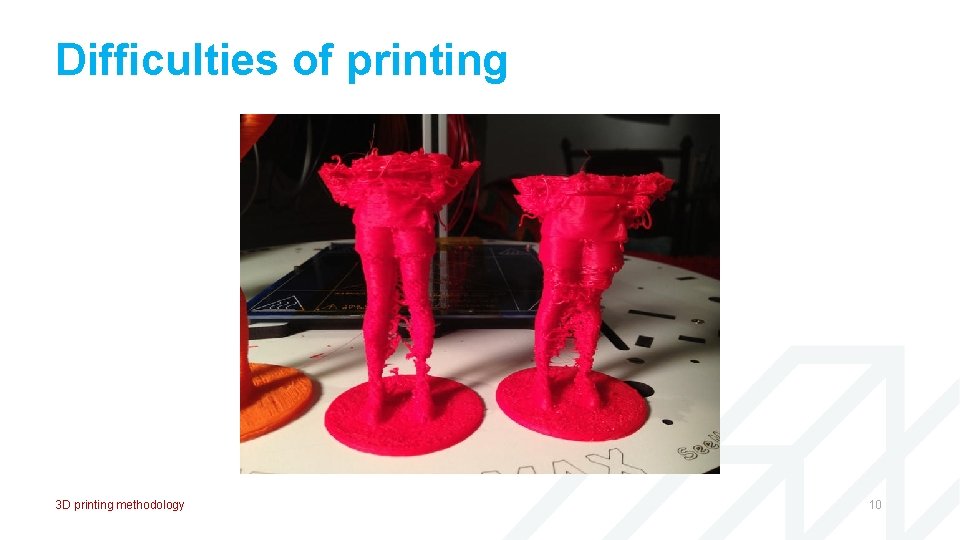

Difficulties of printing § Overhanging elements § Narrow Places HARD TO HANDLE SUPPORT 3 D printing methodology 11

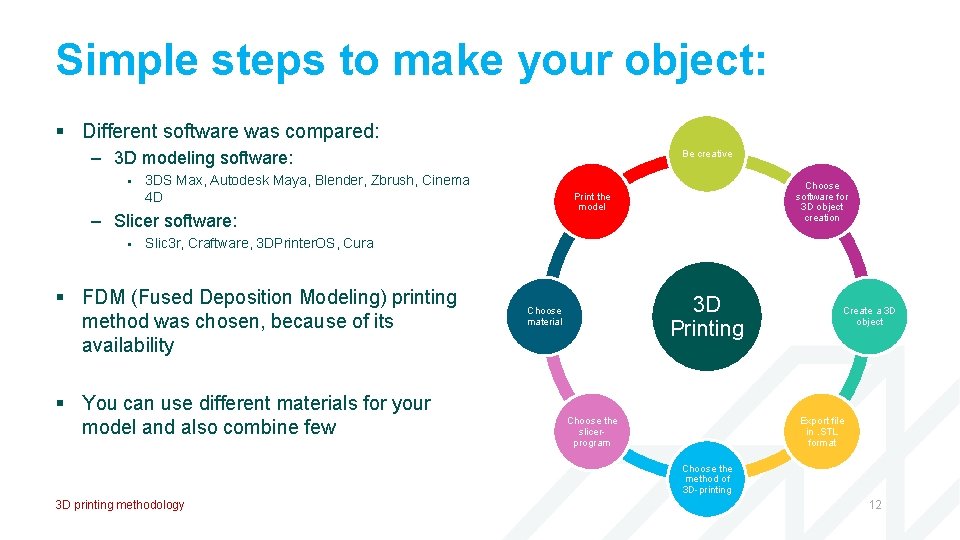

Simple steps to make your object: § Different software was compared: – 3 D modeling software: § Be creative 3 DS Max, Autodesk Maya, Blender, Zbrush, Cinema 4 D – Slicer software: § Choose software for 3 D object creation Print the model Slic 3 r, Craftware, 3 DPrinter. OS, Cura § FDM (Fused Deposition Modeling) printing method was chosen, because of its availability § You can use different materials for your model and also combine few 3 D Printing Choose material Choose the slicerprogram Create a 3 D object Export file in. STL format Choose the method of 3 D-printing 3 D printing methodology 12

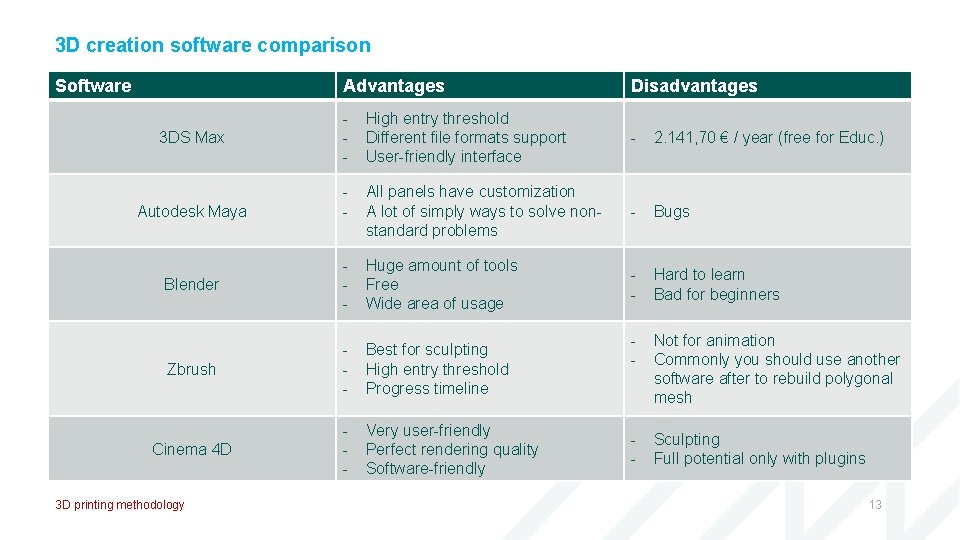

3 D creation software comparison Software Advantages Disadvantages - High entry threshold Different file formats support User-friendly interface - 2. 141, 70 € / year (free for Educ. ) - All panels have customization A lot of simply ways to solve nonstandard problems - Bugs Blender - Huge amount of tools Free Wide area of usage - Hard to learn Bad for beginners Zbrush - Best for sculpting High entry threshold Progress timeline - Not for animation Commonly you should use another software after to rebuild polygonal mesh Cinema 4 D - Very user-friendly Perfect rendering quality Software-friendly - Sculpting Full potential only with plugins 3 DS Max Autodesk Maya 3 D printing methodology 13

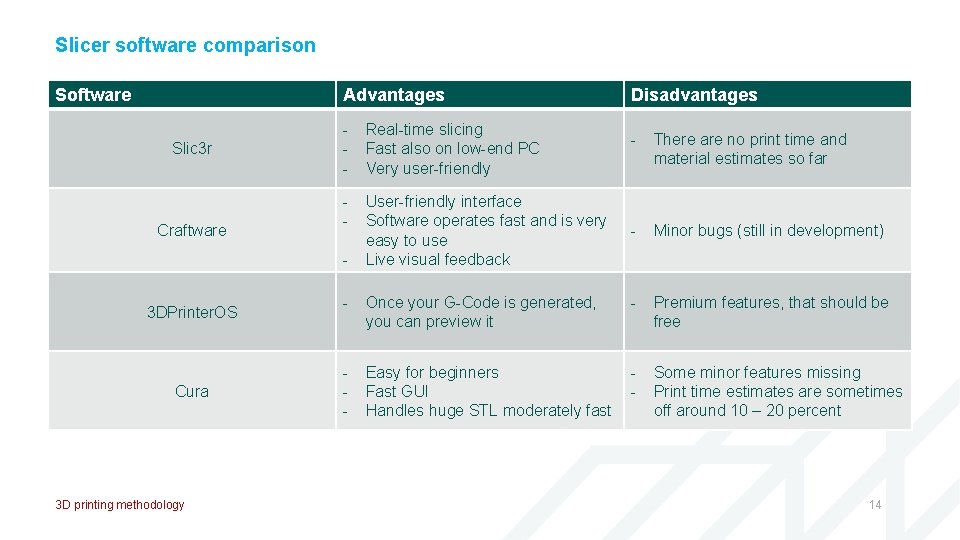

Slicer software comparison Software Advantages Slic 3 r Craftware - Real-time slicing Fast also on low-end PC Very user-friendly - User-friendly interface Software operates fast and is very easy to use Live visual feedback 3 DPrinter. OS Cura 3 D printing methodology Disadvantages - There are no print time and material estimates so far - Minor bugs (still in development) - Once your G-Code is generated, you can preview it - Premium features, that should be free - Easy for beginners Fast GUI Handles huge STL moderately fast - Some minor features missing Print time estimates are sometimes off around 10 – 20 percent 14
