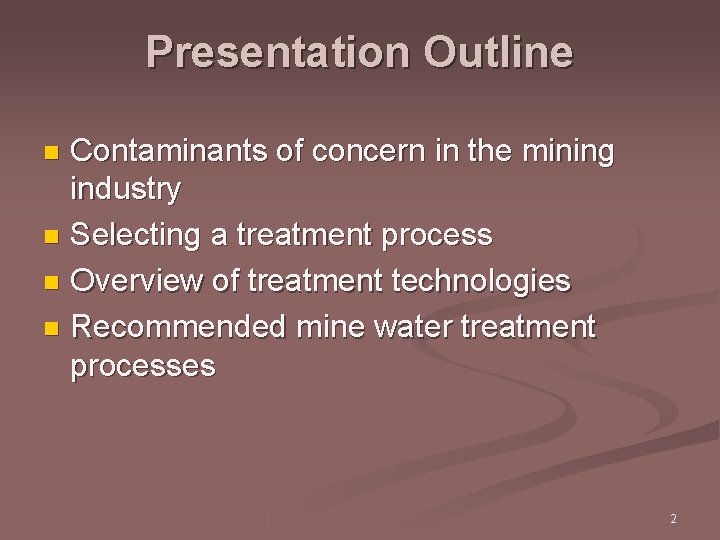

Presentation Outline Contaminants of concern in the mining industry n Selecting a treatment process n Overview of treatment technologies n Recommended mine water treatment processes n 2

Typical Contaminants of Concern in Mining Waters Suspended metals n Dissolved metals n Arsenic n Antimony n Nitrate n Ammonia n Sulfate n 3

Selecting a Treatment Process n n n Explore/confirm design criteria Review potential treatment technologies Perform bench and/or pilot tests Develop process flow diagram Develop budgetary capital and operating costs 4

Design Criteria 1. Flow n n 2. Influent concentrations n n 3. Maximum (design capacity) Average (for determining operating costs) Are they already known? How well can they be estimated/modeled? Effluent concentrations n n Are permit limits already established? If not, can they be estimated? 5

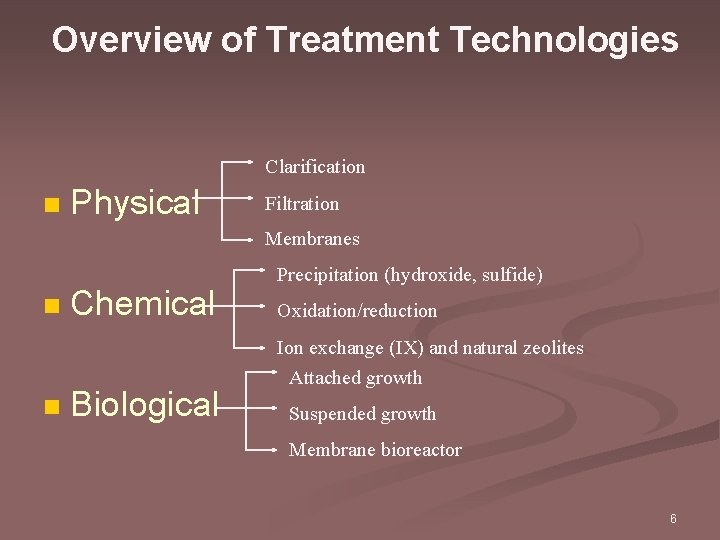

Overview of Treatment Technologies Clarification n Physical Filtration Membranes n n Chemical Biological Precipitation (hydroxide, sulfide) Oxidation/reduction Ion exchange (IX) and natural zeolites Attached growth Suspended growth Membrane bioreactor 6

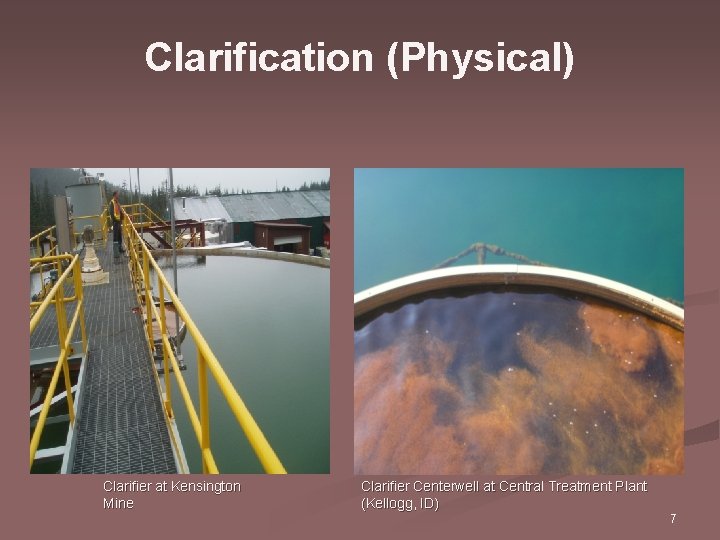

Clarification (Physical) Clarifier at Kensington Mine Clarifier Centerwell at Central Treatment Plant (Kellogg, ID) 7

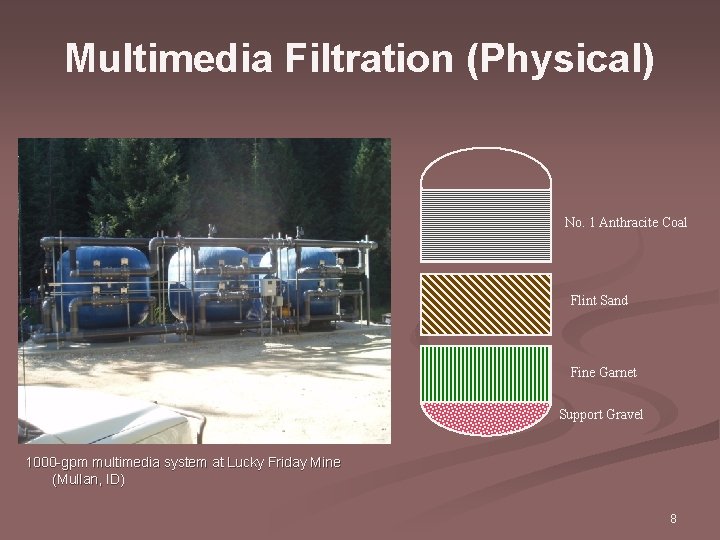

Multimedia Filtration (Physical) No. 1 Anthracite Coal Flint Sand Fine Garnet Support Gravel 1000 -gpm multimedia system at Lucky Friday Mine (Mullan, ID) 8

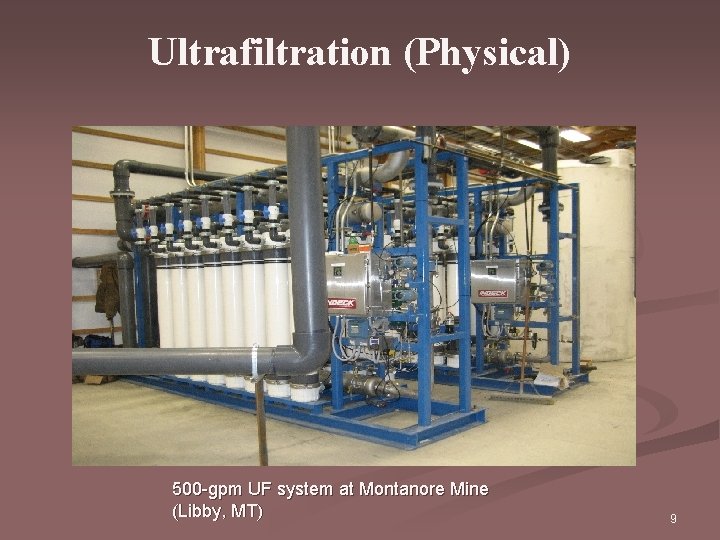

Ultrafiltration (Physical) 500 -gpm UF system at Montanore Mine (Libby, MT) 9

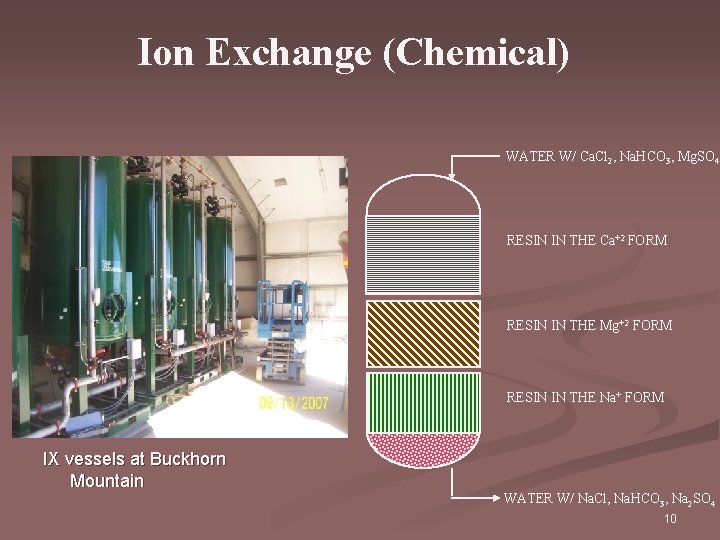

Ion Exchange (Chemical) WATER W/ Ca. Cl 2, Na. HCO 3, Mg. SO 4 RESIN IN THE Ca+2 FORM RESIN IN THE Mg+2 FORM RESIN IN THE Na+ FORM IX vessels at Buckhorn Mountain WATER W/ Na. Cl, Na. HCO 3, Na 2 SO 4 10

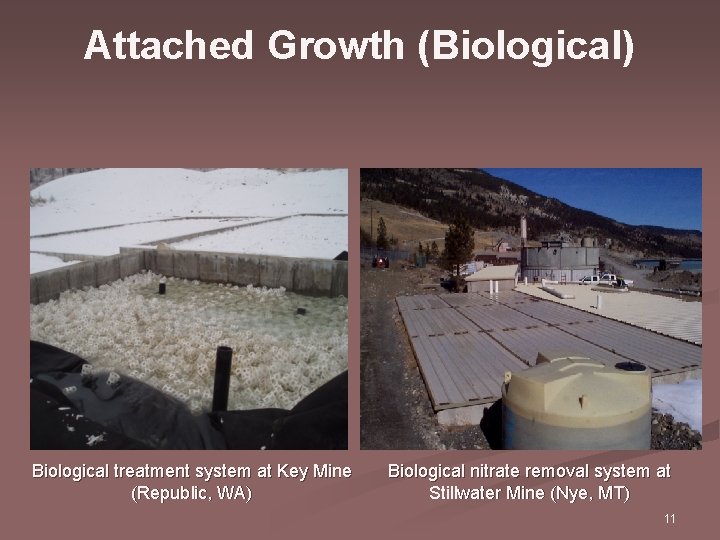

Attached Growth (Biological) Biological treatment system at Key Mine (Republic, WA) Biological nitrate removal system at Stillwater Mine (Nye, MT) 11

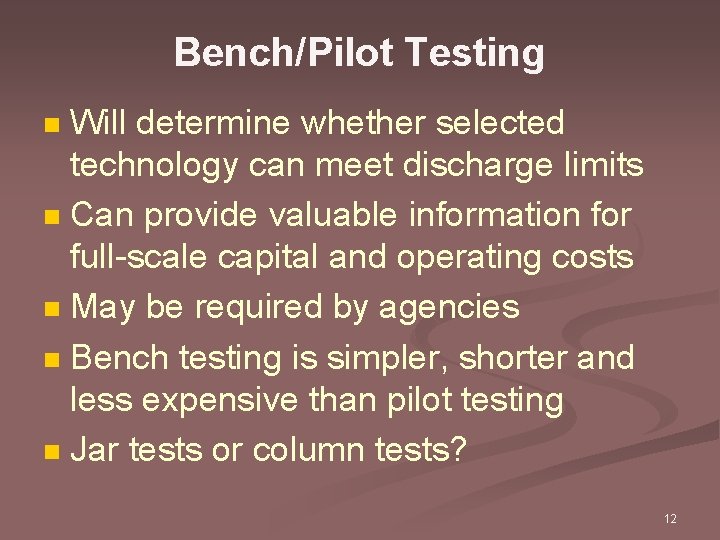

Bench/Pilot Testing Will determine whether selected technology can meet discharge limits n Can provide valuable information for full-scale capital and operating costs n May be required by agencies n Bench testing is simpler, shorter and less expensive than pilot testing n Jar tests or column tests? n 12

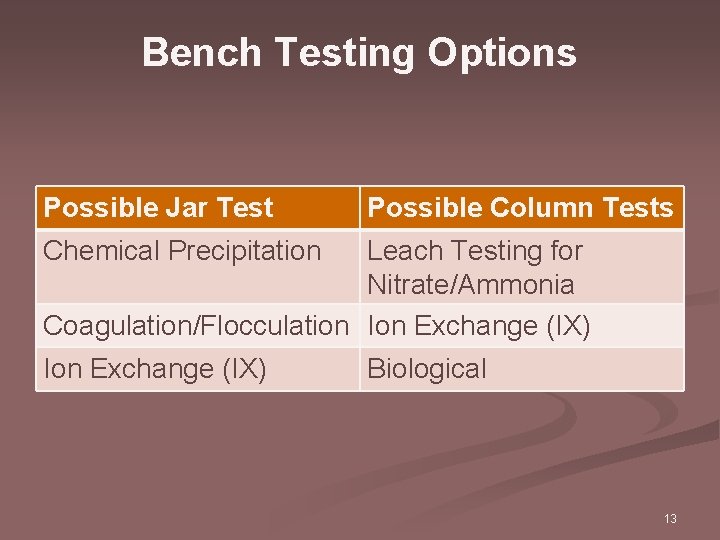

Bench Testing Options Possible Jar Test Possible Column Tests Chemical Precipitation Leach Testing for Nitrate/Ammonia Coagulation/Flocculation Ion Exchange (IX) Biological 13

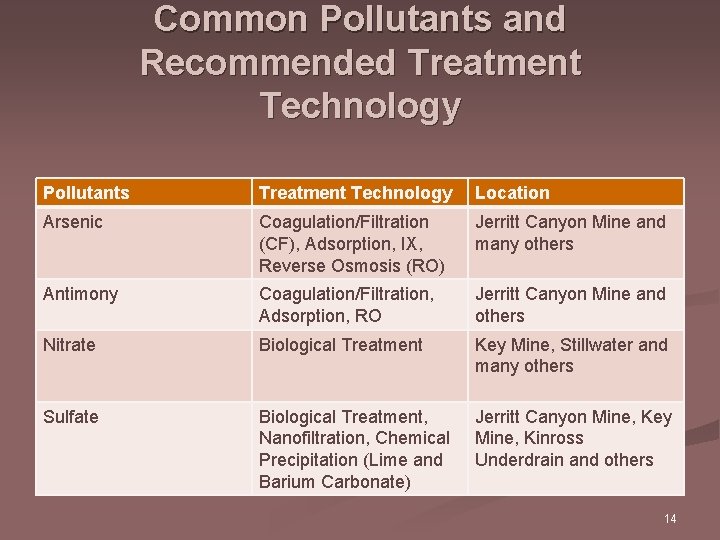

Common Pollutants and Recommended Treatment Technology Pollutants Treatment Technology Location Arsenic Coagulation/Filtration (CF), Adsorption, IX, Reverse Osmosis (RO) Jerritt Canyon Mine and many others Antimony Coagulation/Filtration, Adsorption, RO Jerritt Canyon Mine and others Nitrate Biological Treatment Key Mine, Stillwater and many others Sulfate Biological Treatment, Nanofiltration, Chemical Precipitation (Lime and Barium Carbonate) Jerritt Canyon Mine, Key Mine, Kinross Underdrain and others 14

Arsenic and Antimony n EPA Maximum Contaminant Level (MCL): Arsenic (As) – 10 ppb (0. 010 mg/L) n Antimony (Sb) – 6 ppb (0. 006 mg/L) n n Both contaminants exist in two forms: Trivalent (III) n Pentavalent (V) n n Toxicities of As (better-known metalloid relative) and Sb are similar 15

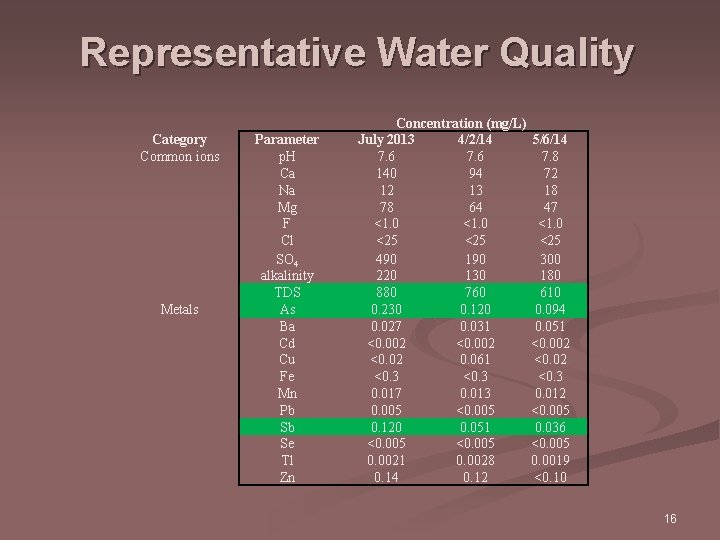

Representative Water Quality Category Common ions Metals Parameter p. H Ca Na Mg F Cl SO 4 alkalinity TDS As Ba Cd Cu Fe Mn Pb Sb Se Tl Zn Concentration (mg/L) July 2013 4/2/14 5/6/14 7. 6 7. 8 140 94 72 12 13 18 78 64 47 <1. 0 <25 <25 490 190 300 220 130 180 880 760 610 0. 230 0. 120 0. 094 0. 027 0. 031 0. 051 <0. 002 <0. 02 0. 061 <0. 02 <0. 3 0. 017 0. 013 0. 012 0. 005 <0. 005 0. 120 0. 051 0. 036 <0. 005 0. 0021 0. 0028 0. 0019 0. 14 0. 12 <0. 10 16

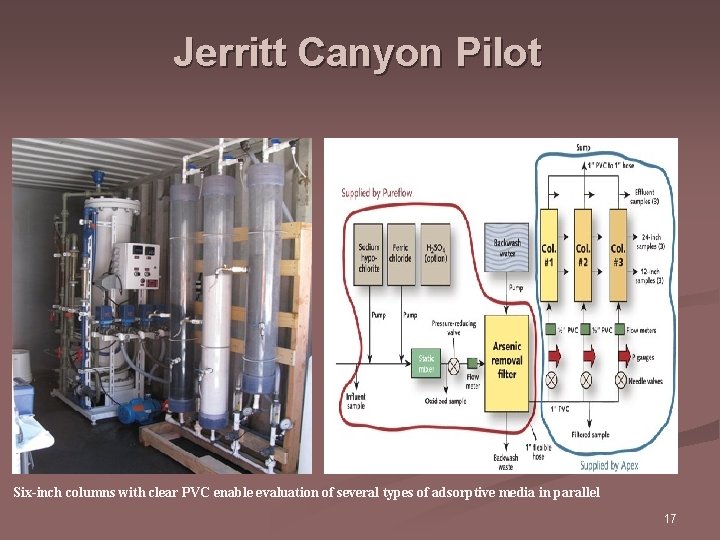

Jerritt Canyon Pilot Six-inch columns with clear PVC enable evaluation of several types of adsorptive media in parallel 17

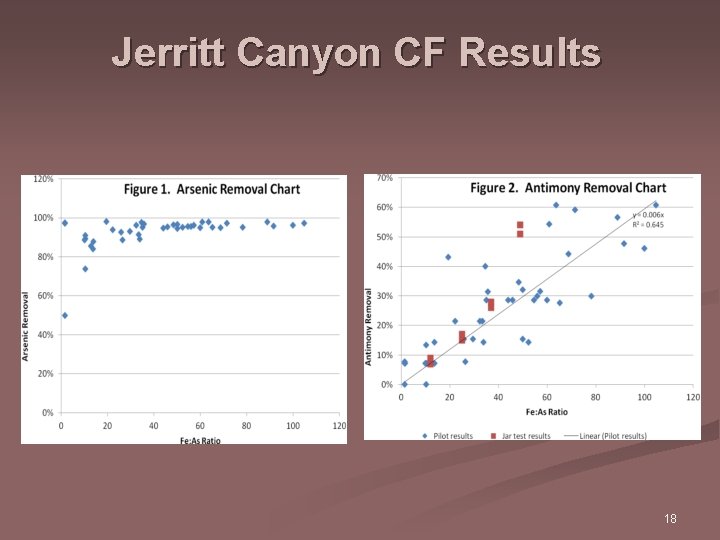

Jerritt Canyon CF Results 18

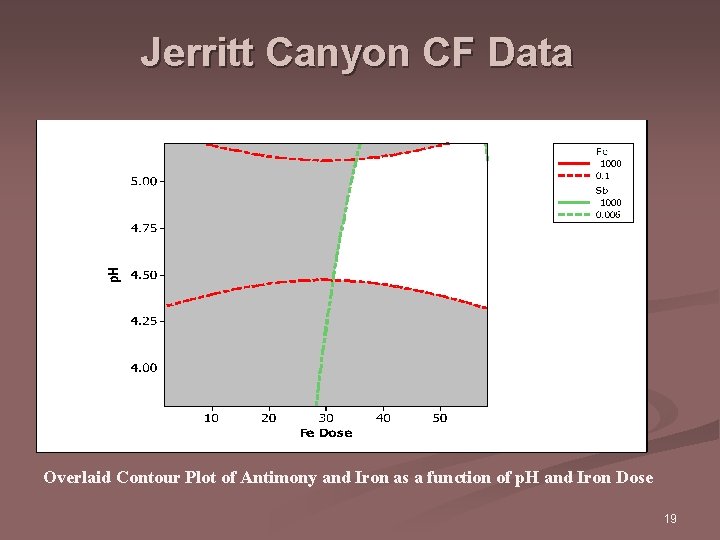

Jerritt Canyon CF Data Overlaid Contour Plot of Antimony and Iron as a function of p. H and Iron Dose 19

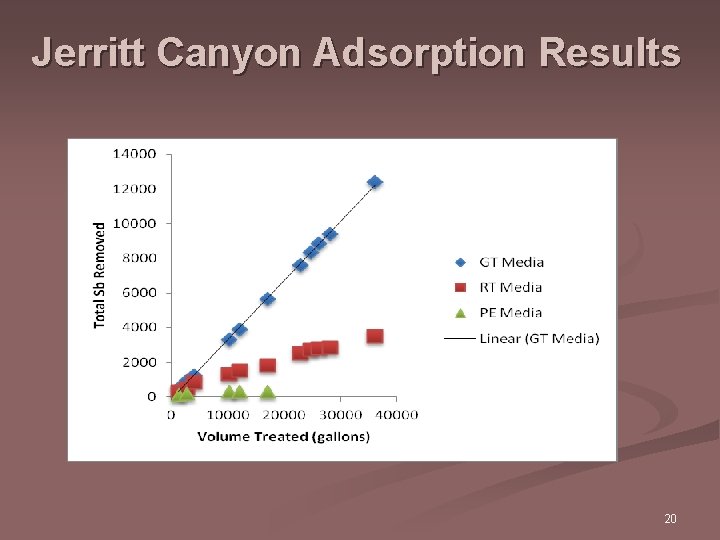

Jerritt Canyon Adsorption Results 20

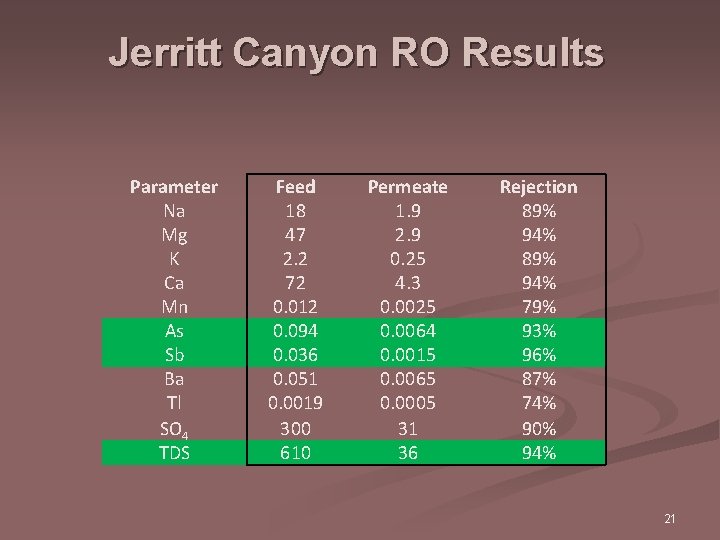

Jerritt Canyon RO Results Parameter Na Mg K Ca Mn As Sb Ba Tl SO 4 TDS Feed 18 47 2. 2 72 0. 012 0. 094 0. 036 0. 051 0. 0019 300 610 Permeate 1. 9 2. 9 0. 25 4. 3 0. 0025 0. 0064 0. 0015 0. 0065 0. 0005 31 36 Rejection 89% 94% 79% 93% 96% 87% 74% 90% 94% 21

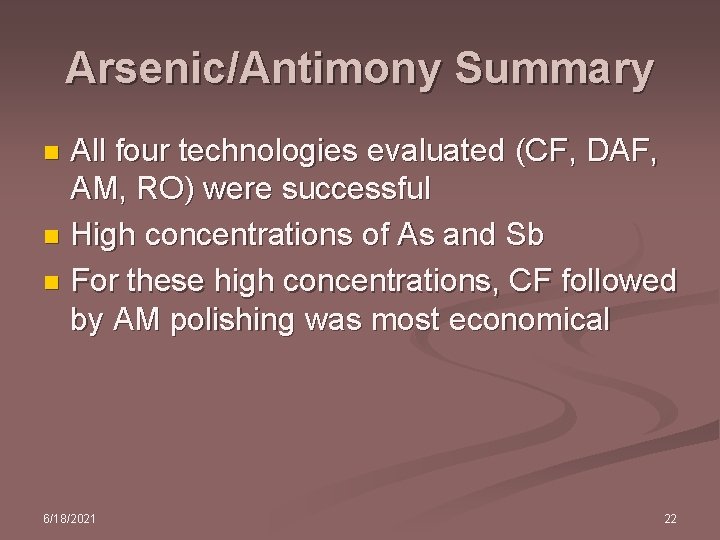

Arsenic/Antimony Summary All four technologies evaluated (CF, DAF, AM, RO) were successful n High concentrations of As and Sb n For these high concentrations, CF followed by AM polishing was most economical n 6/18/2021 22

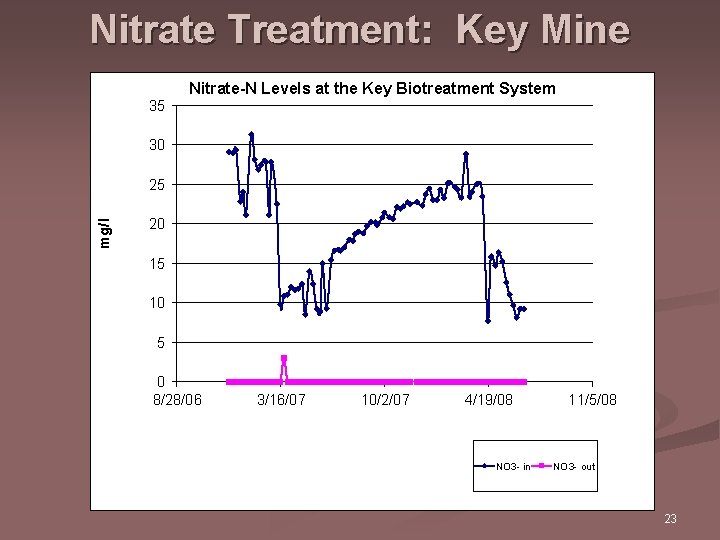

Nitrate Treatment: Key Mine 35 Nitrate-N Levels at the Key Biotreatment System 30 mg/l 25 20 15 10 5 0 8/28/06 3/16/07 10/2/07 4/19/08 NO 3 - in 11/5/08 NO 3 - out 23

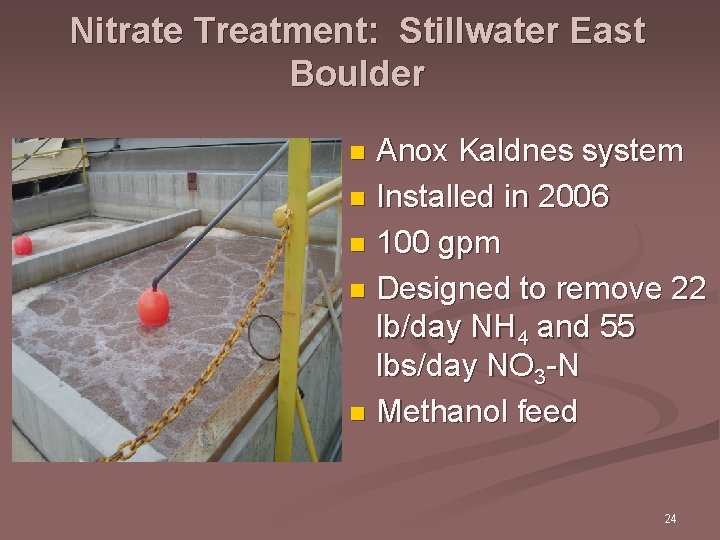

Nitrate Treatment: Stillwater East Boulder Anox Kaldnes system n Installed in 2006 n 100 gpm n Designed to remove 22 lb/day NH 4 and 55 lbs/day NO 3 -N n Methanol feed n 24

Nitrate Treatment: Minera Yanacocha Design flow of 50 m 3/hr (220 gpm) n Reduced [NO 3 -N] from 35 to 10 mg/L (45 kg/day) n Methanol feed n Effective but client implemented RO n 25

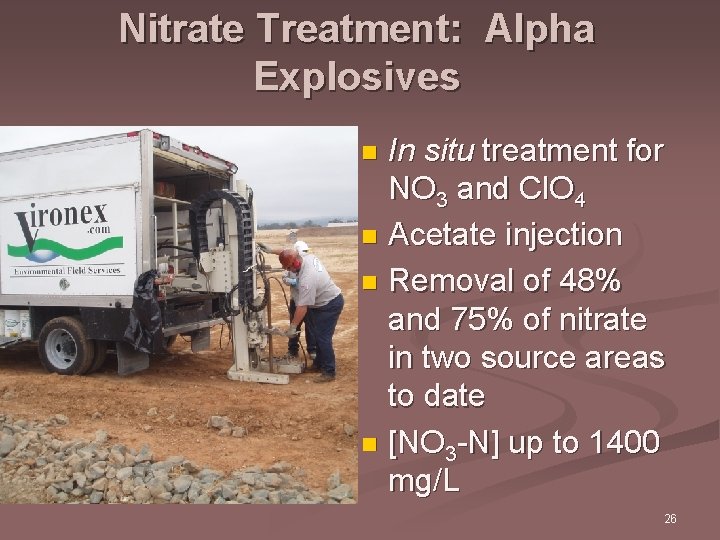

Nitrate Treatment: Alpha Explosives In situ treatment for NO 3 and Cl. O 4 n Acetate injection n Removal of 48% and 75% of nitrate in two source areas to date n [NO 3 -N] up to 1400 mg/L n 26

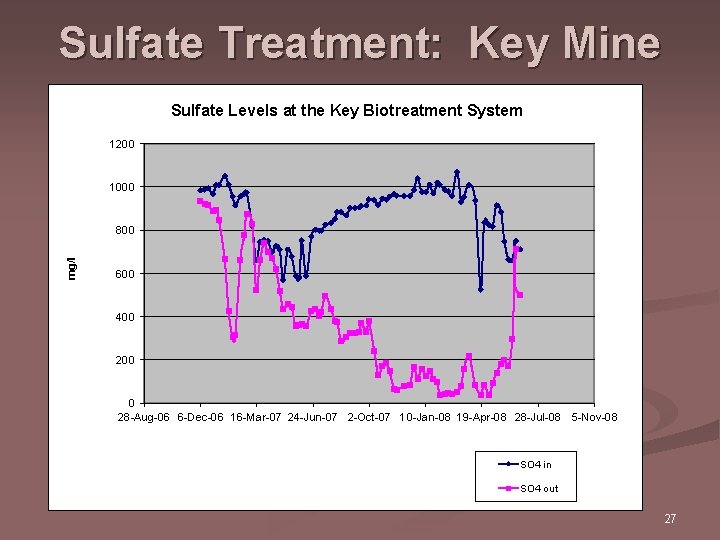

Sulfate Treatment: Key Mine Sulfate Levels at the Key Biotreatment System 1200 1000 mg/l 800 600 400 200 0 28 -Aug-06 6 -Dec-06 16 -Mar-07 24 -Jun-07 2 -Oct-07 10 -Jan-08 19 -Apr-08 28 -Jul-08 5 -Nov-08 SO 4 in SO 4 out 27

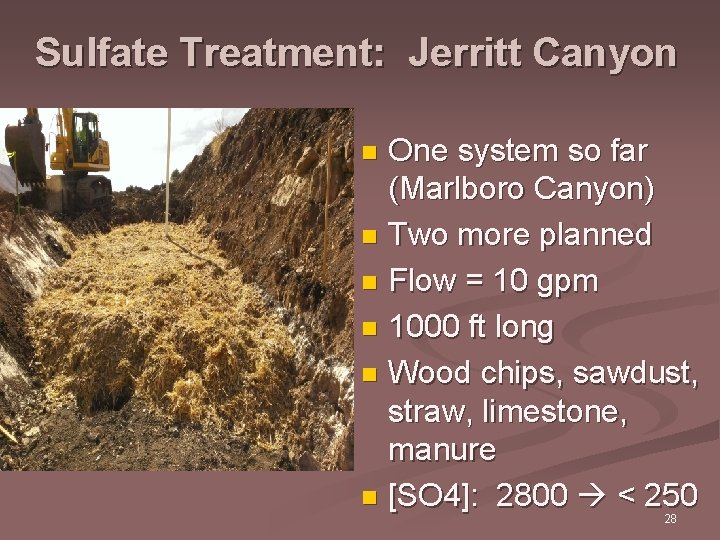

Sulfate Treatment: Jerritt Canyon One system so far (Marlboro Canyon) n Two more planned n Flow = 10 gpm n 1000 ft long n Wood chips, sawdust, straw, limestone, manure n [SO 4]: 2800 < 250 n 28

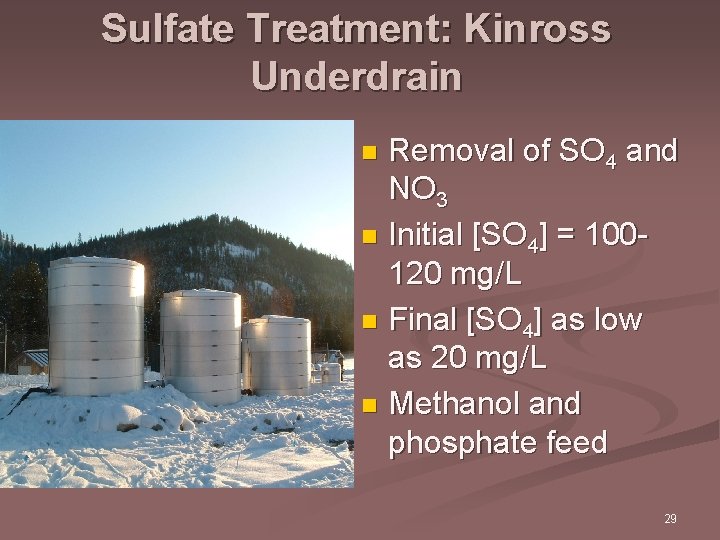

Sulfate Treatment: Kinross Underdrain Removal of SO 4 and NO 3 n Initial [SO 4] = 100120 mg/L n Final [SO 4] as low as 20 mg/L n Methanol and phosphate feed n 29

Sulfate Treatment: Poly. Met Mining In situ system (10 gpm) for pit lake in Northern Minnesota n Uses plastic media for biofilm growth n 1200 mg/L SO 4 n Treatment goal is < 10 mg/L n Achieving 100 -200 mg/L so far n Ethanol, nitrate and phosphate feed n 30

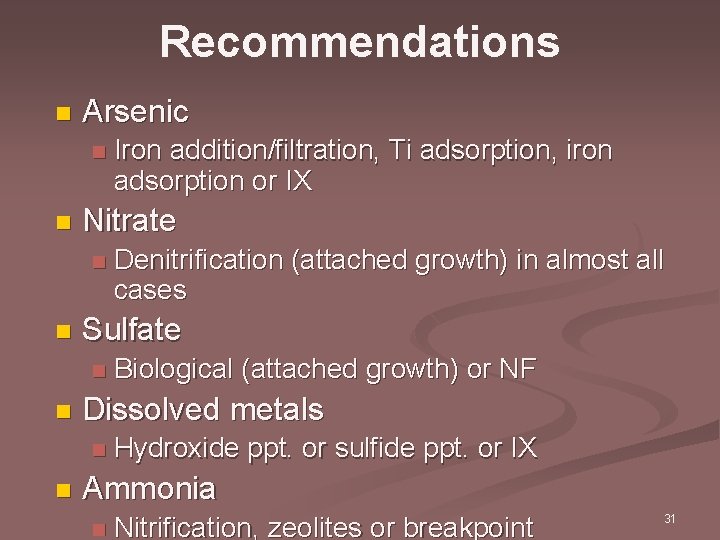

Recommendations n Arsenic n n Nitrate n n Biological (attached growth) or NF Dissolved metals n n Denitrification (attached growth) in almost all cases Sulfate n n Iron addition/filtration, Ti adsorption, iron adsorption or IX Hydroxide ppt. or sulfide ppt. or IX Ammonia n Nitrification, zeolites or breakpoint 31

For More Information n On Apex Website: Technology reviews for nitrate, arsenic, sulfate removal n Natural zeolites: thallium, ammonia n Floating islands n In situ treatment n n Summary of Treatment Technologies for Mining-Influenced Water (EPA, 2014) 32
