Metamorphic Textures Recrystallization Minimization of Interfacial Free Energy

Metamorphic Textures

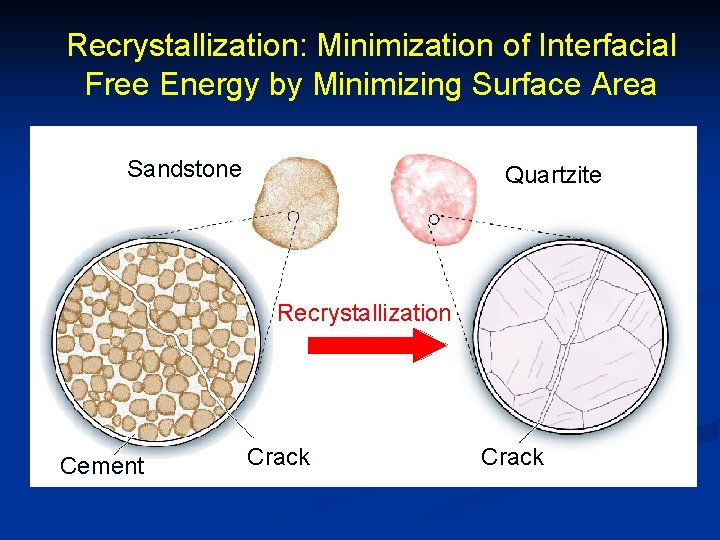

Recrystallization: Minimization of Interfacial Free Energy by Minimizing Surface Area Sandstone Quartzite Crack Recrystallization Cement Crack

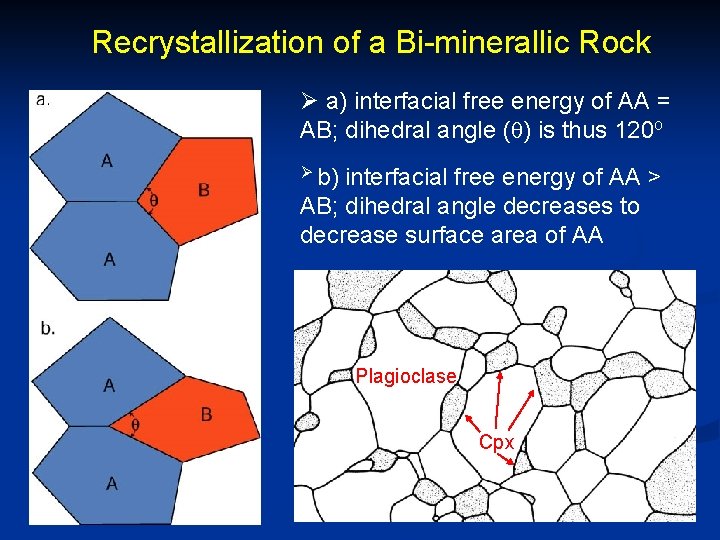

Recrystallization of a Bi-minerallic Rock Ø a) interfacial free energy of AA = AB; dihedral angle (q) is thus 120 o Ø b) interfacial free energy of AA > AB; dihedral angle decreases to decrease surface area of AA Plagioclase Cpx

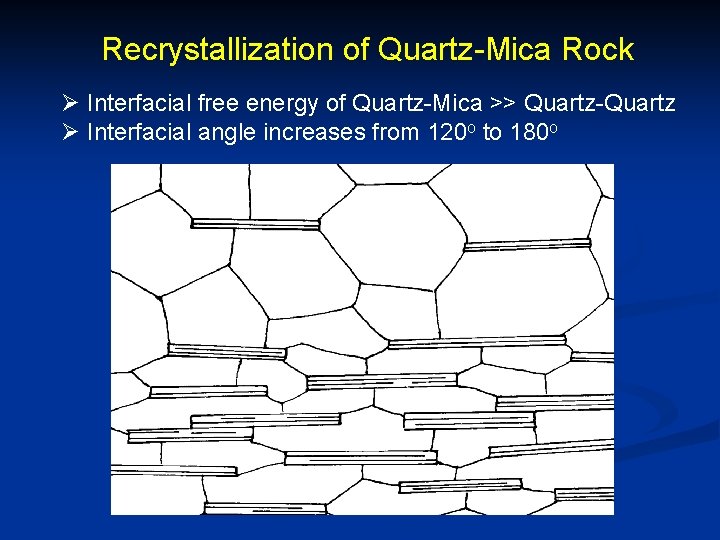

Recrystallization of Quartz-Mica Rock Ø Interfacial free energy of Quartz-Mica >> Quartz-Quartz Ø Interfacial angle increases from 120 o to 180 o

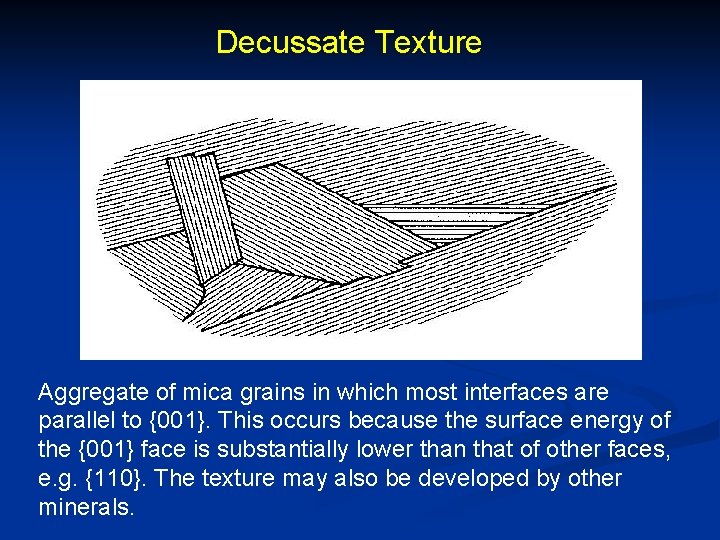

Decussate Texture Aggregate of mica grains in which most interfaces are parallel to {001}. This occurs because the surface energy of the {001} face is substantially lower than that of other faces, e. g. {110}. The texture may also be developed by other minerals.

Granoblastic/Decussate Textures (Characteristic of Contact or Thermal Metamorphism)

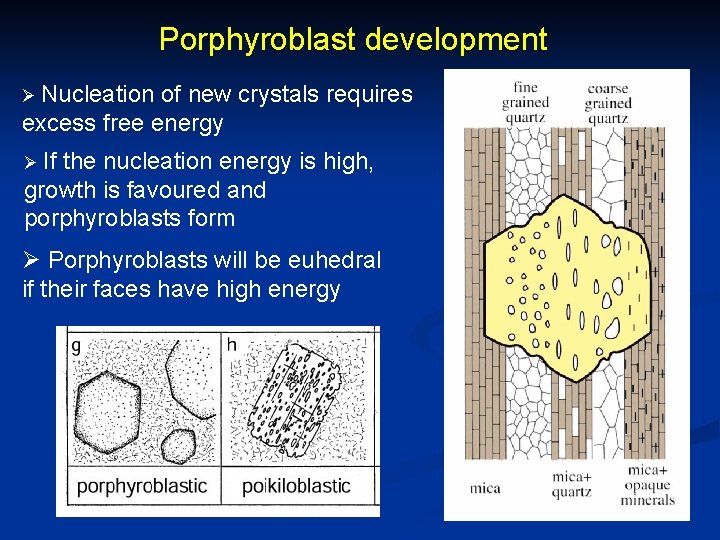

Porphyroblast development Ø Nucleation of new crystals requires excess free energy Ø If the nucleation energy is high, growth is favoured and porphyroblasts form Ø Porphyroblasts will be euhedral if their faces have high energy

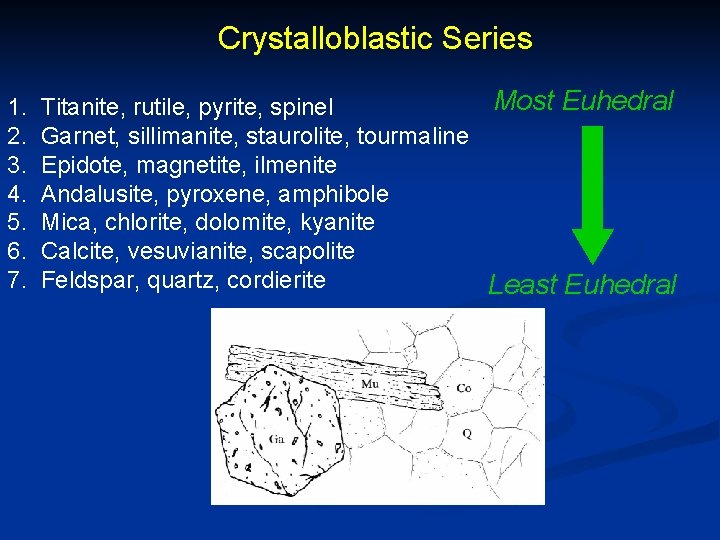

Crystalloblastic Series 1. 2. 3. 4. 5. 6. 7. Most Euhedral Titanite, rutile, pyrite, spinel Garnet, sillimanite, staurolite, tourmaline Epidote, magnetite, ilmenite Andalusite, pyroxene, amphibole Mica, chlorite, dolomite, kyanite Calcite, vesuvianite, scapolite Feldspar, quartz, cordierite Least Euhedral

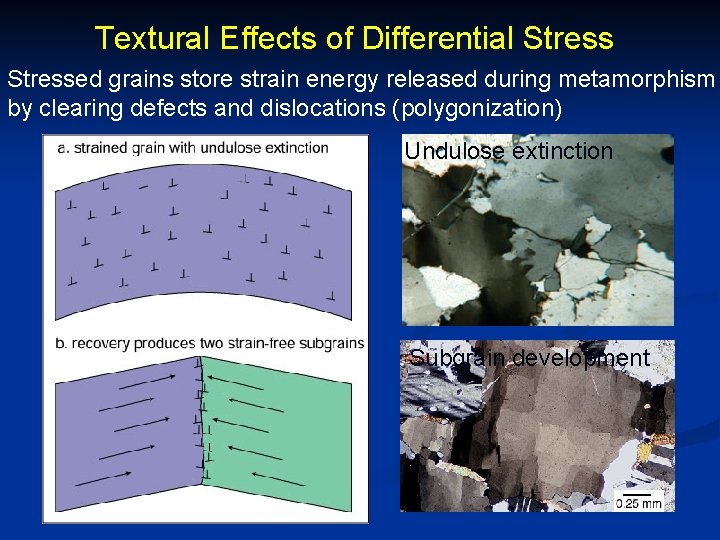

Textural Effects of Differential Stressed grains store strain energy released during metamorphism by clearing defects and dislocations (polygonization) Undulose extinction Subgrain development

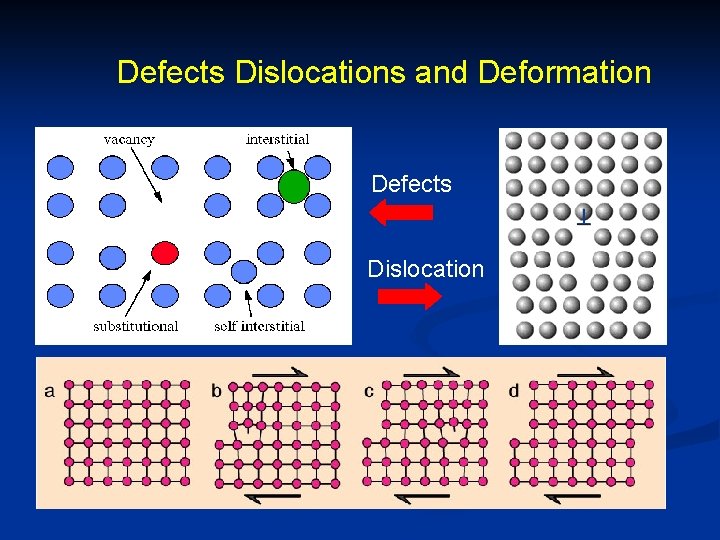

Defects Dislocations and Deformation Defects Dislocation

Deformation by Dislocation

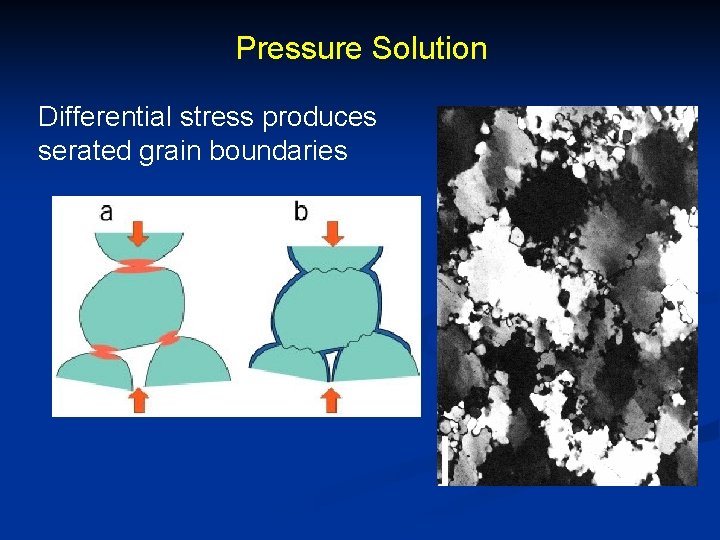

Pressure Solution Differential stress produces serated grain boundaries

Foliation Development s 1 Schistocity S 1 flattened around garnet porphyroblasts S 2 S 1 Crenulation cleavage S 2 developed by folding S 1

Pressure Shadows Chlorite in shadow around garnet Quartz in shadow around staurolite

Pressure Fringes Staurolite Pyrite Muscovite Sillimanite

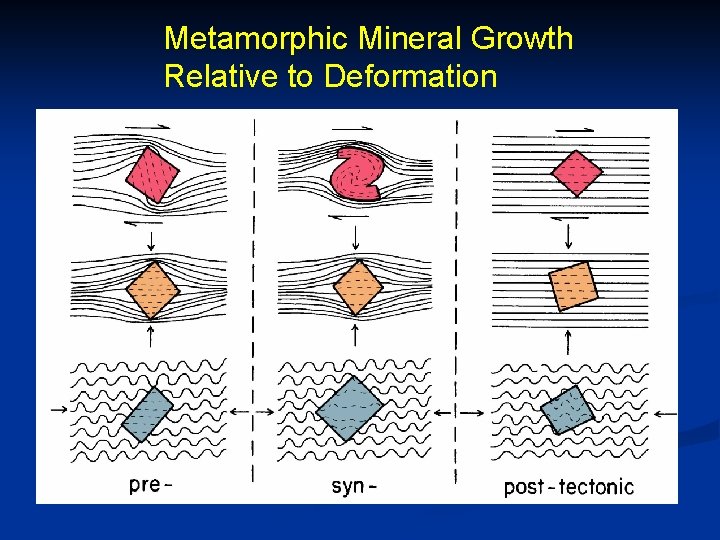

Metamorphic Mineral Growth Relative to Deformation

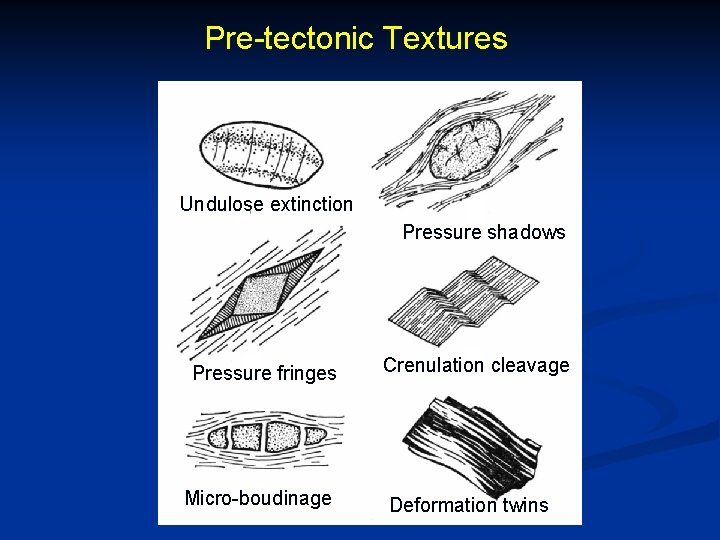

Pre-tectonic Textures Undulose extinction Pressure shadows Pressure fringes Micro-boudinage Crenulation cleavage Deformation twins

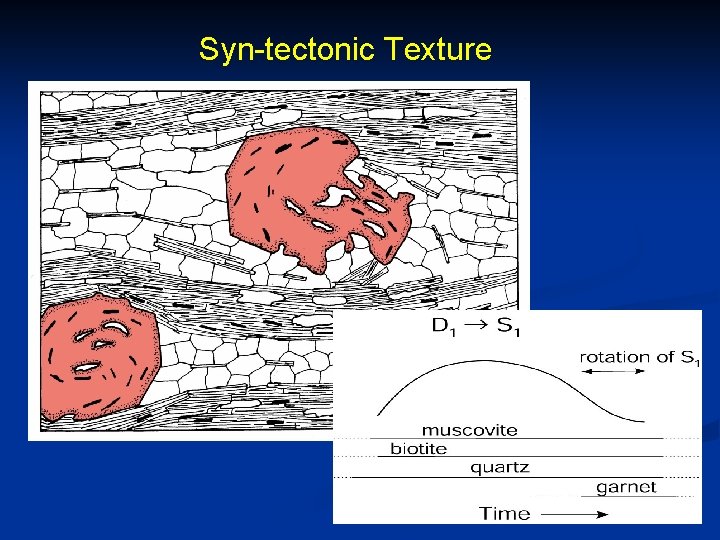

Syn-tectonic Texture

Snowball Garnet with Pressure Shadows

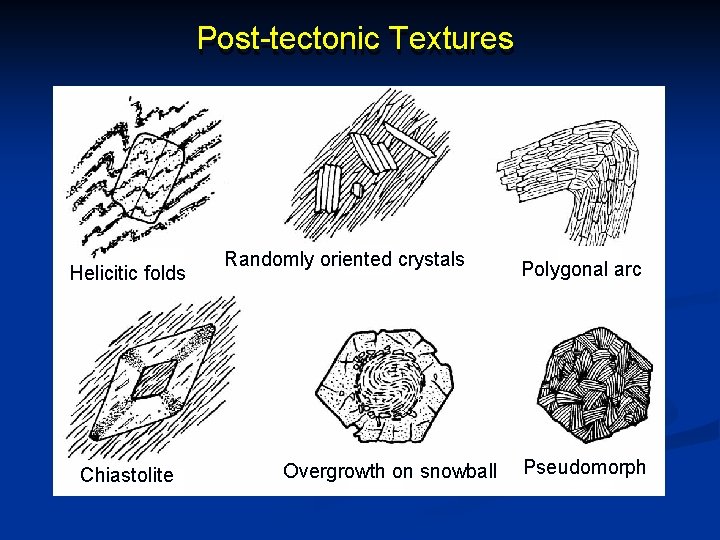

Post-tectonic Textures Helicitic folds Chiastolite Randomly oriented crystals Overgrowth on snowball Polygonal arc Pseudomorph

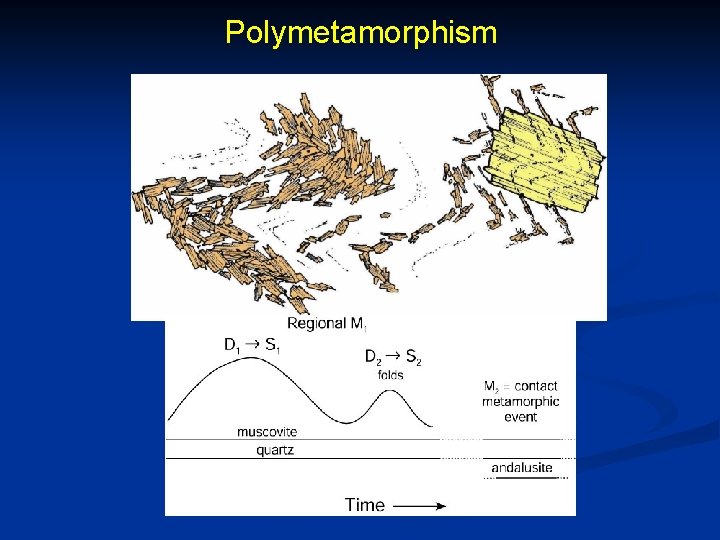

Polymetamorphism

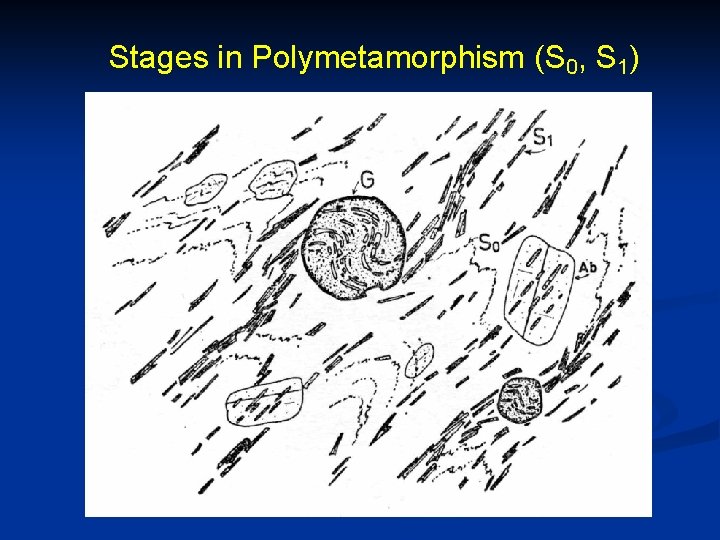

Stages in Polymetamorphism (S 0, S 1)

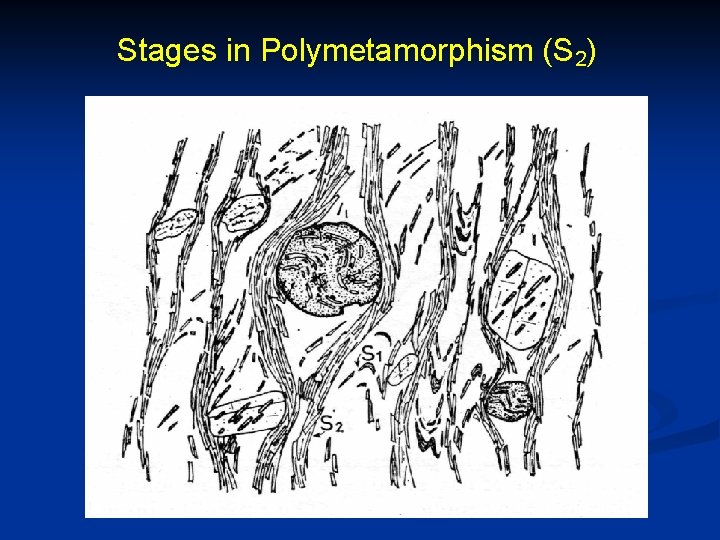

Stages in Polymetamorphism (S 2)

Stages in Polymetamorphism (S 3)

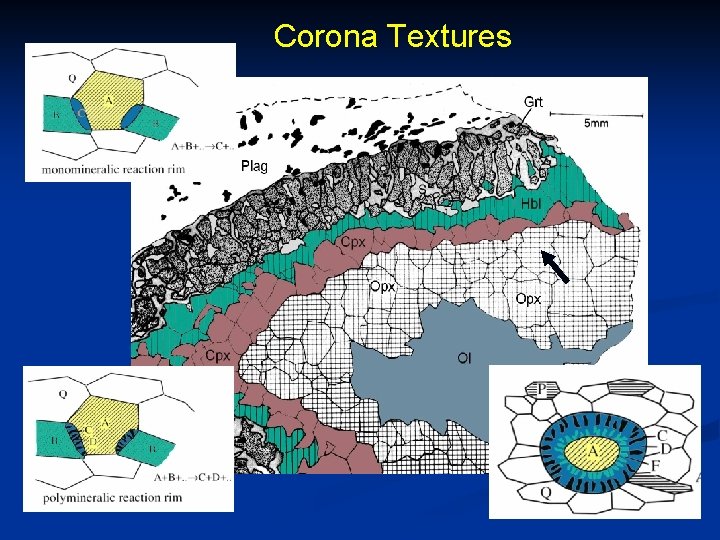

Corona Textures
