MOCVD/OMVPE/OMCVD/MOVPE 2 Ø MOCVD stands for Metal-Organic Chemical Vapour Deposition. Ø MOCVD is a technique that used to grow/deposit thin solid films, usually semiconductors, on solid substrates (wafers) using organo metallic compounds as sources. Ø The films grown by MOCVD are mainly used for the fabrication of electronic and optoelectronic devices. Ø The electronic and optoelectronic devices produced by MOCVD are used in cell phones , optical communication, optical storage (CD, DVD), traffic lights, bill boards (LEDs), lighting and solar cells. Ø Using MOCVD we can build up many layers, each of a precisely controlled thickness, to create a material which has specific optical and electrical properties.

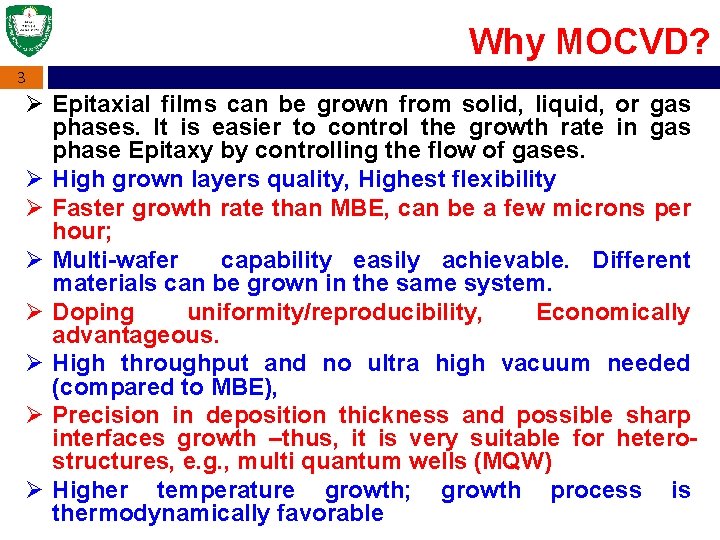

Why MOCVD? 3 Ø Epitaxial films can be grown from solid, liquid, or gas phases. It is easier to control the growth rate in gas phase Epitaxy by controlling the flow of gases. Ø High grown layers quality, Highest flexibility Ø Faster growth rate than MBE, can be a few microns per hour; Ø Multi-wafer capability easily achievable. Different materials can be grown in the same system. Ø Doping uniformity/reproducibility, Economically advantageous. Ø High throughput and no ultra high vacuum needed (compared to MBE), Ø Precision in deposition thickness and possible sharp interfaces growth –thus, it is very suitable for heterostructures, e. g. , multi quantum wells (MQW) Ø Higher temperature growth; growth process is thermodynamically favorable

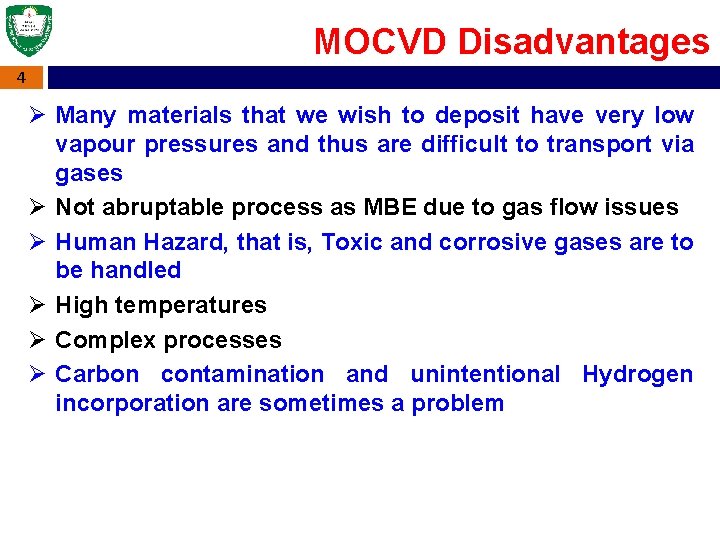

MOCVD Disadvantages 4 Ø Many materials that we wish to deposit have very low vapour pressures and thus are difficult to transport via gases Ø Not abruptable process as MBE due to gas flow issues Ø Human Hazard, that is, Toxic and corrosive gases are to be handled Ø High temperatures Ø Complex processes Ø Carbon contamination and unintentional Hydrogen incorporation are sometimes a problem

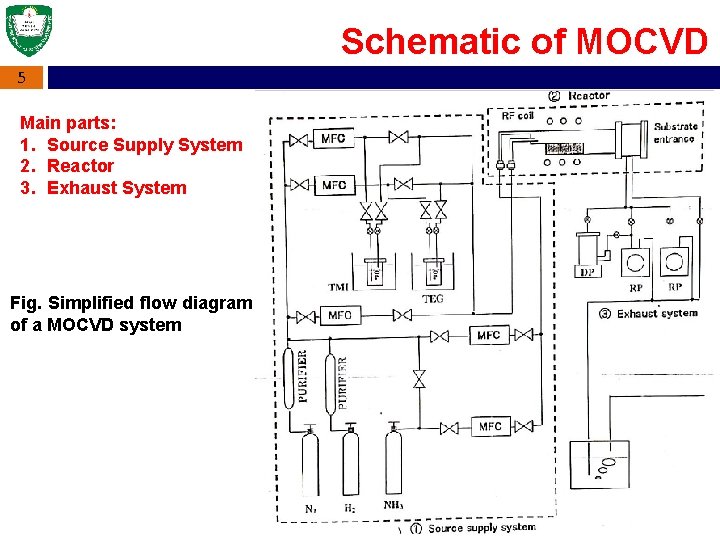

Schematic of MOCVD 5 Main parts: 1. Source Supply System 2. Reactor 3. Exhaust System Fig. Simplified flow diagram of a MOCVD system

Schematic of MOCVD 6 Fig. Geometry of the Horizontal Reactor

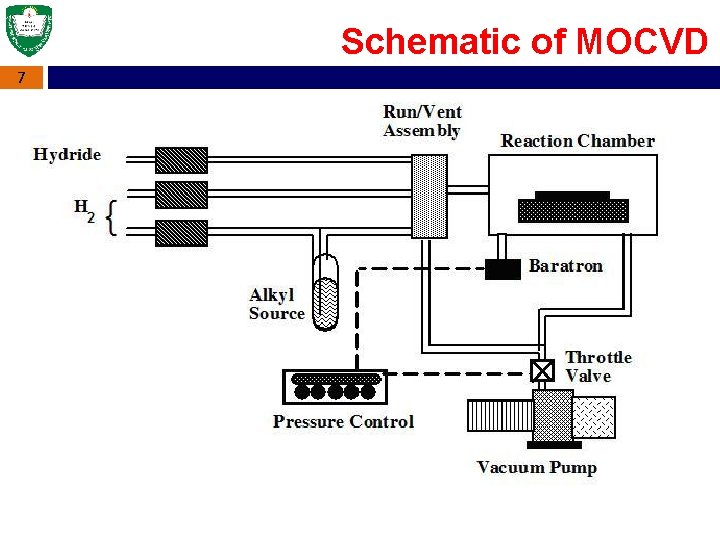

Schematic of MOCVD 7

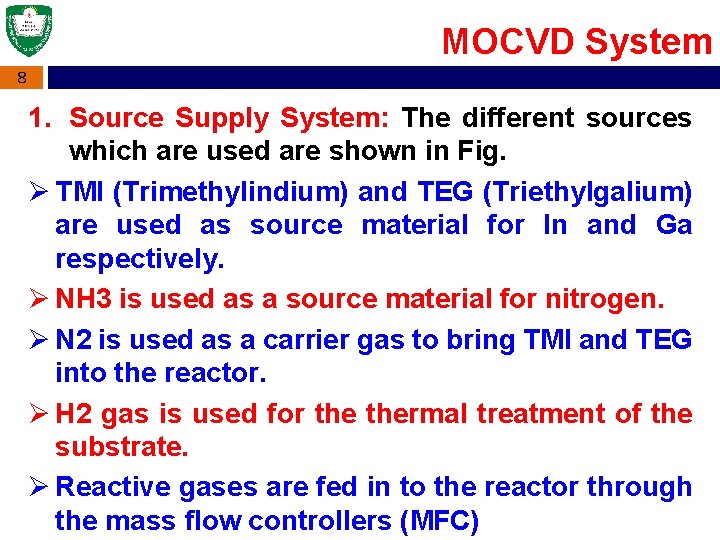

MOCVD System 8 1. Source Supply System: The different sources which are used are shown in Fig. Ø TMI (Trimethylindium) and TEG (Triethylgalium) are used as source material for In and Ga respectively. Ø NH 3 is used as a source material for nitrogen. Ø N 2 is used as a carrier gas to bring TMI and TEG into the reactor. Ø H 2 gas is used for thermal treatment of the substrate. Ø Reactive gases are fed in to the reactor through the mass flow controllers (MFC)

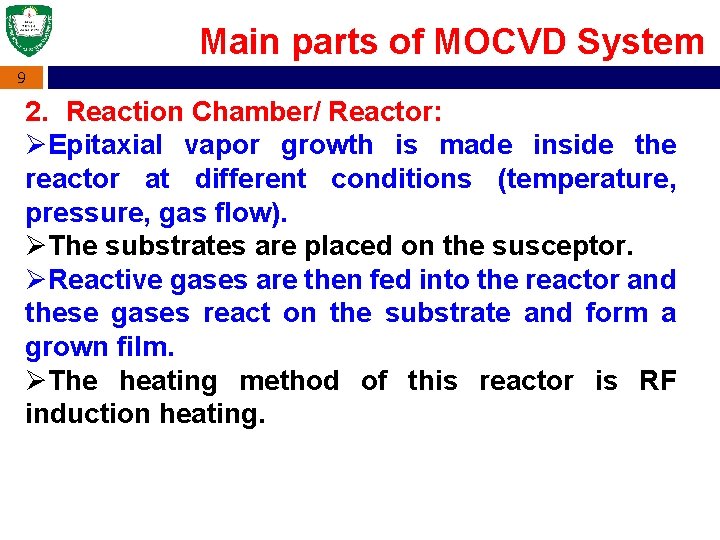

Main parts of MOCVD System 9 2. Reaction Chamber/ Reactor: ØEpitaxial vapor growth is made inside the reactor at different conditions (temperature, pressure, gas flow). ØThe substrates are placed on the susceptor. ØReactive gases are then fed into the reactor and these gases react on the substrate and form a grown film. ØThe heating method of this reactor is RF induction heating.

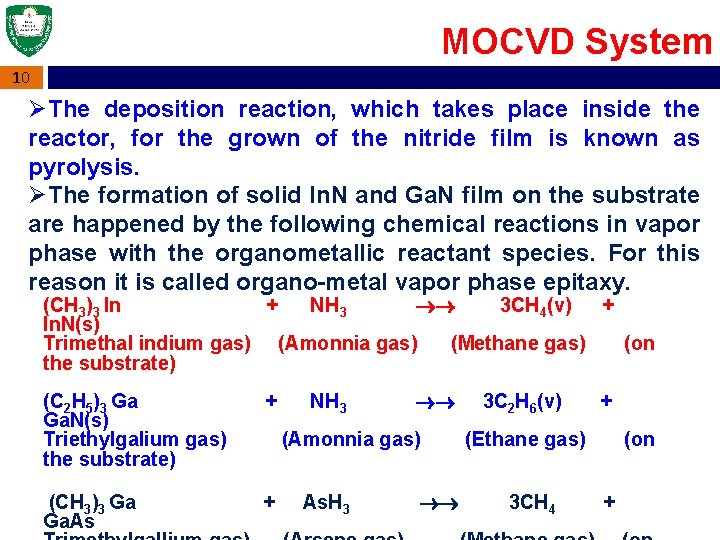

MOCVD System 10 ØThe deposition reaction, which takes place inside the reactor, for the grown of the nitride film is known as pyrolysis. ØThe formation of solid In. N and Ga. N film on the substrate are happened by the following chemical reactions in vapor phase with the organometallic reactant species. For this reason it is called organo-metal vapor phase epitaxy. (CH 3)3 In + NH 3 3 CH 4(v) + In. N(s) Trimethal indium gas) (Amonnia gas) (Methane gas) (on the substrate) (C 2 H 5)3 Ga Ga. N(s) Triethylgalium gas) the substrate) + (CH 3)3 Ga Ga. As + NH 3 (Amonnia gas) As. H 3 3 C 2 H 6(v) + (Ethane gas) 3 CH 4 (on +

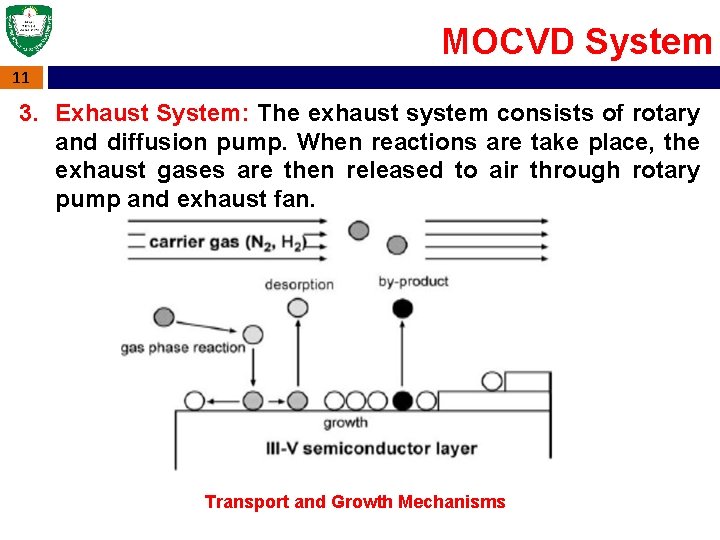

MOCVD System 11 3. Exhaust System: The exhaust system consists of rotary and diffusion pump. When reactions are take place, the exhaust gases are then released to air through rotary pump and exhaust fan. Transport and Growth Mechanisms

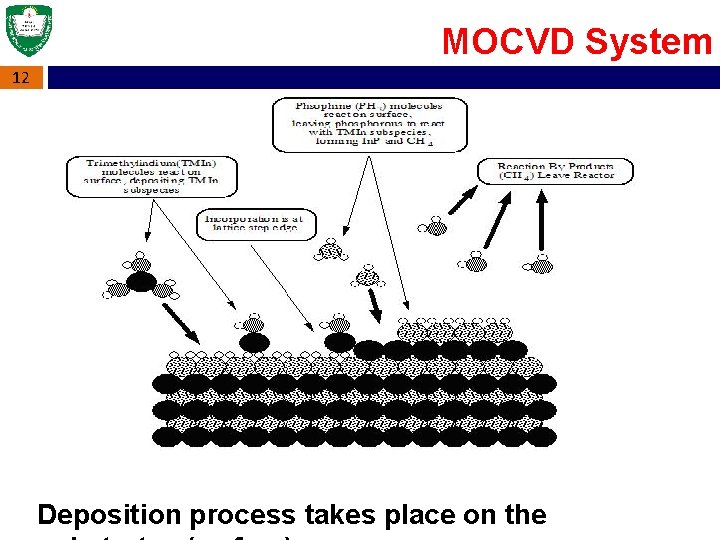

MOCVD System 12 Deposition process takes place on the

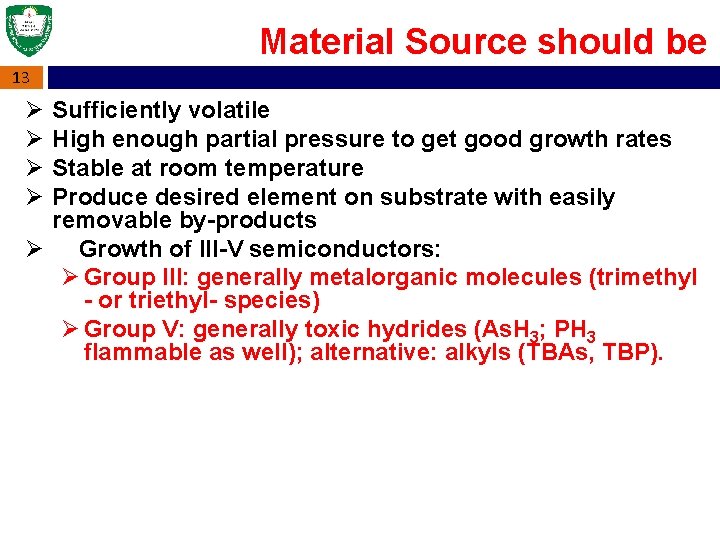

Material Source should be 13 Ø Ø Sufficiently volatile High enough partial pressure to get good growth rates Stable at room temperature Produce desired element on substrate with easily removable by-products Ø Growth of III-V semiconductors: Ø Group III: generally metalorganic molecules (trimethyl - or triethyl- species) Ø Group V: generally toxic hydrides (As. H 3; PH 3 flammable as well); alternative: alkyls (TBAs, TBP).

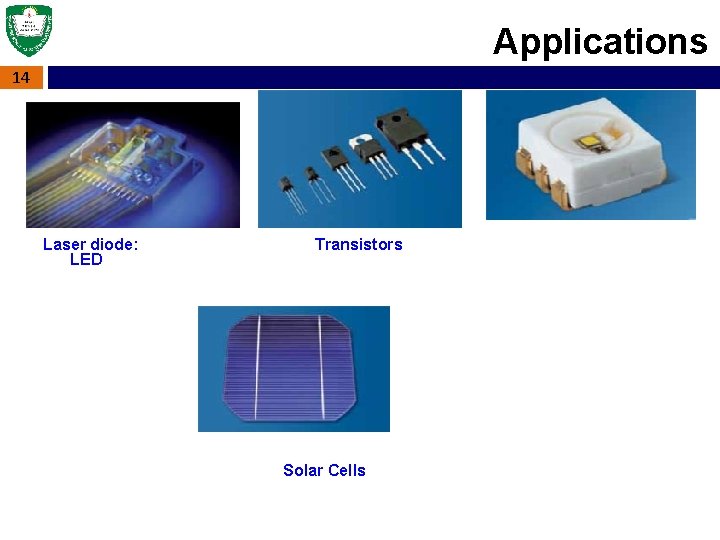

Applications 14 Laser diode: LED Transistors Solar Cells
