metal ceramic crown is made up of metal

metal ceramic crown

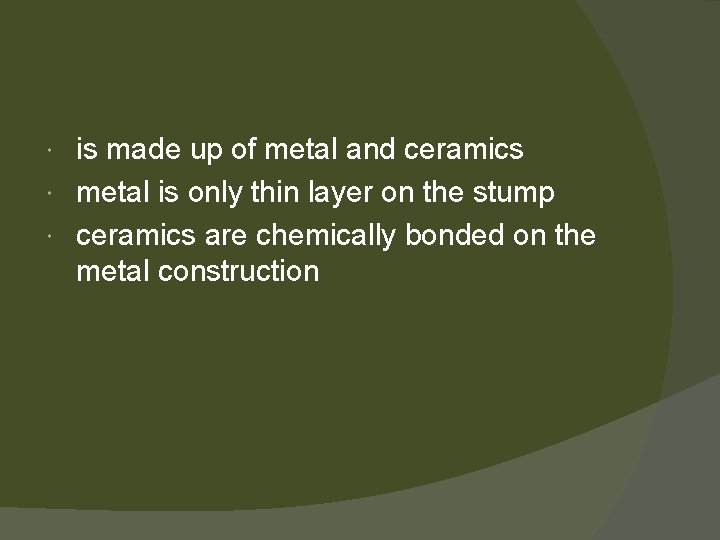

is made up of metal and ceramics metal is only thin layer on the stump ceramics are chemically bonded on the metal construction

working procedure 1. 2. 3. 4. 5. 6. 7. 8. 9. impression of the upper and lower jaws in the mouth making models-giroform system cutup and treatment of stubs built-up models in the articulator waxing wax pattern investing casting high-melting alloys cutting off casting pins grinding of metal

working procedure 10. 11. 12. 13. 14. 15. 16. 17. 18. sandblasting application of ceramic materials wash opaquer ceramic material grinding corrections glaze submission to the surgery and integration into patient's mouth

IMPRESSION OF THE UPPER AND LOWER JAWS IN THE MOUTH -impression is made of SILICONE impression material

MAKING MODELSGIROFORM SYSTEM -establishment impression

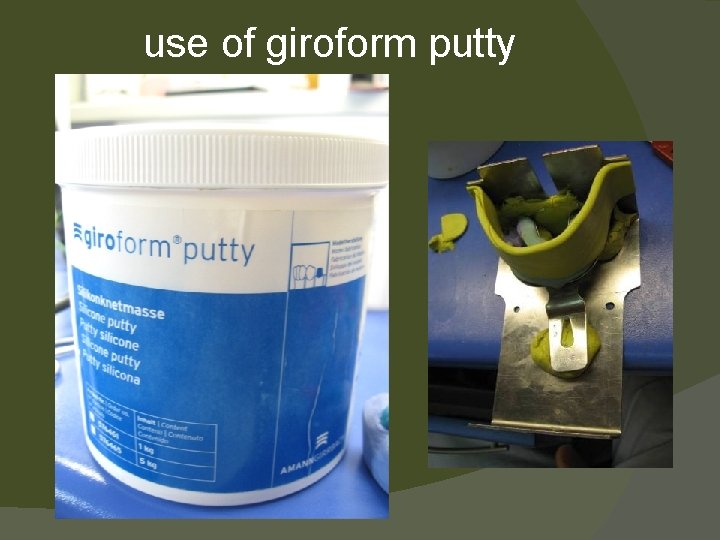

use of giroform putty

everything must be horizontally placed

inserting plates

drilling of repositioned plate

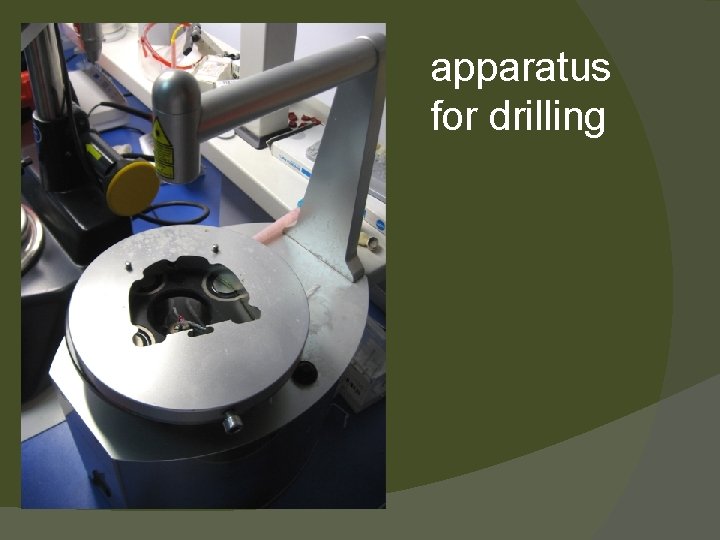

apparatus for drilling

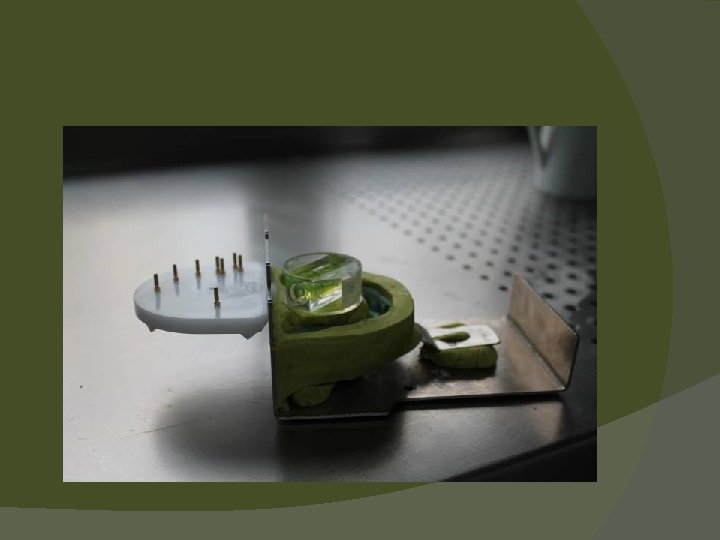

repositioned plate with pins

Mixing ratio 75 grams of plaster glass stone 17 ml of water Mixing 30 seconds manually and 30 seconds in vacuum mixer under 1 bar

vacuum mixer

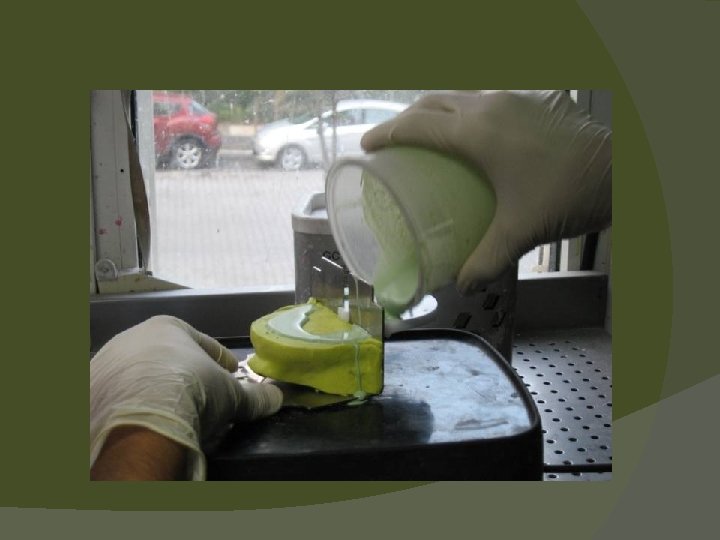

casting the impression

applying drilled reposition plate with pins

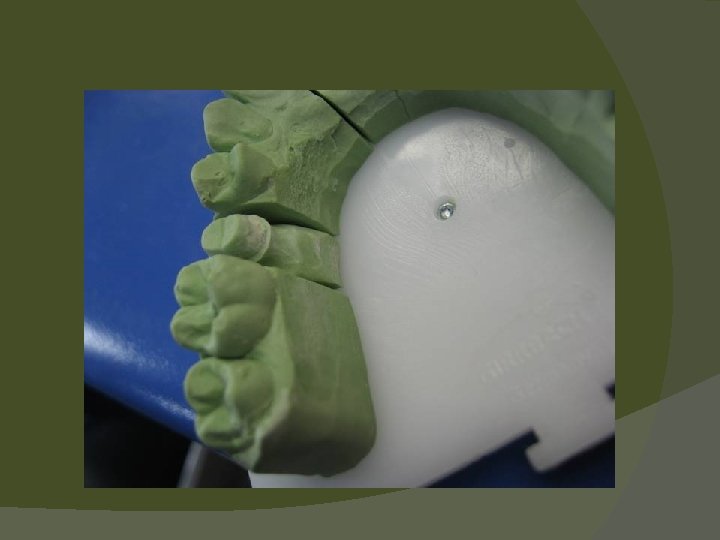

finished model

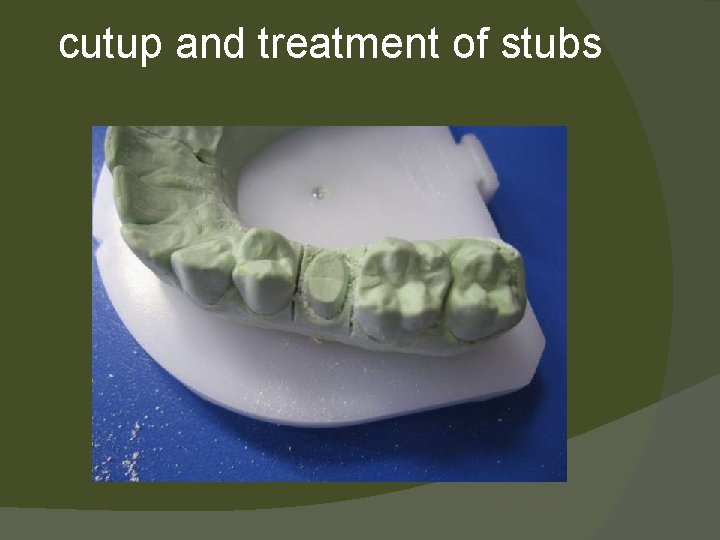

cutup and treatment of stubs

remove of undercuts

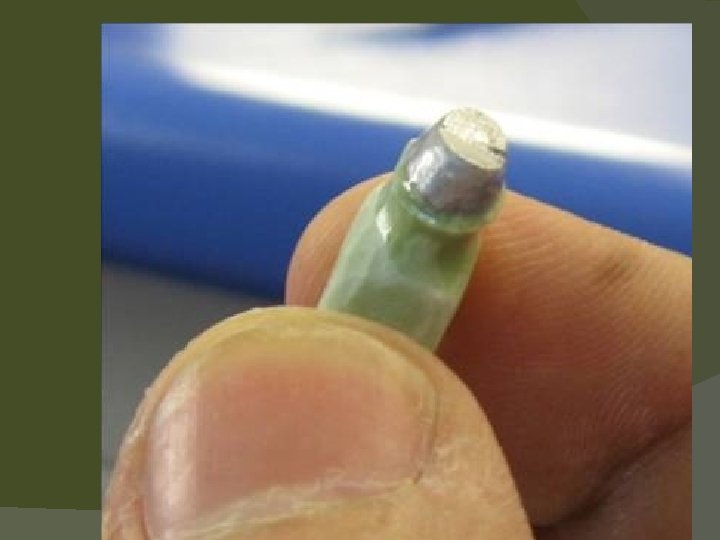

application of varnish at 20 microns of thickness

appliction of Model Sealer for higher hardness of cervical line

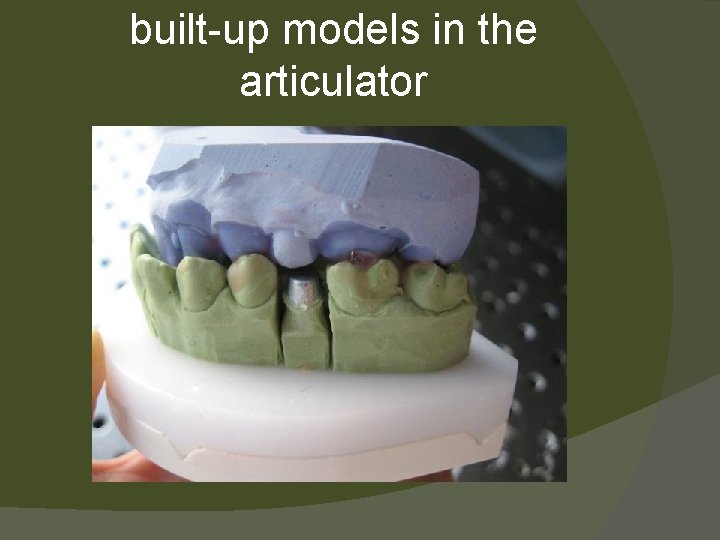

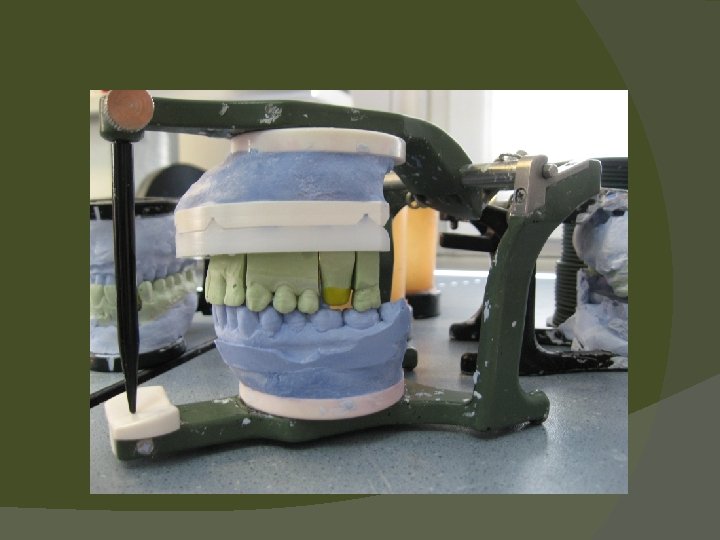

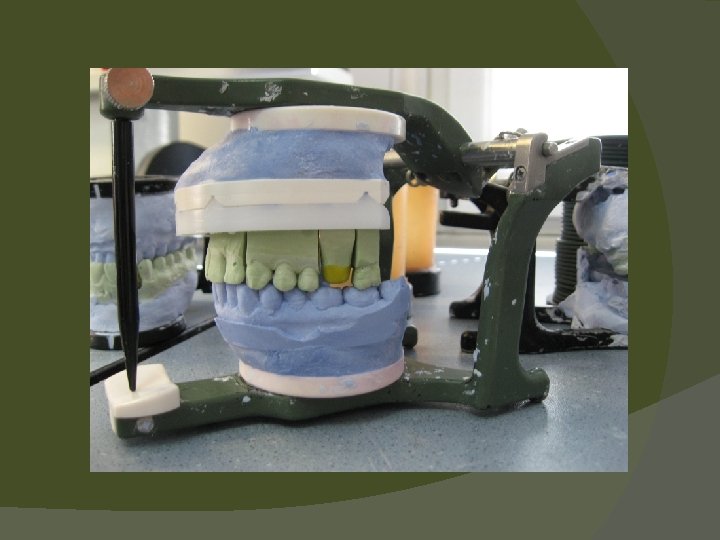

built-up models in the articulator

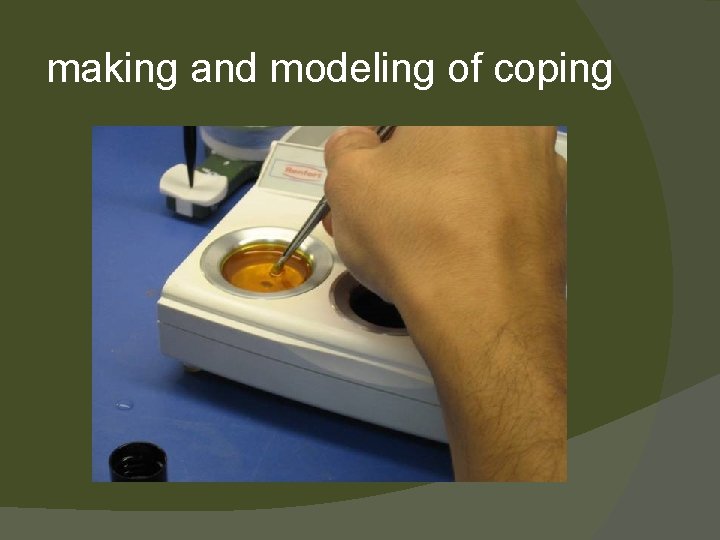

making and modeling of coping

connect of wax pins

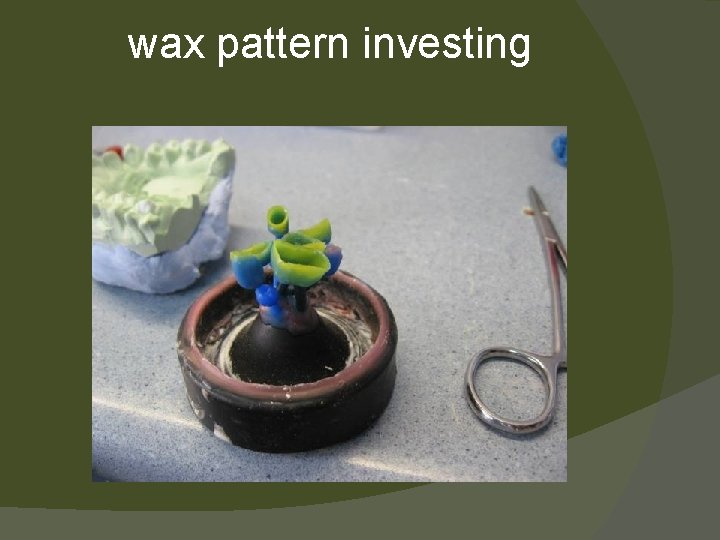

wax pattern investing

mixing ratio investment material belavest -100 grams of belavest sh -10 ml of distilled water -15 ml of begosol (change in summer-20 ml of distilled water and 25 begosol)

investmet material-belavest SH

distilled water

begosol HE

mixing: 60 seconds under 1 bar

burning the wax at 9501050° for 30 minutes

casting high-melting alloys

Bego fornax. T casting machine

metal alloy - wirobond 280

remove of investment material

Renfert sandblaster

after sandblasting at 90 microns of aluminium oxide

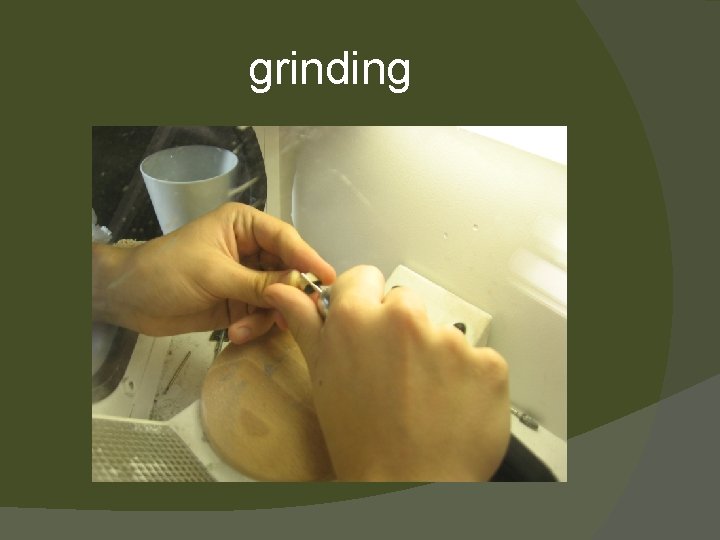

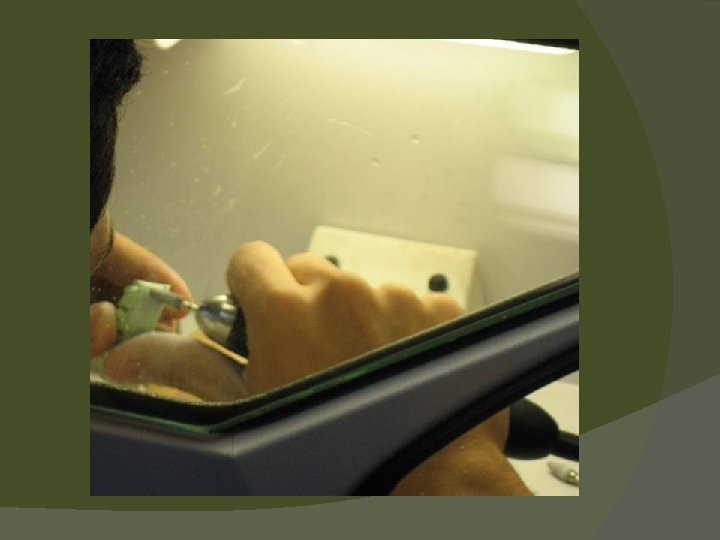

grinding

sandblasting

Thickness on aproximal-0, 3 mm on occlusal 0, 5 mm

wash opaquer-15 min, ivoclar Programat P 500/G 2 furnace at 930°

opaquer

the individual layer of ceramics wash opaquer dentin enamel transparent glaze

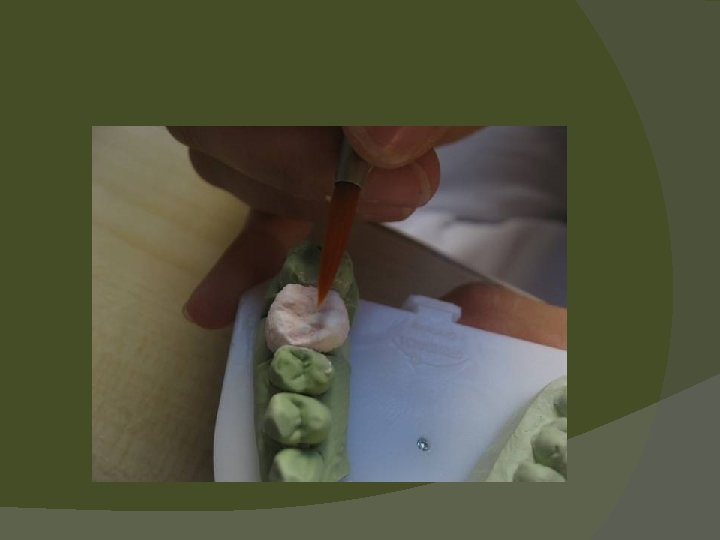

application of ceramic material

burning of ceramics material

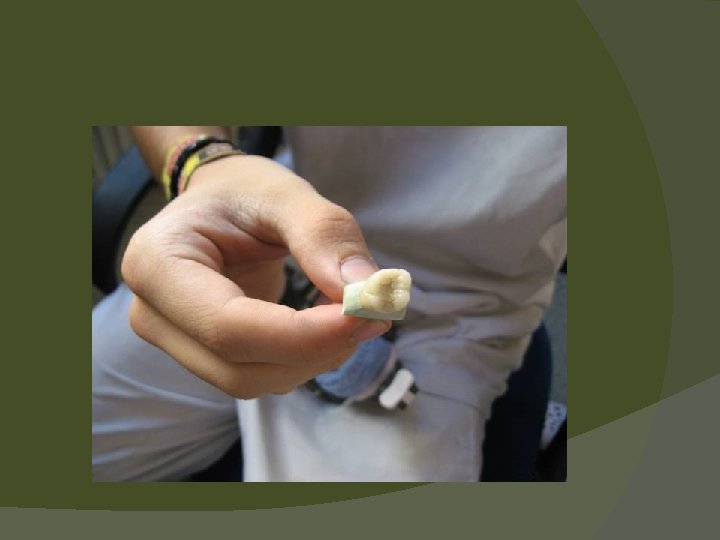

fitting on stump

grinding

second layer is for correction

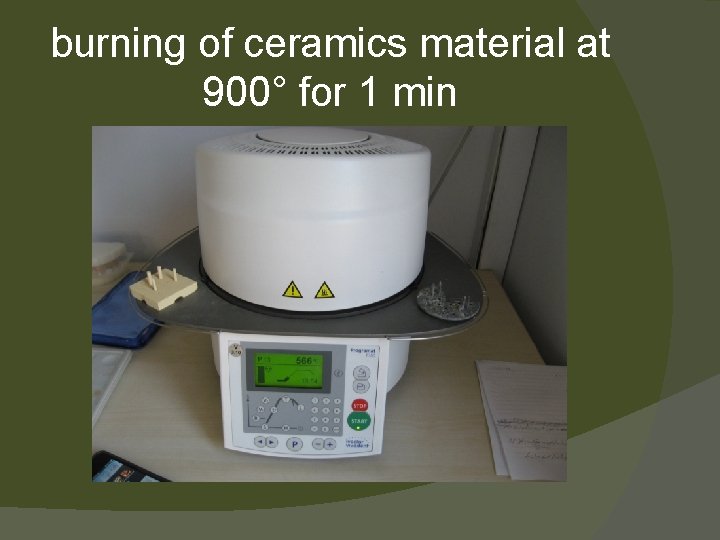

burning of ceramics material at 900° for 1 min

grinding

glaze

FINISHED WORK
