MessagePassing Communication Analyzer By Poonam Bijlani CSE 775

Message-Passing Communication Analyzer By Poonam Bijlani CSE 775 - Distributed Objects Prof. Jim Fawcett

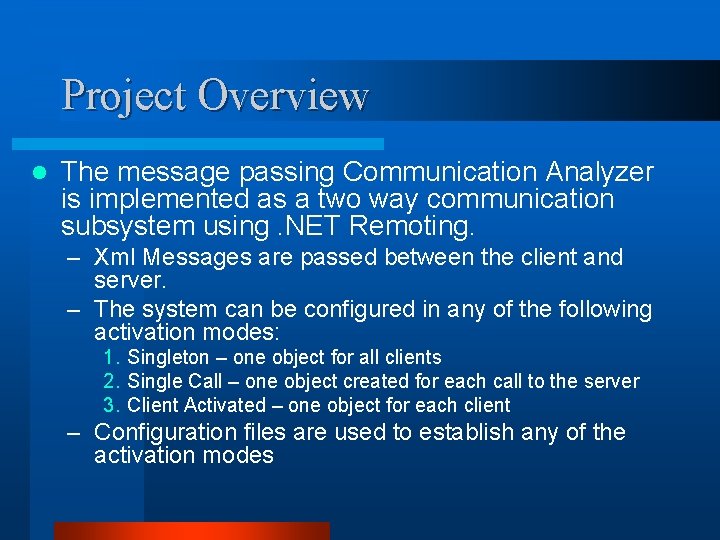

Project Overview l The message passing Communication Analyzer is implemented as a two way communication subsystem using. NET Remoting. – Xml Messages are passed between the client and server. – The system can be configured in any of the following activation modes: 1. Singleton – one object for all clients 2. Single Call – one object created for each call to the server 3. Client Activated – one object for each client – Configuration files are used to establish any of the activation modes

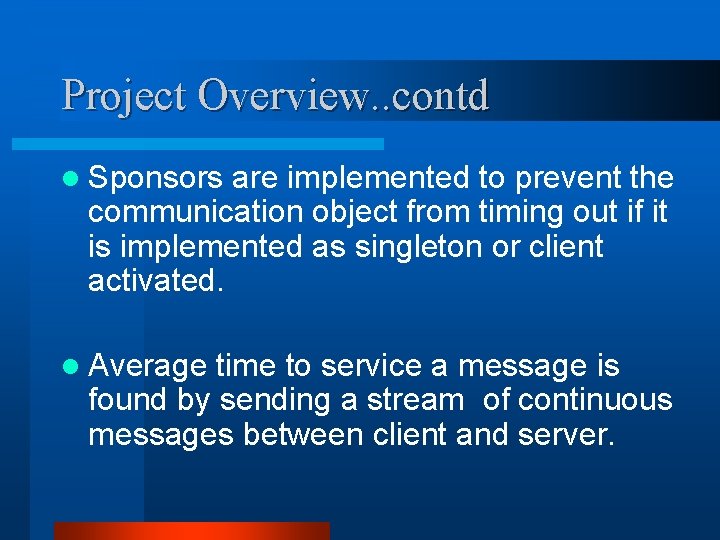

Project Overview. . contd l Sponsors are implemented to prevent the communication object from timing out if it is implemented as singleton or client activated. l Average time to service a message is found by sending a stream of continuous messages between client and server.

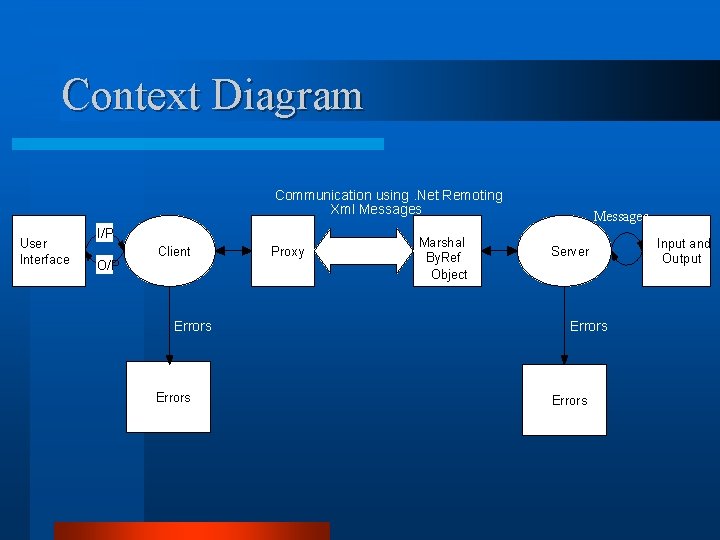

Context Diagram Communication using. Net Remoting Xml Messages User Interface I/P O/P Client Errors Proxy Marshal By. Ref Object Messages Server Errors Input and Output

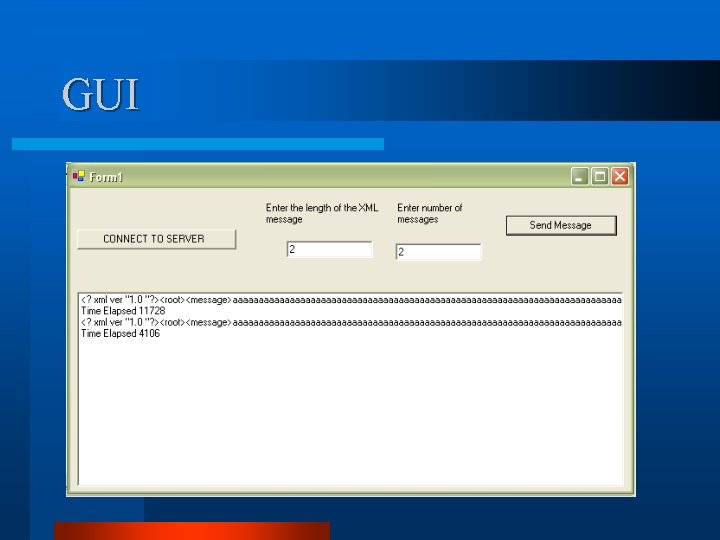

GUI

Client Classes

Server Classes

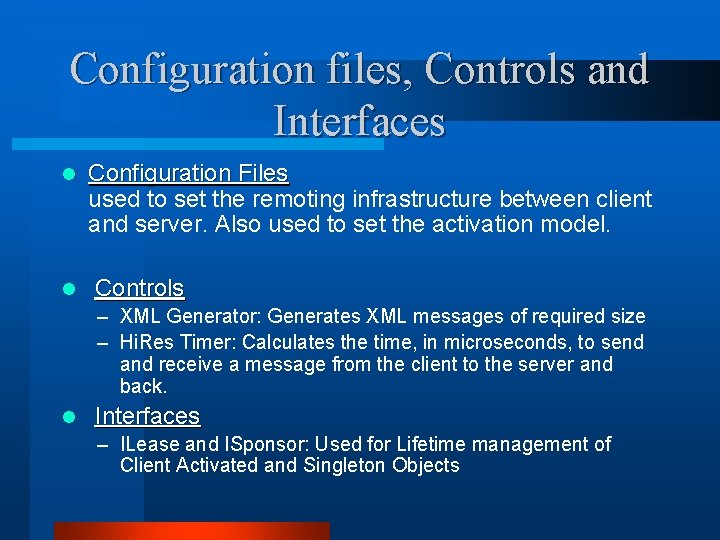

Configuration files, Controls and Interfaces l l Configuration Files used to set the remoting infrastructure between client and server. Also used to set the activation model. Controls – XML Generator: Generates XML messages of required size – Hi. Res Timer: Calculates the time, in microseconds, to send and receive a message from the client to the server and back. l Interfaces – ILease and ISponsor: Used for Lifetime management of Client Activated and Singleton Objects

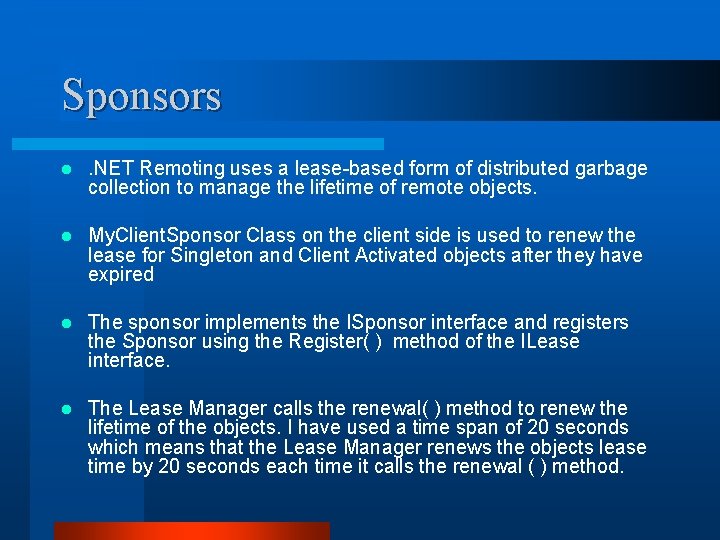

Sponsors l . NET Remoting uses a lease-based form of distributed garbage collection to manage the lifetime of remote objects. l My. Client. Sponsor Class on the client side is used to renew the lease for Singleton and Client Activated objects after they have expired l The sponsor implements the ISponsor interface and registers the Sponsor using the Register( ) method of the ILease interface. l The Lease Manager calls the renewal( ) method to renew the lifetime of the objects. I have used a time span of 20 seconds which means that the Lease Manager renews the objects lease time by 20 seconds each time it calls the renewal ( ) method.

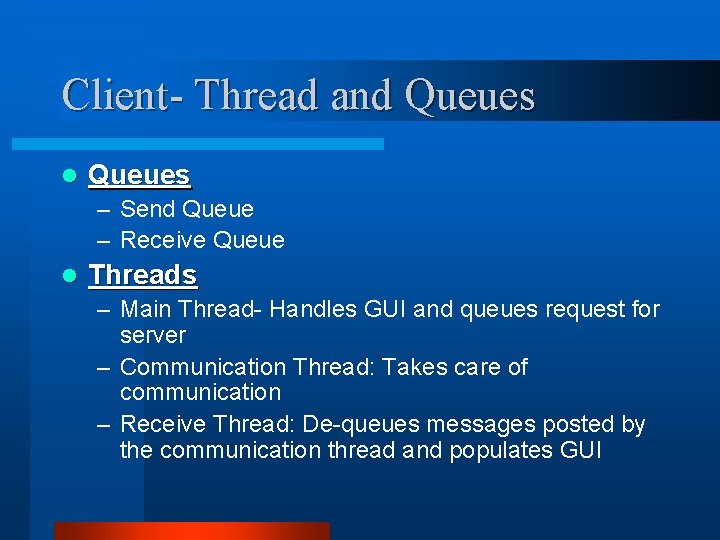

Client- Thread and Queues l Queues – Send Queue – Receive Queue l Threads – Main Thread- Handles GUI and queues request for server – Communication Thread: Takes care of communication – Receive Thread: De-queues messages posted by the communication thread and populates GUI

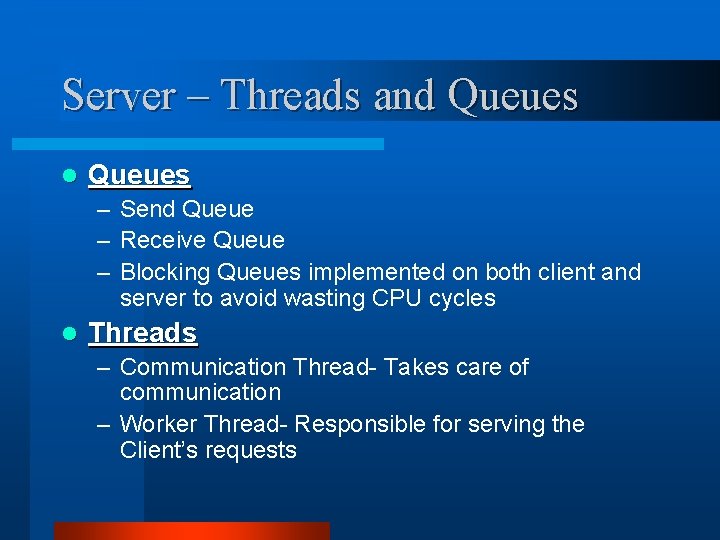

Server – Threads and Queues l Queues – Send Queue – Receive Queue – Blocking Queues implemented on both client and server to avoid wasting CPU cycles l Threads – Communication Thread- Takes care of communication – Worker Thread- Responsible for serving the Client’s requests

Communication Subsystem SERVER CLIENT Communication Thread RECIEVE Q SEND Q Main Thread Child Thread dequeues, processes request enqueues response XML MESSAGES RECIEVE Q Main Thread enqueues server requests/ notifications Receiver Thread SEND Q Singleton/ Single. Call/ Client. Activated Remotable Object

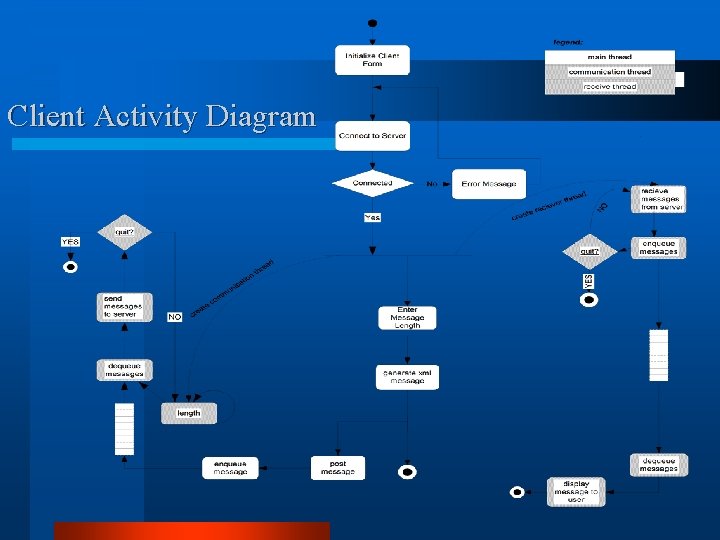

Client Activity Diagram

Server Activity

Event Trace Diagram

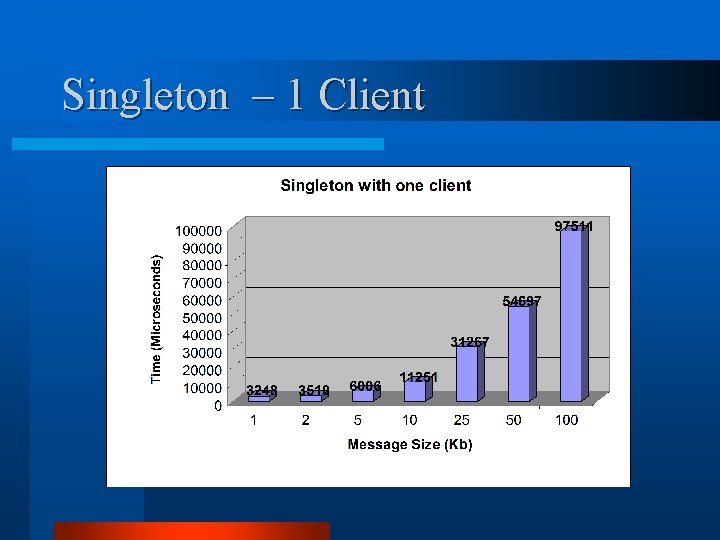

Singleton – 1 Client

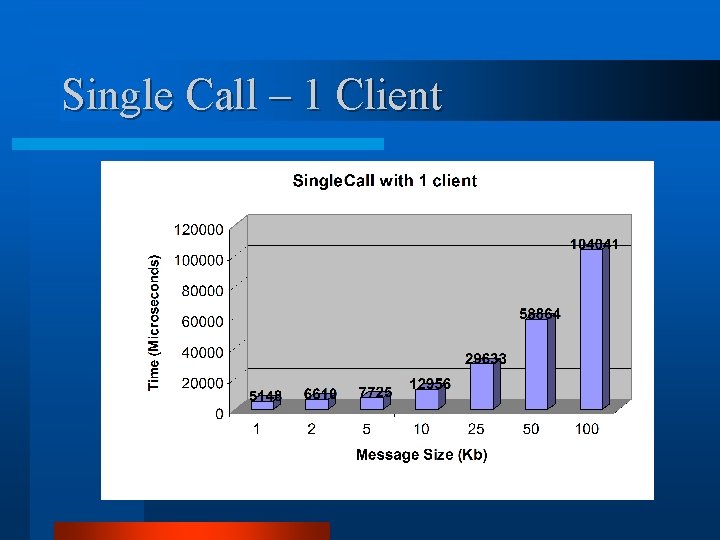

Single Call – 1 Client

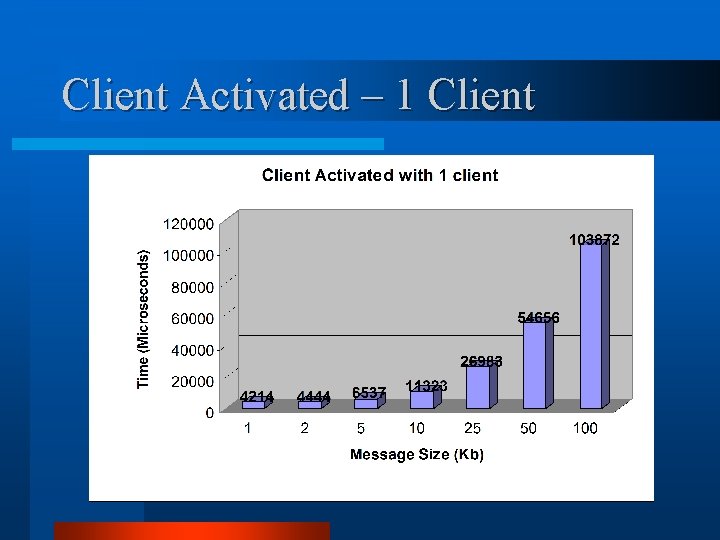

Client Activated – 1 Client

Comparative Graph- 1 Client

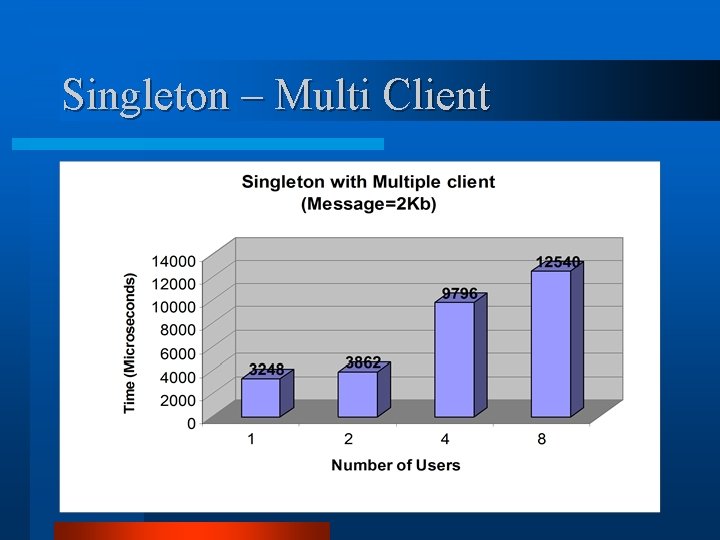

Singleton – Multi Client

Single Call – Multi Client

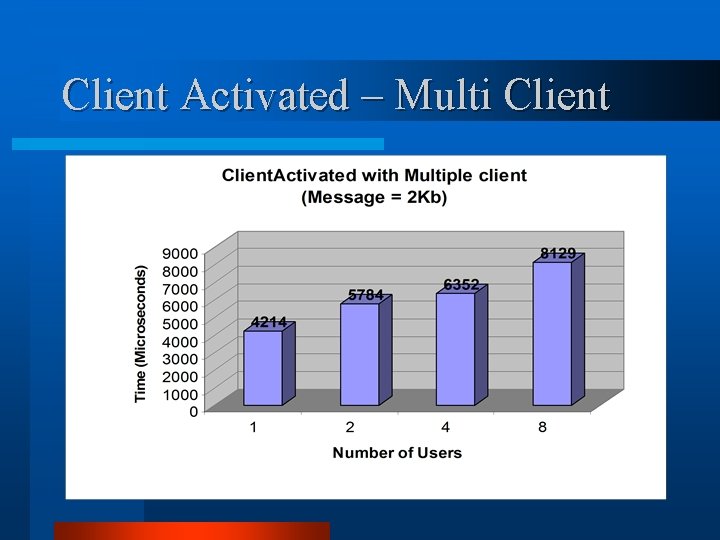

Client Activated – Multi Client

Comparative Graph- Multi Client

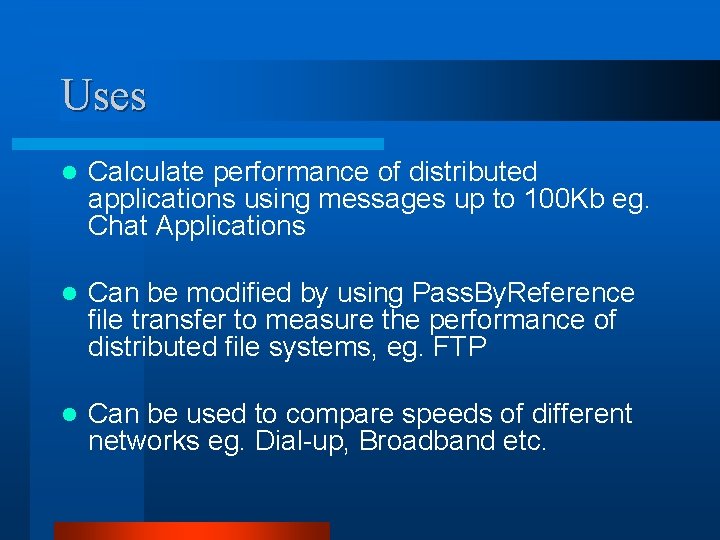

Uses l Calculate performance of distributed applications using messages up to 100 Kb eg. Chat Applications l Can be modified by using Pass. By. Reference file transfer to measure the performance of distributed file systems, eg. FTP l Can be used to compare speeds of different networks eg. Dial-up, Broadband etc.

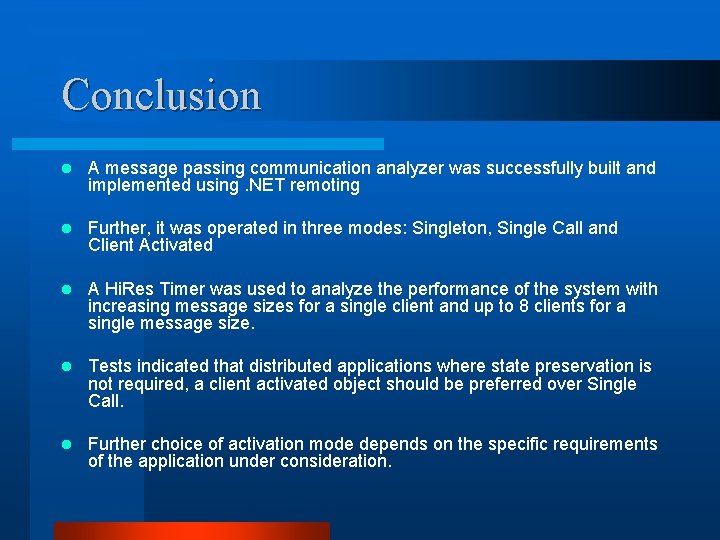

Conclusion l A message passing communication analyzer was successfully built and implemented using. NET remoting l Further, it was operated in three modes: Singleton, Single Call and Client Activated l A Hi. Res Timer was used to analyze the performance of the system with increasing message sizes for a single client and up to 8 clients for a single message size. l Tests indicated that distributed applications where state preservation is not required, a client activated object should be preferred over Single Call. l Further choice of activation mode depends on the specific requirements of the application under consideration.
