Meshless Local Buckling Analysis of Steel Beams with Web Openings A. R. Zainal Abidin, B. A. Izzuddin Department of Civil and Environmental Engineering

Introduction Steel Beams with Web Openings • effective way for fulfilling the needs of integrating M&E services within the floor depth – benefiting from lower fabrication cost, enhanced structural performance and improved artistic quality • some modifications are necessary – causing different regularity and even irregularity • exposed to local effects e. g. web-post buckling, tee buckling, Vierendeel bending due to high force concentrations from secondary effects – potentially leading to a markedly different structural response and buckling resistance.

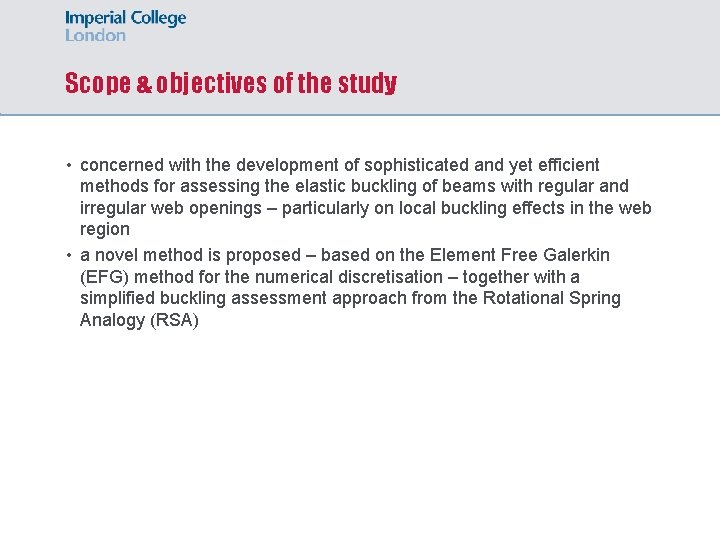

Scope & objectives of the study • concerned with the development of sophisticated and yet efficient methods for assessing the elastic buckling of beams with regular and irregular web openings – particularly on local buckling effects in the web region • a novel method is proposed – based on the Element Free Galerkin (EFG) method for the numerical discretisation – together with a simplified buckling assessment approach from the Rotational Spring Analogy (RSA)

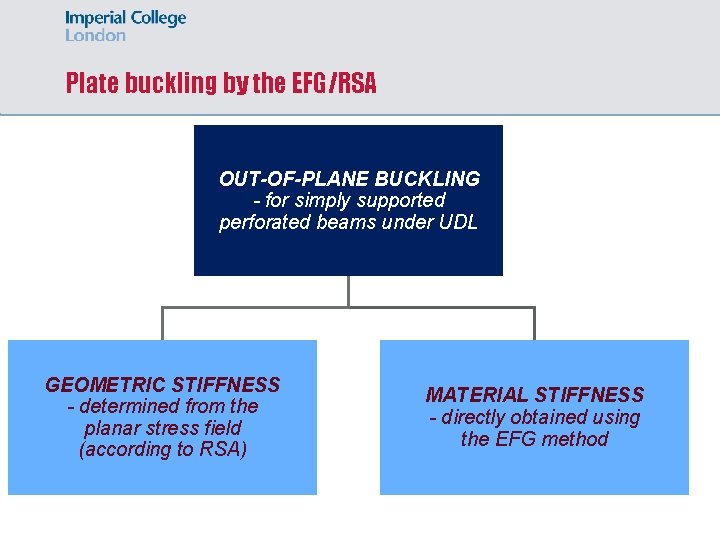

Plate buckling by the EFG/RSA OUT-OF-PLANE BUCKLING - for simply supported perforated beams under UDL GEOMETRIC STIFFNESS - determined from the planar stress field (according to RSA) MATERIAL STIFFNESS - directly obtained using the EFG method

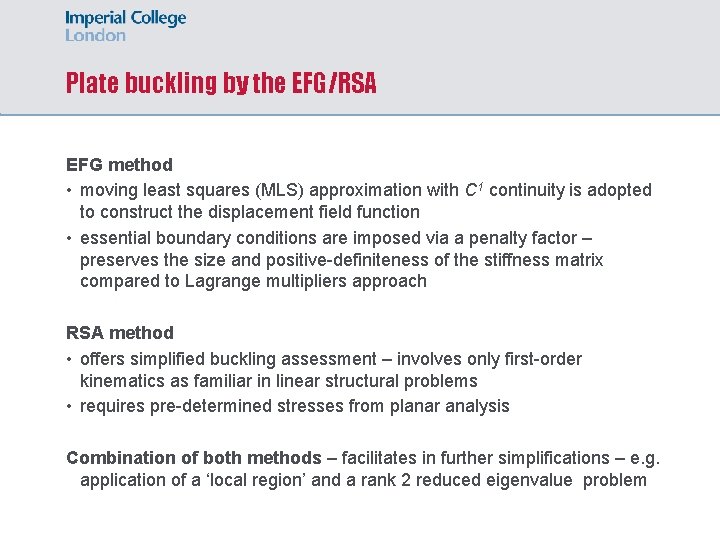

Plate buckling by the EFG/RSA EFG method • moving least squares (MLS) approximation with C 1 continuity is adopted to construct the displacement field function • essential boundary conditions are imposed via a penalty factor – preserves the size and positive-definiteness of the stiffness matrix compared to Lagrange multipliers approach RSA method • offers simplified buckling assessment – involves only first-order kinematics as familiar in linear structural problems • requires pre-determined stresses from planar analysis Combination of both methods – facilitates in further simplifications – e. g. application of a ‘local region’ and a rank 2 reduced eigenvalue problem

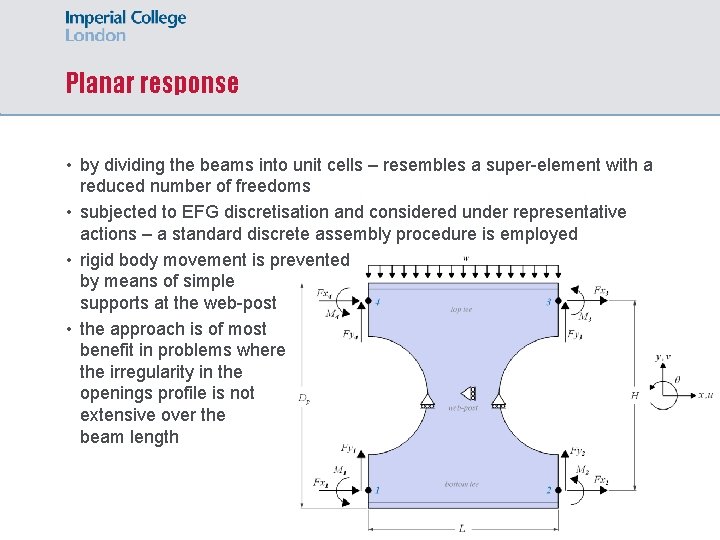

Planar response • by dividing the beams into unit cells – resembles a super-element with a reduced number of freedoms • subjected to EFG discretisation and considered under representative actions – a standard discrete assembly procedure is employed • rigid body movement is prevented by means of simple supports at the web-post • the approach is of most benefit in problems where the irregularity in the openings profile is not extensive over the beam length

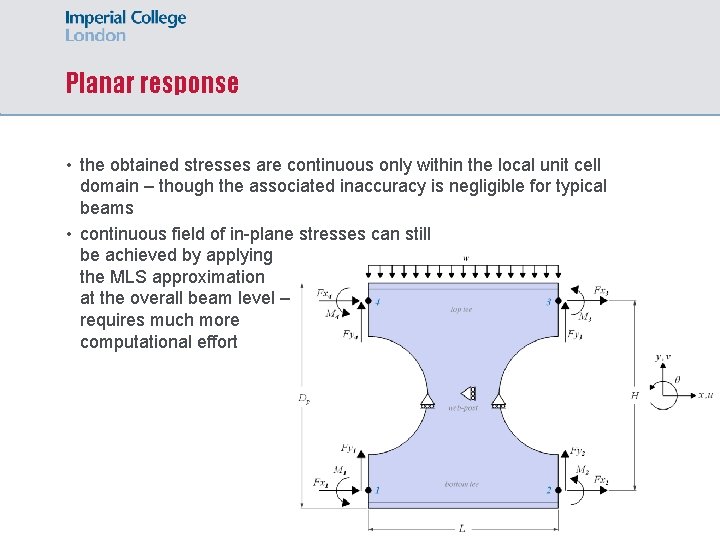

Planar response • the obtained stresses are continuous only within the local unit cell domain – though the associated inaccuracy is negligible for typical beams • continuous field of in-plane stresses can still be achieved by applying the MLS approximation at the overall beam level – requires much more computational effort

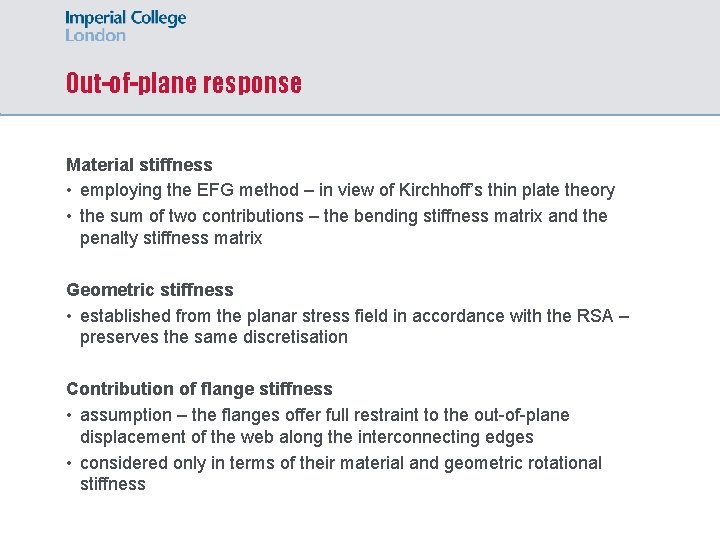

Out-of-plane response Material stiffness • employing the EFG method – in view of Kirchhoff’s thin plate theory • the sum of two contributions – the bending stiffness matrix and the penalty stiffness matrix Geometric stiffness • established from the planar stress field in accordance with the RSA – preserves the same discretisation Contribution of flange stiffness • assumption – the flanges offer full restraint to the out-of-plane displacement of the web along the interconnecting edges • considered only in terms of their material and geometric rotational stiffness

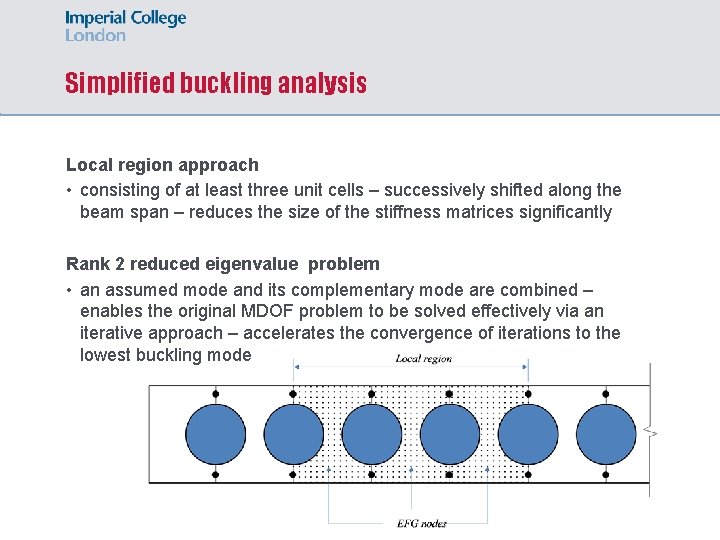

Simplified buckling analysis Local region approach • consisting of at least three unit cells – successively shifted along the beam span – reduces the size of the stiffness matrices significantly Rank 2 reduced eigenvalue problem • an assumed mode and its complementary mode are combined – enables the original MDOF problem to be solved effectively via an iterative approach – accelerates the convergence of iterations to the lowest buckling mode

Application example 1 • symmetric castellated beam with regular hexagonal web openings • has a geometry – length L = 30 m, depth Dp = 1. 603 m, spacing S = 1. 472 m, size of the regular hexagonal openings h 1 = 0. 84 m, b 1 = 1. 1554 x h 1 and b 2 = 0. 578 x h 1 • employs two circular holes near the left support – considering the same relative width of the existing holes, do = b 1 • uniformly distributed loading, UDL = 1. 0 k. N/m on top of the beam

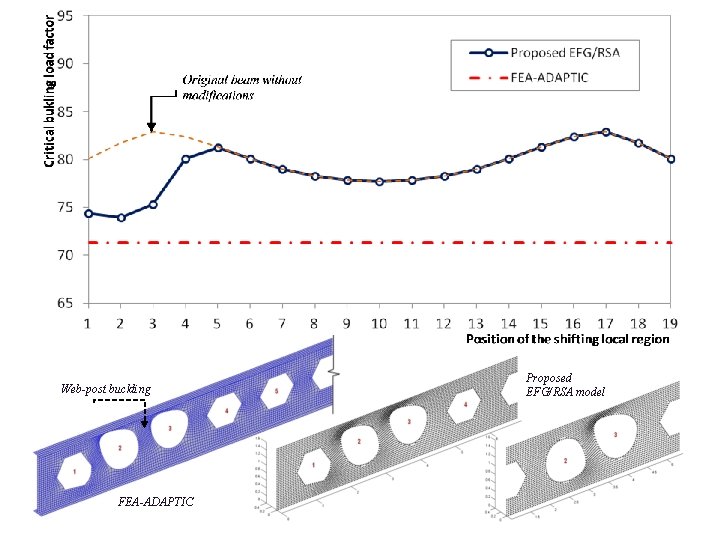

Web-post buckling FEA-ADAPTIC Proposed EFG/RSA model

Application example 2 • typical cellular beam originating from 1016 x 305 x 222 UB • length L = 30 m, depth Dp = 1. 603 m, spacing S = 1. 472 m and hole diameter do = 0. 84 m • allowing several holes with a 0. 1 m vertical offset – together with one infilled hole near the right end of the beam support • transverse UDL of 1. 0 k. N/m – applied along the top edge considering a simply supported condition.

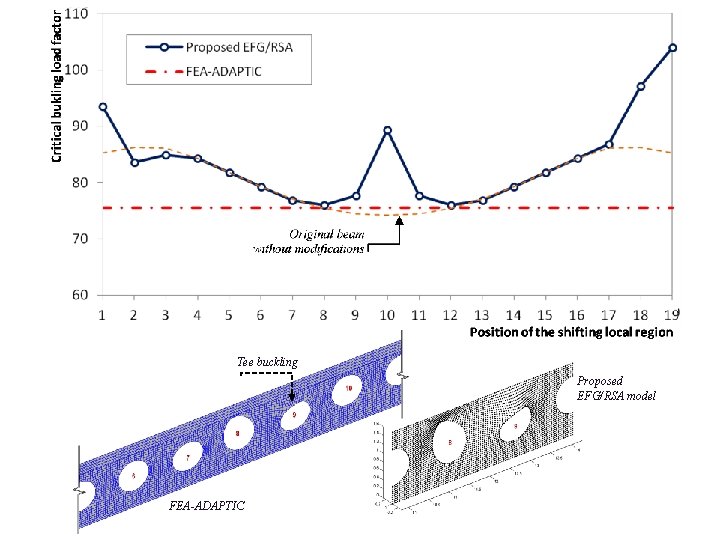

Tee buckling Proposed EFG/RSA model FEA-ADAPTIC

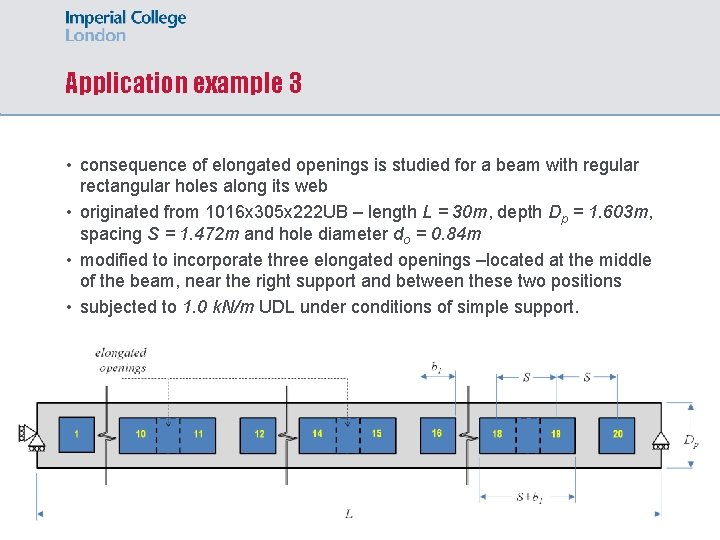

Application example 3 • consequence of elongated openings is studied for a beam with regular rectangular holes along its web • originated from 1016 x 305 x 222 UB – length L = 30 m, depth Dp = 1. 603 m, spacing S = 1. 472 m and hole diameter do = 0. 84 m • modified to incorporate three elongated openings –located at the middle of the beam, near the right support and between these two positions • subjected to 1. 0 k. N/m UDL under conditions of simple support.

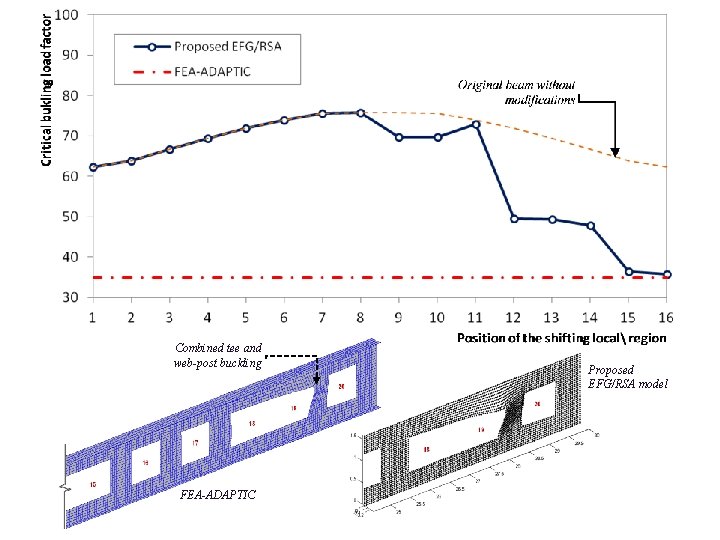

Combined tee and web-post buckling FEA-ADAPTIC Proposed EFG/RSA model

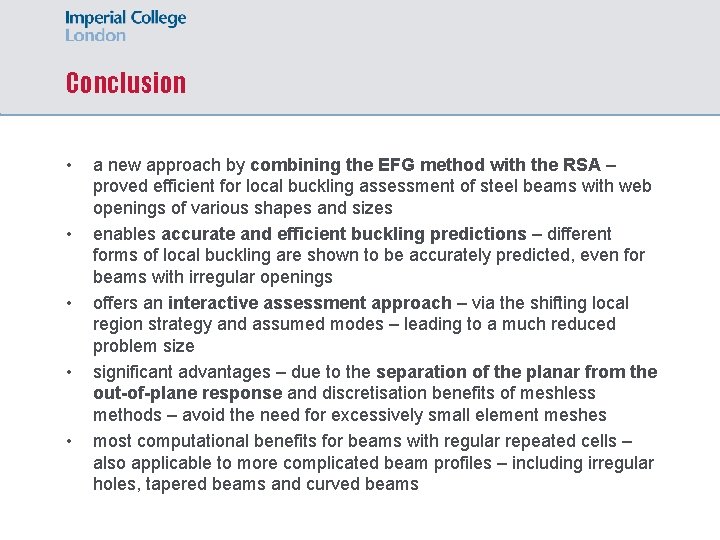

Conclusion • • • a new approach by combining the EFG method with the RSA – proved efficient for local buckling assessment of steel beams with web openings of various shapes and sizes enables accurate and efficient buckling predictions – different forms of local buckling are shown to be accurately predicted, even for beams with irregular openings offers an interactive assessment approach – via the shifting local region strategy and assumed modes – leading to a much reduced problem size significant advantages – due to the separation of the planar from the out-of-plane response and discretisation benefits of meshless methods – avoid the need for excessively small element meshes most computational benefits for beams with regular repeated cells – also applicable to more complicated beam profiles – including irregular holes, tapered beams and curved beams

Thank you A. R. Zainal Abidin, B. A. Izzuddin Department of Civil and Environmental Engineering
