Mercedes Benz Smart Key Programming Select car model

Mercedes Benz Smart Key Programming.

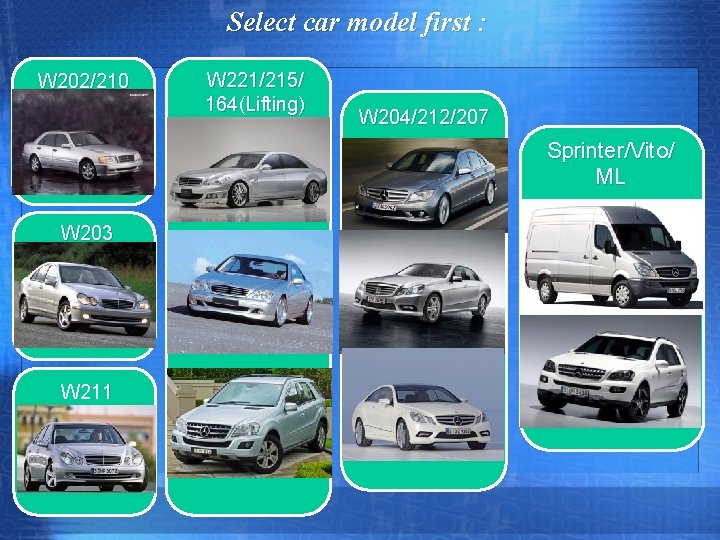

Select car model first : W 202/210 W 221/215/ 164(Lifting) W 204/212/207 Sprinter/Vito/ ML W 203 W 211

What’s the problem : Original key stopped to run the car or you need to add one more key All keys lost

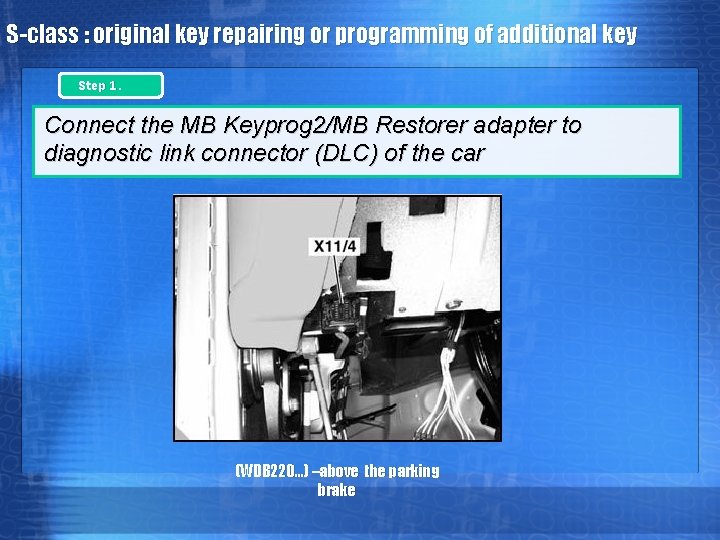

S-class : original key repairing or programming of additional key Step 1. Connect the MB Keyprog 2/MB Restorer adapter to diagnostic link connector (DLC) of the car (WDB 220…) –above the parking brake

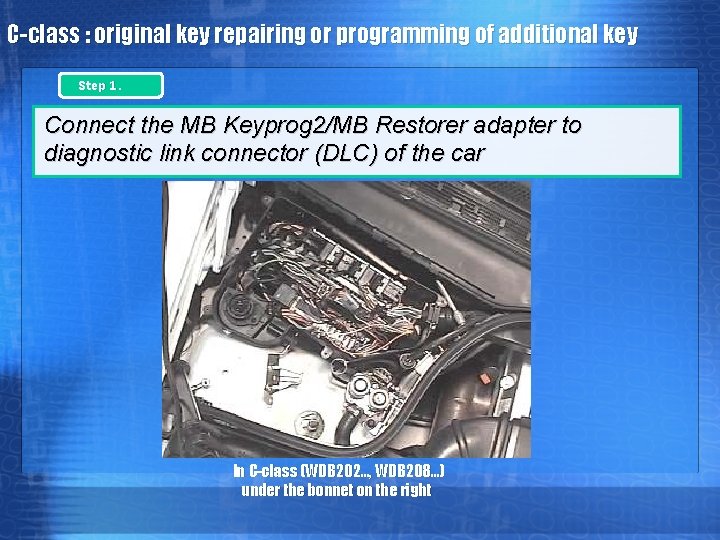

C-class : original key repairing or programming of additional key Step 1. Connect the MB Keyprog 2/MB Restorer adapter to diagnostic link connector (DLC) of the car In C-class (WDB 202…, WDB 208…) under the bonnet on the right

E-class : original key repairing or programming of additional key Step 1. Connect the MB Keyprog 2/MB Restorer adapter to diagnostic link connector (DLC) of the car In E-class (WDB 210…) under the fuse box lid under the bonnet on the left

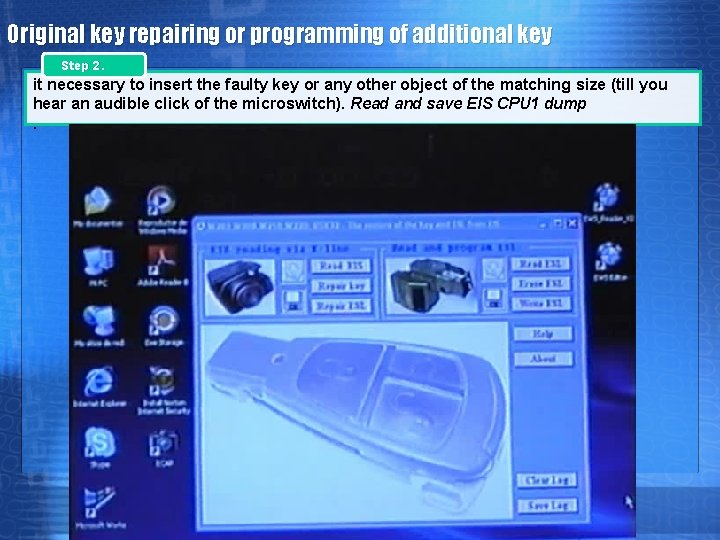

Original key repairing or programming of additional key Step 2. it necessary to insert the faulty key or any other object of the matching size (till you hear an audible click of the microswitch). Read and save EIS CPU 1 dump.

Original key repairing or programming of additional key Step 3. Disassemble original key (working or not working). Read CPU Motorola from it using our EEPROM Programmer. save EEPROM file.

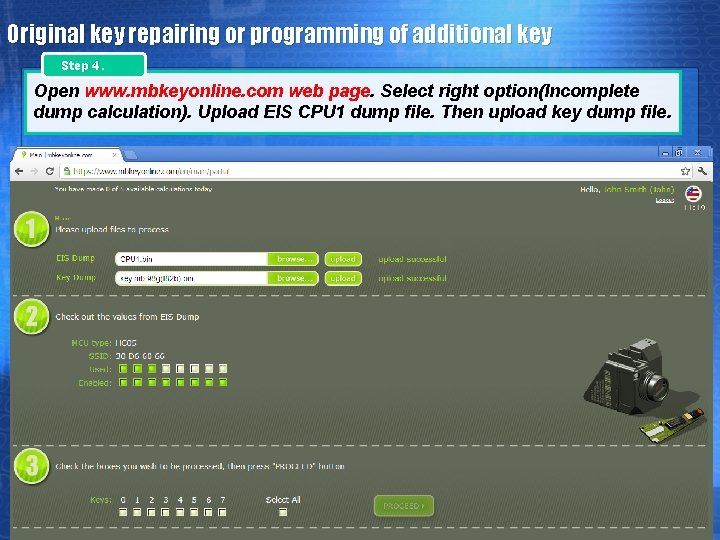

Original key repairing or programming of additional key Step 4. Open www. mbkeyonline. com web page. Select right option(Incomplete dump calculation). Upload EIS CPU 1 dump file. Then upload key dump file.

Original key repairing or programming of additional key Step 5. After uploading select ALL KEYS and PROCEED. Get all keys files.

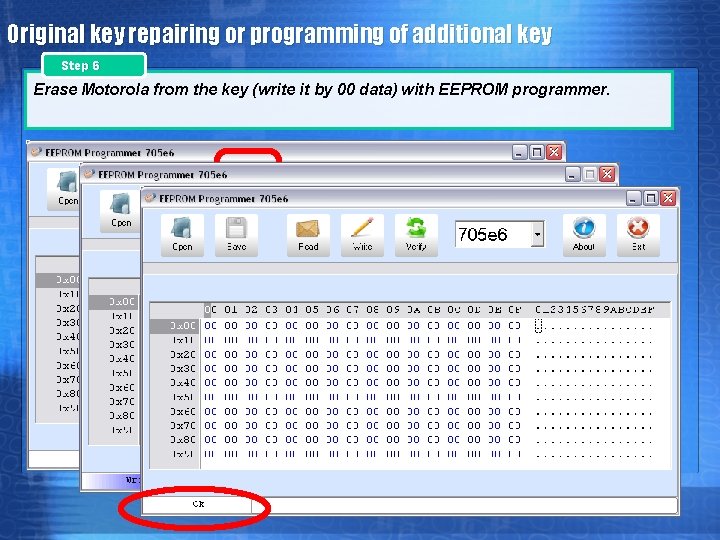

Original key repairing or programming of additional key Step 6 Erase Motorola from the key (write it by 00 data) with EEPROM programmer.

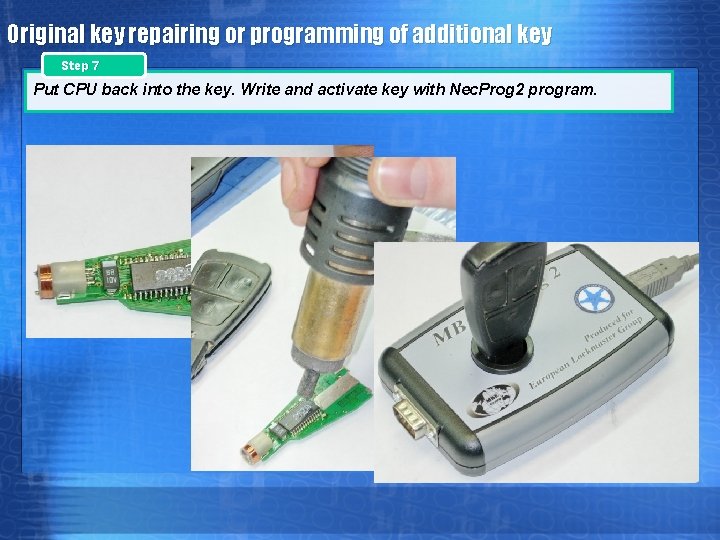

Original key repairing or programming of additional key Step 7 Put CPU back into the key. Write and activate key with Nec. Prog 2 program.

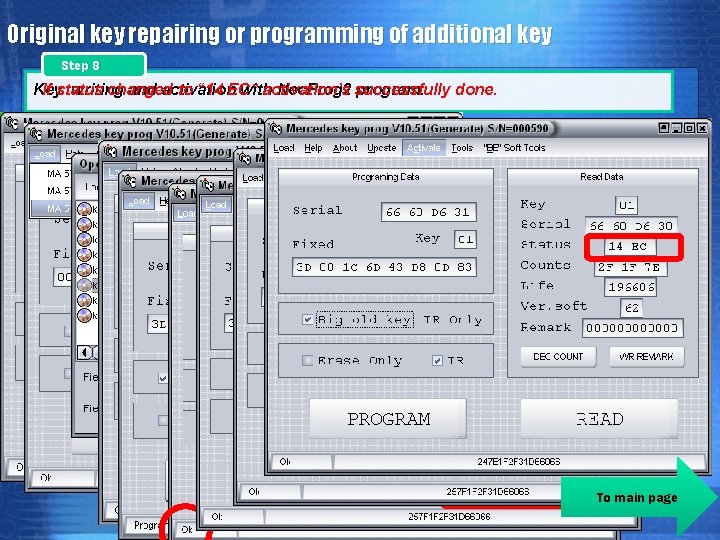

Original key repairing or programming of additional key Step 8 If status changed to “ 14 EC” activation’s done. Key writing and activation with Nec. Prog 2 successfully program. To main page

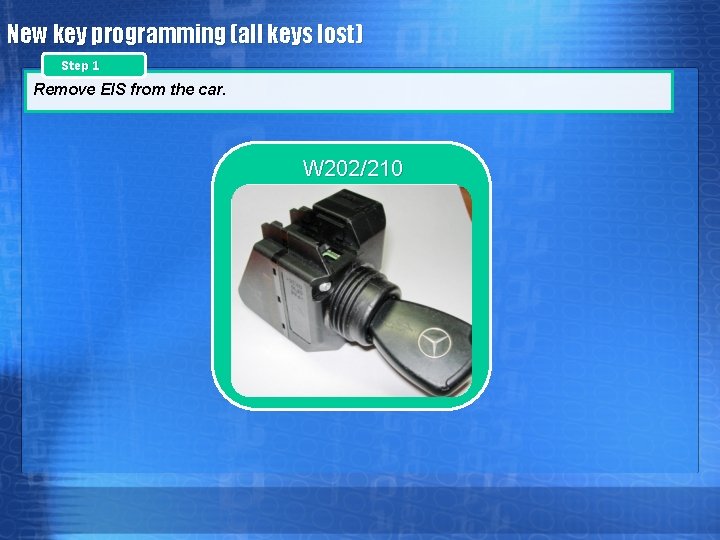

New key programming (all keys lost) Step 1 Remove EIS from the car. W 202/210

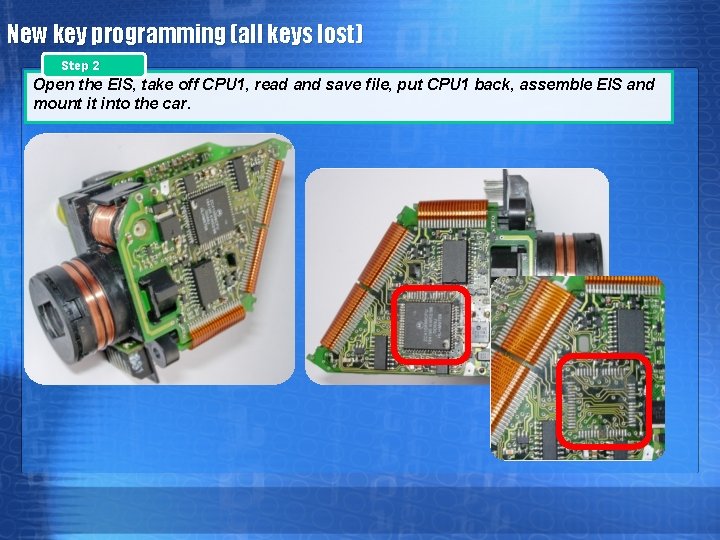

New key programming (all keys lost) Step 2 Open the EIS, take off CPU 1, read and save file, put CPU 1 back, assemble EIS and mount it into the car.

New key programming (all keys lost) Step 3. Open www. mbkeyonline. com web page. Select left option(full dump calculation). Upload EIS CPU 1 dump file. After uploading select ALL KEYS and PROCEED. Get all keys files.

New key programming (all keys lost) – erase key CPU before writing with EEPROM programmer. Step 4 Key Ifwriting activation with. Nec. Prog 2 program. statusand changed to “ 14 EC” activation’s successfully done. To main page

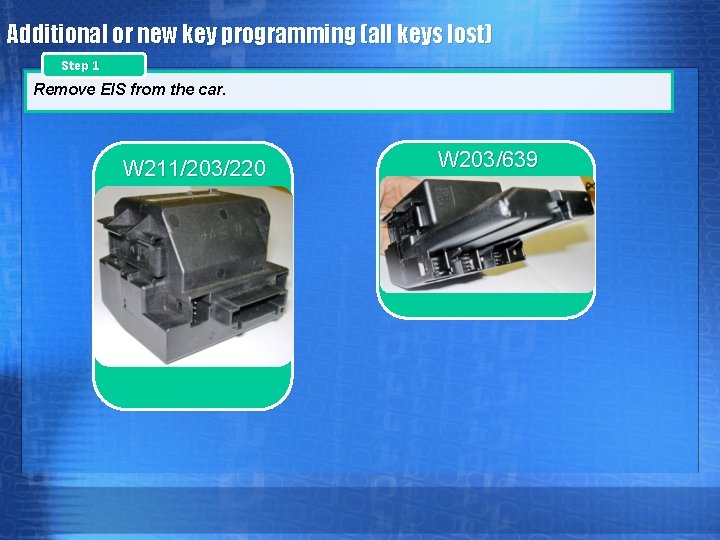

Additional or new key programming (all keys lost) Step 1 Remove EIS from the car. W 211/203/220 W 203/639

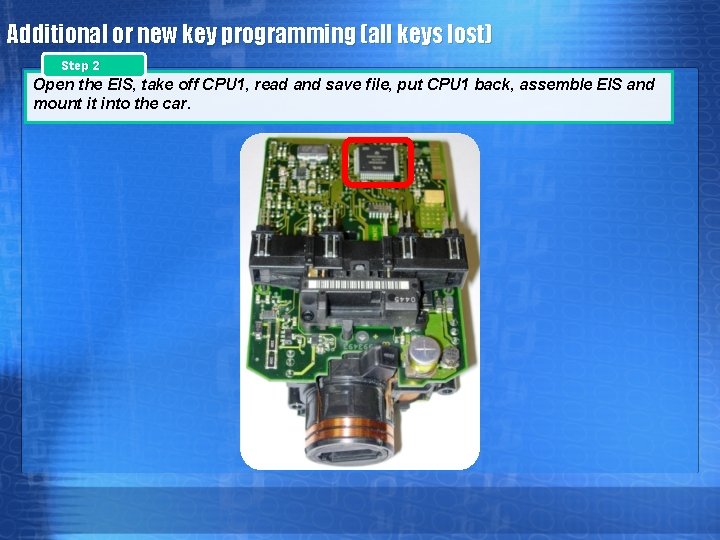

Additional or new key programming (all keys lost) Step 2 Open the EIS, take off CPU 1, read and save file, put CPU 1 back, assemble EIS and mount it into the car.

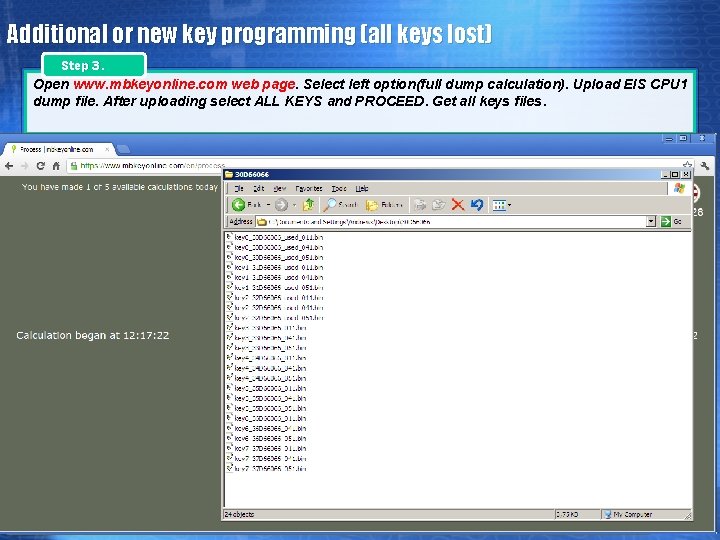

Additional or new key programming (all keys lost) Step 3. Open www. mbkeyonline. com web page. Select left option(full dump calculation). Upload EIS CPU 1 dump file. After uploading select ALL KEYS and PROCEED. Get all keys files.

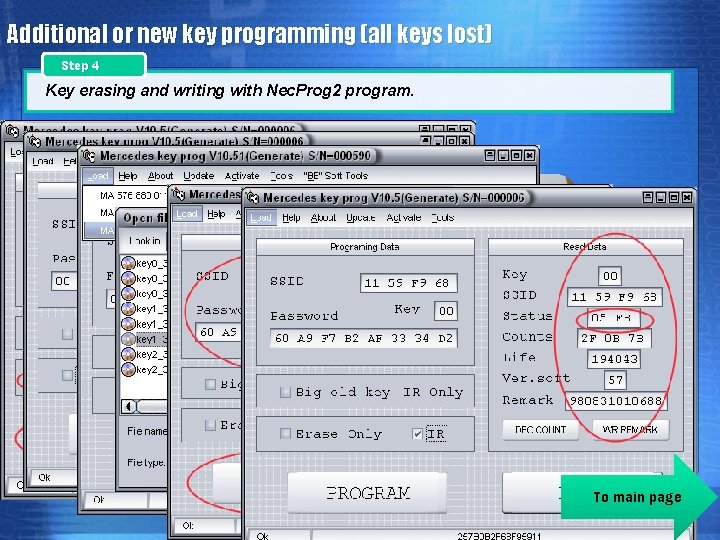

Additional or new key programming (all keys lost) Step 4 Key erasing and writing with Nec. Prog 2 program. To main page

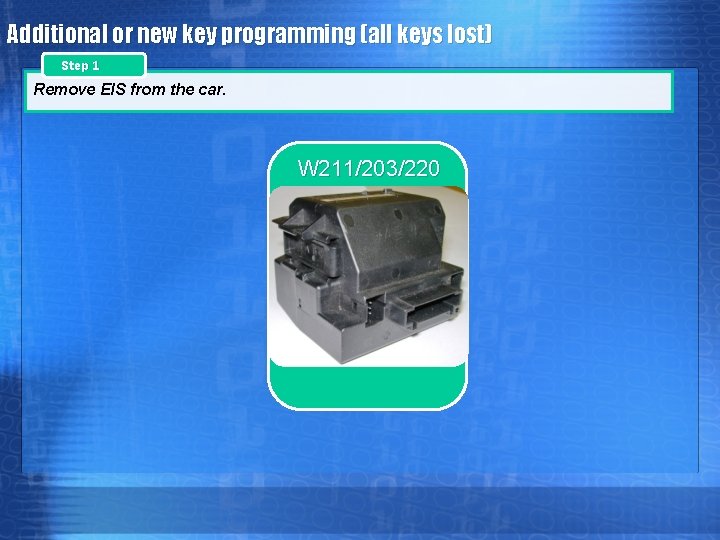

Additional or new key programming (all keys lost) Step 1 Remove EIS from the car. W 211/203/220

Additional or new key programming (all keys lost) Step 2 Open EIS, read CPU with X-Prog cable set + X-Prog. M-programmer via service connector of EIS. Connect by wires – for reading with X-Prog cable set. Assemble EIS, put it back in to the car.

Additional or new key programming (all keys lost) Step 3. Open www. mbkeyonline. com web page. Select left option(full dump calculation). Upload EIS CPU 1 dump file. After uploading select ALL KEYS and PROCEED. Get all keys files.

Additional or new key programming (all keys lost) Step 4 Key erasing and writing with Nec. Prog 2 program. To main page

Additional or new key programming (all keys lost) Step 1 Remove EIS from the car. SPRINTER

Additional or new key programming (all keys lost) Step 2 Open EIS, read CPU with + X-Prog. M-programmer via service connector of EIS. Connect by wires – like in R 260 S user manual. Assemble EIS, put it back in to the car. .

Additional or new key programming (all keys lost) Step 3. Open www. mbkeyonline. com web page. Select left option(full dump calculation). Upload EIS CPU 1 dump file. After uploading select ALL KEYS and PROCEED. Get all keys files.

Additional or new key programming (all keys lost) Step 4 Key erasing and writing with Nec. Prog 2 program. To main page

The car came with one working key (like in picture). Need to add 2 nd key.
