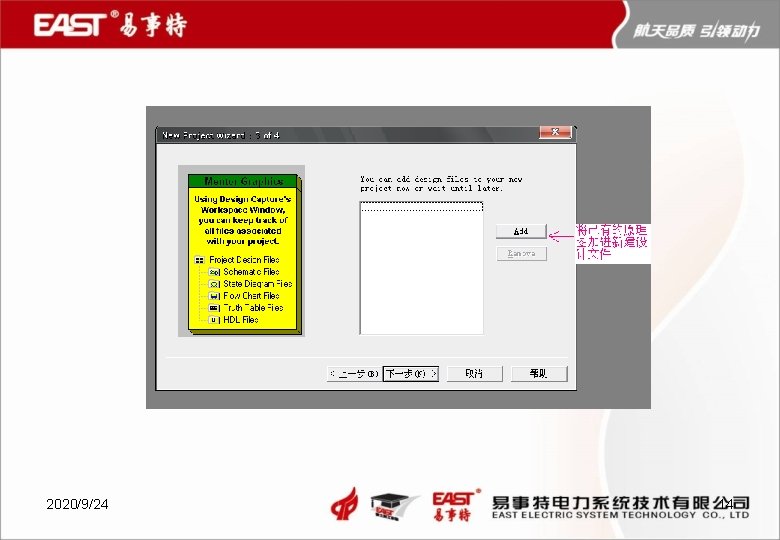

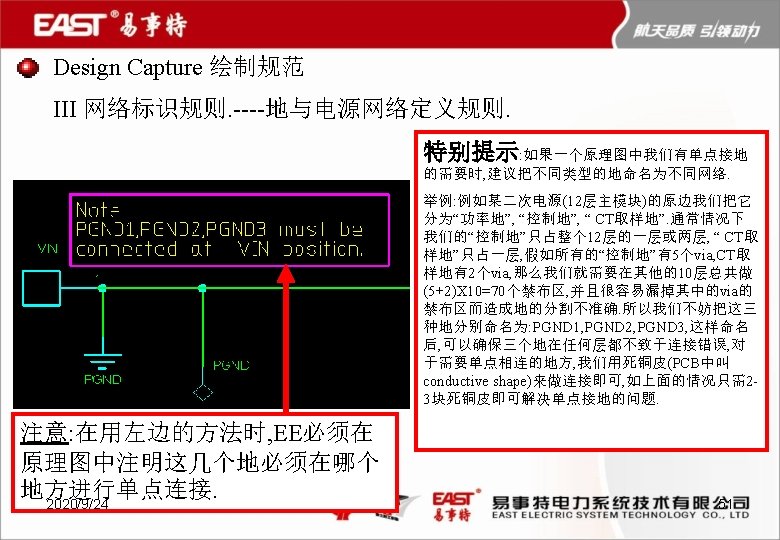

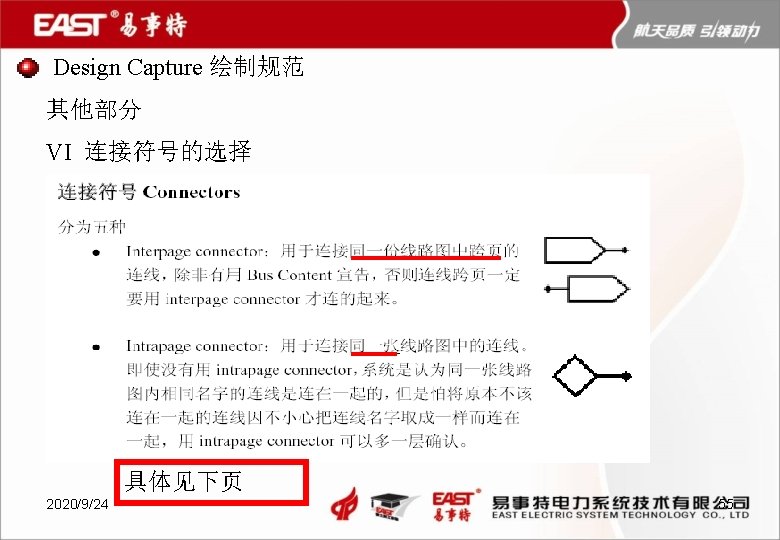

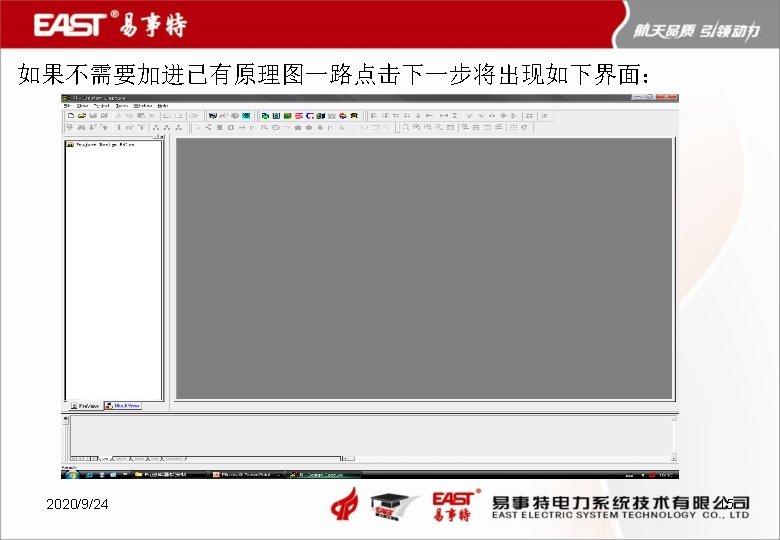

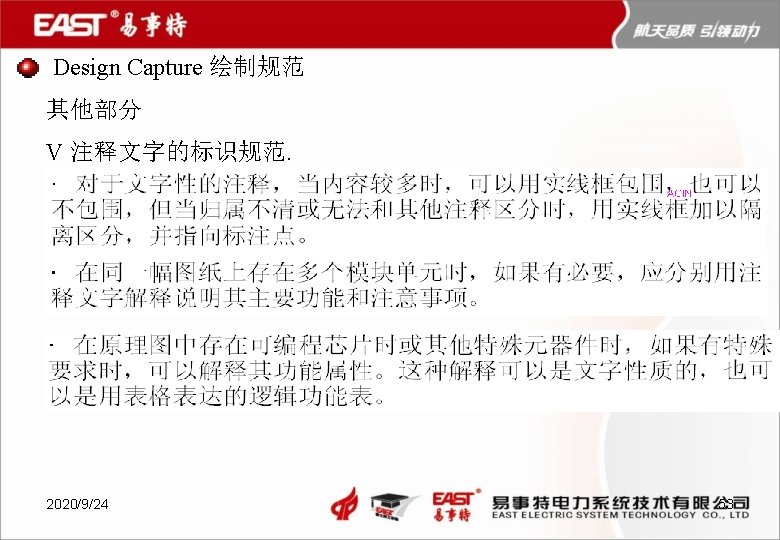

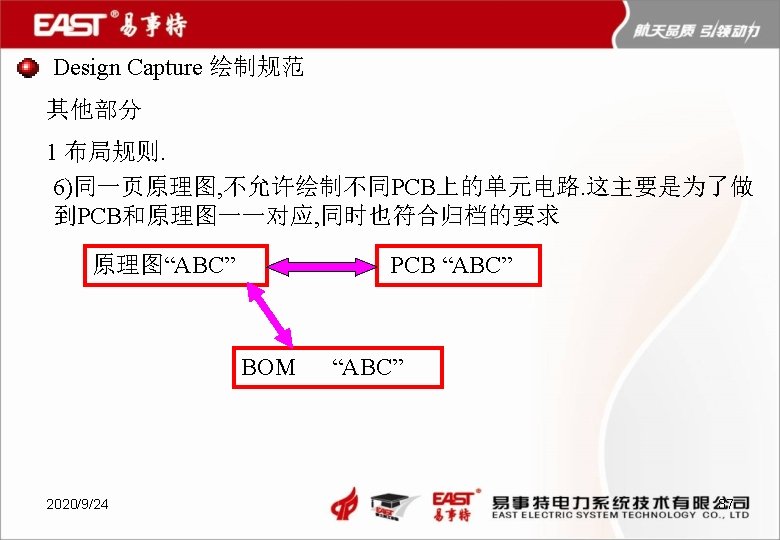

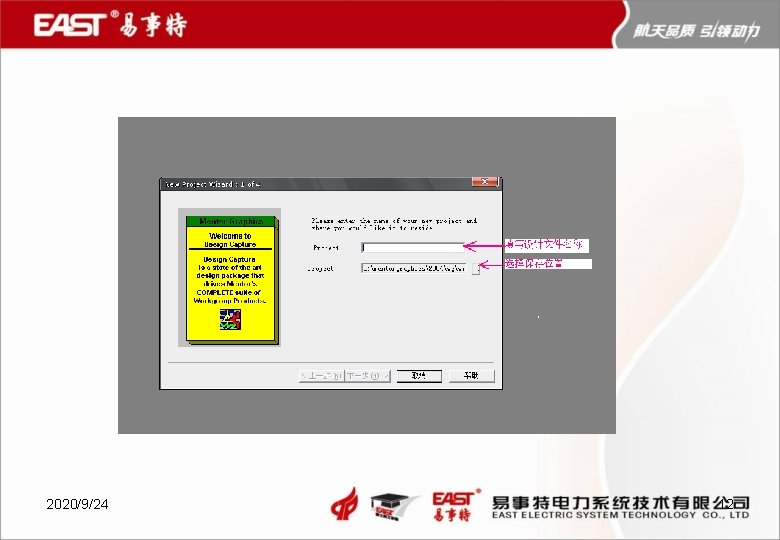

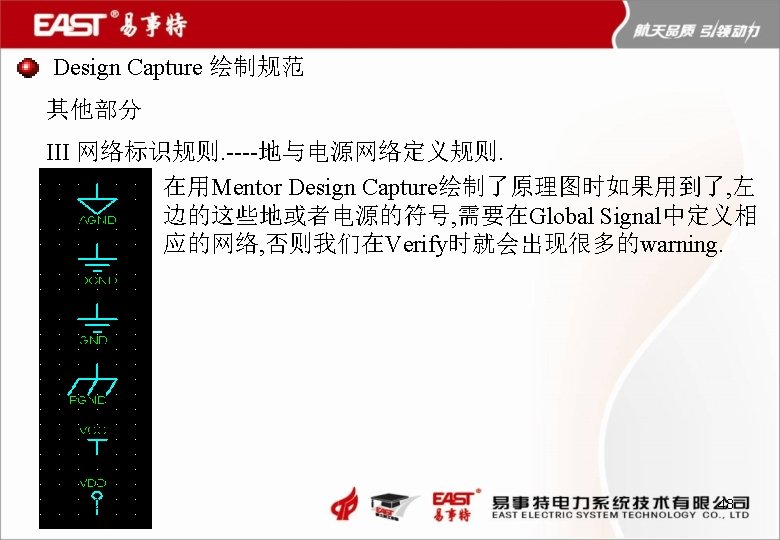

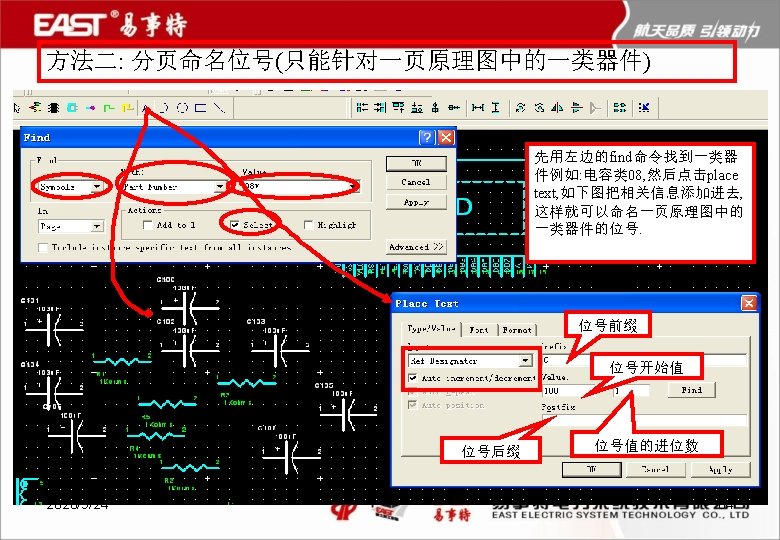

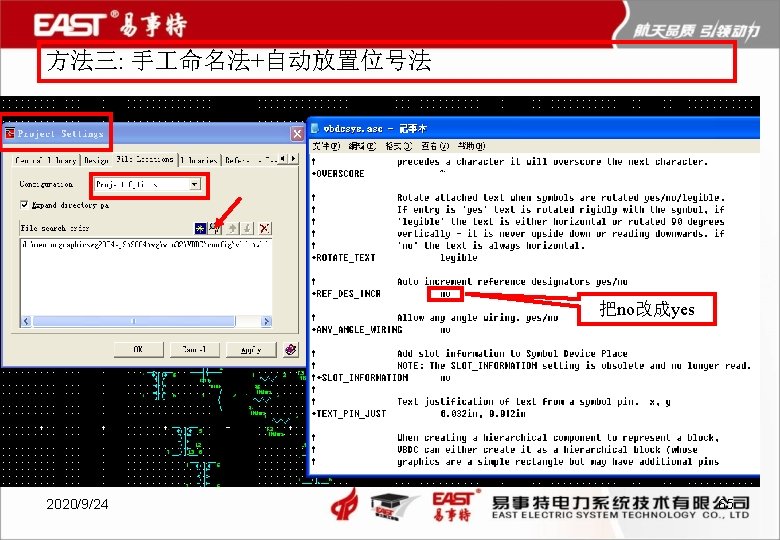

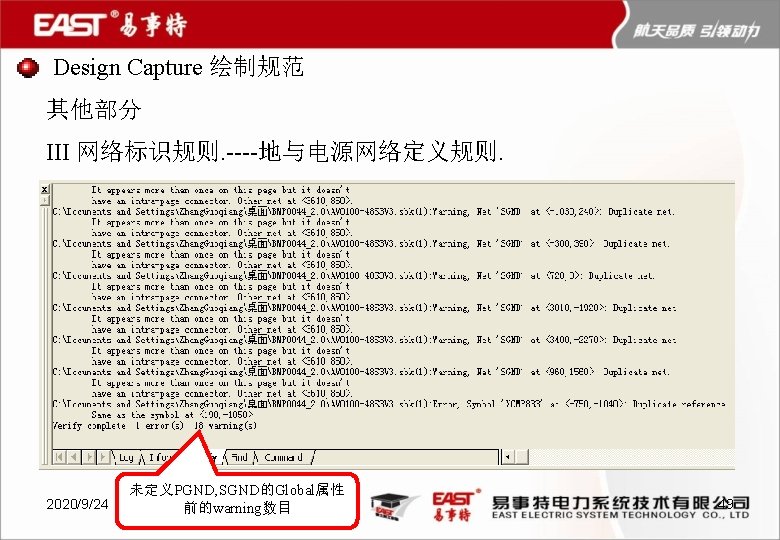

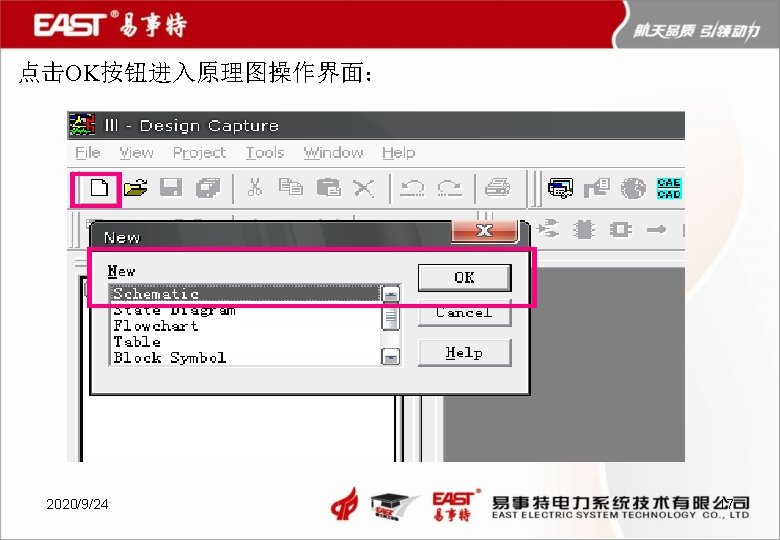

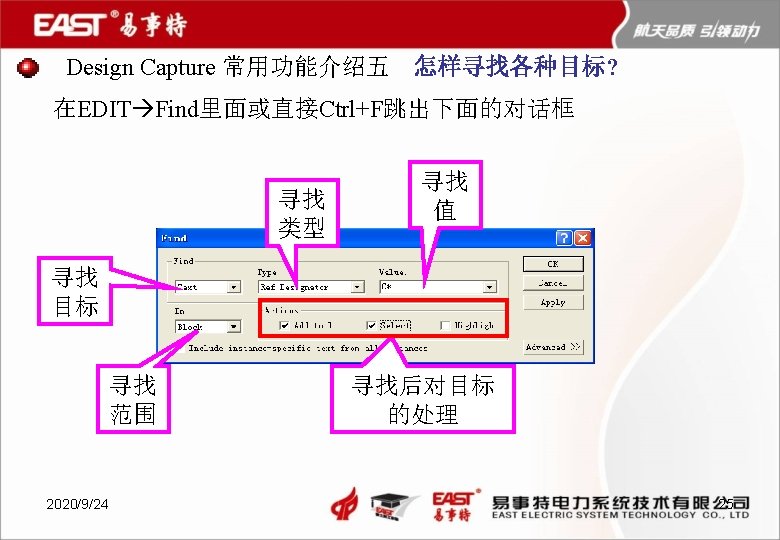

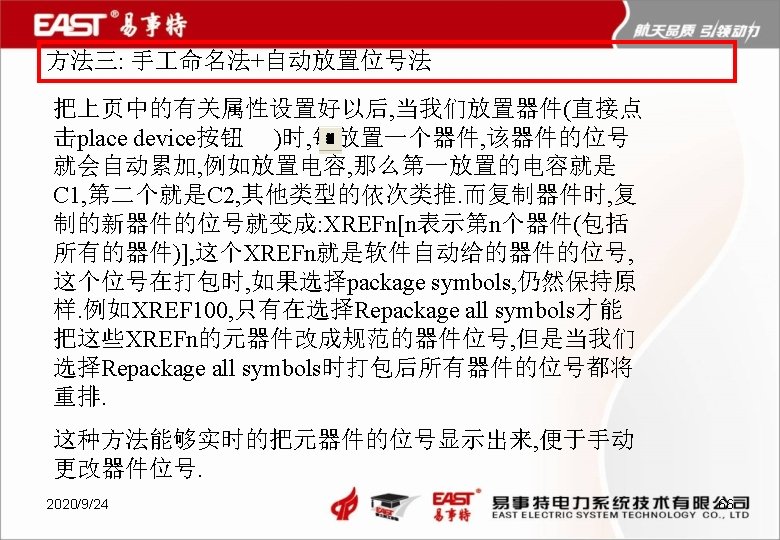

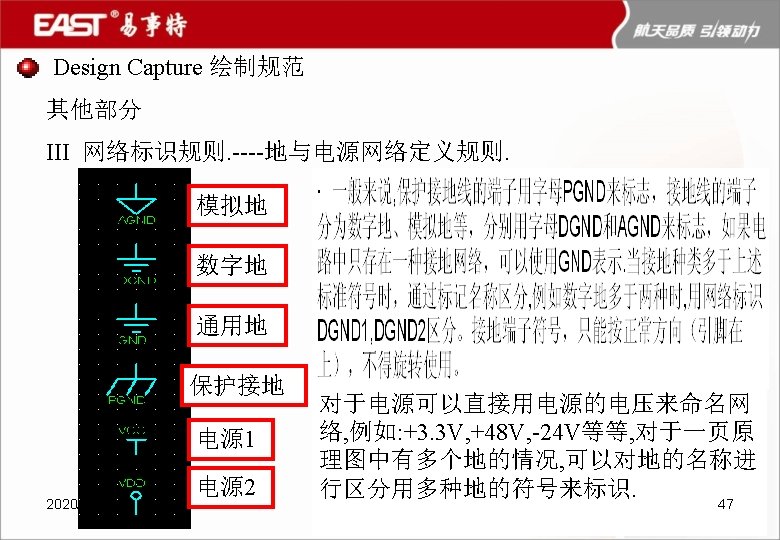

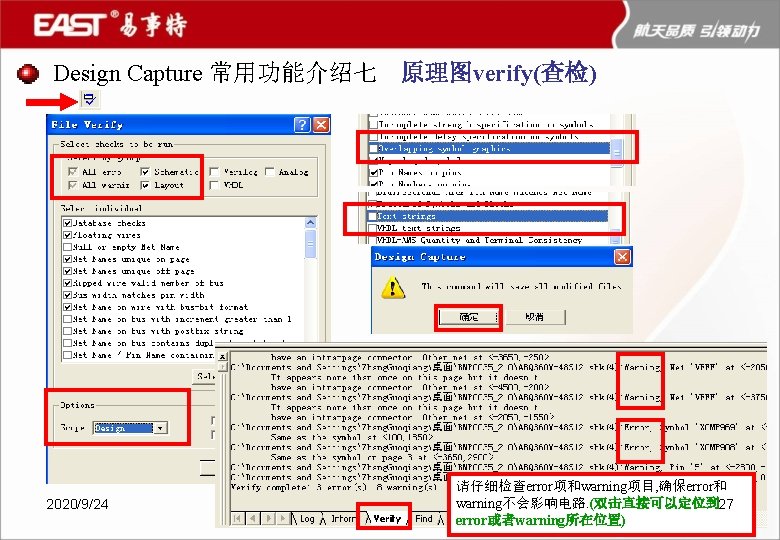

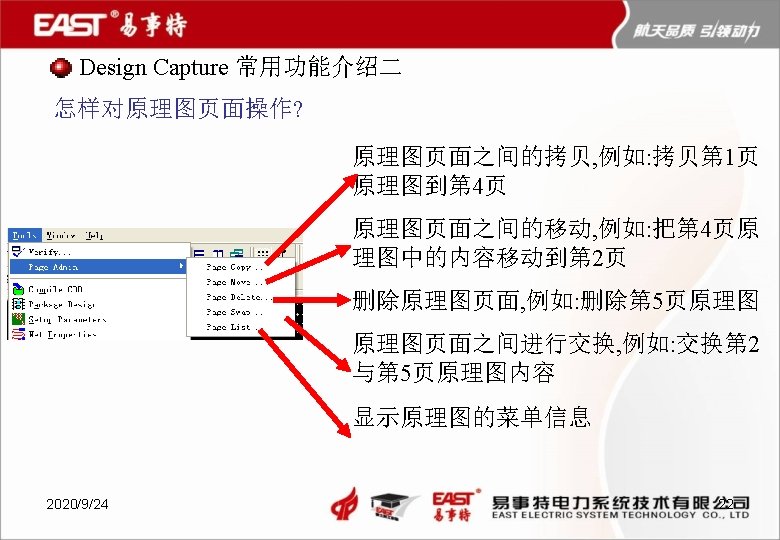

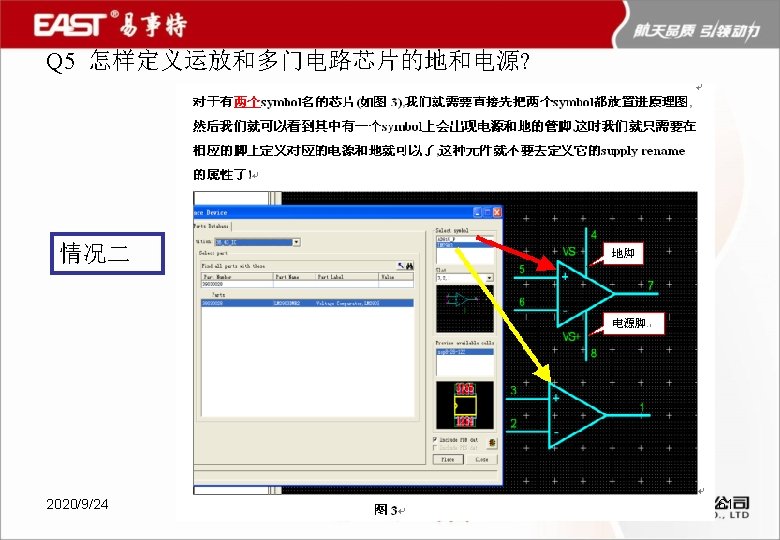

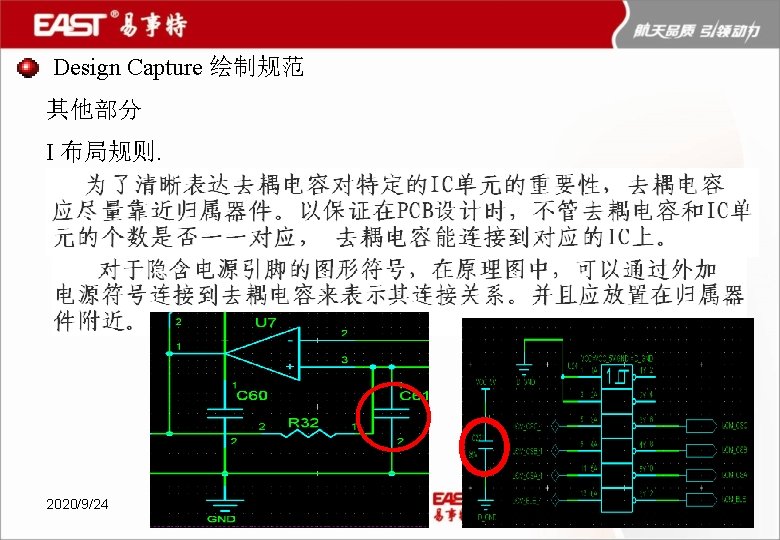

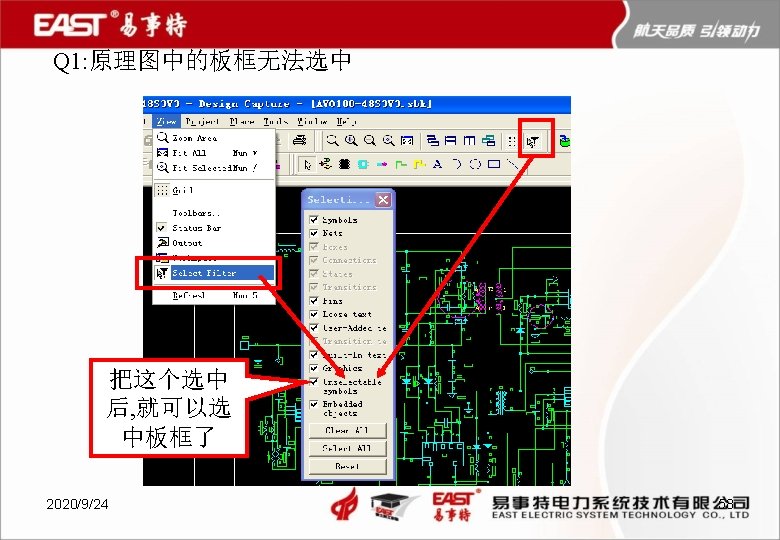

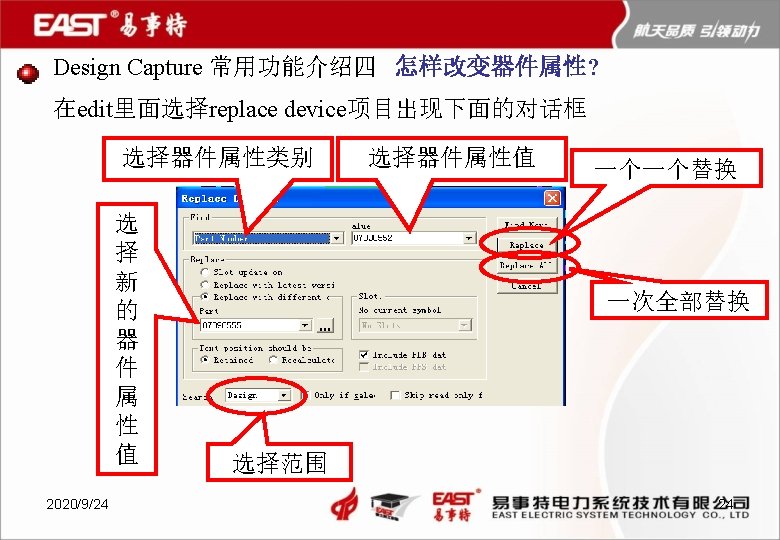

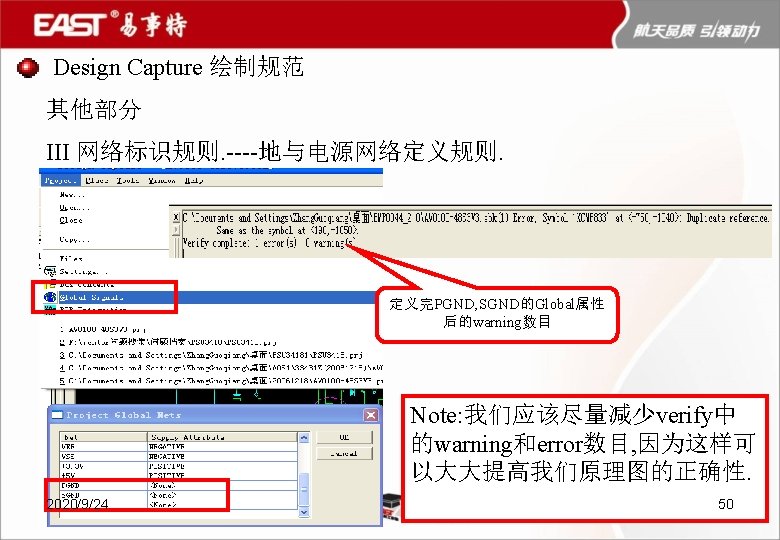

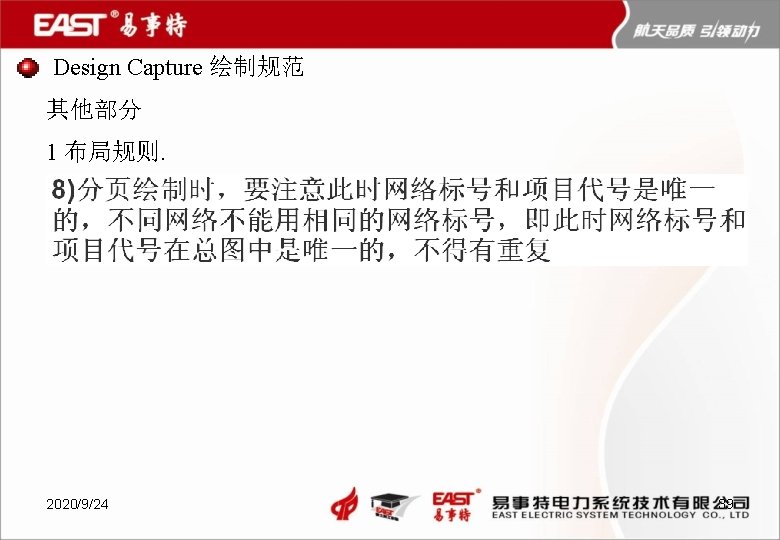

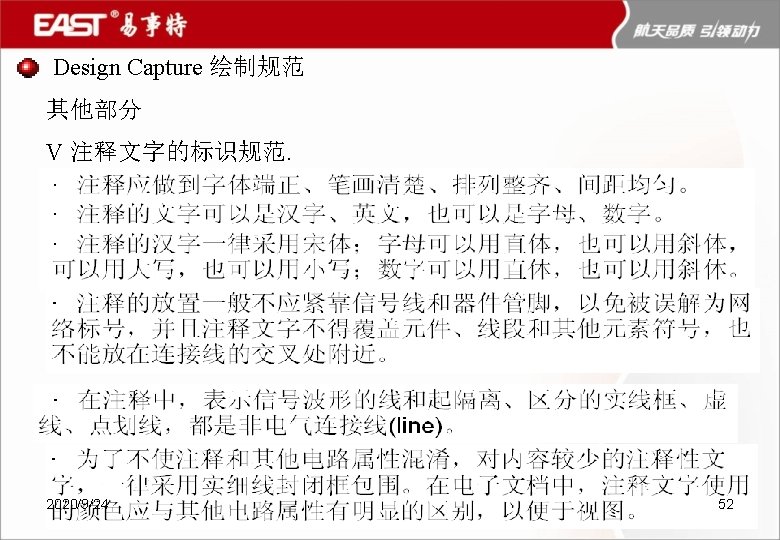

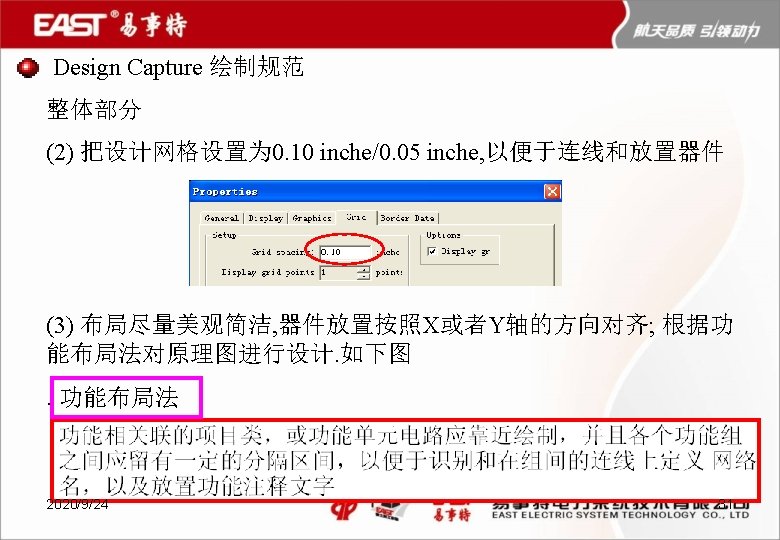

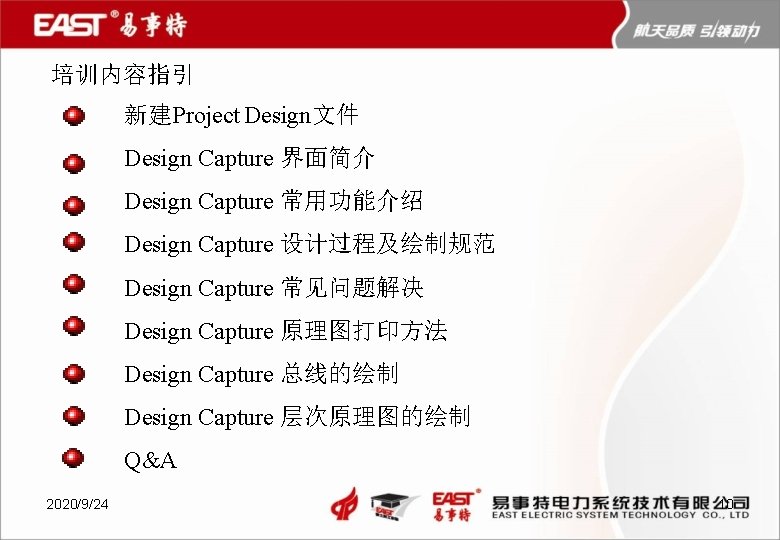

Mentor Design Capture 2009 1124 2020924 0 Mentor Slides: 72 Download presentation Mentor Design Capture 培训 2009年 11月24日 技术中心 2020/9/24 0 Mentor Graphics Design Capture 培训教程 2020/9/24 4 2020/9/24 6 2020/9/24 7 2020/9/24 8 培训内容指引 新建Project Design文件 Design Capture 界面简介 Design Capture 常用功能介绍 Design Capture 设计过程及绘制规范 Design Capture 常见问题解决 Design Capture 原理图打印方法 Design Capture 总线的绘制 Design Capture 层次原理图的绘制 Q&A 2020/9/24 10 新建Project Design文件操作步骤: 2020/9/24 11 2020/9/24 12 2020/9/24 13 2020/9/24 14 2020/9/24 18 Design Capture 界面简介 2020/9/24 20 Design Capture 常用功能介绍一 查找 信息 2020/9/24 21 2020/9/24 32 Design Capture 绘制规范 其他部分 I 布局规则. 2020/9/24 33 Design Capture 绘制规范 其他部分 1 布局规则. 2020/9/24 34 Design Capture 绘制规范 其他部分 1 布局规则. 2020/9/24 35 Design Capture 绘制规范 其他部分 1 布局规则. 2020/9/24 36 Design Capture 绘制规范 其他部分 1 布局规则. 2020/9/24 38 Design Capture 绘制规范 其他部分 1 布局规则. 2020/9/24 39 Design Capture 绘制规范 其他部分 1 布局规则. 2020/9/24 40 Design Capture 绘制规范 其他部分 I 布局规则. 2020/9/24 41 Design Capture 绘制规范 其他部分 II 布线规则. 2020/9/24 42 Design Capture 绘制规范 其他部分 II 布线规则. 2020/9/24 43 Design Capture 绘制规范 其他部分 III 网络标识规则. 2020/9/24 44 Design Capture 绘制规范 其他部分 III 网络标识规则. 2020/9/24 45 Design Capture 绘制规范 其他部分 III 网络标识规则. 2020/9/24 46 2020/9/24 67 2020/9/24 70 谢谢 2020/9/24 71 Mentor design captureDesign thinking feedback capture gridHybrid capture 2Structured data captureParamecia use _________ to move and capture food.Repl capture/apply: memoryNon conducted pac ecgContoh value creation adalahFailure to senseCapture 2 proposalCad captureBeta radiationCapture the spreadTegrity lecture captureActivité de langue antigoneInternal captureHistory of motion captureRiver capture in geographyFeynman diagram electron captureExploring the water cycle capture sheet answersRave electronic data captureData capture methodsCritter captureKnowledge capture systemsSp_cdc_scanBrainware ocrInternal captureAutomatic data capturing devicesExploring the water cycle capture sheet answer keyCapture mode in pic microcontrollerOmp atomic captureTeresa menendez mdAzure database cdcWhat is itText data capture formsPerformance capture verfahrenKnowledge capture systemIs camera an electronic deviceMotion capture historyFeedback capture gridNebular captureWorkflow scanningLego serious play design thinkingSas bookrunner advanced analyticsElectron capture detectorAutomatic data capture methodsCreate deliver and capture valueSedgwick claim captureCapture toolContext captureDonovan parksTennis motion captureJing video captureCcp modules"keep in mind the following: a."Gamma decay equationData capture toolCns summer schoolActivesqxActive sqxU captureRequirements capture techniquesElectron capture exampleKnowledge capture techniquesActivity formulaAnimazooId capture wuFermiumLa phase 5Brown data captureTegrity lecture captureAgeaDigital time capture
