Menggambar Teknik Engineering Drawing Edit Lab Gam Tek

Menggambar Teknik (Engineering Drawing) Edit : Lab Gam. Tek TT-PNJ Semester I TA 2013~2014

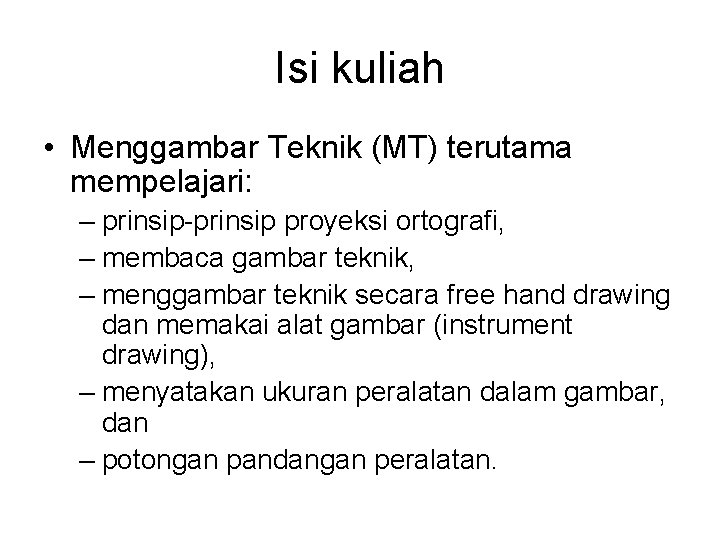

Isi kuliah • Menggambar Teknik (MT) terutama mempelajari: – prinsip-prinsip proyeksi ortografi, – membaca gambar teknik, – menggambar teknik secara free hand drawing dan memakai alat gambar (instrument drawing), – menyatakan ukuran peralatan dalam gambar, dan – potongan pandangan peralatan.

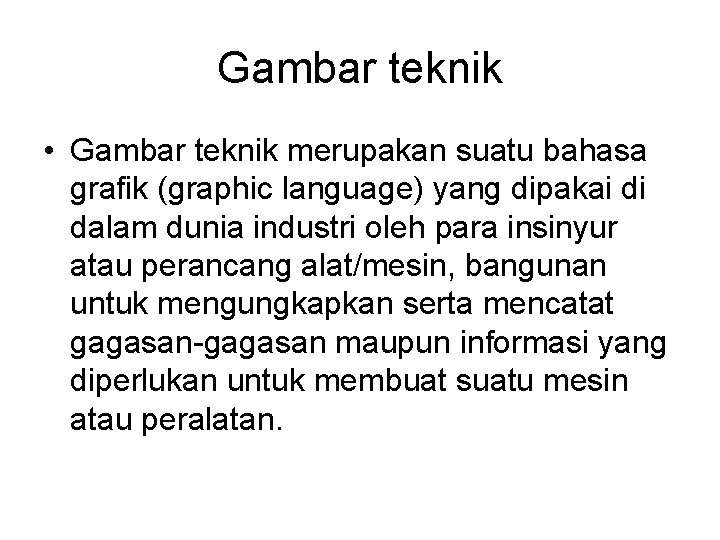

Gambar teknik • Gambar teknik merupakan suatu bahasa grafik (graphic language) yang dipakai di dalam dunia industri oleh para insinyur atau perancang alat/mesin, bangunan untuk mengungkapkan serta mencatat gagasan-gagasan maupun informasi yang diperlukan untuk membuat suatu mesin atau peralatan.

Drawing as a language

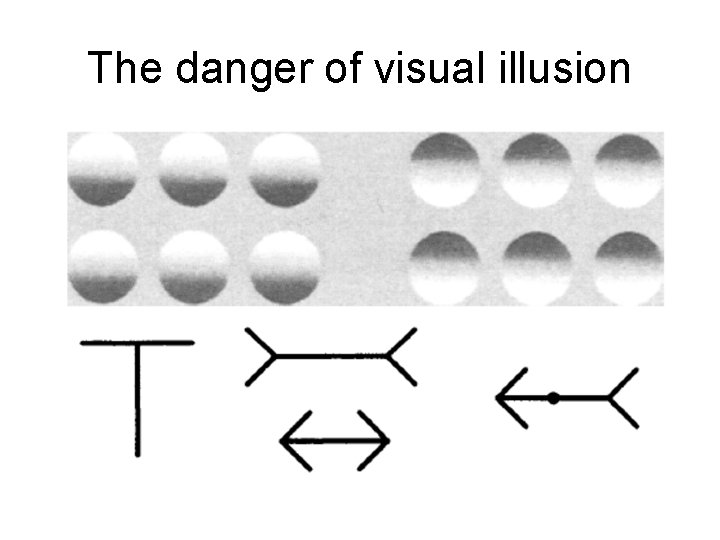

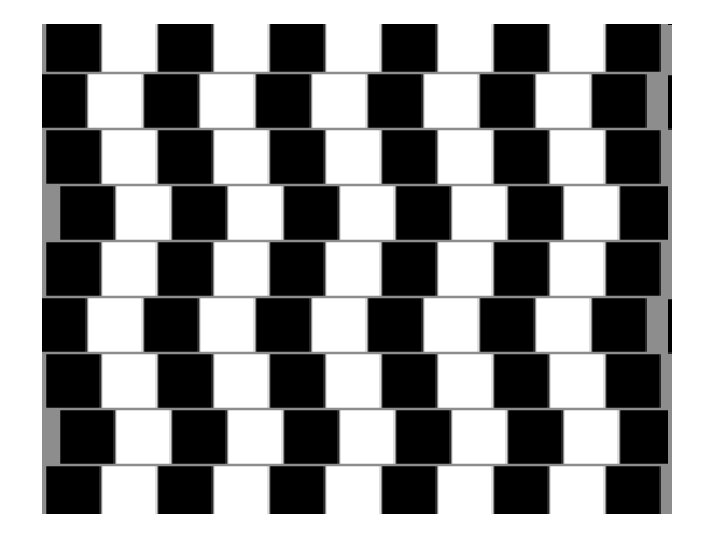

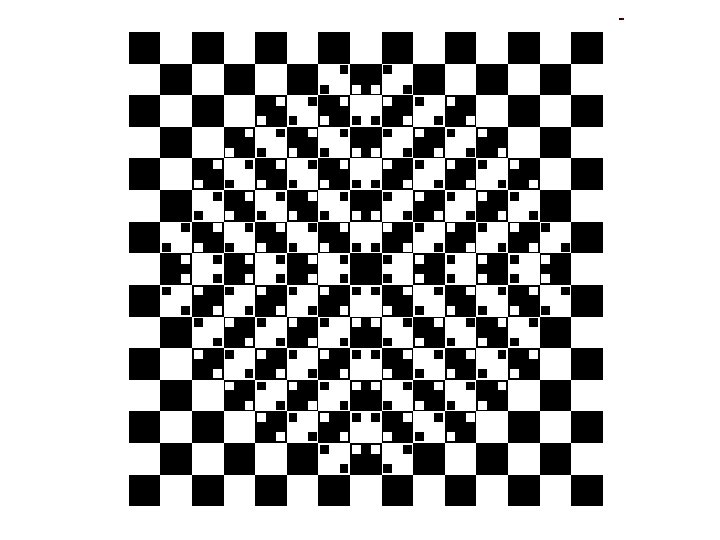

The danger of visual illusion

Representation, visualization and specification

Requirements of engineering drawings • Engineering drawings should be unambiguous and clear. For any part of a component there must be only one interpretation. • The drawing must be complete. The content of an engineering drawing must provide all the information for that stage of its manufacture. • The drawing must be suitable for duplication. A drawing is a specification which needs to be communicated. The information may be communicated electronically or in a hard copy format. • Drawings must be language-independent. • Drawings need to conform to standards. The 'highest' standards • are the ISO ones that are applicable worldwide.

Sizes and layout of drawing sheets

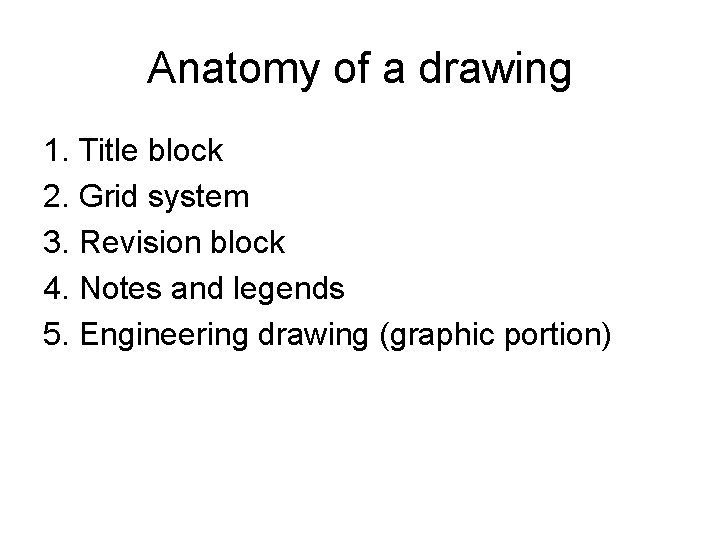

Anatomy of a drawing 1. Title block 2. Grid system 3. Revision block 4. Notes and legends 5. Engineering drawing (graphic portion)

Title block

Grid system

Revision block

Changes

Notes and Legend

Yang perlu ada dalam lembar gambar (drawing sheet) 1. Title block. 2. Frame for limiting the drawing space. 3. Centring marks. 4. Orientation marks. 5. Metric reference graduation. 6. Grid reference system. 7. Trimming marks.

A typical blank sheet used for engineering drawing

categories of drawings. 1) piping and instrument drawings (P&IDs), 2) electrical single lines and schematics, 3) electronic diagrams and schematics, 4) logic diagrams and prints, and 5) fabrication, construction, and architectural drawings.

piping and instrument drawings (P&IDs)

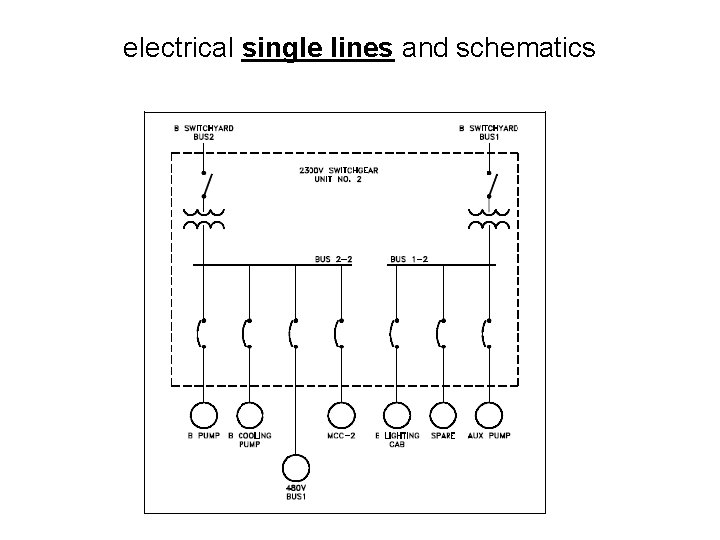

electrical single lines and schematics

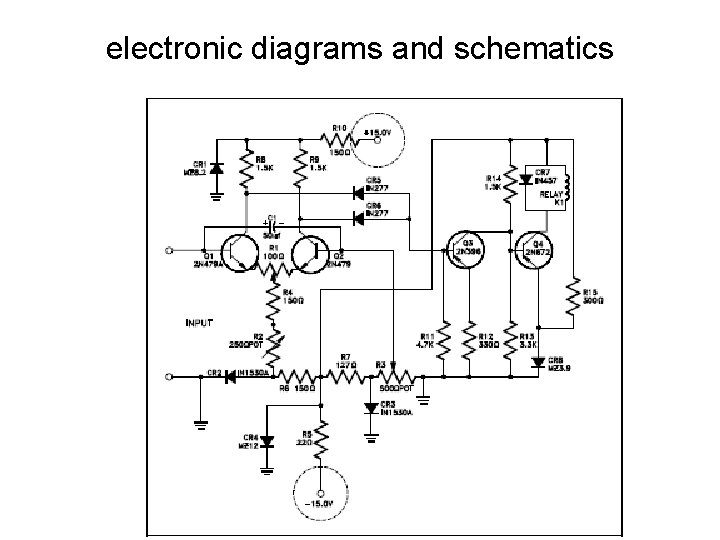

electronic diagrams and schematics

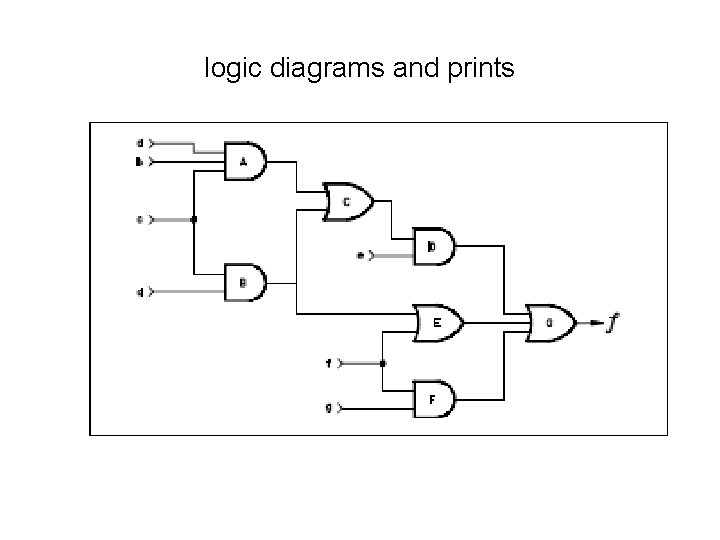

logic diagrams and prints

fabrication, construction, and architectural drawings

Types of drawing 1. A design layout drawing (or design scheme) which represents in broad principles feasible solutions which meet the design requirements. 2. A detail drawing (or single part drawing) shows details of a single artefact and includes all the necessary information required for its manufacture, e. g. the form, dimensions, tolerances, material, finishes and treatments. 3. A tabular drawing shows an artefact or assembly typical of a series of similar things having a common family form but variable characteristics all of which can be presented in tabular form, e. g. a family of bolts.

4. An assembly drawing shows how the individual parts or subassemblies of an artefact are combined together to make the assembly. An item list should be included or referred to. An assembly drawing should not provide any manufacturing details but merely give details of how the individual parts are to be assembled together. 5. A combined drawing is a combination of detail drawings, assembly drawings and an item list. It represents the constituent details of the artefact parts, how they are manufactured, etc. , as well as an assembly drawing and an accompanying item list.

6. An arrangement drawing can be with respect to a finished product or equipment. It shows the arrangement of assemblies and parts. It will include important functional as well as performance requirements features. An installation drawing is a particular variation of an arrangement drawing which provides the necessary details to affect installation of typically chemical equipment. 7. A diagram is a drawing depicting the function of a system, typically electrical, electronic, hydraulic or pneumatic that uses symbology. 8. An item list, sometimes called a parts list, is a list of the component parts required for an assembly. An item list will either be included on an assembly drawing or a separate drawing which the assembly drawing refers to. 9. A drawing list is used when a variety of parts make up an assembly and each separate part or artefact is detailed on a separate drawing. All the drawings and item lists will be crossreference on a drawing list.

An assembly drawing of a small hand vice

A detailed drawing of a small hand vice

Manual and machine drawing • Manual drawing: draughtsman • Machine drawing: computer (Auto. CAD, etc)
