MENDELIAN INHERITANCE 2002 Genotype Phenotype Locus Allele Homozygote
- Slides: 62
MENDELIAN INHERITANCE 2002 • • Genotype Phenotype Locus Allele Homozygote/ Heterozygote Compound heterozygote Proband

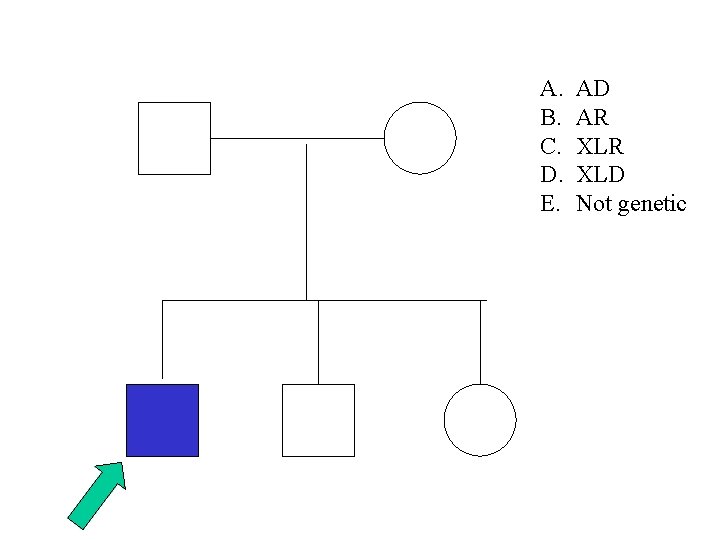

A. B. C. D. E. AD AR XLD Not genetic
Mozart’s Piano Concerto in Amajor is Köchel number • • • A B C D E K 365 K 450 K 482 K 488 K 491
Clinical vignette • S G: 20 yo college student – Spontaneous rupture of the common iliac artery – Friable tissues, extensive bleeding – Past history: • Easy bruising • Lax joints (fingers, elbows, left shoulder) • D G: 53 yo mother of SG – Spontaneous perforation of the sigmoid colon – Past history • Easy bruising • No joint laxity • Two normal pregnancies
Laboratory analysis • Skin fibroblasts: abnormal type III collagen • COL 3 A 1 DNA analysis: Gly 25 Val • Diagnosis: Ehlers-Danlos Syndrome, Type IV
Pedigree symbols
Autosomal dominant inheritance • • Vertical Males and females affected Males and females transmit Each affected has one affected parent…
NF 1 Neurofibroma Café-au-lait
Lisch Nodules
Neurofibromatosis 1 variable expressivity • • Café-au-lait spots Axillary freckling Lisch nodules Cutaneous neurofibromas Plexiform neurofibromas Scoliosis CNS tumors
Marfan syndrome
Marfan ectopia lentis
Marfan life expectancy
Marfan Syndrome variable expressivity
Incomplete penetrance AD Erythermalgia
Achondroplasia
What is the risk that this couple’s child will have achondroplasia ? • • • A B C D E ¼ ½ ¾ 1 0
Achondroplasia mutations in FGFR 3

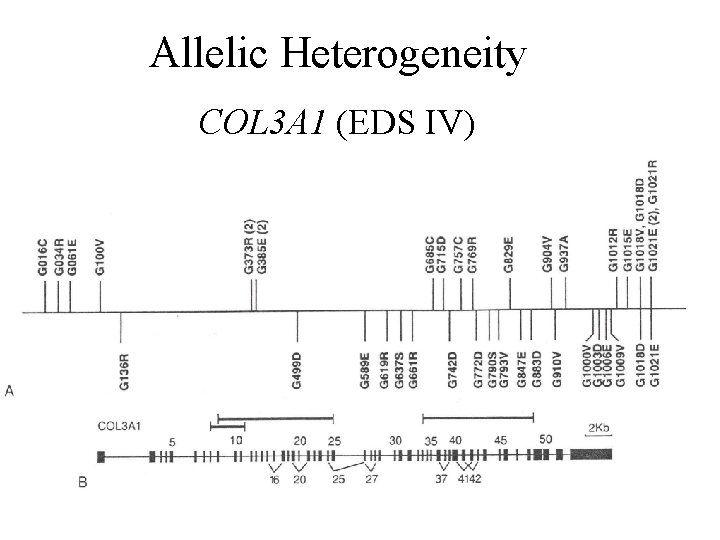

Allelic Heterogeneity COL 3 A 1 (EDS IV)

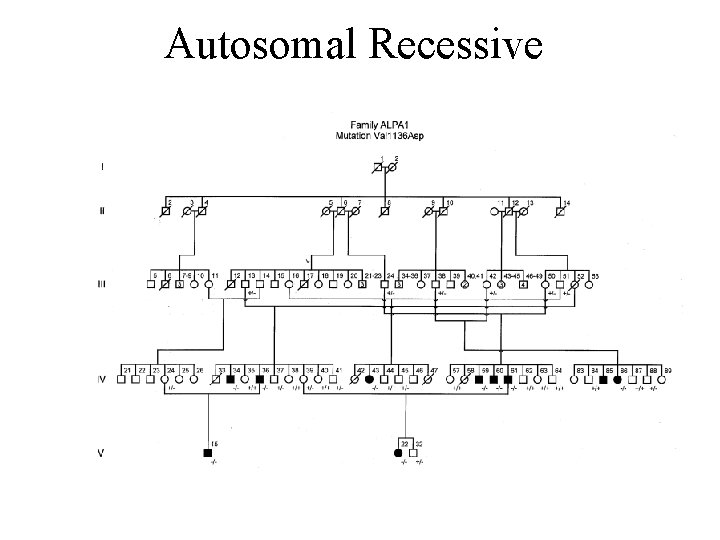

Autosomal Recessive

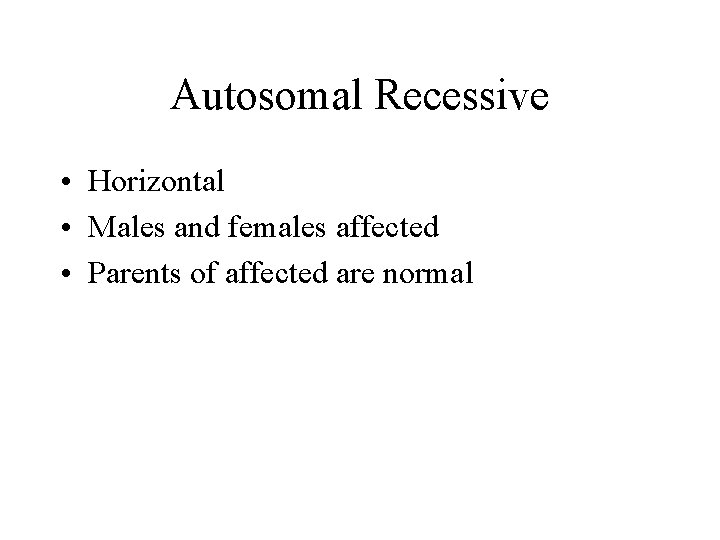

Autosomal Recessive • Horizontal • Males and females affected • Parents of affected are normal
Autosomal recessive
A. B. C. D. E. AD AR XLD Not genetic

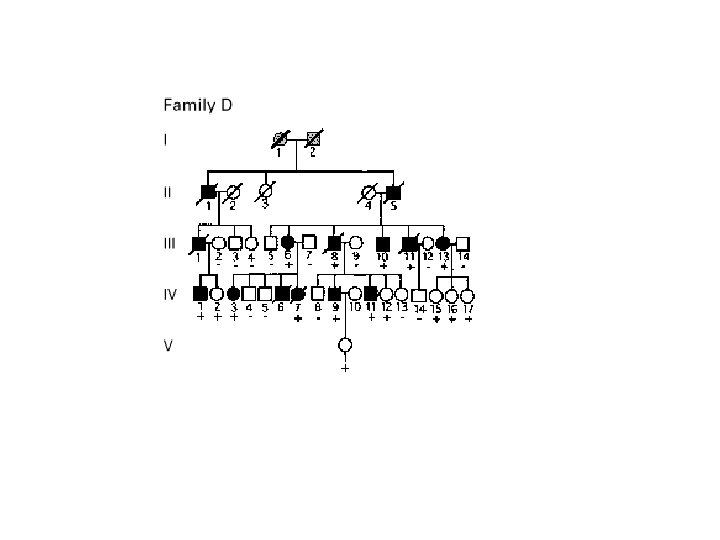

Locus Heterogeneity congenital deafness IV-1, 2, 3, 4, 5, 6 are all double heterozygotes
X-linked recessive
X-linked recessive inheritance • • • “Diagonal” Males affected… Transmitted by carrier females NO male-to-male transmission Daughters of affected males are obligate carriers
X-linked recessive inheritance
X-linked dominant
X-linked NOT sex-linked

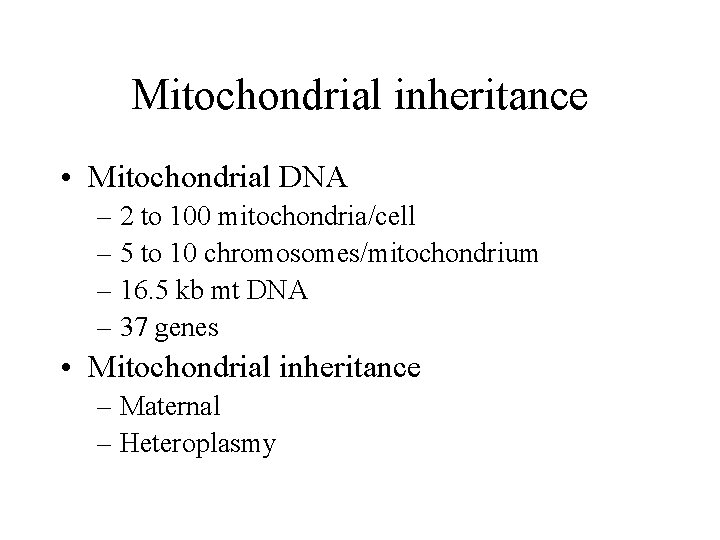

Mitochondrial inheritance • Mitochondrial DNA – 2 to 100 mitochondria/cell – 5 to 10 chromosomes/mitochondrium – 16. 5 kb mt DNA – 37 genes • Mitochondrial inheritance – Maternal – Heteroplasmy
MERRF

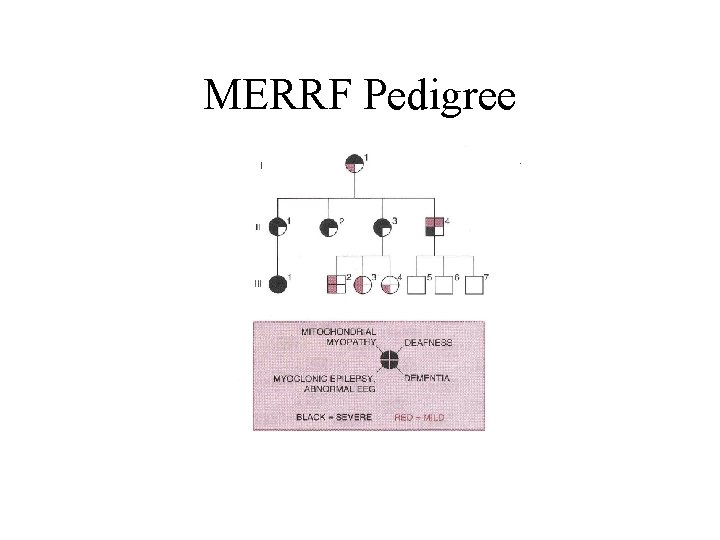

MERRF Pedigree
Heteroplasmy
Myotonic Muscular Dystrophy • Most common inherited muscular dystrophy of adults • Muscle wasting—face, neck, distal muscles • Myotonia • Cardiac and smooth muscle affected • Cataracts • Immunoglobulin abnormalities • Insulin resistance • Occ. Mild MR
Autosomal dominant ANTICIPATION
DENIAL AIN’T JUST A RIVER IN EGYPT -Rap song
The absence of evidence is NOT equivalent to evidence of absence
Triplet (CTG) Repeats

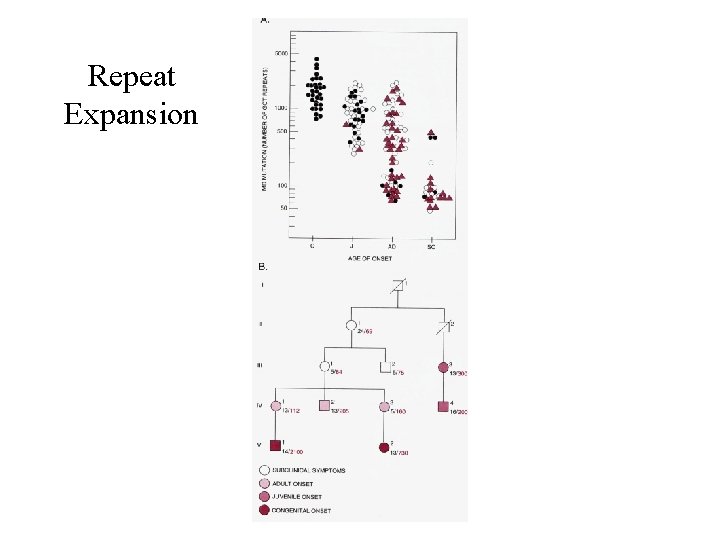

Repeat Expansion
Triplet Repeat Diseases
Pathogenesis of Myotonic Dystrophy • Loss of Function – Haploinsufficiency of DMPK – Cis-chromatin effects
Cis-chromatin effects
Pathogenesis of Myotonic Dystrophy • Loss of Function – Haploinsufficiency of DMPK – Cis-chromatin effects • Gain of Function
Gain of Function

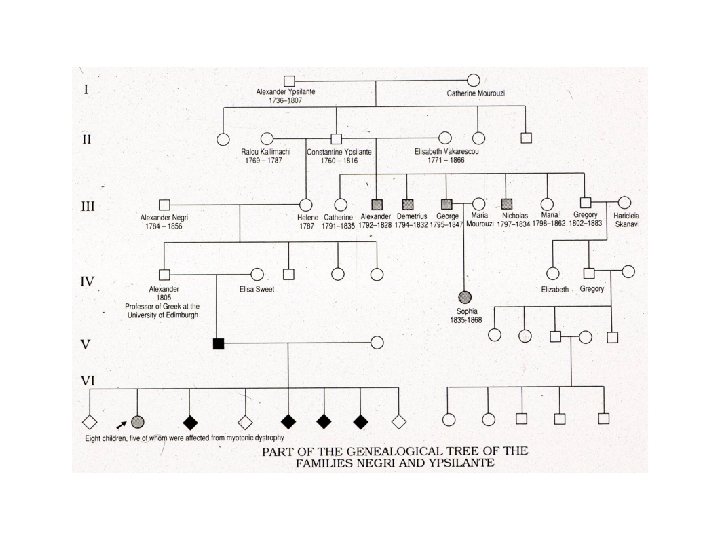

Ypsilanti
Demetrius Ypsilanti
Alexander Ypsilanti
