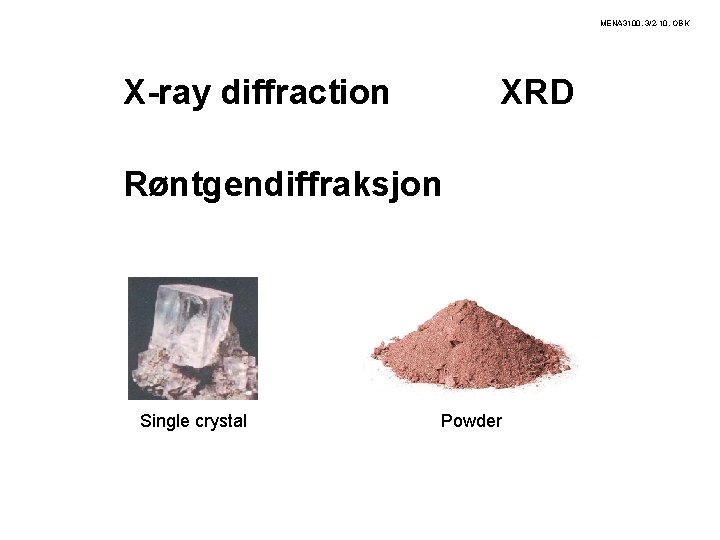

MENA 3100, 3/2 -10, OBK X-ray diffraction XRD Røntgendiffraksjon Single crystal Powder

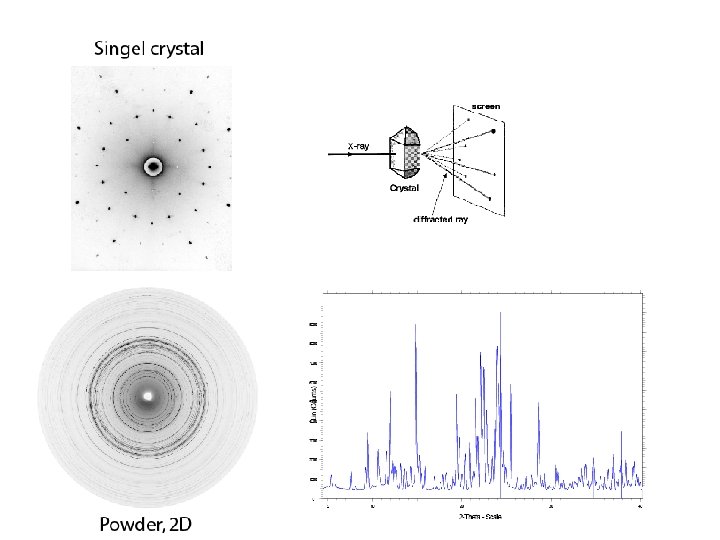

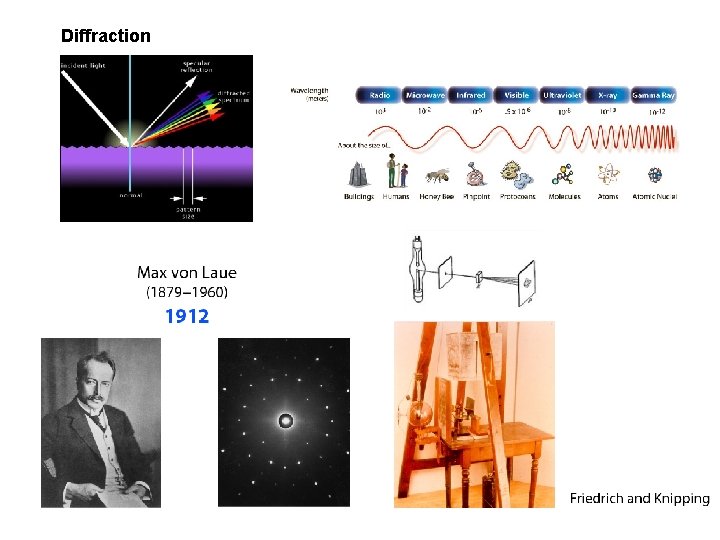

Diffraction

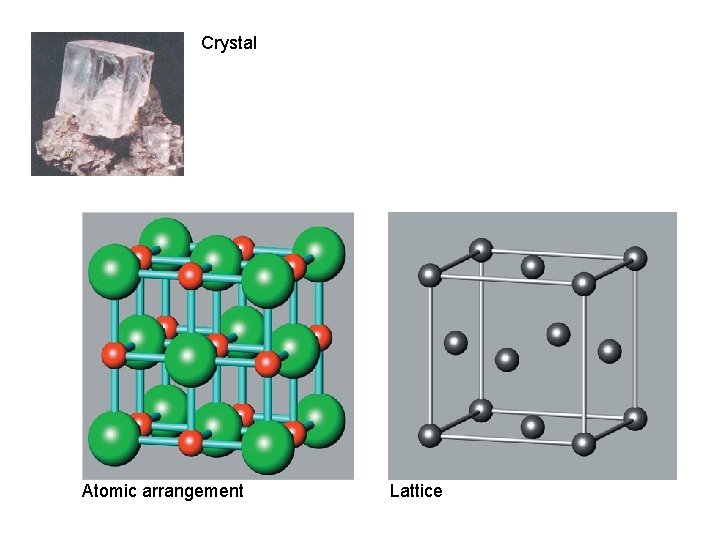

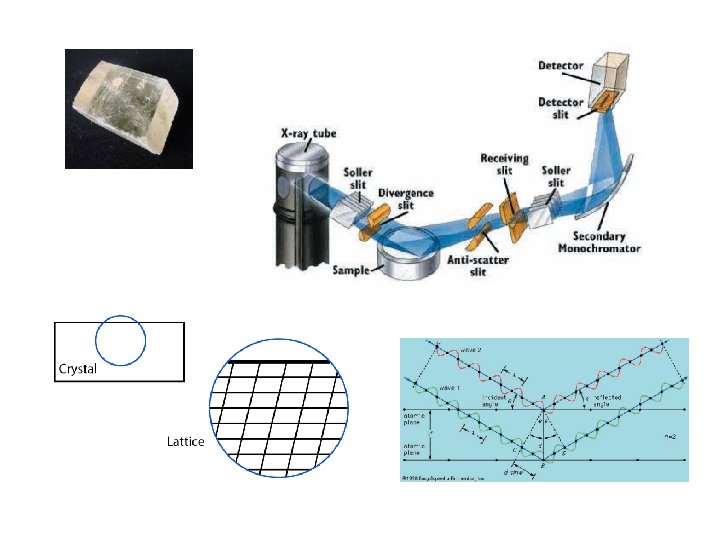

Crystal Atomic arrangement Lattice

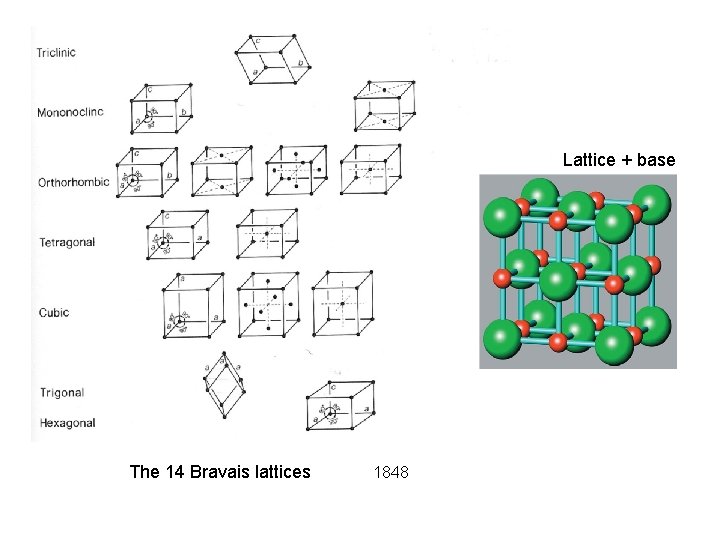

Lattice + base The 14 Bravais lattices 1848

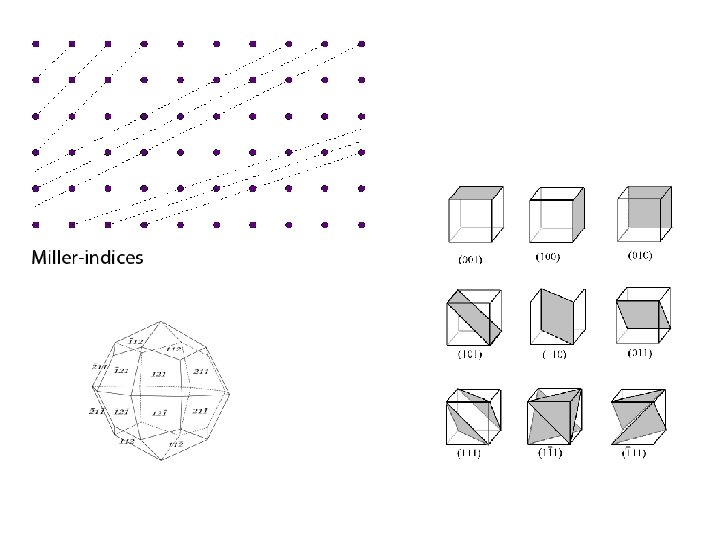

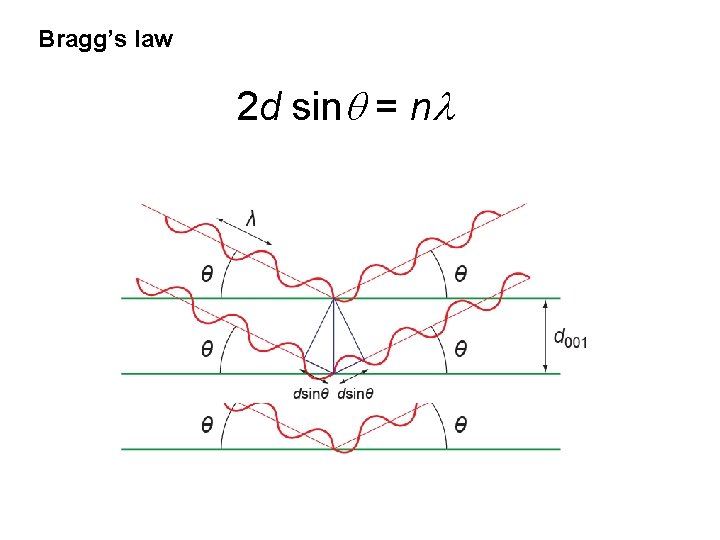

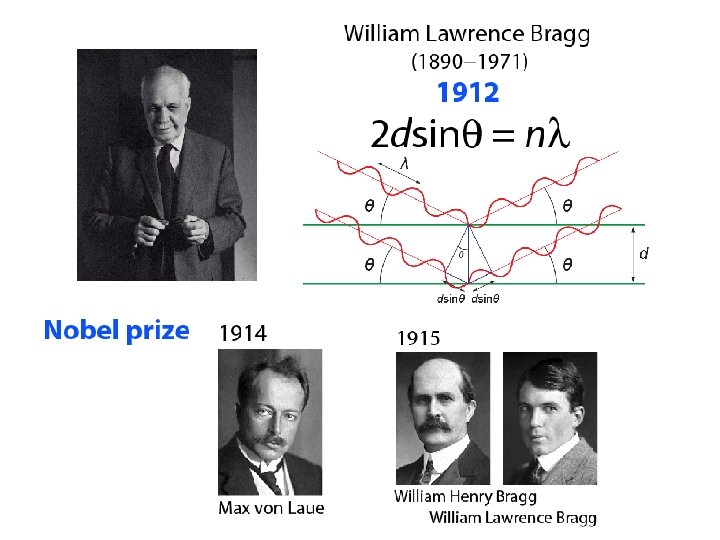

Bragg’s law 2 d sinq = nl

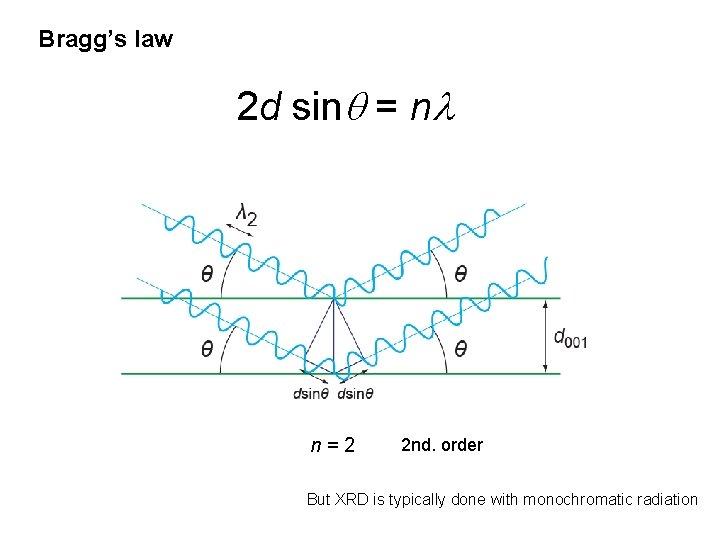

Bragg’s law 2 d sinq = nl n=2 2 nd. order But XRD is typically done with monochromatic radiation

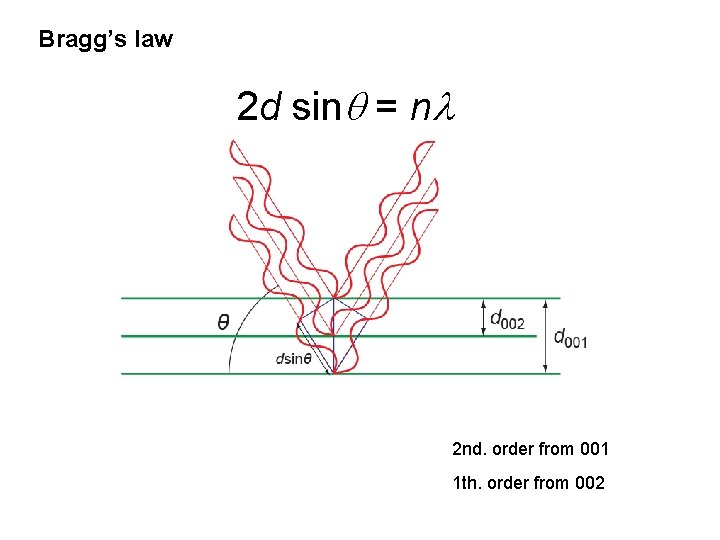

Bragg’s law 2 d sinq = nl 2 nd. order from 001 1 th. order from 002

The 14 Bravais lattices Face centered cubic lattice g-iron Na. Cl g-brass

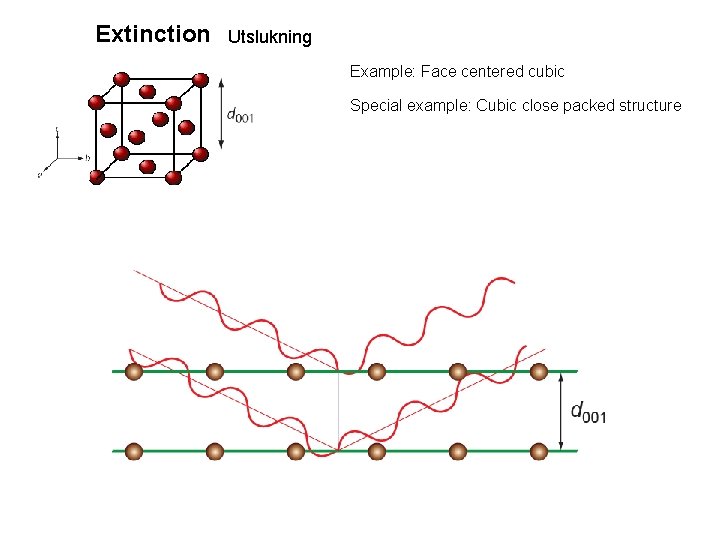

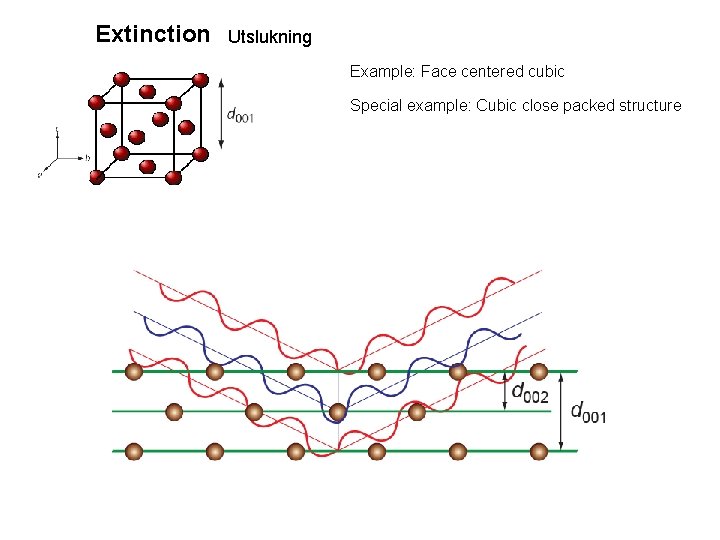

Extinction Utslukning Example: Face centered cubic Special example: Cubic close packed structure

Extinction Utslukning Example: Face centered cubic Special example: Cubic close packed structure

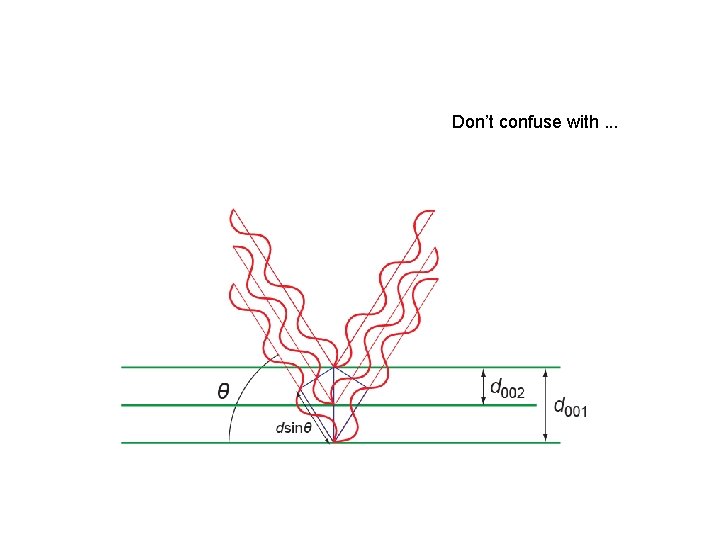

Don’t confuse with. . .

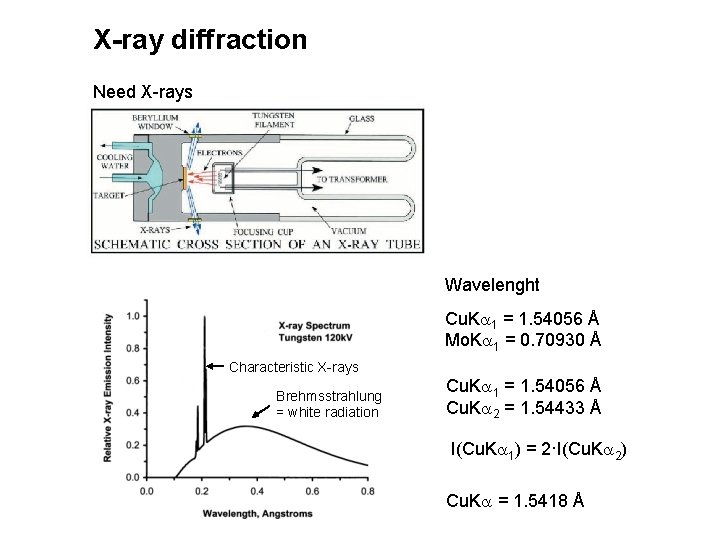

X-ray diffraction Need X-rays Wavelenght Cu. Ka 1 = 1. 54056 Å Mo. Ka 1 = 0. 70930 Å Characteristic X-rays Brehmsstrahlung = white radiation Cu. Ka 1 = 1. 54056 Å Cu. Ka 2 = 1. 54433 Å I(Cu. Ka 1) = 2·I(Cu. Ka 2) Cu. Ka = 1. 5418 Å

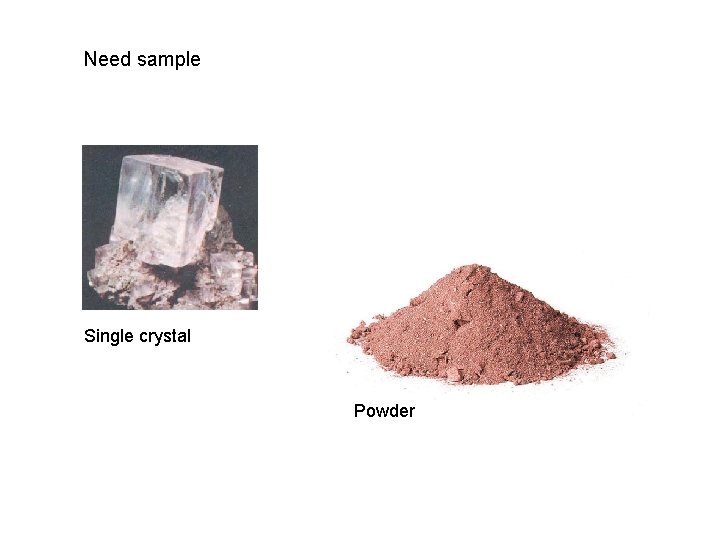

Need sample Single crystal Powder

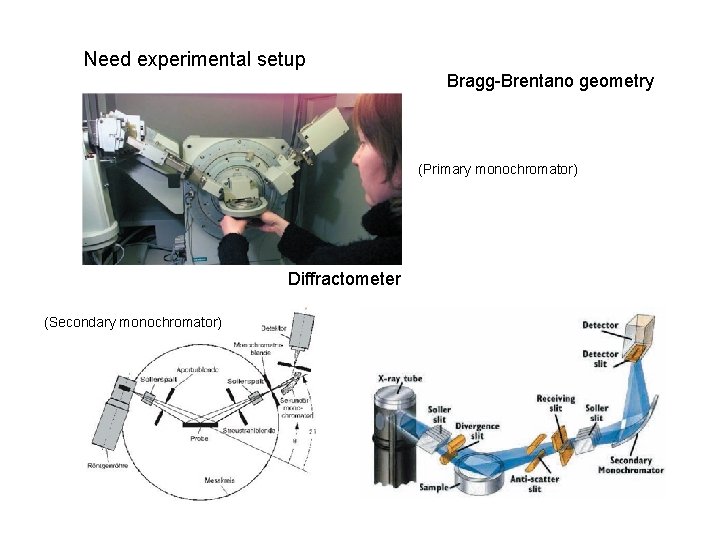

Need experimental setup Bragg-Brentano geometry (Primary monochromator) Diffractometer (Secondary monochromator)

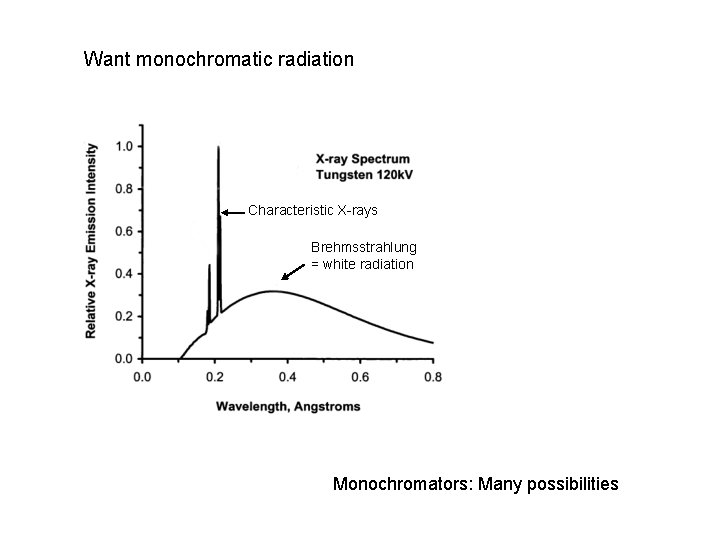

Want monochromatic radiation Characteristic X-rays Brehmsstrahlung = white radiation Monochromators: Many possibilities

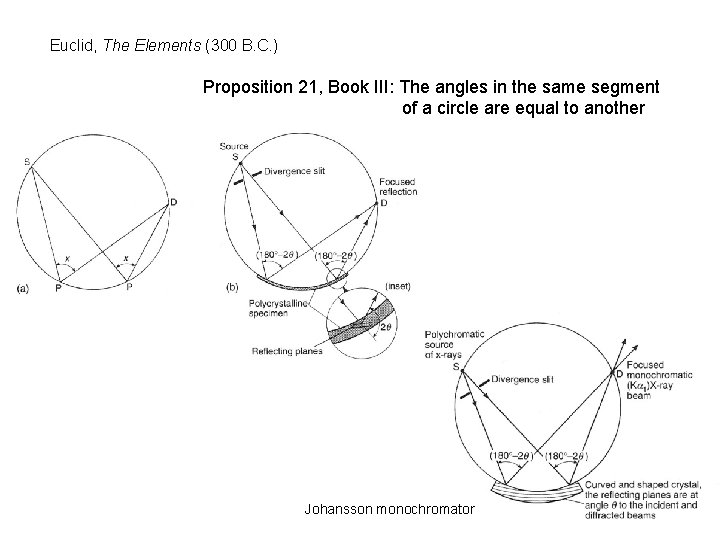

Euclid, The Elements (300 B. C. ) Proposition 21, Book III: The angles in the same segment of a circle are equal to another Johansson monochromator

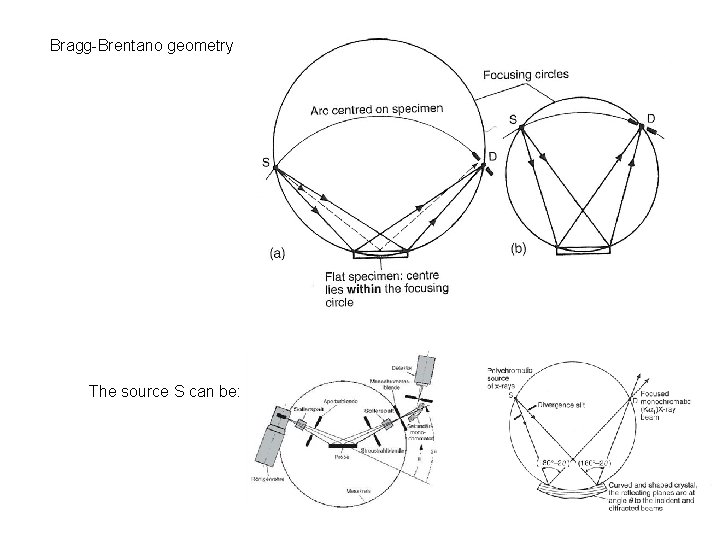

Bragg-Brentano geometry The source S can be:

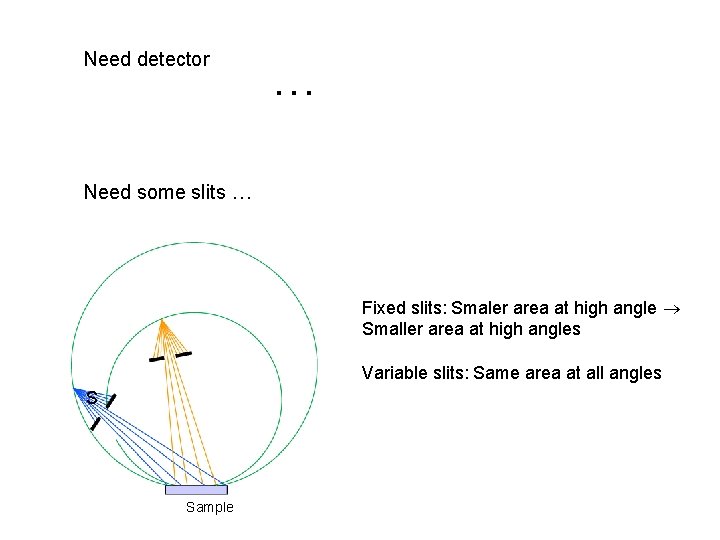

Need detector … Need some slits … Fixed slits: Smaler area at high angle Smaller area at high angles Variable slits: Same area at all angles S Sample

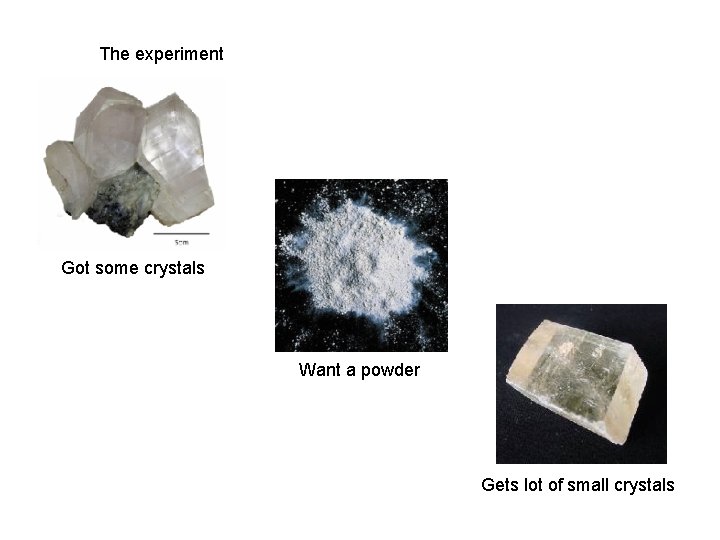

The experiment Got some crystals Want a powder Gets lot of small crystals

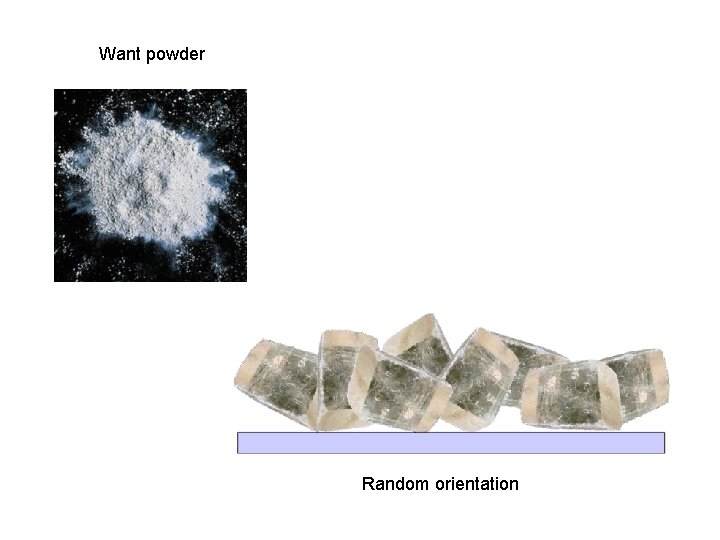

Want powder Random orientation

The result The diffractogram Quartz (Don’t call it spectrum)

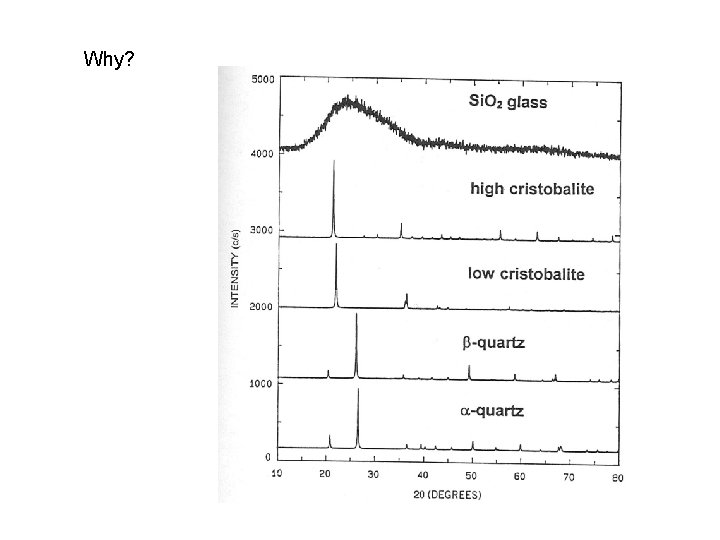

Why?

Identification PDF = JCPDS

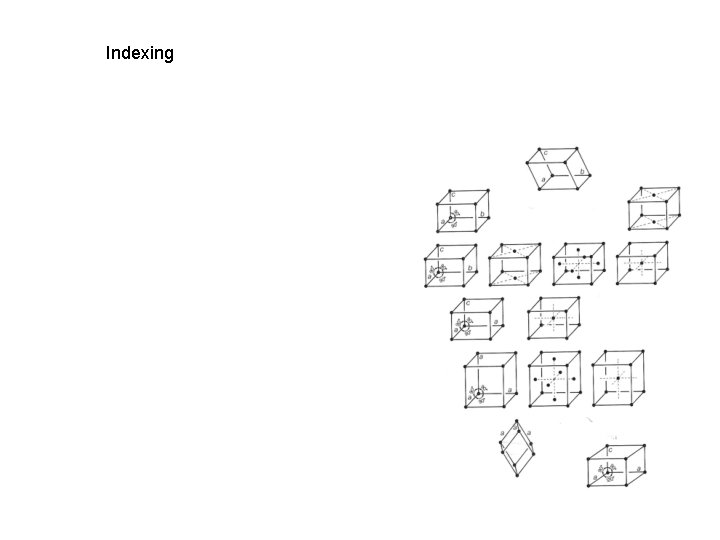

Indexing

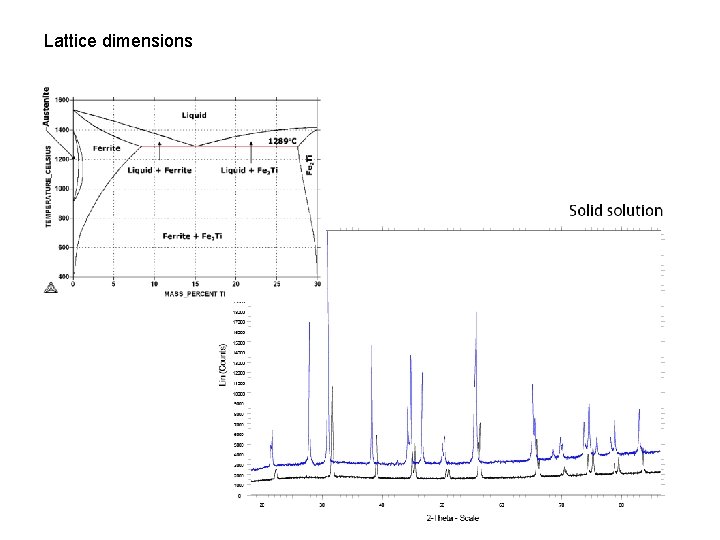

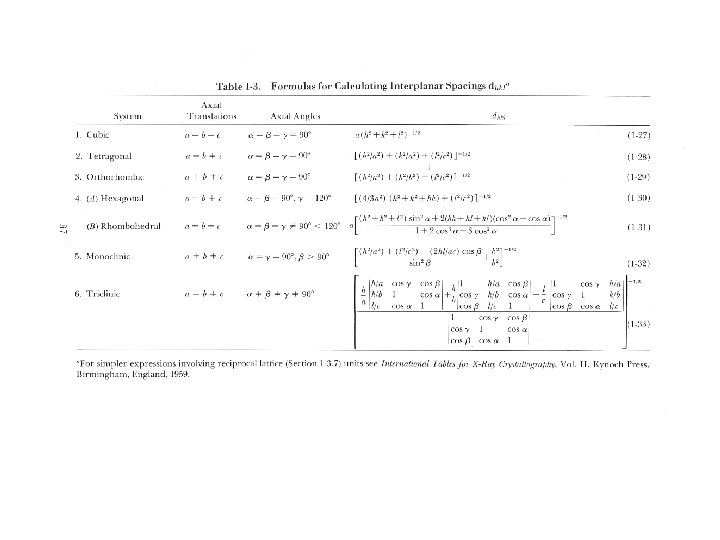

Lattice dimensions

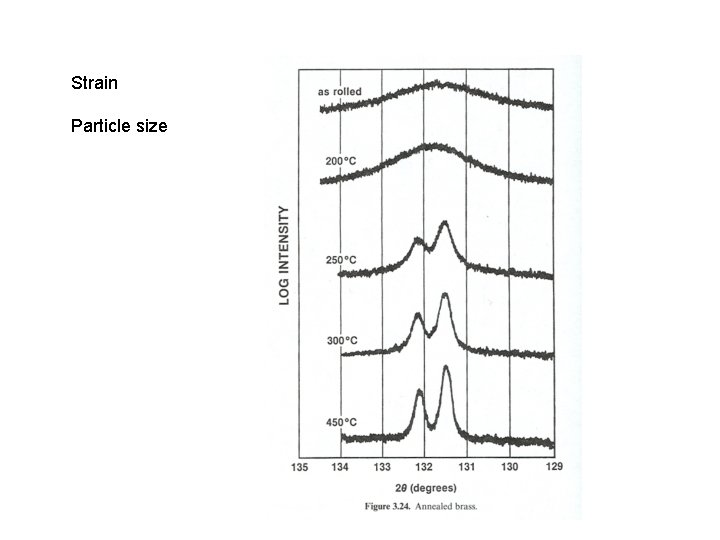

Strain Particle size

Fluorescens

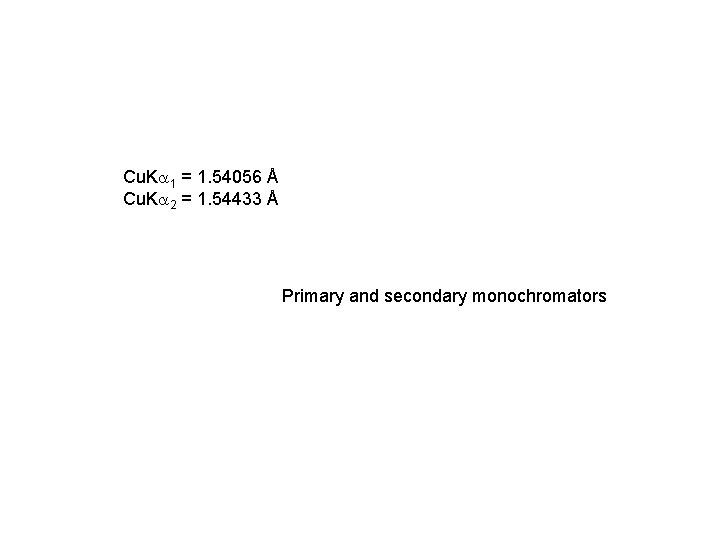

Cu. Ka 1 = 1. 54056 Å Cu. Ka 2 = 1. 54433 Å Primary and secondary monochromators

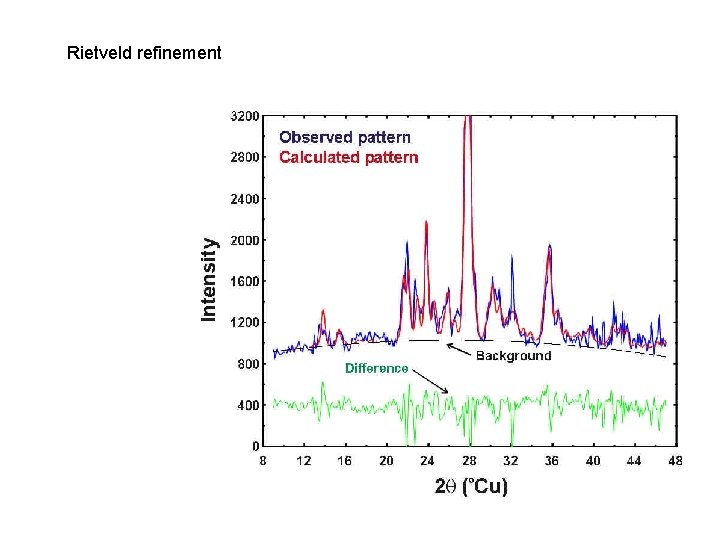

Rietveld refinement
