MEMs Sensors Max Tesch Common Uses Of MEMs

MEMs Sensors Max Tesch

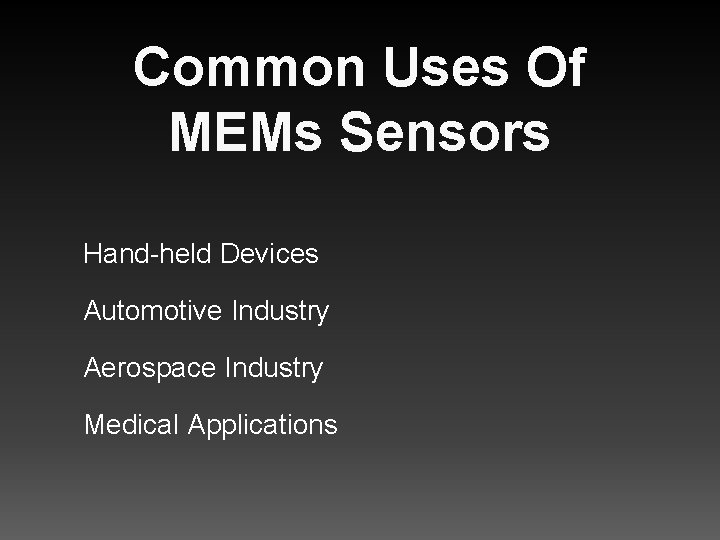

Common Uses Of MEMs Sensors Hand-held Devices Automotive Industry Aerospace Industry Medical Applications

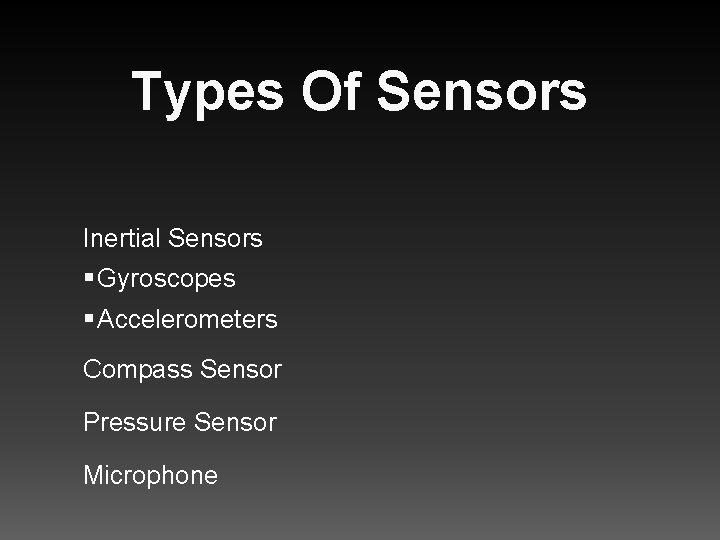

Types Of Sensors Inertial Sensors § Gyroscopes § Accelerometers Compass Sensor Pressure Sensor Microphone

Accelerometers Measures linear acceleration Uses a “floating” mass Electric Potential Is measurable

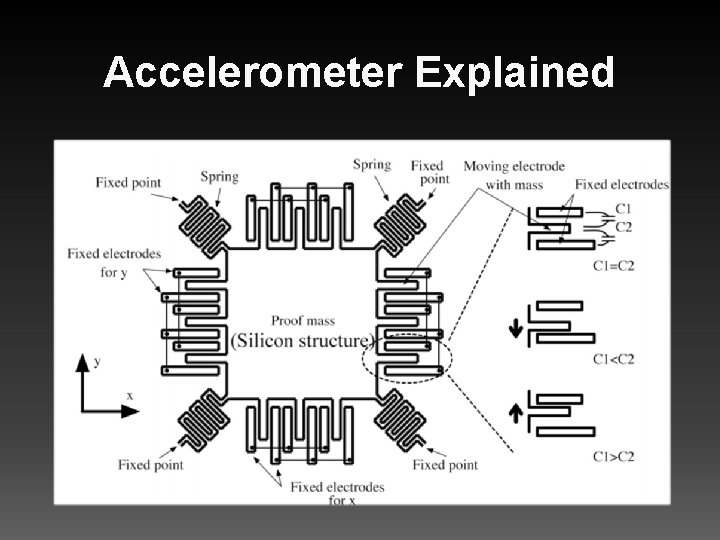

Accelerometer Explained

Gyroscopes Measures angular acceleration Uses a “floating” mass Utilizes the Coriolis Effect

Gyroscope Explained

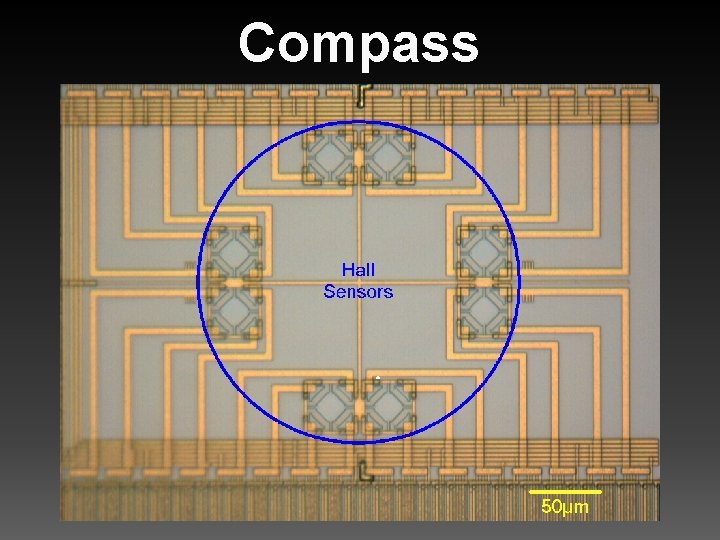

Compass

Microphone Uses capacitance to detect sound Soundwaves physically move a membrane Requires air flow to move membrane

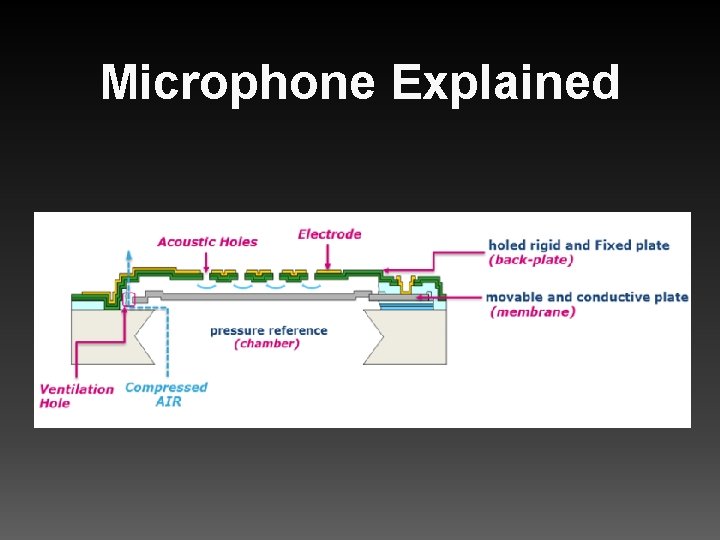

Microphone Explained

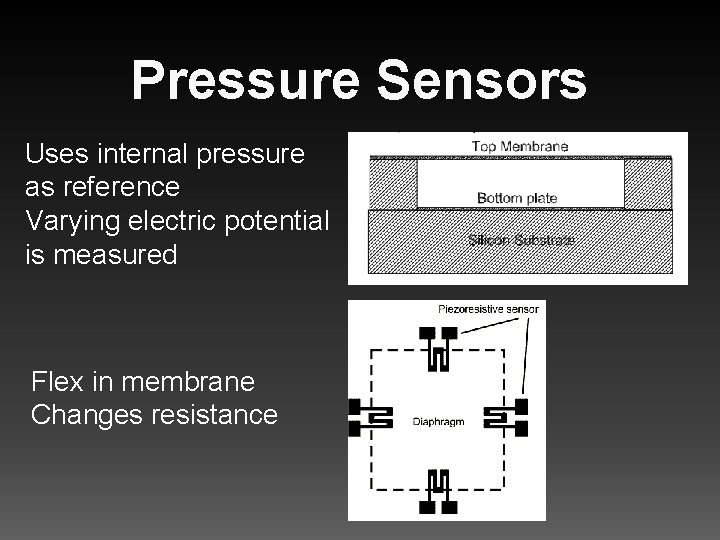

Pressure Sensors Uses internal pressure as reference Varying electric potential is measured Flex in membrane Changes resistance

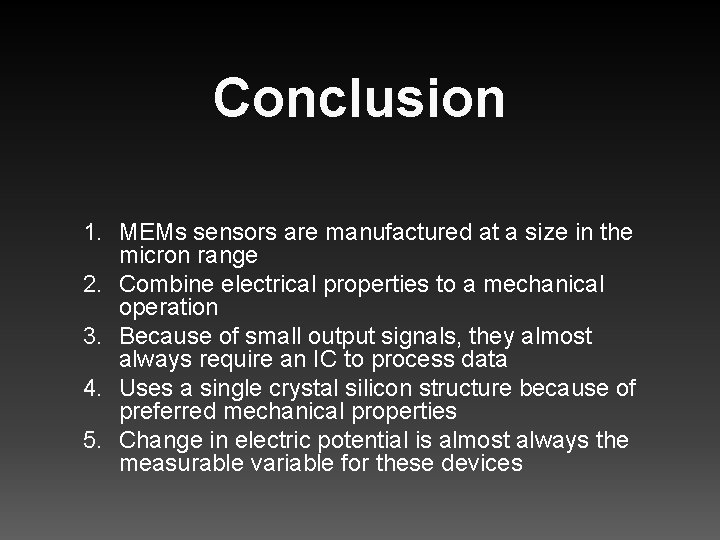

Conclusion 1. MEMs sensors are manufactured at a size in the micron range 2. Combine electrical properties to a mechanical operation 3. Because of small output signals, they almost always require an IC to process data 4. Uses a single crystal silicon structure because of preferred mechanical properties 5. Change in electric potential is almost always the measurable variable for these devices

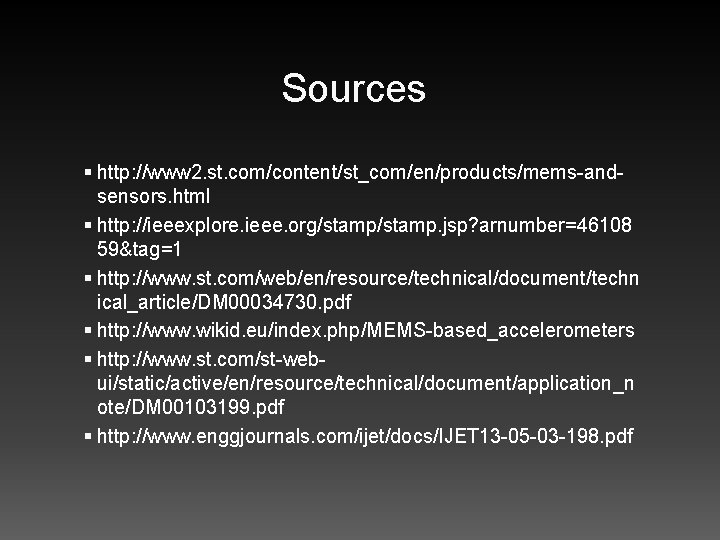

Sources § http: //www 2. st. com/content/st_com/en/products/mems-andsensors. html § http: //ieeexplore. ieee. org/stamp. jsp? arnumber=46108 59&tag=1 § http: //www. st. com/web/en/resource/technical/document/techn ical_article/DM 00034730. pdf § http: //www. wikid. eu/index. php/MEMS-based_accelerometers § http: //www. st. com/st-webui/static/active/en/resource/technical/document/application_n ote/DM 00103199. pdf § http: //www. enggjournals. com/ijet/docs/IJET 13 -05 -03 -198. pdf
