Memory Resource Management in VMware ESX Server By Carl A. Waldspurger Presented by Clyde Byrd III (some slides adapted from C. Waldspurger) EECS 582 – W 16 1

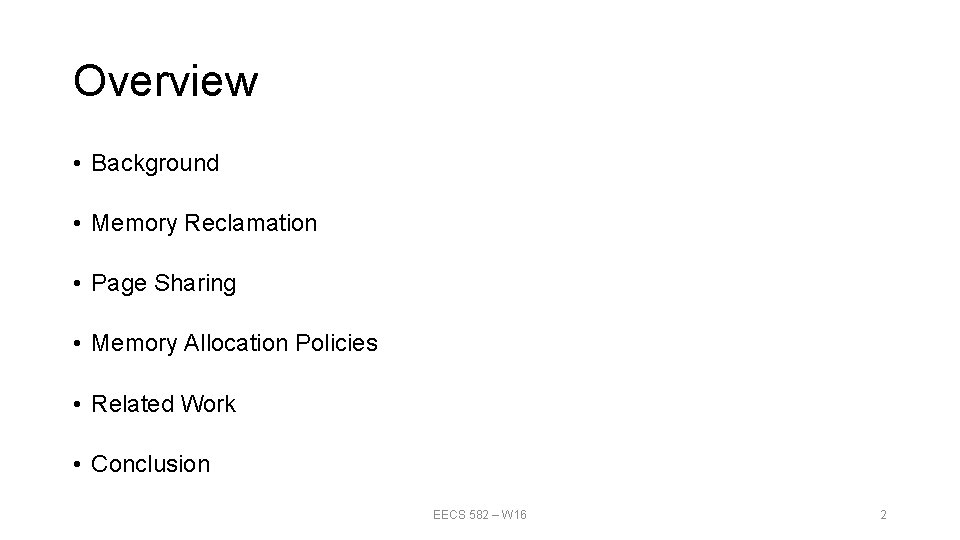

Overview • Background • Memory Reclamation • Page Sharing • Memory Allocation Policies • Related Work • Conclusion EECS 582 – W 16 2

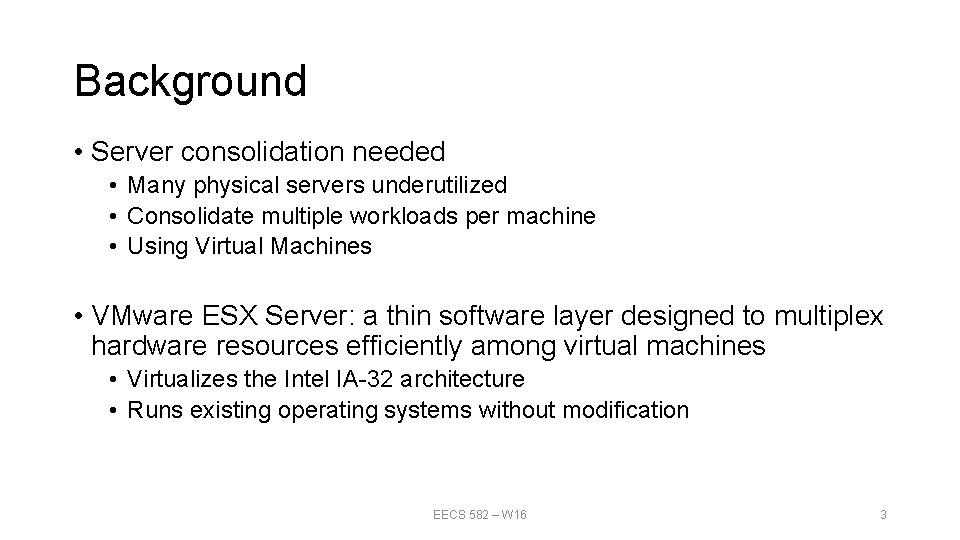

Background • Server consolidation needed • Many physical servers underutilized • Consolidate multiple workloads per machine • Using Virtual Machines • VMware ESX Server: a thin software layer designed to multiplex hardware resources efficiently among virtual machines • Virtualizes the Intel IA-32 architecture • Runs existing operating systems without modification EECS 582 – W 16 3

ESX Server EECS 582 – W 16 4

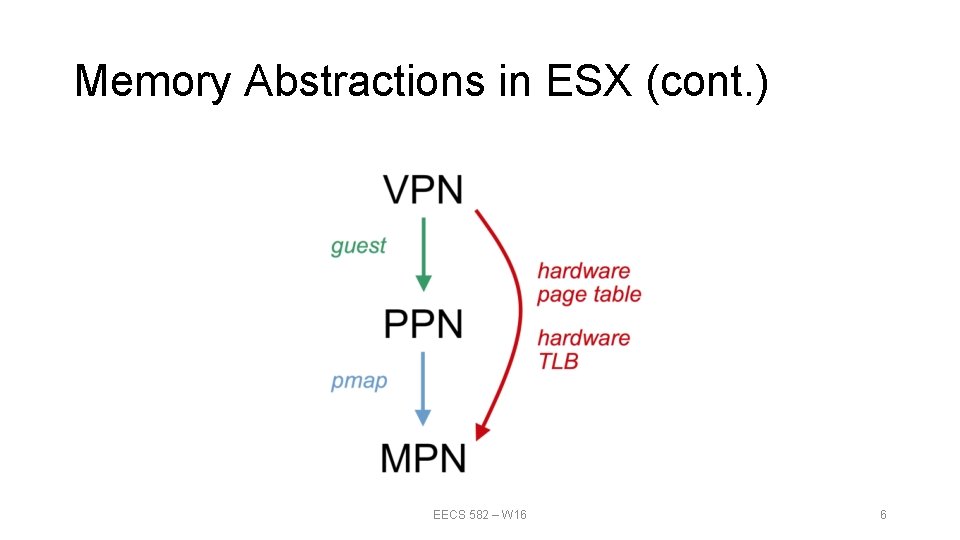

Memory Abstractions in ESX • Terminology • Machine address: actual hardware memory • “Physical” address: a software abstraction used to provide the illusion of hard ware memory to a virtual machine • Pmap: for each VM to translate “physical” page numbers (PPN) to machine page numbers (MPN) • Shadow page tables: contain virtual-to-machine page mappings EECS 582 – W 16 5

Memory Abstractions in ESX (cont. ) EECS 582 – W 16 6

Memory Reclamation • Traditional approach • Introduce another level of paging, moving some VM “physical” pages to a swap area on disk • Disadvantages: • Requires a meta-level page replacement policy • Introduces performance • Double paging problem EECS 582 – W 16 7

Memory Reclamation (cont. ) • The hip approach: Implicit cooperation • Coax guest into doing the page replacement • Avoid meta-level policy decisions EECS 582 – W 16 8

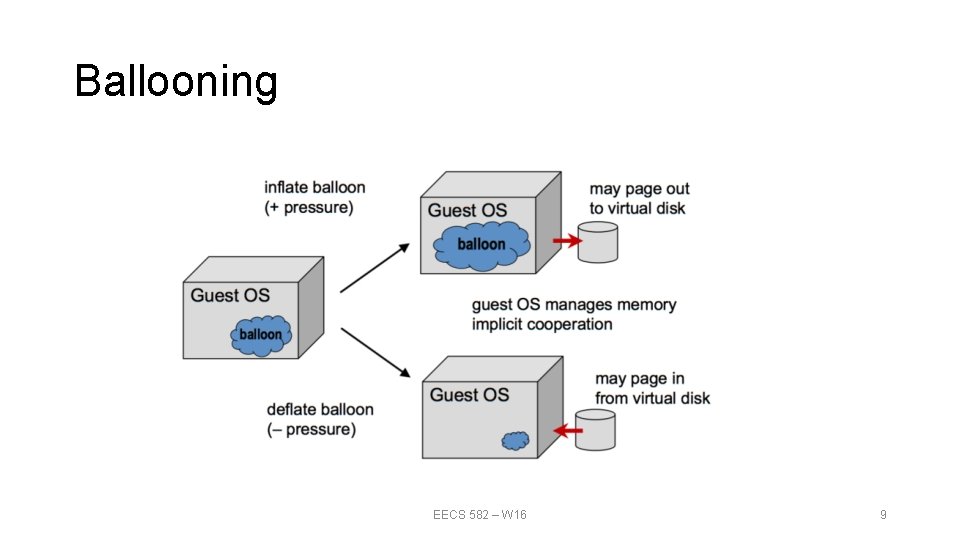

Ballooning EECS 582 – W 16 9

Ballooning (cont. ) • The black bars plot the performance when the VM is configured with main memory sizes ranging from 128 MB to 256 MB • The gray bars plot the performance of the same VM configured with 256 MB, ballooned down to the specified size Throughput of a Linux VM running dbench with 40 clients EECS 582 – W 16 10

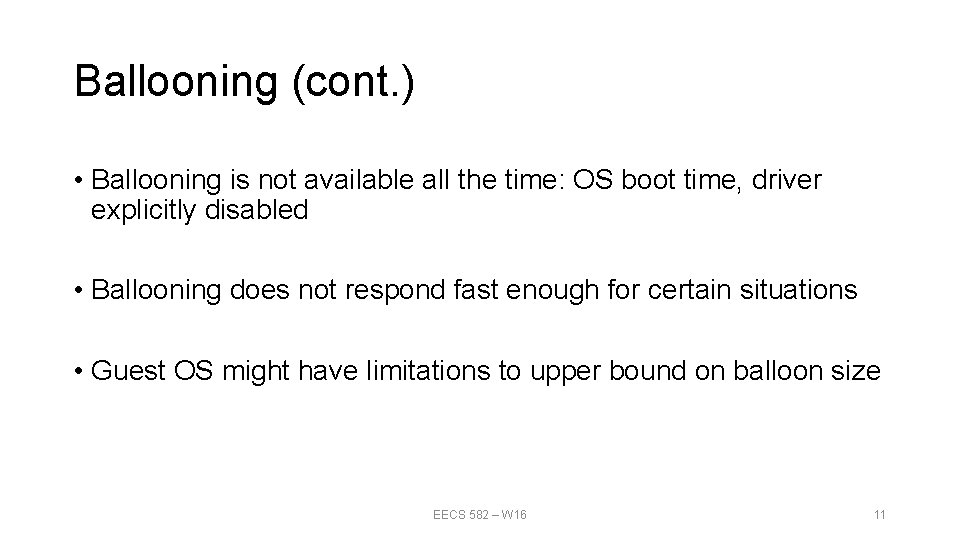

Ballooning (cont. ) • Ballooning is not available all the time: OS boot time, driver explicitly disabled • Ballooning does not respond fast enough for certain situations • Guest OS might have limitations to upper bound on balloon size EECS 582 – W 16 11

Page Sharing • ESX Server exploits redundancy of data across VMs • Multiple instances of the same guest OS can and do share some of the same data and applications • Sharing across VMs can reduce total memory usage • The system allows tries to share a page before swapping out pages EECS 582 – W 16 12

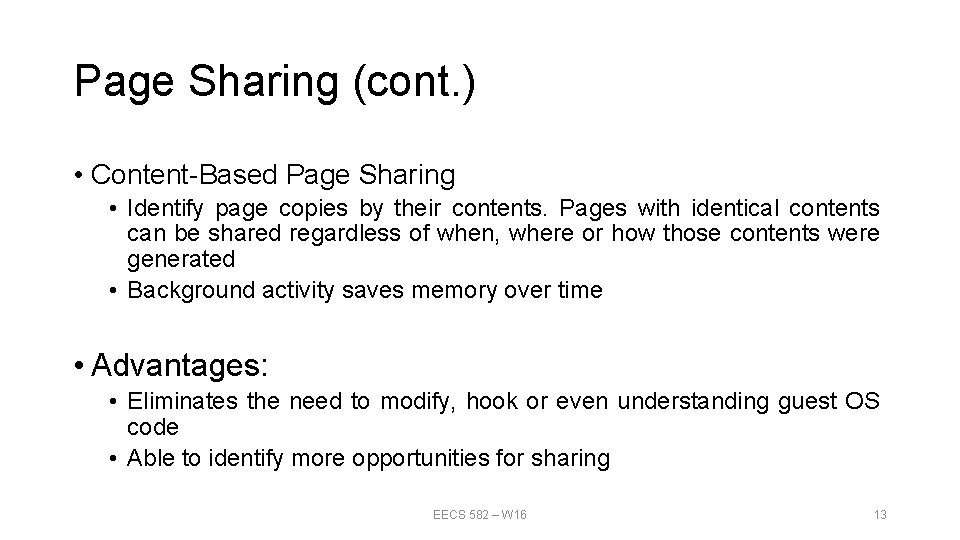

Page Sharing (cont. ) • Content-Based Page Sharing • Identify page copies by their contents. Pages with identical contents can be shared regardless of when, where or how those contents were generated • Background activity saves memory over time • Advantages: • Eliminates the need to modify, hook or even understanding guest OS code • Able to identify more opportunities for sharing EECS 582 – W 16 13

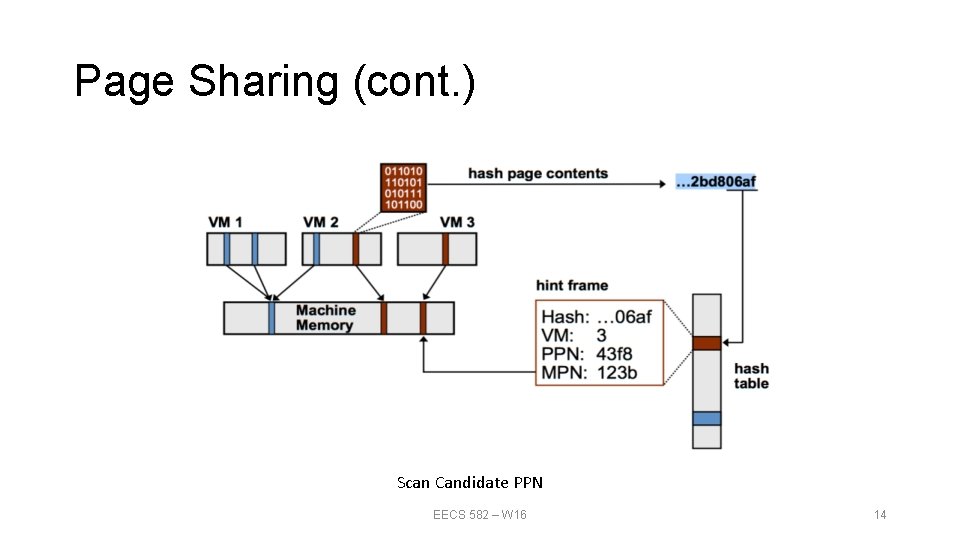

Page Sharing (cont. ) Scan Candidate PPN EECS 582 – W 16 14

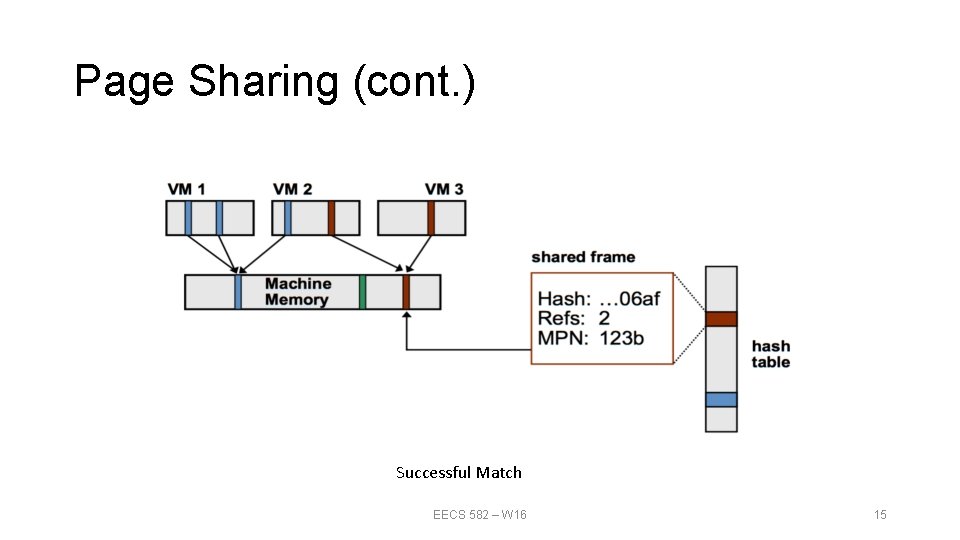

Page Sharing (cont. ) Successful Match EECS 582 – W 16 15

Page Sharing (cont. ) EECS 582 – W 16 16

Memory Allocation policies • ESX allows proportional memory allocation for VMs • With maintained memory performance • With VM isolation • Admin configurable { min, max, shares } EECS 582 – W 16 17

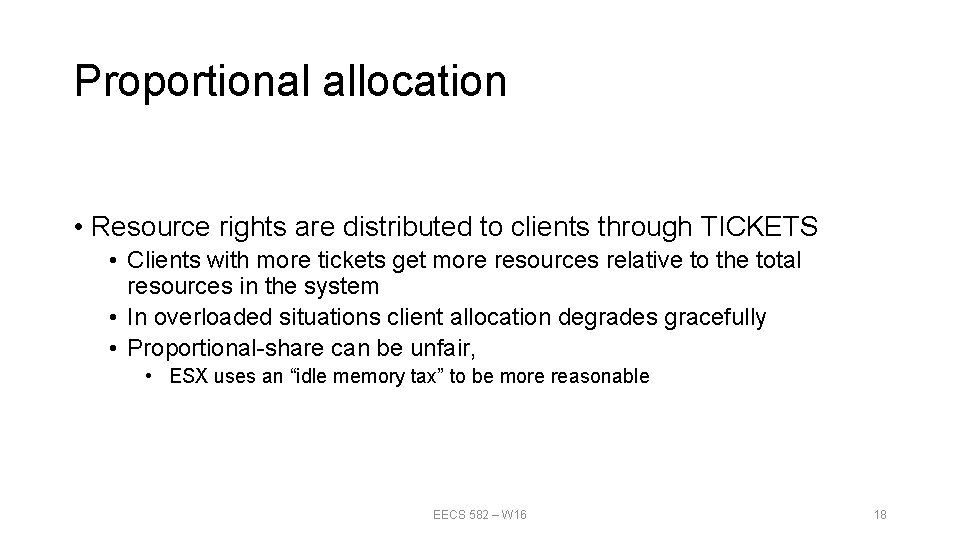

Proportional allocation • Resource rights are distributed to clients through TICKETS • Clients with more tickets get more resources relative to the total resources in the system • In overloaded situations client allocation degrades gracefully • Proportional-share can be unfair, • ESX uses an “idle memory tax” to be more reasonable EECS 582 – W 16 18

Idle Memory Tax • Tax on idle memory • Charge more for idle page than active page • Idle-adjusted shares-per-page ratio • Tax rate • Explicit administrative parameter • 0% is too unfair, 100% is too aggressive, 75% is the default • High default rate • Reclaim most idle memory • Some buffer against rapid working-set increases EECS 582 – W 16 19

Idle Memory Tax (cont. ) • The tax rate specifies the max number of idle pages that can be reallocated to active clients • When an idle paging client starts increasing its activity the pages can be reallocated back to full share • ESX statistically samples pages in each VM to estimate active memory usage • ESX by default samples 100 pages every 30 seconds EECS 582 – W 16 20

Idle Memory Tax (cont. ) Experiment: 2 VMs, 256 MB, same shares. VM 1: Windows boot+idle. VM 2: Linux boot+dbench. Solid: usage, Dotted: active. Change tax rate 0% 75% After: high tax. Redistribute VM 1→VM 2. VM 1 reduced to min size. VM 2 throughput improves 30% EECS 582 – W 16 21

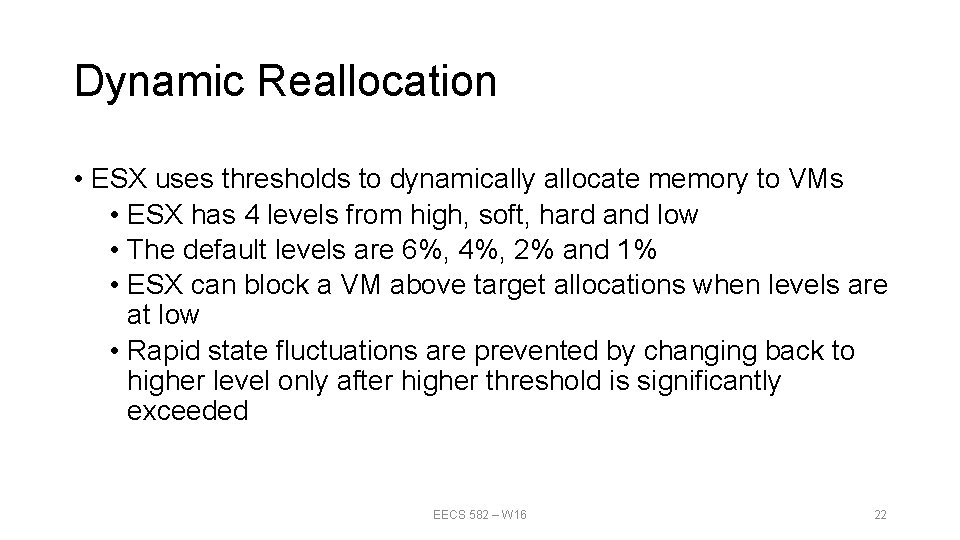

Dynamic Reallocation • ESX uses thresholds to dynamically allocate memory to VMs • ESX has 4 levels from high, soft, hard and low • The default levels are 6%, 4%, 2% and 1% • ESX can block a VM above target allocations when levels are at low • Rapid state fluctuations are prevented by changing back to higher level only after higher threshold is significantly exceeded EECS 582 – W 16 22

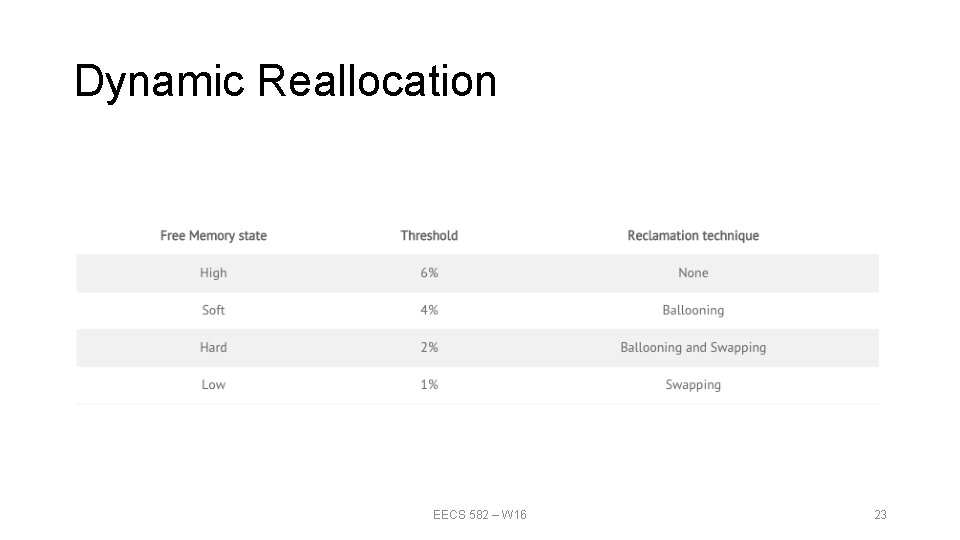

Dynamic Reallocation EECS 582 – W 16 23

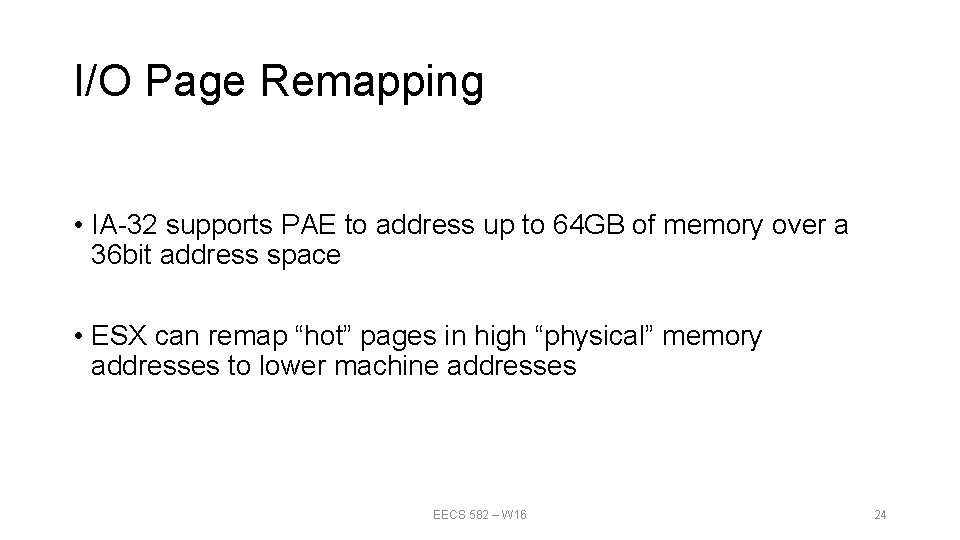

I/O Page Remapping • IA-32 supports PAE to address up to 64 GB of memory over a 36 bit address space • ESX can remap “hot” pages in high “physical” memory addresses to lower machine addresses EECS 582 – W 16 24

Related Work • Disco and Cellular Disco • Virtualized servers to run multiple instances of IRIX • Vmware Workstation • Type 2 hypervisor; ESX is type 1 • Self-paging of the Nemesis system • Similar to Ballooning • Requires applications to handle their own virtual memory operations • Transparent page sharing work in Disco • IBM’s MXT memory compression technology • Hardware approach; but can be achieved through page sharing EECS 582 – W 16 25

Conclusion • Key features • Flexible dynamic partitioning • Efficient support for overcommitted workloads • Novel mechanisms • Ballooning leverages guest OS algorithms • Content-based page sharing • Integrated policies • Proportional-sharing with idle memory tax • Dynamic reallocation EECS 582 – W 16 26
