Memory design of 8 Mb using Loadless CMOS

Memory design of 8 Mb using Loadless CMOS Four-Transistor SRAM Cell in a 0. 25 -um Logic Technology Presented By: Gaurav Raja (2003 EEN 0013) Sonal Singh (2003 EEN 0007) Poornima Agarwal (2003 EEN 0029) GROUP – ‘E’

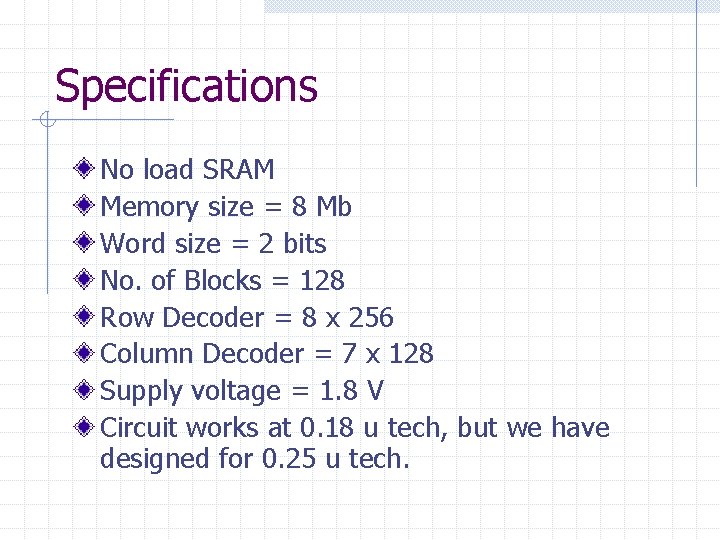

Specifications No load SRAM Memory size = 8 Mb Word size = 2 bits No. of Blocks = 128 Row Decoder = 8 x 256 Column Decoder = 7 x 128 Supply voltage = 1. 8 V Circuit works at 0. 18 u tech, but we have designed for 0. 25 u tech.

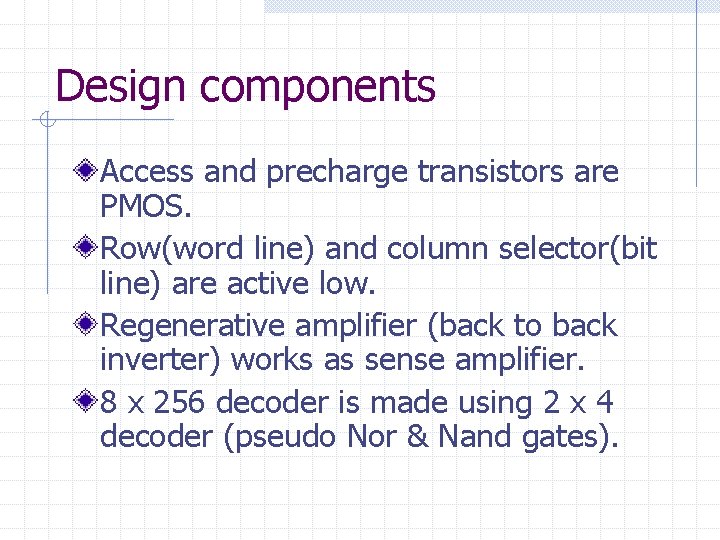

Design components Access and precharge transistors are PMOS. Row(word line) and column selector(bit line) are active low. Regenerative amplifier (back to back inverter) works as sense amplifier. 8 x 256 decoder is made using 2 x 4 decoder (pseudo Nor & Nand gates).

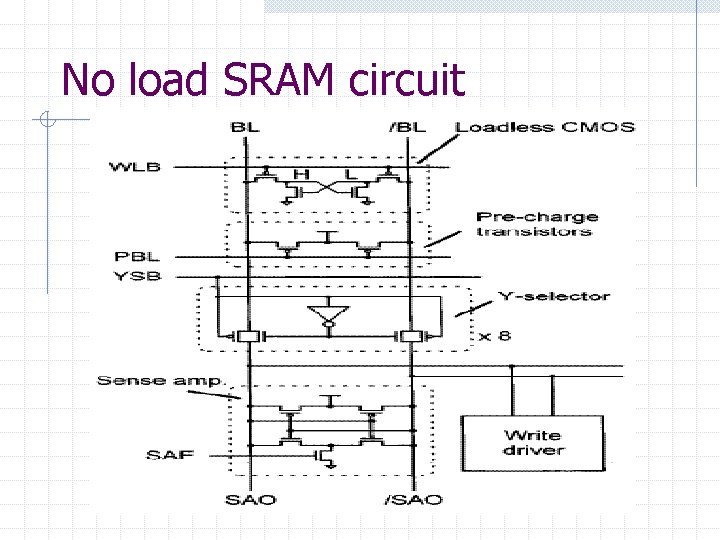

No load SRAM circuit

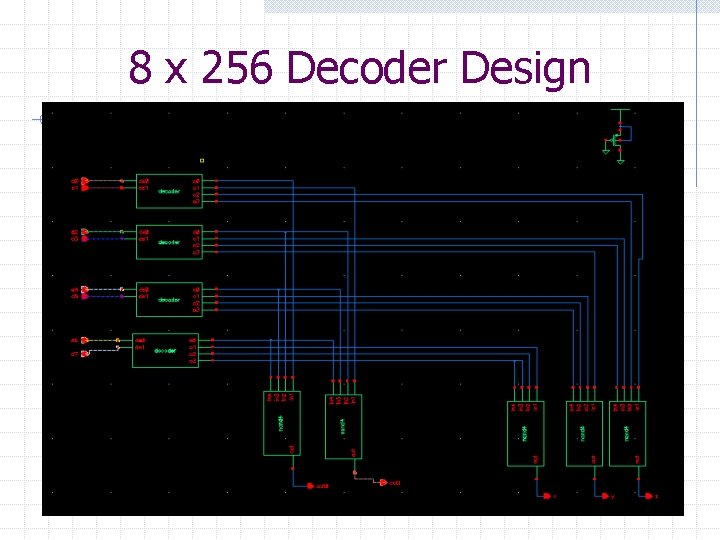

8 x 256 Decoder Design

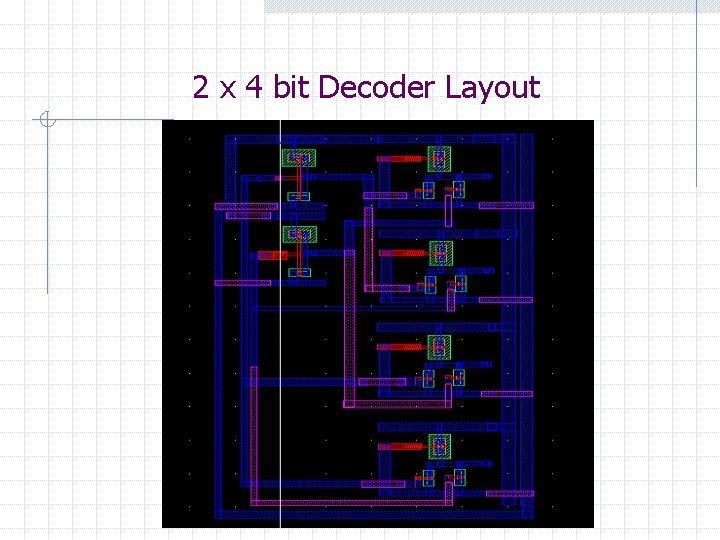

2 x 4 bit Decoder Layout

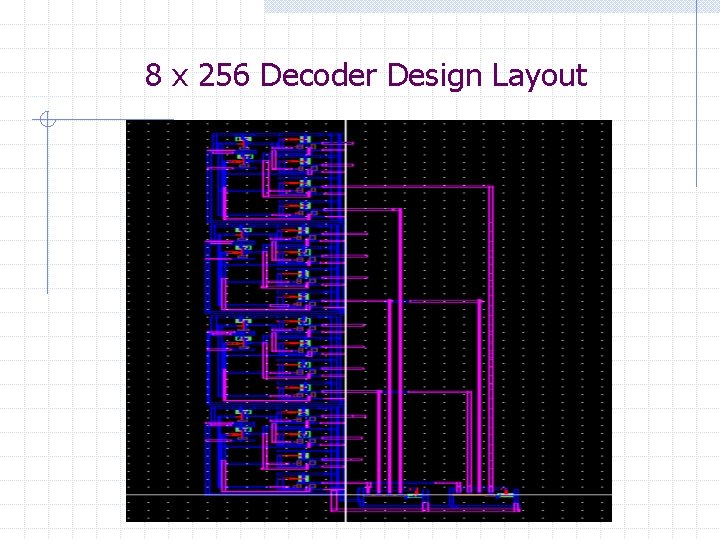

8 x 256 Decoder Design Layout

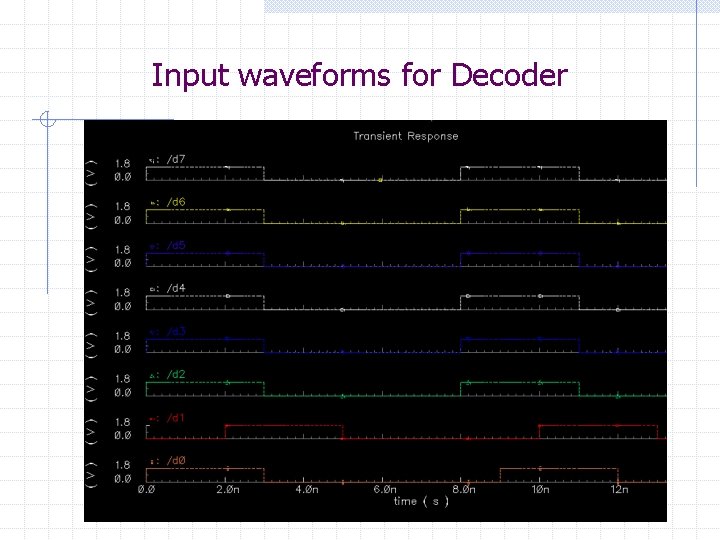

Input waveforms for Decoder

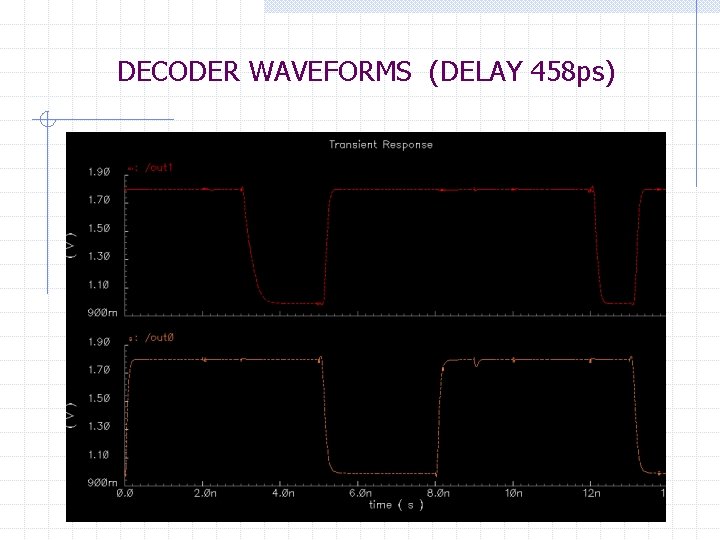

DECODER WAVEFORMS (DELAY 458 ps)

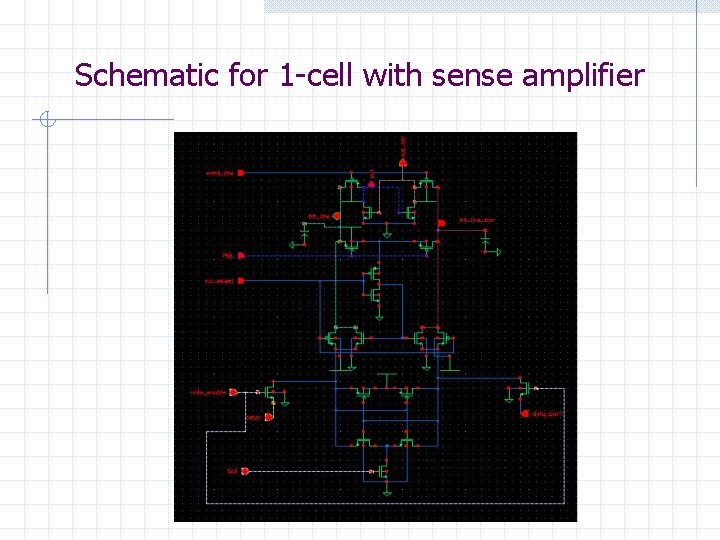

Schematic for 1 -cell with sense amplifier

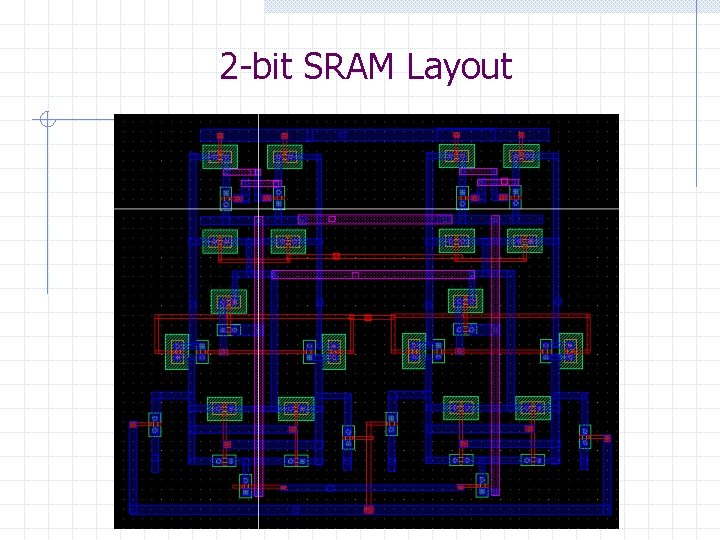

2 -bit SRAM Layout

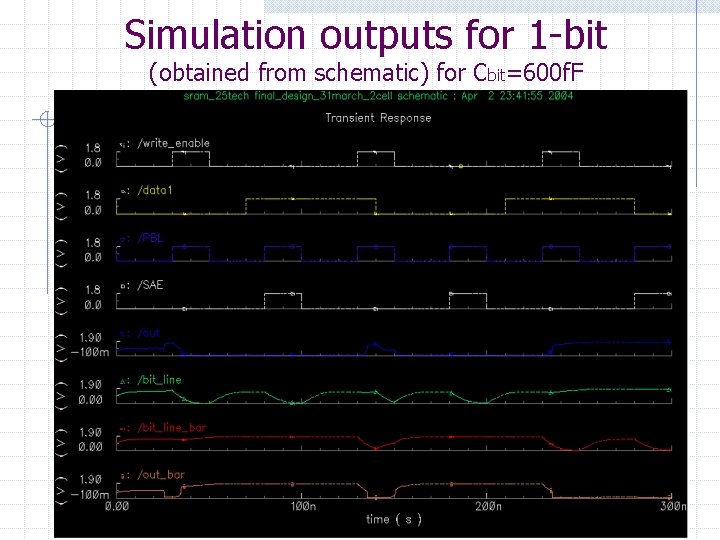

Simulation outputs for 1 -bit (obtained from schematic) for Cbit=600 f. F

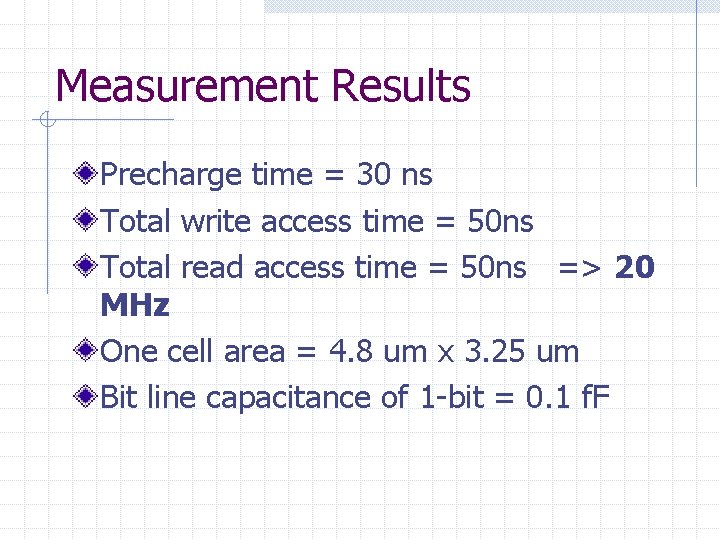

Measurement Results Precharge time = 30 ns Total write access time = 50 ns Total read access time = 50 ns => 20 MHz One cell area = 4. 8 um x 3. 25 um Bit line capacitance of 1 -bit = 0. 1 f. F

References • • [1] K. Noda, K. Matsui, K. Imai, K. Inoue, K. Tokashiki, H. Kawamoto, K. Yoshida, K. Takeda, N. Nakamura, T. Kimura, H. Toyoshima, Y. Koishikawa, S. Maruyama, T. Saitoh, and T. Tanigawa, “A 1. 9 -m loadless CMOS four-transistor SRAM cell in a 0. 18 -m logic technology, ” in IEDM Dig. Tech. Papers, 1998, pp. 74– 75. [2] H. Shimizu, K. Ijitsu, H. Akiyoshi, K. Aoyama, H. Takatsuka, K. Watanabe, R. Nanjo, and Y. Takao, “A 1. 4 -ns access 700 -MHz 288 -kb SRAM macro with expandable architecture, ” in ISSCC Dig. Tech. Papers, Feb. 1999, pp. 190– 191. [3] H. Hidaka, F. Fujishima, Y. Matsuda, M. Asakura, and T. Yoshihara, “Twisted bitline architechture for multi-megabit DRAMs, ” IEEE J. Solid-State Circuits, vol. 24, pp. 21– 28, Feb. 1989. [4] K. Nakamura, K. Takeda, H. Toyoshima, K. Noda, H. Ohkubo, T. Uchida, T. Shimizu, T. Itani, K. Tokashiki, and K. Kishimoto, “A 500 -MHz 4 -Mb CMOS pipeline-burst cache SRAM with point-to-point noise reduction coding I/O, ” IEEE J. Solid-State Circuits, vol. 32, pp. 1758– 1765, Nov. 1997.
