Memory Allocator Security Yves Younan, Wouter Joosen, Frank Piessens and Hans Van den Eynden Distri. Net, Department of Computer Science Katholieke Universiteit Leuven Belgium Yves. Younan@cs. kuleuven. ac. be
Overview Ø Introduction Ø Attacks Ø Memory Allocators Ø A Safer Allocator Ø Related Work Ø Conclusion Yves Younan – Security of Memory Allocators for C and C++ 2
Introduction Ø Many allocators ignore security Ø Performance and waste limitation is more important Ø Many allocators can be abused to perform code injection attacks Ø More security is possible at a modest cost Yves Younan – Security of Memory Allocators for C and C++ 3
Overview Ø Introduction Ø Attacks Ø Heap-based buffer overflow Ø Off by One/Off by Five Ø Dangling Pointer References Ø Memory Allocators Ø A Safer Allocator Ø Related Work Ø Conclusion Yves Younan – Security of Memory Allocators for C and C++ 4
Heap-based buffer overflows Ø Heap memory is dynamically allocated at run-time Ø Can also be overflowed but no return address is available Ø Modify data pointers (IPO) or function pointers - not always available Ø Modify the memory management information associated with heap memory Yves Younan – Security of Memory Allocators for C and C++ 5
Off by one / Off by five Ø Special case of buffer overflow: limited space needed Ø Off by one: write one byte past the bounds Ø Off by five: don’t occur often but demonstrate low-space attacks Ø Usually only exploitable on little endian machines (LSB is stored before MSB) Yves Younan – Security of Memory Allocators for C and C++ 6
Dangling pointer references Ø Pointers to memory that is no longer allocated Ø Dereferencing is unchecked in C Ø Generally leads to crashes (SIGSEGV) Ø Can be used for code injection attacks when deallocated twice (double free) Ø A double free can be used to change memory management information allowing an overwrite of arbitrary memory locations Yves Younan – Security of Memory Allocators for C and C++ 7
Overview Ø Introduction Ø Attacks Ø Memory Allocators Ø Doug Lea’s malloc (Linux) Ø CSRI/Quickfit Ø Poul-Henning Kamp’s malloc (BSD) Ø Boehm’s garbage collector Ø A Safer Allocator Ø Related Work Ø Conclusion Yves Younan – Security of Memory Allocators for C and C++ 8
Doug Lea’s malloc Ø GNU lib C is based on this malloc Ø Every allocation is represented by a chunk Ø Management information stored before the chunk Ø Free chunks stored in doubly linked list of free chunks Ø Two bordering free chunks are coalesced into a larger free chunk Ø Description based on dlmalloc 2. 7. 2 Yves Younan – Security of Memory Allocators for C and C++ Ø Attack on it first described by Solar Designer 9
Doug Lea’s malloc Chunk 1 Size of prev chunk Size of chunk 1 Chunk 3 Size of chunk 2 Size of chunk 1 Forward Pointer User data Backward Pointer Old user data Chunk 2 Size of chunk 1 Size of chunk 2 Forward Pointer Backward Pointer Old user data High addr Yves Younan – Security of Memory Allocators for C and C++ Chunk 4 10
Heap Overflow (dlmalloc) Chunk 1 Size of prev chunk Size of chunk 1 Chunk 3 Size of chunk 2 Size of chunk 1 Forward Pointer Injected code User data Backward Pointer Old user data Chunk 2 Size of chunk 1 Size of chunk 2 Forward Pointer Backward Pointer Old user data Stack Return address Yves Younan – Security of Memory Allocators for C and C++ Chunk 4 Old user data 11
Off by one (dlmalloc) Ø Chunk sizes are multiples of 8 Ø Size contains two flags mmapped and prev_inuse Ø Two chunks must be next to each other (no padding) for off by one Ø Prev_size of next will be used for data Ø Overwrite 1 byte of the size and set prev_inuse to 0 and set a smaller size Ø Make a fake chunk, containing modified Yves Younan – Security of Memory Allocators for C and C++ pointers 12
Off by one (dlmalloc) Chunk 1 Size of prev chunk Size of chunk 1 Injected code Size of fake chunk User data Size of chunk 2 Forward Pointer Backward Pointer Chunk 2 Size of chunk 2 Forward Pointer Backward Pointer Old user data Yves Younan – Security of Memory Allocators for C and C++ Stack Return address 13
Dangling pointer references (dlmalloc) Chunk 1 Size of prev chunk Chunk 2 Chunk 3 Size of prev chunk Size of chunk Forward Pointer Backward Pointer Old user data User data Old user data Injected Code Stack Return address Yves Younan – Security of Memory Allocators for C and C++ 14
Doug Lea’s malloc conclusion Ø Vulnerable to: ØHeap overflow ØOff by one/five ØDouble free Ø Version 2. 8. x contains some mitigation techniques, see related work Yves Younan – Security of Memory Allocators for C and C++ 15
Overview Ø Introduction Ø Attacks Ø Memory Allocators Ø Doug Lea’s malloc (Linux) Ø CSRI/Quickfit Ø Phkmalloc (BSD) Ø Boehm’s garbage collector Ø A Safer Allocator Ø Related Work Ø Conclusion Yves Younan – Security of Memory Allocators for C and C++ 16
CSRI/Quickfit CSRI Chunk 1 Size of chunk 1 1 Inuse User data Chunk 2 Size of chunk 2 0 ‘125’ Size of chunk 1 1 Chunk 2 Old user data Previous Pointer Size of chunk 2 0 Forward Pointer Previous Pointer Old user data Next Pointer Size of chunk 2 0 High addr Yves Younan – Security of Memory Allocators for C and C++ 17
Heap Overflow (CSRI) Chunk 1 Size of chunk 1 1 Chunk 3 Size of chunk 2 Injected code User data Next Pointer Old user data Size of chunk 1 1 Chunk 2 Size of chunk 2 0 ‘125’ Old user data Previous Pointer Next Pointer Size of chunk 2 0 Previous Pointer Size of chunk 1 Chunk 4 Size of chunk 2 Forward Pointer Backward Pointer Stack Return address Yves Younan – Security of Memory Allocators for C and C++ Old user data 18
CSRI/Quickfit Conclusion Ø Very similar to dlmalloc Ø Vulnerable to heap overflow Ø No double free possible: inuse bit checked Ø No off by one/five possible: size at beginning compared with size at end Yves Younan – Security of Memory Allocators for C and C++ 19
Overview Ø Introduction Ø Attacks Ø Memory Allocators Ø Doug Lea’s malloc (Linux) Ø CSRI/Quickfit Ø Phkmalloc (BSD) Ø Boehm’s garbage collector Ø A Safer Allocator Ø Related Work Ø Conclusion Yves Younan – Security of Memory Allocators for C and C++ 20
Poul-Henning Kamp’s malloc Ø Standard Free. BSD allocator (used in other BSDs as well). Ø Takes advantage of the virtual memory system Ø Tries to minimize accessed pages Ø Makes sure that objects that are smaller or equal to a page do not span pages Ø Two layers: page layer, chunk layer Ø Attack on it first described by BBP Yves Younan – Security of Memory Allocators for C and C++ 21
Phkmalloc: Page layer Ø Manages allocation and freeing of pages Ø Information about pages allocated to the heap are stored in a page directory Ø First elements contain pointers to a linked list of page information for each possible size of chunks MALLOC_NOT_MIN Not allocated by phk Ø Other elements store information about particular E pages MALLOC_FREE Page is free MALLOC_FIRST Page is first in multipage object Yves Younan – Security of Memory Allocators for C and C++ MALLOC_FOLLOW Following page (multipage 22

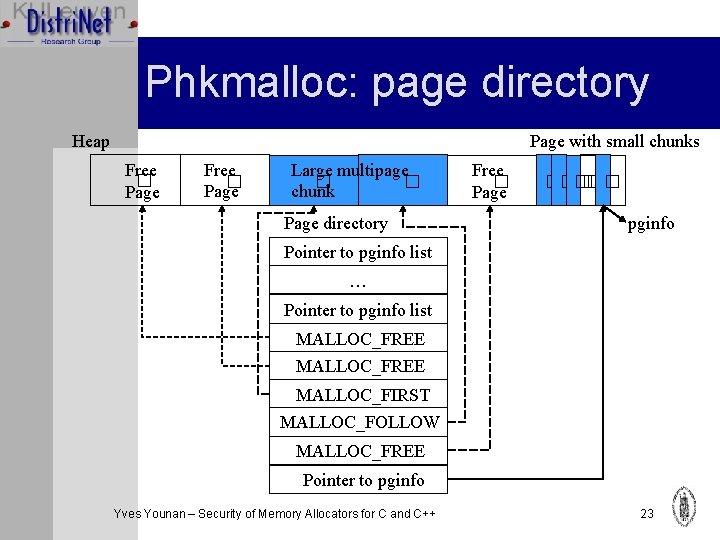

Phkmalloc: page directory Page with small chunks Heap Free � Page Large multipage � � chunk Page directory Free � Page ����� � pginfo Pointer to pginfo list … Pointer to pginfo list MALLOC_FREE MALLOC_FIRST MALLOC_FOLLOW MALLOC_FREE Pointer to pginfo Yves Younan – Security of Memory Allocators for C and C++ 23
Phkmalloc: free pages Ø Free pages stored in a sorted (address) doubly linked list Ø Adjacent free pages are coalesced and only a pointer to the first page is kept Ø Free page info (pgfree) is stored using malloc (allows swapping pages out) Ø To increase performance a cache pointer is kept of a free pgfree Yves Younan – Security of Memory Allocators for C and C++ 24
Phkmalloc: free pages Page with small chunks Heap Free � Page freelist Free � Page Large multipage � � chunk pgfree next prev page end size Yves Younan – Security of Memory Allocators for C and C++ Free � Page ����� � 25
Phkmalloc: Chunk layer Ø Three different types of chunks: small, medium large Ø Large is larger than half a page Ø Large object allocation: search for contiguous free pages, set MALLOC_FIRST and MALLOC_FOLLOW Ø Small or medium chunks are rounded up to the next power of two Ø Pages only contain chunks of the same size Yves Younan – Security of Memory Allocators for C and C++ 26
Phkmalloc: pginfo Ø Pginfo is used to describe a small or medium page Ø Stored in the beginning of the page for small chunks Ø Allocated using malloc for medium chunks Ø The entry in the pagedir or small/medium pages points to pginfo Yves Younan – Security of Memory Allocators for C and C++ 27
Phkmalloc: pginfo Page with small chunks Heap � � Page directory Pointer to pginfo list … Pointer to pginfo list MALLOC_FREE MALLOC_FIRST MALLOC_FOLLOW MALLOC_FREE � � Pginfo next page size shift free total bits[] ����� � Pointer to pginfo Yves Younan – Security of Memory Allocators for C and C++ 28
Heap overflow (phkmalloc) Ø Pginfo (for medium chunks) and pgfree structs are stored together with normal chunks Ø Can be overflowed Ø We will demonstrate using pginfo Ø Make page-field point to target memory Ø Modify the bits[] array to make all chunks seem free Ø When a chunk is of that size is requested, the Yves Younan – Security Memory Allocators C and C++ 29 allocator will ofreturn thefor page-pointer as a valid
Heap overflow (phkmalloc) Chunk Lower addresses Stack Return address Page with medium chunks Pginfo next page size shift free total bits[] Yves Younan – Security of Memory Allocators for C and C++ 30
Off by one (phkmalloc) Chunk Lower addresses Fake Pginfo next page Pginfo size shift next free page total size shift bits[] free total bits[] Yves Younan – Security of Memory Allocators for C and C++ Stack Return address 31
Phkmalloc conclusion Ø Vulnerable to: Ø Heap overflow ØOff by one Ø Not vulnerable to double free: a check is done to see if the chunk is free or not Yves Younan – Security of Memory Allocators for C and C++ 32
Overview Ø Introduction Ø Attacks Ø Memory Allocators Ø Doug Lea’s malloc (Linux) Ø CSRI/Quickfit Ø Phkmalloc (BSD) Ø Boehm’s garbage collector Ø A Safer Allocator Ø Related Work Ø Conclusion Yves Younan – Security of Memory Allocators for C and C++ 33
Boehm’s Garbage Collector Ø Conservative garbage collector for C/C++ Ø Assumes values in memory are pointers if they look like pointers Ø Automatically releases memory to the system when no longer needed Ø No dangling pointer references are possible (unless programmer does explicit freeing) Ø Uses mark and sweep Yves Younan – Security of Memory Allocators for C and C++ 34
Boehm’s Garbage Collector Ø Makes a difference between small and large chunks Ø Large chunks are larger than half of page size (IA 32) and rounded up to page size Ø Small chunks are allocated in pages and the page is divided in chunks of same size Ø Allocated chunks only contain data Ø Free chunks contain pointer to the next free chunk Yves Younan – Security of Memory Allocators for C and C++ 35
Heap overflow (Boehm) Ø If attackers can overflow a chunk, they can overwrite the next pointer Ø An attacker can make the next pointer point to a target memory location Ø Eventually the allocator will return the pointer’s target as a valid chunk Ø Usually an off by four attack Yves Younan – Security of Memory Allocators for C and C++ 36

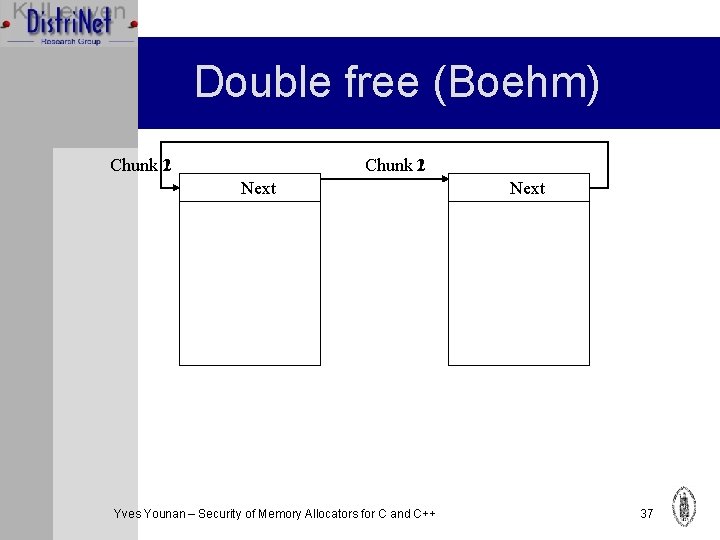

Double free (Boehm) Chunk 21 Next Yves Younan – Security of Memory Allocators for C and C++ Next 37
Boehm Conclusion Ø Vulnerable to: ØHeap overflow ØOff by one-four ØDouble free: only if the programmer explicitly frees memory (usually not necessary) Yves Younan – Security of Memory Allocators for C and C++ 38
Overview Ø Ø Ø Introduction Attacks Memory Allocators A Safer Allocator Related Work Conclusion Yves Younan – Security of Memory Allocators for C and C++ 39
Design Ø On most modern systems code and data are loaded into separate memory locations Ø We apply the same to chunk information and chunks Ø Chunk info is stored in separate contiguous memory Ø This area is protected by guard pages Ø A hashtable is used to associate chunks with chunkinfo Ø The hashtable contains pointers to a linked – Security information of Memory Allocators for C accessed and C++ 40 list. Yvesof. Younan chunk through the
Modified memory layout Text Data Bss Chunks Non-writable page Chunkinfo Hashtable Non-writable page Stack Yves Younan – Security of Memory Allocators for C and C++ 41
Dnmalloc: hashtable Ø Hashtable is stored before the stack in a mmaped area big enough to hold it Ø Each page is divided in 256 possible chunks (of 16 bytes, minimum chunk size) Ø These chunks are separated into 32 groups of 8 chunks Ø Each group has an entry in the hashtable, maximum 32 entries for every page Ø One element of the group is accessed through a linked list of max. 8 elements Yves Younan – Security of Memory Allocators for C and C++ 42
Dnmalloc: hashfunction Ø To find a chunk’s information from a chunk we do the following: Ø Substract the start of the heap from the chunk’s address Ø Shift the result 7 bits to the right: gives us the entry in the hashtable Hashtable Ø Go over the linked. Chunkinfo list till we have the. Chunkinfo correct Ptrchunk to chunkinfo Hashnext Ptr to chunkinfo Forward … Backward Size Ptr to chunkinfo Chunk Yves Younan – Security of Memory Allocators for C and C++ Chunk 43
Dnmalloc: Managing chunk information Ø A fixed area is mapped below the hashtable for chunkinfos Ø Free chunkinfos are stored in a linked list Ø When a new chunkinfo is needed the first element in the free list is used Ø If none are free a chunk is allocated from the map Ø If the map is empty we map extra memory for it (and move the guard page) Ø Chunk information is protected by guard Yves Younan – Security of Memory Allocators for C and C++ 44 pages
Dnmalloc performance overhead Spec CPU 2000 results for dlmalloc and dnmalloc (13 runs on 8 identical pcs (P 4 2. 8 ghz, 512 mb) = 104 runs) Progra m Dlmalloc runtime Dnmalloc runtime Overhead percentage gzip 253 +- 0 255. 98 +- 0. 01 1. 18% vpr 360. 93 +- 0. 16 360. 55 +- 0. 13 -0. 11% gcc 153. 93 +- 0. 05 154. 76 +- 0. 04 0. 54% mcf 287. 19 +- 0. 07 290. 09 +- 0. 07 1. 01% crafty 253 +- 0 254 +- 0 0. 40% parser 346. 95 +- 0. 02 346. 61 +- 0. 05 -0. 10% eon 771. 05 +- 0. 13 766. 55 +- 0. 11 -0. 58% perlbmk 243. 20 +- 0. 04 253. 51 +- 0. 05 4. 24% gap 184. 07 +- 0. 02 184 +- 0 -0. 04% vortex 250 +- 0 258. 79 +- 0. 04 3. 52% bzip 2 361. 64 +- 0. 05 363. 26 +- 0. 07 0. 45% 0. 43 for 513. 27 0. 41 Yves Younantwolf – Security of 522. 48 Memory+Allocators C and+C++ -1. 76% 45
Overview Ø Ø Ø Introduction Attacks Memory Allocators A Safer Allocator Related Work Ø Robertson et al. heap protector Ø Contrapolice Ø Glibc 2. 3. 5 integrity checks Ø Conclusion Yves Younan – Security of Memory Allocators for C and C++ 46
Robertson’s heap protector Ø Checksum stored in every chunk’s header Ø Checksum encrypted with a global readonly random value Ø Checksum added when allocated, checked when freed Ø Could be bypassed if memory leaks exist Ø Dlmalloc 2. 8. x implements a slightly modified version of this Yves Younan – Security of Memory Allocators for C and C++ 47
Overview Ø Ø Ø Introduction Attacks Memory Allocators A Safer Allocator Related Work Ø Robertson et al. heap protector Ø Contrapolice Ø Glibc 2. 3. 5 integrity checks Ø Conclusion Yves Younan – Security of Memory Allocators for C and C++ 48
Contrapolice Ø Protects chunks by placing canaries (random) before and after the chunk Ø Before exiting from a copy function, it checks if the canary before matches the canary after Ø Could be bypassed if the canary value is leaked Yves Younan – Security of Memory Allocators for C and C++ 49
Overview Ø Ø Ø Introduction Attacks Memory Allocators A Safer Allocator Related Work Ø Robertson et al. heap protector Ø Contrapolice Ø Glibc 2. 3. 5 integrity checks Ø Conclusion Yves Younan – Security of Memory Allocators for C and C++ 50
Glibc 2. 3. 5 integrity checks Ø Adds several integrity checks (unlink, free, realloc and other places): Ø Before unlink, check: p->fd->bk == p->bk->fd == p Ø Before free: pointer must be smaller than its negative size (and correctly aligned)� Ø Various other checks for chunktypes that are handled differently Ø Can be bypassed in some cases Ø Attack discovered by Phantasmal Phantasmagoria Ø Describes 5 techniques for bypassing glibc Yves Younan – Security of Memory Allocators for C and C++ integrity checks 51
Overview Ø Ø Ø Introduction Attacks Memory Allocators A Safer Allocator Related Work Conclusion Yves Younan – Security of Memory Allocators for C and C++ 52
Conclusion Ø Many allocators ignore security issues Ø Safer allocators are not necessarily much slower Ø Our approach still has an important limitation: only chunk information is protected, not what is in the chunk Ø This work is part of larger research where other important areas in memory are also separated from normal data (currently we’re finishing up on a stackbased countermeasure) Ø Which is part of my real research: a more methodical approach to designing countermeasures Yves Younan – Security of Memory Allocators for C and C++ 53
Conclusion Ø 2 papers associated with this talk: Ø Yves Younan, Wouter Joosen, Frank Piessens and Hans Van den Eynden. Security of Memory Allocators for C and C++. Technical Report CW 419, Departement Computerwetenschappen, Katholieke Universiteit Leuven, July 2005 Ø Yves Younan, Wouter Joosen and Frank Piessens. Applying machinemodel-aided countermeasure design to improve memory allocator security. 22 nd Chaos Communication Congress, Berlin, Germany, December 2005. Ø Dnmalloc implementation is available on http: //www. fortknox. org (also has other papers) Yves Younan – Security of Memory Allocators for C and C++ 54
