MEMBRANE DEGASSING OF DISSOLVED GASES FROM WATER AND WASTE WATER Dr. Rakesh Govind Chemical Engineering, University of Cincinnati, OH 45221 Email: rgovind 837@aol. com
What is Degassing? Degassing is removing dissolved gases from liquids. Applications includes: Removing biogenic hydrogen sulfide from groundwater, used for drinking water Removing carbon dioxide from water used for regenerating ion exchange resins Removal of dissolved oxygen from boiler feed water Removing ammonia from wastewater
Traditional Degassing Methods Traditional methods of degassing have involved heating, turbulence, spraying under reduced pressure, or stripping with other gases. Problems includes: Requires number of pieces of equipment; Degassing efficiency is usually low, without considerable energy consumption; Usually creates additional stream, which has substantial flow, and needs further treatment
Traditional Degassing Methods continued Traditional Stripping Towers with Packing Media Disadvantages Large footprint and significant energy consumption in gas blower and recycle pump for liquid; Clogging of packing media due to precipitation of salts, Biological growth, requiring chemical cleaning; Post treatment of exhaust gas containing the contaminant. Hydrogen sulfide/ammonia/volatile compounds; Large gas flow that requires further treatment; and Significant investment and operating costs

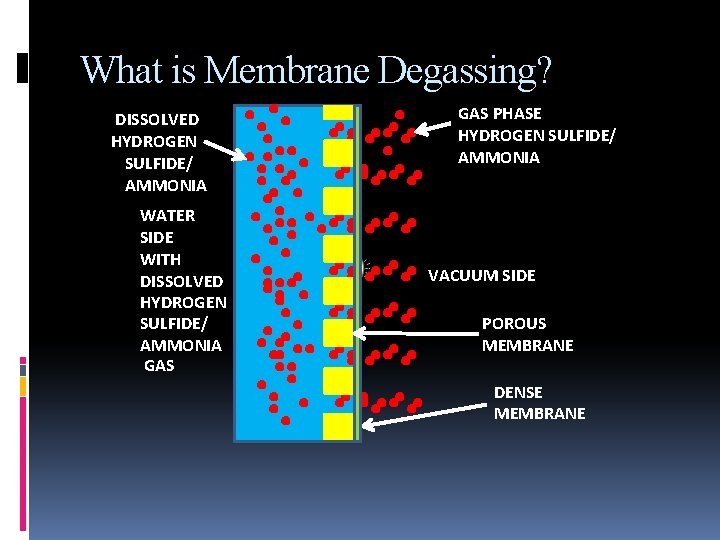

What is Membrane Degassing? DISSOLVED HYDROGEN SULFIDE/ AMMONIA WATER SIDE WITH DISSOLVED HYDROGEN SULFIDE/ AMMONIA GAS PHASE HYDROGEN SULFIDE/ AMMONIA VACUUM SIDE POROUS MEMBRANE DENSE MEMBRANE

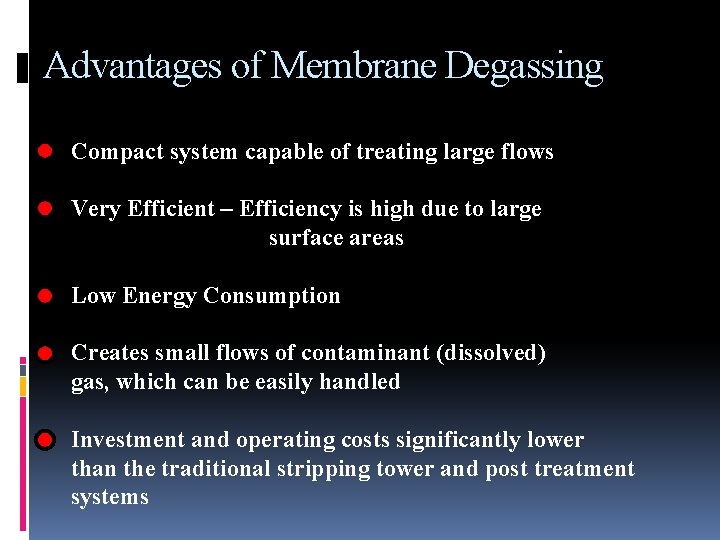

Advantages of Membrane Degassing Compact system capable of treating large flows Very Efficient – Efficiency is high due to large surface areas Low Energy Consumption Creates small flows of contaminant (dissolved) gas, which can be easily handled Investment and operating costs significantly lower than the traditional stripping tower and post treatment systems

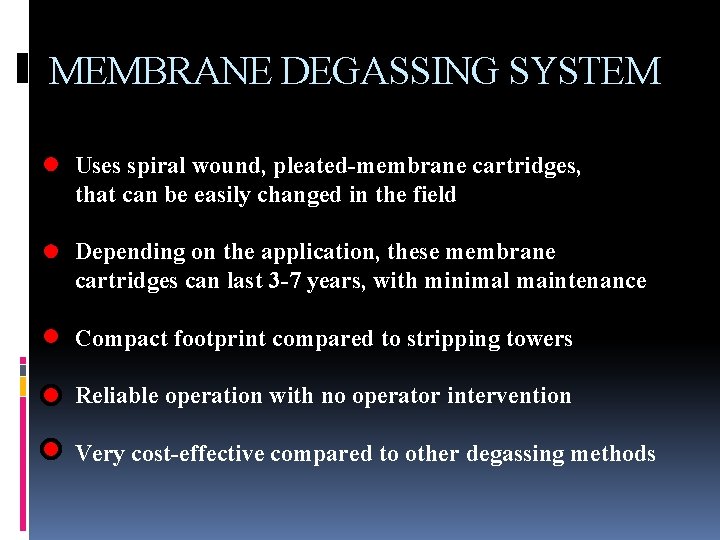

MEMBRANE DEGASSING SYSTEM Uses spiral wound, pleated-membrane cartridges, that can be easily changed in the field Depending on the application, these membrane cartridges can last 3 -7 years, with minimal maintenance Compact footprint compared to stripping towers Reliable operation with no operator intervention Very cost-effective compared to other degassing methods

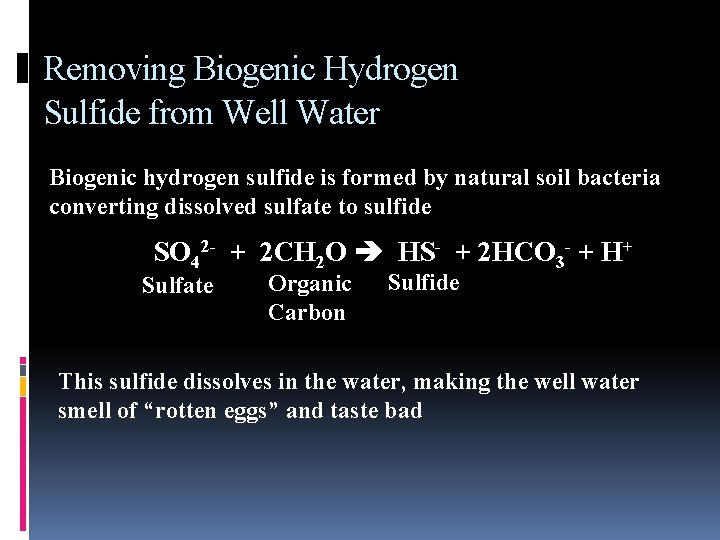

Removing Biogenic Hydrogen Sulfide from Well Water Biogenic hydrogen sulfide is formed by natural soil bacteria converting dissolved sulfate to sulfide SO 42 - + 2 CH 2 O HS- + 2 HCO 3 - + H+ Sulfate Organic Carbon Sulfide This sulfide dissolves in the water, making the well water smell of “rotten eggs” and taste bad
Traditional Aeration Methods

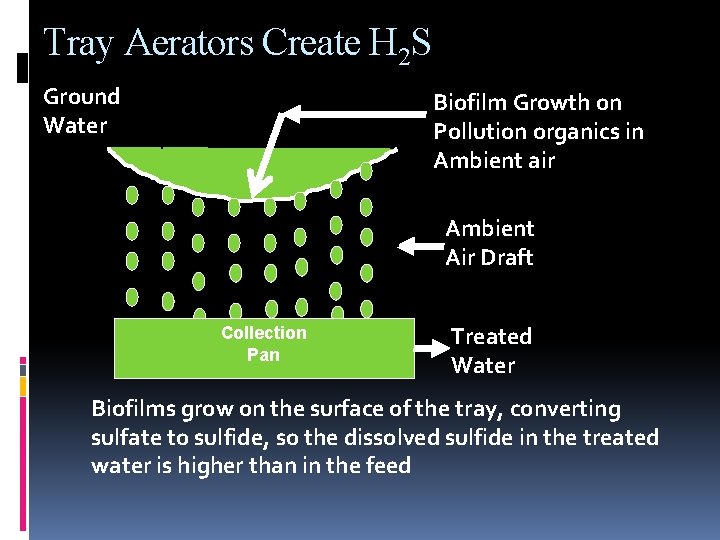

Tray Aerators Create H 2 S Ground Water Biofilm Growth on Pollution organics in Ambient air Ambient Air Draft Collection Pan Treated Water Biofilms grow on the surface of the tray, converting sulfate to sulfide, so the dissolved sulfide in the treated water is higher than in the feed

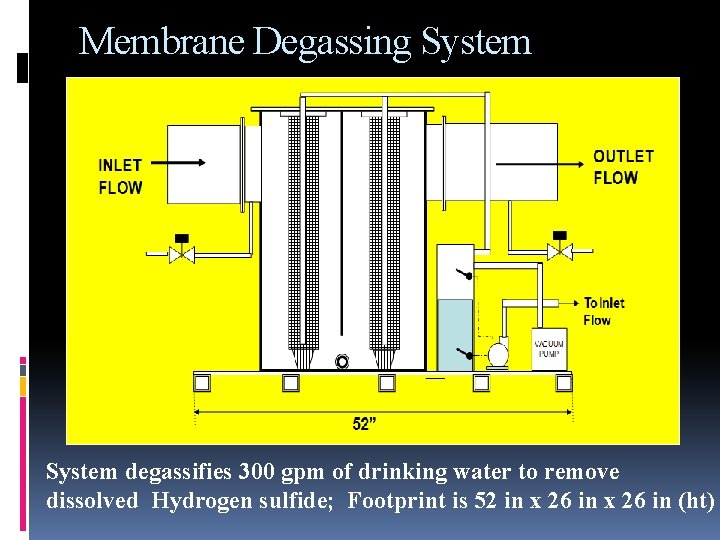

Membrane Degassing System degassifies 300 gpm of drinking water to remove dissolved Hydrogen sulfide; Footprint is 52 in x 26 in (ht)
Performance Data Havana Test Results for Membrane Degassifier Supplier: PRD Tech, Inc. Measurement Test 1 Test 2 Test 3 Inlet water sulfide (ppm) 2. 2 2. 4 2. 3 Sulfide Conc. after Membrane Degassifier 0. 38 0. 36 p. H of water 7. 5 7. 4 7. 5 Water Temperature (deg C) 25. 4 Sulfide after Tray Aerator (ppm) % Removal Efficiency for Degassifier % Removal Efficiency for Tray Aerator 2. 4 83% 85% -4%

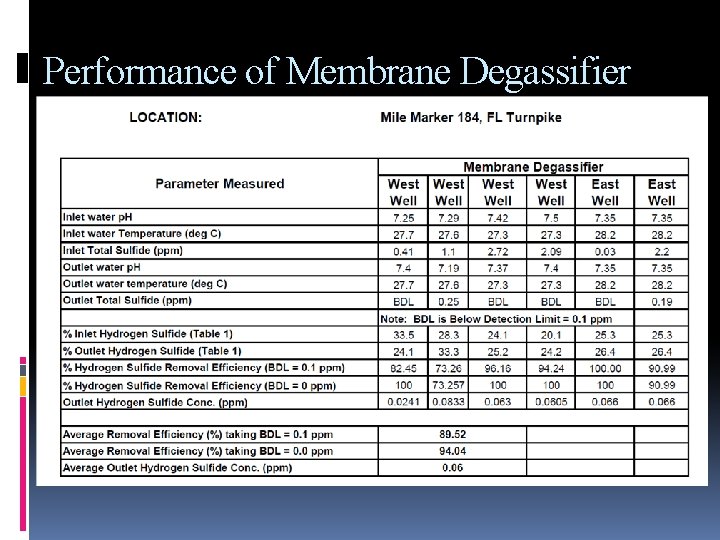

Performance of Membrane Degassifier

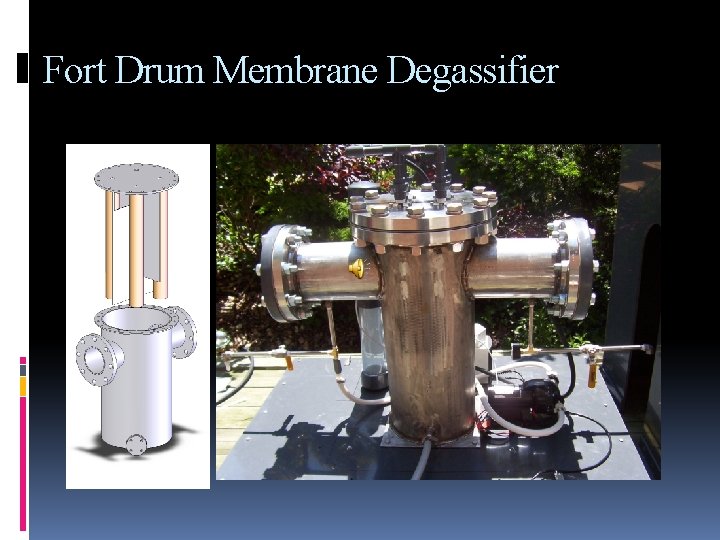

Fort Drum Membrane Degassifier

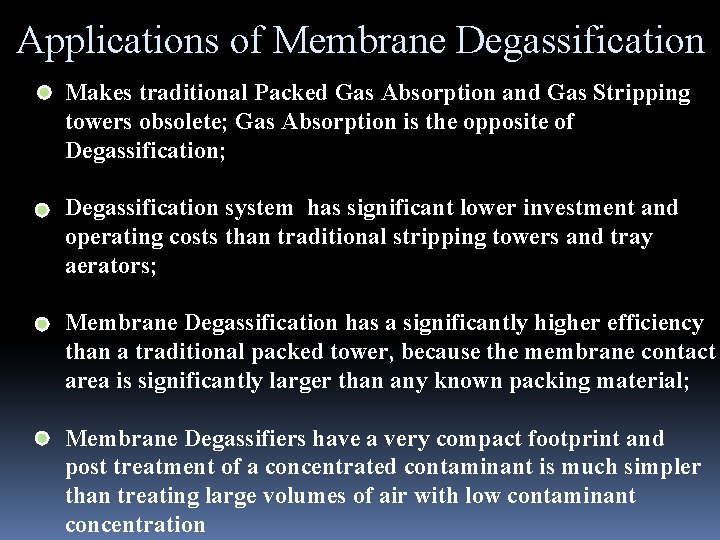

Applications of Membrane Degassification Makes traditional Packed Gas Absorption and Gas Stripping towers obsolete; Gas Absorption is the opposite of Degassification; Degassification system has significant lower investment and operating costs than traditional stripping towers and tray aerators; Membrane Degassification has a significantly higher efficiency than a traditional packed tower, because the membrane contact area is significantly larger than any known packing material; Membrane Degassifiers have a very compact footprint and post treatment of a concentrated contaminant is much simpler than treating large volumes of air with low contaminant concentration
Conclusions Degassification of liquids is required in many applications Traditional methods of liquid degassification have involved stripping towers, steam injection, vacuum stripping, etc. Energy intensive and high investment cost Membrane Degassification offers a simple, compact, reliable process that makes traditional stripping towers obsolete.
