Mekanika Fluida Minggu 04 Priyambodo ST MT Mochamad
Mekanika Fluida Minggu 04 Priyambodo, ST, MT Mochamad Yusuf Santoso, ST, MSc

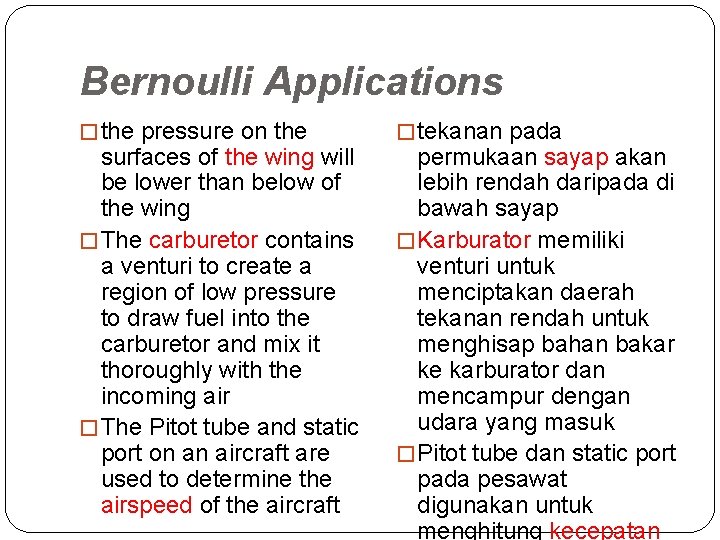

Bernoulli Applications � the pressure on the surfaces of the wing will be lower than below of the wing � The carburetor contains a venturi to create a region of low pressure to draw fuel into the carburetor and mix it thoroughly with the incoming air � The Pitot tube and static port on an aircraft are used to determine the airspeed of the aircraft � tekanan pada permukaan sayap akan lebih rendah daripada di bawah sayap � Karburator memiliki venturi untuk menciptakan daerah tekanan rendah untuk menghisap bahan bakar ke karburator dan mencampur dengan udara yang masuk � Pitot tube dan static port pada pesawat digunakan untuk menghitung kecepatan
Bernoulli Equation and Applications � The flow speed of a fluid can be measured using a device such as a Venturi meter or an orifice plate, � The maximum possible drain rate for a tank with a hole or tap at the base can be calculated directly from Bernoulli's equation. proportional to the square root of the height of the fluid in the tank � The Bernoulli grip relies on this principle to create a non-contact adhesive force between a surface and the gripper. � Kecepatan aliran fluida dapat diukur dengan menggunakan perangkat seperti Venturi meter atau pelat orifice � Tingkat pengurasan maksimum yang mungkin untuk tangki dengan lubang atau tap di dasar dapat dihitung langsung dari persamaan Bernoulli. sebanding dengan akar kuadrat dari tinggi cairan dalam tangki � The Bernoulli grip bergantung pada prinsip ini untuk membuat kekuatan perekat nonkontak antara permukaan
Bernoulli Applications

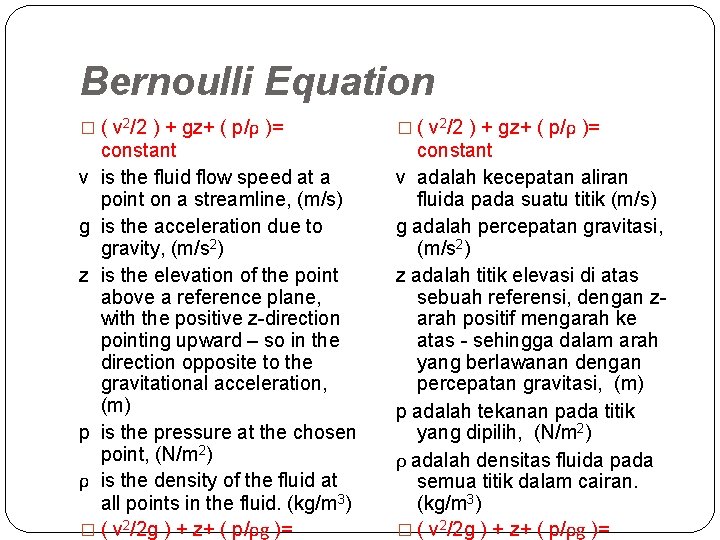

Bernoulli Equation � ( v 2/2 ) + gz+ ( p/ρ )= constant v is the fluid flow speed at a point on a streamline, (m/s) g is the acceleration due to gravity, (m/s 2) z is the elevation of the point above a reference plane, with the positive z-direction pointing upward – so in the direction opposite to the gravitational acceleration, (m) p is the pressure at the chosen point, (N/m 2) ρ is the density of the fluid at all points in the fluid. (kg/m 3) � ( v 2/2 g ) + z+ ( p/ρg )= � ( v 2/2 ) + gz+ ( p/ρ )= constant v adalah kecepatan aliran fluida pada suatu titik (m/s) g adalah percepatan gravitasi, (m/s 2) z adalah titik elevasi di atas sebuah referensi, dengan zarah positif mengarah ke atas - sehingga dalam arah yang berlawanan dengan percepatan gravitasi, (m) p adalah tekanan pada titik yang dipilih, (N/m 2) ρ adalah densitas fluida pada semua titik dalam cairan. (kg/m 3) � ( v 2/2 g ) + z+ ( p/ρg )=
Bernoulli Equation 1. The water tank is being filled through section 1 at v 1 = 5 m/s and through section 3 at Q 3 = 0. 012 m 3/s. If the water level h is constant, determine exit velocity v 2 Q 1 + Q 3 = Q 2 (π/4 x 0. 0402)(5) + 0. 0012 = Q 2 0. 01828 m 3/s = Q 2 = v 2 x A 2 v 2 = 0. 01828 / (π/4 x 0. 0602) v 2 = 6. 47 m/s
Bernoulli Equation 2. Water flows from section 1 to 2 in the pipe. Determine the velocity of the flow and the fluid pressure at section 2. assume the total head loss is 3 m Q = v 1 x A 1 = v 2 x A 2 π/4 x (0. 1)2 (2)=π/4 x (0. 05) 2 (v 2 ) v 2 = 8 m/s ( v 12/2 g ) + z 1+ ( p 1/ρg ) = ( v 22/2 g ) + z 2+ ( p 2/ρg ) + h. L (2) 2 /2 x 9. 8 + 2 + 300000/(1000 x 9. 8) = (8)2/2 x 9. 8 + 0 + p 2/(1000 x 9. 8) + 3 p 2 = 260 k. Pa
