Mega Video Surveillance HDTV Resolution at NTSC Price

Mega. Video® Surveillance HDTV Resolution at NTSC Price Made in the USA Tony Williams Security Central Marketing Manufacturer’s Representative for Canada Tony. Williams@securitycentral. ca or 647. 477. 3714 Arecont Vision

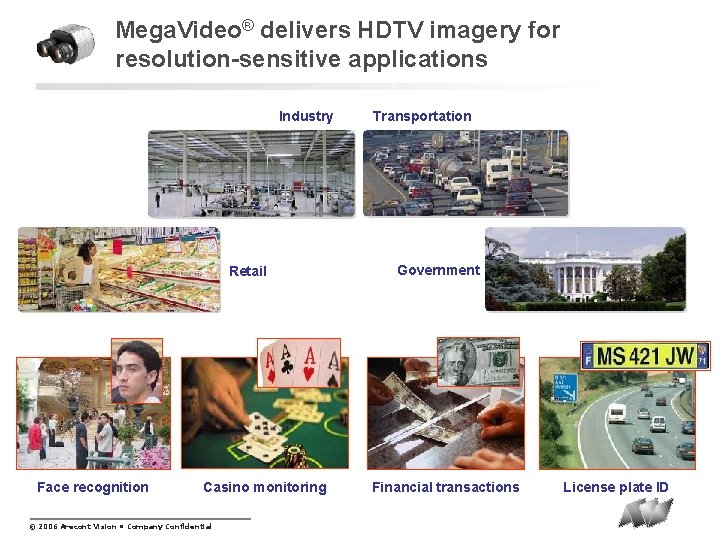

Mega. Video® delivers HDTV imagery for resolution-sensitive applications Industry Retail Face recognition Casino monitoring © 2006 Arecont Vision • Company Confidential Transportation Government Financial transactions License plate ID

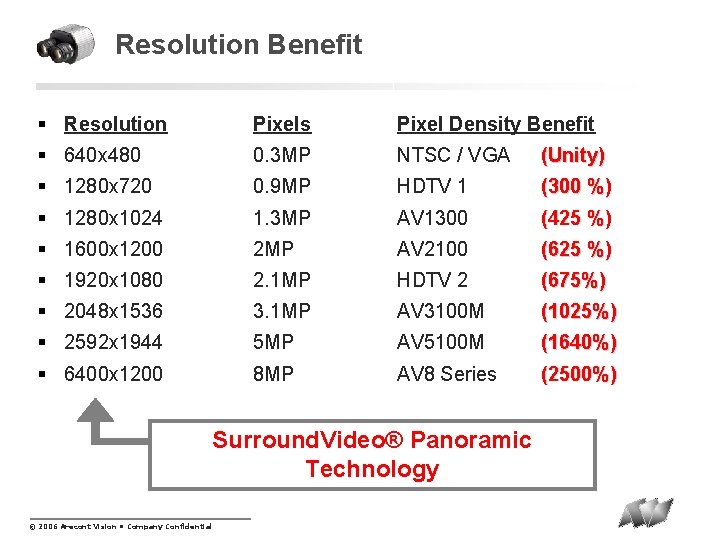

Resolution Benefit § Resolution Pixels Pixel Density Benefit § 640 x 480 0. 3 MP NTSC / VGA (Unity) § 1280 x 720 0. 9 MP HDTV 1 (300 %) § 1280 x 1024 1. 3 MP AV 1300 (425 %) § 1600 x 1200 2 MP AV 2100 (625 %) § 1920 x 1080 2. 1 MP HDTV 2 (675%) § 2048 x 1536 3. 1 MP AV 3100 M (1025%) § 2592 x 1944 5 MP AV 5100 M (1640%) § 6400 x 1200 8 MP AV 8 Series (2500%) Surround. Video® Panoramic Technology © 2006 Arecont Vision • Company Confidential

Resolution Comparison Arecont 5. 0 MP 2592 x 1944 Arecont 3. 1 MP 2048 x 1536 Arecont 2. 0 MP 1600 x 1200 Arecont 1. 3 MP 1280 x 1024 VGA 640 x 480 CIF 352 x 288 © 2006 Arecont Vision • Company Confidential

The Problem – Limited Field View 720 x 480 Despite significant progress in consumer imaging, video surveillance is still based on low-resolution cameras based on the Analog standard © 2006 Arecont Vision • Company Confidential

AV 3100 versus NTSC FOV of High Resolution Analog 720 x 480 © 2006 Arecont Vision • Company Confidential

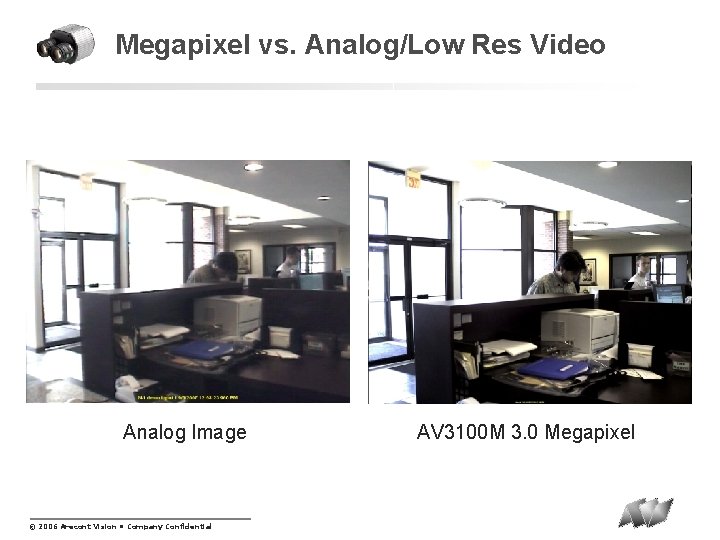

Megapixel vs. Analog/Low Res Video Analog Image © 2006 Arecont Vision • Company Confidential AV 3100 M 3. 0 Megapixel

Megapixel vs. Analog/Low Res Video Analog/low resolution © 2006 Arecont Vision • Company Confidential AV 2100 M 2. 0 Megapixel

Reduced Total System Cost § Reduced cameras to install ü AV 3100 (3 M camera) can replace up to 9 NTSC cameras ü Camera mounts, wiring, lenses, enclosures § Reduced wiring cost ü Ethernet is less expensive than Coax § No External Power ü Cameras are powered via “Switch” Powered Over Ethernet (802. 3 AF) § Easily Expanded ü Plug additional cameras into the network switch § Simplicity ü Simple Installation © 2006 Arecont Vision • Company Confidential

Topology Cam 1 Building 2 NVR #1 NVR #2 LAN …. . Cam 16 LAN © 2006 Arecont Vision • Company Confidential Monitoring Station

Mega. Video® Product Line § AV 1300 Series § 1. 3 Meg Pixel (1280 x 1024) >30 fps @ 1280 x 1024 § AV 2100 Series 2 Meg Pixel (1600 x 1200) Sensitivity down to. 5 lux AV 3130 M Day. Night™ 3. 1 M/1. 3 M Pixel Image (Dual Sensor). 01 lux to 100, 000 lux § AV 8360 Surround. Video® 8 Meg Pixel via 4 x 2 MP sensors 360 Field of View § AV 3100 Series 3. 1 Meg Pixel (2048 x 1536) 20 fps @ 1920 x 1200 § AV 5100 Series 5 Meg Pixel (2592 x 1944) 20 fps @ 1920 x 1200 © 2006 Arecont Vision • Company Confidential § AV 8180 Surround. Video® 8 Meg Pixel via 4 x 2 MP sensors 180 Field of View

Surround. Video® (8 Megapixel) Instantaneous Electronic Pan, Tilt & Zoom with Simultaneous Delivery of Panoramic and Zoomed Video 900 450 450 900 900 AV 8360 © 2006 Arecont Vision • Company Confidential AV 8180 450

Mega. Video® Families M Series AI Series § § § § § Smallest Megapixel cameras available 30 IPS at 1280 x 1024 0. 1 -0. 5 Lux w/ Noise Cancellation Tech (Low Noise) POE (Power Over Ethernet) Electronic Iris Control On-Board Motion Detection Same features at M Series DC Iris Control Available models: • • DN Series + AV 3130 M § § Same features at M Series Removable IR Cut Filter for low light 0. 01 -0. 05 Lux w/ Noise Cancellation Tech (Low Noise) Available Models: • • • AV 1300 DN AV 2100 DN AV 3100 DN AV 5100 DN AV 3130 M Dual Sensors © 2006 Arecont Vision • Company Confidential AV 1300 AI AV 2100 AI AV 3100 AI AV 5100 AI

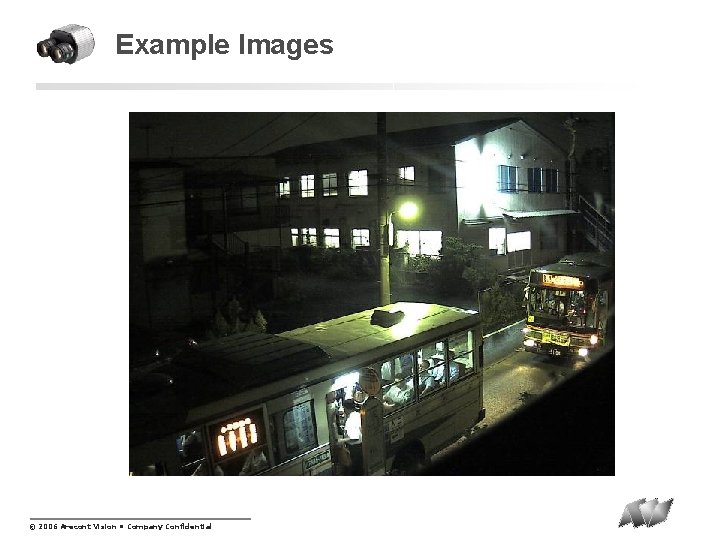

Example Images. . My PicturesPPT Imagescam 1 - 2005 -0222@23 -33. 40. 484. jpg © 2006 Arecont Vision • Company Confidential

Day. Night™ AV 3130 § Dual Lens and Dual Sensor • § § Extremely wide range of illumination from 100, 000 lux down to 0. 01 lux Day Sensor • • § © 2006 Arecont Vision • Company Confidential Color 2048 x 1536 (3 megapixel) IR Cut filter for vibrant daytime Colors Night Sensor • § No moving parts Black & White 1280 x 1024( 1. 3 Mpixel) Sensitive to low light and IR Utilizes proprietary Dual. Band™ multisensor technology Auto-switch day to night

AV 3130 with IR Illuminator Infrared by Extreme CCTV © 2006 Arecont Vision • Company Confidential

Bandwidth Saver Technology 2 ips (1920 x 1080 resolution) Non Arecont Vision camera must delivery the full field of View 12 ips @ 200 K = 19. 2 Mbps Competition utilizes 315% more bandwidth compared to Arecont 12 ips ~200 K Each Region of Interest can be streamed at varying frame rates if desired. Full FOV Lane 1 Lane 2 Lane 3 2 ips 12 ips 38 ips @ @ 200 K = 3. 20 Mbps 10 K = 0. 96 Kbps = 6. 08 Mbps Total Arecont saves approximately 315% bandwidth compared to competition using Region of Interest streaming. Full Field of View and all three regions are streamed simultaneously. © 2006 Arecont Vision • Company Confidential ~10 K

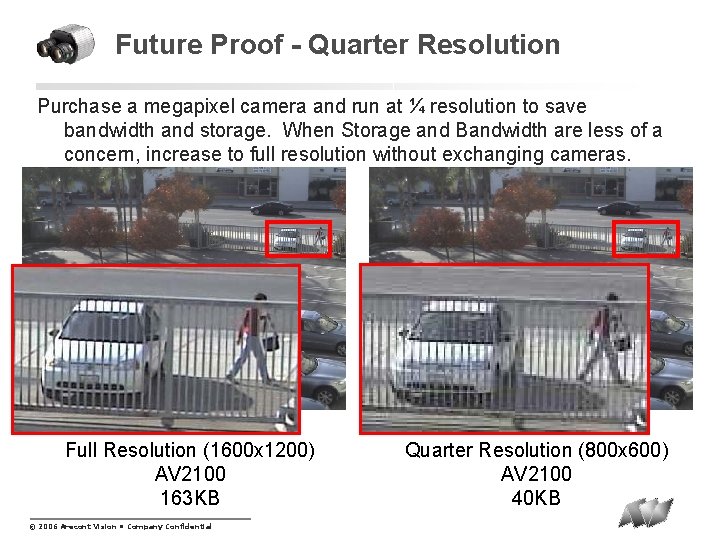

Future Proof - Quarter Resolution Purchase a megapixel camera and run at ¼ resolution to save bandwidth and storage. When Storage and Bandwidth are less of a concern, increase to full resolution without exchanging cameras. Full Resolution (1600 x 1200) AV 2100 163 KB © 2006 Arecont Vision • Company Confidential Quarter Resolution (800 x 600) AV 2100 40 KB

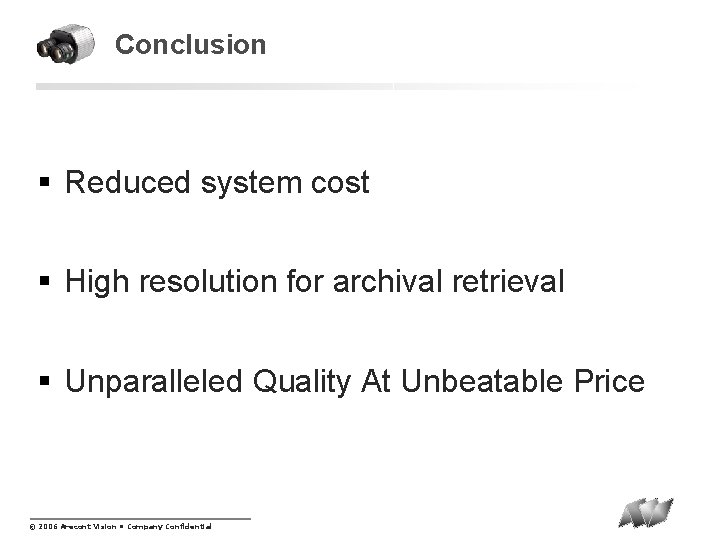

Conclusion § Reduced system cost § High resolution for archival retrieval § Unparalleled Quality At Unbeatable Price © 2006 Arecont Vision • Company Confidential

Contact Info Jason Schimpf Eastern U. S. Sales Manager 2400 Lincoln Avenue Altadena, CA 91001 jschimpf@arecontvision. com www. megapixelvideo. com 626. 296. 6399 Office 513. 207. 6841 Mobile © 2006 Arecont Vision • Company Confidential

Appendix © 2006 Arecont Vision • Company Confidential

Mega Pixel Family Features • • Made in the USA Easy to Use, less than 5 minutes to install § • Ten times the resolution of a high quality NTSC camera § § • • § § Separate power supplies are no longer required for powering cameras. The Megapixel cameras allow system installer the simplicity of connecting a single Ethernet cable to carry both power and video. This allows greater flexibility and significantly decreases installation costs. Powered over Ethernet (POE) - IEEE 802. 3 af compliant Alternative DC Input 12 VDC Image Control § § § • • i. e. . view 9 frames in 800 x 600 mode and then view the 10 th frame in 1920 x 1080 mode. (saves bandwidth) Sensitively down to. 01 lux --- very low light sensitive Multiple power input § • View an 800 x 600 image and a high resolution image box simultaneously Change resolution on the fly § • • 2040 x 1530 versus 640 x 480 Up to 24 frames per second at 1600 x 1200 (24 fps is same as a DVDs) Data transfer rate at over 55 Mbit/sec View Multiple frames simultaneously § • Connect Ethernet from the computer to camera, and load software. It’s that easy. Auto Iris Control Auto exposure and gain control, auto white balance Utilizes industry standard mounting brackets Fits into most weatherproof enclosures HDTV Resolution at NTSC Price © 2006 Arecont Vision • Company Confidential

Pricing for Starter Package § Starter Package includes: • • • § Terms and Conditions: • • § 2 or 3 Meg-Pixel Camera High Quality CCTV Computar 8 or 12 mm varifocal lens F 1. 4 ½” optical format AV Video System DVR/Archiving Software POE Power Supply SDK (free on request) Includes support 12 month Warrantee All prices are FOB Los Angeles AV 2100 or AV 3100 AV 3130 Day. Night™ COD on all starter packages – Wire Transfer, Corporate Check Starter packages may not be returned unless found defective Evaluating the camera is very easy. 1. 2. 3. 4. Load the software Connect your computer to the camera using a patch cable Connect the power supply to the camera Run the software © 2006 Arecont Vision • Company Confidential

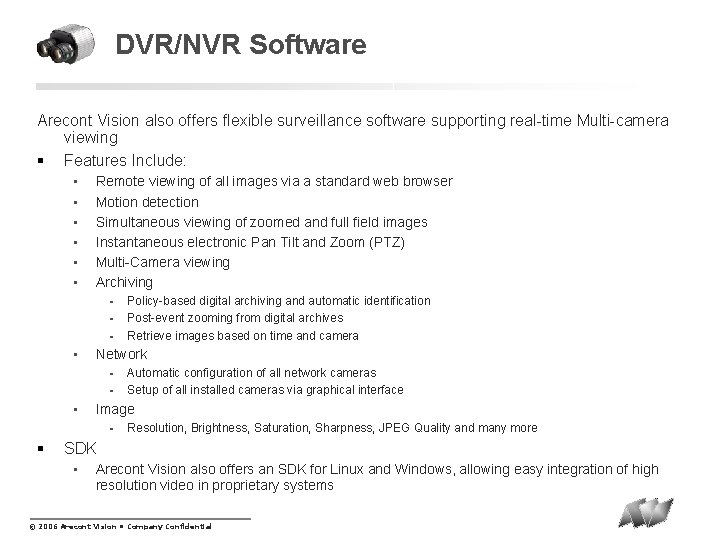

DVR/NVR Software Arecont Vision also offers flexible surveillance software supporting real-time Multi-camera viewing § Features Include: • • • Remote viewing of all images via a standard web browser Motion detection Simultaneous viewing of zoomed and full field images Instantaneous electronic Pan Tilt and Zoom (PTZ) Multi-Camera viewing Archiving § § § • Network § § • Automatic configuration of all network cameras Setup of all installed cameras via graphical interface Image § § Policy-based digital archiving and automatic identification Post-event zooming from digital archives Retrieve images based on time and camera Resolution, Brightness, Saturation, Sharpness, JPEG Quality and many more SDK • Arecont Vision also offers an SDK for Linux and Windows, allowing easy integration of high resolution video in proprietary systems © 2006 Arecont Vision • Company Confidential

Arecont Vision Solution Highlights of Mega. Video™ § Lower total system cost • • § High Definition Resolution • • § Simple system installation Use less cameras 9 x higher than analog Real Time HDTV Video Surveillance Software • • • High resolution post-event zooming Concurrent Full View and Zoom No need for mechanical PTZ § • § © 2006 Arecont Vision • Company Confidential Efficient Object Recognition Unique Camera Architecture • • § Electronic Pan, Tilt and Zoom Massively Parallel Image Processor Multiple hands make light work >40 fps in Megapixel mode On board motion detection Protected by 9 Pending Patents

Image Quality Arecont (2. 0 Meg) . 5 lux (Low Light) 3 lux ( Dim) 200 lux (Office Level) AV 2000 © 2006 Arecont Vision • Company Confidential AXIS 206 TOSHIBA (1. 4 Meg) Hitachi (VGA) IK-WB 11 KV-IPII

Problem Despite significant progress in consumer imaging, video surveillance is still based on low-resolution cameras based on the Analog standard NTSC CCTV System © 2006 Arecont Vision • Company Confidential Mega. Video. TM System NTSC CCTV System Mega. Video. TM System

Mega. Video® AV 2100 Camera § § § 1600 x 1200 at 24 fps. 5 Lux Sensitivity – Low Noise Moonlight™ Technology - Long Exposure using Proprietary Noise Cancellation Technology No separate power supply - Power-over-Ethernet Automatic Lens Iris Control On-Board Motion Detection © 2006 Arecont Vision • Company Confidential

Difference between Mechanical and Digital PTZ 400 Pixels (NTSC/PAL) Existing Mechanical PTZ allow either Full FOV Image OR Zoomed Image, but not both. 1 b b a and 1 a and Megapixel cameras can simultaneous Display of Full FOV AND Digitally Zoomed Image © 2006 Arecont Vision • Company Confidential

Competition Mfg § Model Sensor POE Auto Iris FPS Arecont Vision AV 5100 5. 0 Yes 15 Arecont Vision AV 3130 3. 1/1. 3 Yes N/A 22 Arecont Vision AV 3100 3. 1 Yes 15 Arecont Vision AV 2100 2 Yes 24 Arecont Vision AV 1300 1. 3 Yes 30 IQin. Vision IQeye 703 3 Yes No 12 IQin. Vision IQeye 702 2 Yes No 20 Lumenera Le 375 3 No No 10 Lumenera Le 275 2 No No 16 Mobotix M 10 D 1. 2 - No - Toshiba IK-WB 11 1. 45 Yes No 7. 5 Co. Vi Technology EVQ-1000 1 Yes No 7. 5 Arecont Vision has developed low-cost Mega. Video® products, capable of image processing speed well beyond the capabilities of modern CPUs and DSPs © 2006 Arecont Vision • Company Confidential
