MEF Technical Activities Paul Bottorff CoChair MEF Technical

MEF Technical Activities Paul Bottorff, Co-Chair MEF Technical Committee 1

What is the MEF • The Metro Ethernet Forum is a non-profit organization dedicated to accelerating the adoption of optical Ethernet as the technology of choice in metro networks worldwide. • The Forum is comprised of leading service providers, major incumbent local exchange carriers, top network equipment vendors and other prominent networking companies that share an interest in metro Ethernet. It has 60 members as of February, 2002. 2

MEF Key Objectives • Build consensus and unite service providers, equipment vendors, end customers on optical Ethernet • Facilitate implementation of optical Ethernet standards to allow delivery of Ethernet services and make Ethernet-based metro transport networks carrier-class • Enhance worldwide awareness of the benefits of optical Ethernet services and Ethernet-based metro transport networks • Enable Ethernet applications and services, building on the physical transport specified by e. g. 10 GEA 3

MEF Structure 4

MEF: Diverse Leadership The MEF Board of Directors is comprised of representatives from: – – – – – Bell. South SBC France Telecom Rockefeller Group Telecommunications Services Agilent Technologies Procket Networks Atrica Nortel Networks Alcatel For more information about the MEF leadership please visit http: //www. Metro. Ethernet. Forum. org/ 5

Marketing Committee Structure Marketing Committee Messaging Collateral Sub-committee Events Sub-committee Economic Analysis Sub-committee • Marketing committee is divided into three areas 6

Technical Committee Structure Technical Committee All Members Areas Architecture Sub-committee Services Sub-committee Protocol & Transport Sub-committee Management Sub-committee Test Methods Sub-committee • Technical committee is divided into five specialization areas 7

Approach to Technical Standards Use existing Standards and only fill the technical gaps for Metro Ethernet IEEE 802 ITU OIF IETF MPLS Forum Etc. MEF Etc. 10 GE Alliance Etc. 8

Document Types • Implementation Agreements – Building consensus on existing standards • Test Procedures – Promoting/Performing Interoperability testing • Position Statements – Proposing work for existing standards bodies • Technical Specifications – Developing new standards within MEF 9

TC Work Is Divided By Specialization Area Technical Committee All Members Areas Architecture Sub-committee Services Sub-committee Protocol & Transport Sub-committee Management Sub-committee Test Methods Sub-committee 10

Architecture • Metro Ethernet Network (MEN) Reference Model – User Network Interface (UNI) – Network to Network Interfaces (NNIs) • MEN Framework – defines the modeling conventions for the functional elements which compose a MEN – Provides common terminology for all MEF technical documents • User Network Interface (UNI) – The demark for customer or subscriber attachment • Ethernet Interworking NNI (EI-NNI) – Interface between autonomous systems 11

Services • Ethernet Services Model • Ethernet Definitions – – – Ethernet Line Services (ELINE) Ethernet LAN Services (ELAN) Circuit Emulation Service (CES) • Bandwidth Profiles Parameters – Committed Information Rate (CIR) – Peak Information Rate (PIR) 12

Transport and Protocol • Protection – Protection Framework describes a model and framework to deliver network protection schemes • EMF – Ethernet Multiplexor provides a subset of the functions under discussion at IEEE 802. 1 Provider Bridges • Eo. S – Agreements for transport of Ethernet over Sonet 13

Management • Element Management System – defines the requirements for the central systems which manage the network elements of a MEN • EMS/NMS Information Model – defines a vendor independent data model for information exchanged between the service provider’s NMS and the MEN EMS • OAM Management – defines end-to-end OAM for the service assurance 14

MEF Technical Committee Dash Board MEF Technical Committee Conformance & Performance Management Area Test Area Process Ad-Hoc TC Rules and Procedures Architecture Area Protocol & Transport Area MEN Architecture OAM&P Ethernet Services OAM d 4 EMS Mgmt EMS Requirements d 1 EMS-NMS If EMS-NMS Information Model d 3 MEN Architecture FW Part 1 d 1 MEN Architecture FW Part 2 MEN Architecture FW part 3 MEN Architecture FW part 4 MEN Architecture FW part 5 UNI QOS Framework d 2 Protection Requirements d 3 Protection Framework d 3 UNI PVC IA d 1 EI-NNI TS d 1 Ethernet Services Eo. S IA d 1 Traffic Performance Parameters d 3 CES NI-NNI MPLS NI-NNI D 1 EMF TS d 1 Ethernet Services Model d 4 Ethernet Services Definitions d 2 TM MPLS Protection IA d 1 UNI Requirements d 2 UNI Framework d 3 Services Area CES Requirements d 2 Legend Gray Color = Not Approved Project Orange Color = Approved Project Blue Color = Draft Status Green Color = Approved Standard 15 Red Color = Sent to Ballot

16 Approved Drafts 16

Basic Metro Ethernet Model • Ethernet Service provided by Metro Ethernet Network (MEN) • Customer Equipment (CE) attaches to MEN at User-Network Interface (UNI) using 10, 1000 Mbps Ethernet interface. 17

MEN Layered Network Model Application Services Layer (s) (Vo. IP, MPLS, PDH, . . . ) Ethernet Services Layer (Ethernet) Transport Layer (s) • Ethernet Services layer (ETH) • uses services from its Transport Layer(s) • provides services to its Application Services Layer(s) Domain (802. 3 PHY, SDH/SONET, MPLS, OTN, . . . ) 18

MEF External Reference Points Public Service Networks Internet, FR, etc. UNI Subscriber Network Interworking NI-NNI Service Interworking SI-NNI Metro Ethernet Network (MEN) Autonomy X Transport Network Metro Ethernet Network (MEN) Autonomy X Intercarrier Network Metro Ethernet Network (MEN) Autonomy Y Ethernet Interworking EI-NNI 19

MEF External Reference Point • User Network Interface (UNI) – Reference point between Metro Ethernet Network (MEN) and directly/virtualized attached interfaces of customer equipment. – Interfaces between MEN and customer equipment. – Is the subscriber demark point • Service Interworking NNI (SI-NNI) – Reference point between MEN and other public service networks (IP). – Interfaces between MEN and other public services networks (ex: ATM, FR, T 1/T 3, IP-Sec, etc). 20

MEF External Reference Point (Cont. ) • Ethernet Interworking NNI (EI-NNI) • Reference point between MENs in different autonomys • Network Interworking NNI (NI-NNI) – Reference point between MENs in same autonomy. – Interface between MEN and other public transport networks (GE, SDH/SONET, ATM, RPR, etc). 21

Services Definition Customer Equipment (CE) User Network Interface (UNI) Metro Ethernet Network Service Provider Responsibility Service Model: Services described as seen by CE, UNI to UNI 22

Ethernet Virtual Connection Types (EVC) Point-to-Point Multipoint-to-Multipoint Leaf Root Leaf Point-to-Multipoint 23

Some Service Features Bandwidth Profile: Defines the way in which less than the full physical bandwidth of UNI can utilized by the subscriber. Basis of the “pay for the bandwidth that you need” capability of an Ethernet Service Multiplexing: Multiple EVCs accessible at a single UNI. Reach multiple destinations across the MEN via a single UNI, e. g. , a Gigabit Ethernet UNI. IWF Interworking Function: Non-Ethernet services via an Interworking Function (IWF), e. g. , TDM over Ethernet 24

Ethernet Line Service (ELINE) ELINE • ELINE service is Point-to-Point and may describe both Private Lines and Virtual Private Lines • May build a Frame Relay like service 25

ELINE Service Multiplexing • In this example a single site has multiple ELINE connections to other sites multiplexed over a single UNI. 26

Ethernet LAN Service (ELAN) ELAN • Service is Multipoint-to-Multipoint fully connected 27

Protection Model Multiple levels of service resiliency enabled by flexible protection mechanism Application Protection Constraint Policy End-to-End Path Protection Aggregated Line and Node Protection MEF Protection Mechanism Topology Transport 28

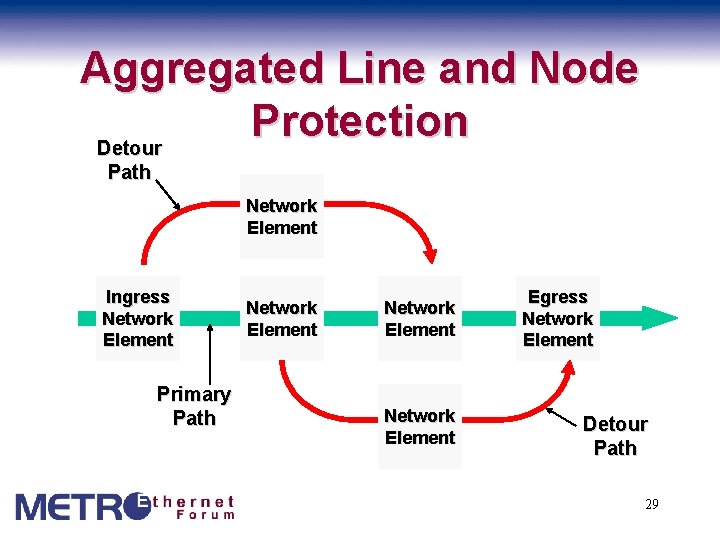

Aggregated Line and Node Protection Detour Path Network Element Ingress Network Element Primary Path Network Element Egress Network Element Detour Path 29

End-to-End Path Protection Network Element Ingress Network Element Primary Path Secondary Path Network Element Egress Network Element 30

End-to-end OAM Customer Edge UNI Provider Edge Internet Access Customer Edge LMI Ethernet Virtual Connection (EVC) Ethernet Access Network Metro Ethernet Network Ethernet Access Network LMI Provider Edge Metro Ethernet Network ISP Router 31

OAM Management • • Availability Status Monitoring Scalability Extensibility Security Tunnel and Transport Independence Layer 3 Independence 32

Summary • MEF is working to fill the gaps between existing standards needed to standardize complete MEN systems. • Technical work is focused on – – Customer Service Specifications User Interface Definition Network To Network Interface Definitions Transport Network Features for Protection, Qo. S, and Eo. S – End-to-end Management – Network Element Management 33
