MEDICINE Pharmaceuticals The Engineering Grand Challenges and Green
![MEDICINE (Pharmaceuticals) The Engineering Grand Challenges and Green Engineering MEDICINE (Pharmaceuticals) The Engineering Grand Challenges and Green Engineering](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-1.jpg)
![NAE. Grand Challenges for Engineering 2008 http: //www. engineeringchallenges. org/challenges/medicines. aspx NAE. Grand Challenges for Engineering 2008 http: //www. engineeringchallenges. org/challenges/medicines. aspx](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-2.jpg)
![Pharmaceuticals industry EFPIA. The Pharmaceutical Industry in Figures: Key Data 2016 Pharmaceuticals industry EFPIA. The Pharmaceutical Industry in Figures: Key Data 2016](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-3.jpg)
![Creating pharmaceuticals is inefficient • Depends on what is termed as “waste” • Can Creating pharmaceuticals is inefficient • Depends on what is termed as “waste” • Can](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-4.jpg)
![Green Engineering Research in Pharma Key green engineering research areas Jimenez-Gonzalez, C. OPRD 2011 Green Engineering Research in Pharma Key green engineering research areas Jimenez-Gonzalez, C. OPRD 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-5.jpg)
![Continuous processing in process intensification • • • Reduce costs Reduce the size of Continuous processing in process intensification • • • Reduce costs Reduce the size of](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-6.jpg)
![Green Engineering Principles • Principle 5: “Output-pulled” rather than “inputpushed” • Principle 1: Inherent Green Engineering Principles • Principle 5: “Output-pulled” rather than “inputpushed” • Principle 1: Inherent](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-7.jpg)
![Principle 5: “Output-pulled” vs. “input-pushed” “Drive” a reaction or transformation to completion by adding Principle 5: “Output-pulled” vs. “input-pushed” “Drive” a reaction or transformation to completion by adding](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-8.jpg)
![Principle 5 example: Reactive distillation Taylor, R. Chem. Eng. Sci 2000 Principle 5 example: Reactive distillation Taylor, R. Chem. Eng. Sci 2000](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-9.jpg)
![Unit operations in pharma synthesis Separations Jimenez-Gonzalez, C. OPRD 2011 Unit operations in pharma synthesis Separations Jimenez-Gonzalez, C. OPRD 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-10.jpg)
![Reactions and Separations • Materials Use: Separations contribute 40 -90% of the process mass Reactions and Separations • Materials Use: Separations contribute 40 -90% of the process mass](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-11.jpg)
![Solvents • Usage: – – – Dissolution Suspension Extraction/purification Reaction medium Formulation/ product delivery Solvents • Usage: – – – Dissolution Suspension Extraction/purification Reaction medium Formulation/ product delivery](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-12.jpg)
![Principle 1: Inherent rather than circumstantial • Some traditional solvents – Diethyl ether, an Principle 1: Inherent rather than circumstantial • Some traditional solvents – Diethyl ether, an](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-13.jpg)
![Needs for green solvents Metrics of a green solvent: • Toxicity, safety, hazard • Needs for green solvents Metrics of a green solvent: • Toxicity, safety, hazard •](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-14.jpg)
![Soh, L. ACS Sust Chem Eng 2016 Identifying green solvents Soh, L. ACS Sust Chem Eng 2016 Identifying green solvents](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-15.jpg)
![Life cycle inherent hazard Soh, L. ACS Sust Chem Eng 2016 Life cycle inherent hazard Soh, L. ACS Sust Chem Eng 2016](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-16.jpg)
![Energy use for solvent production Jessop, P. Green Chem 2011 Energy use for solvent production Jessop, P. Green Chem 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-17.jpg)
![Solvent CO 2 emissions Jessop, P. Green Chem 2011 Solvent CO 2 emissions Jessop, P. Green Chem 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-18.jpg)
![Example: Pfizer green solvent guide Alfonsi, K. Green Chem 2008 Example: Pfizer green solvent guide Alfonsi, K. Green Chem 2008](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-19.jpg)
![Alternatives must be functional Soh, L. ACS Sust Chem Eng 2016 Alternatives must be functional Soh, L. ACS Sust Chem Eng 2016](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-20.jpg)
![Glaxo. Smith. Kline Solvent classification affects both utility and sustainability Alder, C. Green Chem. Glaxo. Smith. Kline Solvent classification affects both utility and sustainability Alder, C. Green Chem.](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-21.jpg)
![Principle 3: Design for separation • Can solvents be designed to minimize impacts associated Principle 3: Design for separation • Can solvents be designed to minimize impacts associated](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-22.jpg)
![Designing for separations Jessop, P. Green Chem 2011 Designing for separations Jessop, P. Green Chem 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-23.jpg)
![Principle 9: Minimize material diversity • Allows for easier recycling and reuse • Simplifies Principle 9: Minimize material diversity • Allows for easier recycling and reuse • Simplifies](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-24.jpg)
![Supercritical fluid assisted drug delivery No residuals Single solvent use Reverchon, E. J. Supercritical Supercritical fluid assisted drug delivery No residuals Single solvent use Reverchon, E. J. Supercritical](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-25.jpg)
![Solvent free reactions? - Mechanochemistry • Mechanochemistry uses physical force for chemical reaction Example Solvent free reactions? - Mechanochemistry • Mechanochemistry uses physical force for chemical reaction Example](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-26.jpg)
![Case study: Sildenafil citrate Dunn, P. Green Chem. 2004 Case study: Sildenafil citrate Dunn, P. Green Chem. 2004](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-27.jpg)
![Reduce waste from new production process Dunn, P. Green Chem. 2004 Reduce waste from new production process Dunn, P. Green Chem. 2004](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-28.jpg)
![Summary • The pharmaceuticals industry currently produces much waste leading to inflated economic and Summary • The pharmaceuticals industry currently produces much waste leading to inflated economic and](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-29.jpg)
![IDEO – The Deep Dive (moodle) Watch the posted video on Moodle and discuss IDEO – The Deep Dive (moodle) Watch the posted video on Moodle and discuss](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-30.jpg)
- Slides: 30

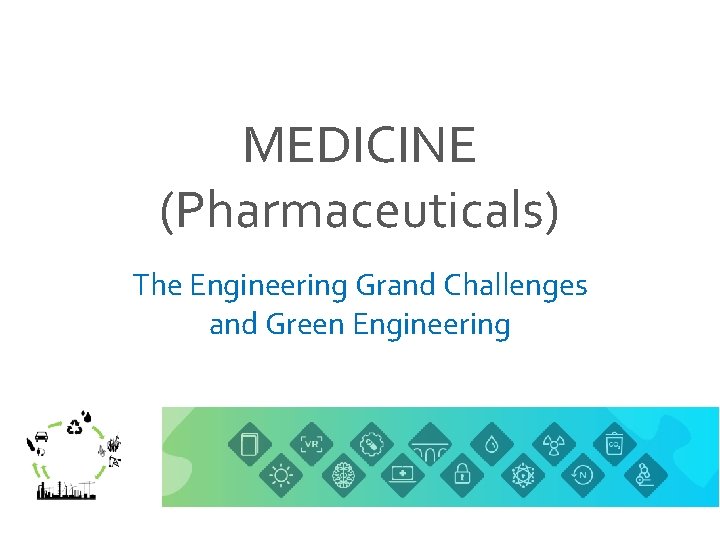

![MEDICINE Pharmaceuticals The Engineering Grand Challenges and Green Engineering MEDICINE (Pharmaceuticals) The Engineering Grand Challenges and Green Engineering](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-1.jpg)
MEDICINE (Pharmaceuticals) The Engineering Grand Challenges and Green Engineering
![NAE Grand Challenges for Engineering 2008 http www engineeringchallenges orgchallengesmedicines aspx NAE. Grand Challenges for Engineering 2008 http: //www. engineeringchallenges. org/challenges/medicines. aspx](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-2.jpg)
NAE. Grand Challenges for Engineering 2008 http: //www. engineeringchallenges. org/challenges/medicines. aspx
![Pharmaceuticals industry EFPIA The Pharmaceutical Industry in Figures Key Data 2016 Pharmaceuticals industry EFPIA. The Pharmaceutical Industry in Figures: Key Data 2016](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-3.jpg)
Pharmaceuticals industry EFPIA. The Pharmaceutical Industry in Figures: Key Data 2016

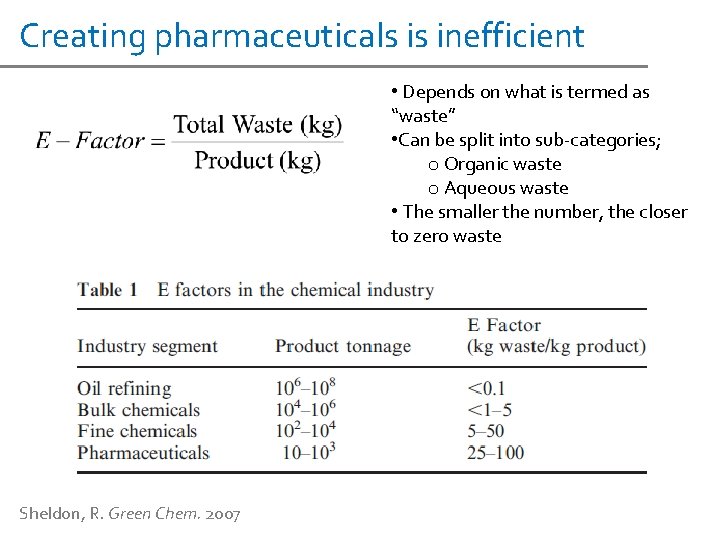

![Creating pharmaceuticals is inefficient Depends on what is termed as waste Can Creating pharmaceuticals is inefficient • Depends on what is termed as “waste” • Can](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-4.jpg)
Creating pharmaceuticals is inefficient • Depends on what is termed as “waste” • Can be split into sub-categories; o Organic waste o Aqueous waste • The smaller the number, the closer to zero waste Sheldon, R. Green Chem. 2007

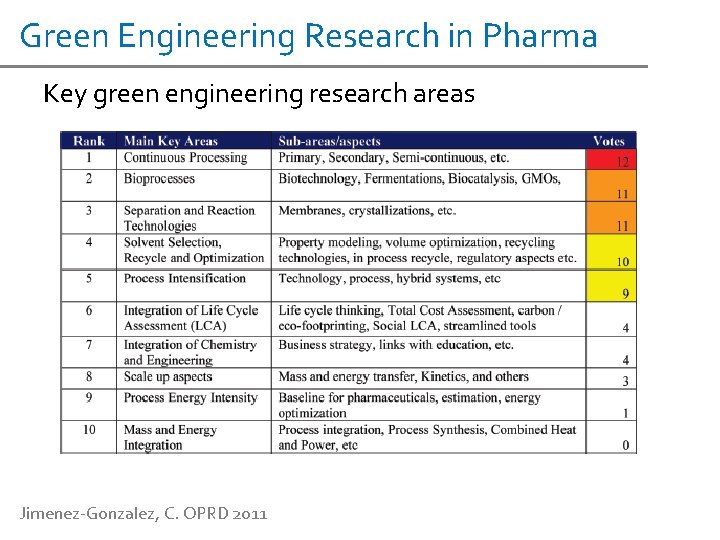

![Green Engineering Research in Pharma Key green engineering research areas JimenezGonzalez C OPRD 2011 Green Engineering Research in Pharma Key green engineering research areas Jimenez-Gonzalez, C. OPRD 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-5.jpg)
Green Engineering Research in Pharma Key green engineering research areas Jimenez-Gonzalez, C. OPRD 2011
![Continuous processing in process intensification Reduce costs Reduce the size of Continuous processing in process intensification • • • Reduce costs Reduce the size of](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-6.jpg)
Continuous processing in process intensification • • • Reduce costs Reduce the size of process equipment, Improve product quality Reduce energy consumption, solvent utilization Decrease waste generation Increase process safety Jimenez-Gonzalez, C. OPRD 2011

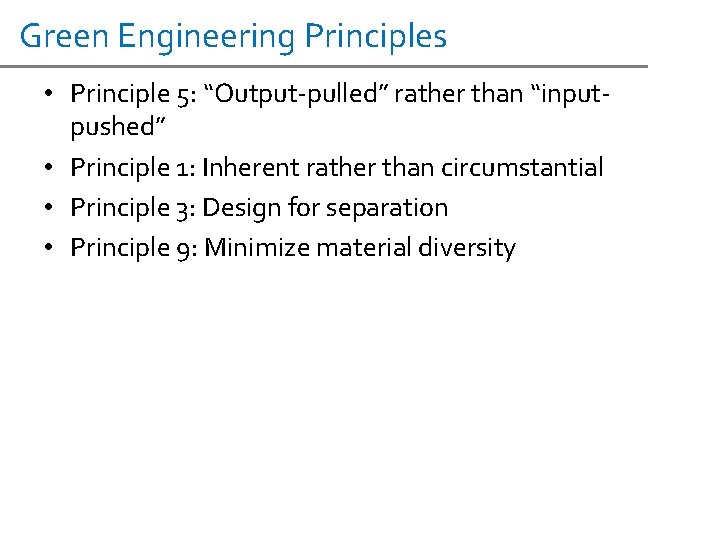

![Green Engineering Principles Principle 5 Outputpulled rather than inputpushed Principle 1 Inherent Green Engineering Principles • Principle 5: “Output-pulled” rather than “inputpushed” • Principle 1: Inherent](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-7.jpg)
Green Engineering Principles • Principle 5: “Output-pulled” rather than “inputpushed” • Principle 1: Inherent rather than circumstantial • Principle 3: Design for separation • Principle 9: Minimize material diversity

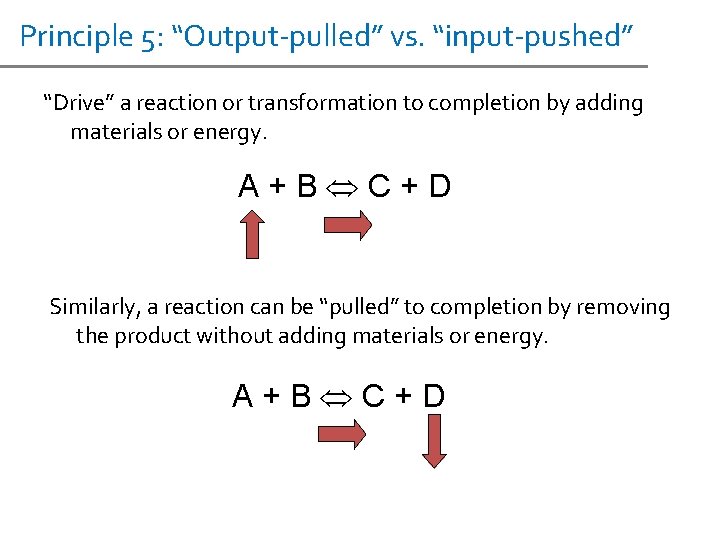

![Principle 5 Outputpulled vs inputpushed Drive a reaction or transformation to completion by adding Principle 5: “Output-pulled” vs. “input-pushed” “Drive” a reaction or transformation to completion by adding](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-8.jpg)
Principle 5: “Output-pulled” vs. “input-pushed” “Drive” a reaction or transformation to completion by adding materials or energy. A+B C+D Similarly, a reaction can be “pulled” to completion by removing the product without adding materials or energy. A+B C+D

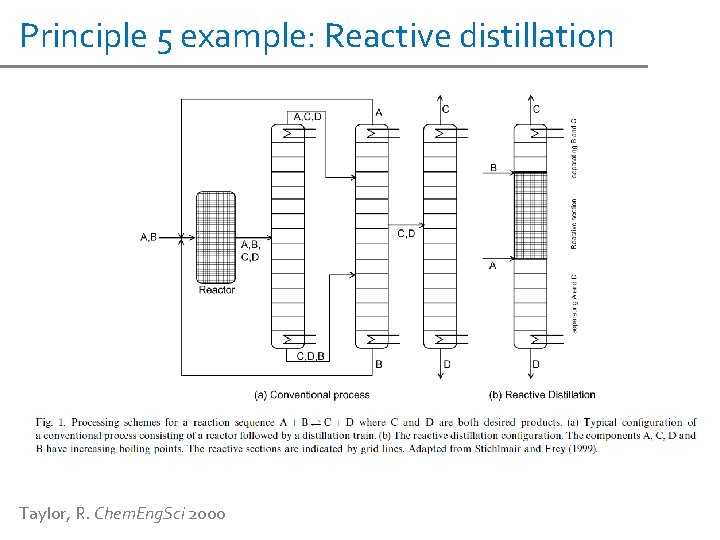

![Principle 5 example Reactive distillation Taylor R Chem Eng Sci 2000 Principle 5 example: Reactive distillation Taylor, R. Chem. Eng. Sci 2000](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-9.jpg)
Principle 5 example: Reactive distillation Taylor, R. Chem. Eng. Sci 2000

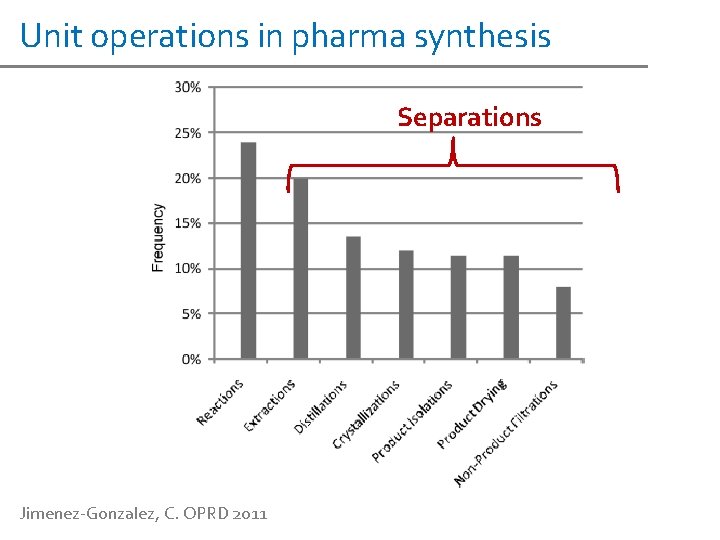

![Unit operations in pharma synthesis Separations JimenezGonzalez C OPRD 2011 Unit operations in pharma synthesis Separations Jimenez-Gonzalez, C. OPRD 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-10.jpg)
Unit operations in pharma synthesis Separations Jimenez-Gonzalez, C. OPRD 2011

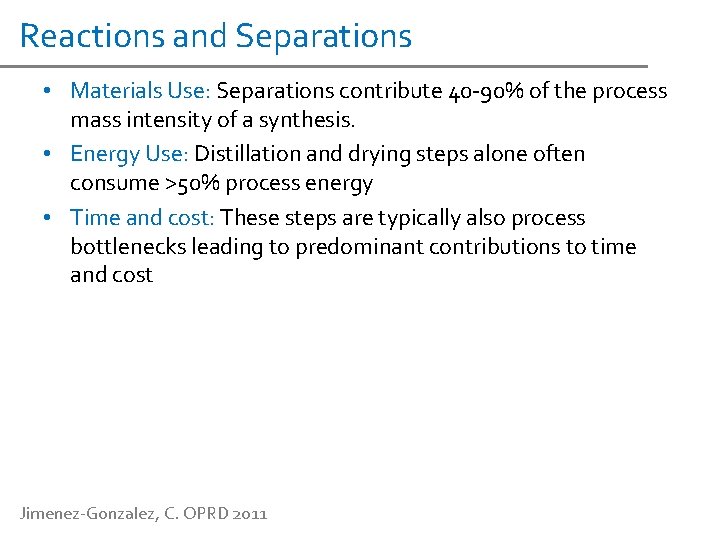

![Reactions and Separations Materials Use Separations contribute 40 90 of the process mass Reactions and Separations • Materials Use: Separations contribute 40 -90% of the process mass](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-11.jpg)
Reactions and Separations • Materials Use: Separations contribute 40 -90% of the process mass intensity of a synthesis. • Energy Use: Distillation and drying steps alone often consume >50% process energy • Time and cost: These steps are typically also process bottlenecks leading to predominant contributions to time and cost Jimenez-Gonzalez, C. OPRD 2011

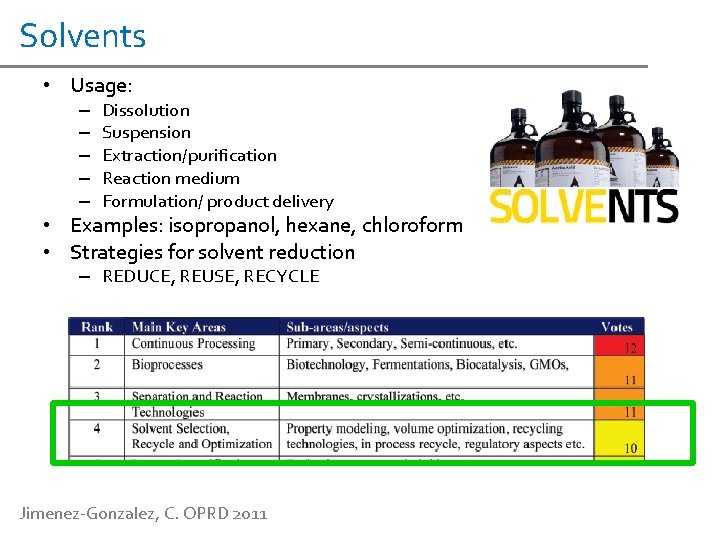

![Solvents Usage Dissolution Suspension Extractionpurification Reaction medium Formulation product delivery Solvents • Usage: – – – Dissolution Suspension Extraction/purification Reaction medium Formulation/ product delivery](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-12.jpg)
Solvents • Usage: – – – Dissolution Suspension Extraction/purification Reaction medium Formulation/ product delivery • Examples: isopropanol, hexane, chloroform • Strategies for solvent reduction – REDUCE, REUSE, RECYCLE Jimenez-Gonzalez, C. OPRD 2011

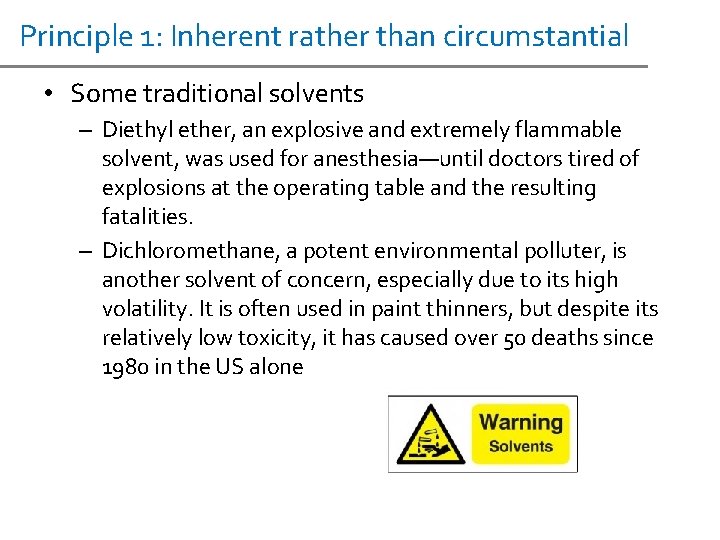

![Principle 1 Inherent rather than circumstantial Some traditional solvents Diethyl ether an Principle 1: Inherent rather than circumstantial • Some traditional solvents – Diethyl ether, an](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-13.jpg)
Principle 1: Inherent rather than circumstantial • Some traditional solvents – Diethyl ether, an explosive and extremely flammable solvent, was used for anesthesia—until doctors tired of explosions at the operating table and the resulting fatalities. – Dichloromethane, a potent environmental polluter, is another solvent of concern, especially due to its high volatility. It is often used in paint thinners, but despite its relatively low toxicity, it has caused over 50 deaths since 1980 in the US alone

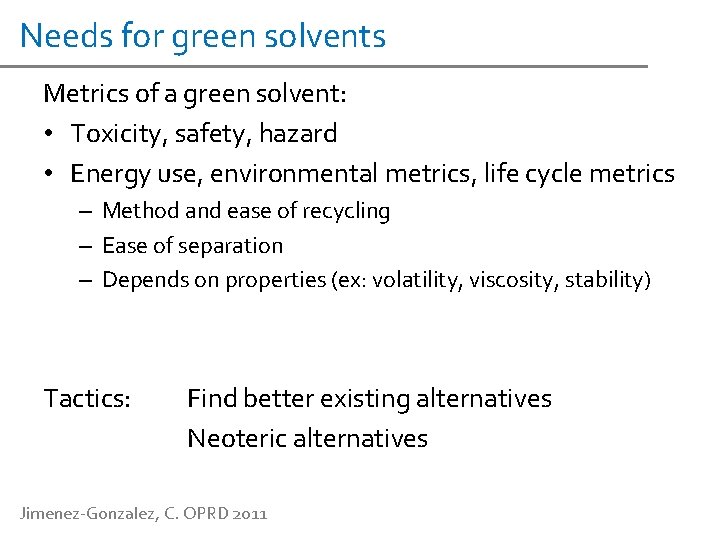

![Needs for green solvents Metrics of a green solvent Toxicity safety hazard Needs for green solvents Metrics of a green solvent: • Toxicity, safety, hazard •](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-14.jpg)
Needs for green solvents Metrics of a green solvent: • Toxicity, safety, hazard • Energy use, environmental metrics, life cycle metrics – Method and ease of recycling – Ease of separation – Depends on properties (ex: volatility, viscosity, stability) Tactics: Find better existing alternatives Neoteric alternatives Jimenez-Gonzalez, C. OPRD 2011

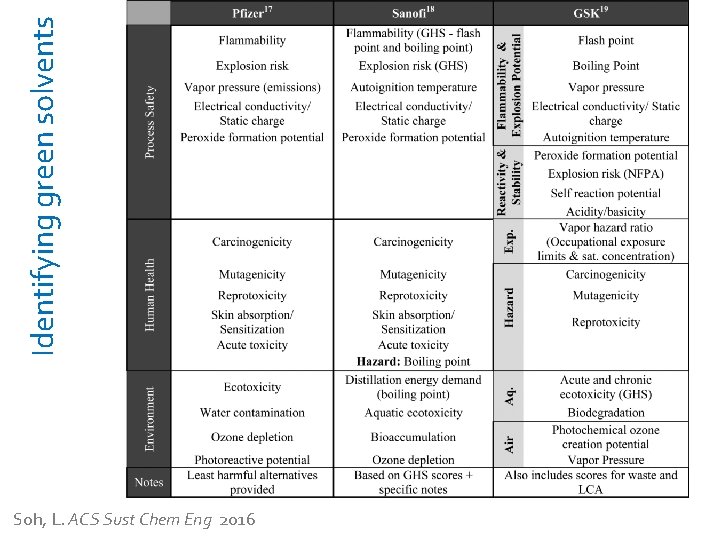

![Soh L ACS Sust Chem Eng 2016 Identifying green solvents Soh, L. ACS Sust Chem Eng 2016 Identifying green solvents](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-15.jpg)
Soh, L. ACS Sust Chem Eng 2016 Identifying green solvents

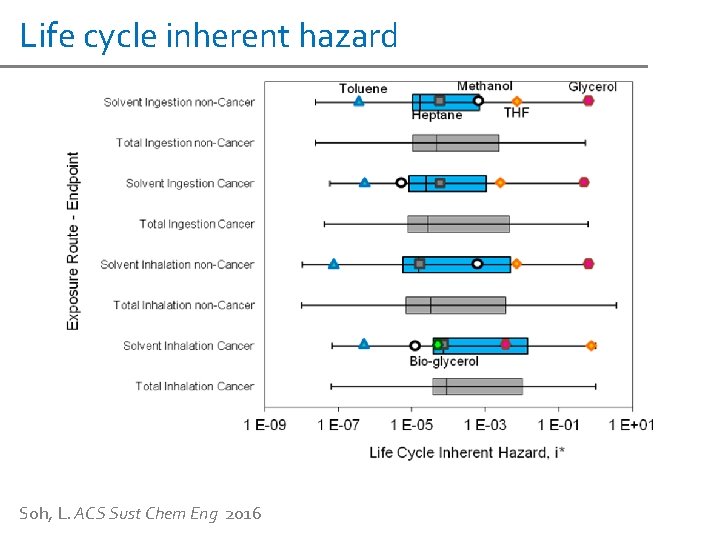

![Life cycle inherent hazard Soh L ACS Sust Chem Eng 2016 Life cycle inherent hazard Soh, L. ACS Sust Chem Eng 2016](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-16.jpg)
Life cycle inherent hazard Soh, L. ACS Sust Chem Eng 2016
![Energy use for solvent production Jessop P Green Chem 2011 Energy use for solvent production Jessop, P. Green Chem 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-17.jpg)

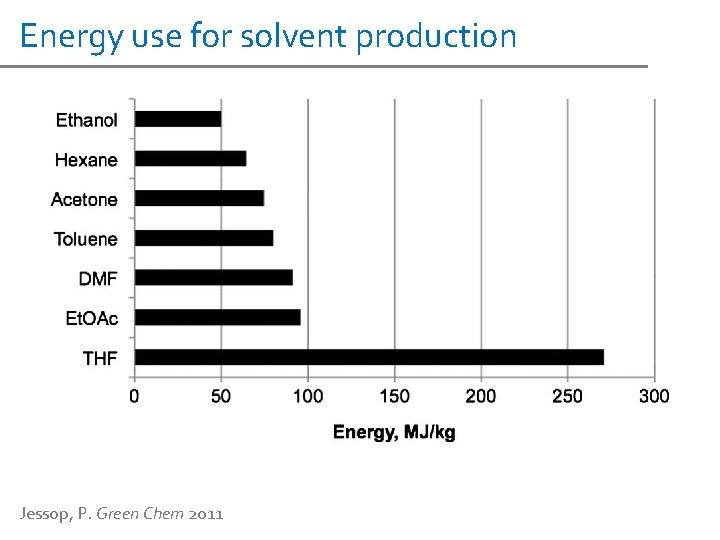

Energy use for solvent production Jessop, P. Green Chem 2011
![Solvent CO 2 emissions Jessop P Green Chem 2011 Solvent CO 2 emissions Jessop, P. Green Chem 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-18.jpg)
Solvent CO 2 emissions Jessop, P. Green Chem 2011
![Example Pfizer green solvent guide Alfonsi K Green Chem 2008 Example: Pfizer green solvent guide Alfonsi, K. Green Chem 2008](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-19.jpg)

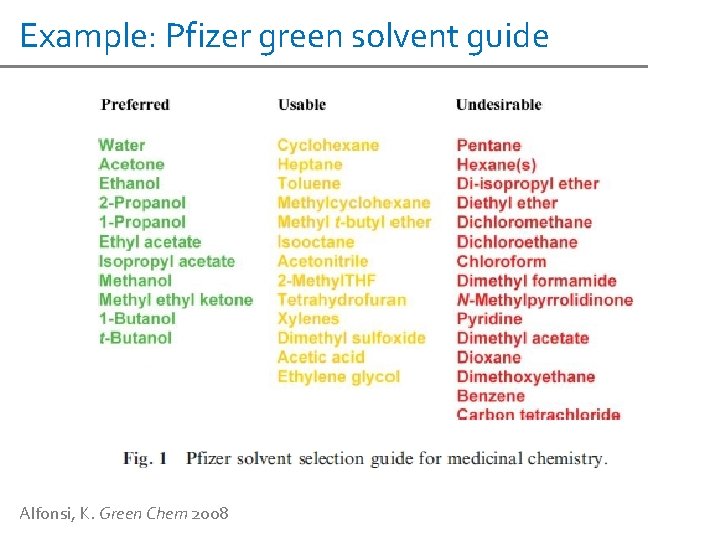

Example: Pfizer green solvent guide Alfonsi, K. Green Chem 2008
![Alternatives must be functional Soh L ACS Sust Chem Eng 2016 Alternatives must be functional Soh, L. ACS Sust Chem Eng 2016](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-20.jpg)
Alternatives must be functional Soh, L. ACS Sust Chem Eng 2016

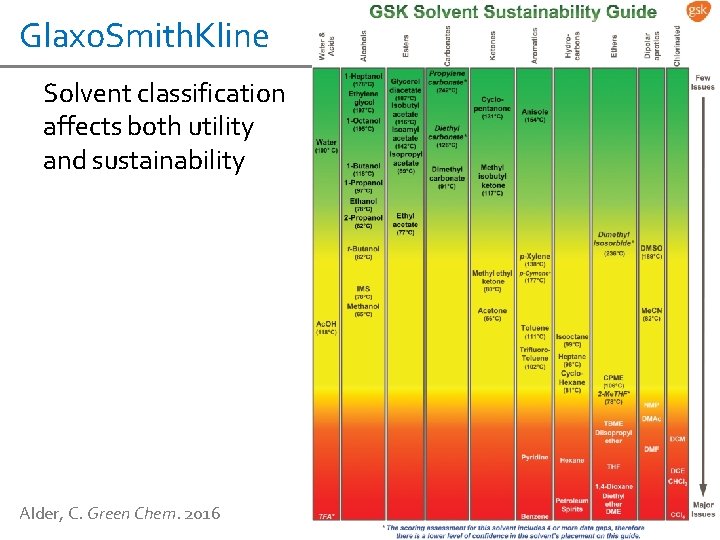

![Glaxo Smith Kline Solvent classification affects both utility and sustainability Alder C Green Chem Glaxo. Smith. Kline Solvent classification affects both utility and sustainability Alder, C. Green Chem.](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-21.jpg)
Glaxo. Smith. Kline Solvent classification affects both utility and sustainability Alder, C. Green Chem. 2016

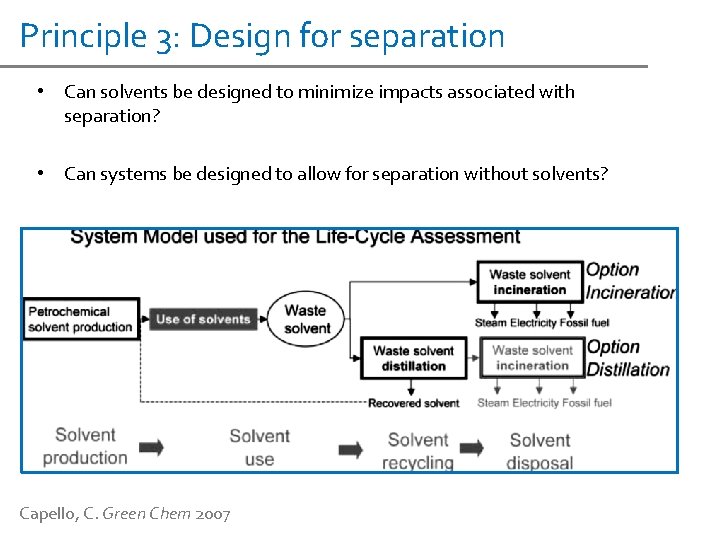

![Principle 3 Design for separation Can solvents be designed to minimize impacts associated Principle 3: Design for separation • Can solvents be designed to minimize impacts associated](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-22.jpg)
Principle 3: Design for separation • Can solvents be designed to minimize impacts associated with separation? • Can systems be designed to allow for separation without solvents? Capello, C. Green Chem 2007
![Designing for separations Jessop P Green Chem 2011 Designing for separations Jessop, P. Green Chem 2011](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-23.jpg)

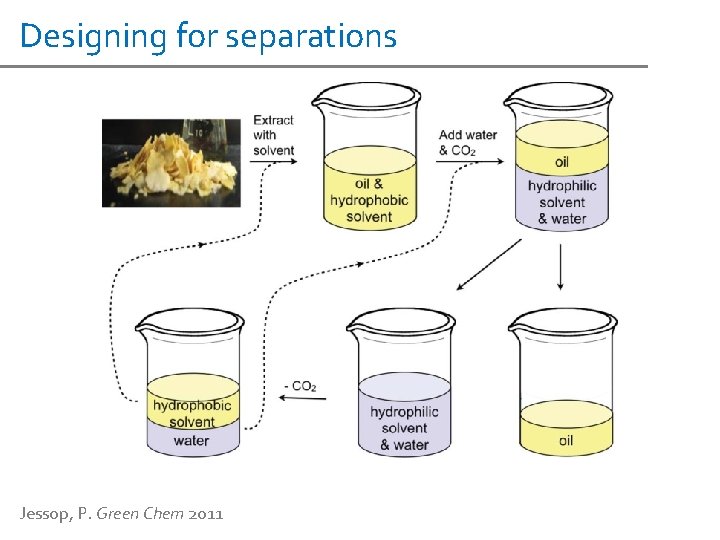

Designing for separations Jessop, P. Green Chem 2011

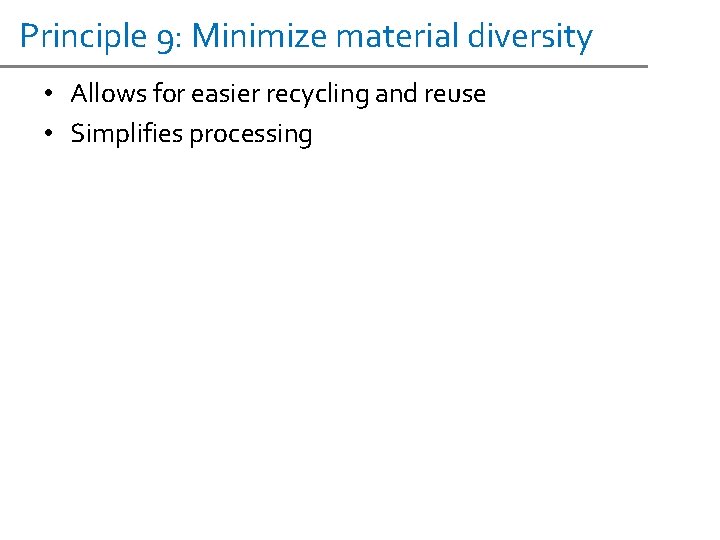

![Principle 9 Minimize material diversity Allows for easier recycling and reuse Simplifies Principle 9: Minimize material diversity • Allows for easier recycling and reuse • Simplifies](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-24.jpg)
Principle 9: Minimize material diversity • Allows for easier recycling and reuse • Simplifies processing
![Supercritical fluid assisted drug delivery No residuals Single solvent use Reverchon E J Supercritical Supercritical fluid assisted drug delivery No residuals Single solvent use Reverchon, E. J. Supercritical](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-25.jpg)

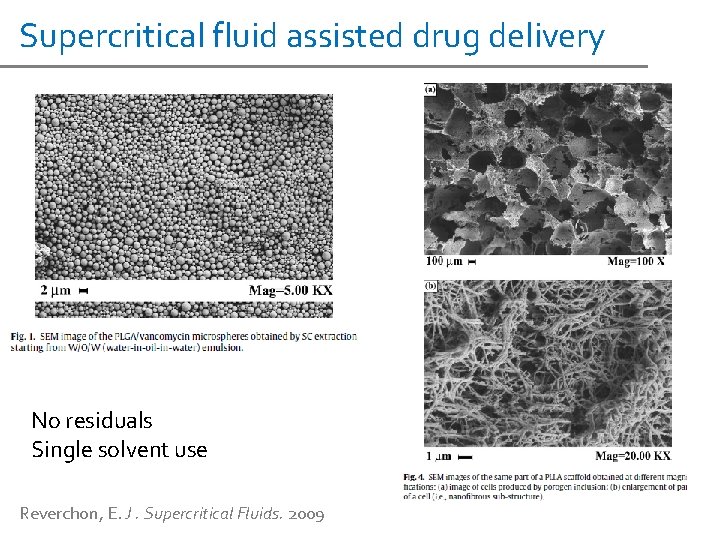

Supercritical fluid assisted drug delivery No residuals Single solvent use Reverchon, E. J. Supercritical Fluids. 2009
![Solvent free reactions Mechanochemistry Mechanochemistry uses physical force for chemical reaction Example Solvent free reactions? - Mechanochemistry • Mechanochemistry uses physical force for chemical reaction Example](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-26.jpg)
Solvent free reactions? - Mechanochemistry • Mechanochemistry uses physical force for chemical reaction Example of mechanochem for polymer elongation: May 2013 Chem. Soc. Rev Example of motion in a ball mill: Garay 2007. Chem. Soc. Rev Sample ball mills: Šepelák 2013. Chem. Soc. Rev
![Case study Sildenafil citrate Dunn P Green Chem 2004 Case study: Sildenafil citrate Dunn, P. Green Chem. 2004](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-27.jpg)

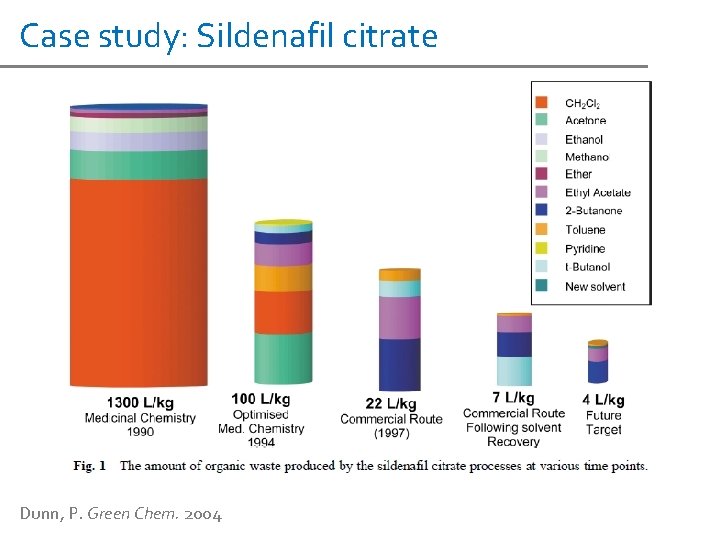

Case study: Sildenafil citrate Dunn, P. Green Chem. 2004
![Reduce waste from new production process Dunn P Green Chem 2004 Reduce waste from new production process Dunn, P. Green Chem. 2004](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-28.jpg)

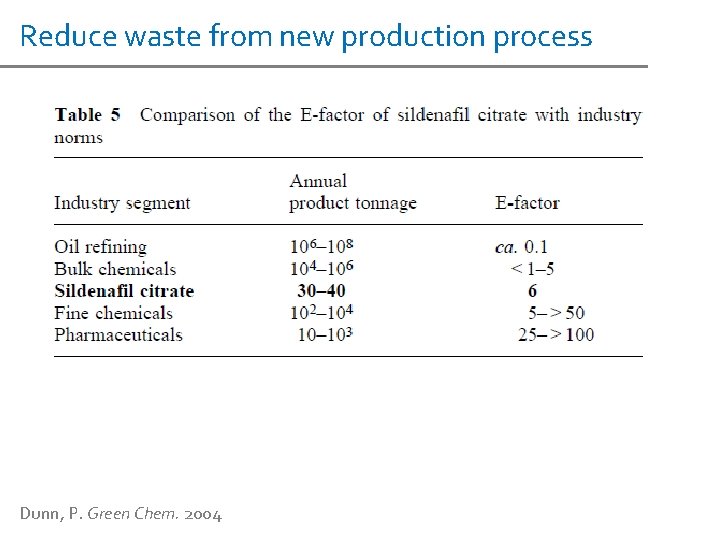

Reduce waste from new production process Dunn, P. Green Chem. 2004

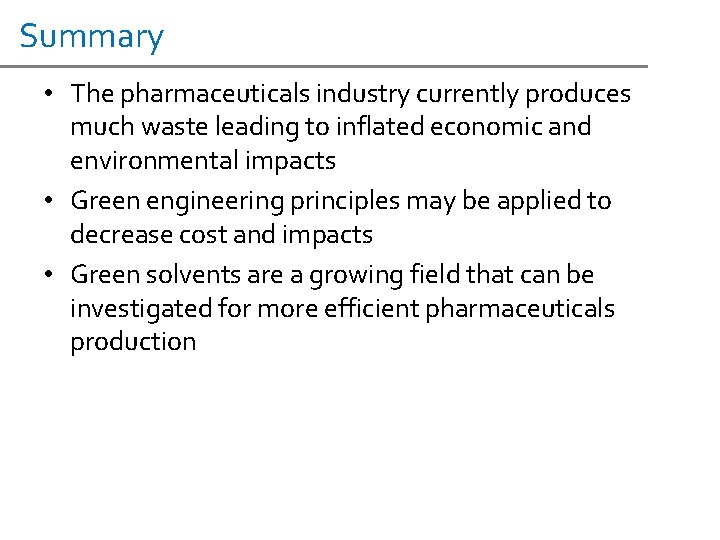

![Summary The pharmaceuticals industry currently produces much waste leading to inflated economic and Summary • The pharmaceuticals industry currently produces much waste leading to inflated economic and](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-29.jpg)
Summary • The pharmaceuticals industry currently produces much waste leading to inflated economic and environmental impacts • Green engineering principles may be applied to decrease cost and impacts • Green solvents are a growing field that can be investigated for more efficient pharmaceuticals production

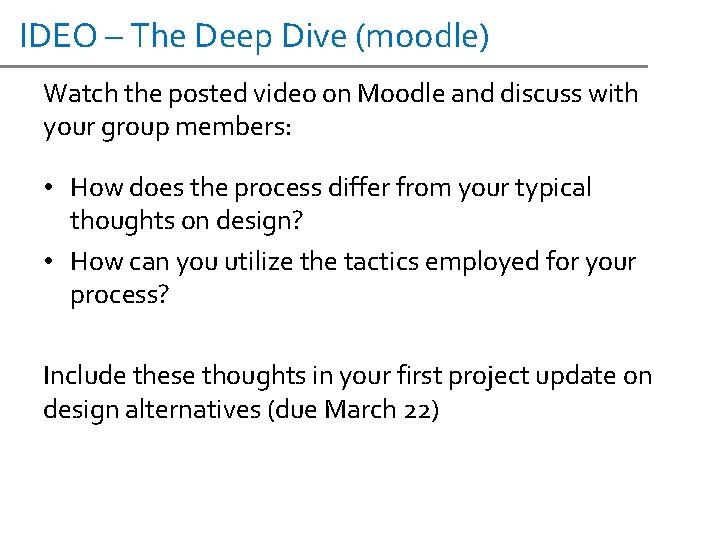

![IDEO The Deep Dive moodle Watch the posted video on Moodle and discuss IDEO – The Deep Dive (moodle) Watch the posted video on Moodle and discuss](https://slidetodoc.com/presentation_image/11c96ffe7b3b26a79a686c2c5f4554cd/image-30.jpg)
IDEO – The Deep Dive (moodle) Watch the posted video on Moodle and discuss with your group members: • How does the process differ from your typical thoughts on design? • How can you utilize the tactics employed for your process? Include these thoughts in your first project update on design alternatives (due March 22)
