Medical Terminology A Living Language Chapter 7 Respiratory

Multimedia Directory Slide 17 Slide 47 Slide 57 Slide 75 Slide 79 Slide 83

Respiratory System at a Glance l Functions of the Respiratory System l l l

Respiratory System at a Glance l Organs of the Respiratory System l l l

Medical Terminology: A Living Language, Fourth Edition Bonnie F. Fremgen and Suzanne S. Frucht

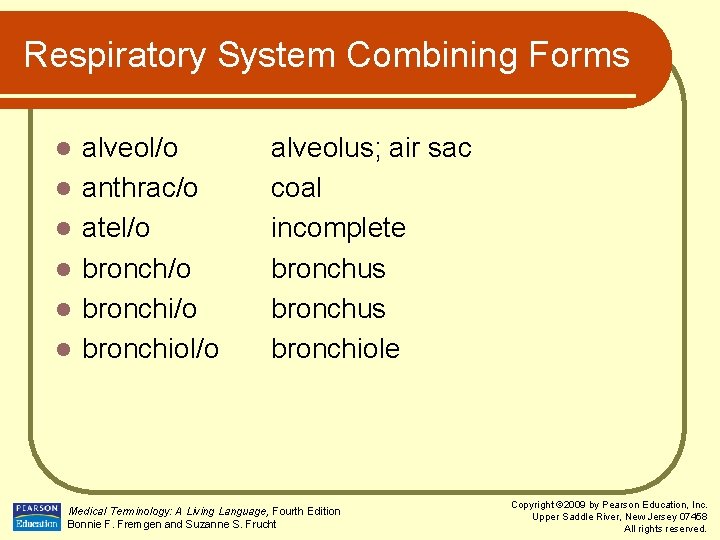

Respiratory System Combining Forms l l l alveol/o anthrac/o atel/o bronchi/o bronchiol/o alveolus; air

Respiratory System Combining Forms l l l coni/o diaphragmat/o epiglott/o laryng/o lob/o nas/o dust

Respiratory System Combining Forms l l l orth/o ox/o, ox/i pharyng/o pleur/o pneumon/o straight,

Respiratory System Combining Forms l l l pulmon/o rhin/o sinus/o spir/o trache/o lung nose

Respiratory System Suffixes l l l l –capnia –ectasis –osmia –phonia –pnea –ptysis –thorax

Anatomy and Physiology l Cells of body require constant gas exchange l l l

Respiration Must be continuous to meet cells’ needs l Subdivided into three distinct parts:

Ventilation Flow of air between outside environment and lungs l Inhalation l l Flow

External Respiration Exchange of oxygen and carbon dioxide in lungs l Gases diffuse in

Internal Respiration Oxygen and carbon dioxide exchange at cellular level l Oxygen l l

Respiratory System Organs l l l Nasal cavity Pharynx Larynx Trachea Bronchial tubes Lungs

Respiratory System Animation Click here to view an animation of the respiratory system. Medical

Nasal Cavity Air enters through nares l Nasal cavity divided by nasal septum l

Nasal Cavity l Cilia l l l Small hairs line opening to nasal cavity

Nasal Cavity l Much of respiratory tract is covered with mucous membrane l l

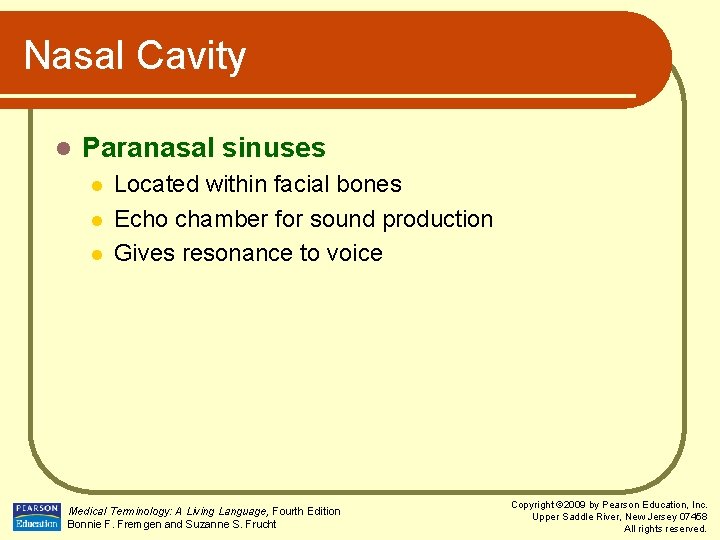

Nasal Cavity l Paranasal sinuses l l l Located within facial bones Echo chamber

Figure 7. 1 – Sagittal section of upper respiratory system illustrating the internal anatomy

Pharynx Commonly called throat l Used by respiratory and digestive systems l At end

Three Subdivisions of Pharynx l Nasopharynx l l Oropharynx l l Upper section by

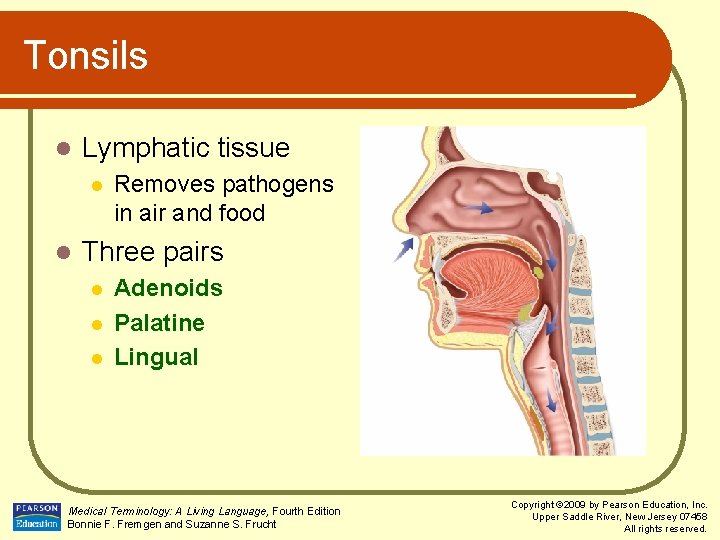

Tonsils l Lymphatic tissue l l Removes pathogens in air and food Three pairs

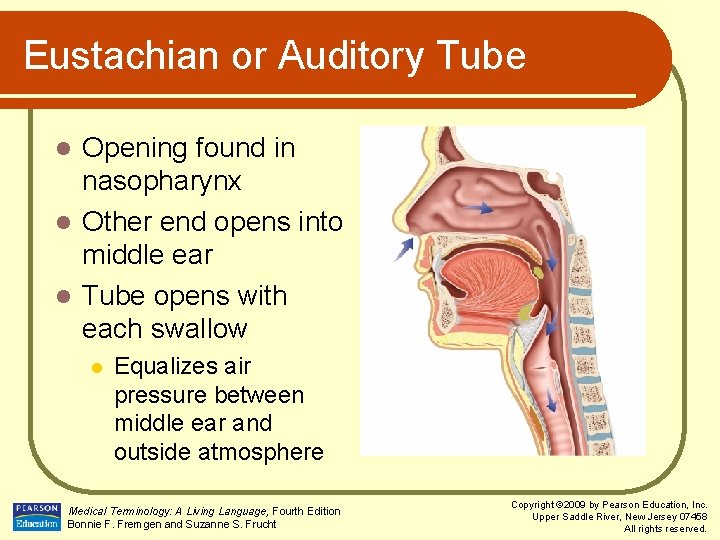

Eustachian or Auditory Tube Opening found in nasopharynx l Other end opens into middle

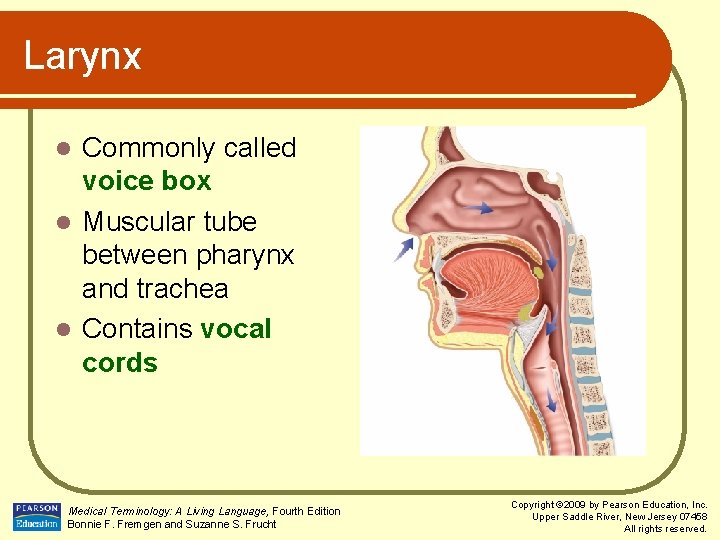

Larynx Commonly called voice box l Muscular tube between pharynx and trachea l Contains

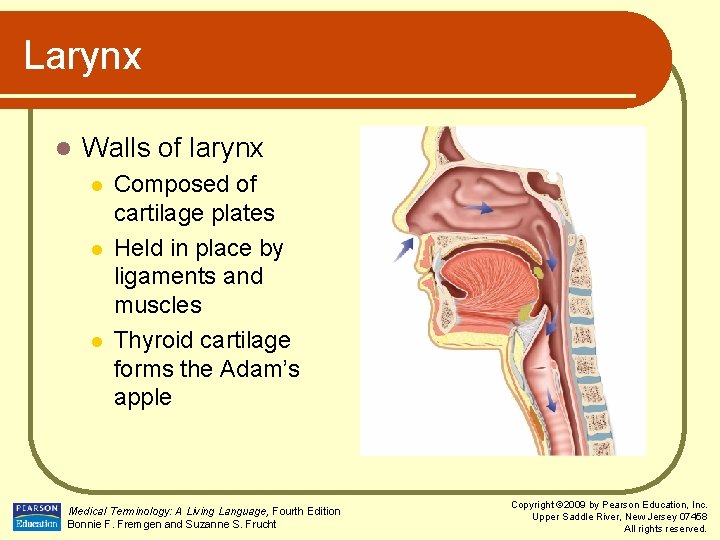

Larynx l Walls of larynx l l l Composed of cartilage plates Held in

Vocal Cords l Folds of membranous tissue l l Not actually cord-like in structure

Figure 7. 2 – The vocal cords within the larynx, superior view from the

Epiglottis Flap of cartilage l Sits above glottis l Covers larynx and trachea during

Trachea Commonly called windpipe l Carries air from larynx to main bronchi l Approximately

Figure 7. 3 – Structure of the trachea which extends from the larynx above

Trachea l Tube composed of: l l l Smooth muscle Cartilage rings Lined with

Bronchial Tubes l Distal end of trachea divides l Forms left and right main

Figure 7. 4 – The bronchial tree, note how each main bronchus enters a

Alveoli Bronchi continue to branch to form narrow bronchioles l Bronchiole terminates in alveoli

Respiratory Membrane Pulmonary capillaries encase each alveolus l Alveoli wall + capillary wall forms

Figure 7. 5 - A) Each bronchiole terminates in an alveolar sac, a group

Lungs Each is total collection of bronchi, bronchioles, and alveoli l Two lungs l

Lungs l Apex l l Base l l Pointed superior portion Broad lower area

Lungs Protected externally by the ribs l Protected internally by double membrane called pleura

Pleura l Parietal pleura l l Outer membrane that lines wall of chest cavity

Figure 7. 6 - Position of the lungs within the thoracic cavity, anterior view

Respiratory System Structure Exercise Click here to review the respiratory system anatomy with a

Pulmonary Function Tests l It is important to measure actual volume of air flowing

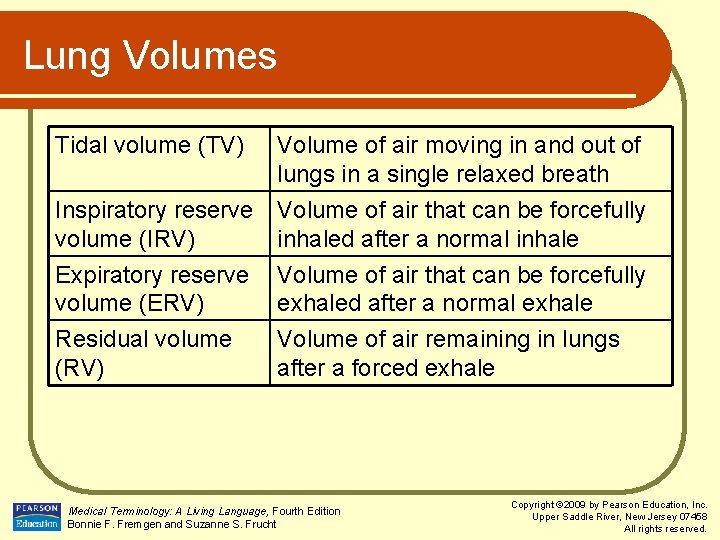

Lung Volumes Tidal volume (TV) Volume of air moving in and out of lungs

Lung Capacities Inspiratory capacity Tidal volume + inspiratory reserve (IC) volume Functional residual Expiratory

Respiratory Muscles - Inhalation l Diaphragm l l Muscle separates abdomen from thoracic cavity

Respiratory Muscles - Inhalation l Intercostal muscles l l Located between ribs Raise rib

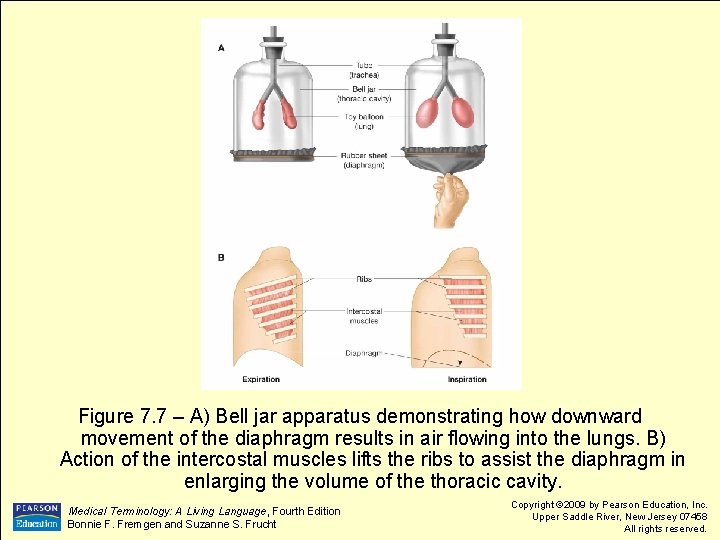

Figure 7. 7 – A) Bell jar apparatus demonstrating how downward movement of the

Respiratory Muscles - Exhalation l Unforced exhale results when: l l l Diaphragm and

Respiratory Rate One of the vital signs (VS), along with heart rate, temperature, and

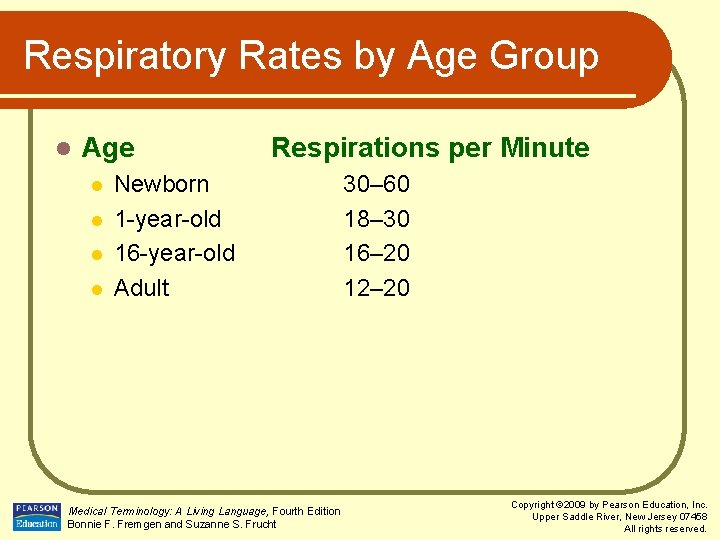

Respiratory Rates by Age Group l Age l l Respirations per Minute Newborn 1

Respiratory Rate Assessment Video Click here to view a video on assessing respiratory rate.

Word Building with bronch/o –gram bronchogram record of bronchus –itis bronchitis inflammation of bronchus

Word Building with bronchi/o and diaphragmat/o –ectasis bronchiectasis dilated bronchus –ic diaphragmatic pertaining to

Word Building with laryng/o –ectomy laryngectomy surgical removal of larynx –itis laryngitis inflammation of

Word Building with lob/o & pleur/o –ectomy lobectomy surgical removal of lobe –centesis pleurocentesis

Word Building with ox/o and ox/i –meter oximeter instrument to measure oxygen an– anoxia

Word Building with pharyng/o and pulmon/o –itis pharyngitis inflammation of pharynx –eal pharyngeal pertaining

Word Building with rhin/o –itis rhinitis inflammation of nose myc/o –osis rhinomycosis abnormal condition

Word Building with sinus/o & thorac/o pan– –itis pansinusitis inflammation of all sinuses –algia

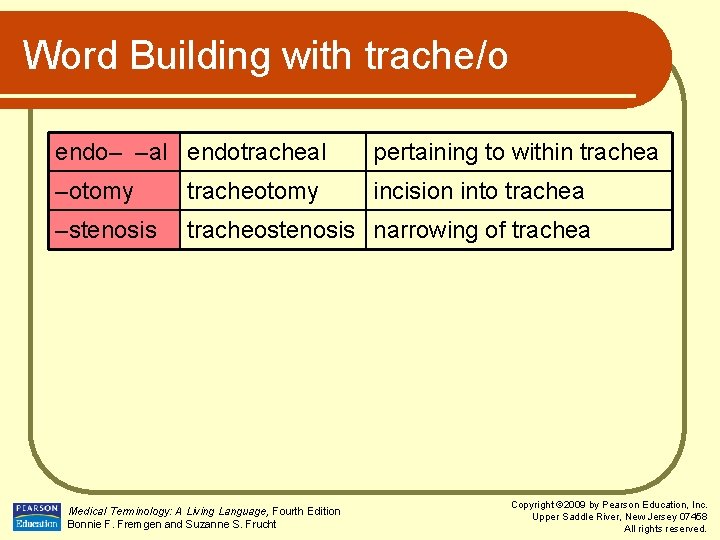

Word Building with trache/o endo– –al endotracheal pertaining to within trachea –otomy tracheotomy incision

Word Building with –phonia & –capnia a– aphonia no voice dys– dysphonia abnormal voice

Word Building with –osmia & –thorax an– anosmia no smell hem/o hemothorax blood in

Word Building with –pnea a– apnea no breathing brady– bradypnea slow breathing dys– dyspnea

Respiratory System Vocabulary asphyxia lack of oxygen; can lead to unconsciousness and death aspiration

Respiratory System Vocabulary cyanosis blue skin caused by low oxygen in blood epistaxis a

Respiratory System Vocabulary nasal cannula two-pronged plastic device to deliver oxygen into the nose

Respiratory System Vocabulary patent open or unblocked percussion using fingers to tap on surface

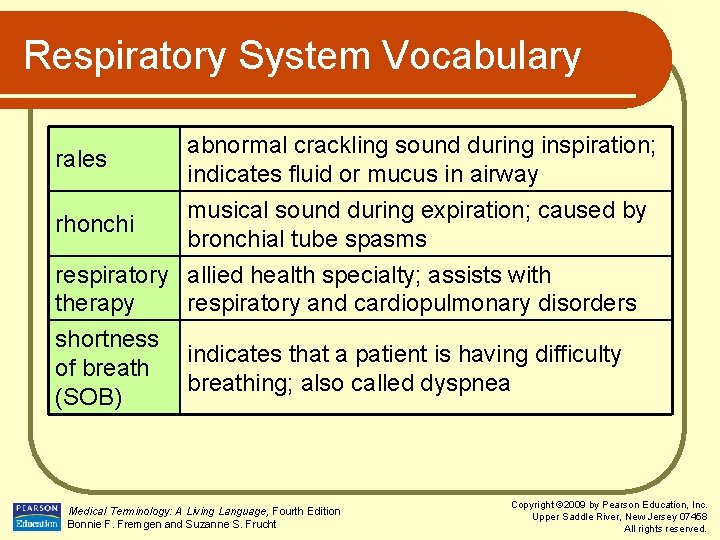

Respiratory System Vocabulary rales abnormal crackling sound during inspiration; indicates fluid or mucus in

Respiratory Therapy Video Click here to view a video on respiratory therapy. Medical Terminology:

Respiratory System Vocabulary sputum phlegm coughed up from respiratory tract stridor harsh, high-pitched breath

Upper Respiratory System Pathology croup diphtheria pertussis acute respiratory condition in children; characterized by

Bronchial Tube Pathology difficulty breathing caused by asthma bronchospasms, dyspnea, coughing, and wheezing enlarged

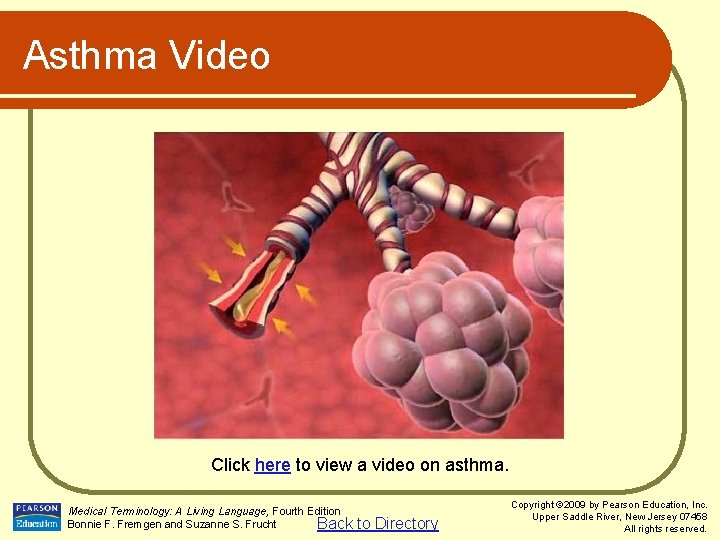

Asthma Video Click here to view a video on asthma. Medical Terminology: A Living

Figure 7. 8 – Color enhanced X-ray of large malignant tumor in right lower

Lung Pathology adult respiratory distress syndrome (ARDS) anthracosis asbestosis acute respiratory failure; characterized by

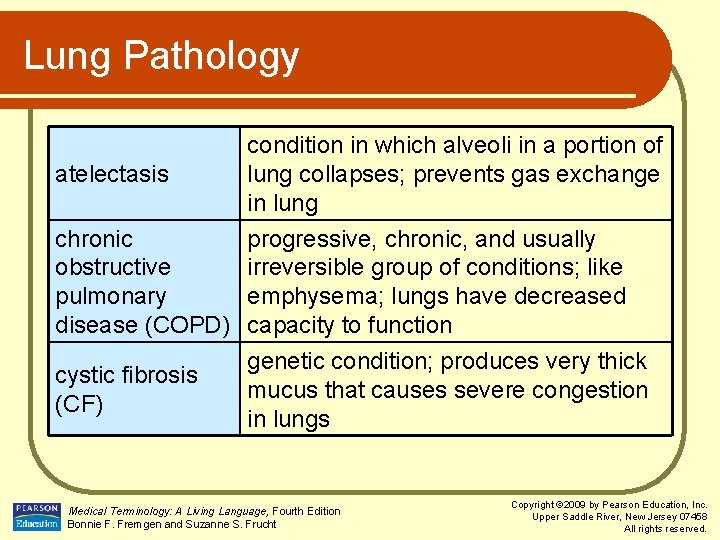

Lung Pathology condition in which alveoli in a portion of atelectasis lung collapses; prevents

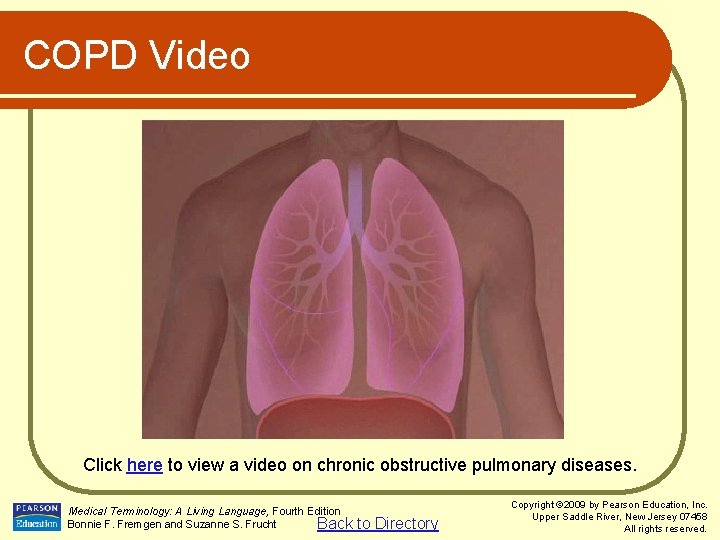

COPD Video Click here to view a video on chronic obstructive pulmonary diseases. Medical

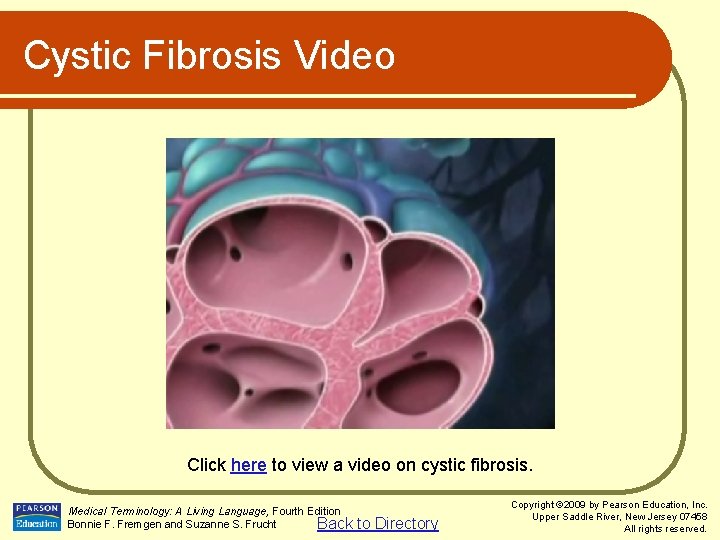

Cystic Fibrosis Video Click here to view a video on cystic fibrosis. Medical Terminology:

Lung Pathology emphysema chronic lung condition characterized by destruction of alveolar walls histoplasmosis fungal

Lung Pathology Legionnaire’s disease Mycoplasma pneumonia pneumoconiosis severe bacterial infection causing pneumonia, liver, and

Lung Pathology Pneumocystis pneumonia caused by a fungus; an carinii pneumonia opportunistic infection seen

Lung Pathology pulmonary fibrosis formation of fibrous scar tissue in lung; reduced ability to

Lung Pathology breathing stops repeatedly during sleep; causes drop in oxygen levels sudden infant

Tuberculosis Testing Video Click here to view a video on tuberculosis testing. Medical Terminology:

Pleural Cavity Pathology empyema accumulation of pus in pleural space; also called pyothorax accumulation

Figure 7. 9 – Pneumothorax. Figure illustrates how puncture of thoracic wall and tearing

Clinical Laboratory Tests arterial blood gases (ABGs) sputum culture & sensitivity (C&S) blood test

Diagnostic Imaging bronchography X-ray of lung after inhaling radiopaque substance chest X-ray of the

Endoscopic Procedures bronchoscopy visual examination of bronchial tubes (Bronch) using a bronchoscope visual examination

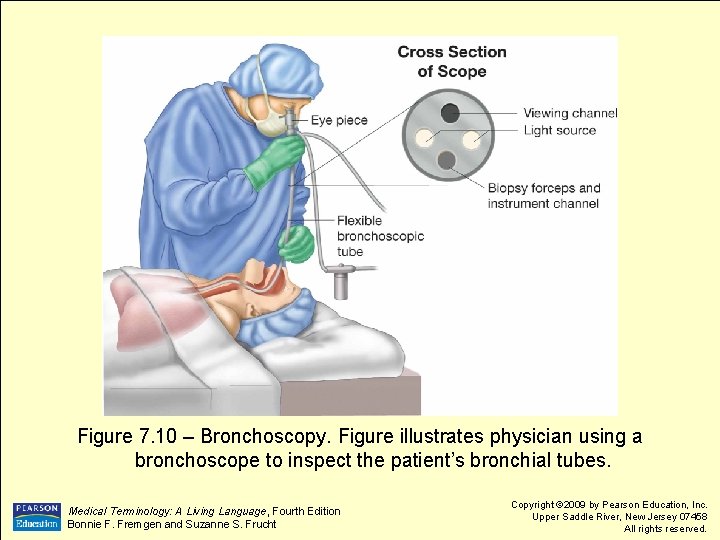

Figure 7. 10 – Bronchoscopy. Figure illustrates physician using a bronchoscope to inspect the

Pulmonary Function Tests oximetry measures oxygen level in blood; uses oximeter on patient’s finger

Oximetry Video Click here to view a video on performing oximetry. Medical Terminology: A

Spirometry Video Click here to view a video on spirometry. Medical Terminology: A Living

Additional Diagnostic Procedures polysomnography sweat test tuberculin skin tests (TB test) monitoring patient sleeping

Respiratory Therapy endotracheal intubation medication suspended in a mist and inhaled; delivered by a

Nebulizer Video Click here to view a video on nebulizers. Medical Terminology: A Living

Metered Dose Inhaler Video Click here to view a video on using metered dose

Endotrachael Intubation Video Click here to view a video on endotrachael intubation. Medical Terminology:

Figure 7. 11 – Endotracheal intubation. First, a lighted scope is used to identify

Respiratory Therapy postural drainage supplement oxygen therapy ventilator drainage of bronchial secretions by placing

Nasal Cannula Video Click here to view a video on applying a nasal cannula.

Surgical Procedures thoracentesis thoracostomy tracheostomy surgical puncture of chest wall to remove fluids; also

Figure 7. 12 – Patient with tracheostomy tube in place receiving oxygen through mask

Figure 7. 13 – Thoracentesis. The needle is inserted between the ribs to withdraw

Additional Procedures emergency treatment given to cardiopulmonary persons when respiration and heart resuscitation (CPR)

Respiratory System Pharmacology antibiotic antihistamine antitussive kills bacteria blocks histamine released during allergy attack

Respiratory System Pharmacology relaxes bronchodilator bronchospasms; treats asthma Proventil, Ventolin, Theo -Dur Flonase, reduces

Respiratory System Pharmacology expectorant mucolytic improves ability to Robitussin, cough up mucus Mucinex liquefies

Respiratory System Abbreviations ABGs arterial blood gases ARDS adult respiratory distress syndrome Bronch bronchoscopy

Respiratory System Abbreviations CTA clear to auscultation CXR chest X-ray DOE dyspnea on exertion

Respiratory System Abbreviations HMD hyaline membrane disease IC inspiratory capacity IPPB intermittent positive pressure

Respiratory System Abbreviations MDI metered dose inhaler O 2 oxygen PCP Pneumocystis carinii pneumonia

Respiratory System Abbreviations RDS respiratory distress syndrome RLL right lower lung RML right middle

Respiratory System Abbreviations SIDS sudden infant death syndrome SOB shortness of breath TB tuberculosis
