MEDICAL INFRARED THERMOGRAPHY ThermoIEWY medical infrared camera EDP

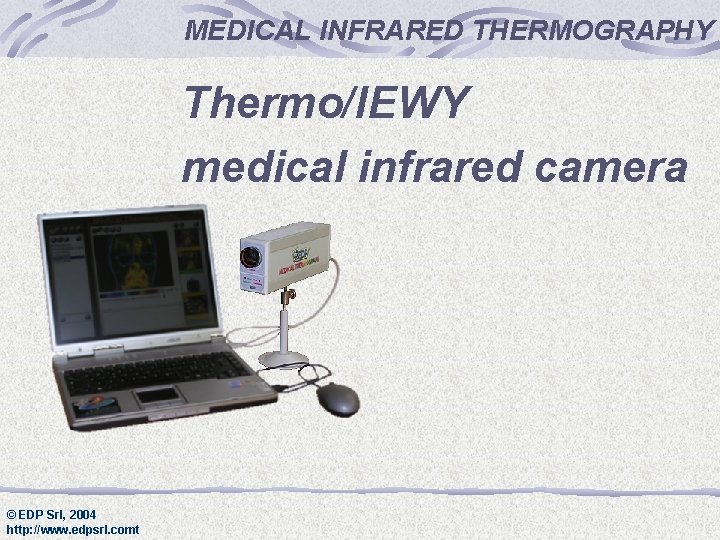

MEDICAL INFRARED THERMOGRAPHY Thermo/IEWY medical infrared camera © EDP Srl, 2004 http: //www. edpsrl. comt

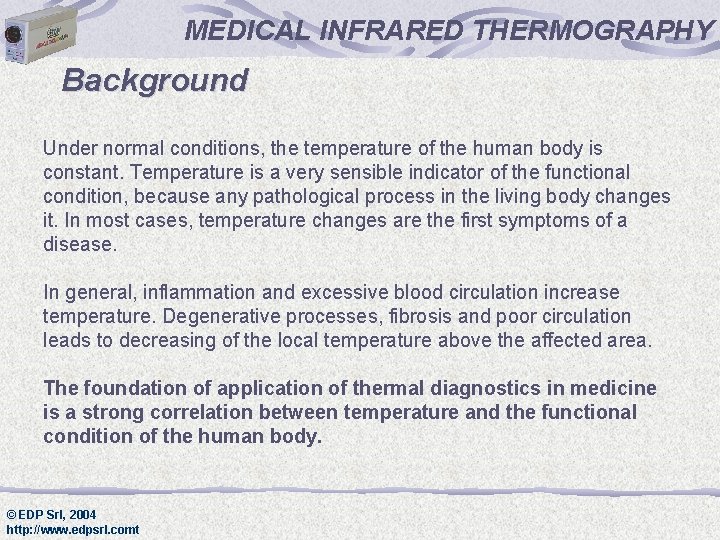

MEDICAL INFRARED THERMOGRAPHY Background Under normal conditions, the temperature of the human body is constant. Temperature is a very sensible indicator of the functional condition, because any pathological process in the living body changes it. In most cases, temperature changes are the first symptoms of a disease. In general, inflammation and excessive blood circulation increase temperature. Degenerative processes, fibrosis and poor circulation leads to decreasing of the local temperature above the affected area. The foundation of application of thermal diagnostics in medicine is a strong correlation between temperature and the functional condition of the human body. © EDP Srl, 2004 http: //www. edpsrl. comt

MEDICAL INFRARED THERMOGRAPHY Background The most part of human body heat is radiated to external environment in an infrared spectrum within 5 -14 mcm band. In this band the power of infrared radiation is proportional to the temperature. Heat radiation from the human body can be measured by special infrared sensors – the principal components of infrared cameras. There are many different types and models of infrared cameras in the world. Most of them are intended for technical application because of different spectral band insufficient sensitivity. Thermo/IEWY infrared camera is a device specially intended for medical application. This product is made by a company with 20 -years experience in high-precision electronics. © EDP Srl, 2004 http: //www. edpsrl. comt

MEDICAL INFRARED THERMOGRAPHY Thermo/IEWY infrared camera Main technical parameters of Thermo/IEWY infrared camera: Thermo/IEWY infrared camera has CE certificate Guarantee period - 2 years © EDP Srl, 2004 http: //www. edpsrl. comt - sensor: Amorphous silicon microbolometer, 160 x 120 pixels matrix; - spectral range: 7 -14 mcm; - sensitivity: < 0, 08 °C at 25 °C; - ambient operation range -30/+66 °C; - video output: video PAL 25 frames*sec 50 Hz; - digital output: USB 2, 0 communication, 1 frame/sec; - dimensions (mm): 90*56*218 (h*l*d) - weight 1, 01 Kg

MEDICAL INFRARED THERMOGRAPHY Thermo/IEWY infrared camera The kit is delivered in a high-protected box and includes: - Thermo/IEWY infrared camera; - USB cable*; - power supply unit; - on-table support unit*; - software on CD; - documentation. * different options available Delivery can be made via UPS/DHL international express-mail service. © EDP Srl, 2004 http: //www. edpsrl. comt

MEDICAL INFRARED THERMOGRAPHY Medical Thermography software is specially designed for medical applications and has all functions to make the work the most comfortable and effective: - case-history database with specific medical fields; - one-touch thermogram capturing utility operates in realtime mode and has different setup profiles; -intellectual system of data pre-processing allows to receive very stable thermograms with 640 x 480 pixels resolution; - build-in system of noise reduction; - modern program interface with different design styles; - internal printing utility, based on user-defined print styles; - comprehensive help system also includes “Medical Infrared Thermography” book, with contains description of thermovisual symptoms of more than 200 diseases – result of 20 years of clinical experience. © EDP Srl, 2004 http: //www. edpsrl. comt

MEDICAL INFRARED THERMOGRAPHY Medical Thermography software has powerful functions of post-processing of thermograms, such as: - digital zoom up to x 2 and reposition of the object on thermogram; -measuring of temperature differences; - changing the palettes for the best visualization, palette shift operation; -isotherm operation to define isothermal areas; - 3 D thermography is real now. Software is designed for Microsoft® Windows™ ME/2000/XP © EDP Srl, 2004 http: //www. edpsrl. comt

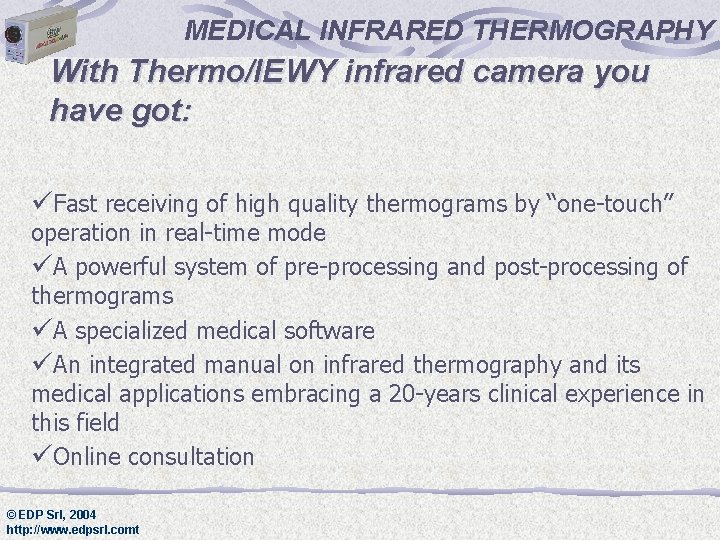

MEDICAL INFRARED THERMOGRAPHY With Thermo/IEWY infrared camera you have got: üFast receiving of high quality thermograms by “one-touch” operation in real-time mode üA powerful system of pre-processing and post-processing of thermograms üA specialized medical software üAn integrated manual on infrared thermography and its medical applications embracing a 20 -years clinical experience in this field üOnline consultation © EDP Srl, 2004 http: //www. edpsrl. comt
