What is MIRC? • “Medical Imaging Resource Center” • Makes it easier to locate and share electronic medical images and related information – On your PC – In your department – Throughout the world

MIRC: Why? • MIRC helps radiologists: – Create and manage teaching files and reference images for decision support – Participate in imaging clinical trials – Share research databases within institutions and across the imaging community

Key MIRC Concepts • Libraries cooperate by using a common mechanism to query one another • The MIRC query mechanism allows users to find information within these libraries • MIRC stores and displays documents in multiple formats

Key MIRC Concepts • Libraries cooperate by using a common mechanism to query one another • The MIRC query mechanism allows users to find information within these libraries • MIRC stores and displays documents in multiple formats

Key MIRC Concepts • Libraries cooperate by supporting a common query mechanism • A Query mechanism allows users to find information within these libraries • MIRC supports multiple information storage formats

MIRC Libraries • MIRC libraries archive a wide variety of text, images, and other multimedia information – Teaching files – Research and reference image repositories • Collection of disease-specific radiographs • Normal variants • Functional brain MR data sets • Clinical trials images and related data • Journal articles • Textbooks • Power. Point and other types of presentations

MIRC Components • Query Service Entry point into the MIRC community for a user on the Internet Query service is defined by its use of the MIRC query schema

MIRC Components • Storage Service: Cooperating information library – a web archive or a database, designed to support the MIRC query mechanism. • Index: The library’s card catalog of the contents of a storage service.

The MIRC Community User MIRC Query Service: - Access to the community Index Internet Server Index MIRC Sites Index Server MIRC Storage Service: - Document Authoring - Document Storage - Document Indexing - Web Server RSNA

MIRC Query Service: User Fills in Search Form

MIRC Query Results: Displays “Hits” from MIRC Sites

MIRC Teaching File Display: MIRC-TF Display Formats

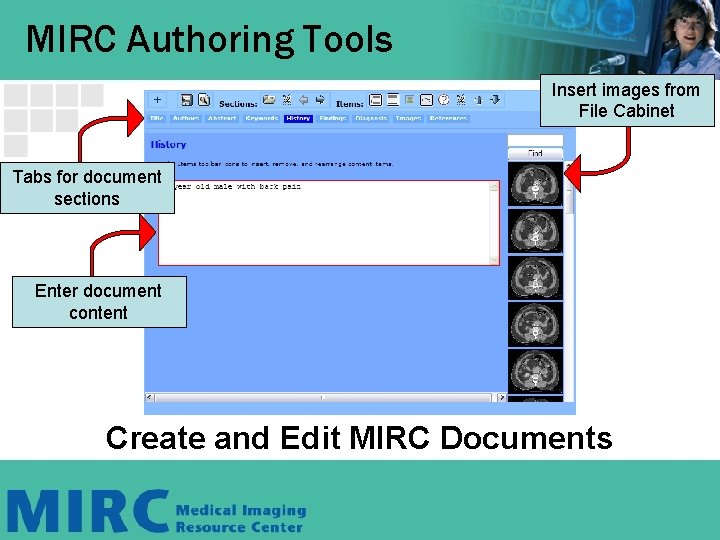

MIRC Authoring Tools Insert images from File Cabinet Tabs for document sections Enter document content Create and Edit MIRC Documents

MIRC Authoring Tools Image Annotation

MIRC Clinical Trials Features • Image acquisition from modalities and PACS • Image and metadata anonymization • Secure image and metadata transport • Automatic storage and indexing of all data, with the standard MIRC search and display functions • Interfacing to external databases for trialspecific analysis

MIRC Clinical Trial Configuration Modalities DICOM FC Firewalls Workstations PI DICOM FC DICOM Internet HTTPS DICOM PI DICOM FC MIRC Field. Center Application: - Image reception - Anonymization - Transmission to PI MIRC Site: - Image reception - Image Storage - Transfer to PACS and/or workstations

MIRC in Clinical Trials • MIRC provides non-proprietary standardsbased software for clinical trials, available free and open source • After extensive evaluation, the National Cancer Institute’s Cancer Imaging Program has selected MIRC for use in clinical trials

Other Ongoing Clinical Trials • WHIMS 1 -3 (Women's Health Initiative Memory Study) • WHI – Women’s Health Initiative CT Study • CARDIA - Coronary Artery Risk Development in Young Adults • RIDER - Reference Image Database to Evaluate Response to Therapy • CIREN – Crash Injury Research & Engineering Network – Wake Forest (PI) • CAMPS – Carotid Atherosclerosis MRI Progression Study – University of Washington (PI)

Research Dataset Acquisition • MIRC feature developed in collaboration with Mallinckrodt Institute of Radiology • Allows internal researchers to acquire DICOM images from modalities, store and manage them without using the clinical PACS – Bridges internal networks – Tracks access of PHI for HIPAA compliance

NCI Collaboration • Successful demonstration in early 2005 • Support of current trials (RIDER, LIDC) • Decision to use MIRC for clinical trials in the future • Development of MIRC extensions to support the NCI imaging database

JBoss Retrieval Data Transfer Object (DTO) Field Centers at Remote Clinical Sites Java Server Faces (JSF) HTTP FTP Processors Query, Result set, User Registration, Lookup Manager, CSM, Export Submission Tomcat MIRC DICOM HTTPS Firewall De-ID Firewall MIRC Field Center De-ID MIRC Field Center Data Manager I 3 Object API Data Access Layer Cancer Centers MDB Image zipping CSM API Academia ca. CORE SDK MIRC Storage Service MIRC DICOM Service Hibernate (I 3 ORM) (CSM) Industry MIRC Database Service I 3 DB Curation (Annotations: Image, Clinical, Markup, etc. ) File System (DICOM, XML, DOC) Researchers

Open Source Project • All source code is available on-line – CVS repository – Documentation on mircwiki. rsna. org • Actively maintained MIRC project list

What’s Next? • My MIRC – RSNA-hosted, Web-based system for personal teaching files – Enabling easy online access and permanent storage – Free to RSNA Members – Premiering in 2008

MIRC User Group Meetings Open to all MIRC users • Sunday 1: 30 -3: 30, Room E 251 • Thursday 12: 15 -2: 15, Room E 257

How to Participate? • Use MIRC to perform searches for images and information • Be an author • Set up a MIRC site: – Connect your existing Teaching File system – Build your own Teaching File system: • Use the RSNA MIRC implementation • Use someone else’s • Develop your own and make it MIRC compatible

Need More Information? • Go to http: //mirc. rsna. org • Browse the documentation to learn how to use the software • Click the “Downloads” link to obtain the software and installation instructions
