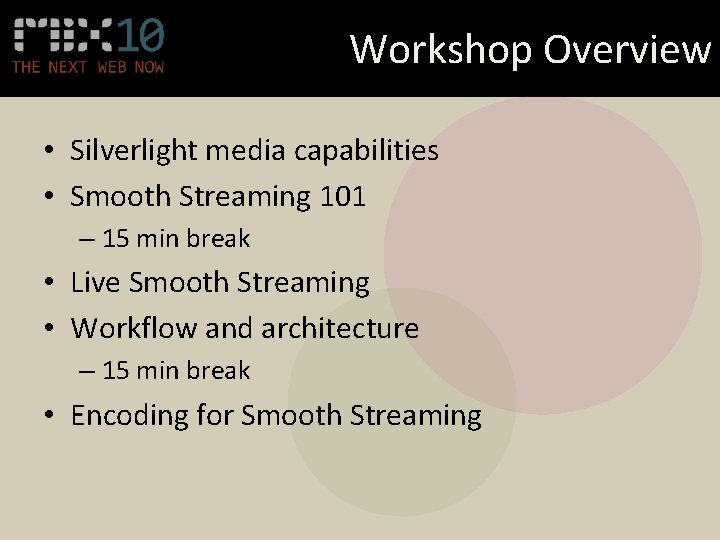

Workshop Overview • Silverlight media capabilities • Smooth Streaming 101 – 15 min break • Live Smooth Streaming • Workflow and architecture – 15 min break • Encoding for Smooth Streaming

A Brave New World • Encoding 320 x 240 video on a laptop is “so 2002” • HTTP adaptive streaming has entirely changed the game in the past 2 years • The future for Silverlight is all Smooth Streaming, all HD • Video quality is better than ever, but at the price of complexity and bandwidth • Don’t worry, it only gets easier from here

Silverlight Media Formats • Windows Media – ASF file format (*. asf, *. wmv, *. wma) – VC-1 (WMV 9), WMV 8, WMV 7 video codecs – WMA Pro, WMA Standard, MP 3 audio codecs • MPEG-4 – MP 4 file format (*. mp 4, *. 3 gp, *. mov) – H. 264 video codec (Baseline, Main, High profiles) – AAC audio codec (AAC-LC profile)

Silverlight Media Extensibility • Smooth Streaming – VC-1 and H. 264 video – WMA Pro, WMA Standard and AAC-LC audio – Supported via Smooth Streaming Media Element extension • Media. Stream. Source lets developers add support for 3 rd party codecs, formats and delivery methods

Silverlight Media Protection • Silverlight DRM, powered by Play. Ready – Play. Ready AES-256 encryption – Windows Media DRM encryption • Silverlight 3 – VC-1 and WMA encryption only – Live DRM (Direct License Acquisition) only • Silverlight 4 – H. 264 and AAC encryption – Offline DRM

Silverlight Media Delivery • Windows Media Services streaming – Windows Server 2008 and 2003 • Unicast (WMS HTTP) • Multicast • HTTP progressive download – Any HTTP 1. 0/1. 1 web server • IIS Smooth Streaming – Windows Server 2008 (IIS 7)

Silverlight Media Framework • No need to reinvent the wheel every time a Silverlight video player is needed • Silverlight Media Framework: http: //smf. codeplex. com • All essential playback features plus advanced Smooth Streaming features – DVR, Fast Forward, Rewind, Replay, Slow Motion – Markers, captions, dynamic ad insertion – Rich analytics and logging

Media Delivery Methods • Unicast – Traditional Streaming – Progressive Download – HTTP-based Adaptive Streaming • Multicast – IP Multicast

Unicast Origin Server Many one-to-one streams Requires more bandwidth per user May require more servers For private and public networks

Multicast Origin Server A single one-tomany stream Uses bandwidth of only one stream Requires multicastenabled networks Typically requires fewer servers

Unicast Methods Movie 04 Play Packet Seek Packet Movie Packet 06 08 Pause Packet

Internet Streaming Challenge • Traditional streaming designed for efficient media delivery • Works well in small networks but on the Internet suffers from serious drawbacks: – Doesn’t scale to today’s Internet audience – Doesn’t take into account today’s Internet structure and organization – Designed for network conditions less volatile than Internet traffic

HTTP Adaptive Streaming • Hybrid media delivery method – Acts like streaming but is in fact a series of short progressive downloads – Video and audio delivered as series of small files over HTTP • Built for the Web – Leverages existing HTTP caches – Scales exceptionally well to meet high demand • Resilient to network unpredictability – Client can seamlessly switch video quality and bit rate based on perceived network bandwidth and CPU resources • Applicable to both on-demand live delivery

Windows Server Media Delivery IIS Media Services • Traditional Streaming • Unicast • WMS RTSP • WMS HTTP • Multicast • WMS Multicast • Progressive Download • Bit Rate Throttling • HTTP Adaptive Streaming • Smooth Streaming

Smooth Streaming • Smooth Streaming – Microsoft implementation of HTTP-based adaptive streaming – Best of both worlds • Responsive and efficient like streaming • Cheap and scalable like progressive download – Superior user experience • No buffering, no stutter • Instant start, instant seek • Seamless bit rate switching based on bandwidth and CPU

Multi Bit Rate Revisited 00: 27. 24 2. 4 Mbps 1. 5 Mbps 700 kbps 300 kbps 03: 47. 16 05: 05. 04 07: 33. 10

Adapting Bit Rate in Real-Time 00 02 04 06 08 08 Bit Rate Heuristics

Smooth Streaming Design • Smooth Streaming File Format based on MP 4 (ISO Base Media File Format) • Video is encoded and stored on disk as one contiguous MP 4 file – One file per bit rate • Each video Group of Pictures (GOP) is stored in a separate Movie Fragment box – This allows accurate fragmentation at key frames • Contiguous file is virtually split up into chunks when responding to a client request

Smooth Streaming File Format Movie Fragment Random Access Offset (mfro) Track Fragment Random Access (tfra) Movie Fragment Random Access (mfra) Media Data (mdat) Track Fragment (traf) Movie Fragment (moof) Movie Fragment Header (mfhd) • Movie Extends Header (mehd) • Track Extends (trex) Movie Fragment (moof) Media Data (mdat) (mvhd) • Track Header (tkhd) • Media (mdia) Fragment Track Fragment (traf) Movie Header Track (trak) Movie Extends (mvex) Fragment Movie Fragment Header (mfhd) File Type (ftyp) Movie Metadata (moov)

On-Demand Presentations • MP 4 files containing video/audio/data fragments – New file extensions instead of *. mp 4 – *. ismv for files containing video and audio tracks, or only video tracks – *. isma for files containing only audio tracks • On-demand server manifest file – File extension: *. ism – Describes the relationships between media tracks, bitrates and files on disk – Uses SMIL 2. 0 XML format • Client manifest file – File extension: *. ismc – Describes available streams, codecs, bitrates, resolutions, metadata – Uses XML format

On Demand Server Manifest

On Demand Client Manifest

Client-Server Communication • All requests to the server are formed as RESTful URLs • Client always first requests the client manifest: http: //iis. net/video. ism/Manifest • After parsing the manifest the client begins making requests for fragments by indicating bit rates and offset times it learned from the manifest: http: //iis. net/video. ism/Quality. Levels(350000)/Fragments(video=40040000) http: //iis. net/video. ism/Quality. Levels(48000)/Fragments(audio=62293333) • Every valid HTTP request returns a file of MIME type “video/mp 4”

Serving Fragments On Demand • IIS 7 Smooth Streaming handler interprets the RESTful URL request • It maps the quality level to a physical ISMV file based on the server manifest (*. ism) and calculates the fragment location within the contiguous ISMV file based on the time offset • Because the wire format (fragment) is just a subset of the disk format (MP 4), the extraction process is simple – No re-muxing necessary • Dynamic stream switching logic is fully implemented in Silverlight application code – no server-side detection

Demo • DEMO: • Setting up On Demand publishing points • Using Fiddler to monitor Smooth Streaming traffic

Live Smooth Streaming • Live publishing point identified by *. isml extension • Client-server communication very similar to on -demand • Server continually appends MP 4 file with new fragments from encoder and makes them available to client – This allows DVR-like seeking within the existing archive

Encoder-Server Communication • Encoder pushes fragmented MP 4 stream to server in body of a long-running HTTP POST request http: //iis. net/live. isml/stream(720 p) • Encoder inserts Live Server Manifest Box into start of MP 4 stream – Contains a SMIL-formatted Live Server Manifest very similar to On-Demand Manifest – Describes all tracks in that encoder’s stream

Encoder-Server Communication • Each sent fragment contains a box with absolute time and duration • Timestamps are typically derived from the input source Linear Time Code (LTC) • If multiple encoders are used to encode the same video source, it’s essential that a time code generator is used to keep their LTC in sync

Serving Live Fragments • Server parses the encoder manifests and starts collecting MP 4 fragments • Server builds a cumulative runtime index in memory for all incoming fragments • Server stores fragments into a temporary DVR ISMV or a permanent ISMV archive – When the pub point is shut down, server generates ‘mfra’ index box for ISMV archive

Live Client Workflow • Client requests the latest manifest http: //iis. net/live. isml/Manifest • Server adds up all the encoder manifests and the runtime fragment index and sends the latest version to the client • Every fragment contains information about the next fragment • No need to repeatedly download manifest – Client builds its own cumulative runtime index based on the lookahead info in the fragments

Demo • DEMO: • Basic Live Smooth Streaming workflow

Live Smooth Publishing Points • ISML files are SMIL 2. 0 formatted XML configuration files • Live publishing points can be created via the IIS Manager UI or by manually creating ISML files on server • Both push and pull publishing models are supported – Live publishing points can also push to and pull from other live publishing points

Live Publishing Point – IIS Mgr

Live Publishing Point - ISML

ISML Syntax • source. Type – Push: source streams will be pushed to pub point – Pull: pub point will pull streams from listed URLs • publishing – Streams: pub point can serve streams to other live pub points – Fragments: clients can request fragments – Archives: archiving is enabled • lookahead. Chunks: number of fragments server will buffer before making them available to clients • manifest. Window. Length: length of DVR moving window • archive. Path: local path where archives will be written

Ingests and Origins Encoder 8 Mbps Origin Server: Delayed Stream Origin Server: Ingest Server Realtime Stream Origin Server: VOD Archive

DEMO • DEMO: • Advanced Live Smooth Streaming workflow

Network Design Considerations • Bandwidth, bandwidth Encoder egress bit rate = (All video and audio bit rates together) x (Number of ingest publishing points) • Leave enough headroom for bit rate spikes and bursts – Play it: leave 50%-100% headroom

Building Smooth Streaming Origins • Network – Make sure NICs can handle the cumulative ingress and egress bandwidth • CPU and memory – Follow typical server configuration guidelines • Disk – Live Smooth Streaming can require high read/write rates – 10, 000 RPM disks are a good idea

Redundancy and Failover • Encoders – Active-active redundant encoder configuration not supported – Encoder hot swap is possible as long as encoder doesn’t signal end-of-stream to server – Configurable time-out periods can help survive temporary loss of network connectivity – Some encoders support pushing to multiple publishing points concurrently, while others do pub point roll over in case of failure

Redundancy and Failover • Servers – IIS is designed to discard duplicate fragments – This allows ingest and origin servers to be set in active-active configuration Ingest server: Primary Encoder Origin server Ingest server: Secondary

Redundancy and Failover • Origins – CDNs can dynamically change DNS to redirect traffic to secondary origin when primary fails Ingest server: Primary Origin server: Primary D N S Encoder Ingest server: Secondary Origin server: Secondary

Video Encoding

Smooth Streaming Encoders • Many vendors to choose from: – Anystream (Grab Networks) – Digital Rapids – Envivio – Inlet Technologies – Microsoft – Rhozet (Harmonic) – Telestream – VBrick – View. Cast – Winnov

H. 264 or VC-1? • Customers should choose whichever codec best fits their encoding workflow and meets their quality requirements • However, keep in mind: – H. 264 decoding is typically more CPU intensive than VC-1 decoding for the same resolution and frame rate – In Silverlight 3: H. 264 decoding requires about 15 -25% more CPU time than VC-1 decoding with similar content properties • Good rule of thumb (for now): – For HD video, use VC-1 to reach largest audience – For SD video and smaller, use H. 264 if quality gains are noticeable

Encoding for Smooth Streaming • Use VC-1 Advanced Profile or H. 264 Main/High Profile • 2 second key frame distance works very well – Must be closed GOP – Client heuristics work best with fixed length (non-adaptive) GOP • Set video buffer size to 2 x-3 x key frame distance • Use WMA Professional audio codec for best quality at low bitrates – Comparable to HE-AAC – excellent stereo quality even at 48 kbps • Client heuristics are currently tuned for CBR content, so if using VBR set the peak bit rate within 15% of average bit rate for best playback

Multi Bit Rate Encoding Revisited 00: 27. 24 2. 5 Mbps 1. 5 Mbps 750 kbps 350 kbps 03: 47. 16 05: 05. 04 07: 33. 10

Variable Resolution • Why do we vary encoded resolution together with bit rate? • Encoding the same resolution at inappropriately low bit rates introduces objectionable compression side effects into the video: blockiness, twirling details, color smearing, etc. • By lowering the resolution proportionally to the bit rate we maintain a consistent level of compression quality in exchange for giving up some visual detail • It’s a compromise: between two evils, customers prefer a blurry picture over a blocky picture

VC-1: 640 x 360 at 1250 kbps

VC-1: 640 x 360 at 300 kbps

VC-1: 288 x 160 at 300 kbps

How Many Bit Rates Do I Need? • You can use as few as you’d like – even just a single bit rate • Upper bound is typically set by the encoder – Anything more than 12 video bit rates is probably overkill • 4 video bit rates for SD and 6 bit rates for 720 p HD are good starting points • Silverlight client currently only supports 1 audio bit rate

Choosing the Quality Levels • Smooth Streaming Multi Bit Rate Calculator http: //alexzambelli. com/WMV/MBRCalc. html

Choosing the Quality Levels • Recommended minimum quality level: 320 x 176 at 350 kbps • Never set the minimum quality level below 288 x 160 or 300 kbps – Small video = Bad full screen experience • Compression is most efficient when width and height are multiples of 16 • One of the resolutions should match the player video window size

NBC Sunday Night Football Video: VC-1 Advanced Profile Video Bit Rate Width Height FPS 3450 1280 720 29. 97 2250 960 540 29. 97 1500 720 404 29. 97 950 544 304 29. 97 600 400 224 29. 97 350 288 160 29. 97 Audio: WMA 10 Professional 48 kbps 48 k. Hz 16 -bit stereo

Configuring Live Encoders • Live encoders have finite CPU resources • Higher resolution = More CPU cycles • Overloading a live video encoder will cause poor image quality and dropped frames • Most live encoders are bound by number of CPU cores

Configuring Live Encoders • Good rule of thumb for live VC-1 encoding: For each resolution you’d like to use, count the number of CPU cores needed per this table: Min Resolution Max Resolution CPU Cores Required 16 x 16 512 x 288 1 544 x 304 704 x 400 2 736 x 416 1280 x 720 4 • If total number of needed cores exceeds the number of CPU cores in your encoder, reduce the number of quality levels until they fit

Distributed Live Encoding • Some live encoders (Inlet Spinnaker) support distributing bit rates of the same video across multiple encoders – Muse LTC time code generator for sync • Always attach audio stream to the video stream with lowest bit rate • Make sure encoder load is distributed evenly between encoders – Balance based on pixel count

CBS March Madness Video Bit Rate Width Height FPS 3450 1280 720 29. 97 2400 960 540 29. 97 1800 448 29. 97 1050 544 304 29. 97 650 400 224 29. 97 350 288 160 29. 97 Encoder A Encoder B 288 x 160 + audio 400 x 224 800 x 448 544 x 304 960 x 540 1280 x 720

Live Encoding Tips & Tricks • Most live Smooth Streaming encoders can’t handle above 720 p • If source is 720 p 50 or 720 p 59. 94, don’t forget to set frame rate to half • If source is 1080 i, it’s faster to do single field resizing (bobbing) instead of full frame deinterlacing • If source is 480 i or 576 i, use full frame deinterlacing, preferably motion adaptive • Super Sampling scaling gives best quality • Denoising filters can improve compressed quality

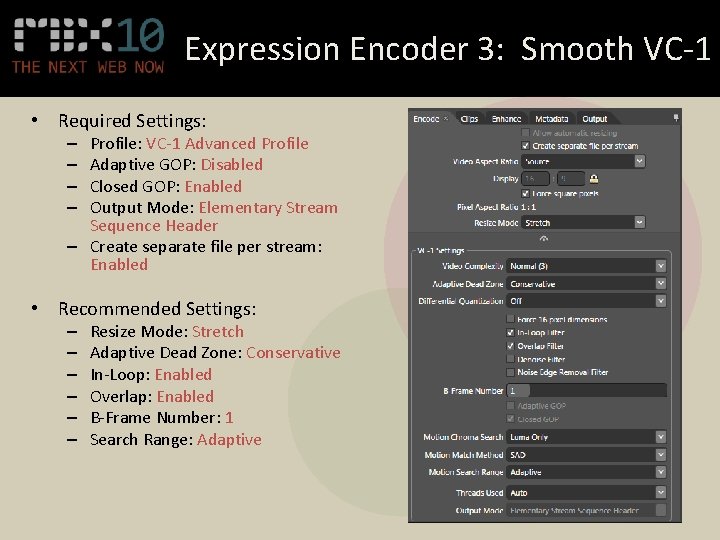

Expression Encoder 3: Smooth VC-1 • Required Settings: Profile: VC-1 Advanced Profile Adaptive GOP: Disabled Closed GOP: Enabled Output Mode: Elementary Stream Sequence Header – Create separate file per stream: Enabled – – • Recommended Settings: – – – Resize Mode: Stretch Adaptive Dead Zone: Conservative In-Loop: Enabled Overlap: Enabled B-Frame Number: 1 Search Range: Adaptive

Expression Encoder 3: Smooth H. 264 • Required Settings: – Profile: H. 264 Main or Baseline – Create separate file per stream: Enabled • Recommended Settings: – – – – Profile: H. 264 Main Profile Resize Mode: Stretch Number of Reference Frames: 4 B-Frame Number: 2 Search Range: 256 Entropy Mode: CABAC In-Loop Filter: Enabled

DEMO • DEMO: • Configuring Inlet Spinnaker HD
