Media Conversion www planet com tw Copyright PLANET

Media Conversion www. planet. com. tw Copyright © PLANET Technology Corporation. All rights reserved.

Introduction l Advantage of PLANET’s Solution l Product Overview l Product Features l Solutions l Roadmap www. planet. com. tw 2 / 41

PLANET Advantages n Full Range of Media Converters Ø 10 Mbps up to 1000 Mbps Ø ST, SC, LC, mini-GBIC, to WDM converter n Full Range of Distance Ø From 2 km to 120 km n For All Aspect of Fiber-Networking Ø Standard, Smart and Management Converter Ø Standard and Management Chassis www. planet. com. tw 3 / 41

Product Features www. planet. com. tw

Product Overview Model Media Conversion Media Chassis Manageable Media Conversion Standalone/Managed Media Conversion MC-1610 MR 16 -Slot SNMP Managed Media Converter Chassis (Dual Power Slot; 1 x AC Power built-in) MC-1610 MR 48 16 -Slot SNMP Managed Media Converter Chassis (Dual Power Slot; 1 x 48 VDC Power built-in) MC-1600 MR 16 -Slot Web Smart Managed Converter Chassis (Dual Power Slot; 1 x AC Power built-in) MC-1600 MR 48 16 -Slot Web Smart Managed Converter Chassis (Dual Power Slot; 1 x 48 VDC Power built-in) MC-1500 R/R 48 15 -Slot Media Converter Chassis (Dual Power Slot; 1 x AC/48 VDC Power built-in) MC-1500 15 -Slot Media Converter Chassis MC-700 7 -Slot Media Converter Chassis - 10 inches LRE / Serial Media Conversion Industrial Media Conversion Description www. planet. com. tw 5 / 41

Product Overview Model Media Conversion Chassis Manageable Media Conversion Standalone/Managed Media Conversion LRE / Serial Media Conversion GST-70 x GST-80 x Description 1000 T to 1000 SX/LX Media Converter (Manageable / Smart / Modular) 10/1000 T to 1000 SX/LX Media Converter (Manageable / OAM / Modular) FST-81 x Industrial Media Conversion FST-80 x 10/100 TX to 100 FX Media Converter (Manageable / OAM / Modular) 10/100 TX to 100 FX Media Converter (Manageable / Smart / Modular) www. planet. com. tw 6 / 41

Product Overview Model Media Conversion Chassis Manageable Media Conversion FT-80 x 10/100 TX to 100 FX Bridge Media Converters GT-70 x 1000 T to 1000 SX/LX Gigabit Media Converter GT-80 x 10/1000 T to 1000 SX/LX Gigabit Media Converter FT-1105 A 1 SFP / 2 TP Redundant Fast Ethernet Media Converter FT-1205 A 2 SFP / 1 TP Redundant Fast Ethernet Media Converter Standalone/Managed Media Conversion Media LRE / Serial Media Conversion Industrial Media Conversion Description FT-90 x GT-90 x 10/100 TX to 100 FX Media Converter (Web / OAM Managed / VLAN / Qo. S) 10/1000 T to 1000 SX/LX Media Converter (Web / SNMP / OAM Managed / VLAN / Qo. S) www. planet. com. tw 7 / 41

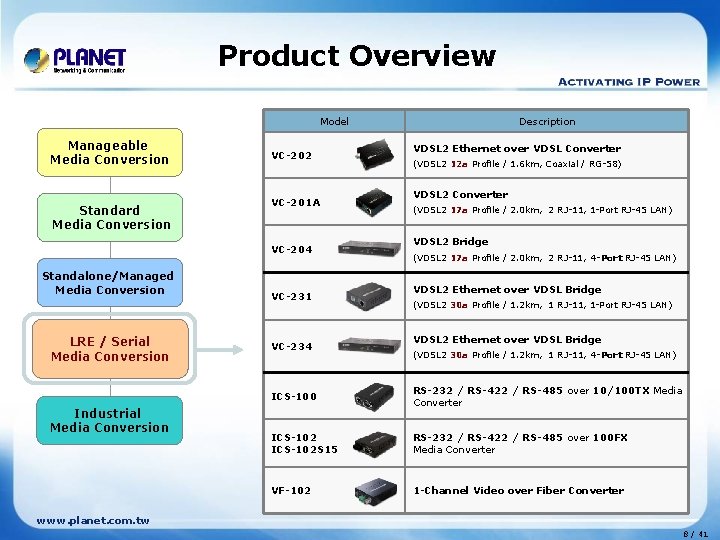

Product Overview Model Manageable Media Conversion Standard Media Conversion VC-202 VC-201 A VC-204 Standalone/Managed Media Conversion LRE / Serial Media Conversion Industrial Media Conversion VC-231 VC-234 Description VDSL 2 Ethernet over VDSL Converter (VDSL 2 12 a Profile / 1. 6 km, Coaxial / RG-58) VDSL 2 Converter (VDSL 2 17 a Profile / 2. 0 km, 2 RJ-11, 1 -Port RJ-45 LAN) VDSL 2 Bridge (VDSL 2 17 a Profile / 2. 0 km, 2 RJ-11, 4 -Port RJ-45 LAN) VDSL 2 Ethernet over VDSL Bridge (VDSL 2 30 a Profile / 1. 2 km, 1 RJ-11, 1 -Port RJ-45 LAN) VDSL 2 Ethernet over VDSL Bridge (VDSL 2 30 a Profile / 1. 2 km, 1 RJ-11, 4 -Port RJ-45 LAN) ICS-100 RS-232 / RS-422 / RS-485 over 10/100 TX Media Converter ICS-102 S 15 RS-232 / RS-422 / RS-485 over 100 FX Media Converter VF-102 1 -Channel Video over Fiber Converter www. planet. com. tw 8 / 41

Product Overview Media Conversion Chassis Manageable Media Conversion Standalone/Managed Media Conversion LRE / Serial Media Conversion Model IFT-80 x Description 10/100 TX to 100 FX Industrial Media Converter (12~48 V Redundant DC Power) IGT-90 x 10/1000 T to 1000 SX/LX Managed Industrial Media Converter (12~48 V Redundant DC Power) ICS-2100 RS-232 / RS-422 / RS-485 over 100 TX Industrial Media Converter (12~48 V Redundant DC Power) Industrial Media Conversion ICS-2102 S 15 RS-232 / RS-422 / RS-485 over 100 FX Industrial Media Converter (12~48 V Redundant DC Power) www. planet. com. tw 9 / 41

Product Features Media Conversion Chassis www. planet. com. tw

Features Brief § Media Conversion Chassis Model Item Interface Number of Converter Slot Redundant Power Management Non-Management MC-1610 MR/ MR 48 MC-700 MC-1500 R 19 inch 10 inch 19 inch 16 7 15 15 V - - V www. planet. com. tw 11 / 41

Features MC-1610 MR Managed Media Converter Chassis Ø 19 -inch (MC-1610 MR) rack-mountable, 2. 4 U high Ø 16 -slot media converter chassis, with hot swappable slot Ø Per-slot power isolation for hot-swap and per slot protection Ø Redundant power – dual power slot either universal power or 48 VDC power system MC-1610 MR Ø Sufficient power supply system Ø Reduce the effort of converter maintenance and management Ø Support PLANET FST and GST series media converters Ø Web Smart /SNMP /Console management -48 V DC Ø SNMP v 1, v 2 c and SNMP Trap RPS-MR 48 Ø Redundant link support Ø TS-1000 / 802. 3 ah OAM remote Terminal management www. planet. com. tw 12 / 41

Features MC-700/1500 R Standard Media Converter Chassis Ø 10 -inch (MC-700), 19 -inch (MC-1500 R, MC-1500) rack-mountable, 2. 4 U high Ø 7, 15 -slot media converter chassis, with hot swappable slot Ø Per-slot power isolation for hot-swap and per slot protection Ø Redundant power (AC or DC) with options for MC-1500 R Ø Sufficient power supply system Ø Reduce the effort of converter maintenance and management Ø Support PLANET FT and GT series media converters MC-1500 R Dual Power Slots (AC or DC power) Rear Panel MC-1500 MC-700 www. planet. com. tw 13 / 41

Product Features Manageable Media Conversion www. planet. com. tw

Product Overview § Manageable Media Converter Model GST-70 x GST-80 x FST-81 x Product Type TP to Fiber Transmission Speed 1000 T to 1000 SX/LX 10/1000 T to 1000 SX/LX 10/100 TX to 100 FX 550 m~100 km 2~50 km Item Distance Compatible Chassis Advance features MC-1600 MR / MC-1610 MR series - OAM Manageable bandwidth control dying gasp www. planet. com. tw 15 / 41

Features GST-80 x 10/1000 T to 1000 SX/LX Smart Gigabit Media Converter 1000 SX/LX 10/100/ 1000 T Ø 802. 3 ah / TS-1000 OAM terminal for remote management Ø DIP switch for Forced mode or Auto-negotiation and LLR (enable/disable) Ø Auto negotiation, Auto MDI/MDI-X for TX port Ø 9 K Jumbo Frame Ø SFP interface support for GST-805 A Ø WDM interface support for GST-806 A/806 B Ø Standalone or work with PLANET Managed Media Converter Chassis (MC-1610 MR) GST-802 S 20 10/1000 T to 1000 SX 10/1000 T to 1000 LX Model Transmission Speed GST-805 A 10/1000 T to 1000 SX/LX GST-80 x GST-806 A GST-806 B LLCFto 10/1000 T 1000 LX 10/10/1000 T to 1000 LX WDM RX TX TX RX Fiber Connector SC SC SFP (Wavelength: TX: 1310 nm, RX: 1550 nm) (Wavelength: Media TX: 1550 nm, RX: converter LLR 1310 nm) Mode Multimode Single mode/ Switch Multimode Single mode/ Multimode Max. Fiber Distance 550 m 20 km 70 km 20 km www. planet. com. tw 16 / 41

Features GST-70 x 1000 T to 1000 SX/LX Smart Gigabit Media Converter 1000 SX/LX 1000 T Ø Support Link Loss Carry Forward (LLCF) / Link Loss Return (LLR) Ø DIP switch for Forced mode or Auto-negotiation and LLR (enable/disable) Ø Auto MDI/MDI-X for TX port Ø SFP interface support for GST-705 A Ø WDM interface support for GST-706 A/706 B Ø Standalone or work with PLANET Managed Media Converter Chassis (MC-1610 MR) Model Transmission Speed GST-702 1000 T to 1000 SX GST-702 S 20 1000 T to 1000 LX GST-705 A 1000 T to 1000 SX/LX GST-70 x GST-706 A GST-706 B LLCF 1000 T to 1000 LX WDM Fiber Connector SC SC SFP (Wavelength: TX: 1310 nm, RX: 1550 nm) Mode Multimode Single mode/ Multimode Max. Fiber Distance 550 m 20 km 70 km 20 km 1000 T to 1000 LX RX TX TX WDM RX (Wavelength: Media converter TX: 1550 nm, RX: 1310 nm) LLR Switch Single mode/ Multimode 20 km www. planet. com. tw 17 / 41

Features FST-81 x 10/100 TX to 100 FX Smart Media Converter 100 FX 10/100 TX Ø 802. 3 ah / TS-1000 OAM terminal for remote management Ø Bandwidth control via chassis management Ø Support Link Loss Carry Forward (LLCF) / Link Loss Return (LLR) Ø Auto-MDI/MDIX for 10/100 -TX port Ø Store and Forward switch mechanism Ø Standalone or work with PLANET Managed Media Converter Chassis (MC-1610 MR) Model FST-811 FST-812 S 15 FST-81 x FST-816 A 20 FST-816 B 20 WDM (Wavelength: TX: 1310 nm, RX: 1550 nm) (Wavelength: TX: 1550 nm, RX: 1310 nm) Single mode 15 km 20 km Fiber Connector ST SC SC Mode Multimode Max. Fiber Distance 2 km www. planet. com. tw 18 / 41

Features FST-80 x 10/100 TX to 100 FX Smart Media Converter 100 FX 10/100 TX Ø Support Link Loss Carry Forward (LLCF) / Link Loss Return (LLR) Ø Auto-MDI/MDIX for 10/100 -TX port Ø DIP switch for FDX/HDX, Forced/Auto-negotiation Ø Store and Forward switch mechanism Ø Standalone or work with PLANET Managed Media Converter Chassis (MC-1610 MR) Model FST-801 FST-802 S 15 FST-80 x FST-806 A 20 FST-806 B 20 WDM (Wavelength: TX: 1310 nm, RX: 1550 nm) (Wavelength: TX: 1550 nm, RX: 1310 nm) Single mode 15 km 20 km Fiber Connector ST SC SC Mode Multimode Max. Fiber Distance 2 km www. planet. com. tw 19 / 41

Product Features Standalone / Managed Media Conversion www. planet. com. tw

Features Brief § Standalone Media Converter Non-Management Model FT-80 x GT-70 x GT-80 x Product Type TP to Fiber Transmission Speed 10/100 TX to 100 FX 1000 T to 1000 SX/LX 2~50 km 550 m ~ 70 km Item Distance FT-1105 A TP to Fiber (TP Redundancy) 10/1000 T 10/100 TX to to 1000 SX/LX 100 FX 550 m~70 km 2~60 km FT-1205 A TP to Fiber (Fiber redundancy) 10/100 TX to 100 FX 2~60 km Web Smart Managed FT-90 x GT-90 x TP to Fiber 10/100 TX to 100 FX > 2 km, pending on SFP module TP to Fiber 10/1000 T to 1000 SX/LX 550 m ~ 100 km www. planet. com. tw 21 / 41

Features FT-80 x 10/100 TX to 100 FX Fast Ethernet Converter/ Bridge Support Link Loss Carry Forward (LLCF) / Link Loss Return (LLR) Ø Auto-MDI/MDIX for 10/100 -TX port Ø DIP switch for FDX/HDX, Forced/ Autonegotiation (exclude FT-807) Ø Store and Forward switch mechanism Ø Full range of wiring distance, from 2 km up to 100 km distance support upon request Ø WDM interface support (FT-806 A 20/B 20) Ø Standalone or work with PLANET MC-family Model Fiber Connector Mode Max. Fiber Distance FT-801 ST Multimode 2 km FT-802 SC Multimode 2 km FT-802 Sn SC Single mode 15, 35, 50 km FT-803 MT-RJ Multimode 2 km 100 FX 10/100 TX Ø FT-804 VF-45 Multimode 2 km FT-80 x FT-806 A 20 FT-806 B 20 WDM (Wavelength: TX: 1310 nm, RX: 1550 nm) (Wavelength: TX: 1550 nm, RX: 1310 nm) Single mode 20 km www. planet. com. tw 22 / 41

Features GT-70 x 1000 T to 1000 SX/LX Gigabit Ethernet Converter Ø DIP switch for Auto-Negotiation mode or Forced Full-duplex mode 1000 SX/LX 1000 T Ø Auto MDI/MDI-X for TP port Ø Full-Duplex mode support GT-70 x Ø SFP (mini-GBIC) port support (GT-705 A) Ø WDM interface support (GT-706 A/706 B) GT-705 A SFP (mini-GBIC) support Ø Standalone or work with PLANET MC-family Model GT-702 S GT-705 A Transmission Speed 1000 T to 1000 SX 1000 T to 1000 LX 1000 T to 1000 SX/LX Fiber Connector SC SC SFP Mode Multimode Single mode/ Multimode Max. Fiber Distance 550 m 10 km GT-706 A 15 /A 60 GT-706 B 15 / B 60 1000 T to 1000 LX WDM (Wavelength: TX: 1310 nm, RX: 1550 nm) (Wavelength: TX: 1550 nm, RX: 1310 nm) Single mode/ Multimode 70 km 15 km / 60 km www. planet. com. tw 23 / 41

Features GT-80 x 10/1000 Base-T to 1000 SX/LX Gigabit Ethernet Converter 1000 SX/LX 10/1000 T Ø TP port supports 10/1000 Base-T auto-negotiation and auto-MDI/MDI-X Ø IEEE 802. 3 x Full-Duplex Flow-Control eliminate the loss of packets Ø Auto MDI/MDI-X for TP port GT-80 x Ø Full-Duplex mode support Ø SFP (mini-GBIC) port support (GT-805 A) Ø WDM interface support (GT-806 A/806 B) GT-805 A SFP (mini-GBIC) support Ø Standalone or work with PLANET MC-family Ø Wall-mountable design Model GT-802 S GT-805 A GT-806 A 15 /A 60 GT-806 B 15 / B 60 Transmission Speed 10/1000 T to 1000 SX 10/1000 T to 1000 LX 10/1000 T to 1000 SX/LX 10/100/1000 T to 1000 LX Fiber Connector SC SC SFP Mode Multimode Single mode/ Multimode Max. Fiber Distance 550 m 10 km WDM (Wavelength: TX: 1310 nm, RX: 1550 nm) (Wavelength: TX: 1550 nm, RX: 1310 nm) Single mode/ Multimode Single mode 70 km 15 km / 60 km www. planet. com. tw 24 / 41

Features FT-110 x 10/100 TX to 100 FX Redundant Media Converter FT-1105 A Ø 3 -port Media Converter l Dual 10/100 Base-TX TP l One 100 Base-FX Fiber optic Ø Store and Forward Switch mechanism Ø Either 3 -port switch mode or 2 -port conversion with redundant mode Ø Compact size work alone or co-work with PLANET MC-7/15/15 R family media chassis Ø LLCF/LLR, Loop back test support 100 FX 10/100 TX Switch mode 10/100 TX 100 FX < 10 ms Redundant mode www. planet. com. tw 25 / 41

Features FT-120 x 10/100 TX to 100 FX Redundant Media Converter Ø l Dual 100 Base-FX fiber optic l One 10/100 Base-TX TP Ø Store and Forward Switch mechanism Ø Either 3 -port switch mode or 2 -port conversion with redundant mode Ø Compact size work alone or co-work with PLANET MC-7/15/15 R family media chassis Ø FT-1205 A 3 -port Media Converter LLCF/LLR, Loop back test support 100 FX 10/100 TX 100 FX Switch mode 10/100 TX < 10 ms 100 FX Redundant mode www. planet. com. tw 26 / 41

Features FT-90 x 10/100 TX to 100 FX Web Management Media Converter 10/100 TX 100 FX Ø Web Smart Management Ø Store and Forward Switch mechanism Ø Monitor and setup the converter, speed, duplex through web browser Ø 802. 1 Q VLAN / Qo. S / Bandwidth Control Ø Compact size work with MC-7/15/15 R family media chassis FT-90 x Ø LLCF/LLR, Loop back test support Model FT-902 FT-905 A Fiber Connector SC 100 Base SFP Mode Multimode, Single Mode and WDM Max. Fiber Distance 2 km Depends on SFP module www. planet. com. tw 27 / 41

Features GT-90 x 10/1000 Base-T to 1000 SX/LX Web Management Media Converter 10/1000 T 1000 SX/LX Ø Web Smart Management Ø SNMP v 1/v 2 c supports Ø IEEE 802. 3 ah OAM / TS-1000 OAM Ø 802. 1 Q VLAN / Qo. S / Bandwidth Control Ø Store and Forward Switch mechanism GT-90 x Ø Compact size work with MC-7/15/15 R family media chassis Model GT-902 GT-905 A Fiber Connector SC 1000 Base SFP Mode Multimode, Single Mode and WDM Max. Fiber Distance 550 m Depends on SFP module www. planet. com. tw 28 / 41

Product Features LRE / Serial Media Conversion www. planet. com. tw

Features VC-202 VDSL 2 CO/CPE Ethernet over VDSL Converter Ø VDSL-DMT § ITU-T G. 993. 2 VDSL 2 (Profile 12 a Support), Annex A Ø DIP Switch for CO/CPE Mode selection Ø Full VDSL 2 bandwidth of up to 30 MHz offering up to: § 300 M -> 100/60 Mbps § 1 km -> 25/5 Mbps Ø Built-in POTS splitter (VC-201) Ø Auto-MDI/MDIX for 10/100 -TX port Ø Selectable target data rate to 50/20 Mbps Ø Standalone or work with PLANET MC-7/15/15 R family Media Chassis 10/100 TX (RJ-45) Model VDSL 2 (RJ-11) VC-202 Long Reach Connector Coaxial / RG-58 Max. Down/ Up Stream 100/60 Mbps Max. Fiber Distance 1. 6 km www. planet. com. tw 30 / 41

Features VC-201 A / VC-204 VDSL 2 CO/CPE Ethernet over VDSL Bridge Ø VDSL-DMT § ITU-T G. 993. 2 VDSL 2 (Profile 17 a Support), Annex A Ø DIP Switch for CO/CPE Mode selection Ø Full VDSL 2 bandwidth of up to 30 MHz offering up to: § 300 M -> 100/60 Mbps § 1 km -> 25/5 Mbps Ø Built-in POTS splitter Ø Auto-MDI/MDIX for 10/100 -TX port Ø Ø Selectable Band plan: § Asymmetric § Symmetric Standalone or work with PLANET MC-7/15/15 R family Media Chassis (VC-201 A) 10/100 TX (RJ-45) VDSL 2 (RJ-11) Model VC-201 A VC-204 Long Reach Connector 1 x RJ-11 10/100 LAN Port 1 x RJ-45 4 x RJ-45 100/60 Mbps 2 km Max. Down/ Up Stream Max. Phone wire Distance www. planet. com. tw 31 / 41

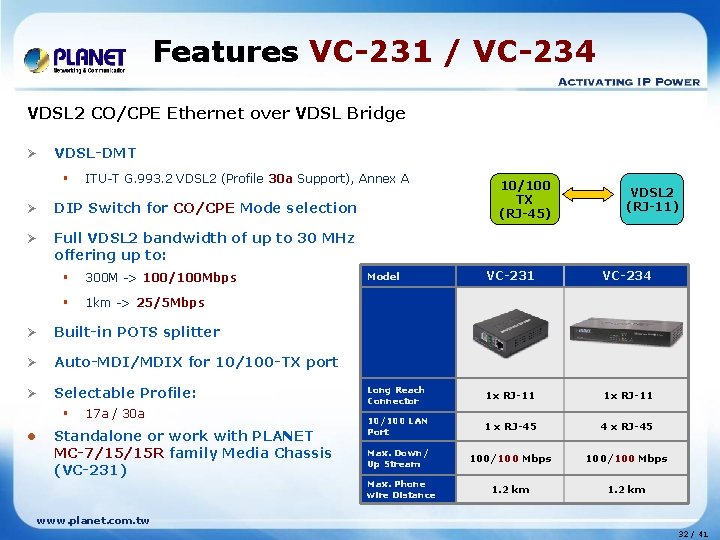

Features VC-231 / VC-234 VDSL 2 CO/CPE Ethernet over VDSL Bridge Ø VDSL-DMT § ITU-T G. 993. 2 VDSL 2 (Profile 30 a Support), Annex A Ø DIP Switch for CO/CPE Mode selection Ø Full VDSL 2 bandwidth of up to 30 MHz offering up to: § 300 M -> 100/100 Mbps § 1 km -> 25/5 Mbps Ø Built-in POTS splitter Ø Auto-MDI/MDIX for 10/100 -TX port Ø Selectable Profile: § l 17 a / 30 a Standalone or work with PLANET MC-7/15/15 R family Media Chassis (VC-231) 10/100 TX (RJ-45) VDSL 2 (RJ-11) Model VC-231 VC-234 Long Reach Connector 1 x RJ-11 10/100 LAN Port 1 x RJ-45 4 x RJ-45 Max. Down/ Up Stream 100/100 Mbps 1. 2 km Max. Phone wire Distance www. planet. com. tw 32 / 41

Applications VC-202 Analog Camera Management Supporting up to 16 cameras. Analog Camera IP Camera Management Supporting up to 64 cameras. Cabling less Reuse Cable IP Camera www. planet. com. tw 33 / 41

Features ICS-10 x RS-232/422/485 over Fast Ethernet Media Converter / Device Server 10/100 TX (RJ-45) Ø 1 RS-232/422/485 port to 1 10/100 Base-TX or 100 Base-FX RS-232 RS-485 Media Converter / Device Server Ø Built-in IP-Based Web interface for remote management Ø Standard TCP/IP interface and versatile operation modes ICS-100 Ø Supports asynchronous serial data rates up to 921600 bps Ø Serial Operation mode selected via Web management RS-232 RS-485 100 FX Ø Easy wall mounting and DIN-Rail mounting (optional accessory) Ø Compact size work alone or co-work with PLANET MC-7/10/15 family Media Chassis ICS-102 Ø PLANET Smart Discovery utility automatically finds the device on the network Model ICS-100 ICS-101 Serial Interface Fast Ethernet Interface Connector Mode Max. Distance ICS-102 S 15 ICS-105 A DB 9 RS-232 / RS-422 / RS-485 10/100 Base-TX 100 Base-FX RJ-45 ST SC SC SFP - Multimode Single mode Vary on module 100 m 2 km 15 km Vary on module www. planet. com. tw 34 / 41

Applications ICS-10 x l Access Control System § With ICS-10 x Serial over Fast Ethernet Converter connected, the access control machine networking is able to be extended over longer distance up to 2 km. Via fiber optical interface, the distance can also be up to 20 km in a local range. § The ICS-10 x can be linked to a x. DSL router to get the internet access capability, the access control thus can be monitored and set over internet. Internet www. planet. com. tw 35 / 41

Features VF-102 One-Channel Digital Video Optical Transmitter / Receiver Ø Channel 10 bit Video Signal digital sampling Ø PAL, NTSC, SECAM compatible Ø High Speed synchronization digital transmission technology Ø Guarantee of safe transmission under the atrocious electromagnetic environment Ø Max. link loss of single mode allowance up to 18 d. B Ø Transmission distance up to 20 km Ø Easy installation and free adjustment Ø Standalone or work with PLANET MC-7/15/15 R family Media Converter Chassis 100 FX Video VF-102 www. planet. com. tw 36 / 41

Solutions www. planet. com. tw

Solutions Management Media Converter Solution www. planet. com. tw 38 / 41

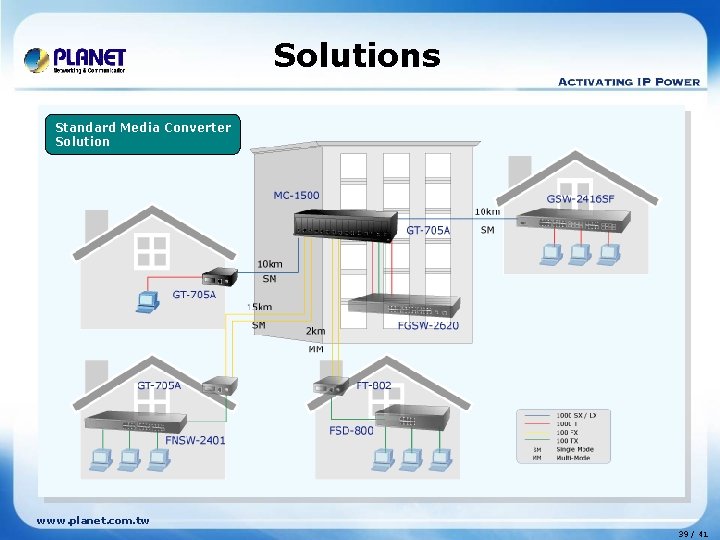

Solutions Standard Media Converter Solution www. planet. com. tw 39 / 41

Roadmap Smart Gigabit Media Converter Managed 10/1000 Base-T to 1000 Base-SX/LX MC GST-80 x Smart / OAM Fast Ethernet Media Converter 10/100 Base-TX to 100 Base-FX MC FST-81 x High-Speed Ethernet over VDSL 10/100 Base-TX to VDSL 2 (RJ-11), 4 -Port VC-234 (30 a Profile) Standard High-Speed Ethernet over VDSL Industrial VDSL 10/100 Base-TX to VDSL 2 (RJ-11), 1 -Port VC-231 (30 a Profile) IVC-231 (30 a Profile) Video over Fiber 1 -Channel Video over Fiber Converter VF-102 www. planet. com. tw 2009/Q 4 2010/Q 1 40 / 41
