Media Conversion Solution ü Comprehensive Solution from the Edge to the Core Point-to-Point application Point-to-Multipoint application 2

Product Features High Density Fiber Network Switch 3

High-density Fiber Network Switch u 100/1000 BASE-X SFP auto detection u Intelligent SFP digital diagnostic monitor (DDM) u IPv 4 / IPv 6 Layer 3 Static Routing u IEEE 802. 1 Q VLAN / Private VLAN / Q-in-Q u IGMP Snooping v 2 and v 3 / MLD Snooping / MVR u IEEE 802. 1 s MSTP and Loop Protection u IPv 6 Web Interface / SNMP v 1, v 2 c and v 3 / SSH / SSL Management GS-5220 -44 S 4 C GS-5220 -46 S 2 C 4 X SGS-5220 -24 S 2 X 4

Product Features Metro Fiber Switch 5

Metropolitan Area Network Core Switch 4 -Slot Layer 3 IPv 6/IPv 4 Routing Chassis Switch u Up to 168 -Port Gigabit copper, 156 -Port Gigabit SFP, 13 -Port 10 G XFP u Hot-Swappable switching modules u 100~240 V AC Dual power redundant u IP stacking up to 24 units u IP Routing protocol supports RIP v 1/v 2, OSPF v 2, BGP 4 u Policy based Routing (PBR) for IPv 4 and IPv 6 u Supports IGMP v 1/v 2/v 3 XGS 3 -42000 R 6

Managed Metro Ethernet Switch u 24 -Port 100/1000 Base-X SFP u 4 -Port 10 G SFP+ u IPv 6 / IPv 4 dual stack management u Fully front panel access design u Layer 2/3/4 Access control list and port security u ERPS/STP/RSTP/MSTP connection redundancy u SSH / SSL secure management u DI / DO for event and alarm u Dual power system for power redundancy ü ü MGSW-28240 F - 36 V ~ -72 V DC 100 V ~ 240 V AC u - 10 to 60 o. C operating temperature u 13” Rack mount installation 7

Features ERPS u ERPS Ring for Network Redundancy u Strong rapid self-recovery capability 8

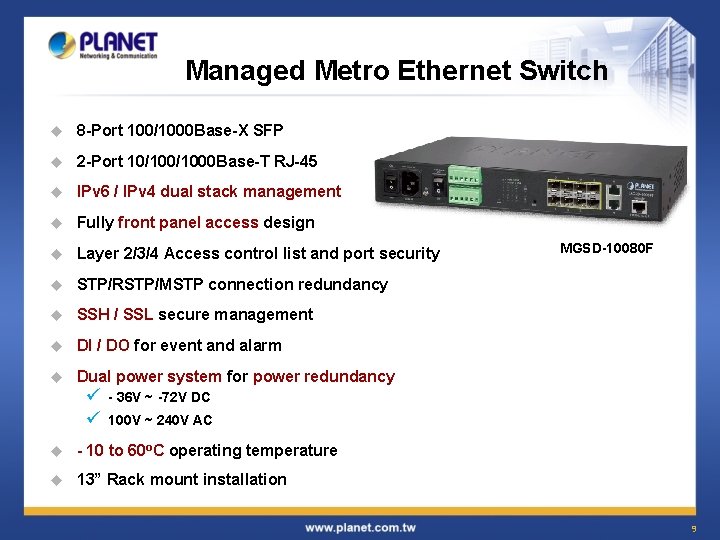

Managed Metro Ethernet Switch u 8 -Port 100/1000 Base-X SFP u 2 -Port 10/1000 Base-T RJ-45 u IPv 6 / IPv 4 dual stack management u Fully front panel access design u Layer 2/3/4 Access control list and port security u STP/RSTP/MSTP connection redundancy u SSH / SSL secure management u DI / DO for event and alarm u Dual power system for power redundancy ü ü MGSD-10080 F - 36 V ~ -72 V DC 100 V ~ 240 V AC u - 10 to 60 o. C operating temperature u 13” Rack mount installation 9

Metro Ethernet Application ü High Density ü High Performance ü Highly Reliable XGS 3 -42000 R 10

Product Features Industrial Fiber Ethernet 11

Industrial Metro Switch u Backbone of Industrial Environment u Full Ports Gigabit u Fiber Optical, 100/1000 X SFP u 20 Gbps per second of non-blocking switch fabric u IPv 6 / IPv 4 management u High security u -40~75 o. C operating temperature u IP 30 rugged case IGS-10080 MFT 12

High Power Po. E Switch IGS-10020 HPT u Fiber-Optical Link Capability - 2 x 100/1000 X SFP slots u IPv 6 IP Address / NTP / DNS management u Po. E Power up to 30. 8 watts for each Po. E ports u Auto detect powered device (PD) u VLAN, Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u IEEE 802. 1 x Port-based / MAC-based network access authentication 13

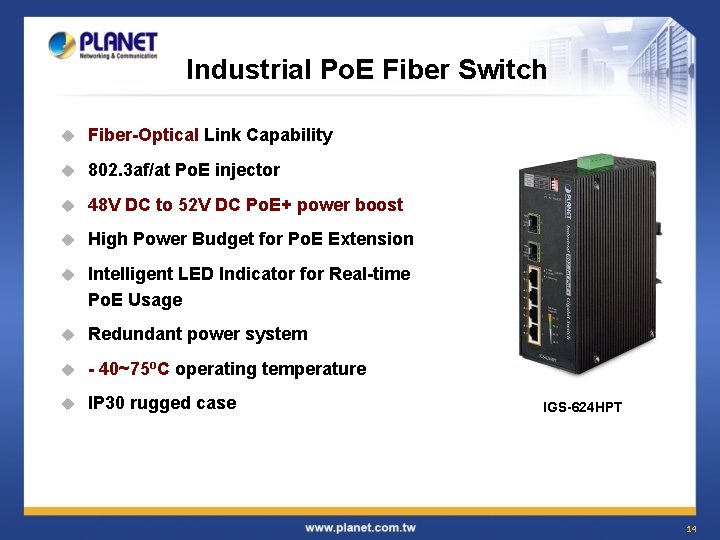

Industrial Po. E Fiber Switch u Fiber-Optical Link Capability u 802. 3 af/at Po. E injector u 48 V DC to 52 V DC Po. E+ power boost u High Power Budget for Po. E Extension u Intelligent LED Indicator for Real-time Po. E Usage u Redundant power system u - 40~75 o. C operating temperature u IP 30 rugged case IGS-624 HPT 14

Product Features u Fiber-Optical Link Capability Extends the Range of Network Deployment 15

Industrial Media Converter u Full Ports Gigabit u 100/1000 X SFP u Fiber Port Redundant u 12 -48 V DC, 24 V AC Input u -40 to 75 o. C operating temperature u IP 30 rugged case IGT-1205 AT 16

Product Features Media Converter & Chassis 17

Managed Media Converter Gigabit Smart Converter OAM Managed Media Converter Chassis 10/1000 T to 1000 SX/LX Fast Ethernet Smart Converter 10/100 T to 100 FX OAM Rear Panel MC-1610 MR Converter Status Web Management 802. 3 ah Temperature OAM Configuration Management SNMP Management FST-81 x series 10/100 TX to 100 FX GST-80 x series Power Slot 2 Management Features Temperature Management Power Slot 1 MCRPS 130 FST-80 x series MC-RPS 200 MC-RPS 48 (100~240 V (DC 48 V) AC) Converter Status Web Management 802. 3 ah OAM Configuration SNMP Management 18

Multi-function Converter Chassis Media Converter Chassis VDSL 2 Converter GT-1205 A MC-700 VC-231 (Phone wire) (3 -Port, SFP) (7 -Slot) 30 a Gigabit Ethernet Converter GT-90 x series (Full Management) VC-201 A MC-1500 17 a (Phone wire) VC-202 A 17 a (Coaxial) Video over Fiber (15 -Slot) GT-80 x series MC-1500 R GT-70 x series (10/1000 T to 1000 SX/LX) (15 -Slot with Redundant power supply) (1000 T to 1000 SX/LX) Fast Ethernet Converter Video Server RS-232 / 422 / 485 MC-1500 R Rear Panel Serial Converter FT-90 x series (Management) VF-10 x-KIT FT-80 x series VF-402 -KIT (Standalone bundle kit) Analog → ← Fiber IVS-H 125 MC-15 RPS 48 MC-15 RPS 90 (DC 48 V) AC) → (100~240 V Analog ← IP ICS-102 (100 FX) ICS-100 (100 TX) Serial → ← IP Power Slot 1 MC-15 RPS 90 FT-1205 (Link redundant) 19

Product Features Passive Optical Network (GEPON) 20

GEPON Solution GEPON OLT GEPON ONU GEPON Wi. Fi ONU EPL-2000 EPN-103 EPN-402 NV 2 -PON Port GEPON OLT with Uplink 2 -Port 1000 Base-X SFP Slot ( 1 -PON Interface, 1 -Port FE + 1 -Port Gb. E Interface) ( 1 -PON Interface, 4 -Port FE + 2 -Port FXS, 300 Mbps 802. 11 n Wi. Fi) u 1. 25 Gbps for upstream and downstream u Up to 20 km distance u Up to 64 ONUs split ratio per GEPON port u PON interface complies with IEEE 802. 3 ah u Dynamic Bandwidth Allocation (DBA) support u 802. 1 x authentication engine u 802. 1 q VLAN and 802. 1 p Qo. S support u Supports IGMP 21

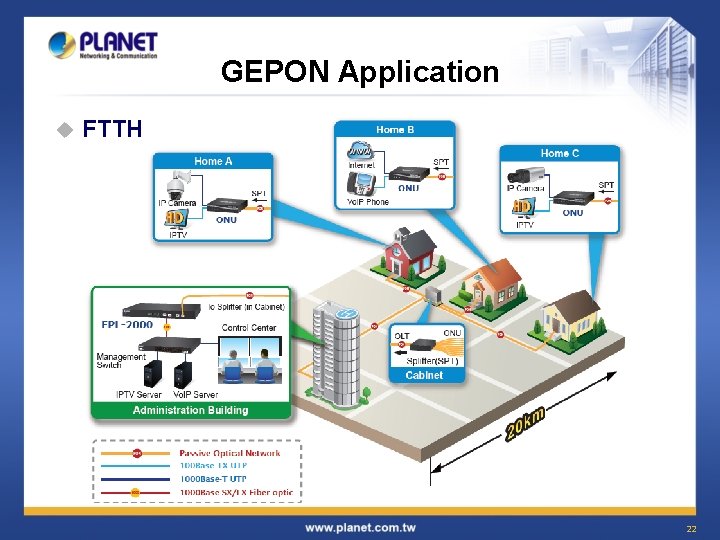

GEPON Application u FTTH 22

Product Features Fiber Network CPE 23

Fiber Switch & Router l L 2 Managed Gigabit Switch with SFP interface GSD-1020 S l 802. 11 n Wireless Fiber Router with 4 -port switch GSD-1002 M FRT-405 N u 2 x 100/1000 Base-X SFP slots u Multiple WAN Connection u 8 x 10/1000 Base-T RJ 45 LAN u Mini-GBIC (SFP) interface for fiber connection up to 15~60 km u 802. 11 b/g/n compliant u IEEE 802. 1 s MSTP and Loop Protection u 300 Mbps high speed wireless transmission u IEEE 802. 1 Q VLAN / Private VLAN / Q-in-Q u Router, Bridge and WISP mode u IGMP Snooping v 2 and v 3 / MLD Snooping u VPN Pass-through u IEEE 802. 1 X / RADIUS Authentication u Built-in NAT Firewall, SPI Firewall u 1 Port supports 802. 3 af/at Po. E DC 48~56 V u MAC / IP/ Port Filtering, Content Filtering u PLANET DDNS / Easy DDNS support u IPv 4 / IPv 6 Web / Telnet / SSH / SSL / SNMP Management in-line power 24

Fiber Network Adapter ENW-9701 ENW-9801 　 Model Attached Interface PCI Express Rev 1. 1 PCI Express 1. 1, x 8, x 4 1 x SFP+ Distance Depend on Transceiver Module Data Rate Gigabit 10 Gbps Media Type IP Protocol VLAN Performance Enhancement IPv 4, IPv 6 V Receive-side scaling (RSS), IP, TCP and UDP Checksum Offloading 25

Fiber Network Adapter Application u Extremely high throughput and excellent signal quality for Server Farm Networks and Intranet 26
