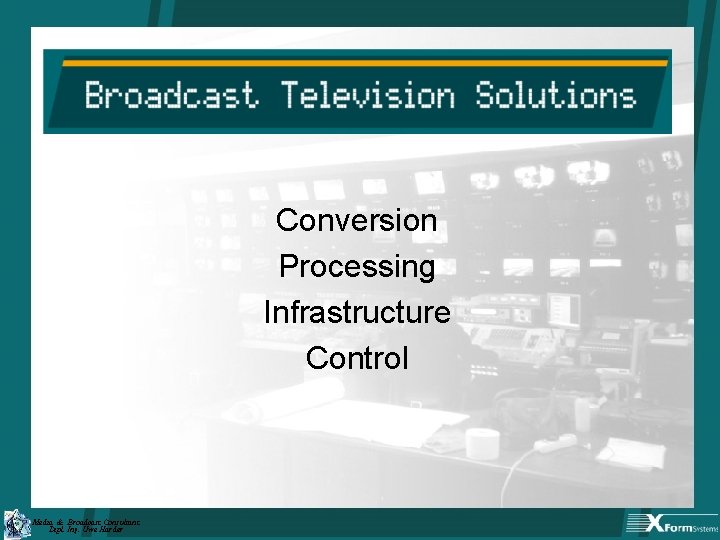

Conversion Processing Infrastructure Control Media & Broadcast Consultant Dipl. Ing. Uwe Harder

XForm Systems Product Portfolio • • • Media & Broadcast Consultant Dipl. Ing. Uwe Harder Framerate / Standards Converter Up-/Downconverter Crossconverter Aspect Ratio Converter Synchronizer Noise Reducer AD / DA Converter Color Corrector Timecode Processor Audio Formatter / Dolby-E Modular Systems Remote Control solutions

XForm Systems Product Families • HD PRO family of versatile format- / standard conversion products for HD and SD • XFS family of dedicated HD products for budget critical applications • XFM family of infrastructure products • ICONN comprises hardware and software products for system control Media & Broadcast Consultant Dipl. Ing. Uwe Harder

XForm Systems Product Families • Legacy AVBridge versatile platform for SD with motion vector standards conversion • Legacy 2000 series family of dedicated SD products Media & Broadcast Consultant Dipl. Ing. Uwe Harder

Application: Broadcasting Up-, Down-, Crossconversion HD Pro 10/40, XFS-1500, XFM-50 Standards Conversion HD Pro 20/40, XFM-50, A/V Bridge, Quattro Aspect Ratio Conversion HD Pro 10/40, XFS-1500, XFM-50, A/V Bridge, Aspect Framesynchronisation all units Audio mux/demux all units Media & Broadcast Consultant Dipl. Ing. Uwe Harder

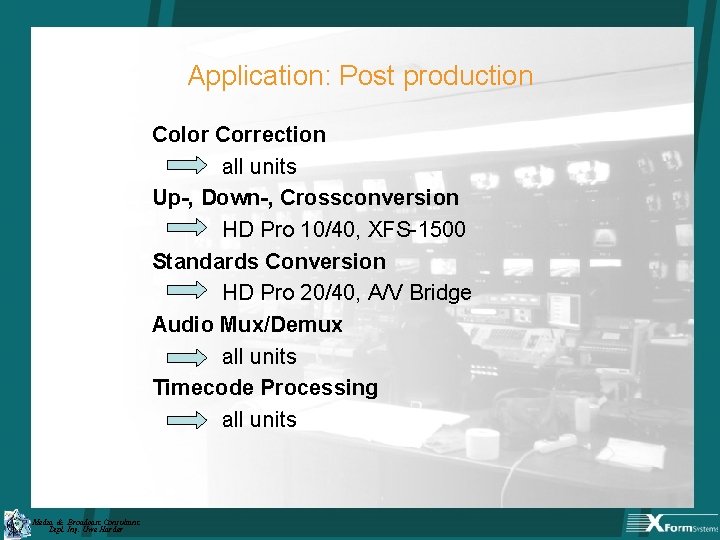

Application: Post production Color Correction all units Up-, Down-, Crossconversion HD Pro 10/40, XFS-1500 Standards Conversion HD Pro 20/40, A/V Bridge Audio Mux/Demux all units Timecode Processing all units Media & Broadcast Consultant Dipl. Ing. Uwe Harder

Application: OB-van / SNG General purpose HD Pro 10/40, XFM-50, A/V Bridge Infrastructure XFM-50 Format / Standards Converter HD Pro, XFS-1500, XFM-50 A/V Bridge Audio Mux/Demux all units Media & Broadcast Consultant Dipl. Ing. Uwe Harder

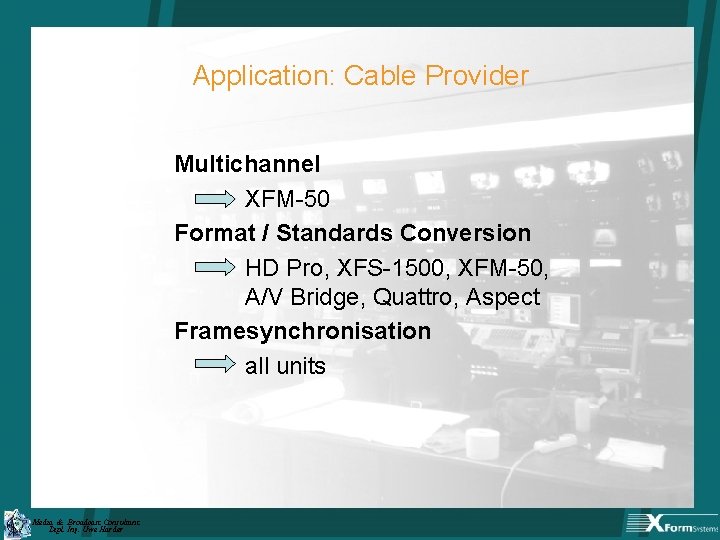

Application: Cable Provider Multichannel XFM-50 Format / Standards Conversion HD Pro, XFS-1500, XFM-50, A/V Bridge, Quattro, Aspect Framesynchronisation all units Media & Broadcast Consultant Dipl. Ing. Uwe Harder

ICONN Control Products SNMP Media & Broadcast Consultant Dipl. Ing. Uwe Harder

ICONN • One panel controls multiple units • One workstation controls multiple units • Uses existing ethernet / IP infrastructure • Fits into industry standard management systems (VSM, Dataminer, …) • Remote panels have the same layout as local control panels Media & Broadcast Consultant Dipl. Ing. Uwe Harder

ICONN Media & Broadcast Consultant Dipl. Ing. Uwe Harder

ICONN: Control Software Intuitive visualized control environment Media & Broadcast Consultant Dipl. Ing. Uwe Harder

ICONN: Control Software CFlow feature • Visualizes real signal flow • Tally frames highlight active processings • Improper conditions are marked (no reference, no input, etc. ) Media & Broadcast Consultant Dipl. Ing. Uwe Harder

Monitoring Feature Embedded signal analysis and processing overview Media & Broadcast Consultant Dipl. Ing. Uwe Harder

XFM-50 • • • Infrastructure products Multi channel processing Specialised solutions • Audio delay tracking • Closed Caption conversion Media & Broadcast Consultant Dipl. Ing. Uwe Harder • • • Standards Conversion Format Conversion Signal Processing AD / DA Conversion ANC Processing Audio Embedding/Deembedding

XFM-50 functional block diagram example Media & Broadcast Consultant Dipl. Ing. Uwe Harder

XFM-50 License overview Media & Broadcast Consultant Dipl. Ing. Uwe Harder

HD PRO • • • Supports HD and SD Framerate / Standards Converter Up-/Downconverter Crossconverter Aspect Ratio Converter Media & Broadcast Consultant Dipl. Ing. Uwe Harder • • • Synchronizer Noise Reducer AD / DA Converter Color Corrector Timecode Processor Audio Formatter / Dolby-E

XFS • • • dedicated HD products for cost critical applications Up-/Downconverter Synchronizer Media & Broadcast Consultant Dipl. Ing. Uwe Harder • • AD / DA Converter Color Corrector Timecode Processor Audio Formatter / Dolby-E

Legacy SD Products AVBridge: SD conversion platform with motion compensated standards conversion 2000 series: SD products dedicated to specific applications (ARC, NR, . . . ) Media & Broadcast Consultant Dipl. Ing. Uwe Harder
