Mechanics of Materials Outline Overview AXIALLY LOADED MEMBERS

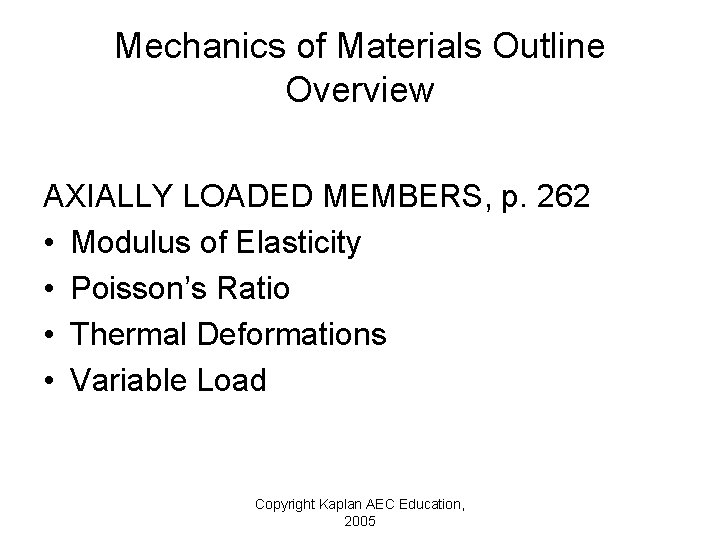

Mechanics of Materials Outline Overview AXIALLY LOADED MEMBERS, p. 262 • Modulus of Elasticity • Poisson’s Ratio • Thermal Deformations • Variable Load Copyright Kaplan AEC Education, 2005

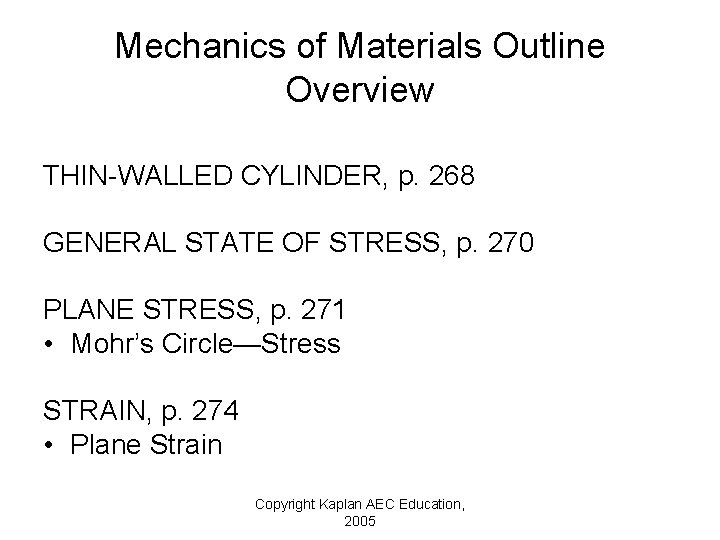

Mechanics of Materials Outline Overview THIN-WALLED CYLINDER, p. 268 GENERAL STATE OF STRESS, p. 270 PLANE STRESS, p. 271 • Mohr’s Circle—Stress STRAIN, p. 274 • Plane Strain Copyright Kaplan AEC Education, 2005

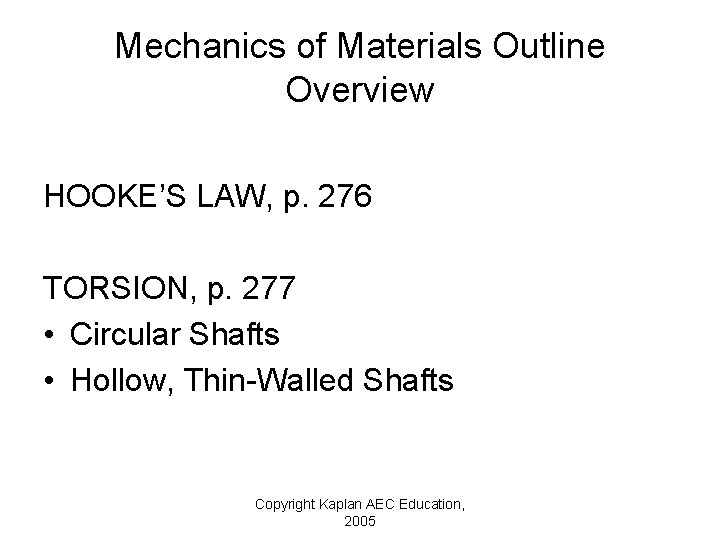

Mechanics of Materials Outline Overview HOOKE’S LAW, p. 276 TORSION, p. 277 • Circular Shafts • Hollow, Thin-Walled Shafts Copyright Kaplan AEC Education, 2005

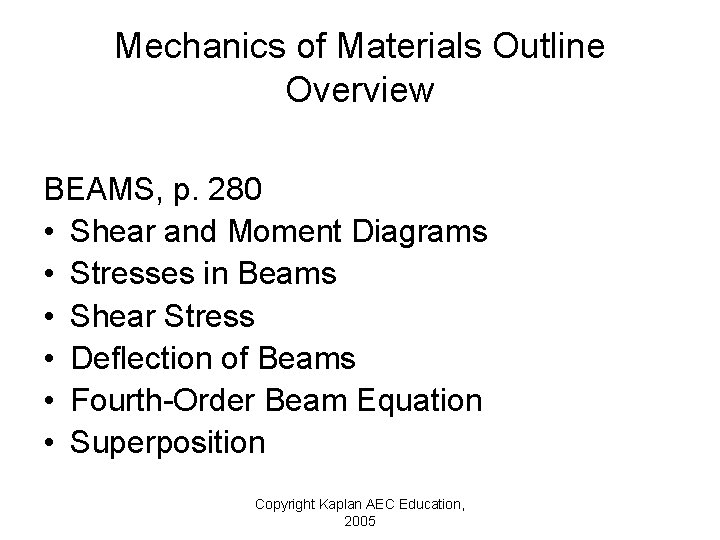

Mechanics of Materials Outline Overview BEAMS, p. 280 • Shear and Moment Diagrams • Stresses in Beams • Shear Stress • Deflection of Beams • Fourth-Order Beam Equation • Superposition Copyright Kaplan AEC Education, 2005

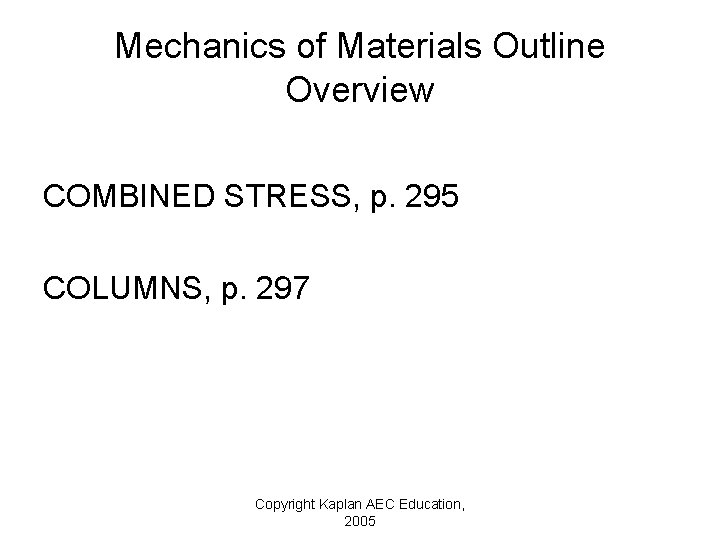

Mechanics of Materials Outline Overview COMBINED STRESS, p. 295 COLUMNS, p. 297 Copyright Kaplan AEC Education, 2005

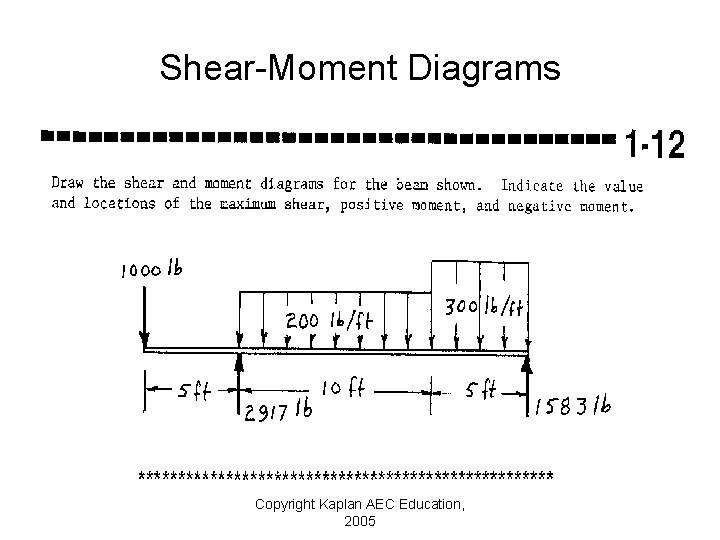

Shear-Moment Diagrams Copyright Kaplan AEC Education, 2005

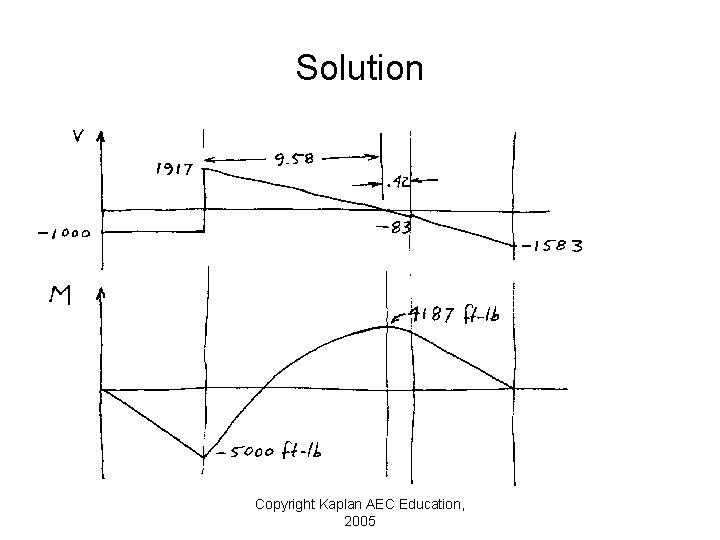

Solution Copyright Kaplan AEC Education, 2005

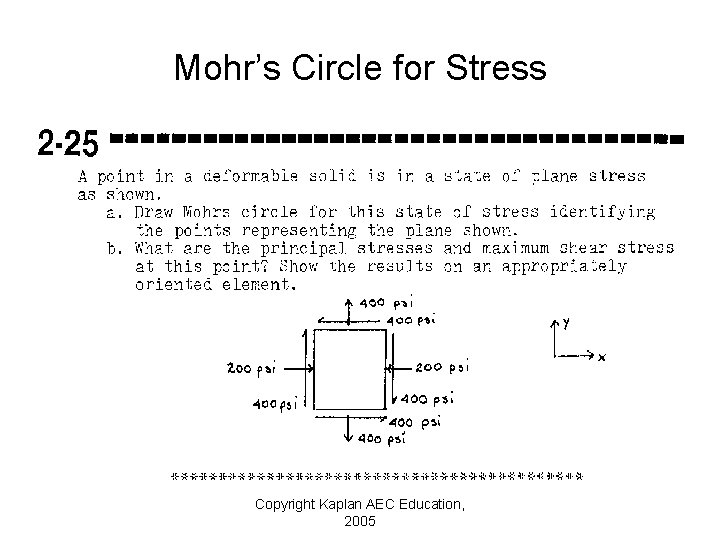

Mohr’s Circle for Stress Copyright Kaplan AEC Education, 2005

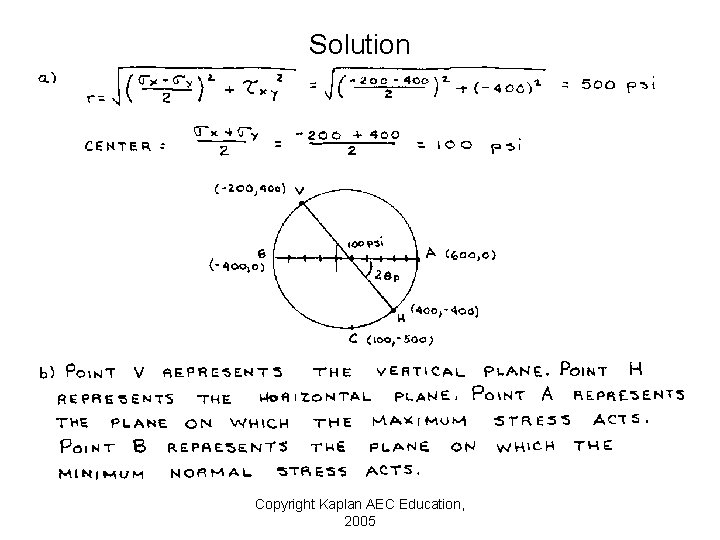

Solution Copyright Kaplan AEC Education, 2005

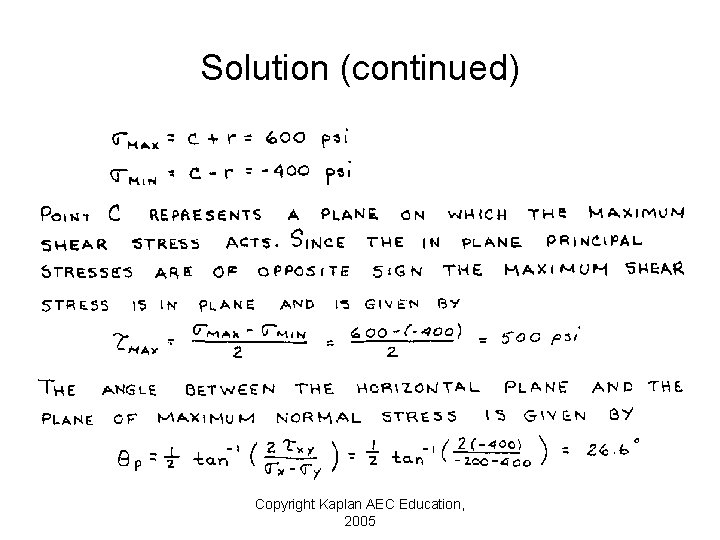

Solution (continued) Copyright Kaplan AEC Education, 2005

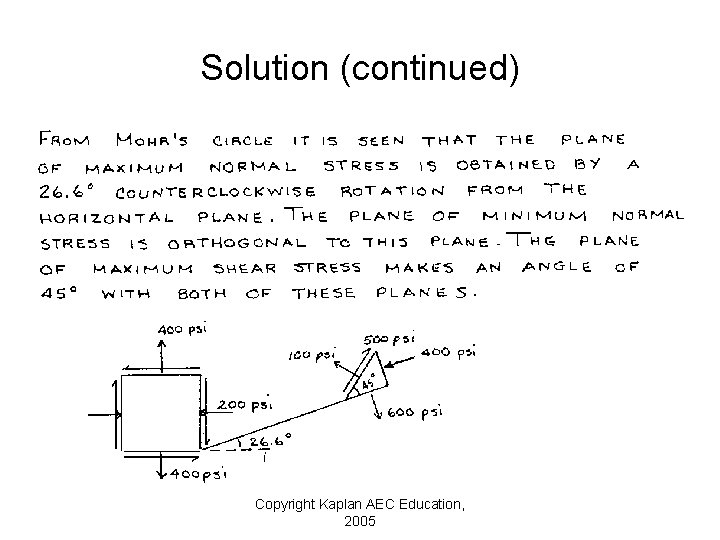

Solution (continued) Copyright Kaplan AEC Education, 2005

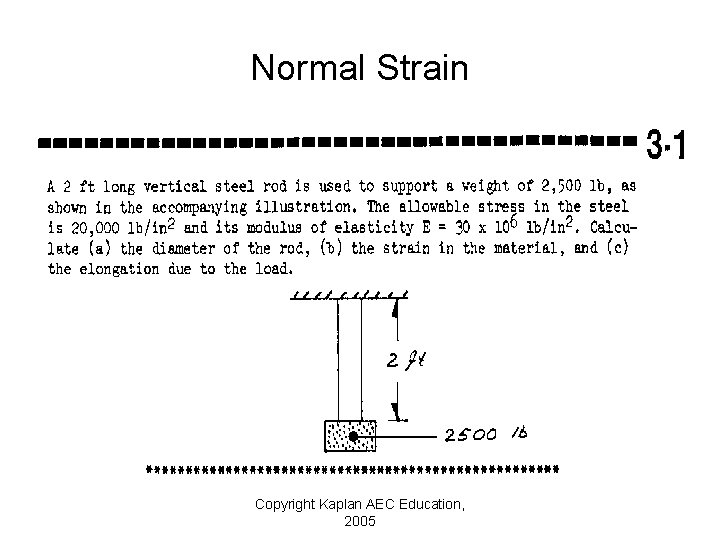

Normal Strain Copyright Kaplan AEC Education, 2005

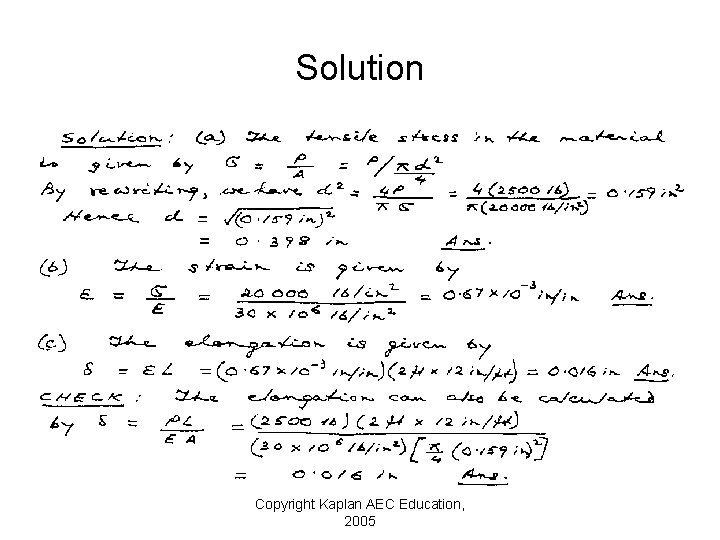

Solution Copyright Kaplan AEC Education, 2005

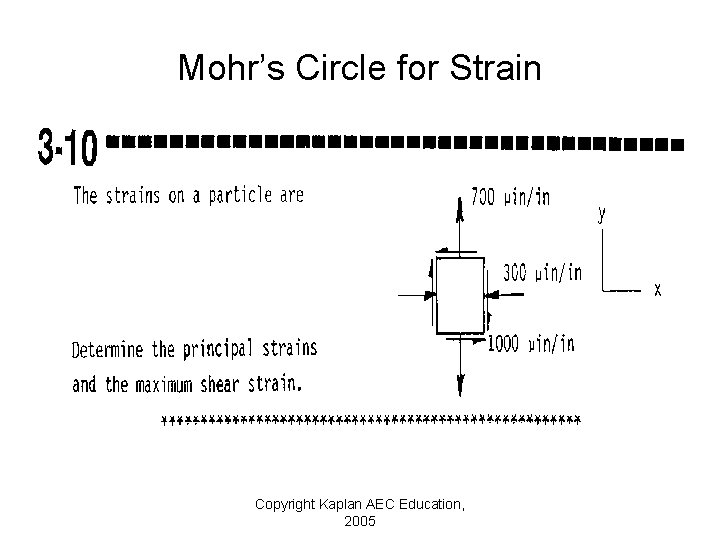

Mohr’s Circle for Strain Copyright Kaplan AEC Education, 2005

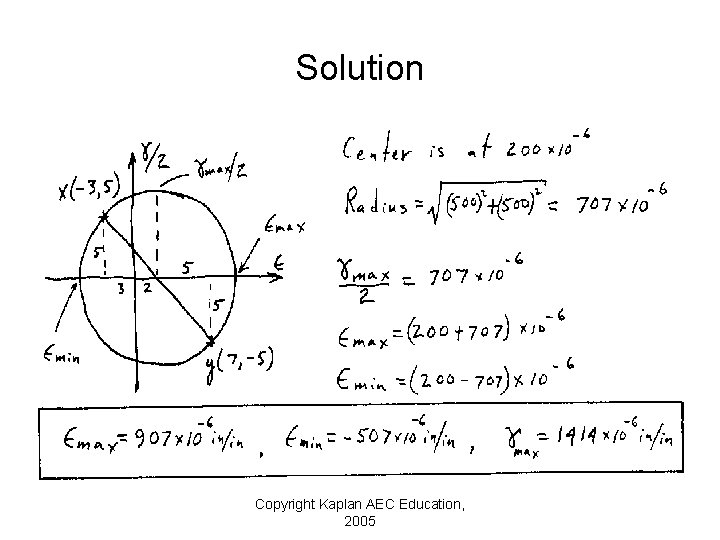

Solution Copyright Kaplan AEC Education, 2005

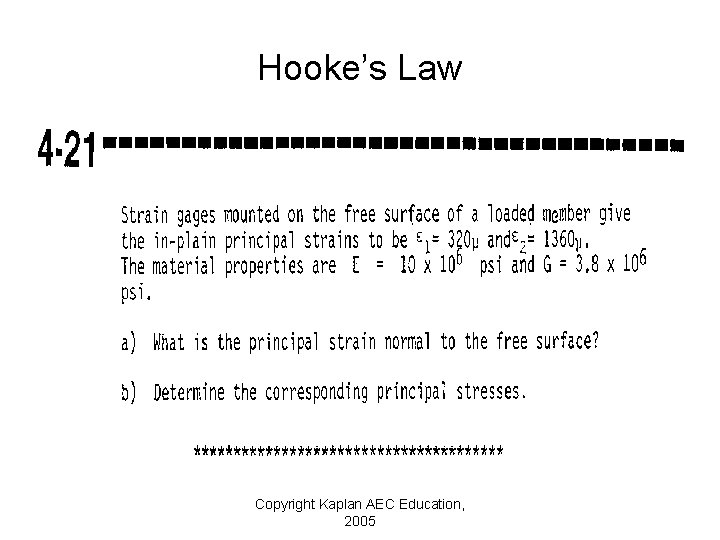

Hooke’s Law Copyright Kaplan AEC Education, 2005

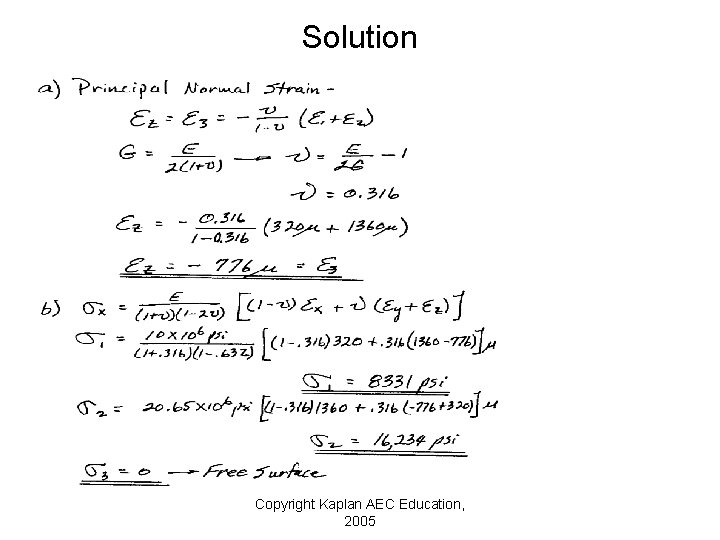

Solution Copyright Kaplan AEC Education, 2005

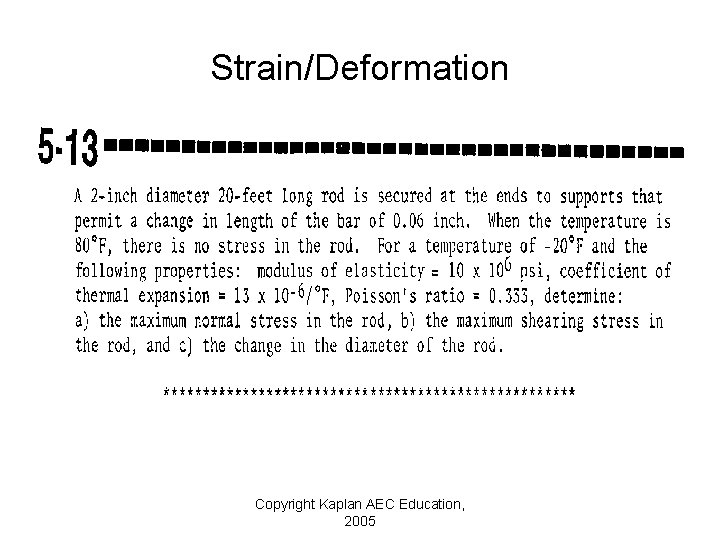

Strain/Deformation Copyright Kaplan AEC Education, 2005

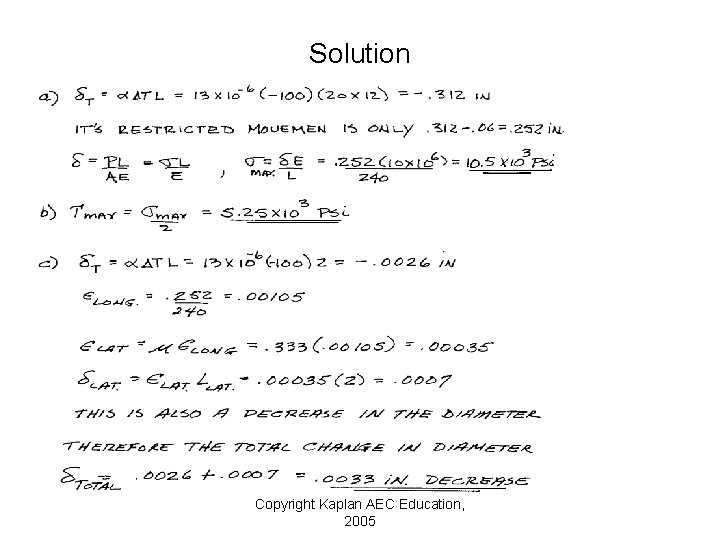

Solution Copyright Kaplan AEC Education, 2005

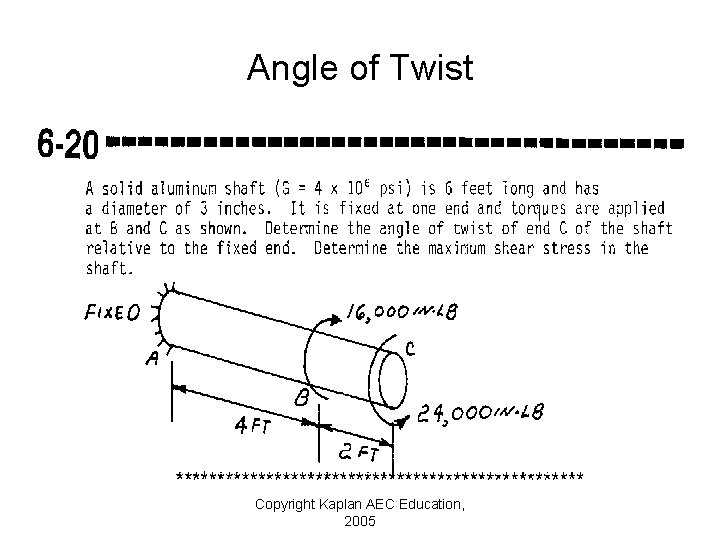

Angle of Twist Copyright Kaplan AEC Education, 2005

Solution Copyright Kaplan AEC Education, 2005

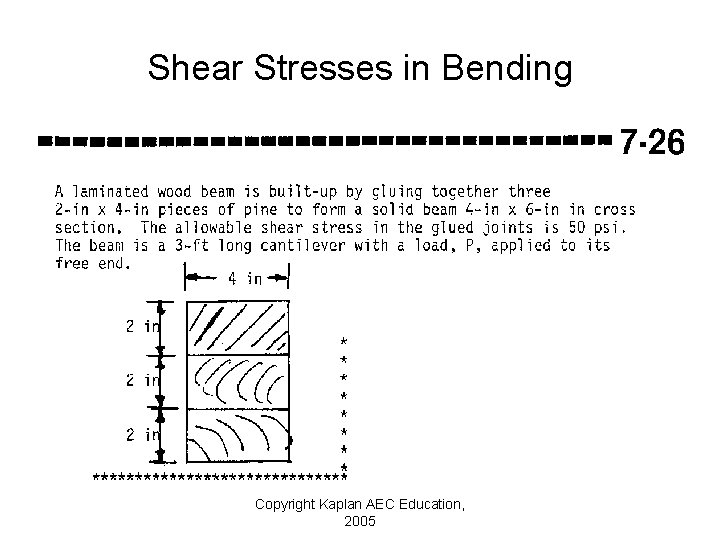

Shear Stresses in Bending Copyright Kaplan AEC Education, 2005

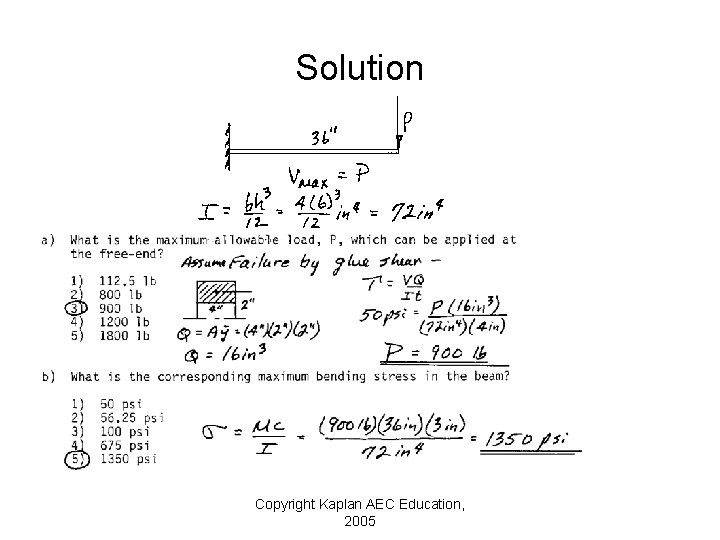

Solution Copyright Kaplan AEC Education, 2005

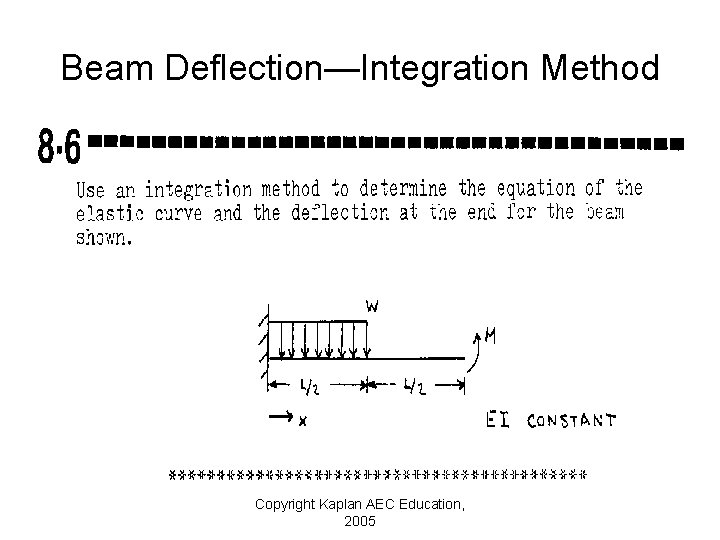

Beam Deflection—Integration Method Copyright Kaplan AEC Education, 2005

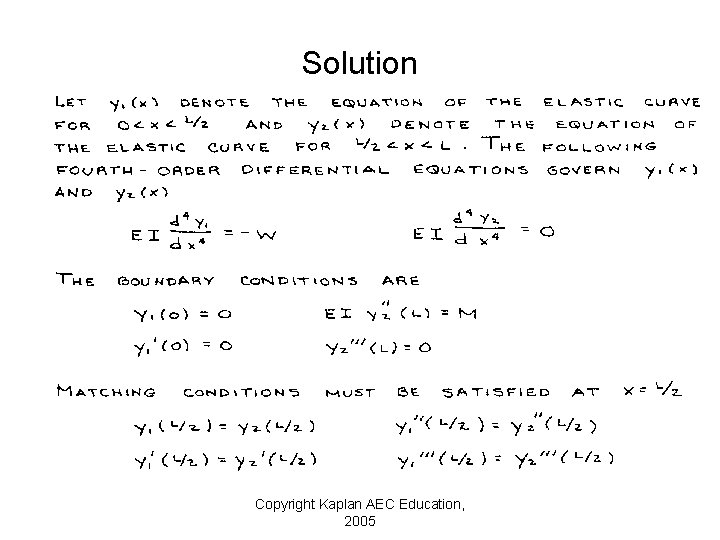

Solution Copyright Kaplan AEC Education, 2005

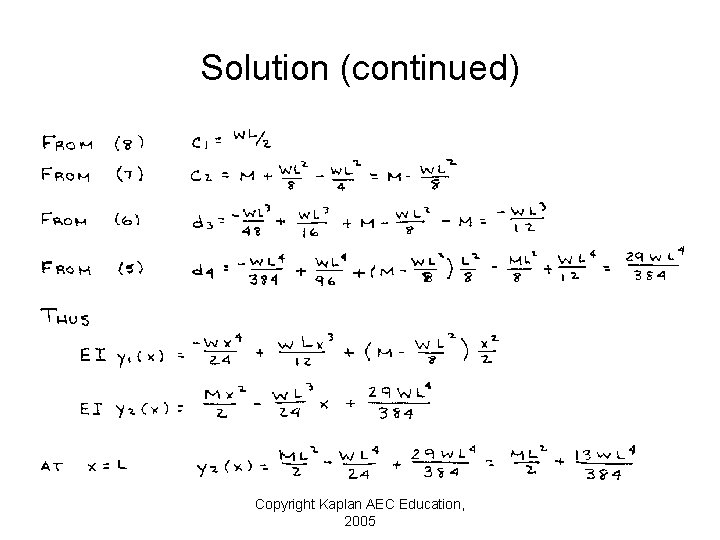

Solution (continued) Copyright Kaplan AEC Education, 2005

Solution (continued) Copyright Kaplan AEC Education, 2005

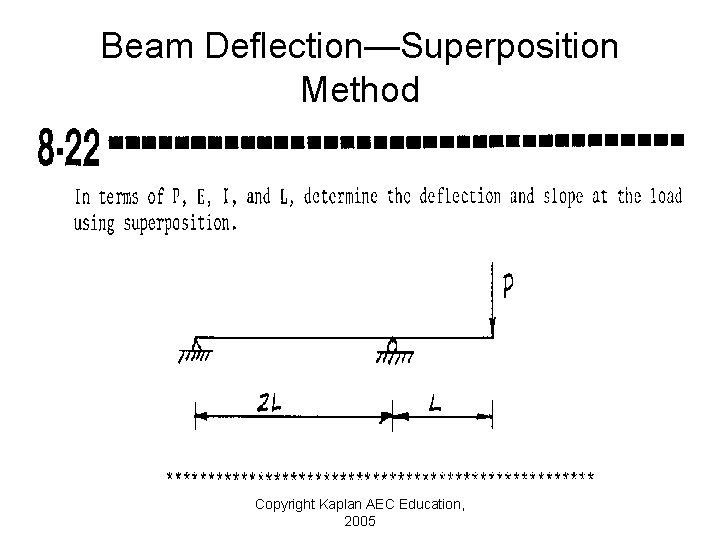

Beam Deflection—Superposition Method Copyright Kaplan AEC Education, 2005

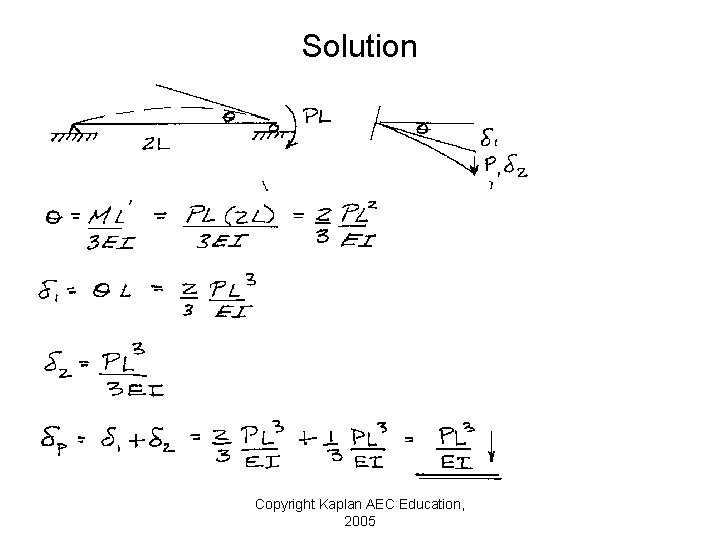

Solution Copyright Kaplan AEC Education, 2005

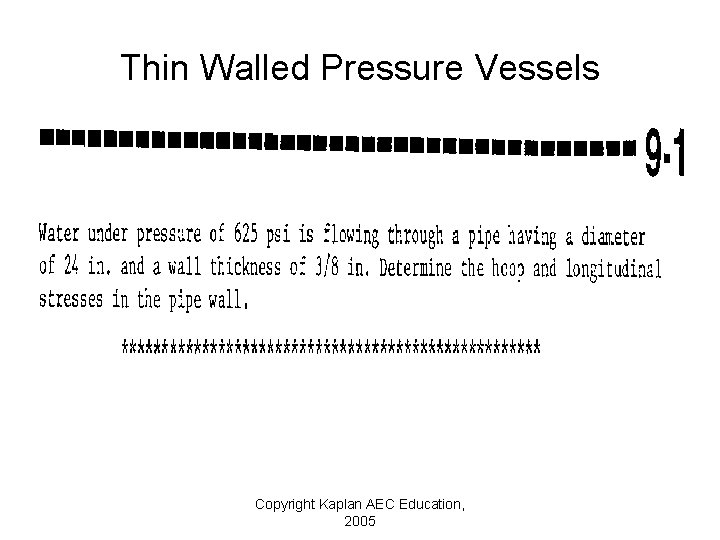

Thin Walled Pressure Vessels Copyright Kaplan AEC Education, 2005

Solution Copyright Kaplan AEC Education, 2005

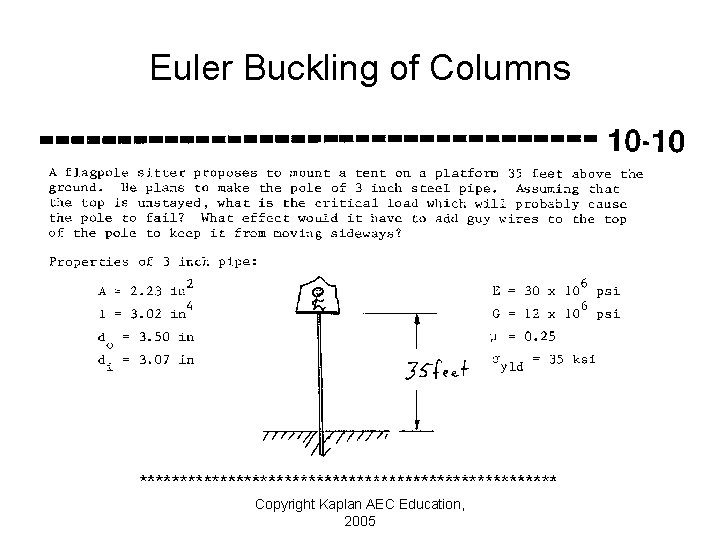

Euler Buckling of Columns Copyright Kaplan AEC Education, 2005

Solution Copyright Kaplan AEC Education, 2005

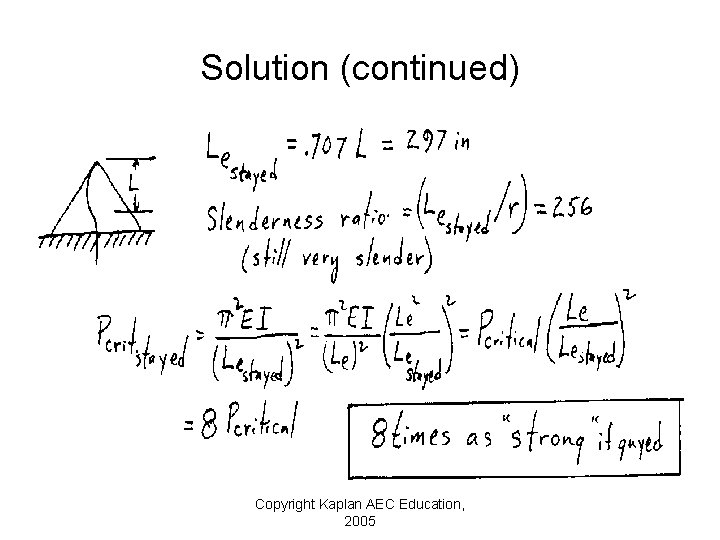

Solution (continued) Copyright Kaplan AEC Education, 2005
