Mechanically Articulated Robotic Computer Kit M A R

• Mechanically Articulated Robotic Computer Kit M. A. R. C. K. v 1 • Sold as a kit or DIY free downloadable plans at Global Analog with Digital Systems • A subsidiary of IGN Diversified

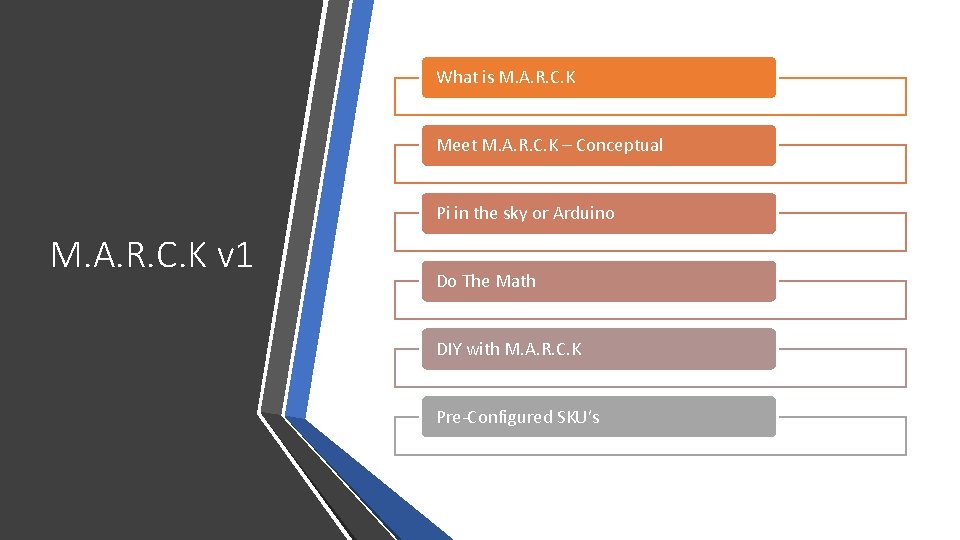

What is M. A. R. C. K Meet M. A. R. C. K – Conceptual Pi in the sky or Arduino M. A. R. C. K v 1 Do The Math DIY with M. A. R. C. K Pre-Configured SKU’s

M. A. R. C. K v 1 is a fun and educational robotic platform kit that you can either purchase or download to make a variety of robotic projects that you choose and design limited by only your own imagination and ingenuity. You will learn the basics of programming both Arduino and Raspberry Pi devices. We’ll call them both devices because each is uniquely different and provides varying cross platform value and capabilities when prototyping robotic, Io. T and cloud projects. What is M. A. R. C. K. You’ll learn the basics of source control management and uploading and downloading your sources to each device in its own unique way. You’ll learn to securely connect and provision devices in bulk and configure cloud services to enable the routing, storing and sharing of your Io. T device telemetry data. M. A. R. C. K is a kit. You can either DIY yourself by printing our plans on the internet for all of its components or you can conveniently purchase one of many pre-configured packages with options direct. Prefer it assembled and pre-configured? We can do that too. We’ve made it simple to acquire the components and build knowledge to support STEM education and educators enabling them to bring stunning concepts to their captive audiences in schools throughout the world.

Meet M. A. R. C. K. v 1 Arduino Mobility Look Reach Communicate Grip Program / Pi

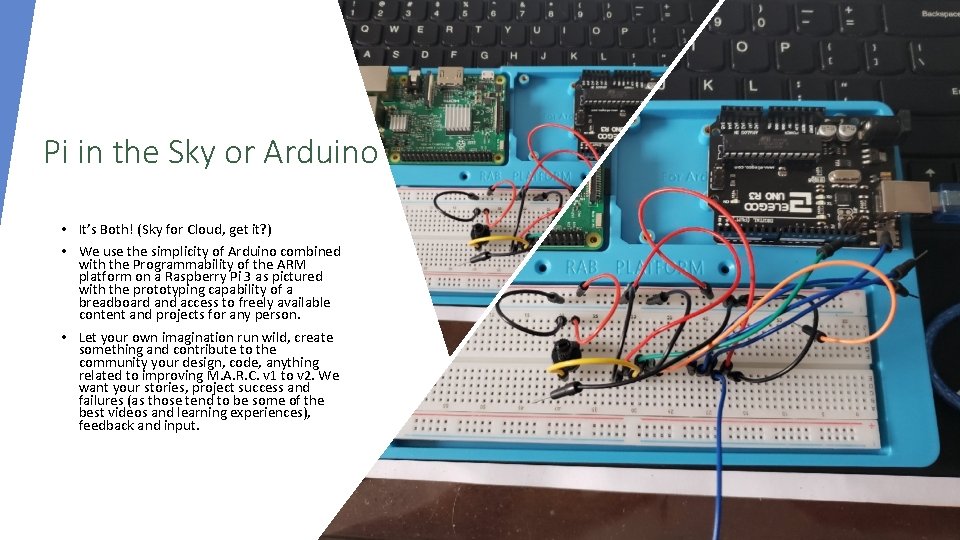

Pi in the Sky or Arduino • It’s Both! (Sky for Cloud, get it? ) • We use the simplicity of Arduino combined with the Programmability of the ARM platform on a Raspberry Pi 3 as pictured with the prototyping capability of a breadboard and access to freely available content and projects for any person. • Let your own imagination run wild, create something and contribute to the community your design, code, anything related to improving M. A. R. C. v 1 to v 2. We want your stories, project success and failures (as those tend to be some of the best videos and learning experiences), feedback and input.

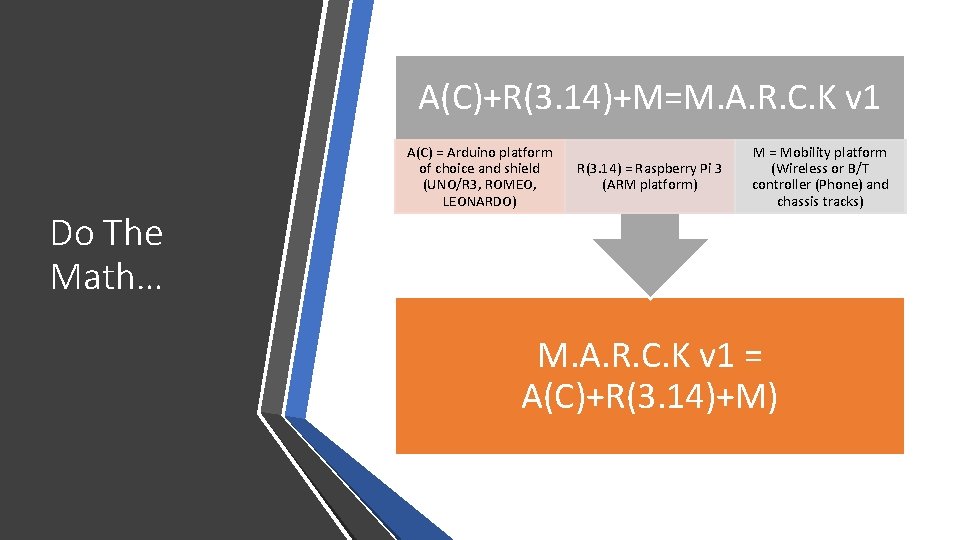

A(C)+R(3. 14)+M=M. A. R. C. K v 1 Do The Math… A(C) = Arduino platform of choice and shield (UNO/R 3, ROMEO, LEONARDO) R(3. 14) = Raspberry Pi 3 (ARM platform) M = Mobility platform (Wireless or B/T controller (Phone) and chassis tracks) M. A. R. C. K v 1 = A(C)+R(3. 14)+M)

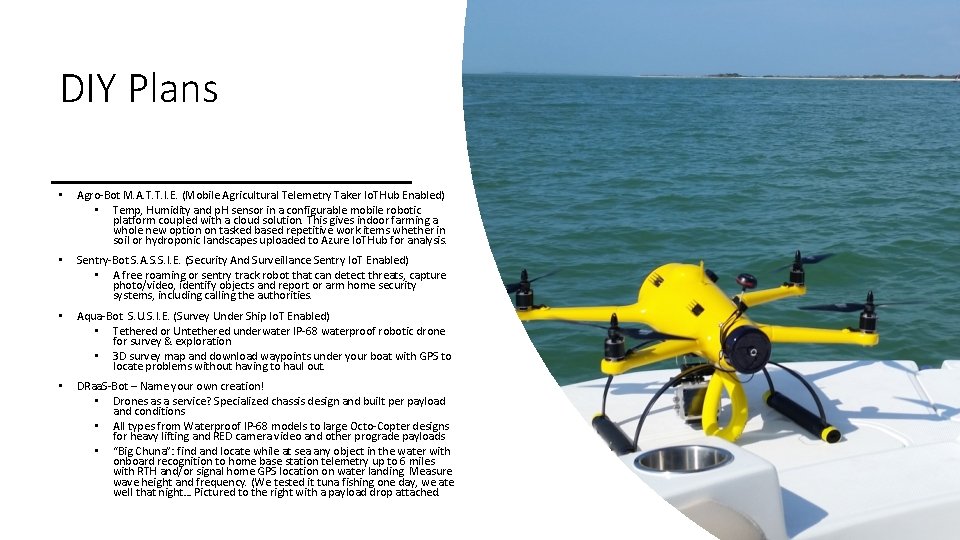

DIY Plans • Agro-Bot M. A. T. T. I. E. (Mobile Agricultural Telemetry Taker Io. THub Enabled) • Temp, Humidity and p. H sensor in a configurable mobile robotic platform coupled with a cloud solution. This gives indoor farming a whole new option on tasked based repetitive work items whether in soil or hydroponic landscapes uploaded to Azure Io. THub for analysis. • Sentry-Bot S. A. S. S. I. E. (Security And Surveillance Sentry Io. T Enabled) • A free roaming or sentry track robot that can detect threats, capture photo/video, identify objects and report or arm home security systems, including calling the authorities. • Aqua-Bot S. U. S. I. E. (Survey Under Ship Io. T Enabled) • Tethered or Untethered underwater IP-68 waterproof robotic drone for survey & exploration • 3 D survey map and download waypoints under your boat with GPS to locate problems without having to haul out. • DRaa. S-Bot – Name your own creation! • Drones as a service? Specialized chassis design and built per payload and conditions • All types from Waterproof IP-68 models to large Octo-Copter designs for heavy lifting and RED camera video and other prograde payloads • “Big Chuna”: find and locate while at sea any object in the water with onboard recognition to home base station telemetry up to 6 miles with RTH and/or signal home GPS location on water landing. Measure wave height and frequency. (We tested it tuna fishing one day, we ate well that night… Pictured to the right with a payload drop attached.

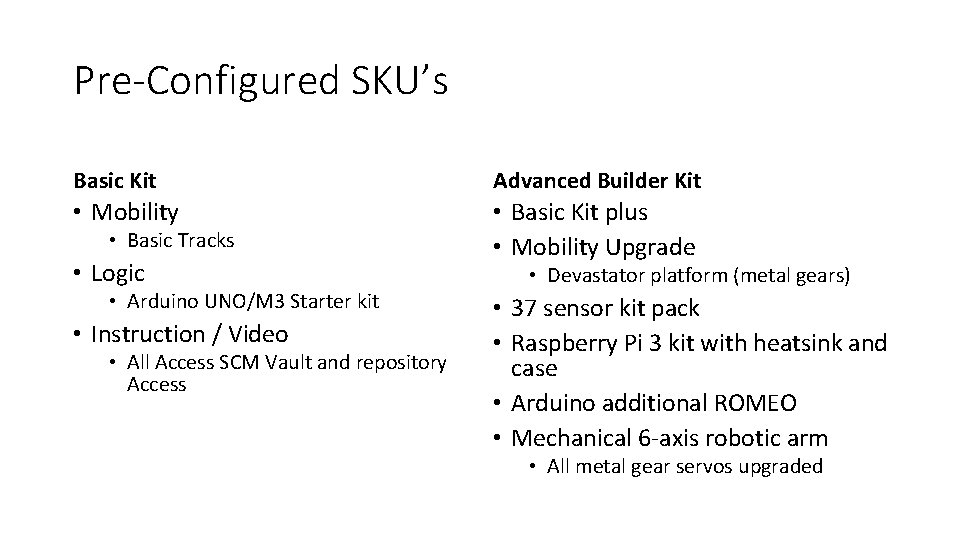

Pre-Configured SKU’s Basic Kit Advanced Builder Kit • Mobility • Basic Kit plus • Mobility Upgrade • Basic Tracks • Logic • Arduino UNO/M 3 Starter kit • Instruction / Video • All Access SCM Vault and repository Access • Devastator platform (metal gears) • 37 sensor kit pack • Raspberry Pi 3 kit with heatsink and case • Arduino additional ROMEO • Mechanical 6 -axis robotic arm • All metal gear servos upgraded

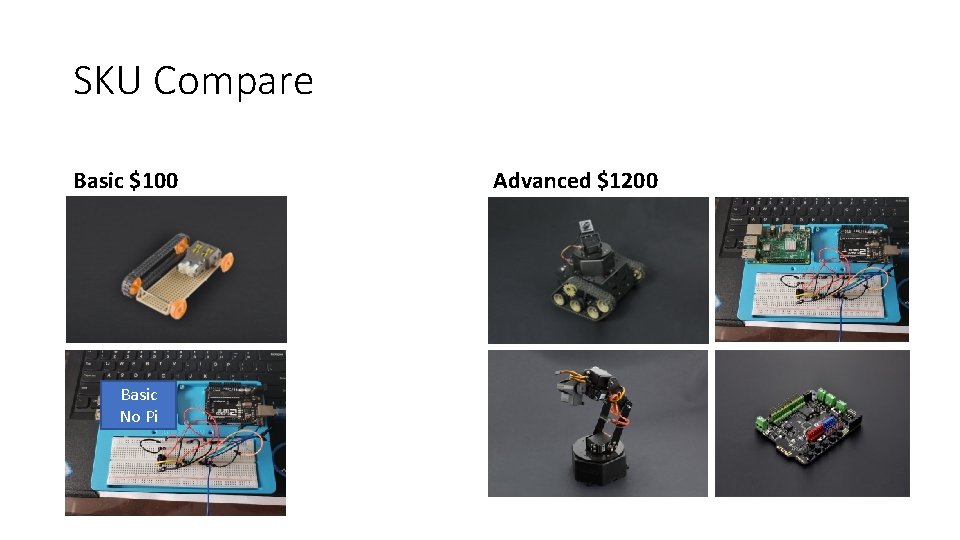

SKU Compare Basic $100 Basic No Pi Advanced $1200

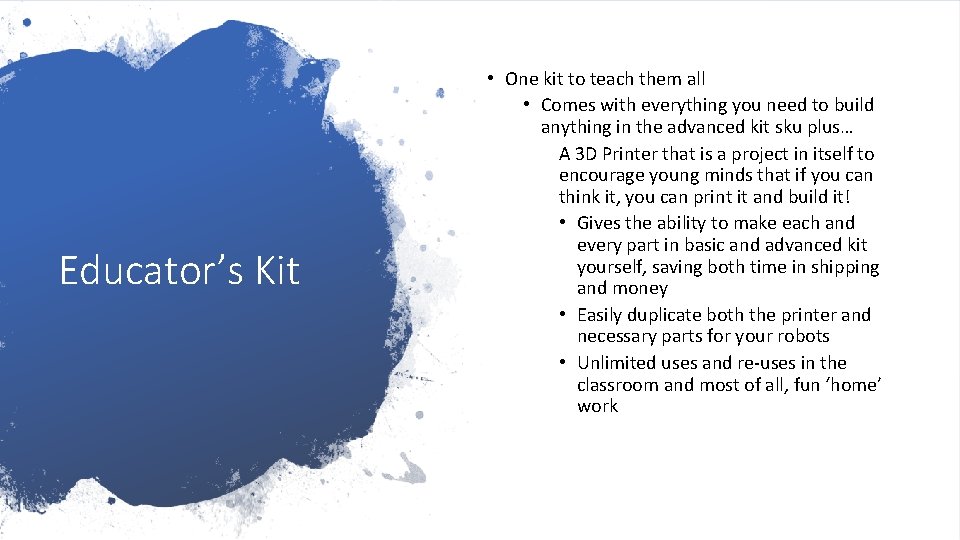

Educator’s Kit • One kit to teach them all • Comes with everything you need to build anything in the advanced kit sku plus… A 3 D Printer that is a project in itself to encourage young minds that if you can think it, you can print it and build it! • Gives the ability to make each and every part in basic and advanced kit yourself, saving both time in shipping and money • Easily duplicate both the printer and necessary parts for your robots • Unlimited uses and re-uses in the classroom and most of all, fun ‘home’ work
