Measuring Wind Direction With A Map Compass Tools For Pesticide Applicators Larry Schulze Pesticide Education Specialist University of Nebraska- Lincoln Extension

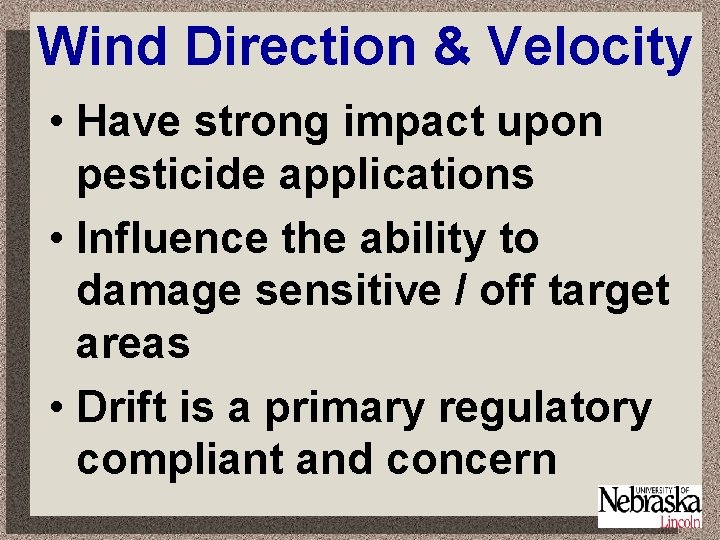

Wind Direction & Velocity • Have strong impact upon pesticide applications • Influence the ability to damage sensitive / off target areas • Drift is a primary regulatory compliant and concern

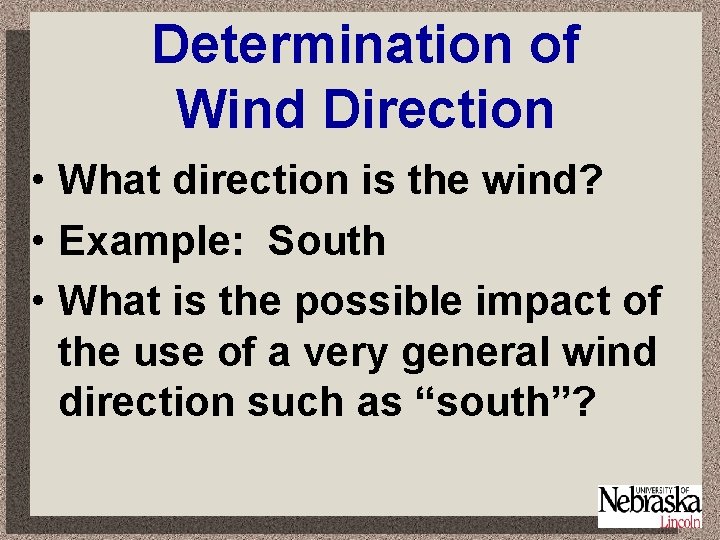

Determination of Wind Direction • What direction is the wind? • Example: South • What is the possible impact of the use of a very general wind direction such as “south”?

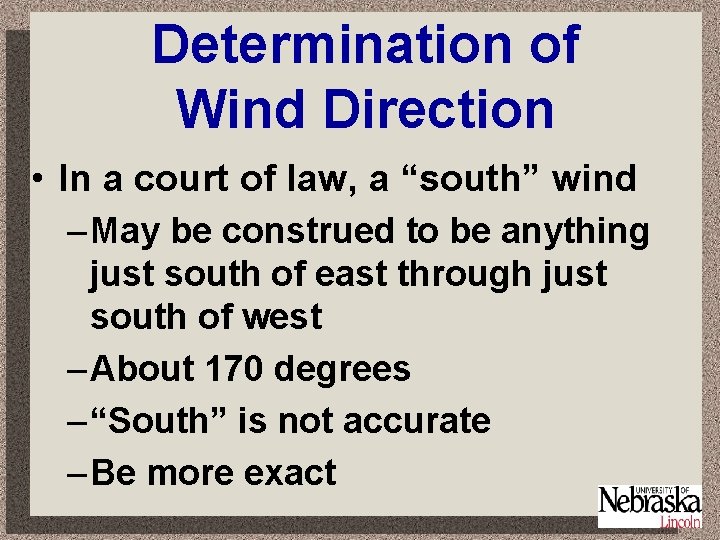

Determination of Wind Direction • In a court of law, a “south” wind – May be construed to be anything just south of east through just south of west – About 170 degrees – “South” is not accurate – Be more exact

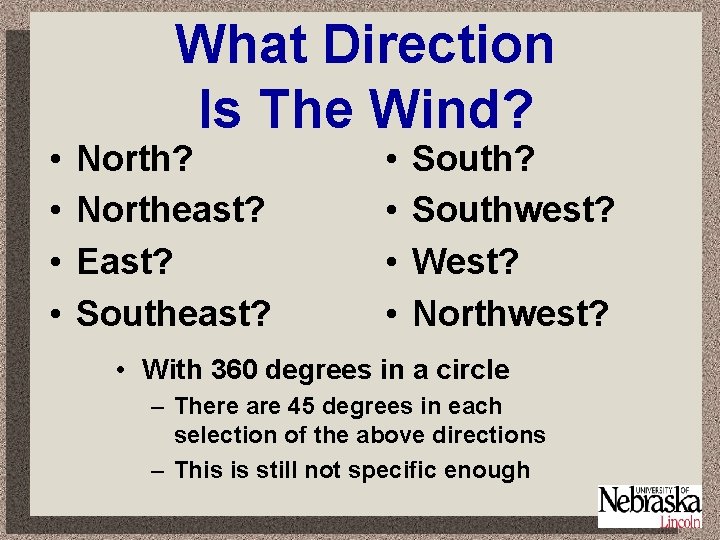

• • What Direction Is The Wind? North? Northeast? East? Southeast? • • South? Southwest? West? Northwest? • With 360 degrees in a circle – There are 45 degrees in each selection of the above directions – This is still not specific enough

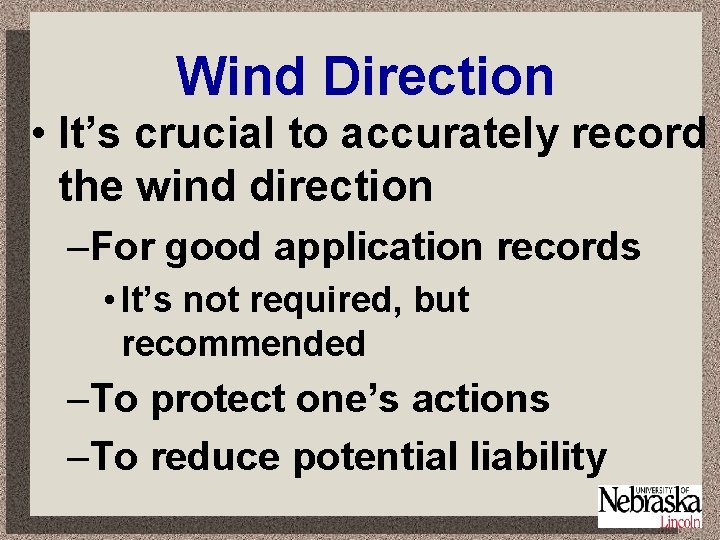

Wind Direction • It’s crucial to accurately record the wind direction –For good application records • It’s not required, but recommended –To protect one’s actions –To reduce potential liability

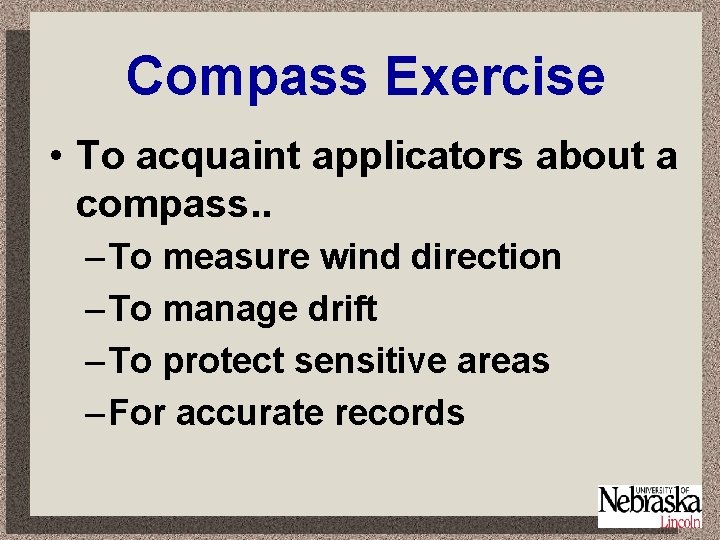

Compass Exercise • To acquaint applicators about a compass. . – To measure wind direction – To manage drift – To protect sensitive areas – For accurate records

Map Compass As an example……… Click here for Coghlan’s Web site See “Products Listing, ” then “Compasses” Product No. 8162

Parts of a Compass

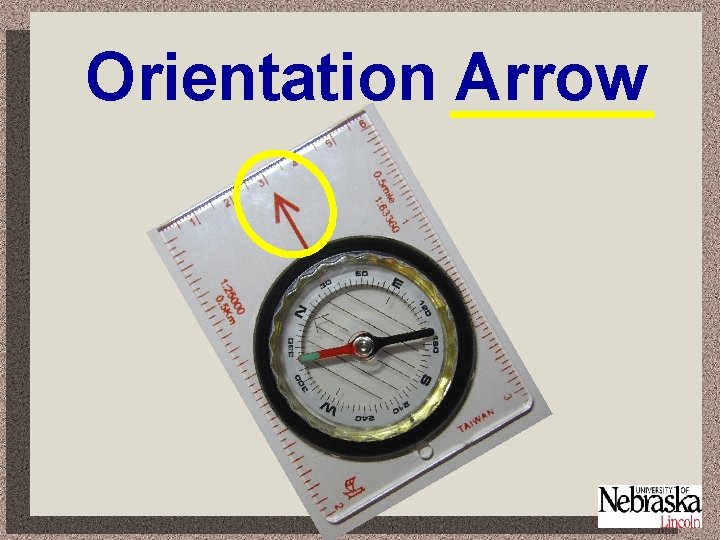

Orientation Arrow

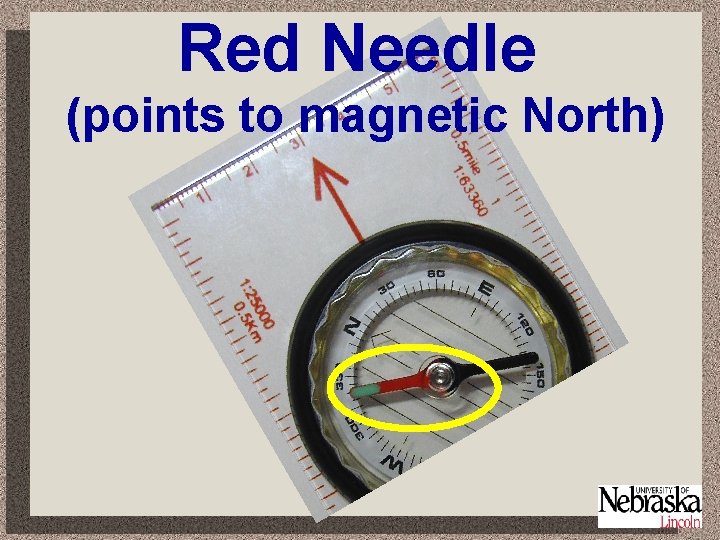

Red Needle (points to magnetic North)

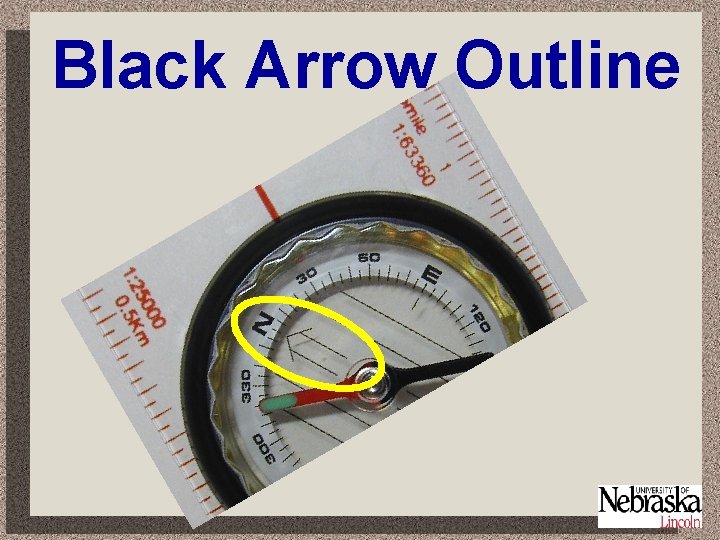

Black Arrow Outline

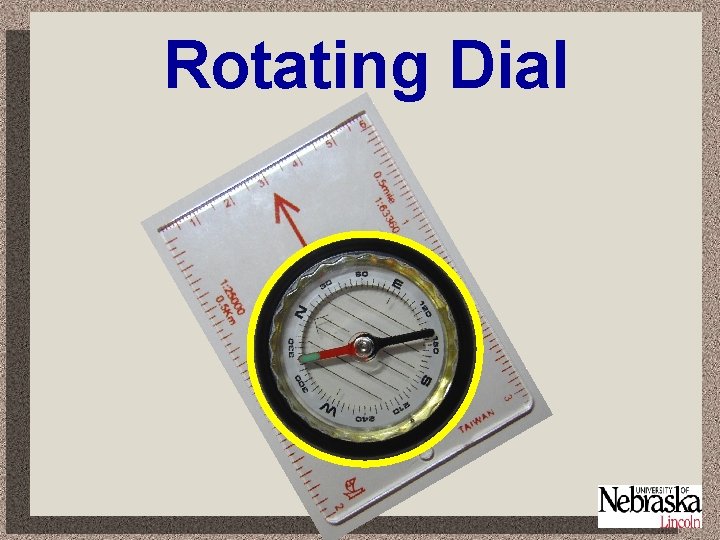

Rotating Dial

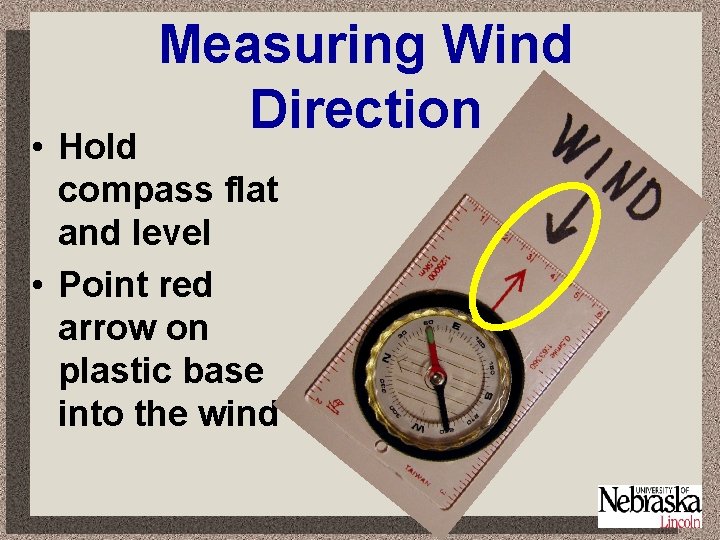

Measuring Wind Direction • Hold compass flat and level • Point red arrow on plastic base into the wind

• Measuring Wind Direction Observe red needle with green tip points to magnetic North • Turn compass dial until black arrow outline is under the red needle

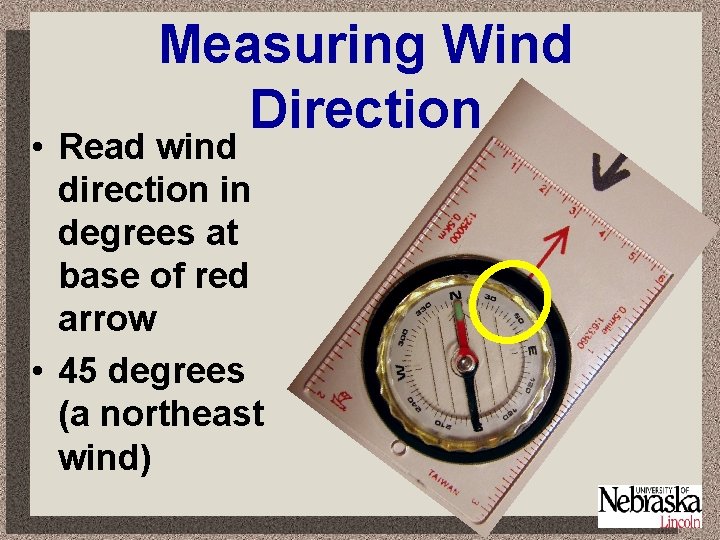

Measuring Wind Direction • Read wind direction in degrees at base of red arrow • 45 degrees (a northeast wind)

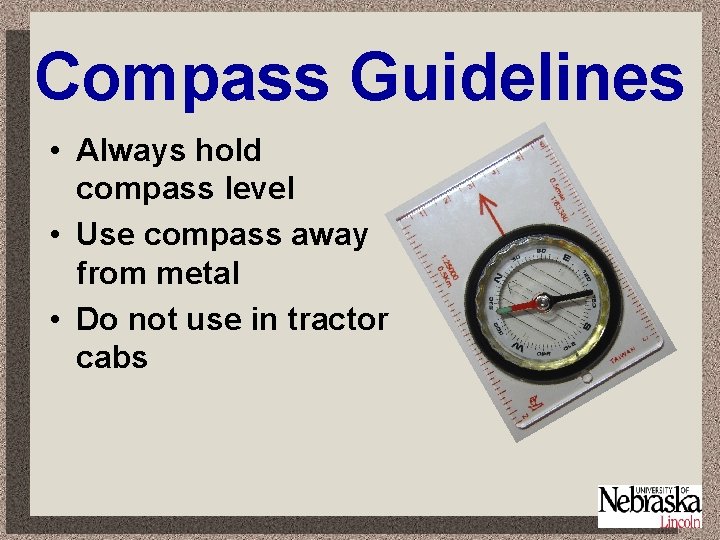

Compass Guidelines • Always hold compass level • Use compass away from metal • Do not use in tractor cabs

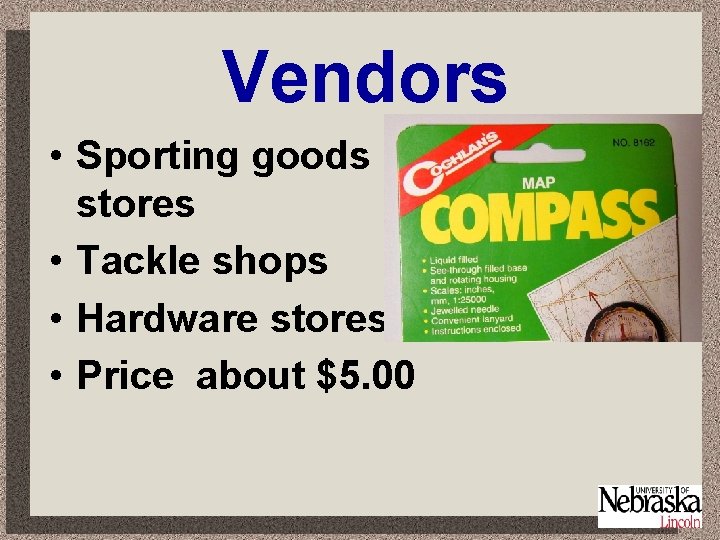

Vendors • Sporting goods stores • Tackle shops • Hardware stores • Price about $5. 00
