Measuring weight using beam balance scale

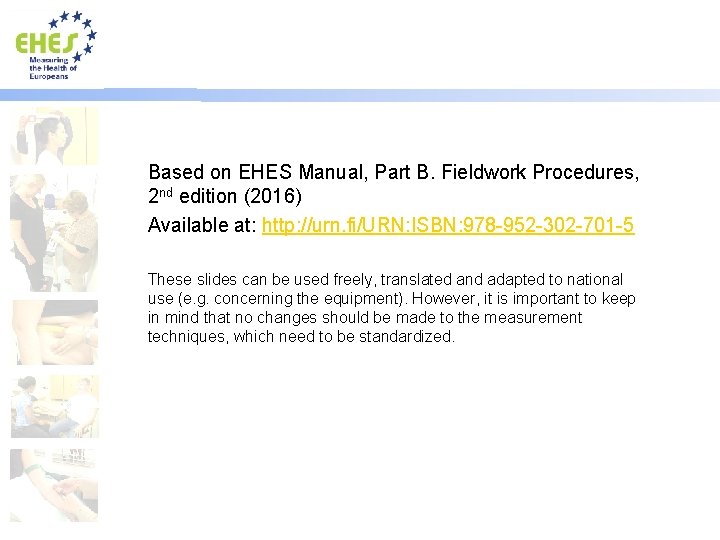

Based on EHES Manual, Part B. Fieldwork Procedures, 2 nd edition (2016) Available at: http: //urn. fi/URN: ISBN: 978 -952 -302 -701 -5 These slides can be used freely, translated and adapted to national use (e. g. concerning the equipment). However, it is important to keep in mind that no changes should be made to the measurement techniques, which need to be standardized.

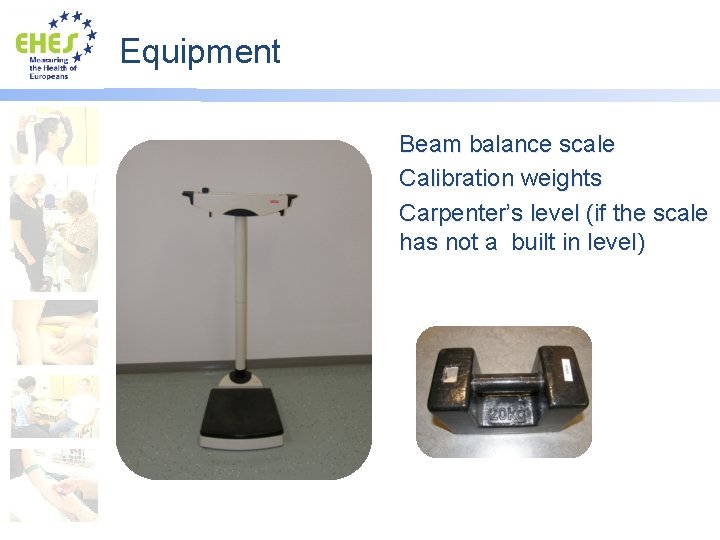

Equipment Beam balance scale Calibration weights Carpenter’s level (if the scale has not a built in level)

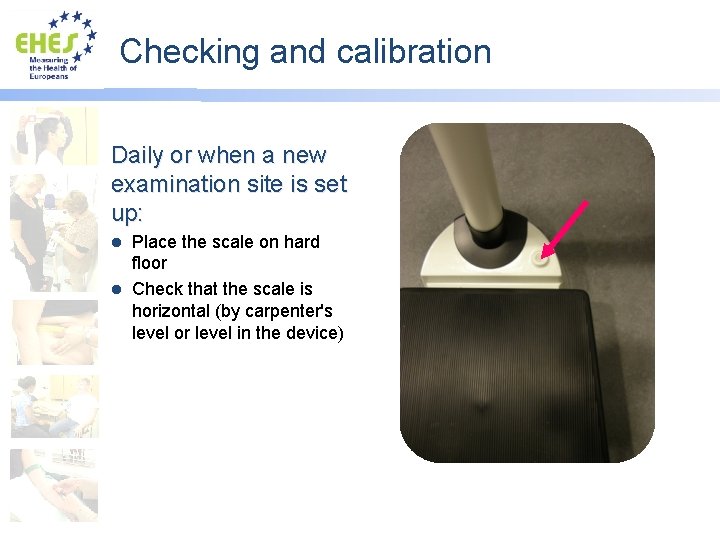

Checking and calibration Daily or when a new examination site is set up: Place the scale on hard floor l Check that the scale is horizontal (by carpenter's level or level in the device) l

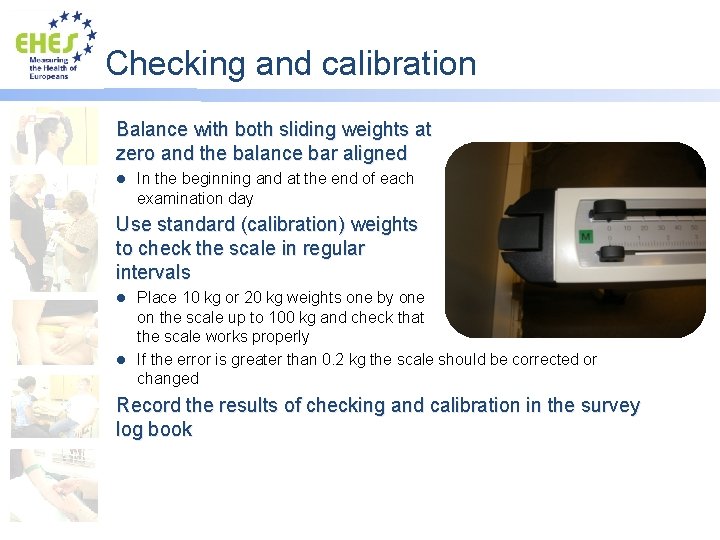

Checking and calibration Balance with both sliding weights at zero and the balance bar aligned l In the beginning and at the end of each examination day Use standard (calibration) weights to check the scale in regular intervals Place 10 kg or 20 kg weights one by one on the scale up to 100 kg and check that the scale works properly l If the error is greater than 0. 2 kg the scale should be corrected or changed l Record the results of checking and calibration in the survey log book

Motivate participant Explain why weight is measured Previous measurements may be inaccurate and not comparable to the results from other participants l Your weight is likely to vary even daily l Accurate weight is needed e. g. to calculate body mass index, which is an indicator of obesity l

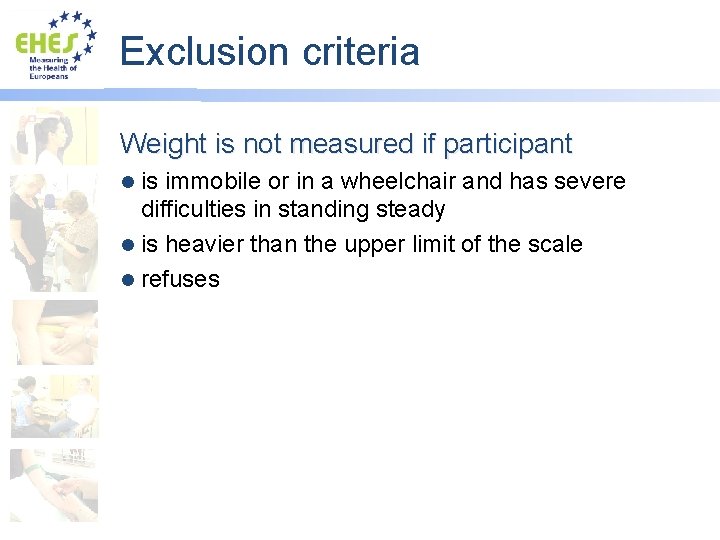

Exclusion criteria Weight is not measured if participant is immobile or in a wheelchair and has severe difficulties in standing steady l is heavier than the upper limit of the scale l refuses l

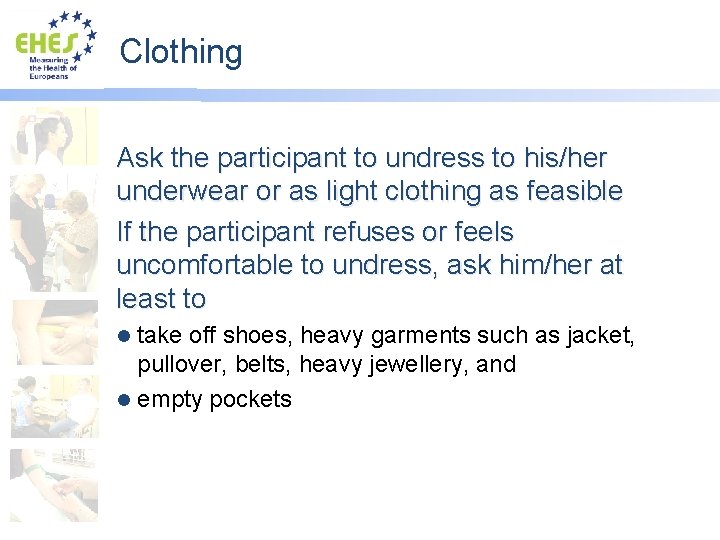

Clothing Ask the participant to undress to his/her underwear or as light clothing as feasible If the participant refuses or feels uncomfortable to undress, ask him/her at least to take off shoes, heavy garments such as jacket, pullover, belts, heavy jewellery, and l empty pockets l

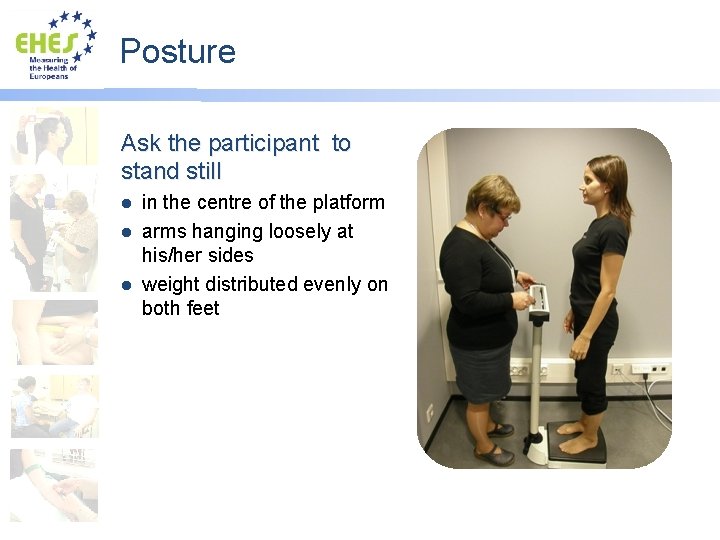

Posture Ask the participant to stand still in the centre of the platform l arms hanging loosely at his/her sides l weight distributed evenly on both feet l

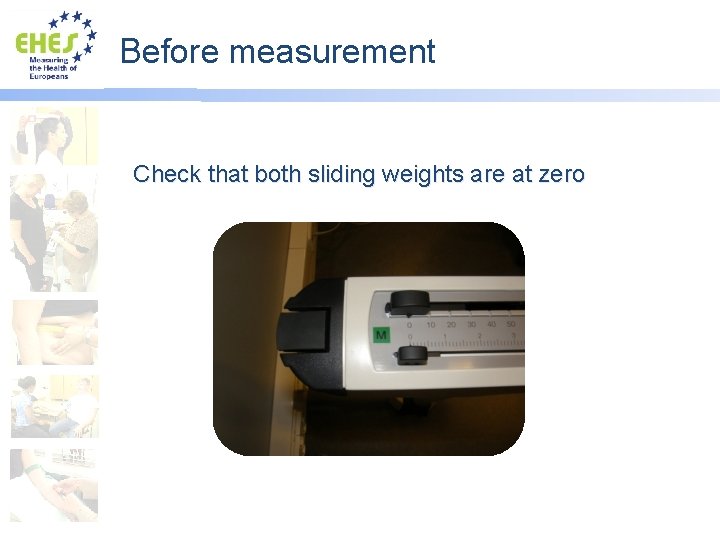

Before measurement Check that both sliding weights are at zero

Weight measurement Move the weights until the beam balances properly

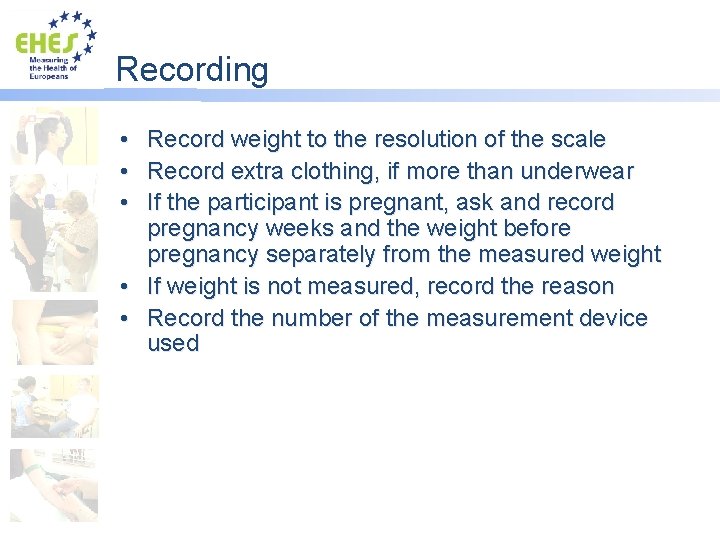

Recording • Record weight to the resolution of the scale • Record extra clothing, if more than underwear • If the participant is pregnant, ask and record pregnancy weeks and the weight before pregnancy separately from the measured weight • If weight is not measured, record the reason • Record the number of the measurement device used

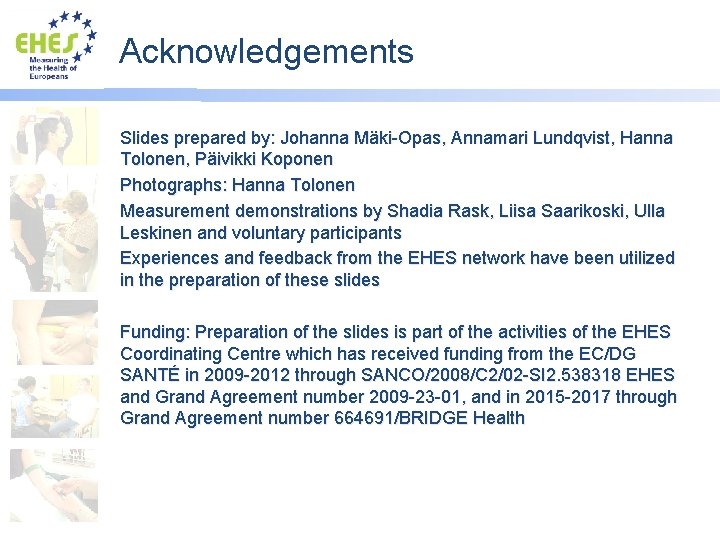

Acknowledgements Slides prepared by: Johanna Mäki-Opas, Annamari Lundqvist, Hanna Tolonen, Päivikki Koponen Photographs: Hanna Tolonen Measurement demonstrations by Shadia Rask, Liisa Saarikoski, Ulla Leskinen and voluntary participants Experiences and feedback from the EHES network have been utilized in the preparation of these slides Funding: Preparation of the slides is part of the activities of the EHES Coordinating Centre which has received funding from the EC/DG SANTÉ in 2009 -2012 through SANCO/2008/C 2/02 -SI 2. 538318 EHES and Grand Agreement number 2009 -23 -01, and in 2015 -2017 through Grand Agreement number 664691/BRIDGE Health

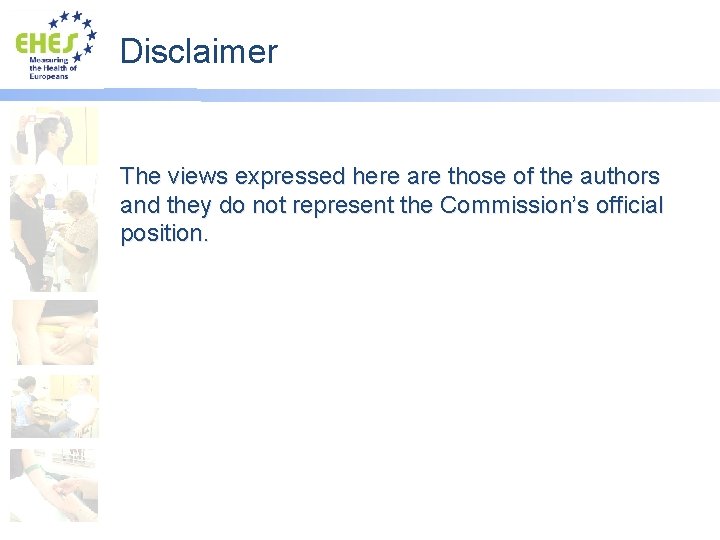

Disclaimer The views expressed here are those of the authors and they do not represent the Commission’s official position.
